Model Whirlpool TU4100XTP0 TRASH COMPACTOR – Common Parts & Diagrams

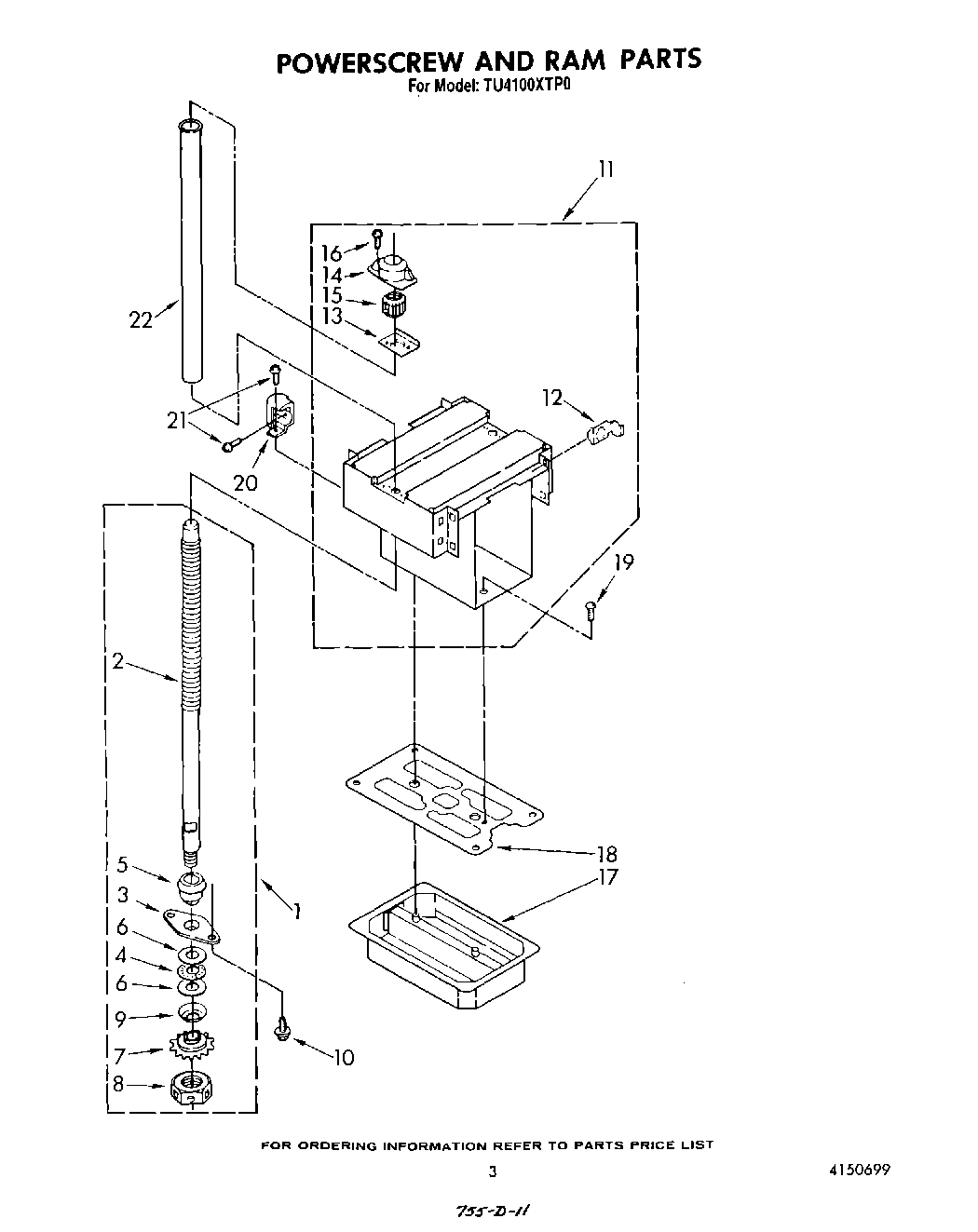

03 - POWERSCREW AND RAM

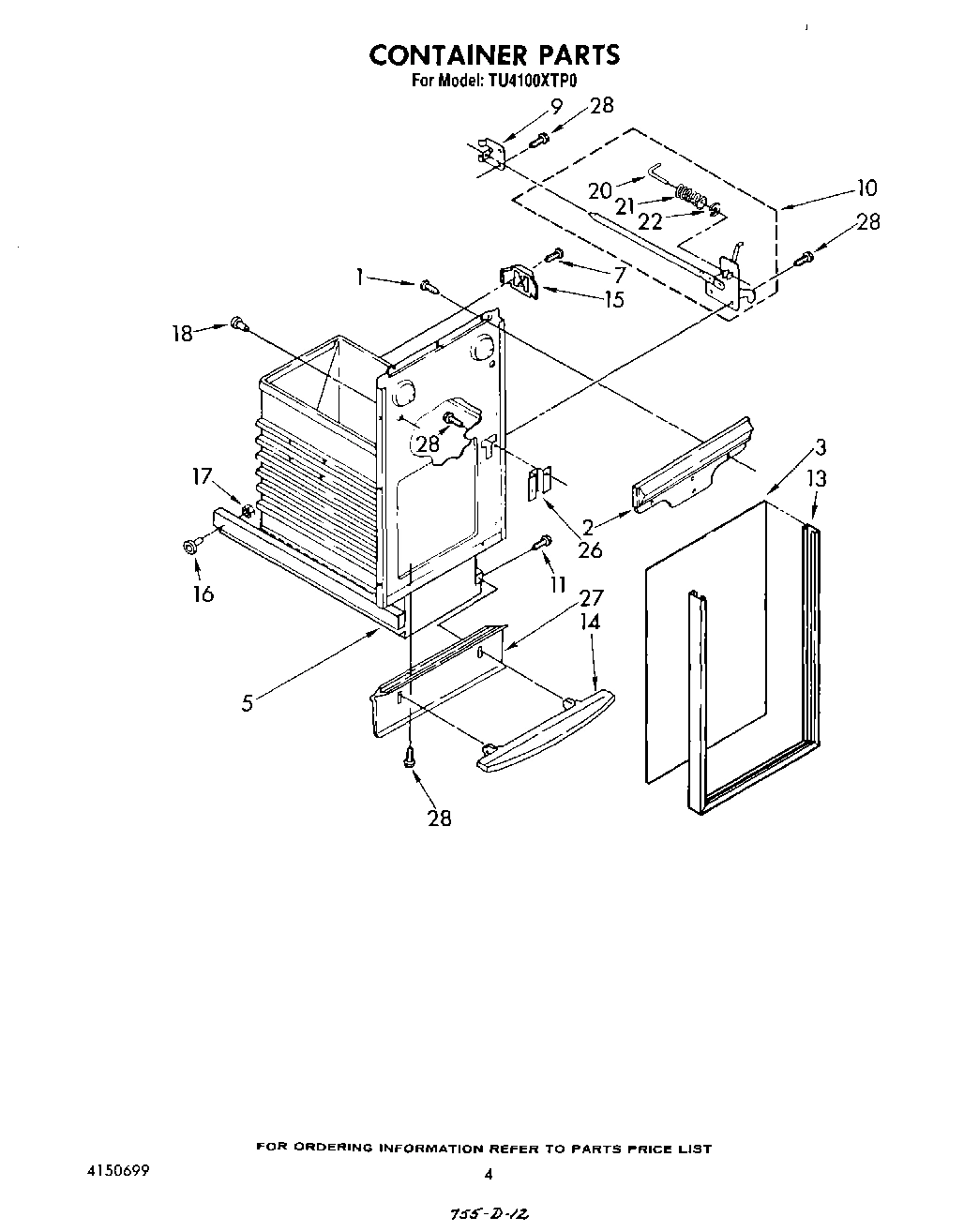

04 - CONTAINER
06 - ACCESSORIES
05 - PANEL AND CONTROL
01 - MOTOR AND DRIVE , LIT/OPTIONAL
02 - FRAME
Common parts from model Whirlpool TU4100XTP0 TRASH COMPACTOR
Guide, Use and Care WPL LIT4150489 Contact Us For Availability
List, Repair Parts WPL LIT4150699 Contact Us For Availability
Instructions, Installation WPL LIT780337 Contact Us For Availability
Sheet, Tech and Wiring Daigram WPL LIT780487 Contact Us For Availability
1
Panel, Container Front (Almond & Harvest Gold WPL 777762 Contact Us For Availability
1
Panel, Container (Coffee & Avocado) WPL 777912 Contact Us For Availability
1
Panel, Container (Black & White) WPL 777941 Contact Us For Availability
1
Panel, Container (Platinum & Toast) WPL 780280 Contact Us For Availability
1
Panel, Front Frame WPL 608846 Contact Us For Availability
1
Frame (Not a Serviceable Part) WPL ARI133797A Contact Us For Availability
2
Bag, Trash (96 Pack (Paper)) WPL 675350 Contact Us For Availability
2
Cover, Top (Recessed) WPL 608572 Contact Us For Availability
2
Bumper (4) WPL 775643 Contact Us For Availability
3
Deodorizer, Solid Stick-Ups (2-Pack) WPL 777635 Contact Us For Availability
3
Screw. 1/4-20 x 1/2 (4) WPL 776593 Contact Us For Availability
4
Trash, Container (Reusable) WPL 882653 Contact Us For Availability
7
Escutcheon, Control WPL 780050 Contact Us For Availability
7
Nut, 6-32 (4) WPL 776188 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Screw, 6-20 x 3/8 (2) WPL 776559 Contact Us For Availability
9
Insert, Escutcheon WPL 780407 Contact Us For Availability
10
Paint, Touch-Up 1/2 Oz. (Stanford Brown) WPL 72106 Contact Us For Availability
10
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
10
WPL 72112 WPL 72112 Contact Us For Availability
11
WPL 261886 WPL 261886 Contact Us For Availability
11
WPL 261888 WPL 261888 Contact Us For Availability
11
WPL 261890 WPL 261890 Contact Us For Availability
11
WPL 285365 WPL 285365 Contact Us For Availability
11
WPL 285366 WPL 285366 Contact Us For Availability
11
WPL 675167 WPL 675167 Contact Us For Availability
11
WPL 978726 WPL 978726 Contact Us For Availability
11
Knob, Rotary Switch WPL 780191 Contact Us For Availability
12
WPL 776523 WPL 776523 Contact Us For Availability
12
Harness, Wiring WPL 4150274 Contact Us For Availability
12
Cover, Motor WPL 608849 Contact Us For Availability
13
Switch, Drawer Tilt WPL 780421 Contact Us For Availability
13
Plate, Motor Cover WPL 608009 Contact Us For Availability
14
Barrier, Glass WPL 776780 Contact Us For Availability
15
Compartment, Deodorant WPL 608533 Contact Us For Availability
17
Wheel, R.H. WPL 780139 Contact Us For Availability
20
Plate, Nut WPL 777850 Contact Us For Availability
21
Cord, Power WPL 778575 Contact Us For Availability
22
Bushing, Cord WPL 776119 Contact Us For Availability
23
Clamp, Wire WPL 777035 Contact Us For Availability
24
Grommet, Motor Cover WPL 776118 Contact Us For Availability
25
leveler (2) WPL 780082 Contact Us For Availability
28
Panel, Inner (2) WPL 780412 Contact Us For Availability
× ![]()
