Model Whirlpool TU4000XRP1 TRASH COMPACTOR – Common Parts & Diagrams

List, Repair Parts
List, Repair Parts WPL LIT4147760 Contact Us For Availability
View on Model
Sheet, Tech (Service Information)
Sheet, Tech (Service Information) WPL LIT777830 Contact Us For Availability
View on Model
Instructions, Installation
Instructions, Installation WPL LIT780337 Contact Us For Availability
View on Model
Guide, Use and Care
Guide, Use and Care WPL LIT780401 Contact Us For Availability
View on Model
1
Panel, Container Front (White & Copper Hi-Lit
Panel, Container Front (White & Copper Hi-Lit WPL 608438 Contact Us For Availability
View on Model
1
Panel, Contianer Front (Brushed Chrome)
Panel, Contianer Front (Brushed Chrome) WPL 675378 Contact Us For Availability
View on Model
1
Panel, Container Front (Coffee & Harvest Gold
Panel, Container Front (Coffee & Harvest Gold WPL 777714 Contact Us For Availability
View on Model
1
Panel, Contianer Front (White & New Avocado)
Panel, Contianer Front (White & New Avocado) WPL 777761 Contact Us For Availability
View on Model
1
Panel, Container Front (Almond & Harvest Gold
Panel, Container Front (Almond & Harvest Gold WPL 777762 Contact Us For Availability
View on Model
1
panel, container front (coffee & avocado)
panel, container front (coffee & avocado) WPL 777912 Contact Us For Availability
View on Model
1
Panel, Container Front (Black & White)
Panel, Container Front (Black & White) WPL 777941 Contact Us For Availability
View on Model
1
Panel, Container Front (Platinum & Toast)
Panel, Container Front (Platinum & Toast) WPL 780280 Contact Us For Availability
View on Model
1

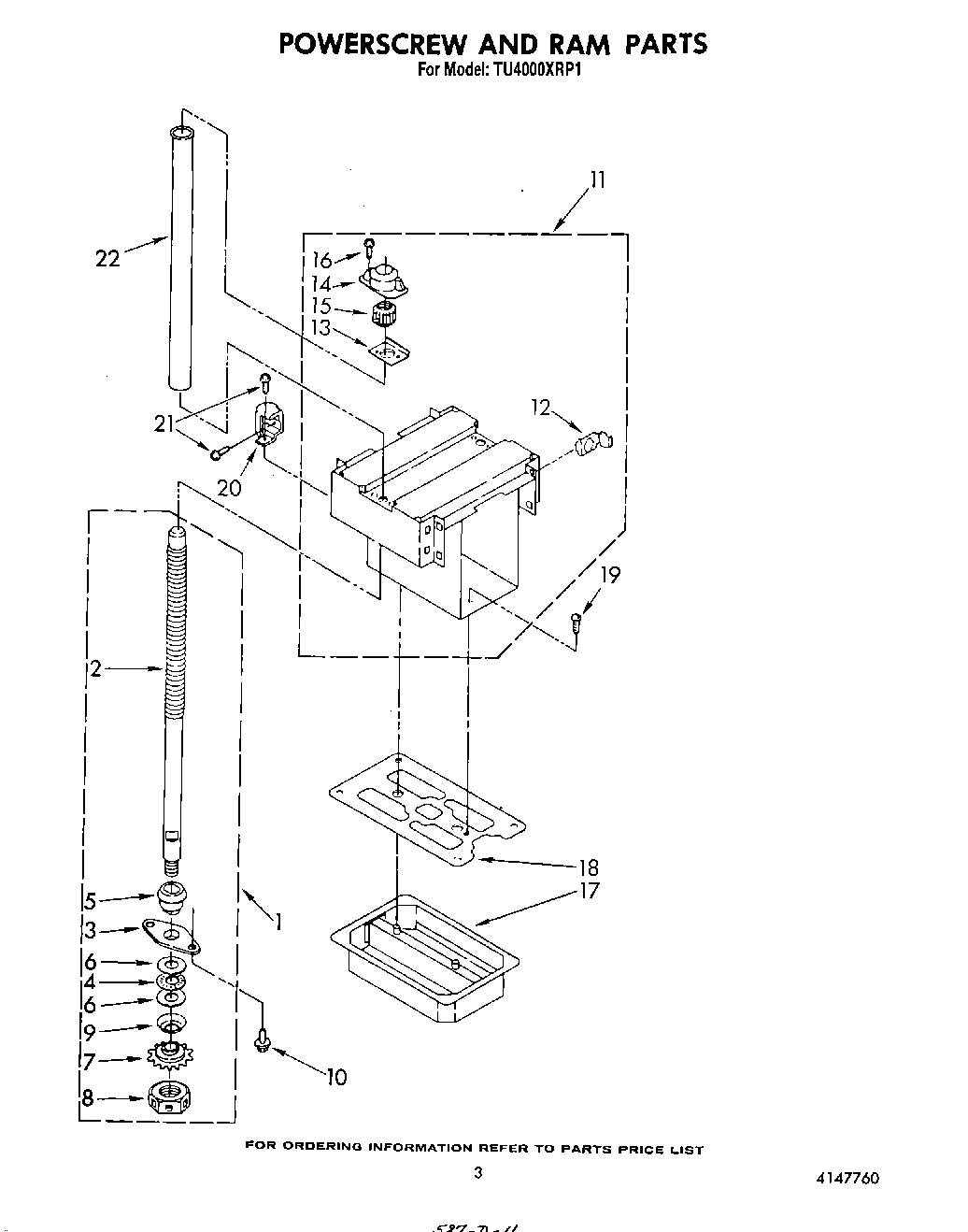

Screw, Power Complete Assembly (2)
Screw, Power Complete Assembly (2) WPL 777876 Contact Us For Availability
View on Model
2

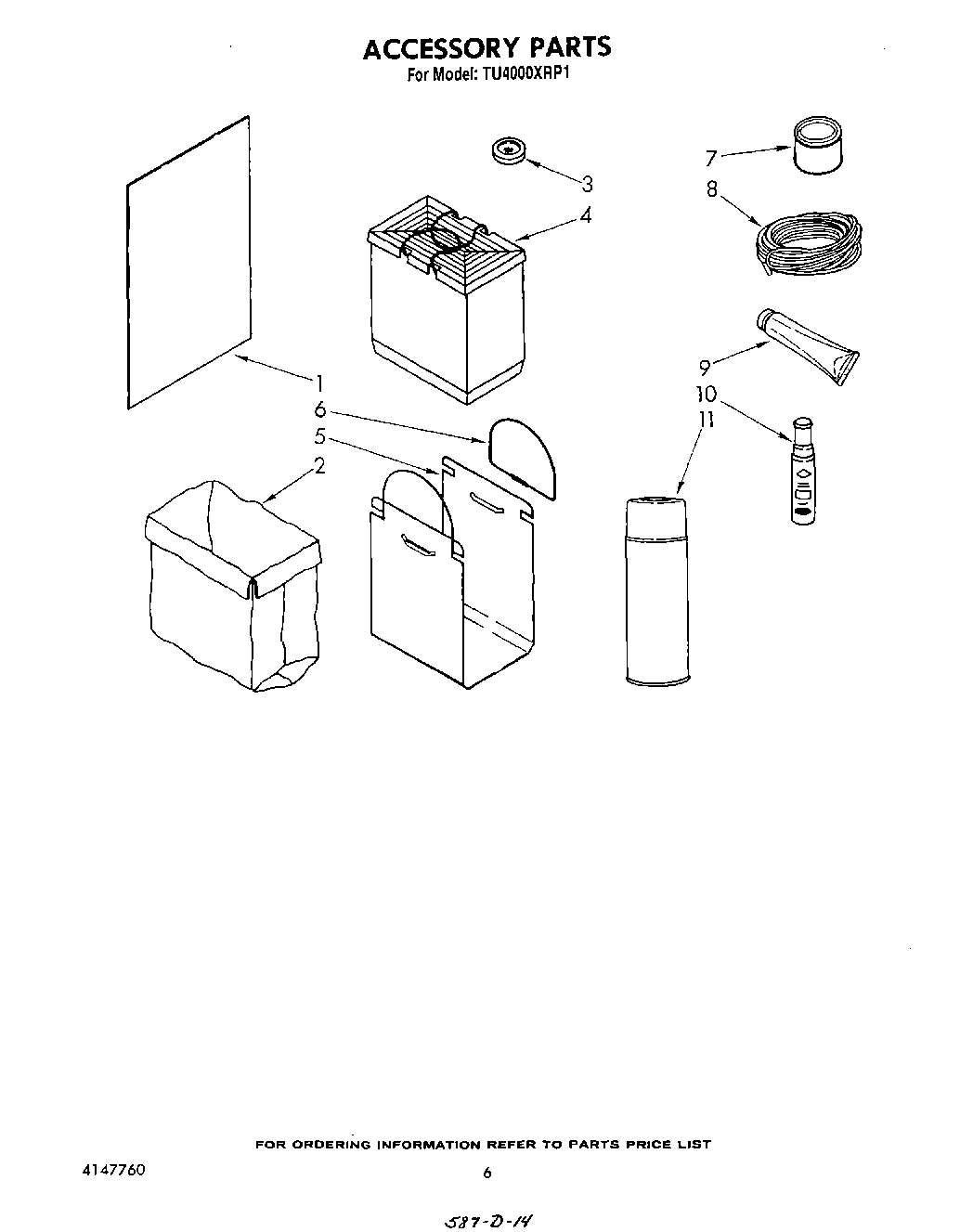

bag, trash (96 pack)
bag, trash (96 pack) WPL 675350 Contact Us For Availability
View on Model
2
Screw, Power (Available Only As Complete Asse
Screw, Power (Available Only As Complete Asse WPL ARI133790A Contact Us For Availability
View on Model
3
Panel, Container Front (Almond & Black)
Panel, Container Front (Almond & Black) WPL 780334 Contact Us For Availability
View on Model
3
Deodorizer, Solid Stick-Ups (2-Pack)
Deodorizer, Solid Stick-Ups (2-Pack) WPL 777635 Contact Us For Availability
View on Model
3
Screw. 1/4-20 x 1/2 (4)
Screw. 1/4-20 x 1/2 (4) WPL 776593 Contact Us For Availability
View on Model
4
Trash, Container (Reusable)
Trash, Container (Reusable) WPL 882653 Contact Us For Availability
View on Model
4
Plate, Trim (2)
Plate, Trim (2) WPL 608051 Contact Us For Availability
View on Model
5
Container Assembly
Container Assembly WPL 888266 Contact Us For Availability
View on Model
7
Screw, 6-20 x 3/8
Screw, 6-20 x 3/8 WPL 776191 Contact Us For Availability
View on Model
8
Screw, 6-20 x 3/8 (2)
Screw, 6-20 x 3/8 (2) WPL 776559 Contact Us For Availability
View on Model
8
Wire (16 Ga. 80 c Blue)
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
View on Model
8
Wire (14 Ga. 150 c Black)
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
View on Model
8
Wire (14 Ga. 150 c Red)
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
View on Model
8
Wire, 25`` Roll (White 14 GA.)
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
View on Model
8
Wire, 25` Roll (Red 12 Ga.)
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
View on Model
8
Wire, 25`` Roll (Black 12 GA.)
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
View on Model
8
Wire, 25`` Roll (White 12 GA.)
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
View on Model
9
Insert, Escutcheon
Insert, Escutcheon WPL 780407 Contact Us For Availability
View on Model
10
Paint, Touch-Up 1/2 Oz. (Stanford Brown)
Paint, Touch-Up 1/2 Oz. (Stanford Brown) WPL 72106 Contact Us For Availability
View on Model
10
Paint, Touch-Up 1/2 Oz. (Coffee)
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
View on Model
10
WPL 72112
WPL 72112 WPL 72112 Contact Us For Availability
View on Model
10
Screw, 10-24 x 3/4 (4)
Screw, 10-24 x 3/4 (4) WPL 775071 Contact Us For Availability
View on Model
11
Knob, Rotary Switch
Knob, Rotary Switch WPL 780191 Contact Us For Availability
View on Model
11
WPL 261886
WPL 261886 WPL 261886 Contact Us For Availability
View on Model
11
WPL 261888
WPL 261888 WPL 261888 Contact Us For Availability
View on Model
11
WPL 261890
WPL 261890 WPL 261890 Contact Us For Availability
View on Model
11
WPL 285365
WPL 285365 WPL 285365 Contact Us For Availability
View on Model
11
WPL 285366
WPL 285366 WPL 285366 Contact Us For Availability
View on Model
11
WPL 675167
WPL 675167 WPL 675167 Contact Us For Availability
View on Model
11
WPL 978726
WPL 978726 WPL 978726 Contact Us For Availability
View on Model
11
Ram Assembly
Ram Assembly WPL 780019 Contact Us For Availability
View on Model
12
Pad, Ram (8)
Pad, Ram (8) WPL 777758 Contact Us For Availability
View on Model
13
Switch, Drawer Tilt
Switch, Drawer Tilt WPL 780421 Contact Us For Availability
View on Model
13
Plate, Doubler (2)
Plate, Doubler (2) WPL 608733 Contact Us For Availability
View on Model
13
Trim, Container
Trim, Container WPL 777345 Contact Us For Availability
View on Model
14
Retainer, Nut (2)
Retainer, Nut (2) WPL 780036 Contact Us For Availability
View on Model
15
Compartment, Deodorant
Compartment, Deodorant WPL 608533 Contact Us For Availability
View on Model
15
harness, wiring
harness, wiring WPL 778604 Contact Us For Availability
View on Model
15
Spring, Safety Switch
Spring, Safety Switch WPL 4147747 Contact Us For Availability
View on Model
17
Cover, Ram
Cover, Ram WPL 608723 Contact Us For Availability
View on Model
18
Wiper, Ram
Wiper, Ram WPL 780021 Contact Us For Availability
View on Model
18
Bumper, Container (2)
Bumper, Container (2) WPL 775785 Contact Us For Availability
View on Model
20
Block, Container Stop
Block, Container Stop WPL 777691 Contact Us For Availability
View on Model
20
Pin
Pin WPL 776654 Contact Us For Availability
View on Model
22
Protector, Powerscrew (2)
Protector, Powerscrew (2) WPL 780413 Contact Us For Availability
View on Model
27
Guard, Toeplate
Guard, Toeplate WPL 777329 Contact Us For Availability
View on Model
