Model Whirlpool TU4000XMP0 TRASH COMPACTOR – Common Parts & Diagrams

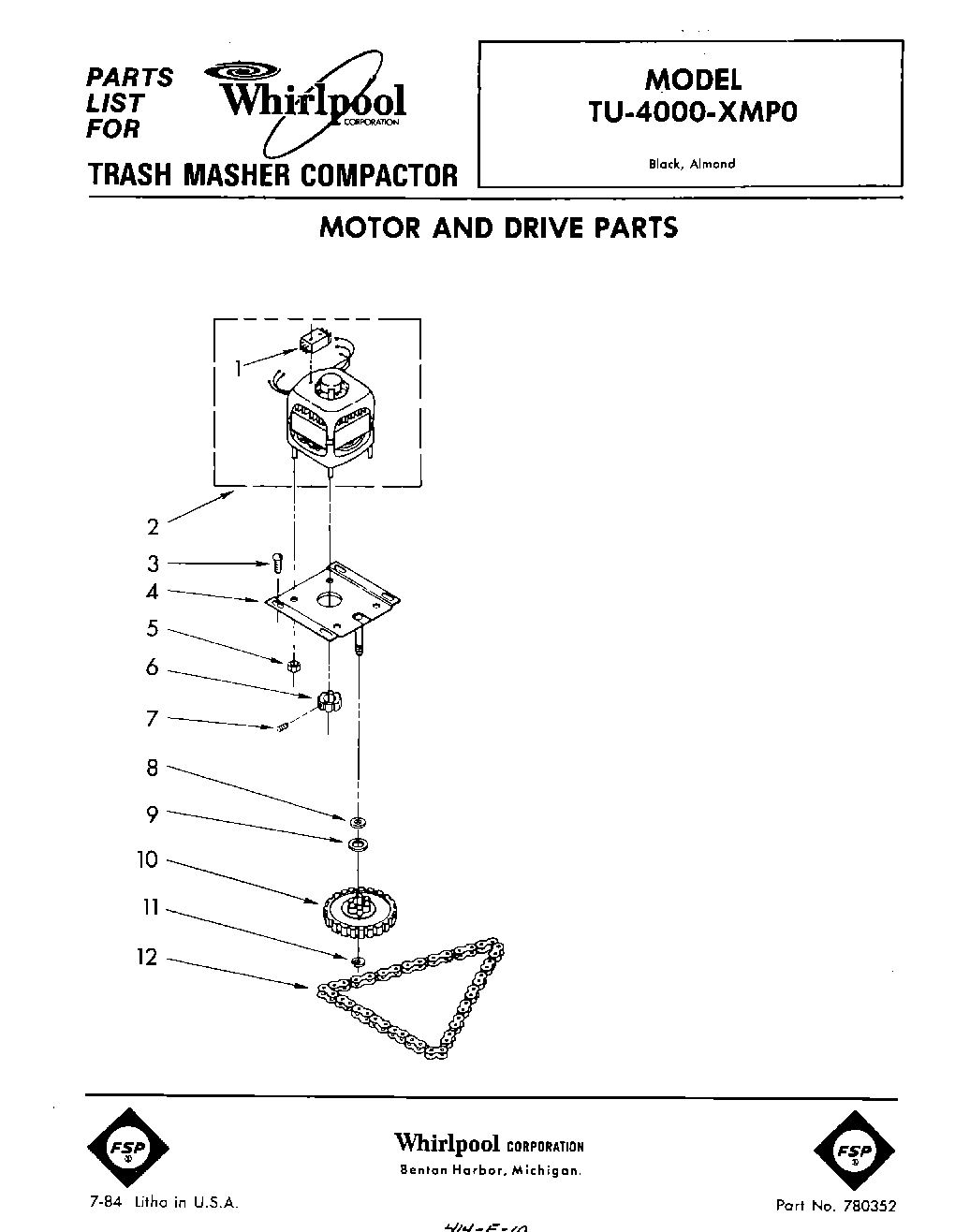

01 - MOTOR AND DRIVE , LIT/OPTIONAL

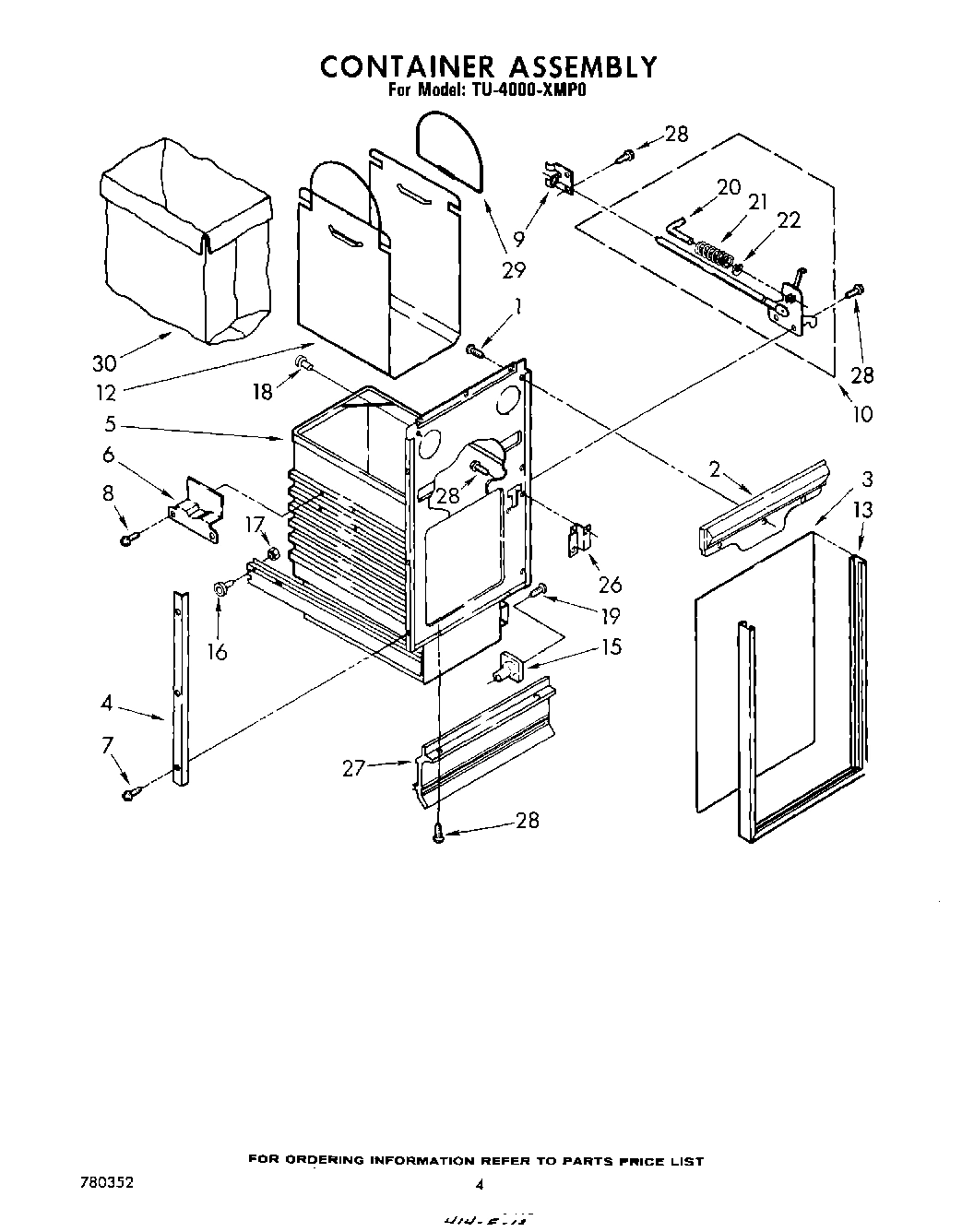

04 - CONTAINER ASSEMBLY

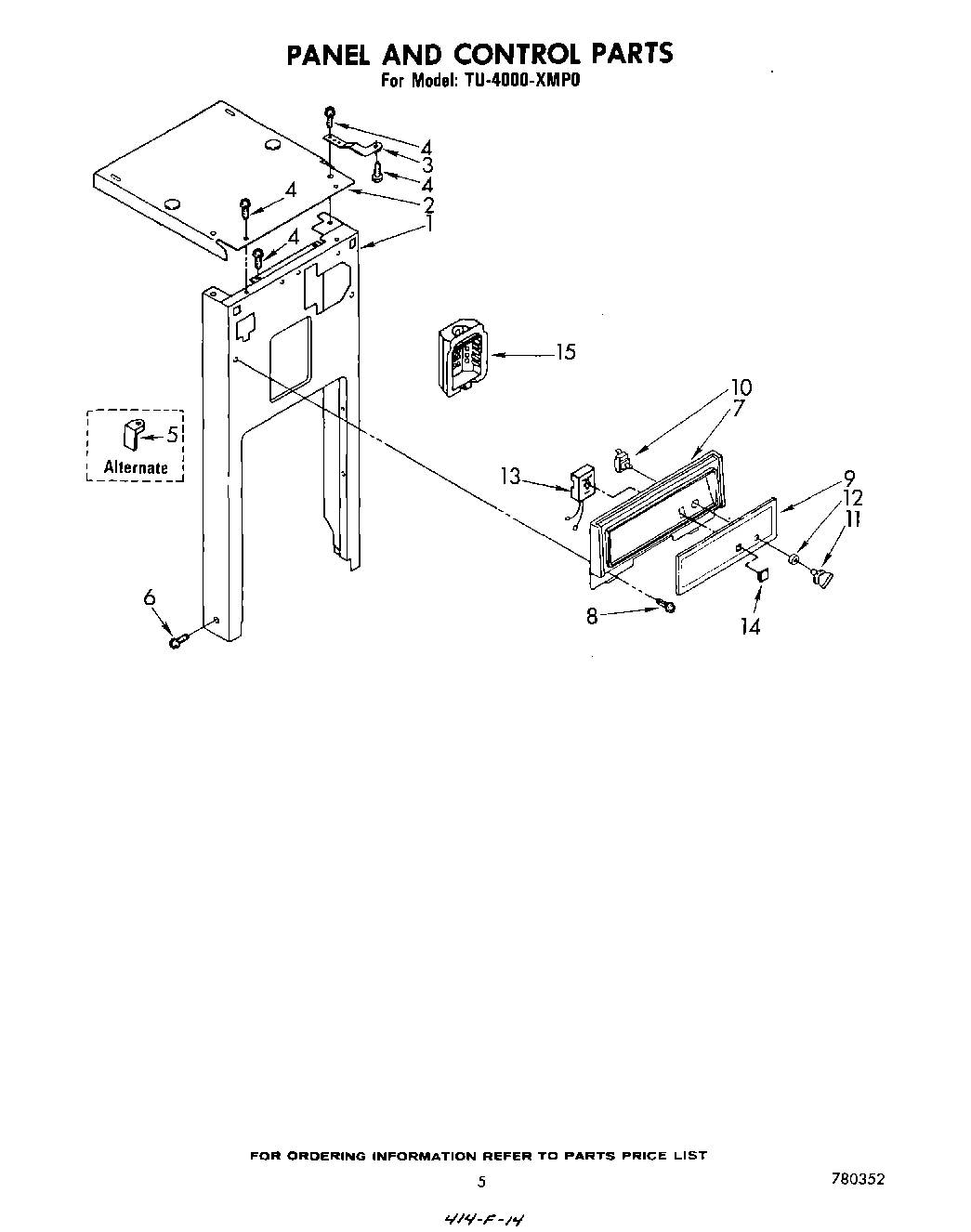

05 - PANEL AND CONTROL

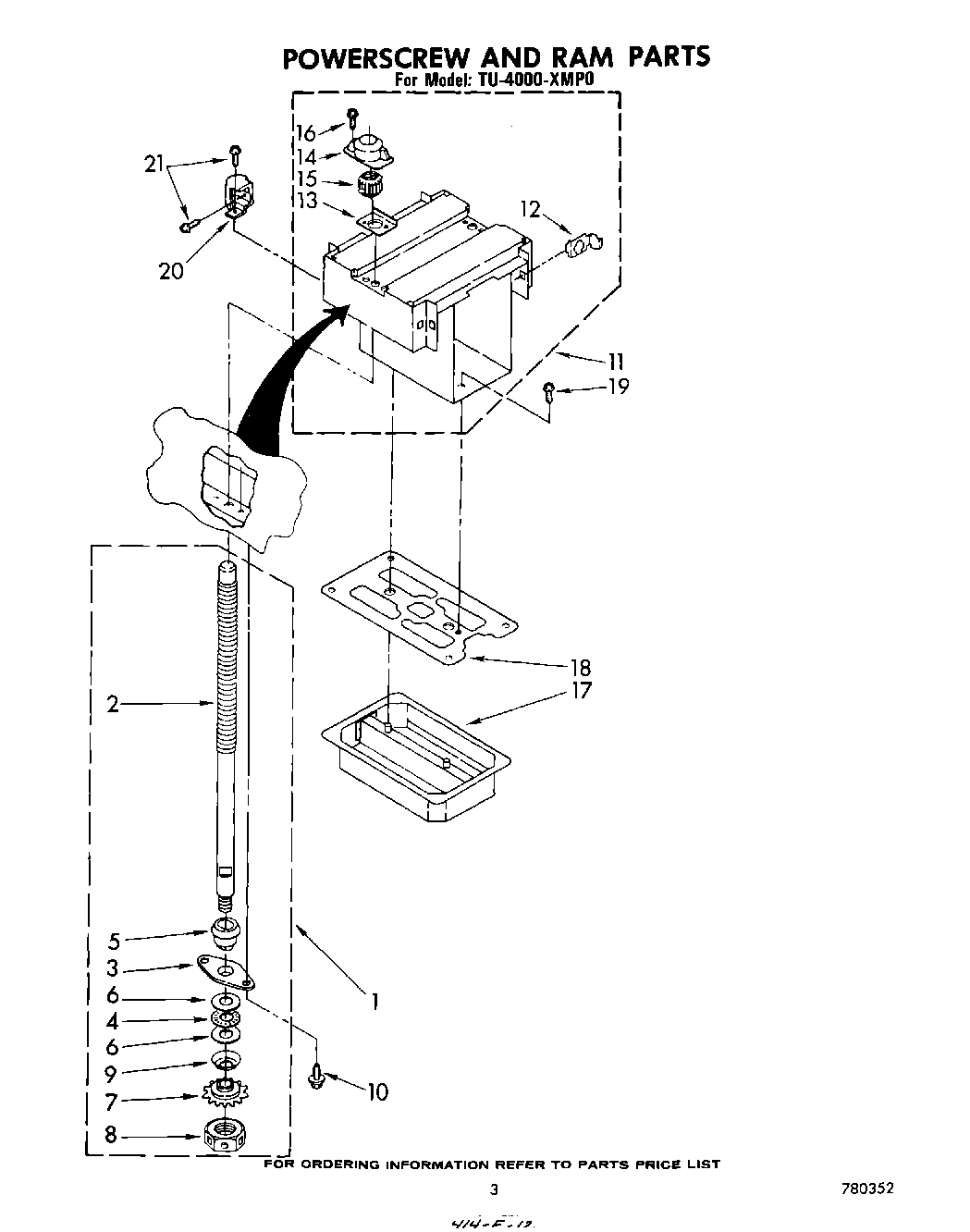

03 - POWERSCREW AND RAM

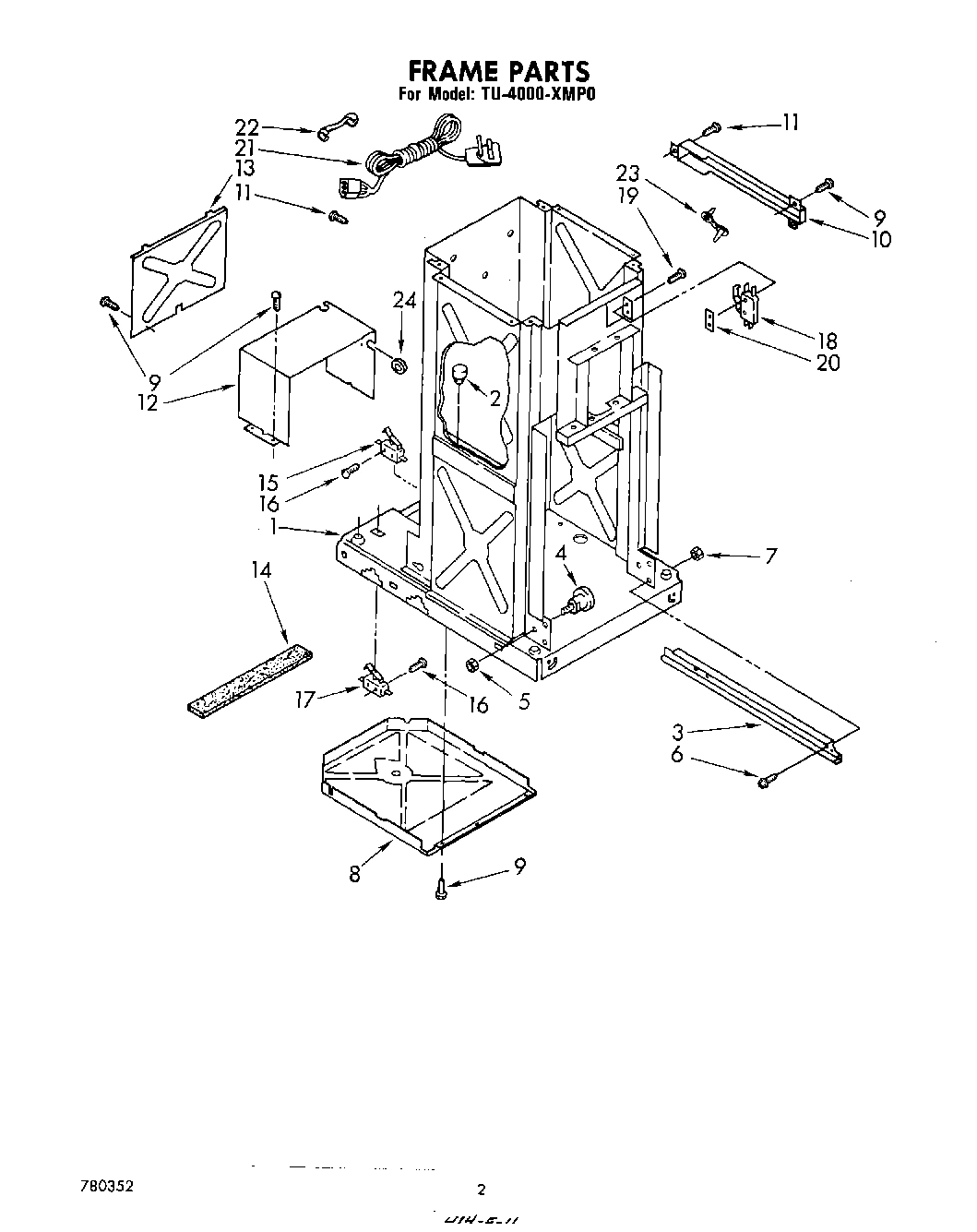

02 - FRAME
Common parts from model Whirlpool TU4000XMP0 TRASH COMPACTOR
1
Panel, Front Frame WPL 608778 Contact Us For Availability
1
Screw, Power Complete Assembly (2) WPL 777876 Contact Us For Availability
1
Frame (Not a Serviceable Part) WPL ARI133785A Contact Us For Availability
2
Cover, Top (Recessed) WPL 608572 Contact Us For Availability
2
Screw, Power (Available Only As Complete Asse WPL ARI133786A Contact Us For Availability
2
Bumper (4) WPL 775643 Contact Us For Availability
6
Cam, Spray Actuator (2) WPL 776523 Contact Us For Availability
7
Escutcheon, Control WPL 608768 Contact Us For Availability
7
Nut, 6-32 (4) WPL 776188 Contact Us For Availability
8
Screw, 6-20 x 3/8 (2) WPL 776559 Contact Us For Availability
9
Insert, Escutcheon WPL 780187 Contact Us For Availability
10
Screw, 10-24 x 3/4 (4) WPL 775071 Contact Us For Availability
11
Knob, Rotary Switch WPL 780191 Contact Us For Availability
11
Ram Assembly WPL 780019 Contact Us For Availability
12
Pad, Ram (8) WPL 777758 Contact Us For Availability
12
Cover, Motor WPL 608567 Contact Us For Availability
13
Light, Indicator WPL 780181 Contact Us For Availability
13
Plate, Doubler (2) WPL 608733 Contact Us For Availability
13
Plate, Motor Cover WPL 608009 Contact Us For Availability
14
Lens, Indicator WPL 780182 Contact Us For Availability
14
Retainer, Nut (2) WPL 780036 Contact Us For Availability
14
Barrier, Glass WPL 776780 Contact Us For Availability
15
Compartment, Deodorant WPL 608533 Contact Us For Availability
15
Switch, Drawer Safety WPL 775803 Contact Us For Availability
16
Screw, 6-32 x 7/8 WPL 777460 Contact Us For Availability
17
Cover, Ram WPL 608723 Contact Us For Availability
17
Switch, Drawer Tilt WPL 775804 Contact Us For Availability
18
Wiper, Ram WPL 780021 Contact Us For Availability
20
Block, Container Stop WPL 777691 Contact Us For Availability
20
Plate, Nut WPL 777850 Contact Us For Availability
21
Coffee WPL 261886 Contact Us For Availability
21
Avocado WPL 261888 Contact Us For Availability
21
Golden Wheat WPL 261890 Contact Us For Availability
21
Toast WPL 283365 Contact Us For Availability
21
Platinum WPL 283366 Contact Us For Availability
21
Primer (Tan) WPL 675167 Contact Us For Availability
21
Paint, Touch-Up 1/2 Oz. (Stanford Brown) WPL 72106 Contact Us For Availability
21
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
21
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
21
Deodorizer, Solid Stick-Ups (2-Pack) WPL 777635 Contact Us For Availability
21
Harness, Wiring WPL 778580 Contact Us For Availability
21
Stanford Brow WPL 978726 Contact Us For Availability
21
Cord, Power WPL 778575 Contact Us For Availability
22
Bushing, Cord WPL 776119 Contact Us For Availability
23
Clamp, Wire WPL 777035 Contact Us For Availability
24
Grommet, Motor Cover WPL 776118 Contact Us For Availability
27
Guard, Toeplate WPL 777329 Contact Us For Availability
× ![]()
