Model Whirlpool TT20DKXBW00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
05 - FREEZER DOOR
01 - CABINET

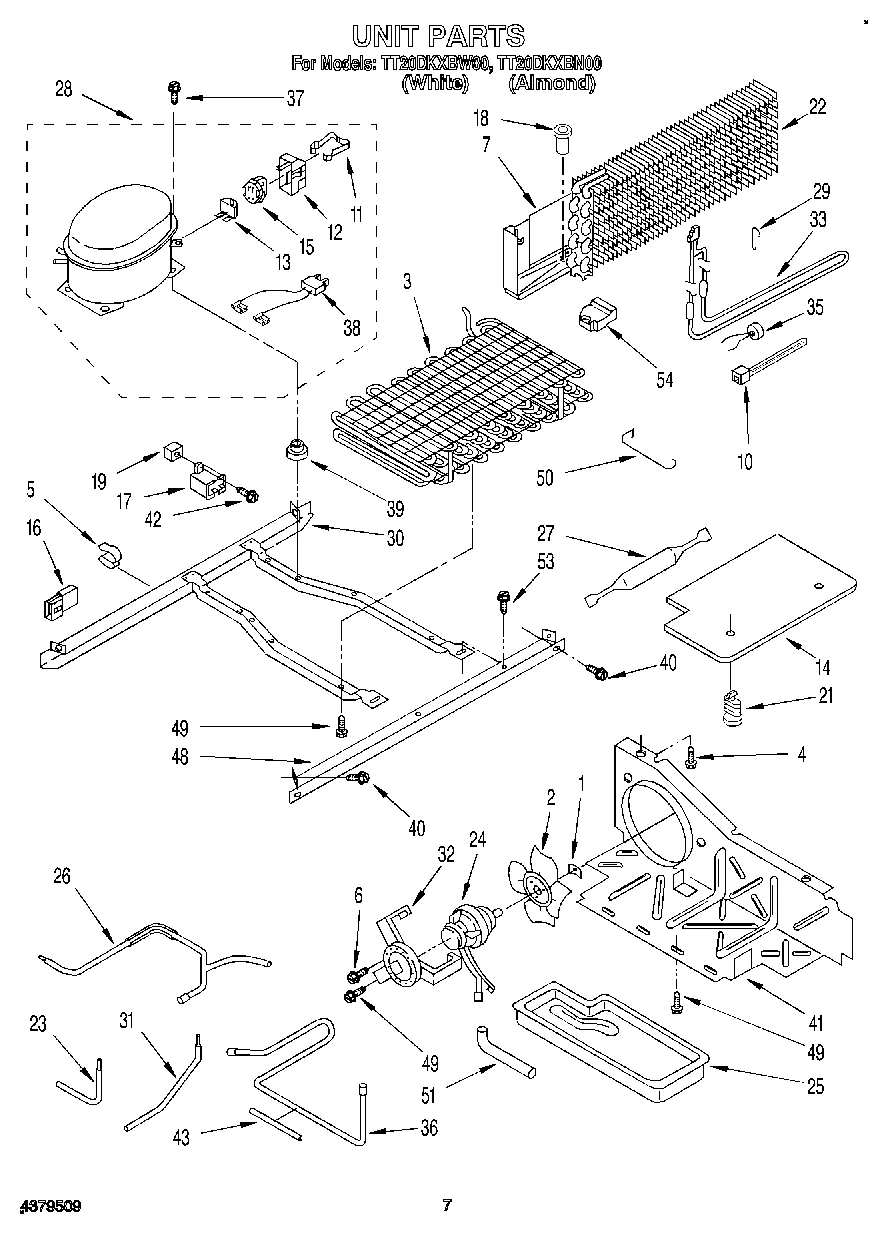

06 - UNIT

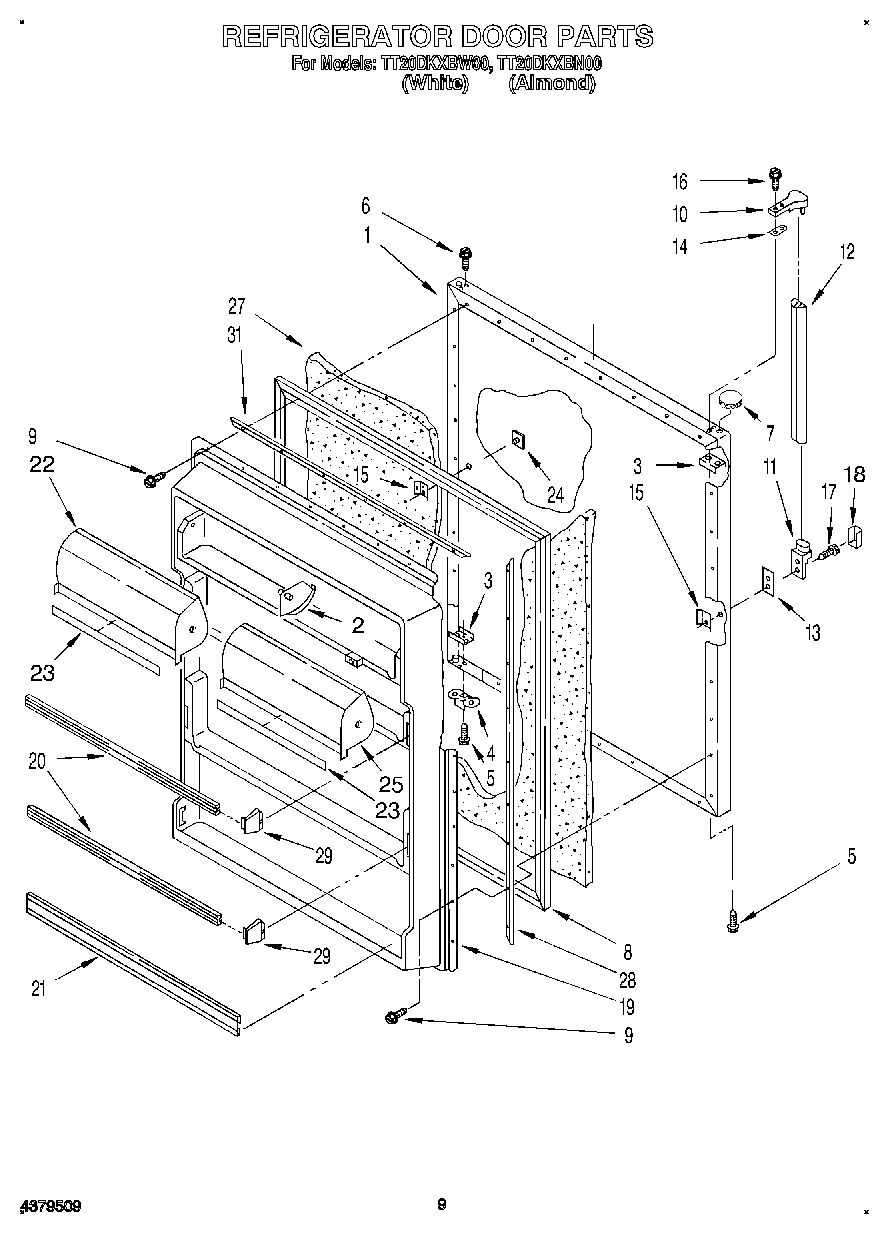

07 - REFRIGERATOR DOOR, LIT/OPTIONAL

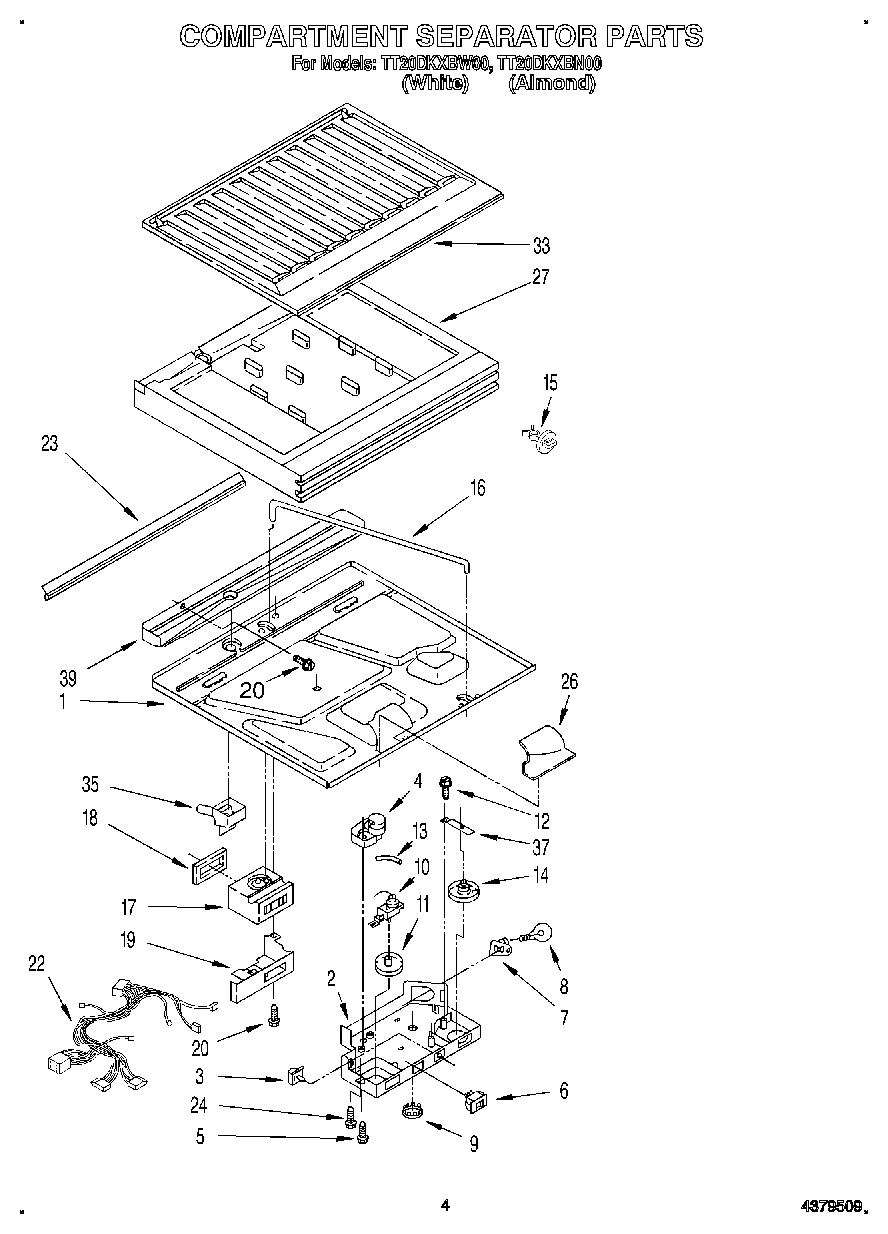

03 - COMPARTMENT SEPARATOR

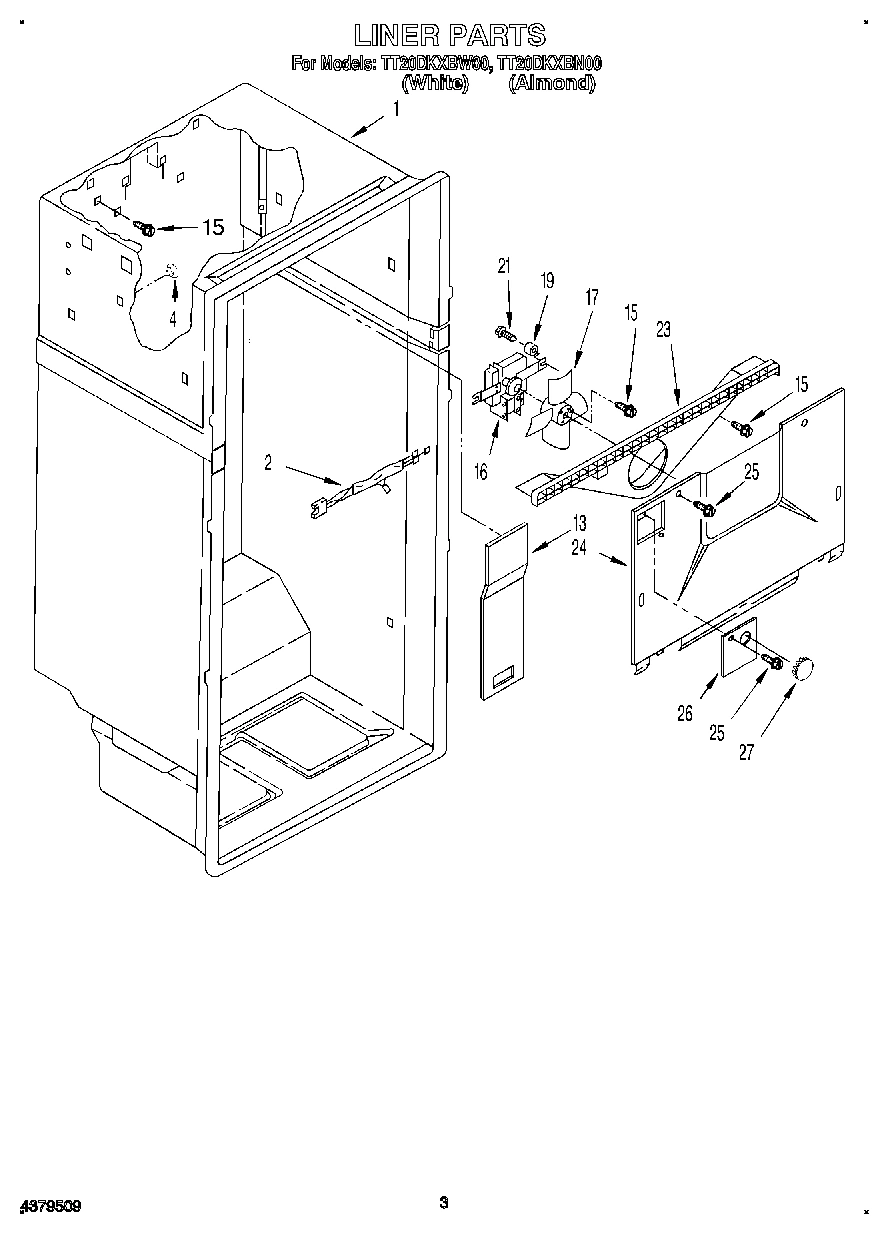

02 - LINER

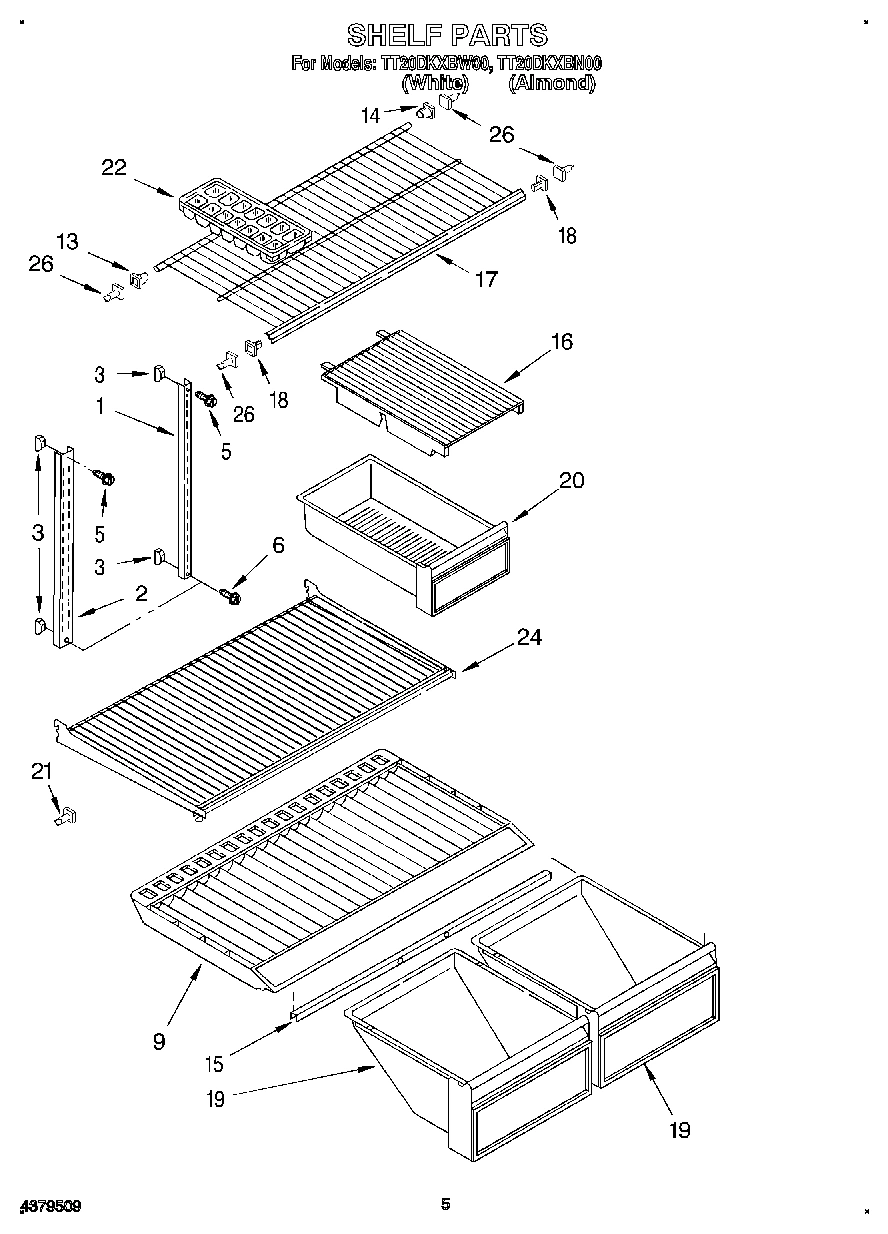

04 - SHELF
Common parts from model Whirlpool TT20DKXBW00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2154075 WPL LIT2154075 Contact Us For Availability
WPL LIT2157979 WPL LIT2157979 Contact Us For Availability
WPL LIT2173261 WPL LIT2173261 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1122549 Contact Us For Availability
1
Panel, Refrigerator Door (Almond (Also Order WPL 1122658 Contact Us For Availability
1
Bottom, Compartment Separator WPL 2172816 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI133597A Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
2
Box, Control WPL 2151992 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
3
Condenser Assy. WPL 2164513 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
5
Clip, Wire WPL 548745 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
9
Crisper Cover WPL 2173220 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
11
Strap WPL 938384 Contact Us For Availability
11
Handle End, Side WPL 935105 Contact Us For Availability
11
Knob, Thermostat WPL 2148150 Contact Us For Availability
12
Cover, Terminal WPL 1108115 Contact Us For Availability
12
Handle, Center (White) WPL 2157109 Contact Us For Availability
12
Handle, Center (Almond) WPL 2157110 Contact Us For Availability
13
Shim, Handle WPL 935076 Contact Us For Availability
13
Cover, Air Duct WPL 2157411 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Cover, Unit Bottom WPL 2160505 Contact Us For Availability
14
Knob, Air Control WPL 2148151 Contact Us For Availability
15
Relay (See Overload) WPL ARI133598A Contact Us For Availability
15
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
16
Rod, Connecting WPL 1105459 Contact Us For Availability
16
Cover, Meat Pan WPL 1126678 Contact Us For Availability
17
Running Capacitor WPL 2169137 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157252 Contact Us For Availability
17
Shelf, Freezer WPL 2163575 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
18
Screw, Cover WPL 987873 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Shelf Stud (2) WPL 946356 Contact Us For Availability
19
Grommet, Screw WPL 509812 Contact Us For Availability
19
Interior Door Panel WPL 2156208 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Pan, Crisper WPL 2173208 Contact Us For Availability
20
Trim, Door (2) WPL 2163636 Contact Us For Availability
20
Pan, Meat WPL 2173210 Contact Us For Availability
21
Shelf Stud (2) WPL 1106612 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Trim, Door WPL 2163637 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
EndCap, Trim (4) WPL 1106862 Contact Us For Availability
22
Evaporator WPL 2153978 Contact Us For Availability
22
Compartment Door, L.S. WPL 2163945 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability
23
Retainer, Gasket WPL 1122553 Contact Us For Availability
23
Trim, Compartment Door WPL 2173195 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159684 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Evaporator Cover WPL 2157428 Contact Us For Availability
24
Shelf, Full Cantilever (2) WPL 2163577 Contact Us For Availability
25
Compartment Door, R.S. WPL 2163942 Contact Us For Availability
26
Tube, Discharge WPL 2162475 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Support Stud (4) WPL 946355 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1105463 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
28
Retainer, Gasket WPL 1122551 Contact Us For Availability
29
Support, Heater WPL 2149120 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
31
TAPE, VINYL (3/4 X 108`` WPL 479502 Contact Us For Availability
31
WPL 799344 WPL 799344 Contact Us For Availability
31
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
31
Retainer, Gasket WPL 1122552 Contact Us For Availability
31
Door Reversal Instructions WPL 2172761 Contact Us For Availability
31
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
31
WPL 542639 WPL 542639 Contact Us For Availability
31
WPL 799833 WPL 799833 Contact Us For Availability
31
WPL 978883 WPL 978883 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Heater, Defrost WPL 2162019 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1129022 Contact Us For Availability
35
Grille (Almond) WPL 1125667 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
36
Tube, Suction WPL 2162472 Contact Us For Availability
37
Wiring Assembly, Intermediate WPL 2153994 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
39
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
41
Air Baffle WPL 2169417 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
48
Cover, Unit WPL 2160490 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
51
Drain Extension WPL 2154119 Contact Us For Availability
53
Screw, WPL 488454 Contact Us For Availability
54
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
54
Support, Evaporator (R.S.) WPL 1118805 Contact Us For Availability
54
Support-Evaporator (L.S.) WPL 2159708 Contact Us For Availability
54
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
