Model Whirlpool TT18HKXAN00 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2159549 WPL LIT2159549 Contact Us For Availability

WPL LIT2163600 WPL LIT2163600 Contact Us For Availability

WPL LIT2163602 WPL LIT2163602 Contact Us For Availability

WPL LIT677969 WPL LIT677969 Contact Us For Availability

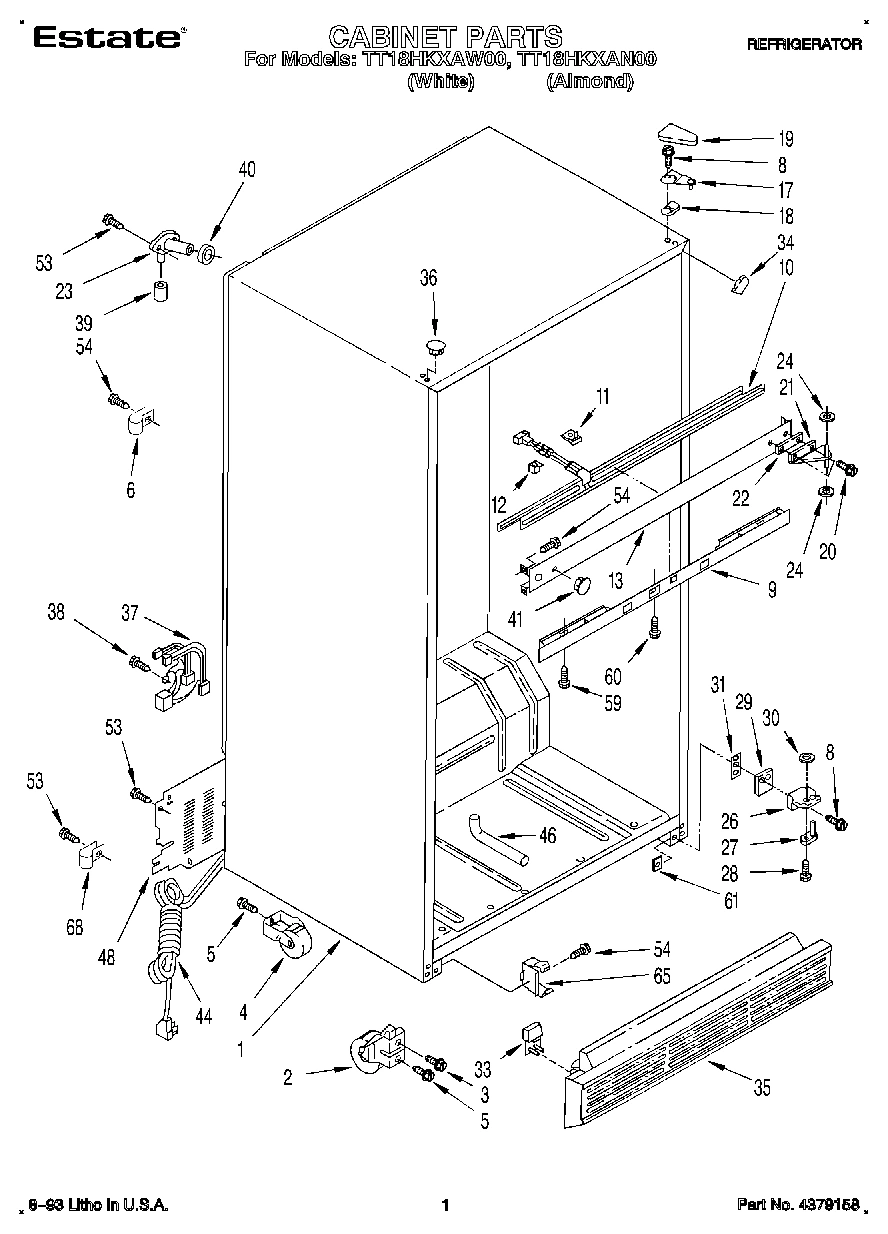

1

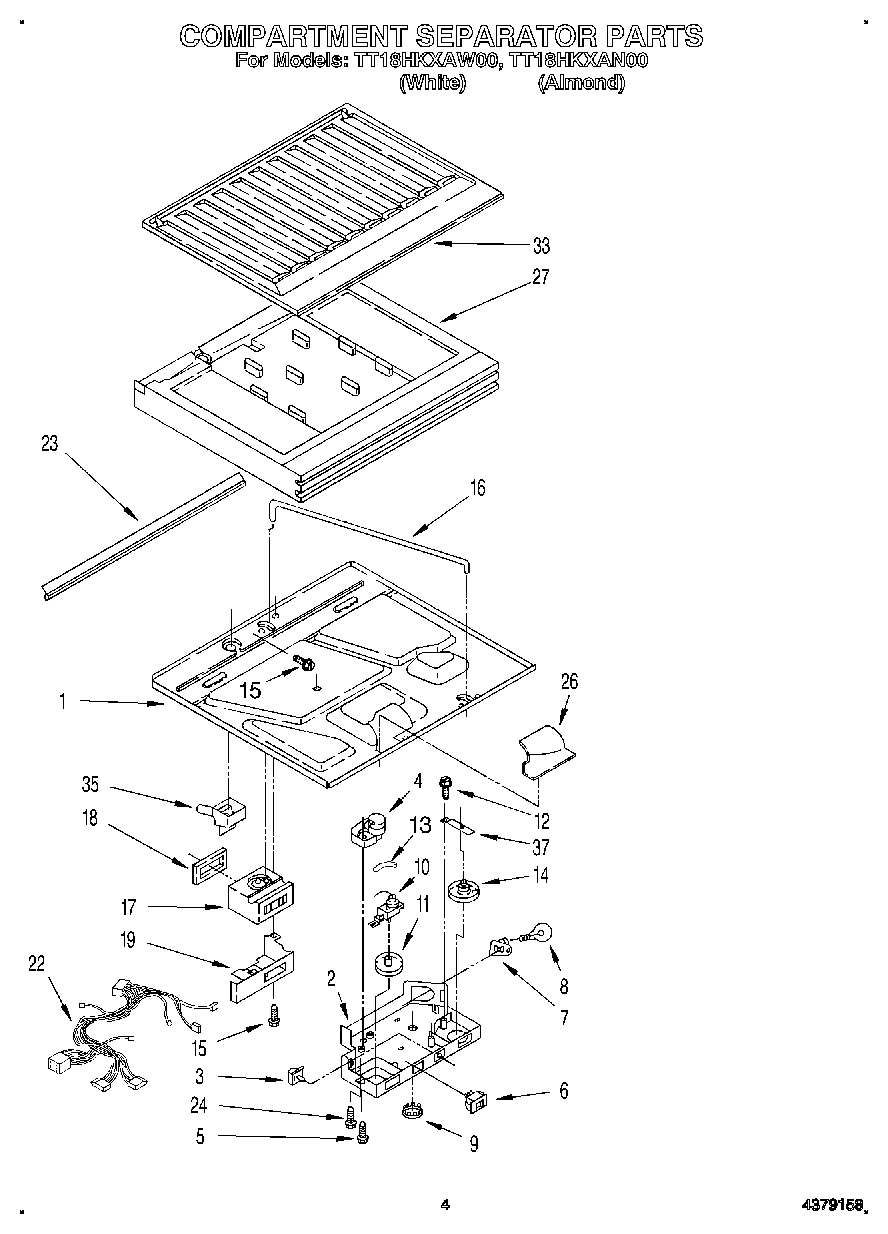

Bottom, Compartment Separator WPL 1116561 Contact Us For Availability

1

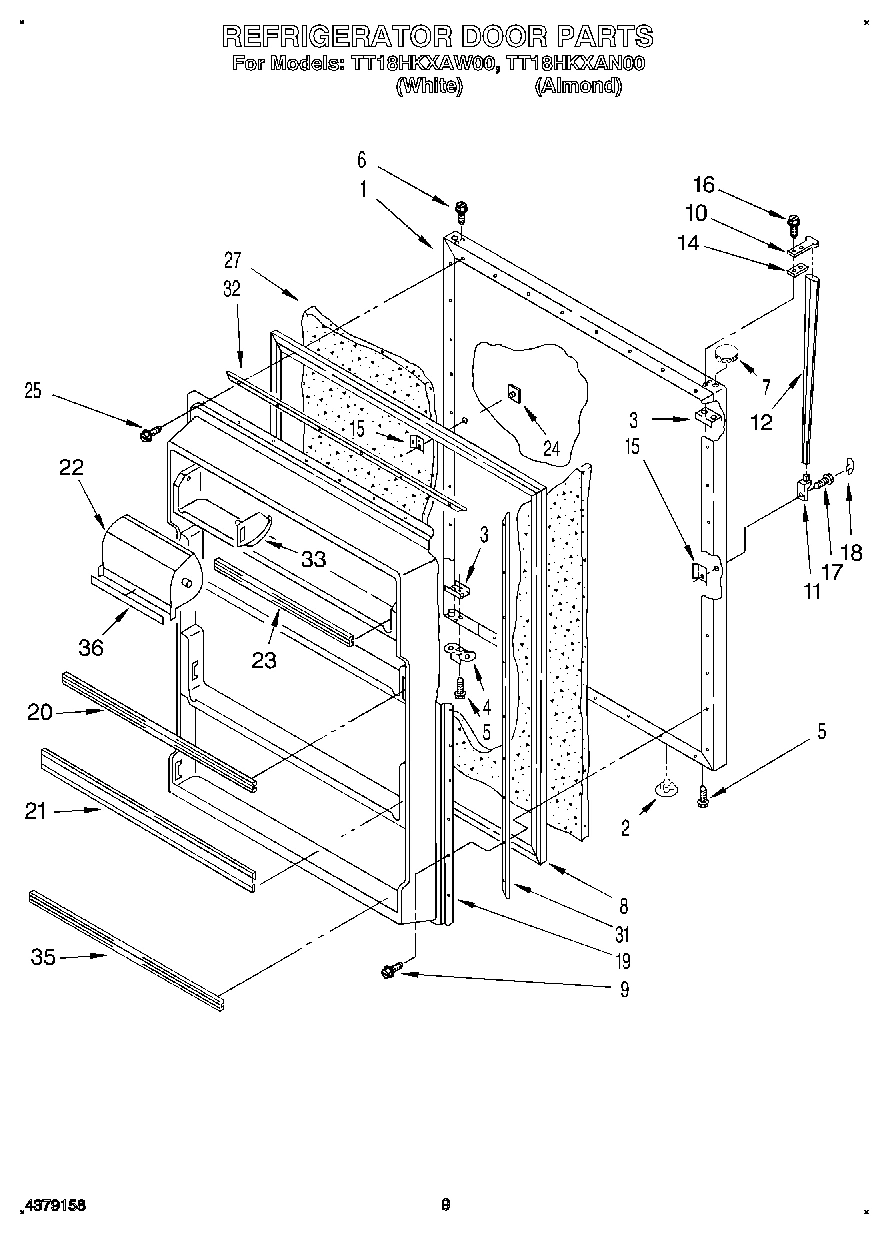

Panel, Refrigerator Door (Also Order Item 27) WPL 1116575 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 27) WPL 1116578 Contact Us For Availability

1

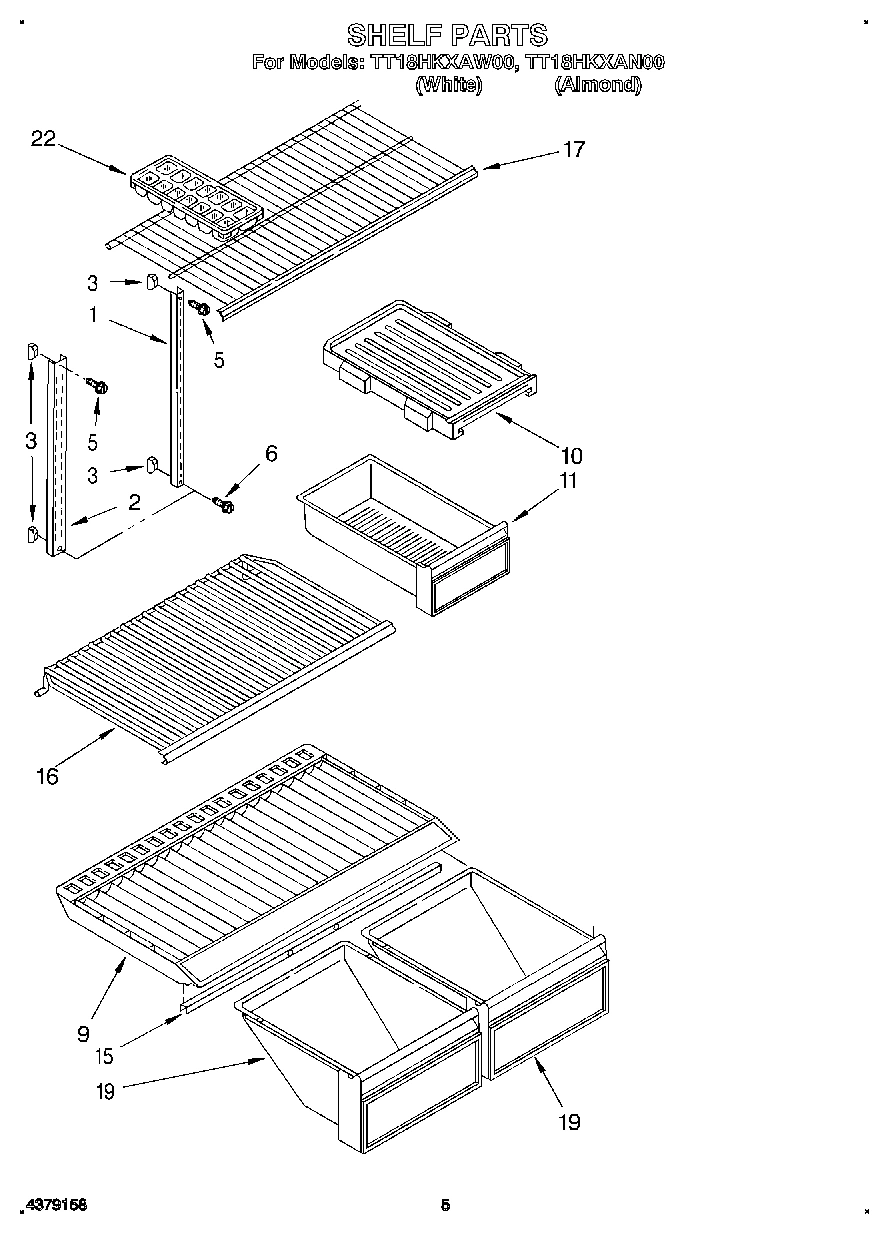

Shelf, Ladder (2) WPL 1114466 Contact Us For Availability

1

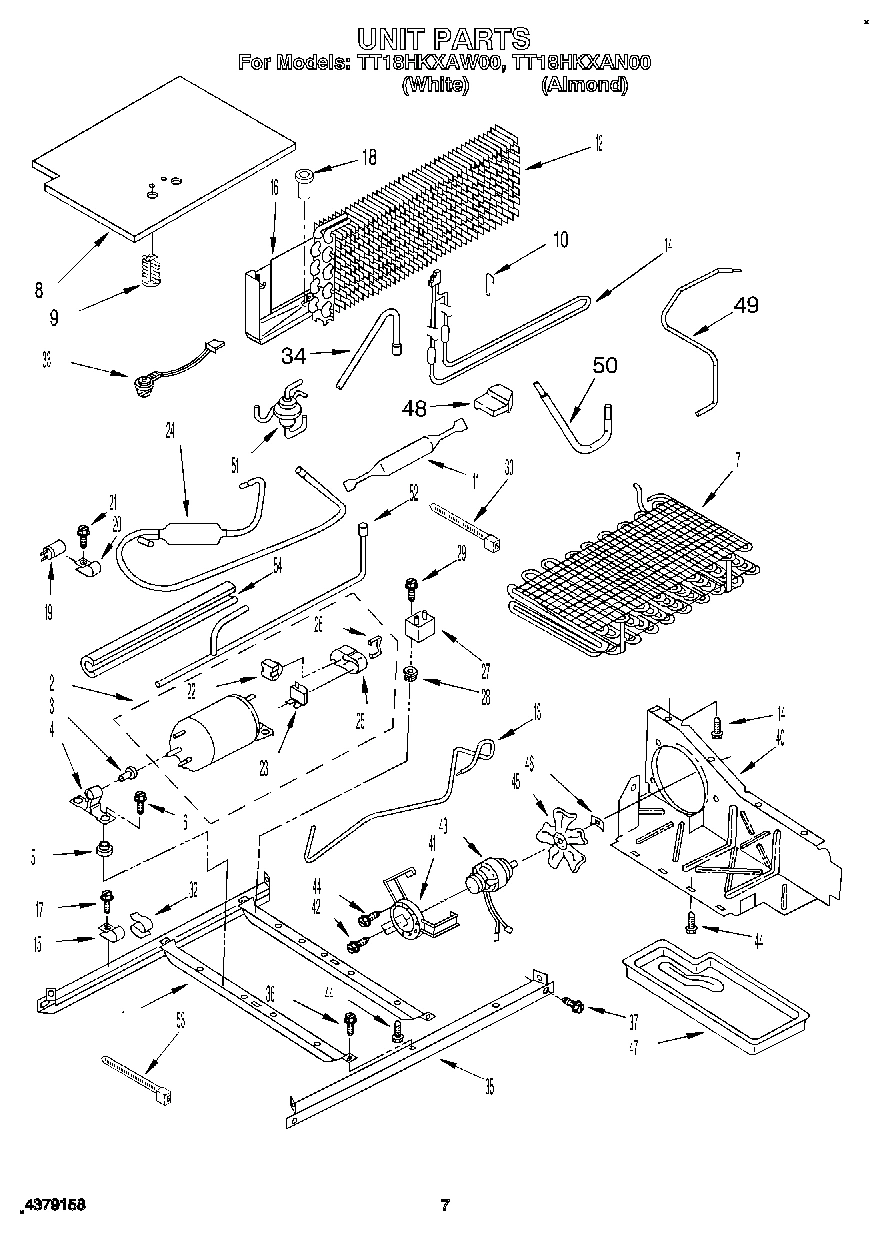

Unit, Frame WPL 2159747 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Box, Control WPL 2163558 Contact Us For Availability

2

Hole Plug (2) WPL 534927 Contact Us For Availability

2

Shelf, Ladder Center WPL 1114465 Contact Us For Availability

2

Compressor Kit Includes Items (3, 4, 5, 19, 2 WPL 2154564 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

3

Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability

4

4388931 Whirlpool Defrost Timer In Stock WPL 4388931 $140.53

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

Bracket, Door Stop WPL 1115910 Contact Us For Availability

4

Bracket, Mounting WPL 1105220 Contact Us For Availability

5

WP487353 Whirlpool Refrigerator Screw In Stock WPL WP487353 $2.51

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Shelf Stud (2) WPL 1106612 Contact Us For Availability

5

Screw, 8-32 x 1-1/4 (3) WPL 489345 Contact Us For Availability

5

Grommet, Compressor (4) WPL 1105200 Contact Us For Availability

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $2.51

6

Screw (4) WPL 489334 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Condenser Assembly WPL 2154008 Contact Us For Availability

8

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.89

8

Door Gasket, Magnetic WPL 1116734 Contact Us For Availability

8

Unit Compartment Bottom WPL 2160517 Contact Us For Availability

9

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

NLA:SCREW Backorder WPL WPW10141645 $3.70

9

Crisper Cover WPL 2163244 Contact Us For Availability

10

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $89.70

10

Cover, Meat Pan WPL 944739 Contact Us For Availability

10

Support, Heater WPL 2149120 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

WP2183139 Whirlpool Refrigerator Handle End C Backorder WPL WP2183139 $25.33

Knob, Thermostat WPL 2148150 Contact Us For Availability

Pan, Meat WPL 2163411 Contact Us For Availability

12

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

12

Handle, Center WPL 1106189 Contact Us For Availability

12

Evaporator WPL 2153977 Contact Us For Availability

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

Shim, Handle WPL 943187 Contact Us For Availability

Center Rail (White) WPL 1116540 Contact Us For Availability

Center Rail (Almond) WPL 1116543 Contact Us For Availability

Tube, Discharge WPL 2154028 Contact Us For Availability

14

Spacer, Handle Door WPL 943188 Contact Us For Availability

14

Knob, Air Control WPL 2148151 Contact Us For Availability

14

Heater, Defrost WPL 2162020 Contact Us For Availability

15

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $53.36

15

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

15

Clamp WPL 1108033 Contact Us For Availability

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $2.51

Rod, Connecting WPL 1116565 Contact Us For Availability

Shelf, Full Cantilever (2) WPL 2163243 Contact Us For Availability

Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability

WP2189412 Whirlpool Refrigerator Door Hinge Backorder WPL WP2189412 $39.86

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Air Diffuser Assembly WPL 2157252 Contact Us For Availability

Shelf, Freezer WPL 2163241 Contact Us For Availability

WP1101634 Whirlpool Refrigerator Cover In Stock WPL WP1101634 $4.50

Shim, Hinge Top WPL 2157269 Contact Us For Availability

Gasket, Air Diffuser WPL 2157255 Contact Us For Availability

Drain Fitting WPL 981629 Contact Us For Availability

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

Hinge Cover (Almond) WPL 2160404 Contact Us For Availability

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

Interior Door Panel WPL 2160165 Contact Us For Availability

Pan, Crisper WPL 2163207 Contact Us For Availability

Capacitor WPL 1108065 Contact Us For Availability

20

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

20

Tube Clamp WPL 510716 Contact Us For Availability

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability

Hinge, Center WPL 2151453 Contact Us For Availability

Trim, Door Shelf WPL 2163536 Contact Us For Availability

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

EndCap, Trim (4) WPL 1106862 Contact Us For Availability

Shim, Hinge Center WPL 836155 Contact Us For Availability

Wiring Assembly, Control Box WPL 2159536 Contact Us For Availability

Compartment Door, Utility WPL 2163223 Contact Us For Availability

Relay (Order Overload To Obtain Relay Key No. WPL ARI133265A Contact Us For Availability

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

Gasket, Bottom Separator WPL 2159733 Contact Us For Availability

Overload (Service (Includes Relay)) WPL 2154946 Contact Us For Availability

Overload (Production (Includes Relay)) WPL 2159611 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

Muffler WPL 2159657 Contact Us For Availability

25

Terminal Cover WPL 2154452 Contact Us For Availability

26

Hinge Butt, Bottom WPL 1123378 Contact Us For Availability

26

Insulation, Filler WPL 1108196 Contact Us For Availability

26

Strap, Cover WPL 1105222 Contact Us For Availability

27

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

27

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

27

Insulation, Compartment Separator WPL 1116569 Contact Us For Availability

28

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

28

Screw Grommet WPL 509812 Contact Us For Availability

29

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

29

Shim, Bottom WPL 1123379 Contact Us For Availability

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

30

Washer, 7/32 WPL 489200 Contact Us For Availability

31

Spacer WPL 1121117 Contact Us For Availability

31

Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability

32

Retainer, Gasket Top & Bottom WPL 1115137 Contact Us For Availability

32

Clip, Wire (2) WPL 548745 Contact Us For Availability

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $13.77

Corner Filler, Grille WPL 1118078 Contact Us For Availability

Separator, Compartment (Top) WPL 1116570 Contact Us For Availability

Hinge Pin, Center WPL 2160051 Contact Us For Availability

34

Filler, Wrapper Corner (2) (White) WPL 1118058 Contact Us For Availability

34

Filler, Wrapper Corner (2) (Almond) WPL 1118059 Contact Us For Availability

34

Tube, Process WPL 2154090 Contact Us For Availability

WP2201061 Whirlpool Refrigerator Door Trim In Stock WPL WP2201061 $44.74

Grille WPL 1118079 Contact Us For Availability

Cup, Drain WPL 937065 Contact Us For Availability

Unit, Rail (3/16``) WPL 1116622 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $8.20

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Hole Plug (5) (Almond) WPL 2151653 Contact Us For Availability

Trim, Compartment Door WPL 1124347 Contact Us For Availability

xEnamel, Gold (13 Oz. Spray Can) WPL 261890 Contact Us For Availability

Enamel, Gold (1 Qt. Uncut) WPL 261891 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

37

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

37

Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability

37

Bracket, Control Knob WPL 1105457 Contact Us For Availability

39

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

40

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

40

Air, Baffle WPL 2154102 Contact Us For Availability

41

Hole Plug (White) WPL 1129062 Contact Us For Availability

41

Hole Plug (Almond) WPL 1129063 Contact Us For Availability

41

Fan, Mounting Bracket WPL 2162060 Contact Us For Availability

42

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

43

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

44

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

44

Cord, Service WPL 937360 Contact Us For Availability

45

Fan Blade WPL 1115135 Contact Us For Availability

46

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

46

Fitting, Drain WPL 2154118 Contact Us For Availability

47

Tray, Evaporator WPL 1116604 Contact Us For Availability

48

Cover, Unit WPL 2160514 Contact Us For Availability

48

Wedge, Air Baffle WPL 1118017 Contact Us For Availability

49

Tube, Condenser To Fluid Valve WPL 2159635 Contact Us For Availability

50

Tube Fluid Valve To Heat Loop WPL 2159636 Contact Us For Availability

51

Fluid Control Valve WPL 2159655 Contact Us For Availability

52

Tube Assembly, Suction Line WPL 2159689 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

WPL 978029 WPL 978029 Contact Us For Availability

Sleeve WPL 2159751 Contact Us For Availability

VALVE, ACCESS (1/ WPL 978028 Contact Us For Availability

60

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

61

Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

68

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94
