Model Whirlpool TT18EKRWW02 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

1

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

1

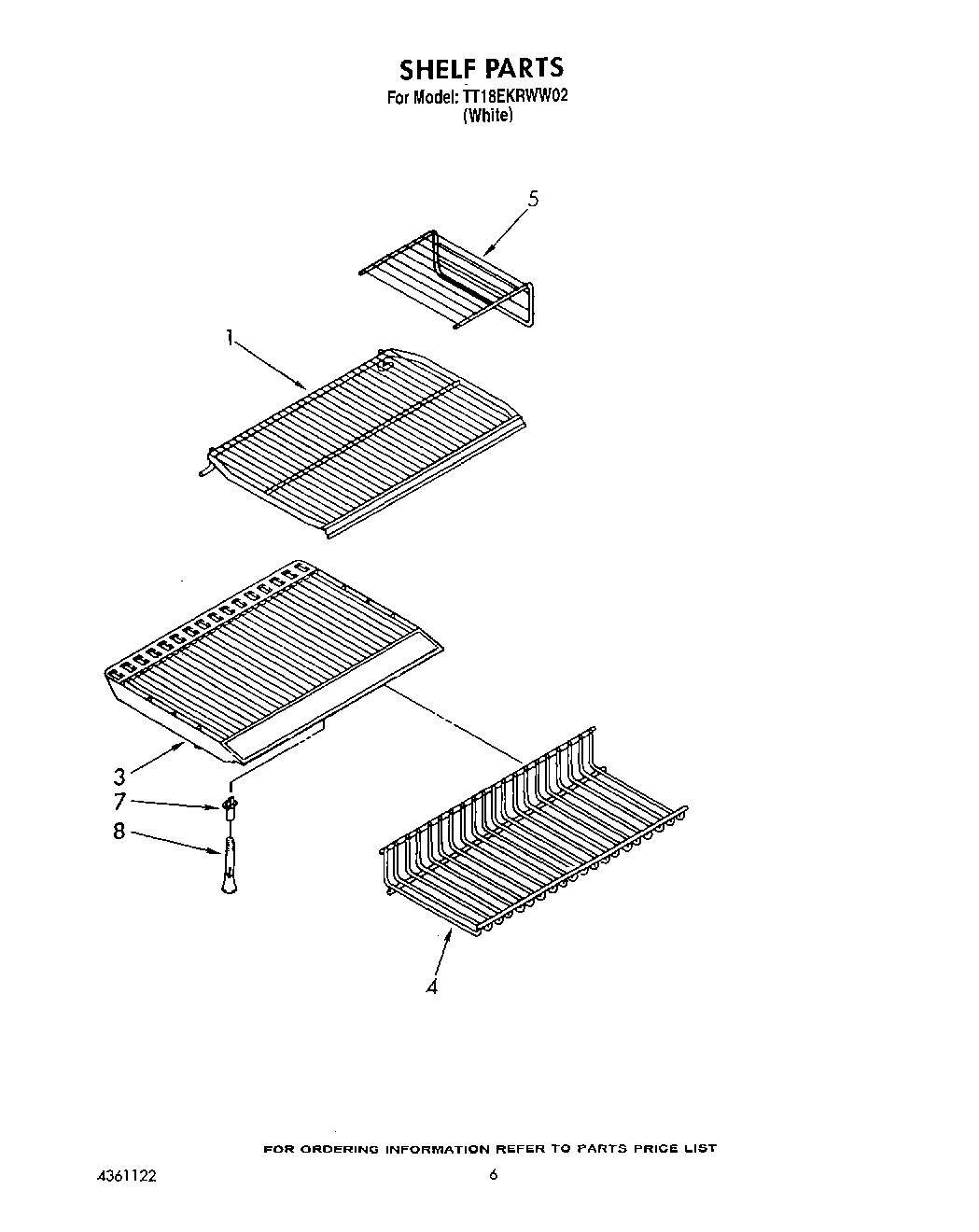

Shelf, Pullout (2) WPL 944732 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI133241A Contact Us For Availability

1

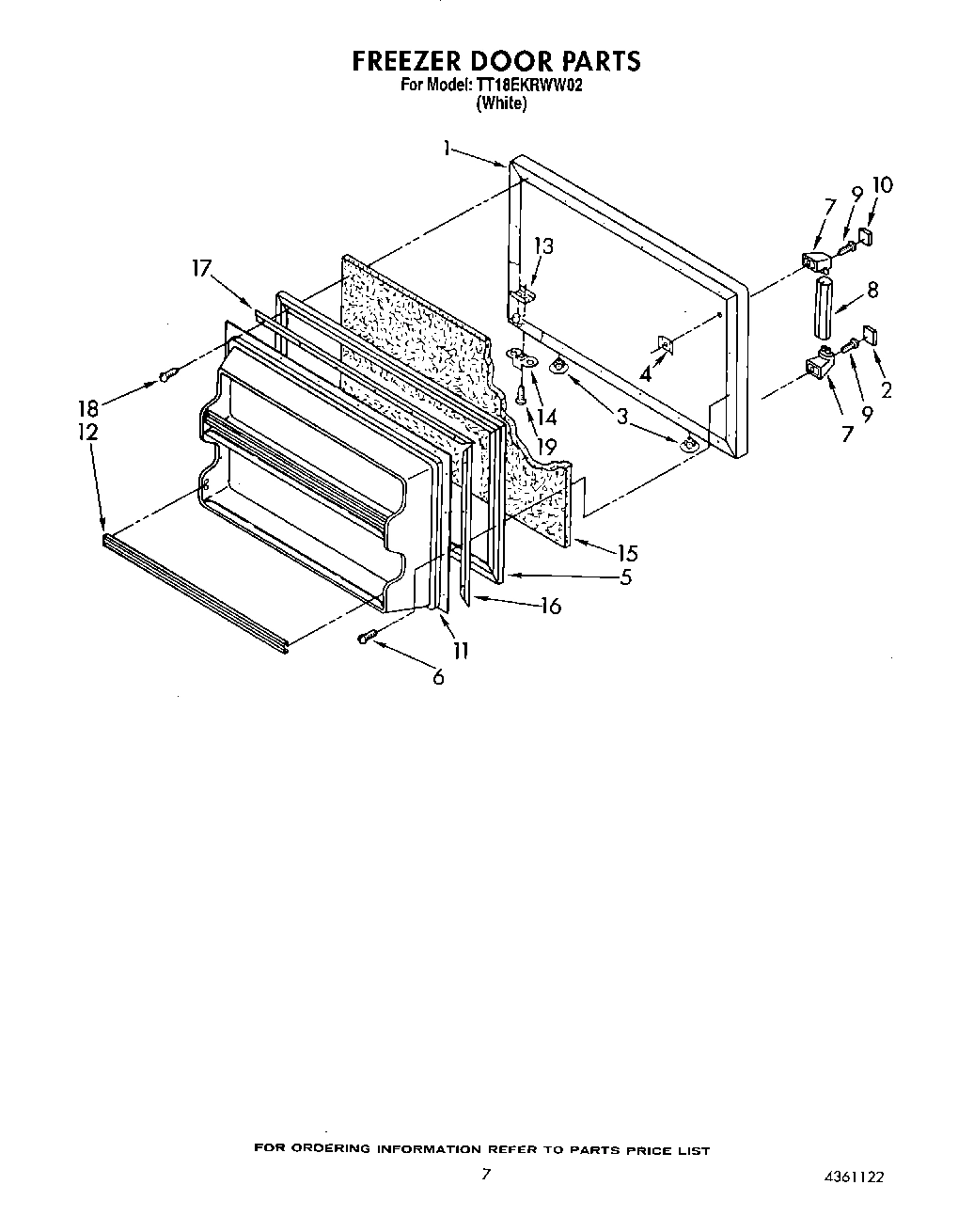

Panel, Freezer Door (Also Order Item 15) WPL 1106166 Contact Us For Availability

1

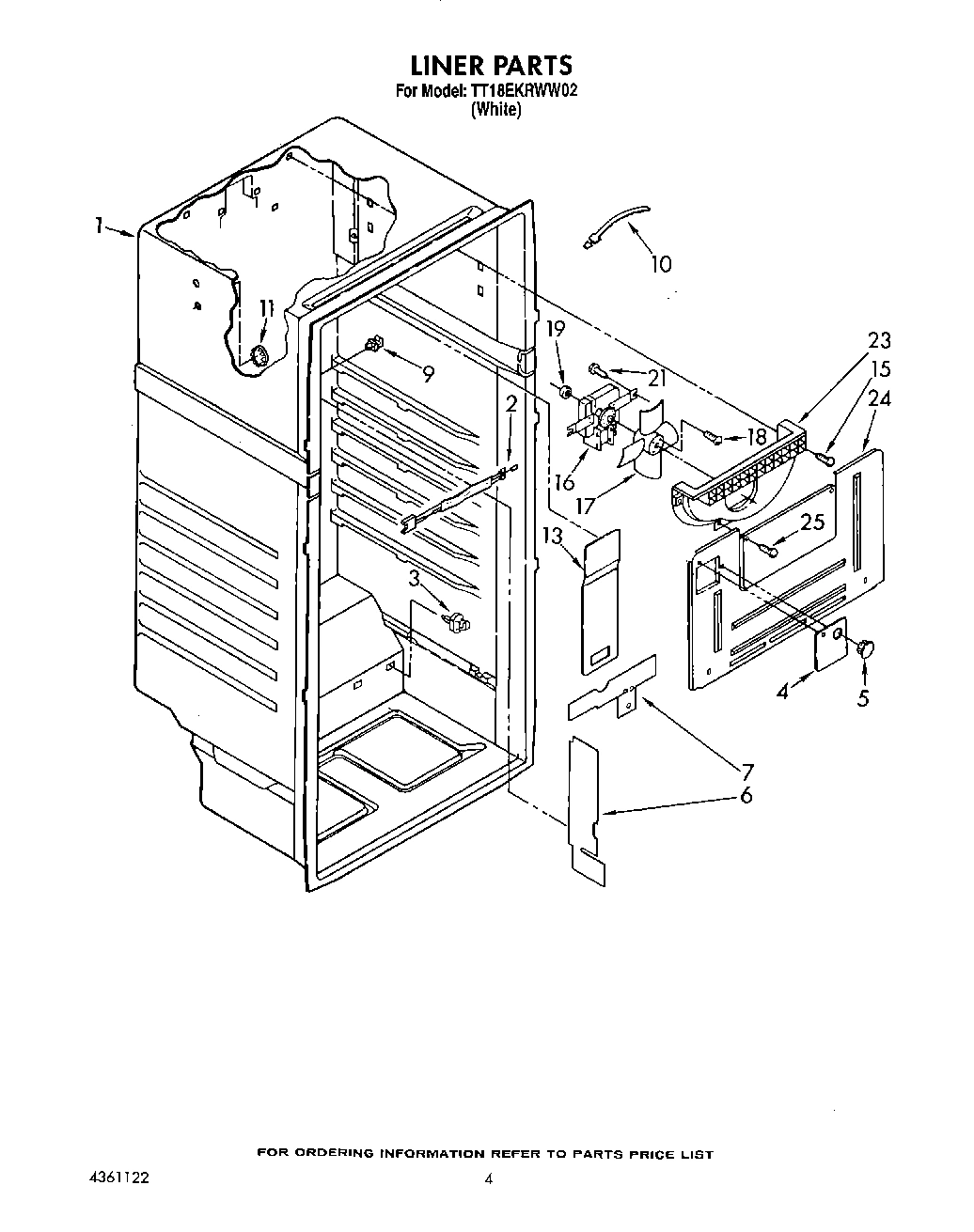

Liner (Not A Serviceable Part) WPL ARI133242A Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Leveler (2) WPL 944766 Contact Us For Availability

2

Insert, Screw Cover WPL 2151732 Contact Us For Availability

2

Bumper (2) WPL 1103640 Contact Us For Availability

3

Cover, Crisper WPL 2151744 Contact Us For Availability

3

Hole Plug (2) WPL 534927 Contact Us For Availability

3

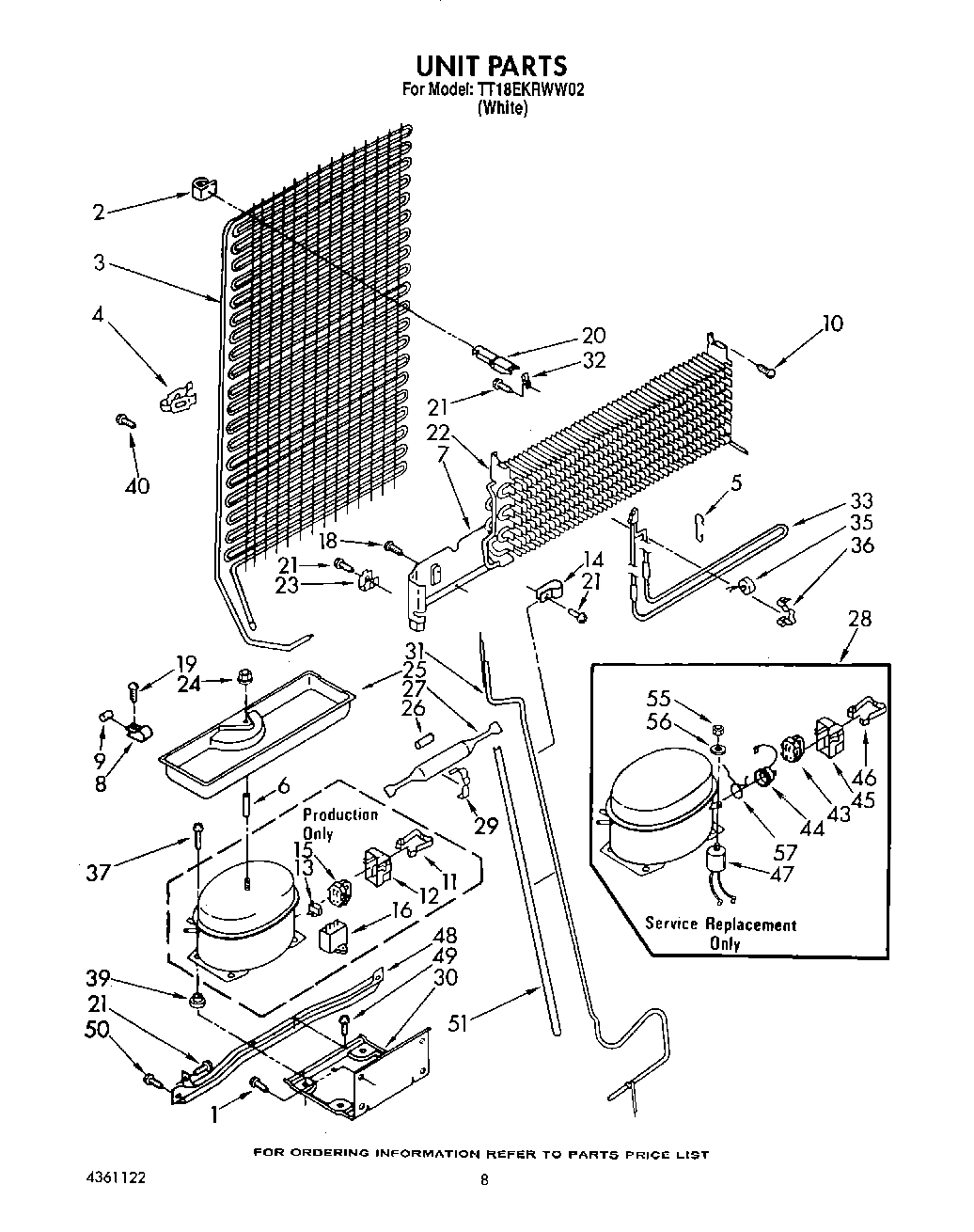

Condenser & Precooler Assembly WPL 2154844 Contact Us For Availability

3

Shelf Stud (2) WPL 1103751 Contact Us For Availability

4

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

4

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

4

Trivet WPL 2151729 Contact Us For Availability

4

Tube Clip (2) WPL 1105406 Contact Us For Availability

5

Shelf, Ice Cube Pan WPL 2151427 Contact Us For Availability

5

Door Gasket, Magnetic WPL 1122830 Contact Us For Availability

5

Support, Heater WPL 1108172 Contact Us For Availability

5

Hole Plug WPL 1103725 Contact Us For Availability

6

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

6

Clip, Center Rail (4) WPL 1129018 Contact Us For Availability

6

Spacer WPL 2154438 Contact Us For Availability

6

Side, Electric Shield WPL 942751 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

7

Support, Crisper Cover WPL 1103731 Contact Us For Availability

7

Heater, Mullion WPL 1108139 Contact Us For Availability

7

End Cap, Handle (2) WPL 1124591 Contact Us For Availability

7

Heat Shield Evaporator WPL 1108359 Contact Us For Availability

7

Top, Electric Shield WPL 1129068 Contact Us For Availability

8

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

8

Post, Cripser Cover WPL 836410 Contact Us For Availability

8

Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability

8

Handle, Center WPL 1100023 Contact Us For Availability

8

Tube Clamp WPL 510716 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

9

Shelf Stud WPL 939065 Contact Us For Availability

9

Screw, 8-15 x 1-5/8 (2) WPL 488987 Contact Us For Availability

9

Dampener WPL 945593 Contact Us For Availability

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $89.70

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

Screw, 8-32 x 1/2 (2) WPL 488844 Contact Us For Availability

Insert, Screw Cover WPL 2151726 Contact Us For Availability

Clip, Strap WPL 1123230 Contact Us For Availability

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

Knob, Thermostat WPL 2148148 Contact Us For Availability

Spacer (2) WPL 2149077 Contact Us For Availability

Interior Door Panel WPL 1120631 Contact Us For Availability

12

Drain Pan WPL 1108358 Contact Us For Availability

12

Trim, Door Shelf WPL 1116065 Contact Us For Availability

12

Case, Relay WPL 1108115 Contact Us For Availability

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

Center Rail WPL 1110343 Contact Us For Availability

Overload WPL 1108114 Contact Us For Availability

Cover, Air Duct WPL 1118775 Contact Us For Availability

Knob, Air Control WPL 2148149 Contact Us For Availability

Center, Rail Shim (2) WPL 2151428 Contact Us For Availability

Door Stop WPL 944035 Contact Us For Availability

Clamp WPL 489151 Contact Us For Availability

15

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

15

Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability

15

Screw WPL 489319 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Rod, Connecting WPL 1111272 Contact Us For Availability

Gasket Retainer, Side (2) WPL 1120613 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

Air Diffuser Assembly WPL 1118774 Contact Us For Availability

Hinge, Top WPL 1129045 Contact Us For Availability

Gasket Retainer, Top & Bottom (2) WPL 1120616 Contact Us For Availability

18

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

18

Gasket, Air Diffuser WPL 1114325 Contact Us For Availability

18

Shim, Hinge Top WPL 1100511 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

Hole Plug (2) WPL 1122929 Contact Us For Availability

Screw WPL 489050 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

20

Screw WPL 489327 Contact Us For Availability

20

Condenser, Stand-Off WPL 1100636 Contact Us For Availability

21

Wiring Assembly WPL 937078 Contact Us For Availability

21

Hinge, Center WPL 1129047 Contact Us For Availability

21

Screw (2) WPL 489168 Contact Us For Availability

22

Wiring Assembly, Control Box & Cabinet WPL 2154705 Contact Us For Availability

22

Shim, Hinge Center WPL 836194 Contact Us For Availability

22

Evaporator WPL 943762 Contact Us For Availability

4386951 Whirlpool Refrigerator Clip In Stock WPL 4386951 $3.51

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Gasket, Bottom Separator WPL 1123915 Contact Us For Availability

Screw (Repair) WPL 489297 Contact Us For Availability

Scroll, Fan WPL 1122814 Contact Us For Availability

24

285002 Whirlpool Nut Backorder WPL 285002 $7.58

24

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

24

Evaporator Cover WPL 2151658 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Screw, 8-15 x 1-1/2 WPL 488678 Contact Us For Availability

Tap Plate (2) WPL 2147312 Contact Us For Availability

Evaporator Tray WPL 1101002 Contact Us For Availability

26

Insulation, Filler WPL 1108196 Contact Us For Availability

26

Hinge Butt, Bottom WPL 1123880 Contact Us For Availability

26

Restrictor Sleeve WPL 510446 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

27

Insulation, Compartment Separator WPL 1123391 Contact Us For Availability

27

Seal, Gasket WPL 1106510 Contact Us For Availability

28

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

28

Pad (2) WPL 946367 Contact Us For Availability

28

Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482981 Contact Us For Availability

29

Shim, Bottom WPL 943708 Contact Us For Availability

29

Clamp, Dryer WPL 1127590 Contact Us For Availability

30

Washer, 7/64 WPL 489201 Contact Us For Availability

30

Unit Mounting Plate WPL 1118781 Contact Us For Availability

31

Insulation, Center Rail WPL 1111503 Contact Us For Availability

31

Cover, Glider Rail (2) WPL 2151421 Contact Us For Availability

31

Exchanger, Heat WPL 1127721 Contact Us For Availability

32

Cover, Deck Rail WPL 1109364 Contact Us For Availability

32

Clip, Stand Off WPL 1100707 Contact Us For Availability

33

Separator, Compartment (Top) WPL 1119325 Contact Us For Availability

33

Heater, Defrost WPL 1127660 Contact Us For Availability

34

Filler, Wrap Corner (2) WPL 1110684 Contact Us For Availability

35

Cup, Drain WPL 939191 Contact Us For Availability

35

Hole Plug WPL 1119707 Contact Us For Availability

35

Bi-Metal, Defrost WPL 2149749 Contact Us For Availability

36

Hole Plug (2) WPL 842031 Contact Us For Availability

36

Clamp WPL 1100637 Contact Us For Availability

37

Hole Seal WPL 1129056 Contact Us For Availability

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

Cover, Wiring WPL 942845 Contact Us For Availability

41

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

42

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $4.08

43

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

43

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $50.51

44

Cord, Service WPL 937360 Contact Us For Availability

44

Overload WPL 483037 Contact Us For Availability

45

Clamp WPL 937357 Contact Us For Availability

45

Cover, Terminal WPL 1105015 Contact Us For Availability

46

Fitting, Drain WPL 942813 Contact Us For Availability

46

Strap WPL 938384 Contact Us For Availability

47

Seal, Gasket WPL 1106507 Contact Us For Availability

47

Capacitor WPL 482996 Contact Us For Availability

48

Unit Mounting Rail WPL 1118783 Contact Us For Availability

49

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

49

Plug Assembly WPL 1106511 Contact Us For Availability

50

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

50

Hole Seal WPL 1120224 Contact Us For Availability

51

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $36.64

51

WP2002171 Whirlpool Refrigerator Sleeve Backorder WPL WP2002171 $10.19

52

Clamp WPL 519405 Contact Us For Availability

55

Nut WPL 489142 Contact Us For Availability

56

Washer WPL 489143 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Overload Spring WPL 1114190 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
