Model Whirlpool TT18DKXBN01 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2154075 WPL LIT2154075 Contact Us For Availability

WPL LIT2157979 WPL LIT2157979 Contact Us For Availability

WPL LIT2173260 WPL LIT2173260 Contact Us For Availability

1

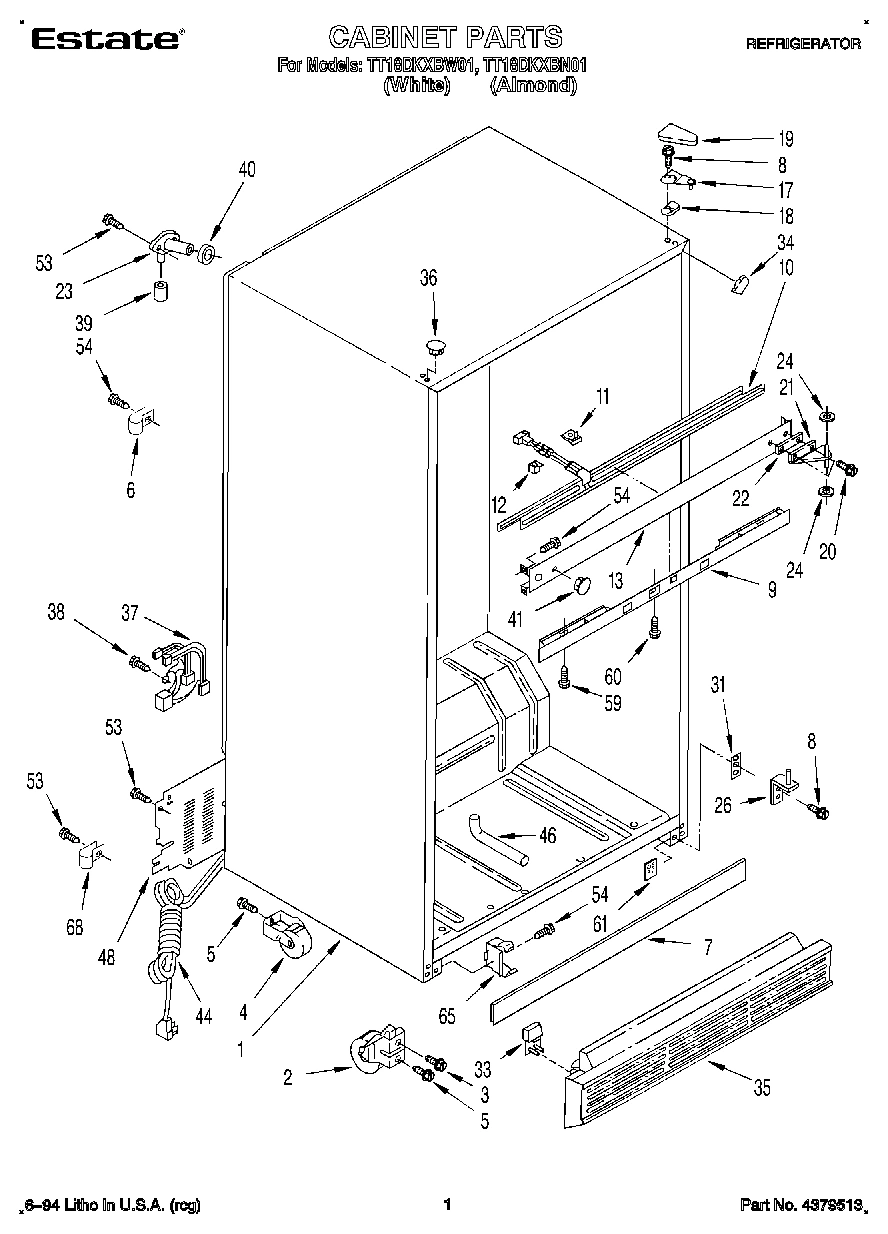

Cabinet (Not A Serviceable Part) WPL ARI133104A Contact Us For Availability

1

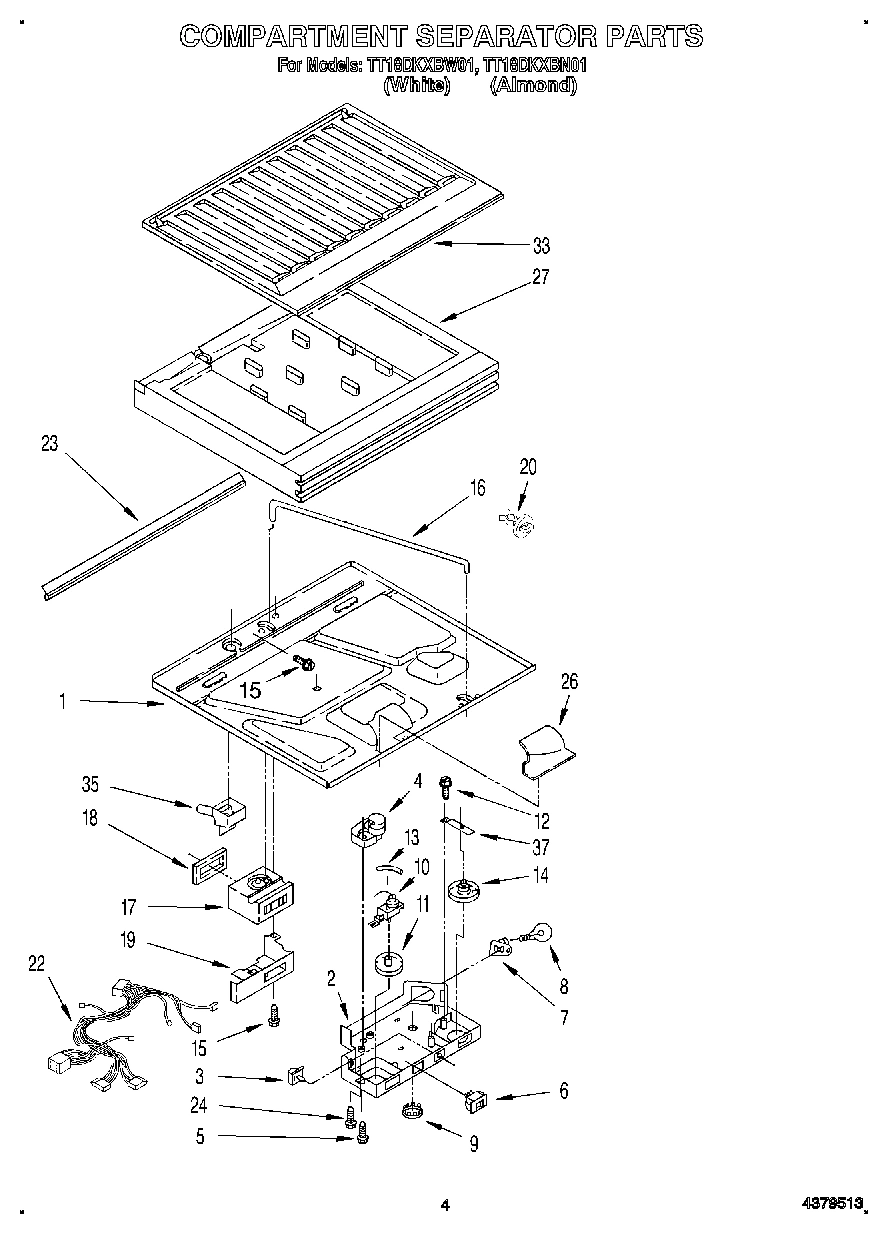

Bottom, Compartment Separator WPL 2172814 Contact Us For Availability

1

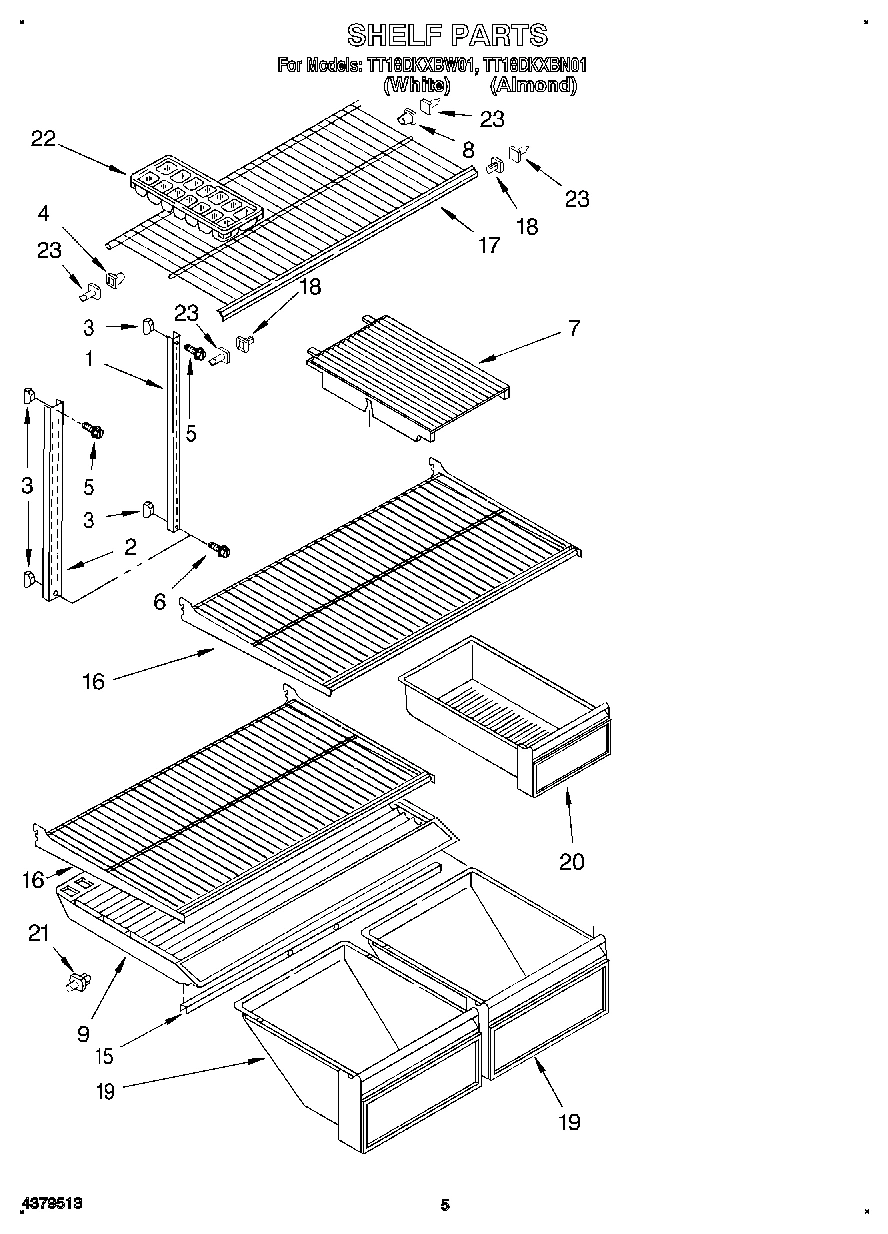

Shelf, Ladder (2) WPL 1114466 Contact Us For Availability

1

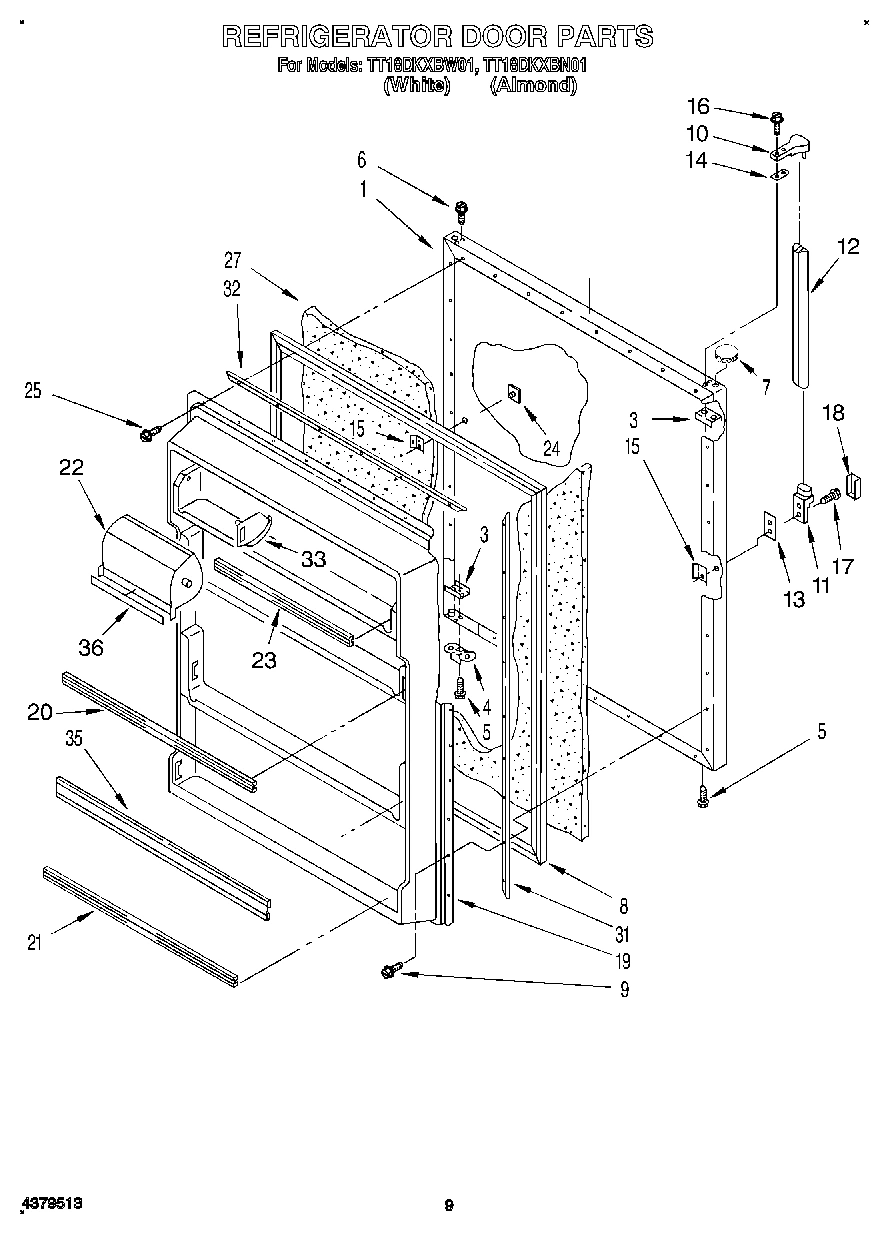

Refrigerator Door Panel (Also Order Item 27) WPL 1116575 Contact Us For Availability

1

Refrigerator Door Panel (Also Order Item 27) WPL 1116578 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Roller, Front WPL 2152011 Contact Us For Availability

2

Box, Control WPL 2151992 Contact Us For Availability

2

Shelf, Ladder Center WPL 1114465 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

3

Screw WPL 489393 Contact Us For Availability

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Timer, Defrost (10 Hour) WPL 2154982 Contact Us For Availability

4

Bracket, Door Stop WPL 944036 Contact Us For Availability

5

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Screw, WPL 489345 Contact Us For Availability

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

6

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

Deck Rail Cover WPL 2172703 Contact Us For Availability

7

Cover, Meat Pan WPL 1126678 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

8

819091 Whirlpool Refrigerator Shelf Stud Backorder WPL 819091 $13.89

8

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

8

Door Gasket, Magnetic WPL 1116734 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

Control, Front Cover WPL 2148582 Contact Us For Availability

9

Cover, Crisper WPL 2163656 Contact Us For Availability

10

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $89.70

10

Heater, Mullion WPL 2154064 Contact Us For Availability

10

Handle End WPL 944157 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

Clip, Center Rail (6) WPL 1129018 Contact Us For Availability

Knob, Thermostat WPL 2148150 Contact Us For Availability

Handle End, WPL 935105 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

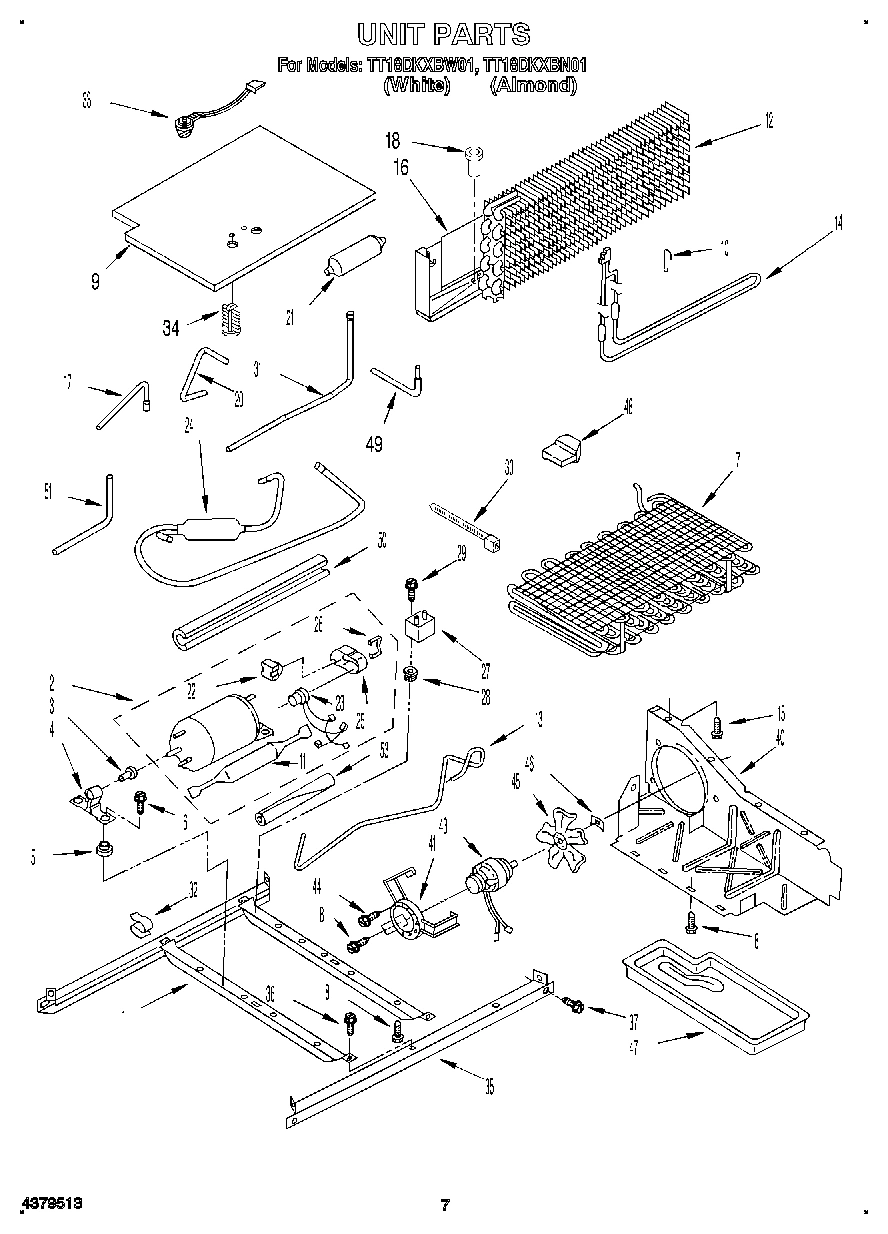

Evaporator WPL 2153977 Contact Us For Availability

Spacer (3) WPL 2149077 Contact Us For Availability

Handle, Center (White) WPL 2157109 Contact Us For Availability

Handle, Center (Almond) WPL 2157110 Contact Us For Availability

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

Tube, Discharge WPL 2154028 Contact Us For Availability

Center Rail WPL 2172701 Contact Us For Availability

Shim, Handle WPL 935076 Contact Us For Availability

14

Spacer, Handle Door WPL 943188 Contact Us For Availability

14

Heater, Defrost WPL 2162020 Contact Us For Availability

14

Knob, Air Control WPL 2148151 Contact Us For Availability

15

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

15

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

15

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability

Rod, Connecting WPL 1116565 Contact Us For Availability

Shelf, Full Cantilever (2) WPL 2163243 Contact Us For Availability

WP2189412 Whirlpool Refrigerator Door Hinge Backorder WPL WP2189412 $37.95

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Tube, Process WPL 2154090 Contact Us For Availability

Air Diffuser Assembly WPL 2157252 Contact Us For Availability

Shelf, Freezer WPL 2163241 Contact Us For Availability

Drain Fitting WPL 2172811 Contact Us For Availability

Shim, Hinge Top WPL 2157269 Contact Us For Availability

Gasket, Air Diffuser WPL 2157255 Contact Us For Availability

Shelf Stud WPL 946356 Contact Us For Availability

Cover, End Cap WPL 987873 Contact Us For Availability

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

Hinge Cover (Almond) WPL 2160404 Contact Us For Availability

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

Pan, Crisper WPL 2173207 Contact Us For Availability

Interior Door Panel WPL 2160165 Contact Us For Availability

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Tube, Muffler & Reservoir WPL 2169348 Contact Us For Availability

Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability

Pan, Meat WPL 2173210 Contact Us For Availability

W10854959 Whirlpool Refrigerator Shelf Stud Backorder WPL W10854959 $4.23

Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability

Reservoir WPL 2169343 Contact Us For Availability

Hinge, Center WPL 2151453 Contact Us For Availability

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

EndCap, Trim (4) WPL 1106862 Contact Us For Availability

Relay (See Overload) WPL ARI133106A Contact Us For Availability

Shim, Hinge Center WPL 836155 Contact Us For Availability

Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability

Compartment Door, Utility WPL 2163223 Contact Us For Availability

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

WP2201061 Whirlpool Refrigerator Door Trim In Stock WPL WP2201061 $38.41

Overload (Service (Includes Relay)) WPL 2154945 Contact Us For Availability

Overload (Production (Includes Relay)) WPL 2159611 Contact Us For Availability

Gasket, Bottom Separator WPL 2159733 Contact Us For Availability

Support, Stud WPL 946355 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

Muffler WPL 2159588 Contact Us For Availability

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

25

Terminal Cover WPL 2154452 Contact Us For Availability

26

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

26

Strap, Cover WPL 1105222 Contact Us For Availability

26

Insulation, Filler WPL 1108196 Contact Us For Availability

27

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

27

Insulation, Compartment Separator WPL 1116569 Contact Us For Availability

28

Screw Grommet WPL 509812 Contact Us For Availability

29

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

31

Tube, Reservoir & Heat Exchanger WPL 2169346 Contact Us For Availability

31

Spacer WPL 2172745 Contact Us For Availability

31

Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability

32

Clip, Wire WPL 548745 Contact Us For Availability

32

Retainer, Gasket Top & Bottom (2) WPL 1115137 Contact Us For Availability

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $16.40

Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability

Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability

Separator, Compartment (Top) WPL 2157398 Contact Us For Availability

Hinge Pin, Center WPL 2160051 Contact Us For Availability

34

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

34

Filler, Wrapper Corner (2) (White) WPL 1118058 Contact Us For Availability

34

Filler, Wrapper Corner (2) (Almond) WPL 1118059 Contact Us For Availability

Unit, Rail WPL 1116622 Contact Us For Availability

Grille (White) WPL 1125664 Contact Us For Availability

Grille (Almond) WPL 1125669 Contact Us For Availability

Cup, Drain WPL 937065 Contact Us For Availability

Trim, Door Shelf WPL 2163635 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

TAPE, VINYL (3/4 X 10 WPL 479502 Contact Us For Availability

Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability

Trim, Compartment Door WPL 2157988 Contact Us For Availability

Door Reversal Instructions WPL 2172761 Contact Us For Availability

xEnamel, Gold (13 Oz. Spray Can) WPL 261890 Contact Us For Availability

Enamel, Gold (1 Qt. Uncut) WPL 261891 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

37

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

37

Wiring Assembly, Intermediate WPL 2153994 Contact Us For Availability

37

Bracket, Control Knob WPL 1105457 Contact Us For Availability

39

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

40

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

40

Air, Baffle WPL 2169432 Contact Us For Availability

41

Fan, Mounting Bracket WPL 2162060 Contact Us For Availability

41

Hole Plug WPL 1129062 Contact Us For Availability

43

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

44

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

44

Cord, Service WPL 937360 Contact Us For Availability

45

Fan Blade WPL 2169191 Contact Us For Availability

46

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

46

Fitting, Drain WPL 2172888 Contact Us For Availability

47

Tray, Evaporator WPL 1116604 Contact Us For Availability

48

Wedge, Air Baffle WPL 1118017 Contact Us For Availability

48

Cover, Unit WPL 2160514 Contact Us For Availability

49

Tube, Process WPL 2154040 Contact Us For Availability

50

WP2002171 Whirlpool Refrigerator Sleeve Backorder WPL WP2002171 $10.19

51

Tube, Condenser To Heat Loop WPL 2154031 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Sleeve WPL 2159751 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

60

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

61

Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

68

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94
