Model Electrolux TSK210ANOT REFRIGERATOR – Common Parts & Diagrams

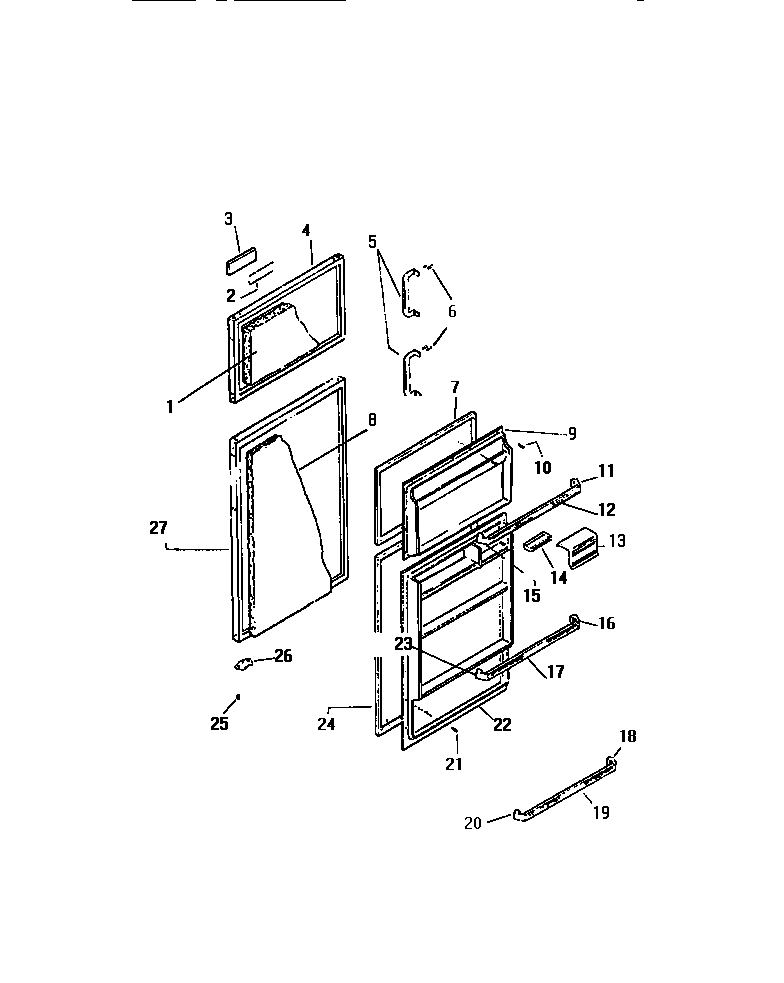

02 - DOOR

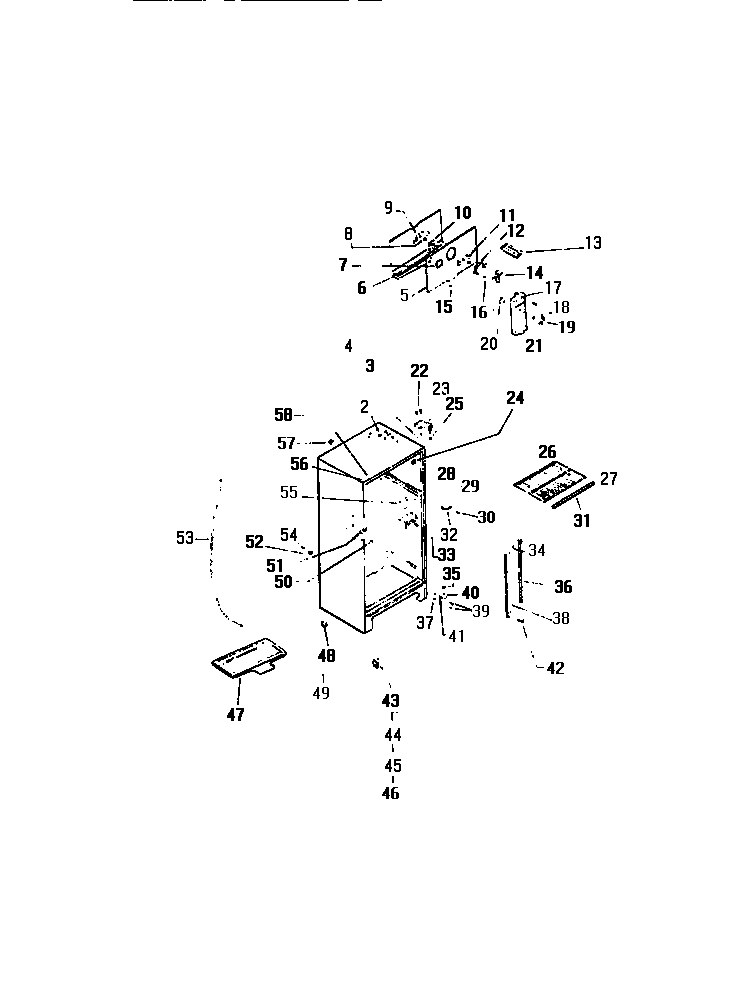

03 - CABINET W/ FAN ASSEMBLY
04 - SHELVES, CONTROLS, DIVIDER, MULLION
05 - SYSTEM
Common parts from model Electrolux TSK210ANOT REFRIGERATOR
*44281
DOOR CONVERSION PKG, WHEAT WCI G172723-09 Contact Us For Availability
*44283
WCI G169332-09 WCI G169332-09 Contact Us For Availability
*44288
WCI G162977-09 WCI G162977-09 Contact Us For Availability
*44291
LABEL NAMEPL WCI G178282-01 Contact Us For Availability
*44292
TAPE DBL FACE FOAM LWR DWR WCI G162991-29 Contact Us For Availability
*44293
TRIM DOOR TOP LWR WCI G178293-01 Contact Us For Availability
*44294
WCI G179266 WCI G179266 Contact Us For Availability
*44295
WCI G179267 WCI G179267 Contact Us For Availability
*44297
COVER TOP HING WHEAT WCI G183558-09 Contact Us For Availability
*44301
TRIM, CABINET CORNER (WHEAT) WCI G179684-09 Contact Us For Availability
*44304
PLUG EVAP. INSUL. BLOCK R.H. WCI G185276 Contact Us For Availability
*44305
RING SEAL (DEFROST DRAIN TUBE) WCI G176853 Contact Us For Availability
*44306
WCI G176210 WCI G176210 Contact Us For Availability
*44307
BUTTON PLUG, LOWER DR WCI G162892-07 Contact Us For Availability
*44313
SCREW (5 REQ) WCI G162673 Contact Us For Availability
*44314
BRKT. MULLION MTG WCI G490087 Contact Us For Availability
*44315
TAPPING PLATE, (2 REQ) WCI G157591 Contact Us For Availability
*44316
BUT. PLUG I.M. HARNESS WCI G161046 Contact Us For Availability
*44317
BUT PLUG I.M. & FR, SH. MTG HOLES (5 REQ) WCI G162659 Contact Us For Availability
*44318
BUT PLUG LINER (2 REQ) WCI G162892-01 Contact Us For Availability
*44319
BRKT, CONNECTOR WCI G164571 Contact Us For Availability
*44320
HARNESS - WIRING WCI G184904 Contact Us For Availability
*44321
OWNERS MANUAL WCI G186589 Contact Us For Availability
*44322
SERV. DATA SHEET WCI G186196 Contact Us For Availability
*44324
NUT NO. 8A TYPE ``U`` (FAN MOTOR) WCI G167542 Contact Us For Availability
*44325
WCI G141621-21 WCI G141621-21 Contact Us For Availability
*44326
WCI G183584 WCI G183584 Contact Us For Availability
1
INSULATION, UPPER EXT. DOOR PNL WCI G163138 Contact Us For Availability
1
WCI G174747-09 WCI G174747-09 Contact Us For Availability
1
TOP PC WCI G184628 Contact Us For Availability
1
WCI G178425-05 WCI G178425-05 Contact Us For Availability
2
TAPE NAMEPLATE MTG. WCI G162991-04 Contact Us For Availability
2
WCI G183861 WCI G183861 Contact Us For Availability
2
BOTTOM FC WCI G184604 Contact Us For Availability
3
WCI G178291 WCI G178291 Contact Us For Availability
3
SUPPORT COIL COVER (12 REQ) WCI G163669 Contact Us For Availability
3
DIVIDER CTR WCI G184683 Contact Us For Availability
3
CAP. & SUCTION LINE ASSY WCI G177532 Contact Us For Availability
4
WCI G186413-09 WCI G186413-09 Contact Us For Availability
4
TUBE INSULATION (12 REQ) WCI G85642 Contact Us For Availability
4
SCREW MULLION (2 REQ) WCI G167777 Contact Us For Availability
4
EVAPORATOR WCI G162506 Contact Us For Availability
5
HANDLE DOOR FC & PC (2 ) WCI G172612-03 Contact Us For Availability
5
WCI G184609 WCI G184609 Contact Us For Availability
5
WCI G180373-09 WCI G180373-09 Contact Us For Availability
6
SCREW HANDLE MTG (8) WCI G155660 Contact Us For Availability
6
WCI G177534 WCI G177534 Contact Us For Availability
6
BLOCK EVAP R.H. WCI G185299 Contact Us For Availability
7
GASKET- FC DOOR WCI G180547-14 Contact Us For Availability
7
BRKT. COND. MTG (4 REQ) WCI G164637 Contact Us For Availability
8
WCI G185004 WCI G185004 Contact Us For Availability
8
COLD CONTROL WCI G162667-10 Contact Us For Availability
9
PNL INNER DOOR FC WCI G185408-02 Contact Us For Availability
9
BRKT REAR MOTOR MTG WCI G162048 Contact Us For Availability
9
WCI G186110 WCI G186110 Contact Us For Availability
10
WCI G174666-15 WCI G174666-15 Contact Us For Availability
11
BRKT FRONT MOTOR MTG WCI G162049 Contact Us For Availability
11
SWITCH SLIDE WCI G178402-01 Contact Us For Availability
12
RING FAN ORIFACE WCI G167217 Contact Us For Availability
12
KNOB CONTROL WCI G174781-06 Contact Us For Availability
13
DOOR,DAIRY WCI G178500-16 Contact Us For Availability
13
WCI G107080 WCI G107080 Contact Us For Availability
14
LABEL CONT BOX WCI G178294-01 Contact Us For Availability
15
WCI G18536 WCI G18536 Contact Us For Availability
15
SCREW TIMER MTG (2REQ) WCI G106289 Contact Us For Availability
16
WCI 172434-09 WCI 172434-09 Contact Us For Availability
16
CORD, SERVICE WCI G162549-01 Contact Us For Availability
17
FRONT RACK PC WCI G162939-36 Contact Us For Availability
17
WCI G162512-22 WCI G162512-22 Contact Us For Availability
17
WCI G1633980 WCI G1633980 Contact Us For Availability
17
WCI 163204 WCI 163204 Contact Us For Availability
18
SUPT RACK RH PC WCI G185363-01 Contact Us For Availability
18
SOCKET LIGHT WCI G168302 Contact Us For Availability
18
WASHER COMP. MTG (4 REQ) WCI G164634 Contact Us For Availability
19
WCI G162939-35 WCI G162939-35 Contact Us For Availability
19
KNOB DAMPER CONT WCI G162663-11 Contact Us For Availability
19
WCI 177390-10 WCI 177390-10 Contact Us For Availability
20
DAMPER FAN COVER WCI G162661 Contact Us For Availability
20
COVER MEAT PAN HANGING WCI G177106-01 Contact Us For Availability
21
NUT DAMPER MTG WCI G162662 Contact Us For Availability
21
WCI G161013-64 WCI G161013-64 Contact Us For Availability
22
WCI G85409-02 WCI G85409-02 Contact Us For Availability
22
CRISPER WCI G490015-32 Contact Us For Availability
22
CLIP COVERLOAD WCI G166053 Contact Us For Availability
23
SUPT RACK LH PC WCI G185364-01 Contact Us For Availability
23
BRKT TOP HINGE WCI G183714 Contact Us For Availability
23
WCI G161013-47 WCI G161013-47 Contact Us For Availability
23
WCI G166052 WCI G166052 Contact Us For Availability
24
GASKET DOOR PL WCI G180547-13 Contact Us For Availability
24
ROD CRISPER COVER SUPT WCI G166310-02 Contact Us For Availability
24
WCI 150618-09 WCI 150618-09 Contact Us For Availability
25
TRIM STORAGE PAN WCI G161013-63 Contact Us For Availability
25
WCI G183738 WCI G183738 Contact Us For Availability
26
STOP DOOR FC & PC (2 REQ) WCI G155072 Contact Us For Availability
26
SHELF FRZR WCI G177059-05 Contact Us For Availability
26
PAN STORAGE WCI G176639-15 Contact Us For Availability
26
PLATE COMP. MTG WCI G184599 Contact Us For Availability
27
PANEL EXT DOOR FC WHEAT WCI G178279-09 Contact Us For Availability
27
WCI G166495-01 WCI G166495-01 Contact Us For Availability
27
WCI G176918-14 WCI G176918-14 Contact Us For Availability
27
BLOCK EVAP, L.H. WCI G162807 Contact Us For Availability
28
WCI G490064-08 WCI G490064-08 Contact Us For Availability
29
WCI G142220 WCI G142220 Contact Us For Availability
29
HTR MULLION WCI G177254 Contact Us For Availability
31
TRIM SHELF FRZR WCI G172434-34 Contact Us For Availability
33
COVER AIR DEFL WCI G162178 Contact Us For Availability
35
WASHER (NYLON) WCI G164355 Contact Us For Availability
36
CHANNEL SHELF (2 REQ) WCI G170695 Contact Us For Availability
37
SHIN HINGE WCI G163203 Contact Us For Availability
38
CHANNEL CENTER SHELF MTG WCI G175612 Contact Us For Availability
41
BRKT HINGE LOWER WCI G181019 Contact Us For Availability
42
SCREW CHANNEL MTG (3 REQ) WCI G163989 Contact Us For Availability
43
ROLLER FRONT ADJ (2 RERQ) WCI G177021 Contact Us For Availability
44
SPRING ROLLER (2 RREQ) WCI G178494 Contact Us For Availability
45
BOLT ROLLER (2 RREQ) WCI G177024 Contact Us For Availability
46
SUPT ROLLER (2 REQ) WCI G177302 Contact Us For Availability
47
WCI G179326 WCI G179326 Contact Us For Availability
48
ROLLER REAR (2 REQ) WCI G183407 Contact Us For Availability
49
BOLT ROLLER (2) WCI G177025 Contact Us For Availability
51
SPOUT DRAIN TUBE WCI G162179 Contact Us For Availability
52
WCI G101747 WCI G101747 Contact Us For Availability
53
TUBE, DRAIN WCI G184920-01 Contact Us For Availability
55
DEFLECTOR AIR WCI G162675 Contact Us For Availability
56
BUTTON DECORATIVE PLUG WCI G162827-14 Contact Us For Availability
57
WCI G174733 WCI G174733 Contact Us For Availability
58
WCI G174734 WCI G174734 Contact Us For Availability
× ![]()
