Model Electrolux TSK206EN2W REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

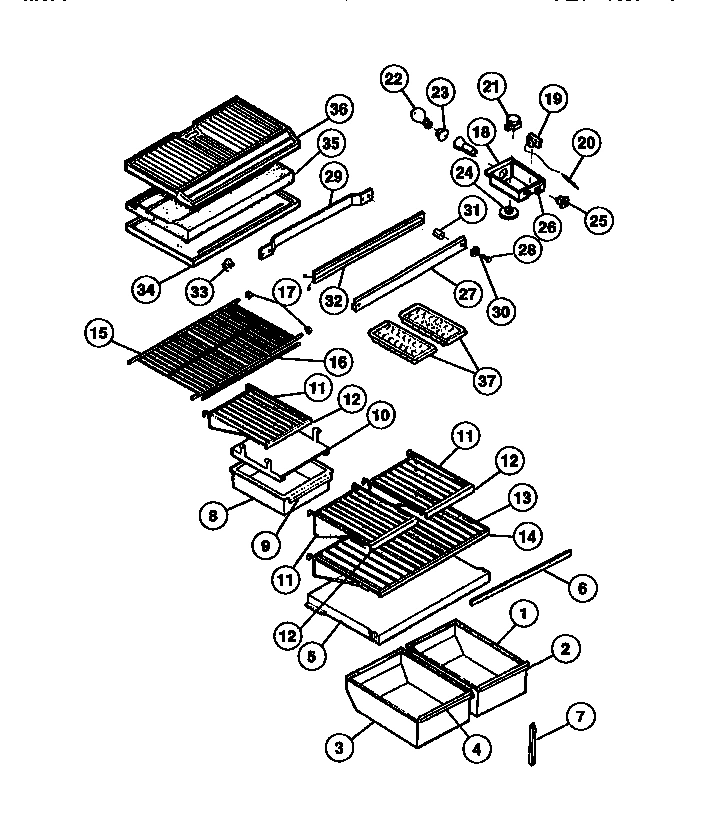

04 - SHELVES AND SUPPORTS

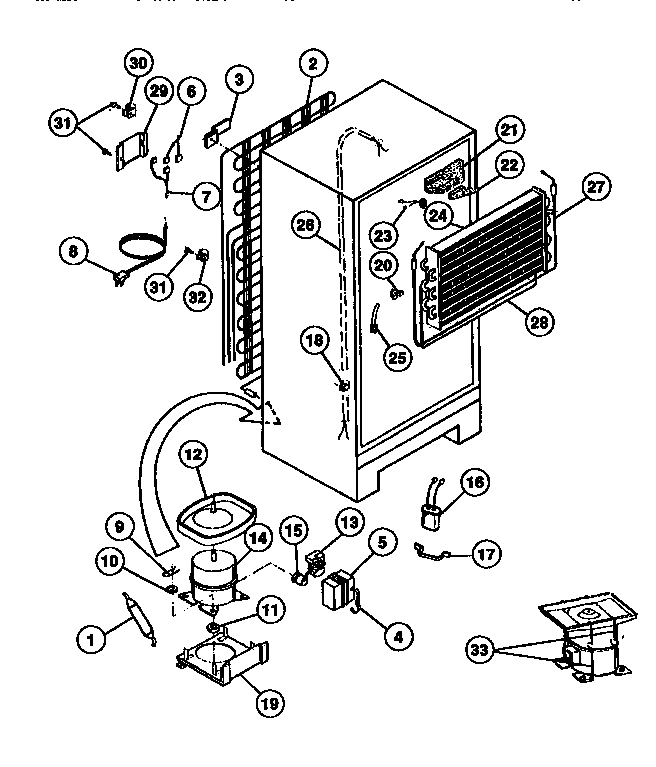

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux TSK206EN2W REFRIGERATOR
*11350
PLUG-LINER (5) WCI G187599 Contact Us For Availability
*12804
HOT TUBE REPAIR KIT WCI G189383 Contact Us For Availability
1
COVER HINGE, WHITE WCI G183558-01 Contact Us For Availability
1
WCI 3016529 WCI 3016529 Contact Us For Availability
2
WCI G183714 WCI G183714 Contact Us For Availability
2
WCI 3016531 WCI 3016531 Contact Us For Availability
2
WCI G163133 WCI G163133 Contact Us For Availability
3
SUPPORT-RS (4) WCI G178287-01 Contact Us For Availability
3
WCI G183861 WCI G183861 Contact Us For Availability
3
WCI 3016530 WCI 3016530 Contact Us For Availability
3
BRACKET-MTG (4) WCI G164637 Contact Us For Availability
4
INNER PANEL-FRZR WCI 3016517 Contact Us For Availability
4
TRIM-SMALL PAN WCI G161013-65 Contact Us For Availability
4
STRAP-TERM COVER WCI G185790 Contact Us For Availability
5
WCI G103903 No Longer Available
5
WCI 3016520 WCI 3016520 Contact Us For Availability
5
COVER-PAN WCI G490064-09 Contact Us For Availability
5
WCI G185792 WCI G185792 Contact Us For Availability
6
WCI 3015602 WCI 3015602 Contact Us For Availability
6
WASHER-CTR HINGE WCI G164355 Contact Us For Availability
6
WCI G184904 WCI G184904 Contact Us For Availability
6
GASKET, COVER WCI G180108-07 Contact Us For Availability
7
DOOR STOP (2) WCI G155072 Contact Us For Availability
7
ROLLER ASSY (2) WCI G177021 Contact Us For Availability
7
WCI 3016528 WCI 3016528 Contact Us For Availability
7
HARNESS-COMPR WCI G166062-01 Contact Us For Availability
8
ROLLER ASSY (2) WCI G183407 Contact Us For Availability
8
WCI 3015333 WCI 3015333 Contact Us For Availability
8
WCI G162549-01 WCI G162549-01 Contact Us For Availability
9
NAMEPLATE FRAME WCI G178292 Contact Us For Availability
9
WCI G161013-67 WCI G161013-67 Contact Us For Availability
9
CLIP-MTG (4) WCI G163204 Contact Us For Availability
10
LABEL-NAMEPLATE WCI G189500-01 Contact Us For Availability
10
BOLT-REAR RLR (2) WCI G177025 Contact Us For Availability
10
WCI G177106-01 WCI G177106-01 Contact Us For Availability
10
WASHER-MTG (4) WCI G164634 Contact Us For Availability
11
TAPE-MTG WCI G153407-60 Contact Us For Availability
11
SPRING-RLR ADJ (2) WCI G178494 Contact Us For Availability
11
WCI G177390-23 WCI G177390-23 Contact Us For Availability
12
REFR DOOR (WHITE) WCI 3916273 Contact Us For Availability
12
BOLT-RLR ADJ (2) WCI G177024 Contact Us For Availability
12
TRIM-SHELF (3) WCI G172434-09 Contact Us For Availability
12
DEFROST PAN (SVC COMP) WCI G184715 Contact Us For Availability
12A
WCI G171778 WCI G171778 Contact Us For Availability
12B
LOCK NUT (NON-ILLUSTRATED) WCI G164958 Contact Us For Availability
13
WCI G169332-01 WCI G169332-01 Contact Us For Availability
13
WCI G182799 WCI G182799 Contact Us For Availability
13
WCI 3015157 WCI 3015157 Contact Us For Availability
13
WCI G182225-18 WCI G182225-18 Contact Us For Availability
14
WCI 3916406 WCI 3916406 Contact Us For Availability
14
WCI G177302 WCI G177302 Contact Us For Availability
14
TRIM-SHELF WCI G172434-08 Contact Us For Availability
14
COMPR W/ ELEC-SVCE WCI G189462 Contact Us For Availability
15
BEARING HINGE (8) WCI G183138 Contact Us For Availability
15
BRACKET-BTM HNG WCI 3202834 Contact Us For Availability
15
SHELF-FREEZER WCI G177059-08 Contact Us For Availability
15
WCI 3202863 WCI 3202863 Contact Us For Availability
15A
TAPPING PLATE (NON-ILLUSTRATED) WCI G179797 Contact Us For Availability
15A
CLIP-OVERLOAD WCI 3202891 Contact Us For Availability
16
HANDLE GRIP (2) WCI 3201377 Contact Us For Availability
16
SHIM-BTM HNG WCI G163203 Contact Us For Availability
16
TRIM-SHELF WCI G172434-34 Contact Us For Availability
16
CAPACITOR, RUN WCI G188885-02 Contact Us For Availability
16A
WCI 3200995 WCI 3200995 Contact Us For Availability
17
CAP PROTECTOR (2) WCI 3201150 No Longer Available
17
WCI G189453-01 WCI G189453-01 Contact Us For Availability
17
WCI G188897 WCI G188897 Contact Us For Availability
18
HANDLE END WCI G189452-01 Contact Us For Availability
18
CONTROL BOX WCI G176722-03 Contact Us For Availability
19
HANDLE END WCI G189451-01 Contact Us For Availability
19
WCI G490004-02 WCI G490004-02 Contact Us For Availability
19
CONTROL-TEMP WCI 3200810 Contact Us For Availability
19
PLATE COMP. MTG WCI G184599 Contact Us For Availability
19A
WCI G185566 WCI G185566 Contact Us For Availability
19A
WCI G107080 WCI G107080 Contact Us For Availability
20
GASKET-FRZ DOOR WCI G186932-14 Contact Us For Availability
20
WCI G162675 WCI G162675 Contact Us For Availability
20
WCI G188375 WCI G188375 Contact Us For Availability
21
WCI G186932-13 WCI G186932-13 Contact Us For Availability
21
WCI G162178 WCI G162178 Contact Us For Availability
21
WCI G185299 WCI G185299 Contact Us For Availability
22
INSULATION-BULK WCI 3007739 Contact Us For Availability
22
WCI G166912 WCI G166912 Contact Us For Availability
22
WCI G185276 WCI G185276 Contact Us For Availability
23
DAIRY DOOR (2) WCI 3015049 Contact Us For Availability
23
WCI G174733 WCI G174733 Contact Us For Availability
23
SOCKET-BULB WCI G168302 Contact Us For Availability
24
WCI G174734 WCI G174734 Contact Us For Availability
24
KNOB-TEMP CONT WCI G490107-02 Contact Us For Availability
24
WCI G162506 WCI G162506 Contact Us For Availability
25
WCI G162827-14 WCI G162827-14 Contact Us For Availability
25
SWITCH SLIDE WCI G178402-01 Contact Us For Availability
26
DAMPER WCI G162661 Contact Us For Availability
26
LABEL-CONT BOX WCI G189592 Contact Us For Availability
26
HEAT EXCHANGER WCI G147918 Contact Us For Availability
27
WCI G162662 WCI G162662 Contact Us For Availability
27
WCI 3200366 WCI 3200366 Contact Us For Availability
28
KNOB-DAMPER CONT WCI G162747-09 Contact Us For Availability
28
SCREW-MTG (4) WCI G183103 Contact Us For Availability
28
INSULATOR-EVAP WCI G166511-02 Contact Us For Availability
29
WCI 3016784 WCI 3016784 Contact Us For Availability
29
STRAP, MULLION MTG WCI G490087 Contact Us For Availability
29
WCI G183584 WCI G183584 Contact Us For Availability
30
WASHER-STEEL (2) WCI G166847 Contact Us For Availability
31
WCI G162179 WCI G162179 Contact Us For Availability
31
SPACER (2) WCI 3200464 Contact Us For Availability
32
PUSH PIN (2) WCI G185279 Contact Us For Availability
32
WCI G177254 WCI G177254 Contact Us For Availability
33
WCI G184920-01 WCI G184920-01 Contact Us For Availability
33
PAN RETAINER KIT WCI 3916001 Contact Us For Availability
33A
RING, SEAL (NON-ILLUSTRATED) WCI G176853 Contact Us For Availability
34
TOP-REFR WCI 3001651 Contact Us For Availability
34A
SCREW-MTG (3) (NON-ILLUSTRATED) WCI G162673 Contact Us For Availability
35
WCI G167217 WCI G167217 Contact Us For Availability
35
DIVIDER-FOAM WCI G184683 Contact Us For Availability
36
WCI G184604 WCI G184604 Contact Us For Availability
38
WCI G185302 WCI G185302 Contact Us For Availability
39
WCI G185303 WCI G185303 Contact Us For Availability
39A
BRKT-CONNECTOR (NON-ILLUSTRATED) WCI G164571 Contact Us For Availability
40
COVER-EVAP COIL WCI G184609 Contact Us For Availability
40A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
41
SUPPORT, COVER (2) WCI G163669 Contact Us For Availability
42
BRACKET-CTR HINGE WCI G163207 Contact Us For Availability
44
WCI G142220 WCI G142220 Contact Us For Availability
45
DRAIN TROUGH WCI G177534 Contact Us For Availability
46
WCI G170695 WCI G170695 Contact Us For Availability
48
WCI G189341 WCI G189341 Contact Us For Availability
49
SCREW-MTG WCI G187449 Contact Us For Availability
50
TUBE, RUBBER WCI G85642 Contact Us For Availability
51
WCI G174747-01 WCI G174747-01 Contact Us For Availability
51
WCI G174747-08 WCI G174747-08 Contact Us For Availability
51
WCI G174747-09 WCI G174747-09 Contact Us For Availability
51
WCI G174747-10 WCI G174747-10 Contact Us For Availability
51
WCI G174747-11 WCI G174747-11 Contact Us For Availability
53
WCI 3202336 WCI 3202336 Contact Us For Availability
54
LEVELING LEG (2) WCI G185713 Contact Us For Availability
55
WCI G183073 WCI G183073 Contact Us For Availability
57
WCI 3203044 WCI 3203044 Contact Us For Availability
× ![]()
