Model Electrolux TSK160AN6T REFRIGERATOR – Common Parts & Diagrams
02 - DOOR

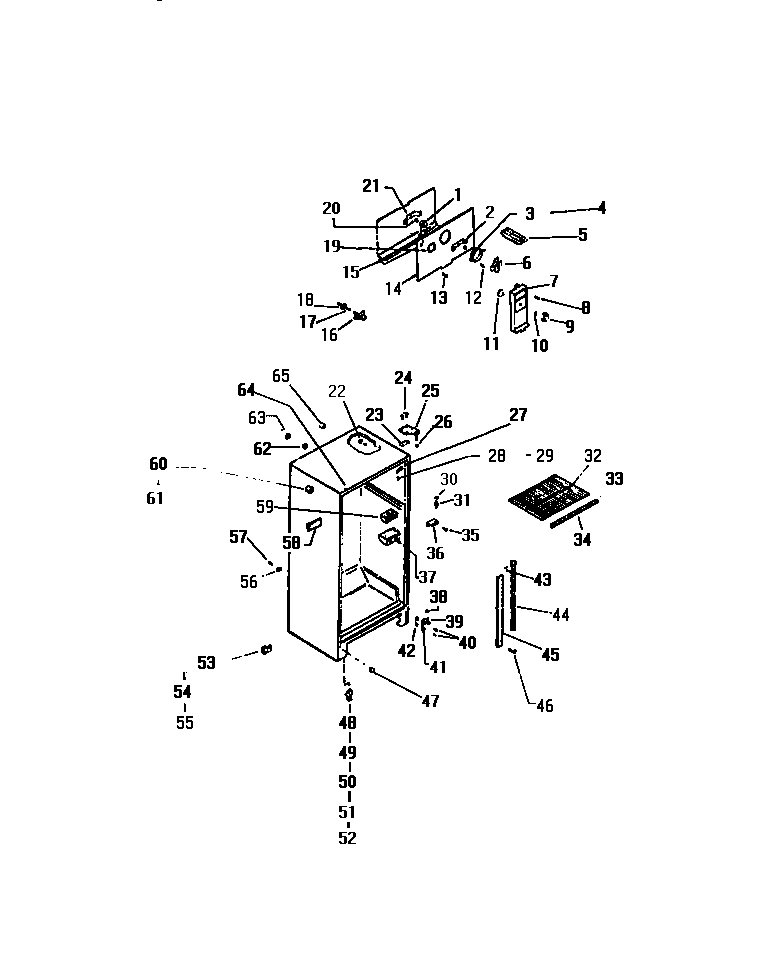

03 - CABINET W/ FAN ASSEMBLY

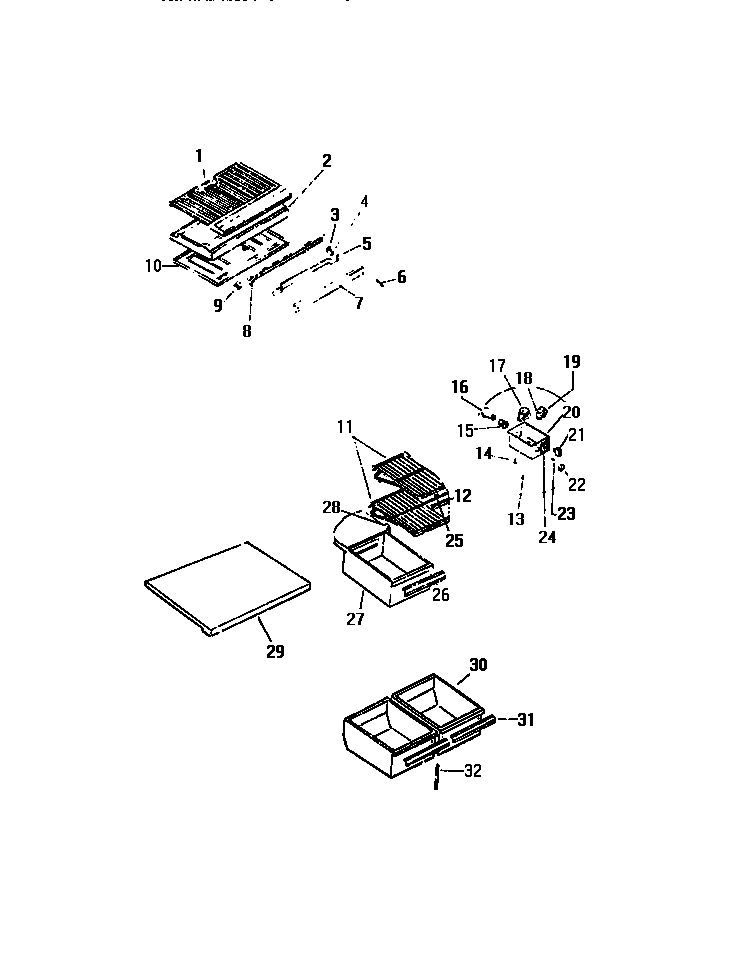

04 - SHELVES, CONTROLS, DIVIDER, MULLION

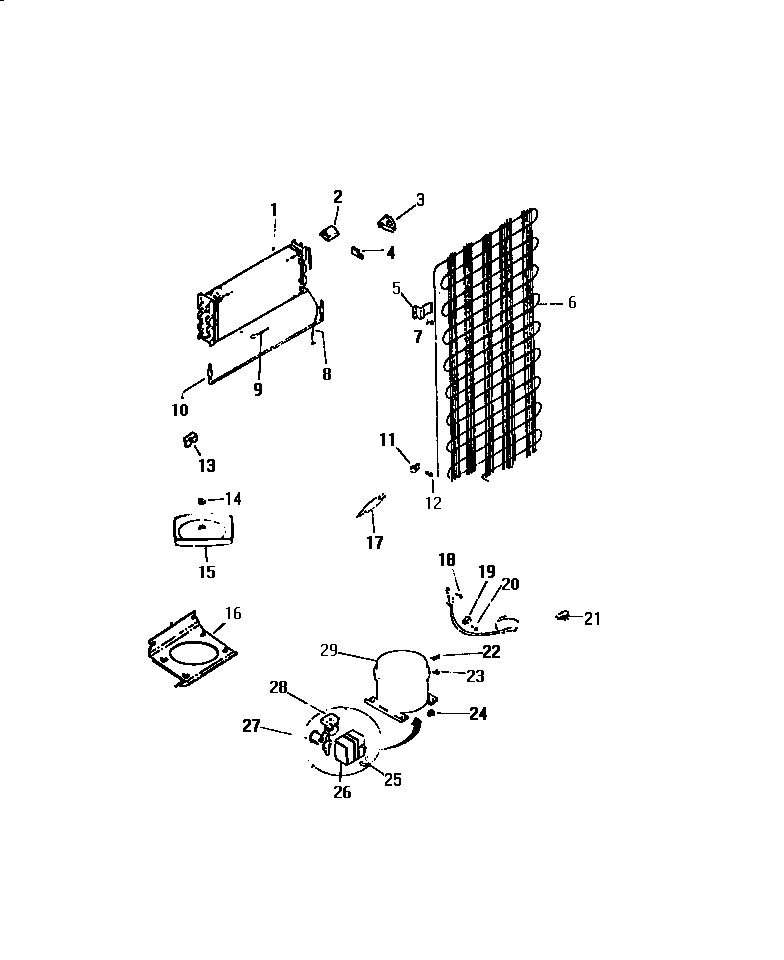

05 - SYSTEM
Common parts from model Electrolux TSK160AN6T REFRIGERATOR
*79288
WCI G169332-09 WCI G169332-09 Contact Us For Availability
*79292
WCI G162977-09 WCI G162977-09 Contact Us For Availability
*79295
WCI G162991-26 WCI G162991-26 Contact Us For Availability
*79296
TRIM-DOOR, TOP PC WCI G178293-02 Contact Us For Availability
*79297
UPPER TRIM RACK WCI G170232-16 Contact Us For Availability
*79298
LOWER TRIM RACK WCI G170232-15 Contact Us For Availability
*79299
WCI G141624-21 WCI G141624-21 Contact Us For Availability
*79300
WCI G141624-13 WCI G141624-13 Contact Us For Availability
*79301
BRKT, CONNECTOR WCI G164571 Contact Us For Availability
*79303
PIN PUSH SPOUT (2) WCI G185279 Contact Us For Availability
*79306
COVER, TOP HINGE, WHEAT WCI G183558-09 Contact Us For Availability
*79309
TAPPING PLATE (2) WCI G157591 Contact Us For Availability
*79310
PLUG BUTTON, ICE MAKER HARN WCI G161046 Contact Us For Availability
*79311
PLUG BUTTON IM & FR SH MTG HOLE (6) WCI G162659 Contact Us For Availability
*79312
HARNESS, WIRING WCI G174818 Contact Us For Availability
*79313
OWNERS MANUAL WCI G186589 Contact Us For Availability
*79314
SERVICE DATA SH WCI G186765 Contact Us For Availability
*79315
WCI G183100-11 WCI G183100-11 Contact Us For Availability
*79316
WCI G179024 WCI G179024 Contact Us For Availability
*79317
PLUG BUTTON LINER (2) WCI G162892-01 Contact Us For Availability
1
HANDLE DOOR FC & PC (2 ) WCI G172612-03 Contact Us For Availability
1
BOTTOM, FC WCI G490022-01 Contact Us For Availability
1
WCI G176806 WCI G176806 Contact Us For Availability
2
WCI G185566 WCI G185566 Contact Us For Availability
2
BRKT FRONT MOTOR MTG WCI G162049 Contact Us For Availability
2
DIVIDER, CENTER WCI G176774 Contact Us For Availability
3
GASKET-FC DOOR WCI G180547-03 Contact Us For Availability
3
RING, FAN ORIFICE WCI G167217 Contact Us For Availability
3
SPACER, MULLION (2) WCI G490082 Contact Us For Availability
3
BLOCK EVAP R.H. WCI G185299 Contact Us For Availability
4
PANEL-INNER DOOR, FC WCI G178474-01 Contact Us For Availability
4
NUT, ORIFICE (2) WCI G167542 Contact Us For Availability
4
WASHER (2) WCI G166847 Contact Us For Availability
4
PLUG EVAP, INSUL R.H. WCI G185276 Contact Us For Availability
5
CLAMP, MULLION MTG WCI G166709 Contact Us For Availability
5
BRKT-COND. MTG (4) WCI G164637 Contact Us For Availability
6
SUPPORT RACK, RH FC & PC (3) WCI G178287-01 Contact Us For Availability
6
SCREW, MULLION MTG (2) WCI G183103 Contact Us For Availability
6
WCI G178225 WCI G178225 Contact Us For Availability
7
FRONT RACK, FC WCI G162939-31 Contact Us For Availability
7
WCI 163061-36 WCI 163061-36 Contact Us For Availability
7
MULLION, WHEAT WCI G490086-09 Contact Us For Availability
8
WCI G162713-05 WCI G162713-05 Contact Us For Availability
8
HTR, CENTER RAIL WCI G177255 Contact Us For Availability
8
HEAT EXCHANGER WCI G177532 Contact Us For Availability
9
KNOB DAMPER CONT WCI G162663-11 Contact Us For Availability
10
SUPPORT RACK, LH FC & PC (3) WCI G178284-01 Contact Us For Availability
10
NUT DAMPER MTG WCI G162662 Contact Us For Availability
10
TOP PC WCI G490021-01 Contact Us For Availability
10
HEATER, DEFROST WCI G176807-01 Contact Us For Availability
10A
SCREW (3) (NON-ILLUSTRATED) WCI G162673 Contact Us For Availability
11
FRONT RACK, PC (2) WCI G162939-30 Contact Us For Availability
11
DAMPER FAN COVER WCI G162661 Contact Us For Availability
11
WCI G101747 WCI G101747 Contact Us For Availability
11
WCI G177390-04 WCI G177390-04 Contact Us For Availability
12
PANEL-INNER DOOR, PC WCI G178449-01 Contact Us For Availability
12
WCI G172343-13 WCI G172343-13 Contact Us For Availability
13
WCI G106289 WCI G106289 Contact Us For Availability
13
BLOCK EVAP, L.H. WCI G162807 Contact Us For Availability
14
COVER-COIL WCI G176797 Contact Us For Availability
14
NUT, LOCK WCI G164958 Contact Us For Availability
15
STOP-DOOR, FC & PC (2) WCI G155072 Contact Us For Availability
15
TROUGH-DRAIN WCI G490043 Contact Us For Availability
15
SOCKET LIGHT WCI G168302 Contact Us For Availability
15
DEFROST, PAN & NUT WCI G171778 Contact Us For Availability
16
SCREW-STOP MTG (2) WCI G167677 Contact Us For Availability
16
SPOUT DRAIN TUBE WCI G162179 Contact Us For Availability
16
WCI G182757 WCI G182757 Contact Us For Availability
17
BEARING, HINGE (PC & FC) (8) WCI G162889 Contact Us For Availability
17
TUBE, DRAIN WCI G184920-01 Contact Us For Availability
18
PANEL EXT DOOR-PC, WHEAT WCI G179047-09 Contact Us For Availability
18
WCI G179863 WCI G179863 Contact Us For Availability
19
TAPE NAMEPLATE MTG. WCI G162991-04 Contact Us For Availability
19
BUTTON DECORATIVE PLUG WCI G162827-14 Contact Us For Availability
19
COLD CONTROL WCI G162667-10 Contact Us For Availability
20
NAMEPLATE (ORDER TAPE) WCI G173156 Contact Us For Availability
20
WCI G174655-15 WCI G174655-15 Contact Us For Availability
20A
WASHER (NON-ILLUSTRATED) WCI G164820 Contact Us For Availability
21
PANEL EXT DOOR-FC, WHEAT WCI G179045-09 Contact Us For Availability
21
BRKT REAR MOTOR MTG WCI G162048 Contact Us For Availability
21
SWITCH SLIDE WCI G178402-01 Contact Us For Availability
21
CORD, SERVICE WCI G162549-01 Contact Us For Availability
22
INSULATION, FC WCI G165144 Contact Us For Availability
22
WCI G163669 WCI G163669 Contact Us For Availability
22
KNOB CONTROL WCI G174781-06 Contact Us For Availability
22
CLIP-COMP MTG (4) WCI G163204 Contact Us For Availability
22A
WCI G177274 WCI G177274 Contact Us For Availability
23
WCI G183861 WCI G183861 Contact Us For Availability
23
WCI G107080 WCI G107080 Contact Us For Availability
23
WASHER-COMP MTG (4) WCI G164634 Contact Us For Availability
24
TABLE CONT. BOX WCI G178294-01 Contact Us For Availability
25
BRKT TOP HINGE WCI G183714 Contact Us For Availability
25
CLIP, TRIM (8) WCI G162928 Contact Us For Availability
25
STRAP BALE WCI G185790 Contact Us For Availability
26
TRIM, MEAT KEEPER WCI G161013-46 Contact Us For Availability
26
COVER TERM WCI G185792 Contact Us For Availability
27
TRIM-CORNER, WHEAT (4) WCI G179684-09 Contact Us For Availability
27
WCI G177623-01 WCI G177623-01 Contact Us For Availability
27
WCI G185797 WCI G185797 Contact Us For Availability
28
COVER MEAT PAN HANGING WCI G177106-01 Contact Us For Availability
28
WCI G182225-12 WCI G182225-12 Contact Us For Availability
29
COVER-CRISPER WCI G490016-01 Contact Us For Availability
29
COMPRESSOR WCI G185831 Contact Us For Availability
30
CRISPER (2) WCI G178303-01 Contact Us For Availability
31
WCI G142220 WCI G142220 Contact Us For Availability
31
TRIM, CRISPER (2) WCI G161013-47 Contact Us For Availability
32
WCI G177059-01 WCI G177059-01 Contact Us For Availability
32
ROD CRISPER COVER SUPT WCI G166310-02 Contact Us For Availability
33
CAP PROTEC WCI G166495-01 Contact Us For Availability
34
WCI G172434-18 WCI G172434-18 Contact Us For Availability
36
BRKT, HINGE CTR WCI G163207 Contact Us For Availability
37
WCI G162178 WCI G162178 Contact Us For Availability
38
WCI G103903 No Longer Available
41
BRKT HINGE LOWER WCI G181019 Contact Us For Availability
42
SHIM, HINGE WCI G163203 Contact Us For Availability
44
CHANNEL, SHELF (2) WCI G170695 Contact Us For Availability
45
CHANNEL CENTER SHELF MTG WCI G175612 Contact Us For Availability
47
WCI G166912 WCI G166912 Contact Us For Availability
48
ROLLER FRONT, ADJUSTABLE (2) WCI G177021 Contact Us For Availability
49
SPRING-ROLLER (2) WCI G178494 Contact Us For Availability
50
BOLT-ROLLER (2) WCI G177024 Contact Us For Availability
51
SUPT-ROLLER (2) WCI G177302 Contact Us For Availability
52
WASHER WCI G182799 Contact Us For Availability
53
ROLLER, REAR (2) WCI G183407 Contact Us For Availability
54
BOLT ROLLER (2) WCI G177025 Contact Us For Availability
58
PAD FOAM WCI G168866 Contact Us For Availability
59
DEFLECTOR AIR WCI G162675 Contact Us For Availability
60
SPACER FRZR (2) WCI G163201 Contact Us For Availability
61
SCREW, SPACER (3) WCI G177428 Contact Us For Availability
62
WCI G174733 WCI G174733 Contact Us For Availability
63
WCI G174734 WCI G174734 Contact Us For Availability
64
WCI G174747-09 WCI G174747-09 Contact Us For Availability
65
WCI G85642 WCI G85642 Contact Us For Availability
× ![]()
