Model Electrolux TSK140EN0T REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

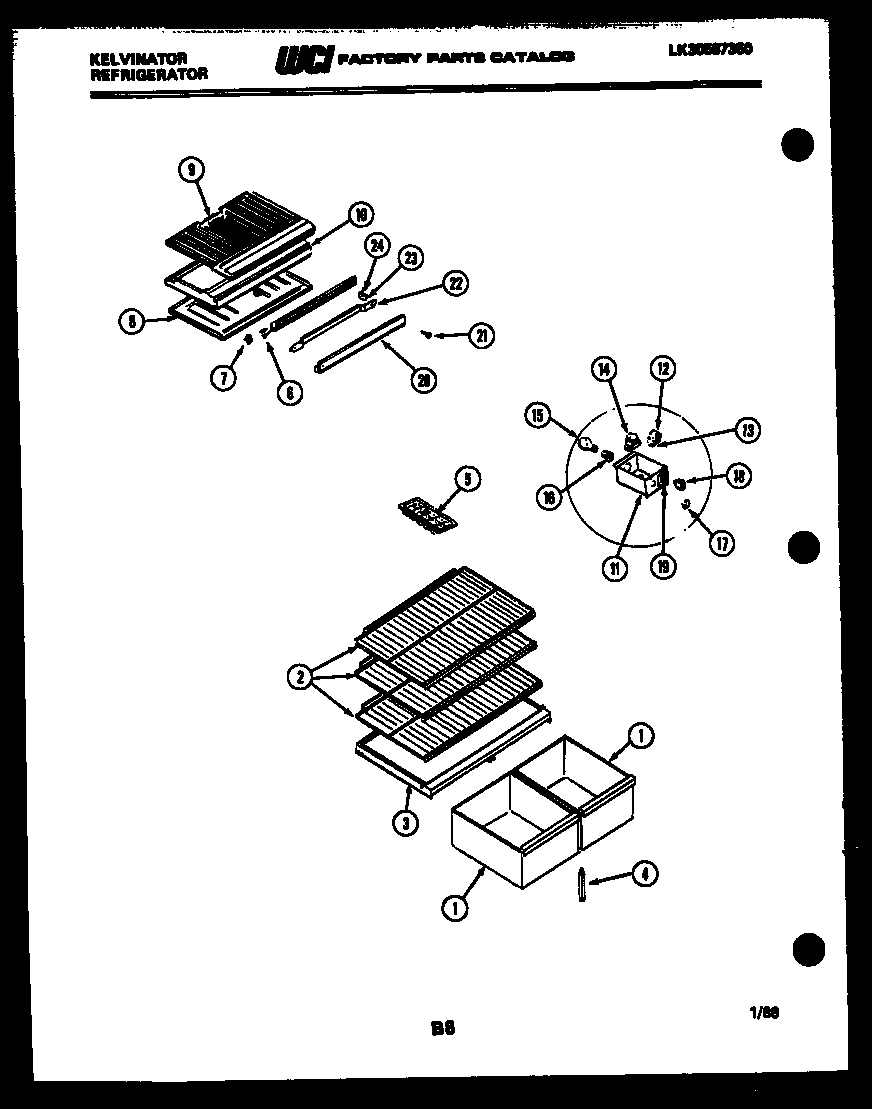

04 - SHELVES AND SUPPORTS

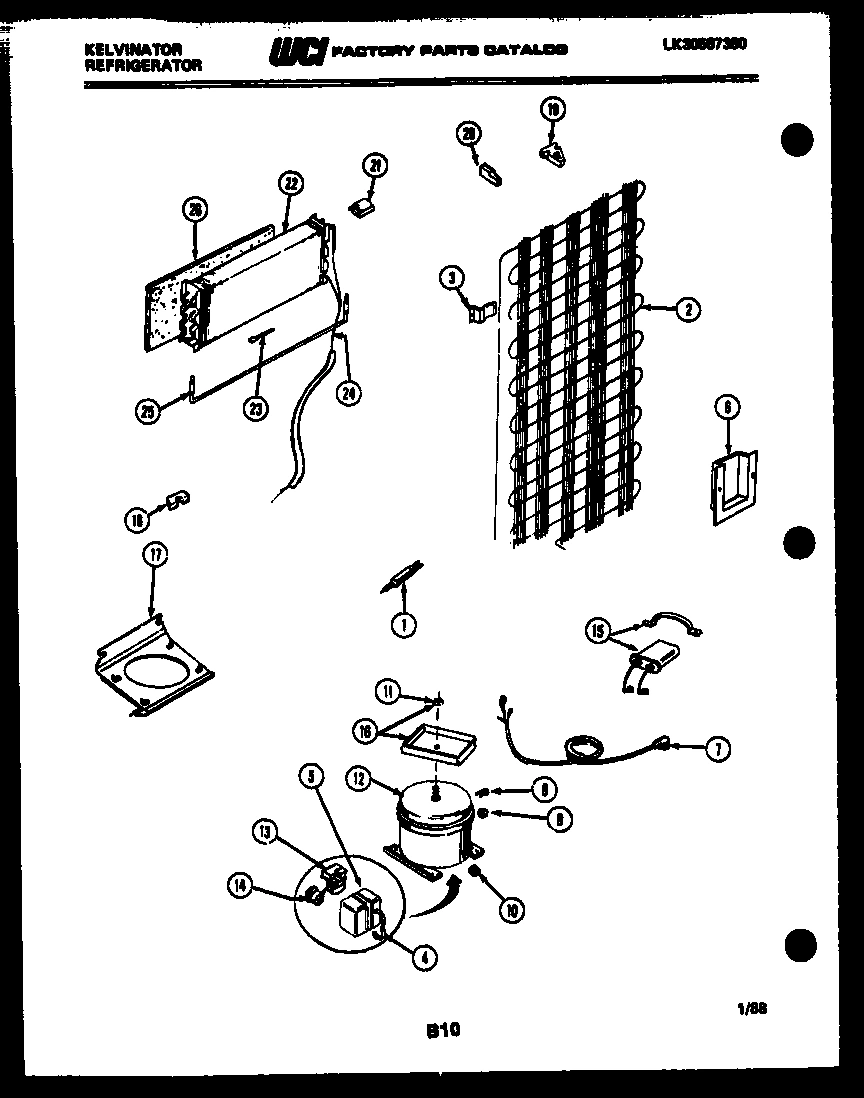

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux TSK140EN0T REFRIGERATOR
*23800
PLUG-REFR LINER (2) WCI G162892-01 Contact Us For Availability
*23801
PLUG-FRZR LINER (3) WCI G187599 Contact Us For Availability
*23825
WIRING HARNESS, DIVIDER WCI G174818 Contact Us For Availability
*23843
WIRING HARNESS-COMPR WCI G166062-01 Contact Us For Availability
*23843
HOT TUBE REPAIR KIT WCI G189377 Contact Us For Availability
*23845
WCI G167234 WCI G167234 Contact Us For Availability
1
FREEZER DOOR-WEAT WCI G189618-09 Contact Us For Availability
1
WCI G185303 WCI G185303 Contact Us For Availability
1
WCI 3016706 WCI 3016706 Contact Us For Availability
2
WCI G178292 WCI G178292 Contact Us For Availability
2
SHELF-SLIDING (3) WCI G172172-01 Contact Us For Availability
2
WCI G178225 WCI G178225 Contact Us For Availability
2A
TAPE-MTG (NON-ILLUSTRATED) WCI G153407-60 Contact Us For Availability
3
LABEL-NAMEPLATE WCI G189500-01 Contact Us For Availability
3
CONNECTOR BRKT WCI G164571 Contact Us For Availability
3
COVER-PAN WCI G162957-02 Contact Us For Availability
3
BRACKET-MTG (4) WCI G164637 Contact Us For Availability
4
GASKET-FRZR WCI G186932-03 Contact Us For Availability
4
WCI G185302 WCI G185302 Contact Us For Availability
4
SUPPORT, COVER WCI G166310-02 Contact Us For Availability
5
INNER PANEL-FRZR WCI G165788-01 Contact Us For Availability
5
WCI G167217 WCI G167217 Contact Us For Availability
6
WCI G187921 WCI G187921 Contact Us For Availability
6
WCI G183584 WCI G183584 Contact Us For Availability
7
DOOR RACK-FRZR WCI 3016704 Contact Us For Availability
7
WCI G162549-01 WCI G162549-01 Contact Us For Availability
8
WCI G161776-51 WCI G161776-51 Contact Us For Availability
8
DAMPER WCI G162661 Contact Us For Availability
8
TOP-REFRIGERATOR WCI 3015448 Contact Us For Availability
8
CLIP-MTG (4) WCI G163204 Contact Us For Availability
8A
SCREW-MTG (3) (NON-ILLUSTRATED) WCI G162673 Contact Us For Availability
9
WCI 3016705 WCI 3016705 Contact Us For Availability
9
PUSH NUT-DAMPER WCI G162662 Contact Us For Availability
9
DIVIDER-FOAM WCI G163219 Contact Us For Availability
9
WASHER-MTG (4) WCI G164634 Contact Us For Availability
10
INNER PANEL-REFR WCI G165787-01 Contact Us For Availability
10
KNOB-DAMPR CONT WCI G162747-05 Contact Us For Availability
10
BOTTOM ( FREEZER ) WCI G162857 Contact Us For Availability
11
GASKET-REFR WCI G186932-02 Contact Us For Availability
11
COVER-FAN WCI 3016728 Contact Us For Availability
11
CONTROL BOX WCI G176722-03 Contact Us For Availability
11
LOCK NUT WCI G164958 Contact Us For Availability
12
REFR DOOR-WEAT WCI G189622-09 Contact Us For Availability
12
HINGE COVER-WEAT WCI G183558-09 Contact Us For Availability
12
CONTROL-TEMP WCI G162667-12 Contact Us For Availability
12
COMPR W/ ELEC WCI G189457 Contact Us For Availability
12A
WCI G107080 WCI G107080 Contact Us For Availability
13
BEARING HINGE (8) WCI G183138 Contact Us For Availability
13
WCI G183714 WCI G183714 Contact Us For Availability
13
WCI G182225-18 WCI G182225-18 Contact Us For Availability
14
WCI G103903 No Longer Available
14
WCI G162977-09 WCI G162977-09 Contact Us For Availability
14
WCI 3015058 WCI 3015058 Contact Us For Availability
15
WCI G169332-09 WCI G169332-09 Contact Us For Availability
15
CORNER TRIM-WEAT WCI G162364-09 Contact Us For Availability
15
WCI G188885-01 WCI G188885-01 Contact Us For Availability
15A
STRAP-CAPACITOR WCI G188897 Contact Us For Availability
16
WCI G89643 WCI G89643 Contact Us For Availability
16
WASHER-CTR HNG (2) WCI G164355 Contact Us For Availability
16
WCI G168302 WCI G168302 Contact Us For Availability
16
DEFROST PAN ASSY WCI G184715 Contact Us For Availability
17
HANDLE GRIP (2) WCI G189454-02 Contact Us For Availability
17
WCI G142220 WCI G142220 Contact Us For Availability
17
KNOB-TEMP CONT WCI G490107-02 Contact Us For Availability
17
PLATE, COMPR., MTG WCI G162822 Contact Us For Availability
17A
INSERT-GRIP (NON-ILLUSTRATED) WCI G189456-01 Contact Us For Availability
18
WCI G189453-01 WCI G189453-01 Contact Us For Availability
18
BRACKET-CTR HNG WCI G163207 Contact Us For Availability
18
SWITCH SLIDE WCI G178402-01 Contact Us For Availability
18
INSUL BLOCK LS WCI G188375 Contact Us For Availability
19
HANDLE END WCI G189452-01 Contact Us For Availability
19
LABEL-CONT BOX WCI G189592 Contact Us For Availability
19
INSUL BLOCK RS WCI G185299 Contact Us For Availability
20
HANDLE END WCI G189451-01 Contact Us For Availability
20
WCI G162675 WCI G162675 Contact Us For Availability
20
MULLION-WEAT WCI G174520-09 Contact Us For Availability
20
INSUL PLUG RS WCI G185276 Contact Us For Availability
21
SCREW-MTG (4) WCI G183103 Contact Us For Availability
21
WCI G162178 WCI G162178 Contact Us For Availability
22
WCI G166709 WCI G166709 Contact Us For Availability
22
WCI G164563 WCI G164563 Contact Us For Availability
23
WASHER-STEEL (4) WCI G166847 Contact Us For Availability
23
BRACKET-BTM HNG WCI G181019 Contact Us For Availability
24
SPACER (2) WCI G166848 Contact Us For Availability
24
WCI G163389 WCI G163389 Contact Us For Availability
24A
TAPPING PLATE (NON-ILLUSTRATED) WCI G179797 Contact Us For Availability
25
SHIM-BTM HNG WCI G163203 Contact Us For Availability
25
WCI G162432-02 WCI G162432-02 Contact Us For Availability
26
WCI G166912 WCI G166912 Contact Us For Availability
26
INSULATOR-EVAP WCI G166511-02 Contact Us For Availability
27
LEVELING LEG (2) WCI G185713 Contact Us For Availability
27A
ANCHOR NUT (2) (NON-ILLUSTRATED) WCI G183073 Contact Us For Availability
28
WCI G163205 WCI G163205 Contact Us For Availability
29
WCI G161998-01 WCI G161998-01 Contact Us For Availability
30
WCI G174747-09 WCI G174747-09 Contact Us For Availability
31
WCI G174733 WCI G174733 Contact Us For Availability
32
WCI G174734 WCI G174734 Contact Us For Availability
33
TUBE, RUBBER WCI G85642 Contact Us For Availability
34
COVER-EVAP COIL WCI G163290 Contact Us For Availability
34A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
35
SUPPORT, COVER (2) WCI G163669 Contact Us For Availability
36
WCI G162827-14 WCI G162827-14 Contact Us For Availability
37
WCI G163292 WCI G163292 Contact Us For Availability
38
SHIM-TOP HNG WCI G183861 Contact Us For Availability
× ![]()
