Model Electrolux TSI206EN4D REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

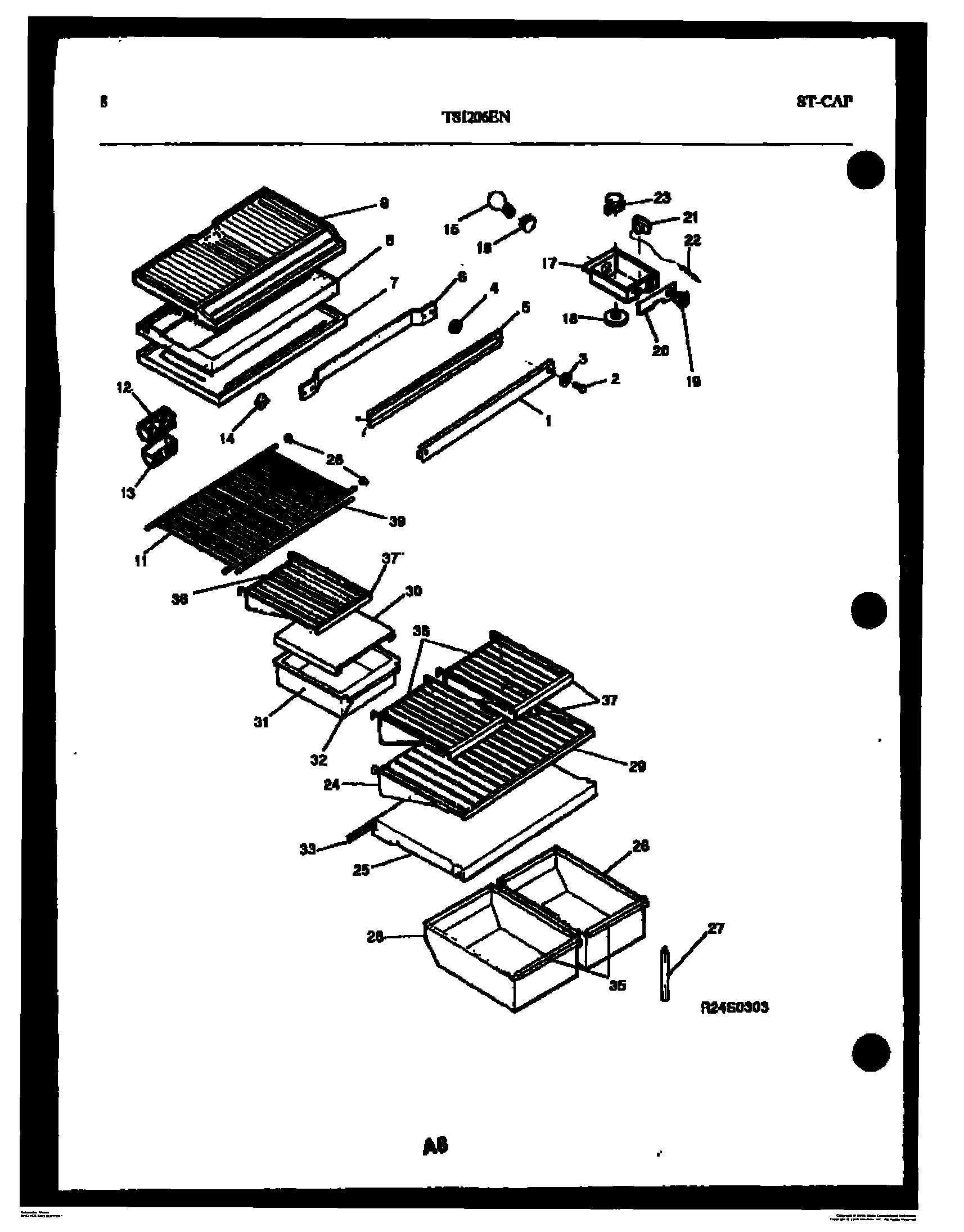

05 - SHELVES AND SUPPORT

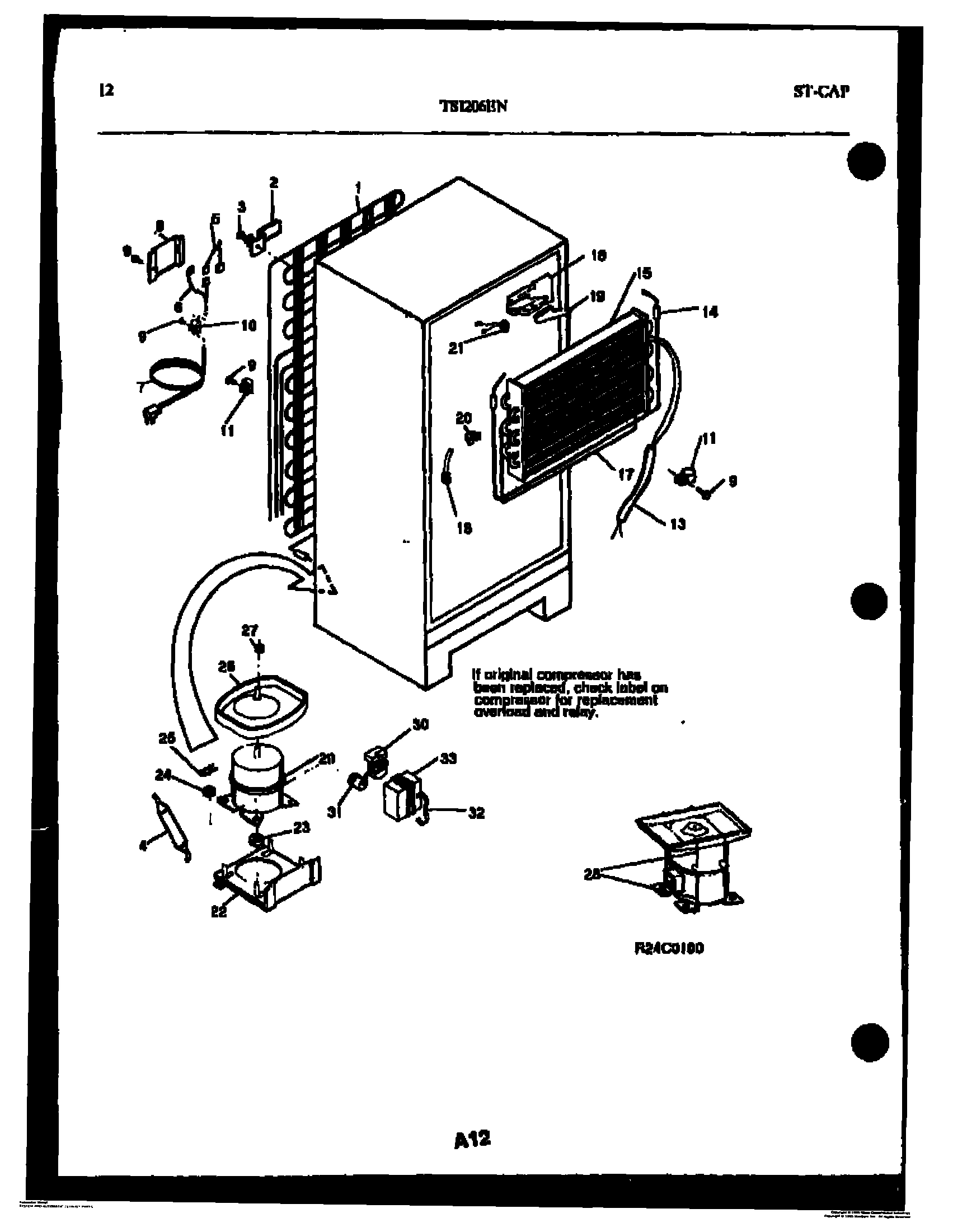

07 - SYSTEM AND AUTOMATIC DEFROST PARTS

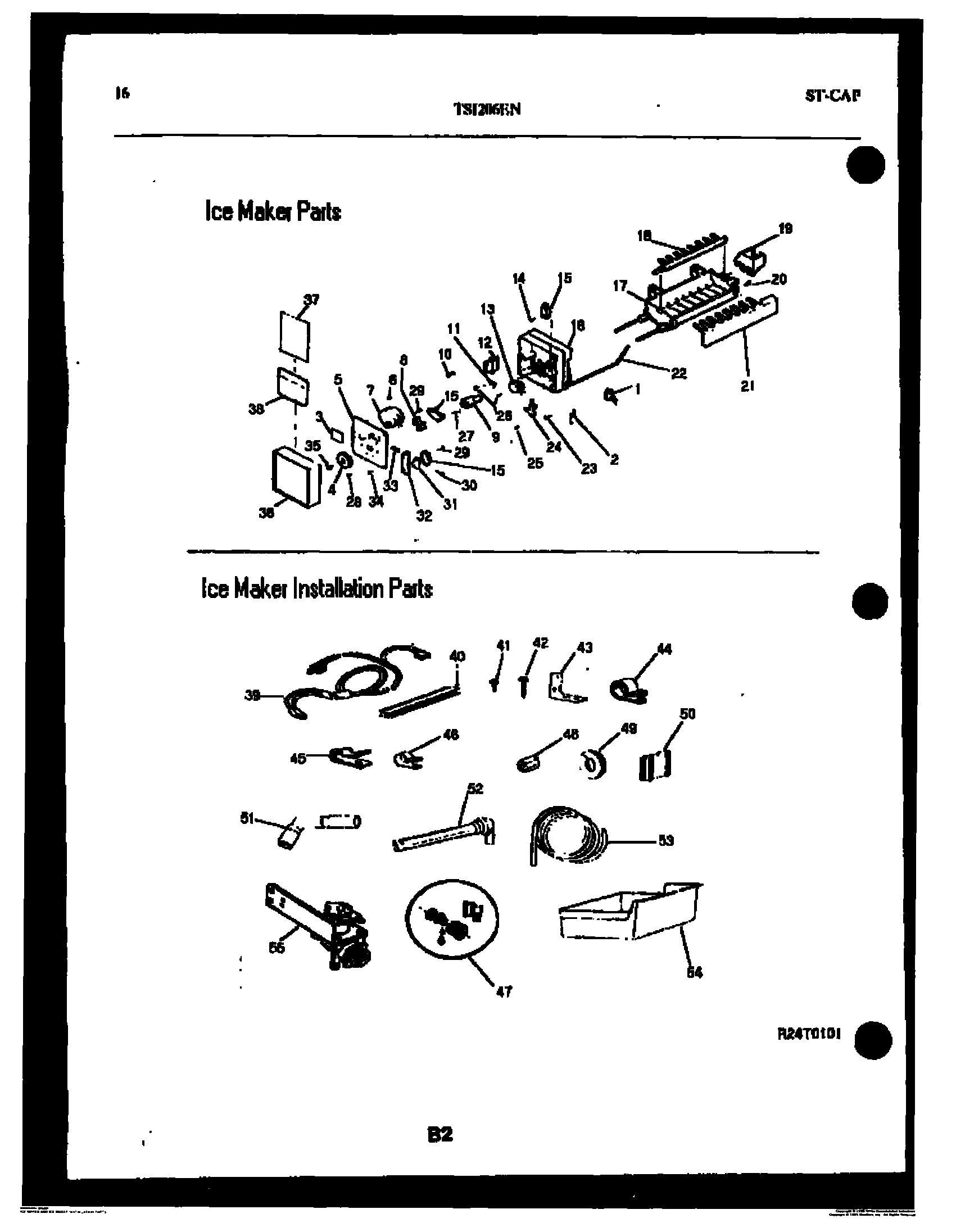

09 - ICE MAKER AND ICE MAKER INSTALLATIO
Common parts from model Electrolux TSI206EN4D REFRIGERATOR
*19132
WCI 5303272189 WCI 5303272189 Contact Us For Availability
1
WIRING HARNESS, ICE MAKER WCI 3206349 Contact Us For Availability
1
WCI 5303200370 WCI 5303200370 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
WCI 5308000081 WCI 5308000081 Contact Us For Availability
2
WCI 5308012258 WCI 5308012258 Contact Us For Availability
2
BRACKET, COND MTG WCI 5303001342 Contact Us For Availability
2
WASHER-EXT TOOTH LOCK-NO. 10 (2) (NON-ILLUSTR WCI 5308009617 Contact Us For Availability
2
WCI 3206348 WCI 3206348 Contact Us For Availability
3
WCI 5303206754 WCI 5303206754 Contact Us For Availability
3
PLATE-I.D. WCI 3206299 Contact Us For Availability
4
WCI 5303200464 WCI 5303200464 Contact Us For Availability
5
SUPPORT DOOR RACK RH (4) WCI 5317828701 Contact Us For Availability
5
WCI 5303210351 WCI 5303210351 Contact Us For Availability
5
WIRING HARNESS, CONTROL/DIVIDER WCI 3001475 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
6
SUPPORT DOOR RACK LH (4) WCI 5317828401 Contact Us For Availability
6
WCI 5308010008 WCI 5308010008 Contact Us For Availability
6
WIRING HARNESS, COMPRESSOR, WCI 5303001347 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 5303001380 WCI 5303001380 Contact Us For Availability
7
WCI 5303001651 WCI 5303001651 Contact Us For Availability
7
BUSHING, SNAP-IN, PLASTIC (NON-ILLUSTRATED) WCI 5303212518 Contact Us For Availability
7
CORD, ELEC SERVICE WCI 5316254901 Contact Us For Availability
8
WCI 5308013674 WCI 5308013674 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
8
SPACER-HOLDING SW WCI 3206312 Contact Us For Availability
9
BOTTOM PANEL-FREEZER WCI 5303210641 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
BUTTON PLUG, ALMOND, HINGE BRG HOLE WCI 5303001308 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
11
WCI 5303208517 WCI 5303208517 Contact Us For Availability
12
WCI 3206321 WCI 3206321 Contact Us For Availability
12
DEFLECTOR-AIR WCI 5308000071 Contact Us For Availability
13
WCI 3206322 WCI 3206322 Contact Us For Availability
13
COVER - AIR DEFLECTOR WCI 5303001546 Contact Us For Availability
13
WCI 5308000728 WCI 5308000728 Contact Us For Availability
14
SCREW-SW TO SUPPORT, 4-24 X 3/4, (2) WCI 3206323 Contact Us For Availability
15
WCI 5308000107 WCI 5308000107 Contact Us For Availability
15
WCI 5303271578 WCI 5303271578 Contact Us For Availability
16
SOCKET-LIGHT/LAMP WCI 5308000129 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 5317672203 WCI 5317672203 Contact Us For Availability
18
WCI 5308010011 WCI 5308010011 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
19
WCI 5303001670 WCI 5303001670 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
WCI 5303270597 WCI 5303270597 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
20
WCI 3206331 WCI 3206331 Contact Us For Availability
21
WCI 5303200810 WCI 5303200810 Contact Us For Availability
21
WCI 5303001260 WCI 5303001260 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
22
BUTTON PLUG, ALMOND, UPR HINGE HOLES WCI 5303001389 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
DRAIN TUBE, W/ SEAL RING WCI 5303210377 Contact Us For Availability
23
SCREW-SUPT/MOLD BODY, 8-18 X 1, (4) WCI 3206334 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
SHELF-FULL, CANTILEVR, REFR, (3) WCI 5303015157 Contact Us For Availability
24
WASHER-COMPR MTG (4) WCI 5308003633 Contact Us For Availability
25
WCI 5308000056 WCI 5308000056 Contact Us For Availability
25
COVER-CRISPER PAN WCI 5303007603 Contact Us For Availability
25
CLIP-COMPRESSOR MTG (4) WCI 5308003596 Contact Us For Availability
25
SCREW-ARM LEVER/SUPT, 8-18 X 9/16 WCI 3206336 Contact Us For Availability
26
PAN-CRISPER, RH WCI 3016529 Contact Us For Availability
26
PAN-CRISPER, LH WCI 3016530 Contact Us For Availability
26
PAN-DEFROST DRAIN, ORIG COMPRESSOR (IF THE CO WCI 5300171129 Contact Us For Availability
26
SCREW-THERMO/SUPT, 4-24 X 3/8, (4) WCI 3206337 Contact Us For Availability
27
SUPPORT, CRISPER CVR, ADJUSTABLE WCI 5303206507 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
27
SCREW-SW SPACR/PLATE, 4-40 X 1, (2) WCI 3206338 Contact Us For Availability
28
WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
28
WCI 5303271412 WCI 5303271412 Contact Us For Availability
28
SCREW-TIMING STOP, 4-40 X 3/8 WCI 3206339 Contact Us For Availability
29
WASHER, .34 X .62 X .05, NYLON WCI 5308000007 Contact Us For Availability
29
TRIM-FULL SHELF, SNAP-ON WCI 5317243408 Contact Us For Availability
29
COMPRESSOR, W/ELEC, SERVICE WCI 5303916012 Contact Us For Availability
29
CAPACITOR-RUN (NON-ILLUSTRATED) WCI 5303916391 Contact Us For Availability
29
SCREW-MOTOR & SW/PLATE, 4-40 X 3/4, (4) WCI 3206340 Contact Us For Availability
30
WCI 5303007173 WCI 5303007173 Contact Us For Availability
30
BRACKET-LOWER HINGE, W/ HINGE PIN WCI 5303212489 Contact Us For Availability
30
WCI 5308000263 WCI 5308000263 Contact Us For Availability
30
SCREW-TIMING, 8-32 X 1 WCI 3206341 Contact Us For Availability
31
SHIM-LWR HINGE BRKT WCI 5303212488 Contact Us For Availability
31
PAN-MEAT WCI 3015333 Contact Us For Availability
31
WCI 5303270294 WCI 5303270294 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 5303270438 WCI 5303270438 Contact Us For Availability
32
STRAP-COVER WCI 5303211232 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
GASKET - CRISPER COVER WCI 5303200329 Contact Us For Availability
33
WCI 5303209254 WCI 5303209254 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
WCI 5308000186 WCI 5308000186 Contact Us For Availability
34
SCREW-MTG PLATE/SUPT, 8-18 X 7/16, (3) WCI 3206345 Contact Us For Availability
35
WCI 5303001369 WCI 5303001369 Contact Us For Availability
35
TRIM-CRISPER PAN, RH WCI 3016531 Contact Us For Availability
35
WCI 5303270437 WCI 5303270437 Contact Us For Availability
35
SCREW-GEAR/CAM, 6-20 X .437 WCI 3206346 Contact Us For Availability
36
WCI 5308000184 WCI 5308000184 Contact Us For Availability
36
SHELF-HALF, CANTILEVR, REFR, (3) WCI 5317739023 Contact Us For Availability
36
WCI 3206347 WCI 3206347 Contact Us For Availability
37
WCI 5303202340 WCI 5303202340 Contact Us For Availability
37
WCI 5303270473 WCI 5303270473 Contact Us For Availability
37
WCI 5303207442 WCI 5303207442 Contact Us For Availability
38
BRACKET-UPPER HINGE WCI 5308012843 Contact Us For Availability
38
TAPPING PLATE, UPPER HINGE, (2) (NON-ILLUSTRA WCI 5308012296 Contact Us For Availability
38
WCI 5303207445 WCI 5303207445 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
39
TRIM-FRZR SHELF, SNAP-ON WCI 5303210773 Contact Us For Availability
39
WIRING HARNESS,ICE MAKER WCI 3206358 Contact Us For Availability
40
COVER-UPPER HINGE, ALMOND WCI 5308012933 Contact Us For Availability
43
WCI 5303212490 WCI 5303212490 Contact Us For Availability
44
WCI 5308009773 WCI 5308009773 Contact Us For Availability
44
CLAMP, NYLON WCI 53080000133 Contact Us For Availability
46
WCI 5308009762 WCI 5308009762 Contact Us For Availability
47
ADAPTER-WATER SUPPLY WCI 3206360 Contact Us For Availability
47
WCI 5308000302 WCI 5308000302 Contact Us For Availability
48
CHANNEL-SHELF MTG, CENTER WCI 5303015409 Contact Us For Availability
48
NUT-INLET/WTR VALVE, 7/16 X 20, NYLON WCI 5308000200 Contact Us For Availability
49
SCREW-CTR CHANNEL MTG, CR PAN HEAD, 8(A) X 1- WCI 5308016568 Contact Us For Availability
55
VALVE-SOLENOID/WATER WCI 3206356 Contact Us For Availability
19112
BUTTON PLUG-LINER WCI 5308016571 Contact Us For Availability
19122
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
19137
WCI 5303001191 WCI 5303001191 Contact Us For Availability
19137
WCI 5303015102 WCI 5303015102 Contact Us For Availability
19137
WCI 5308000247 WCI 5308000247 Contact Us For Availability
× ![]()
