Model Electrolux TSI206EN2W REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

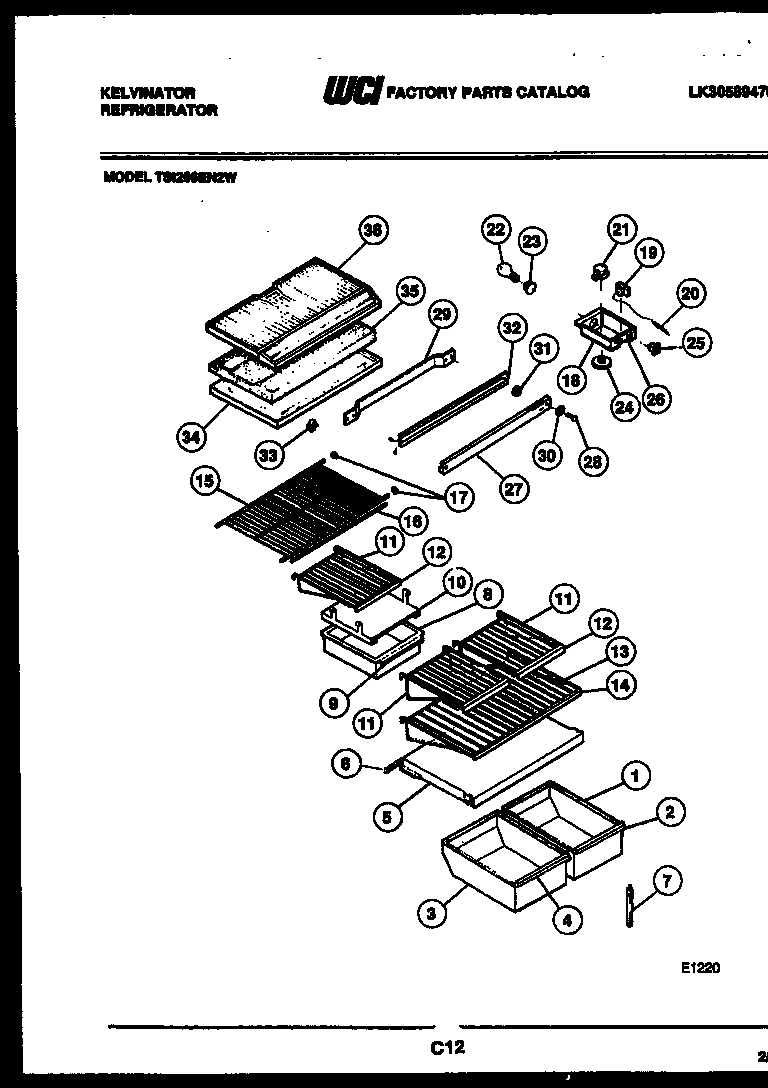

04 - SHELVES AND SUPPORTS

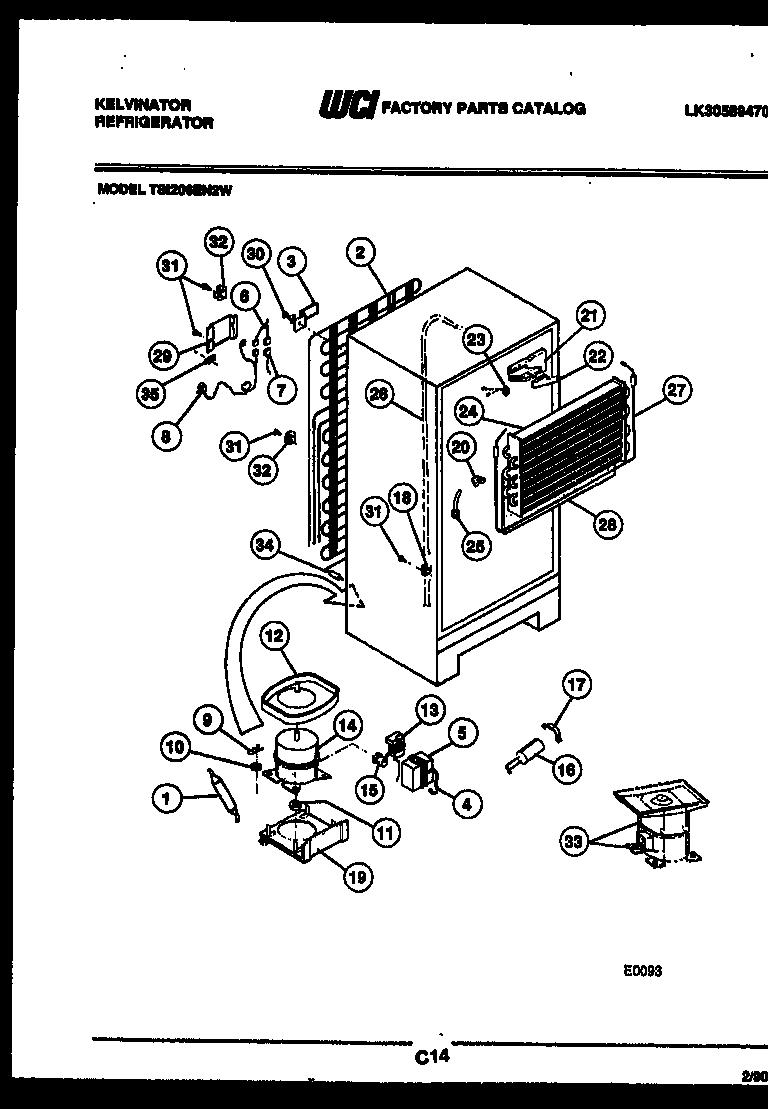

05 - SYSTEM AND AUTOMATIC DEFROST PARTS

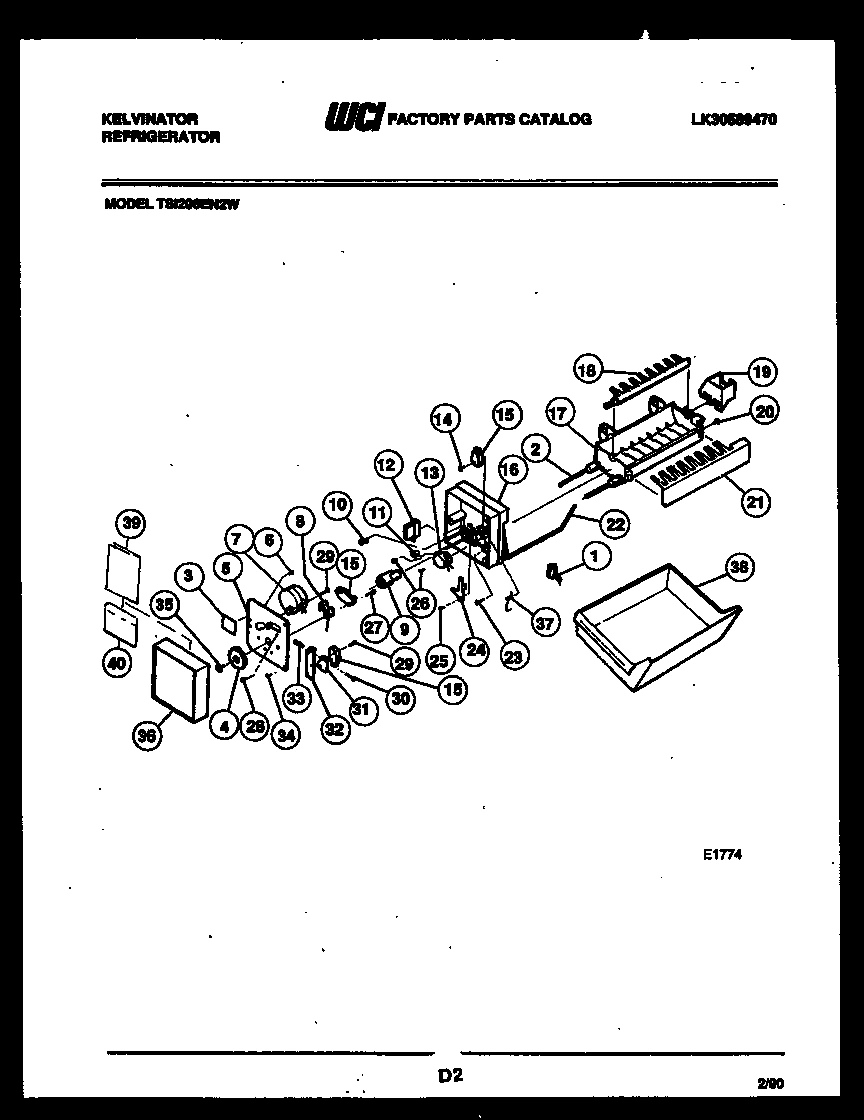

06 - ICE MAKER PARTS

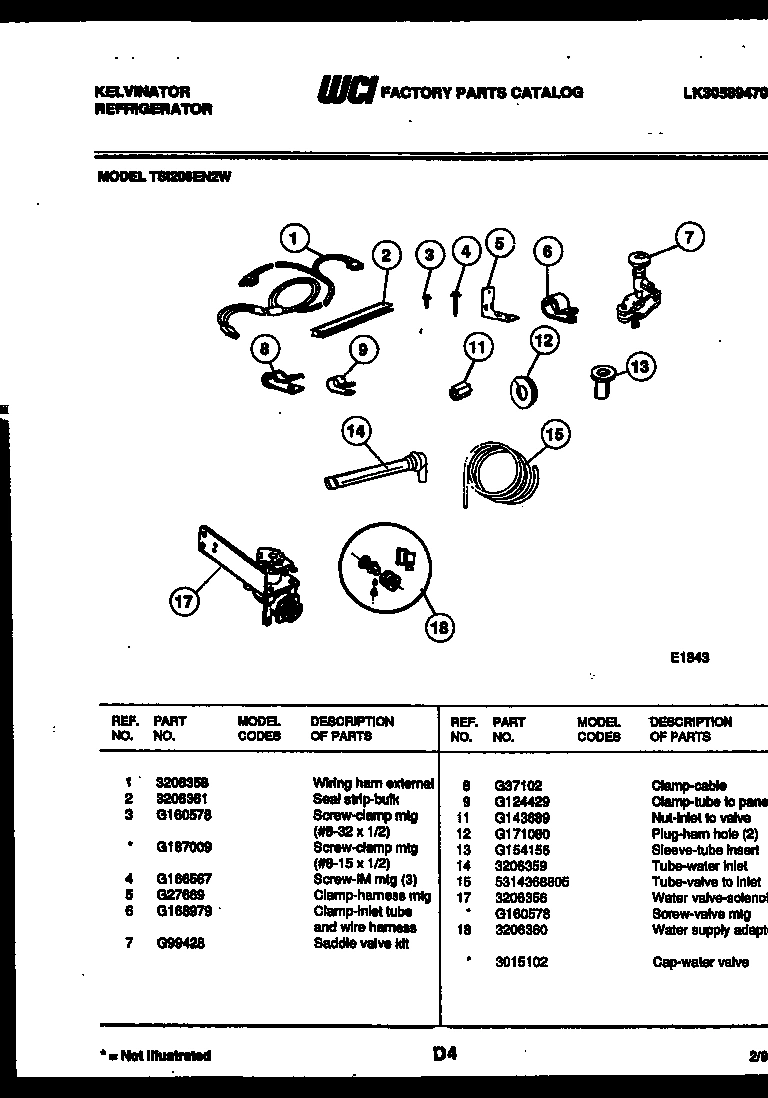

07 - ICE MAKER INSTALLATION PARTS
Common parts from model Electrolux TSI206EN2W REFRIGERATOR
*95814
PLUG-FRZR LINER (3) WCI G187599 Contact Us For Availability
*95986
HOT TUBE REPAIR KIT WCI G189383 Contact Us For Availability
*96129
WCI 3015102 WCI 3015102 Contact Us For Availability
1
WCI 3206349 WCI 3206349 Contact Us For Availability
1
COVER HINGE, WHITE WCI G183558-01 Contact Us For Availability
1
WCI 3016529 WCI 3016529 Contact Us For Availability
1
WIRING HARN-EXTERNAL WCI 3206358 Contact Us For Availability
2
WCI G183714 WCI G183714 Contact Us For Availability
2
WCI 3016531 WCI 3016531 Contact Us For Availability
2
WCI 5300163133 WCI 5300163133 Contact Us For Availability
3
WCI G183861 WCI G183861 Contact Us For Availability
3
WCI 3016530 WCI 3016530 Contact Us For Availability
3
BRACKET-MOUNTING (4) WCI G164637 Contact Us For Availability
3
WCI 3206299 WCI 3206299 Contact Us For Availability
3A
WASHER-NO. 10 EXT TOOTH LOCK (NON-ILLUSTRATED WCI G164820 Contact Us For Availability
4
TRIM-SMALL PAN WCI G161013-65 Contact Us For Availability
5
WCI G103903 No Longer Available
5
COVER-PAN WCI G490064-09 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
6
WASHER-CENTER HINGE WCI G164355 Contact Us For Availability
6
GASKET, COVER WCI G180108-07 Contact Us For Availability
6
HARNESS-CONTROL WCI G184904 Contact Us For Availability
7
ROLLER ASSEMBLY (2) WCI G177021 Contact Us For Availability
7
SUPPORT-COVER-ADJ WCI 5303206507 Contact Us For Availability
7
HARNESS-COMPRESSOR WCI G166062-01 Contact Us For Availability
7
SADDLE VALVE KIT WCI G99428 Contact Us For Availability
8
ROLLER ASSEMBLY (2) WCI G183407 Contact Us For Availability
8
WCI 3015333 WCI 3015333 Contact Us For Availability
8
WCI 5316254901 WCI 5316254901 Contact Us For Availability
8
WCI 3206312 WCI 3206312 Contact Us For Availability
9
WCI G161013-67 WCI G161013-67 Contact Us For Availability
9
CLIP-MOUNTING (4) WCI G163204 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
WCI G177025 WCI G177025 Contact Us For Availability
10
WCI 5308000263 WCI 5308000263 Contact Us For Availability
10
WASHER, MOUNTING (4) WCI 5308003633 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
11
SPRING-ROLLER ADJ (2) WCI G178494 Contact Us For Availability
11
WCI 5317739023 WCI 5317739023 Contact Us For Availability
11
NUT-INLET TO VALVE WCI G143689 Contact Us For Availability
12
WCI 3206321 WCI 3206321 Contact Us For Availability
12
WCI G177024 WCI G177024 Contact Us For Availability
12
TRIM-SHELF (3) WCI G172434-09 Contact Us For Availability
12
DEFROST PAN WCI 5300184715 Contact Us For Availability
12A
LOCK NUT (NON-ILLUSTRATED) WCI G164958 Contact Us For Availability
13
WCI 5303007173 WCI 5303007173 Contact Us For Availability
13
WCI 3206322 WCI 3206322 Contact Us For Availability
13
WCI G182799 WCI G182799 Contact Us For Availability
13
WCI 5303015157 WCI 5303015157 Contact Us For Availability
13
WCI G154156 WCI G154156 Contact Us For Availability
14
WCI G177302 WCI G177302 Contact Us For Availability
14
TRIM-SHELF WCI 5317243408 Contact Us For Availability
14
WCI 5300189462 WCI 5300189462 Contact Us For Availability
14
WCI 3206323 WCI 3206323 Contact Us For Availability
15
WCI 3202834 WCI 3202834 Contact Us For Availability
15
WCI 5303208517 WCI 5303208517 Contact Us For Availability
15
WCI 5308017532 WCI 5308017532 Contact Us For Availability
15A
PLATE-TAPPING (2) (NON-ILLUSTRATED) WCI 5308012296 Contact Us For Availability
16
WCI G163203 WCI G163203 Contact Us For Availability
16
TRIM-SHELF WCI 5303208518 Contact Us For Availability
16
CAPACITOR-RUN KIT WCI 5303916391 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
16A
WCI 3200995 WCI 3200995 Contact Us For Availability
16B
WCI G185566 WCI G185566 Contact Us For Availability
17
CAP PROTECTOR (2) WCI 3201150 No Longer Available
17
WCI G189453-01 WCI G189453-01 Contact Us For Availability
17
STRAP - CAPACITOR MOUNTING WCI 5308017231 Contact Us For Availability
17
WATER VALVE-SOLENOID WCI 3206356 Contact Us For Availability
18
WCI 3206360 WCI 3206360 Contact Us For Availability
18
HANDLE END WCI G189452-01 Contact Us For Availability
18
CONTROL BOX WCI 5317672203 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
19
HANDLE END WCI G189451-01 Contact Us For Availability
19
WCI G490004-02 WCI G490004-02 Contact Us For Availability
19
CONTROL-TEMP WCI 3200810 Contact Us For Availability
19
PLATE-COMPRESSOR MOUNTING WCI G184599 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
19A
WCI G107080 WCI G107080 Contact Us For Availability
20
GASKET-FREEZER DOOR WCI G186932-14 Contact Us For Availability
20
WCI G162675 WCI G162675 Contact Us For Availability
20
INSULATOR BLOCK LS WCI G188375 Contact Us For Availability
20
WCI 3206331 WCI 3206331 Contact Us For Availability
21
GASKET-REFRIGERATOR DOOR WCI G186932-13 Contact Us For Availability
21
WCI G162178 WCI G162178 Contact Us For Availability
21
INSULATOR BLOCK RS WCI 5308013648 Contact Us For Availability
21
WCI 3206332 WCI 3206332 Contact Us For Availability
22
INSULATION-BULK WCI 3007739 Contact Us For Availability
22
WCI G166912 WCI G166912 Contact Us For Availability
22
INSULATOR PLUG RS WCI G185276 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
DAIRY DOOR (2) WCI 3015049 Contact Us For Availability
23
WCI G174733 WCI G174733 Contact Us For Availability
23
SOCKET-BULB WCI G168302 Contact Us For Availability
23
WCI 3206334 WCI 3206334 Contact Us For Availability
24
WCI G174734 WCI G174734 Contact Us For Availability
24
KNOB-TEMP CONTROL WCI G490107-02 Contact Us For Availability
24
EVAPORATOR COIL WCI 5300162506 Contact Us For Availability
25
NUT, ANCHOR (2) WCI G183073 Contact Us For Availability
25
SWITCH SLIDE WCI G178402-01 Contact Us For Availability
25
WCI 3206336 WCI 3206336 Contact Us For Availability
26
DAMPER WCI G162661 Contact Us For Availability
26
LABEL-CONTROL BOX WCI G189592 Contact Us For Availability
26
WCI 08000728 WCI 08000728 Contact Us For Availability
26
WCI 3206337 WCI 3206337 Contact Us For Availability
27
WCI G162662 WCI G162662 Contact Us For Availability
27
WCI 5303200366 WCI 5303200366 Contact Us For Availability
27
WCI 3206338 WCI 3206338 Contact Us For Availability
28
WCI 5308000081 WCI 5308000081 Contact Us For Availability
28
SCREW-MOUNTING (2) WCI G183103 Contact Us For Availability
28
WCI 5303206601 WCI 5303206601 Contact Us For Availability
28
WCI 3206339 WCI 3206339 Contact Us For Availability
29
WCI 3016784 WCI 3016784 Contact Us For Availability
29
STRAP, MULLION MOUNTING WCI G490087 Contact Us For Availability
29
WCI G183584 WCI G183584 Contact Us For Availability
29
SCREW-4-40 X 3/4 MOTOR SWITCH TO PLATE (4) WCI 3206340 Contact Us For Availability
30
WASHER-STEEL (2) WCI G166847 Contact Us For Availability
30
WCI 3206341 WCI 3206341 Contact Us For Availability
31
WCI G162179 WCI G162179 Contact Us For Availability
31
SPACER (2) WCI 3200464 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
PUSHPIN (2) WCI 5303001361 Contact Us For Availability
32
WCI 5303018916 WCI 5303018916 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
WCI 5303001458 WCI 5303001458 Contact Us For Availability
33
PAN RETAINER KIT WCI 3916001 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
33A
RING SEAL (NON-ILLUSTRATED) WCI 5303207353 Contact Us For Availability
34
TOP-REFRIGERATOR WCI 5303001651 Contact Us For Availability
34
WCI 3206345 WCI 3206345 Contact Us For Availability
34A
SCREW MOUNTING (3) (NON-ILLUSTRATED) WCI G162673 Contact Us For Availability
35
WCI G167217 WCI G167217 Contact Us For Availability
35
DIVIDER-FOAM WCI 5308013674 Contact Us For Availability
35
WCI 3206346 WCI 3206346 Contact Us For Availability
36
WCI G184604 WCI G184604 Contact Us For Availability
36
WCI 3206347 WCI 3206347 Contact Us For Availability
36A
LABEL, IM (NON-ILLUSTRATED) WCI G179244-01 Contact Us For Availability
37
WCI 3206348 WCI 3206348 Contact Us For Availability
38
WCI G185302 WCI G185302 Contact Us For Availability
39
WCI G185303 WCI G185303 Contact Us For Availability
39
WCI 5303207442 WCI 5303207442 Contact Us For Availability
39A
BRACKET-CONNECTOR (NON-ILLUSTRATED) WCI G164571 Contact Us For Availability
40
COVER, EVAPORATOR COIL WCI 5308013665 Contact Us For Availability
40
WCI 5303207445 WCI 5303207445 Contact Us For Availability
40B
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
40C
PLUG-SHORT TEST HOLE (NON-ILLUSTRATED) WCI 3203044 Contact Us For Availability
41
SUPPORT, COVER (2) WCI G163669 Contact Us For Availability
42
WCI G163207 WCI G163207 Contact Us For Availability
44
WCI G142220 WCI G142220 Contact Us For Availability
45
DRAIN TROUGH WCI G177534 Contact Us For Availability
46
CHANNEL-RS & LS WCI 5308000302 Contact Us For Availability
48
WCI G189341 WCI G189341 Contact Us For Availability
49
SCREW-MOUNTING WCI G187449 Contact Us For Availability
50
WCI G85642 WCI G85642 Contact Us For Availability
51
WCI G174747-01 WCI G174747-01 Contact Us For Availability
53
CORNER-TRIM (WHITE) WCI 5303202336 Contact Us For Availability
54
LEVELING LEG (2) WCI G185713 Contact Us For Availability
× ![]()
