Model Electrolux TSI206EN0F REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

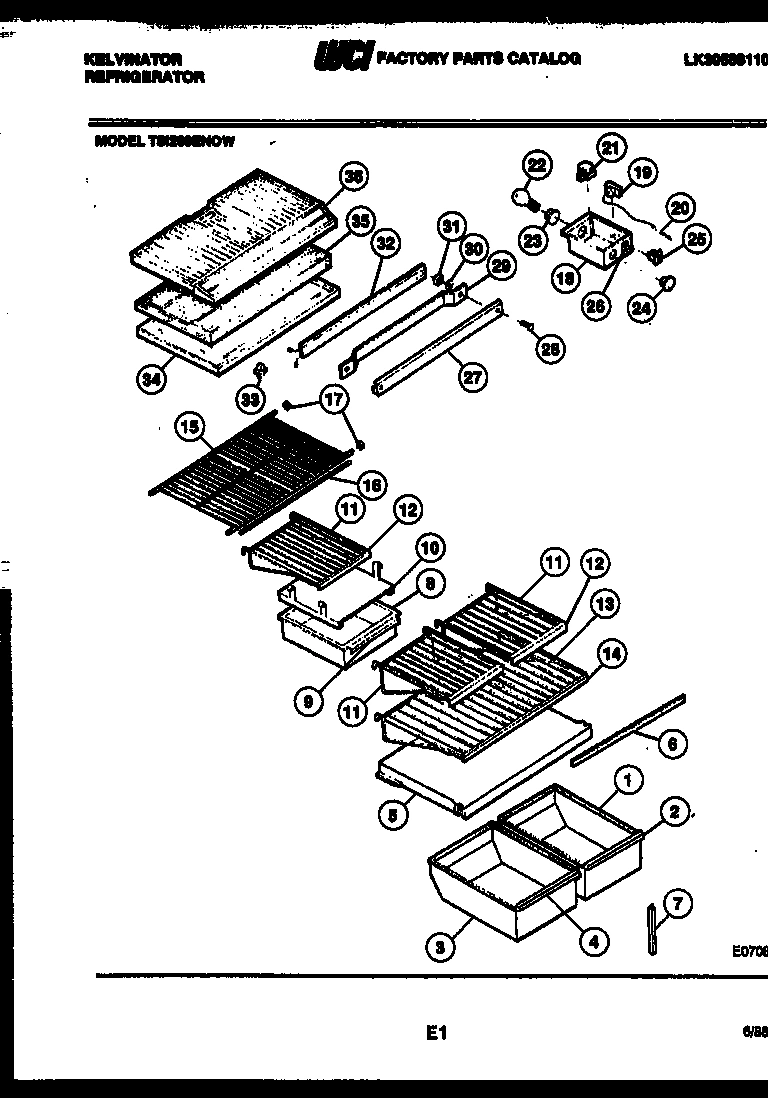

04 - SHELVES AND SUPPORTS

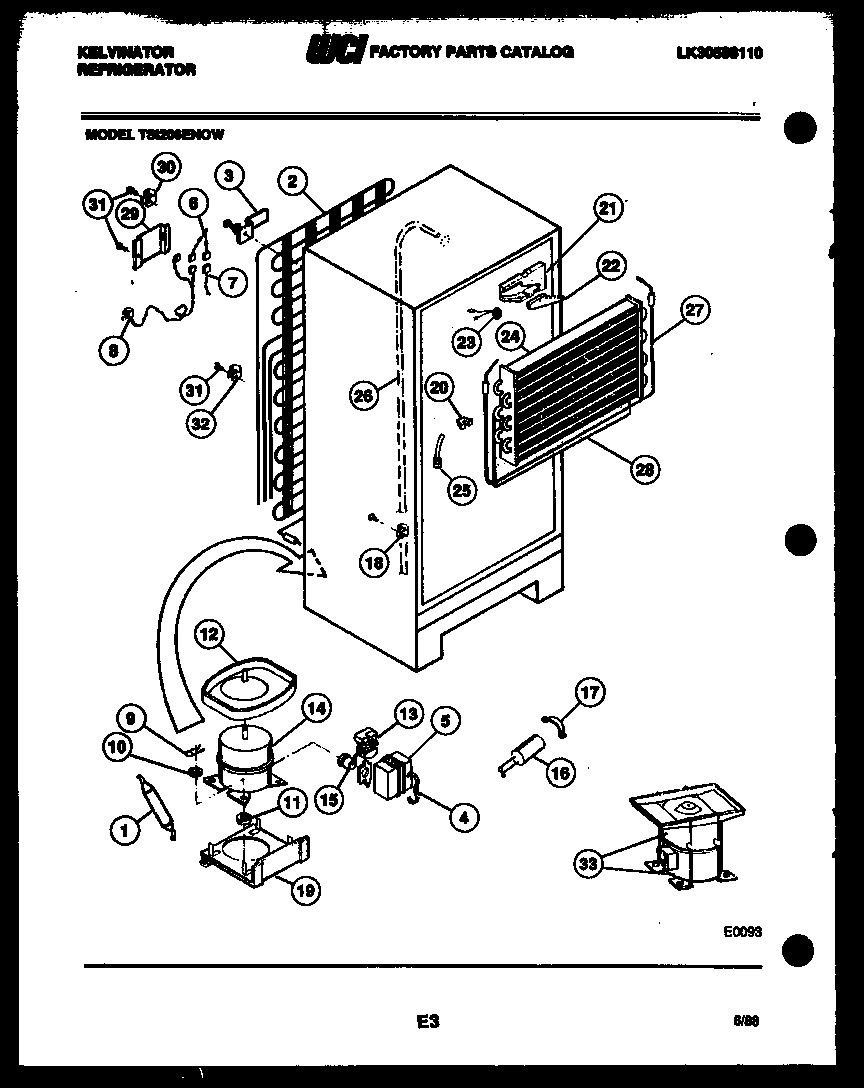

05 - SYSTEM AND AUTOMATIC DEFROST PARTS

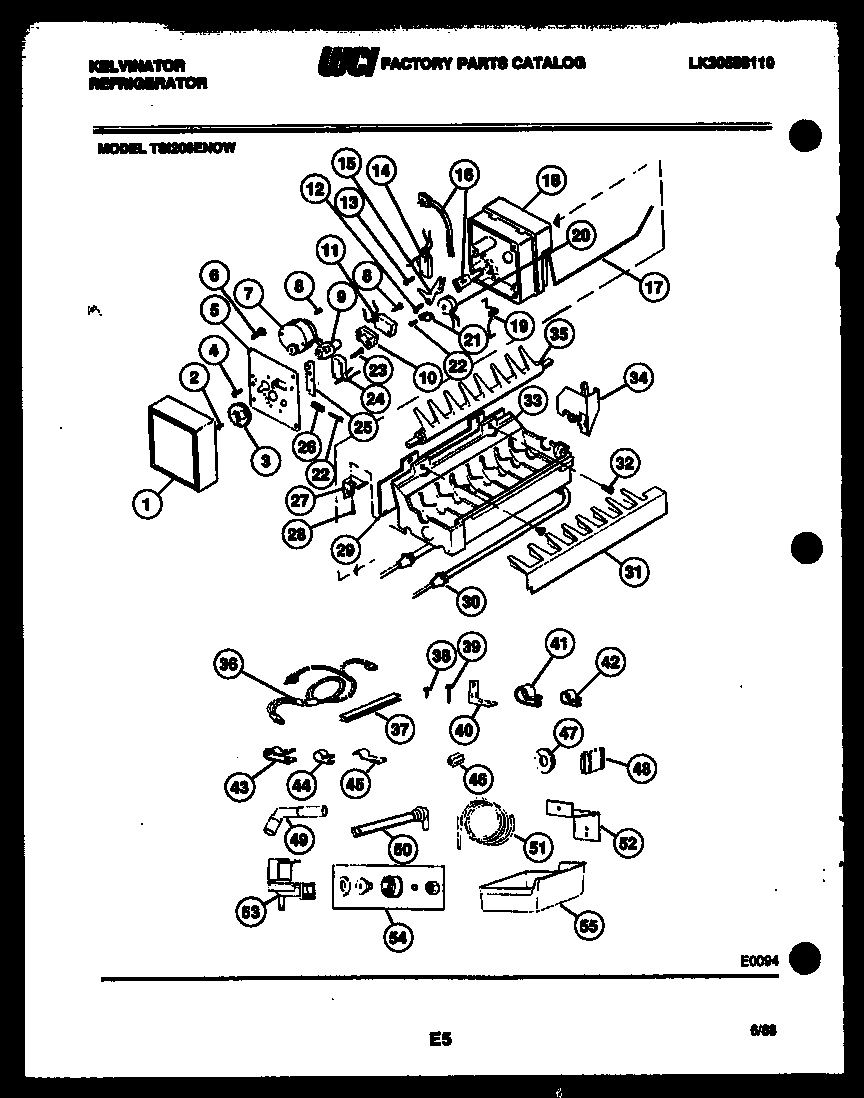

06 - ICE MAKER PARTS
Common parts from model Electrolux TSI206EN0F REFRIGERATOR
*41497
PLUG-REFR LINER (2) WCI G162892-01 Contact Us For Availability
*41498
PLUG-FRZR LINER (5) WCI G187599 Contact Us For Availability
*41574
HOT TUBE REPAIR KIT WCI G189383 Contact Us For Availability
1
COVER HINGE, COFFEE WCI G183558-10 Contact Us For Availability
1
WCI 3016529 WCI 3016529 Contact Us For Availability
1
WCI G159908 WCI G159908 Contact Us For Availability
1A
LABEL ICE MAKER (NON-ILLUSTRATED) WCI G180067 Contact Us For Availability
2
SUPPORT-LS (4) WCI G178284-01 Contact Us For Availability
2
WCI G183714 WCI G183714 Contact Us For Availability
2
WCI 3016531 WCI 3016531 Contact Us For Availability
2
WCI G163133 WCI G163133 Contact Us For Availability
2
WCI G159901 WCI G159901 Contact Us For Availability
2A
WCI G179797 WCI G179797 Contact Us For Availability
3
SUPPORT-RS (4) WCI G178287-01 Contact Us For Availability
3
WCI G183861 WCI G183861 Contact Us For Availability
3
WCI 3016530 WCI 3016530 Contact Us For Availability
3
BRACKET-MTG (4) WCI G164637 Contact Us For Availability
4
INNER PANEL-FREEZER WCI 3016517 Contact Us For Availability
4
WCI M1090016 WCI M1090016 Contact Us For Availability
5
WCI G103903 No Longer Available
5
WCI 3016520 WCI 3016520 Contact Us For Availability
5
COVER-PAN WCI G490064-09 Contact Us For Availability
5
PLATE-MOUNTING WCI G186572 Contact Us For Availability
6
WCI 3015602 WCI 3015602 Contact Us For Availability
6
WASHER-CENTER HINGE WCI G164355 Contact Us For Availability
6
GASKET, COVER WCI G180108-07 Contact Us For Availability
6
WCI G184904 WCI G184904 Contact Us For Availability
6
SCREW 8-32 X 1/4 WCI G159898 Contact Us For Availability
7
ROLLER ASSY (2) WCI G177021 Contact Us For Availability
7
WCI 3016528 WCI 3016528 Contact Us For Availability
7
HARNESS-COMPR WCI G166062-01 Contact Us For Availability
7
WCI G137735 WCI G137735 Contact Us For Availability
7A
DOOR STOP-FREEZER WCI G155072 Contact Us For Availability
8
WCI G162977-10 WCI G162977-10 Contact Us For Availability
8
ROLLER ASSY (2) WCI G183407 Contact Us For Availability
8
WCI 3015333 WCI 3015333 Contact Us For Availability
8
WCI G162549-01 WCI G162549-01 Contact Us For Availability
8
WCI G137741 WCI G137741 Contact Us For Availability
9
NAMEPLATE FRAME WCI G178292 Contact Us For Availability
9
WCI G161013-67 WCI G161013-67 Contact Us For Availability
9
CLIP-MTG (4) WCI G163204 Contact Us For Availability
9
WCI G137738 WCI G137738 Contact Us For Availability
10
LABEL-NAMEPLATE WCI G189500-01 Contact Us For Availability
10
WCI G177025 WCI G177025 Contact Us For Availability
10
WCI G177106-01 WCI G177106-01 Contact Us For Availability
10
WASHER-MTG (4) WCI G164634 Contact Us For Availability
10
WCI G137737 WCI G137737 Contact Us For Availability
11
TAPE-MTG WCI G153407-60 Contact Us For Availability
11
SPRING-ROLLER ADJ (2) WCI G178494 Contact Us For Availability
11
WCI G177390-23 WCI G177390-23 Contact Us For Availability
12
REFR DOOR (COFFEE) WCI G189576-10 Contact Us For Availability
12
WCI G177024 WCI G177024 Contact Us For Availability
12
TRIM-SHELF (3) WCI G172434-09 Contact Us For Availability
12
DEFROST PAN & NUT WCI G184715 Contact Us For Availability
12
SCREW, SHOULDER WCI G159913 Contact Us For Availability
12A
LOCK NUT (NON-ILLUSTRATED) WCI G164958 Contact Us For Availability
13
WCI G169332-10 WCI G169332-10 Contact Us For Availability
13
WCI G182799 WCI G182799 Contact Us For Availability
13
WCI 3015157 WCI 3015157 Contact Us For Availability
13
WCI G182225-18 WCI G182225-18 Contact Us For Availability
13
WCI G137745 WCI G137745 Contact Us For Availability
14
WCI G189725-10 WCI G189725-10 Contact Us For Availability
14
WCI G177302 WCI G177302 Contact Us For Availability
14
TRIM-SHELF WCI G172434-08 Contact Us For Availability
14
COMPRESSOR W/ELEC WCI G189462 Contact Us For Availability
15
BEARING HINGE (8) WCI G183138 Contact Us For Availability
15
BRACKET-BTM HINGE WCI G191474 Contact Us For Availability
15
SHELF-FREEZER WCI G177059-08 Contact Us For Availability
15
WCI G189006 WCI G189006 Contact Us For Availability
16
HANDLE GRIP (2) WCI G189454-02 Contact Us For Availability
16
WCI G163203 WCI G163203 Contact Us For Availability
16
TRIM-SHELF WCI G172434-34 Contact Us For Availability
16
CAPACITOR, RUN WCI G188885-02 Contact Us For Availability
16
HARNESS-WIRING WCI G185809 Contact Us For Availability
16A
INSERT GRIP (2) (NON-ILLUSTRATED) WCI G189456-01 Contact Us For Availability
17
WCI G189453-01 WCI G189453-01 Contact Us For Availability
17
END CAP (2) WCI G166495-01 Contact Us For Availability
17
STRAP-CAPACITOR MTG WCI G188897 Contact Us For Availability
17
ARM, SHUT OFF WCI G164767 Contact Us For Availability
18
HANDLE END WCI G189452-01 Contact Us For Availability
18
CONTROL BOX WCI G176722-03 Contact Us For Availability
18
SUPPORT-HOUSING WCI G137748 Contact Us For Availability
19
HANDLE END WCI G189451-01 Contact Us For Availability
19
WCI G490004-02 WCI G490004-02 Contact Us For Availability
19
CONTROL-TEMP. WCI G162667-11 Contact Us For Availability
19
WCI G184599 WCI G184599 Contact Us For Availability
19
SPRING-SHUT OFF WCI G137753 Contact Us For Availability
19A
WCI G185566 WCI G185566 Contact Us For Availability
19A
WCI G107080 WCI G107080 Contact Us For Availability
20
GASKET-FREEZER DOOR WCI G186932-14 Contact Us For Availability
20
WCI G162675 WCI G162675 Contact Us For Availability
20
INSUL BLOCK LS WCI G188375 Contact Us For Availability
20
WCI G159907 WCI G159907 Contact Us For Availability
21
WCI G186932-13 WCI G186932-13 Contact Us For Availability
21
WCI G162178 WCI G162178 Contact Us For Availability
21
INSUL BLOCK RS WCI G185299 Contact Us For Availability
21
WCI G137742 WCI G137742 Contact Us For Availability
22
WCI G89643 WCI G89643 Contact Us For Availability
22
WCI G166912 WCI G166912 Contact Us For Availability
22
INSUL PLUG RS WCI G185276 Contact Us For Availability
22
WCI G137743 WCI G137743 Contact Us For Availability
23
DAIRY DOOR (2) WCI 3015049 Contact Us For Availability
23
WCI G174733 WCI G174733 Contact Us For Availability
23
SOCKET-BULB WCI G168302 Contact Us For Availability
23
WCI G137744 WCI G137744 Contact Us For Availability
24
WCI G174734 WCI G174734 Contact Us For Availability
24
KNOB-TEMP CONTROL WCI G490107-02 Contact Us For Availability
24
WCI G162506 WCI G162506 Contact Us For Availability
24
WCI G164770 WCI G164770 Contact Us For Availability
25
WCI G162827-14 WCI G162827-14 Contact Us For Availability
25
SWITCH SLIDE WCI G178402-01 Contact Us For Availability
25
WCI G159905 WCI G159905 Contact Us For Availability
26
DAMPER WCI G162661 Contact Us For Availability
26
LABEL-CONT BOX WCI G189592 Contact Us For Availability
26
HEAT EXCHANGER WCI G147918 Contact Us For Availability
26
WCI G159909 WCI G159909 Contact Us For Availability
27
WCI G162662 WCI G162662 Contact Us For Availability
27
WCI G180373-10 WCI G180373-10 Contact Us For Availability
27
WCI G159906 WCI G159906 Contact Us For Availability
28
WCI G162747-09 WCI G162747-09 Contact Us For Availability
28
SCREW-MTG (4) WCI G183103 Contact Us For Availability
28
INSULATOR-EVAP WCI G166511-01 Contact Us For Availability
28
WCI M1090120 WCI M1090120 Contact Us For Availability
29
WCI 3016784 WCI 3016784 Contact Us For Availability
29
STRAP, MULLION MTG WCI G490087 Contact Us For Availability
29
WCI G183584 WCI G183584 Contact Us For Availability
29
SHIELD-WIRING WCI G164769 Contact Us For Availability
30
WASHER-STEEL (4) WCI G166847 Contact Us For Availability
30
CLAMP-CABLE WCI G73986 Contact Us For Availability
30
HEATER WCI G137756 Contact Us For Availability
31
WCI G162179 WCI G162179 Contact Us For Availability
31
SPACER (2) WCI G490082 Contact Us For Availability
31
WCI G159910 WCI G159910 Contact Us For Availability
32
PUSH PIN (2) WCI G185279 Contact Us For Availability
32
WCI G177254 WCI G177254 Contact Us For Availability
32
SCREW WCI G164766 Contact Us For Availability
33
WCI G184920-01 WCI G184920-01 Contact Us For Availability
33
WCI G167234 WCI G167234 Contact Us For Availability
33
WCI G159912 WCI G159912 Contact Us For Availability
33A
RING, SEAL (NON-ILLUSTRATED) WCI G176853 Contact Us For Availability
34
TOP-REFR WCI 3001651 Contact Us For Availability
34
WCI G181117 WCI G181117 Contact Us For Availability
34A
SCREW-MTG (3) (NON-ILLUSTRATED) WCI G162673 Contact Us For Availability
35
WCI G167217 WCI G167217 Contact Us For Availability
35
DIVIDER-FOAM WCI G184683 Contact Us For Availability
35
WCI G159911 WCI G159911 Contact Us For Availability
36
WCI G184604 WCI G184604 Contact Us For Availability
36
HARNESS-WIRING WCI G185266 Contact Us For Availability
38
WCI G185302 WCI G185302 Contact Us For Availability
39
WCI G185303 WCI G185303 Contact Us For Availability
39A
BRACKET-CONNECTOR (NON-ILLUSTRATED) WCI G164571 Contact Us For Availability
40
COVER-EVAP COIL WCI G184609 Contact Us For Availability
40A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
41
SUPPORT, COVER (2) WCI G163669 Contact Us For Availability
42
BRACKET-CTR HINGE WCI G163207 Contact Us For Availability
42
CLAMP-HARNESS & INLET TUBE MTG (3) WCI G161655 Contact Us For Availability
44
WCI G142220 WCI G142220 Contact Us For Availability
45
DRAIN TROUGH WCI G177534 Contact Us For Availability
45
CLIP, HARNESS LOCATION WCI G163706 Contact Us For Availability
46
WCI G170695 WCI G170695 Contact Us For Availability
46
NUT INLET TO SOLE. WCI G143689 Contact Us For Availability
48
CHANNEL, CTR WCI G189341 Contact Us For Availability
48
WCI G160347 WCI G160347 Contact Us For Availability
49
SCREW-MTG WCI G187449 Contact Us For Availability
49
TUBE WATER FILL WCI G165773 Contact Us For Availability
50
WCI G85642 WCI G85642 Contact Us For Availability
51
WCI G174747-10 WCI G174747-10 Contact Us For Availability
52
BRACKET, VALVE TO REAR PANEL WCI G163309 Contact Us For Availability
53
WCI G179684-10 WCI G179684-10 Contact Us For Availability
53
VALVE SOLENOID WCI G159914 Contact Us For Availability
54
LEVELING LEG (2) WCI G185713 Contact Us For Availability
54
WATER SUPPLY ADPTR WCI G159415 Contact Us For Availability
55
WCI G183073 WCI G183073 Contact Us For Availability
× ![]()
