Model Electrolux TRT15DRCZ1 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
02 - DOOR

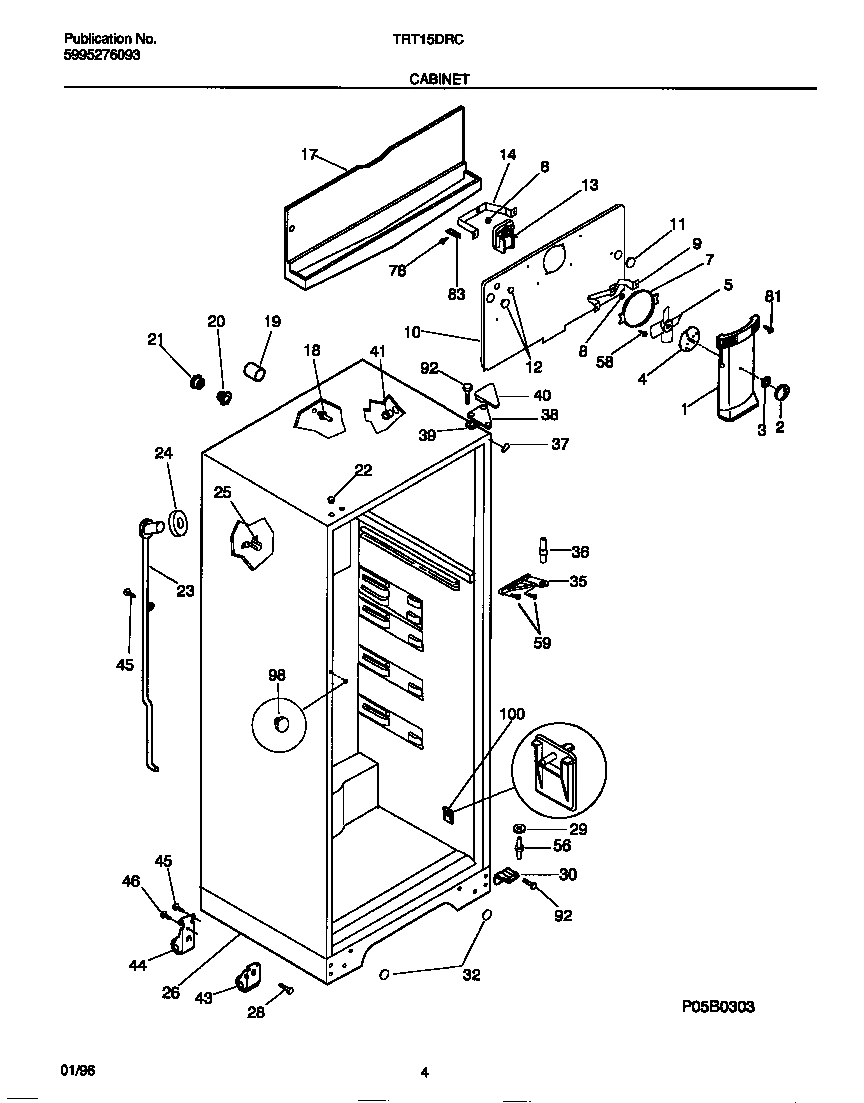

03 - CABINET

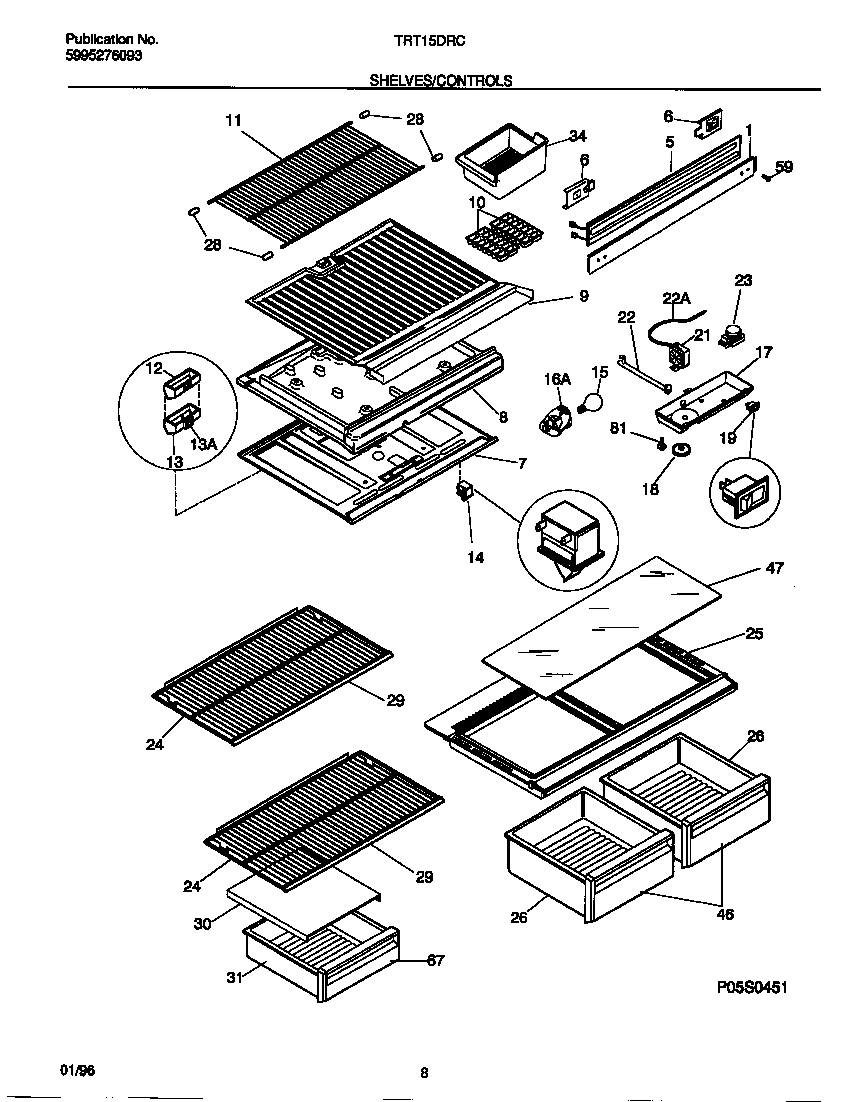

04 - SHELVES/CONTROLS

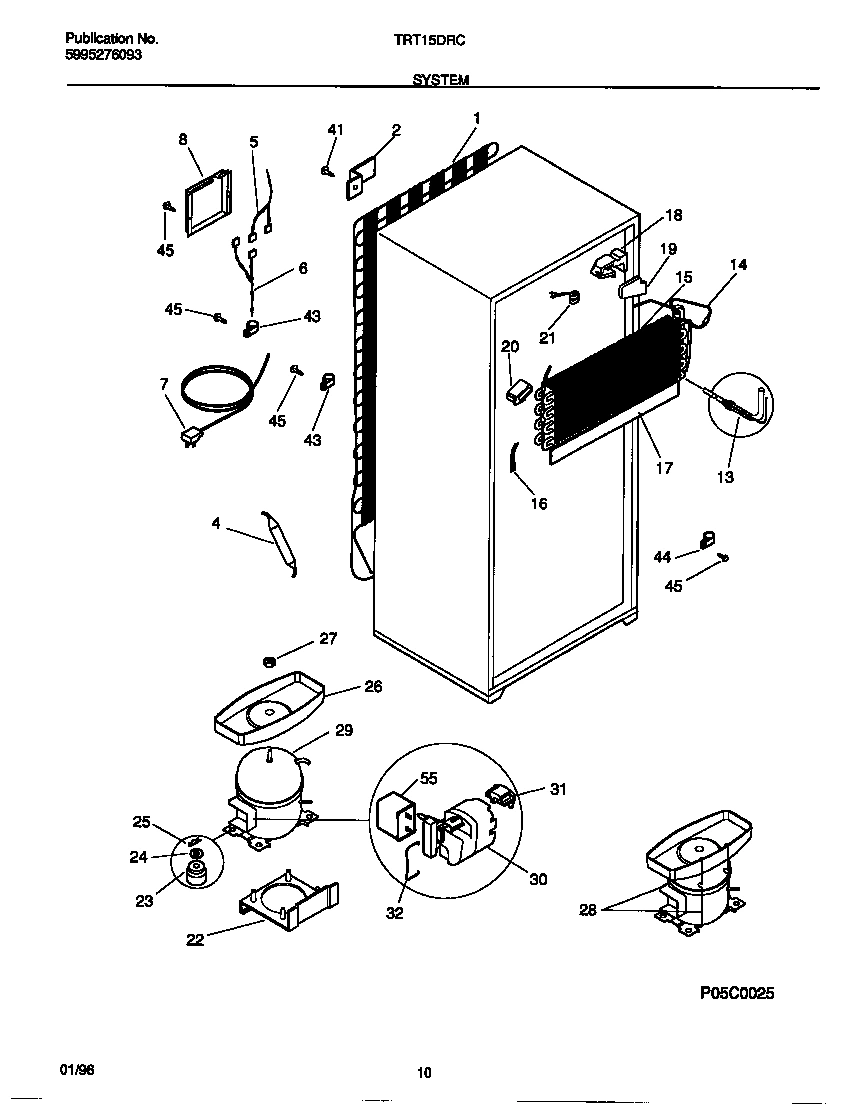

05 - SYSTEM

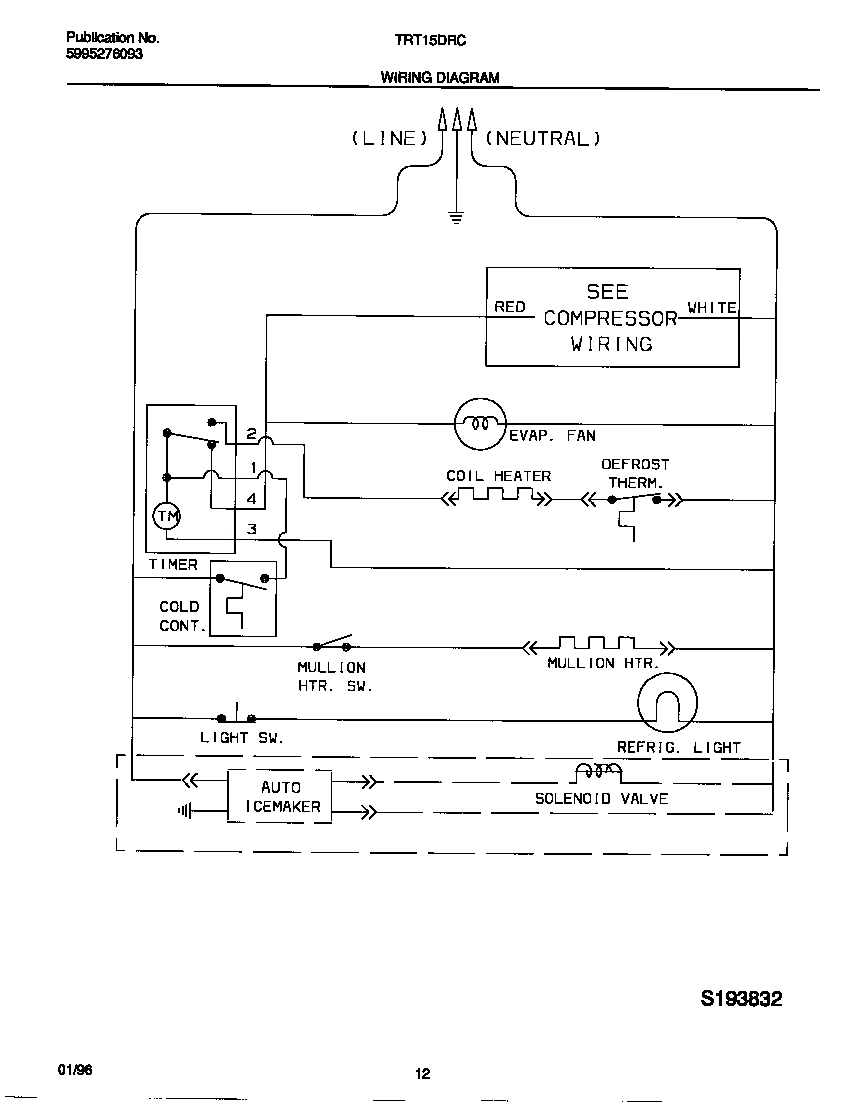

06 - WIRING DIAGRAM
Common parts from model Electrolux TRT15DRCZ1 REFRIGERATOR
*62920
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*62923
PLUG-BUTTON, CABINET LINER WCI 5308016571 Contact Us For Availability
*62924
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
1
GASKET-FRZR DOOR, WHITE, MAGNETIC WCI 5308007123 Contact Us For Availability
1A
WCI 218491000 WCI 218491000 Contact Us For Availability
1B
SPACER-TUBE (NOT ILLUSTRATED) WCI 5303017691 Contact Us For Availability
2A
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
2B
WASHER, EXT TOOTH LOCK, NO. 10 (NOT ILLUSTRAT WCI 5308009617 Contact Us For Availability
5
WCI 5308000010 WCI 5308000010 Contact Us For Availability
5
WCI 215267701 WCI 215267701 Contact Us For Availability
5
WCI 218271401 WCI 218271401 Contact Us For Availability
5
WCI 3018900 WCI 3018900 Contact Us For Availability
6
WCI 218279800 WCI 218279800 Contact Us For Availability
6
WCI 215257001 WCI 215257001 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
7A
WCI 3206185 WCI 3206185 Contact Us For Availability
7B
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8A
WCI 3206186 WCI 3206186 Contact Us For Availability
8A
WCI 5303001197 WCI 5303001197 Contact Us For Availability
8B
WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILL WCI 5308003607 Contact Us For Availability
8C
PROTECTOR-EDGE, WIRING HARNESS (NOT ILLUSTRAT WCI 3205266 Contact Us For Availability
9
WCI 3206187 WCI 3206187 Contact Us For Availability
10
TRAY-ICE, PLASTIC WCI 215667501 Contact Us For Availability
10
PLUG-BUTTON, WHITE, HINGE BRG HOLE WCI 5308000134 Contact Us For Availability
11
PLUG-HOLE, FACTORY TEST WCI 5303208309 Contact Us For Availability
11A
SHELF-FREEZER, FIXED/FLAT, FULL WIDTH, WIRE WCI 5303283107 Contact Us For Availability
11B
SPACER, FRZR SHELF (NOT ILLUSTRATED) WCI 218159700 Contact Us For Availability
12A
WCI 215079000 WCI 215079000 Contact Us For Availability
12A
DEFLECTOR-AIR, W/SEAL WCI 5308014667 Contact Us For Availability
12B
WCI 215079100 WCI 215079100 Contact Us For Availability
12B
SEAL, AIR DEFLECTOR (NOT ILLUSTRATED) WCI 5303001449 Contact Us For Availability
13
MOTOR-EVAP FAN WCI 5300158289 Contact Us For Availability
13
WCI 218249001 WCI 218249001 Contact Us For Availability
13
WCI 5303001448 WCI 5303001448 Contact Us For Availability
13
EXTENSION, AIR DEFLECTOR, WITH INSULATION WCI 5303200590 Contact Us For Availability
13
WCI 5308000728 WCI 5308000728 Contact Us For Availability
14
SWITCH-LIGHT/LAMP WCI 5309918806 Contact Us For Availability
14
WCI 5308009754 WCI 5308009754 Contact Us For Availability
15
EVAPORATOR WCI 5308009756 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM WCI 5308000110 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17A
CONTROL BOX WCI 5303307349 Contact Us For Availability
17B
NUT, ANCHOR (NOT ILLUSTRATED) WCI 5308016567 Contact Us For Availability
18
WCI 5303311079 WCI 5303311079 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CRO WCI 218251900 Contact Us For Availability
21A
WCI 5303305486 WCI 5303305486 Contact Us For Availability
21B
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
INSULATOR, PLASTIC TUBING, TEMP SENSOR WCI 5303916855 Contact Us For Availability
22
WCI 215774901 WCI 215774901 Contact Us For Availability
22
HOUSING-TEMP SENSOR, PLASTIC WCI 3018891 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
WCI 5303210377 WCI 5303210377 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 218272501 WCI 218272501 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 218314102 WCI 218314102 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25B
WCI 5308000056 WCI 5308000056 Contact Us For Availability
26
PAN - CRISPER WCI 3206180 Contact Us For Availability
26
WCI 215817806 WCI 215817806 Contact Us For Availability
26A
WCI 215372500 WCI 215372500 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
END CAP-SHELF,PROTECTOR WCI 3201150 Contact Us For Availability
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
29
WASHER, .34 X .62 X .02, NYLON WCI 5308011326 Contact Us For Availability
29
WCI 218366105 WCI 218366105 Contact Us For Availability
29
COMPRESSOR W/O ELECTRICALS WCI 5303917328 Contact Us For Availability
30
WCI 5303285319 WCI 5303285319 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
31
WCI 5303276514 WCI 5303276514 Contact Us For Availability
31
WCI 3206209 WCI 3206209 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
34
WCI 3018945 WCI 3018945 Contact Us For Availability
36
WCI 218251300 WCI 218251300 Contact Us For Availability
40
WCI 3206101 WCI 3206101 Contact Us For Availability
41
WCI 5308000039 WCI 5308000039 Contact Us For Availability
43
WCI 5303001199 WCI 5303001199 Contact Us For Availability
44
WCI 5308000133 WCI 5308000133 Contact Us For Availability
46
WCI 5303310721 WCI 5303310721 Contact Us For Availability
47
WCI 215723587 WCI 215723587 Contact Us For Availability
67
WCI 5303310723 WCI 5303310723 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
98
PLUG-BUTTON, WHITE, CTR HINGE HOLE WCI 215099701 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 Contact Us For Availability
× ![]()
