Model Electrolux TRT15DRAW0 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

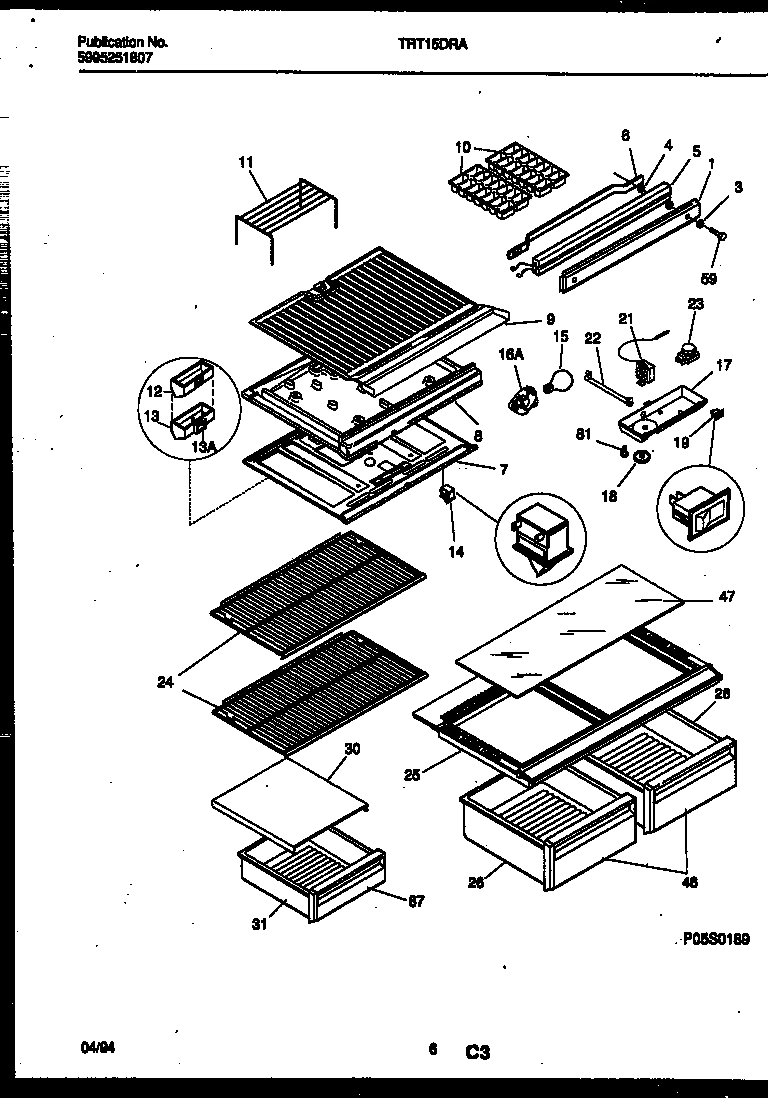

04 - SHELVES AND SUPPORTS

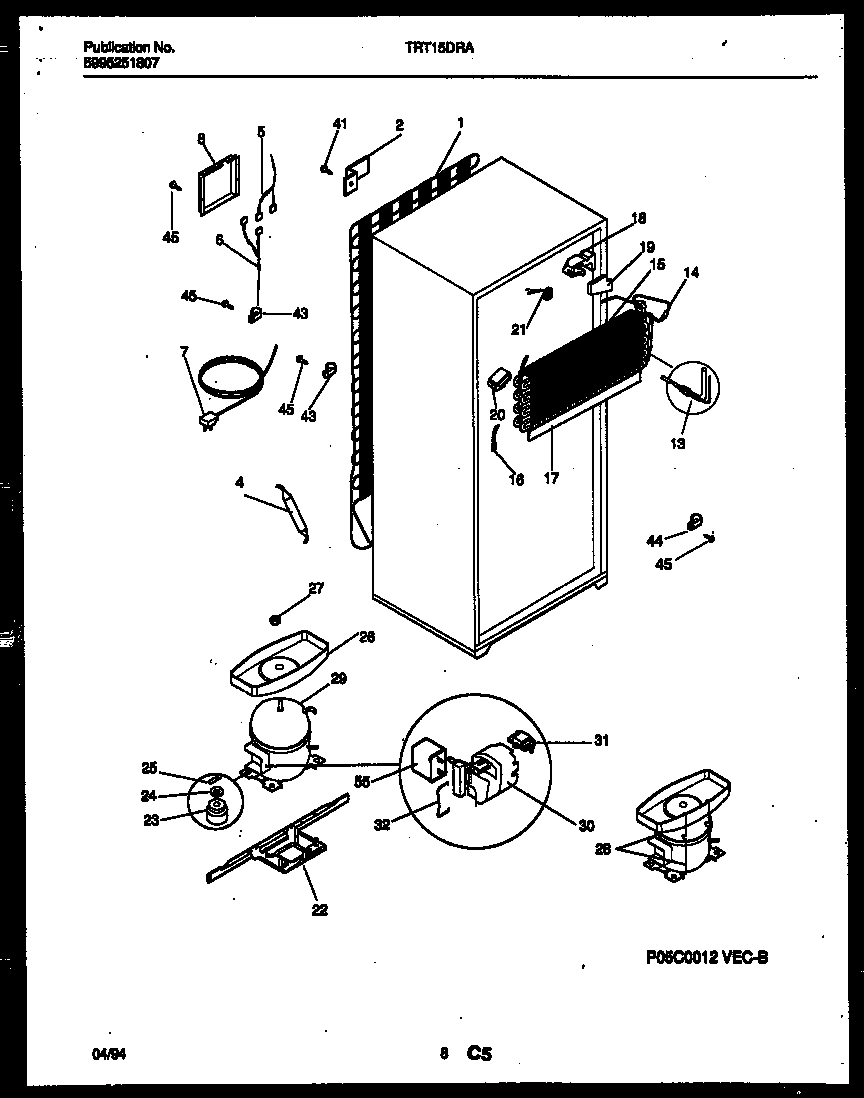

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux TRT15DRAW0 REFRIGERATOR
*99110
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*99114
PLUG-BUTTON, LINER WCI 5308016571 Contact Us For Availability
*99121
WCI 3916557 WCI 3916557 Contact Us For Availability
1
WCI 3206121 WCI 3206121 Contact Us For Availability
1
WCI 5303001341 WCI 5303001341 Contact Us For Availability
2
WCI 5308000296 WCI 5308000296 Contact Us For Availability
2A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
WCI 5303206754 WCI 5303206754 Contact Us For Availability
4
WCI 3206110 WCI 3206110 Contact Us For Availability
4
WCI 215882100 WCI 215882100 Contact Us For Availability
5
WCI 3206150 WCI 3206150 Contact Us For Availability
5
WCI 3206120 WCI 3206120 Contact Us For Availability
5
WCI 3206127 WCI 3206127 Contact Us For Availability
6
WCI 215846500 WCI 215846500 Contact Us For Availability
6
WCI 215170801 WCI 215170801 Contact Us For Availability
6
WCI 215257003 WCI 215257003 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 3206185 WCI 3206185 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 3206186 WCI 3206186 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
8A
HARNESS-WIRING, CONTROL/DIVIDER (NON-ILLUSTRA WCI 3018900 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
9
WCI 3206187 WCI 3206187 Contact Us For Availability
10
PLUG-BUTTON, WHITE, HINGE BRG HOLE WCI 5308000134 Contact Us For Availability
10
WCI 3206119 WCI 3206119 Contact Us For Availability
11
SHELF-FREEZER, FIXED/FLAT, FULL WIDTH, WIRE WCI 5303283107 Contact Us For Availability
12
WCI 215079000 WCI 215079000 Contact Us For Availability
12
WCI 215079100 WCI 215079100 Contact Us For Availability
12
DEFLECTOR-AIR, W/SEAL WCI 5308014667 Contact Us For Availability
13
WCI 5303001448 WCI 5303001448 Contact Us For Availability
13
WCI 215133500 WCI 215133500 Contact Us For Availability
13A
EXTENSION, AIR DEFLECTOR, WITH INSULATION WCI 5303200590 Contact Us For Availability
14
WCI 5308009754 No Longer Available
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
15
EVAPORATOR WCI 5308009756 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 3206146 WCI 3206146 Contact Us For Availability
17
WCI 3206130 WCI 3206130 Contact Us For Availability
17A
WCI 5308016567 WCI 5308016567 Contact Us For Availability
18
WCI 215245000 WCI 215245000 Contact Us For Availability
18
WCI 5303299979 WCI 5303299979 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
WCI 5303286905 WCI 5303286905 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
WCI 5303018894 WCI 5303018894 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
WCI 3018891 WCI 3018891 Contact Us For Availability
22
WCI 3206126 WCI 3206126 Contact Us For Availability
23
WCI 5303269702 WCI 5303269702 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
SHELF, SLIDING, WIRE, REFR SECTION WCI 5303283111 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 215774100 WCI 215774100 Contact Us For Availability
25
COVER-CRISPER PAN, WITH BEAM WCI 3206112 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
26
PAN-CRISPER WCI 3206212 Contact Us For Availability
26
PAN-DEFROST DRAIN, ORIG/SVCE COMPR WCI 5300184715 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
29
WASHER, .34 X .62 X .05, NYLON WCI 5308000007 Contact Us For Availability
29
WCI 5303917190 WCI 5303917190 Contact Us For Availability
30
WCI 3206136 WCI 3206136 Contact Us For Availability
30
WCI 5303285319 WCI 5303285319 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
30A
WCI 215882300 WCI 215882300 Contact Us For Availability
31
WCI 5303276514 WCI 5303276514 Contact Us For Availability
31
WCI 3206209 WCI 3206209 Contact Us For Availability
32
WCI 215217702 WCI 215217702 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
34
WCI 5308000186 WCI 5308000186 Contact Us For Availability
35
BRACKET-CTR HINGE WCI 5303001369 Contact Us For Availability
36
WCI 5308000184 WCI 5308000184 Contact Us For Availability
37
TRIM-CABINET CORNER, WHITE WCI 5303202336 Contact Us For Availability
38
WCI 3206100 WCI 3206100 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
40
WCI 3206101 WCI 3206101 Contact Us For Availability
46
WCI 5303300049 WCI 5303300049 Contact Us For Availability
47
INSERT-PAN COVER, GLASS WCI 5303277005 Contact Us For Availability
59
WCI 5308012258 WCI 5308012258 Contact Us For Availability
67
WCI 5303300048 WCI 5303300048 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
× ![]()
