Model Maytag TR521VE REFRIGERATOR – Common Parts & Diagrams

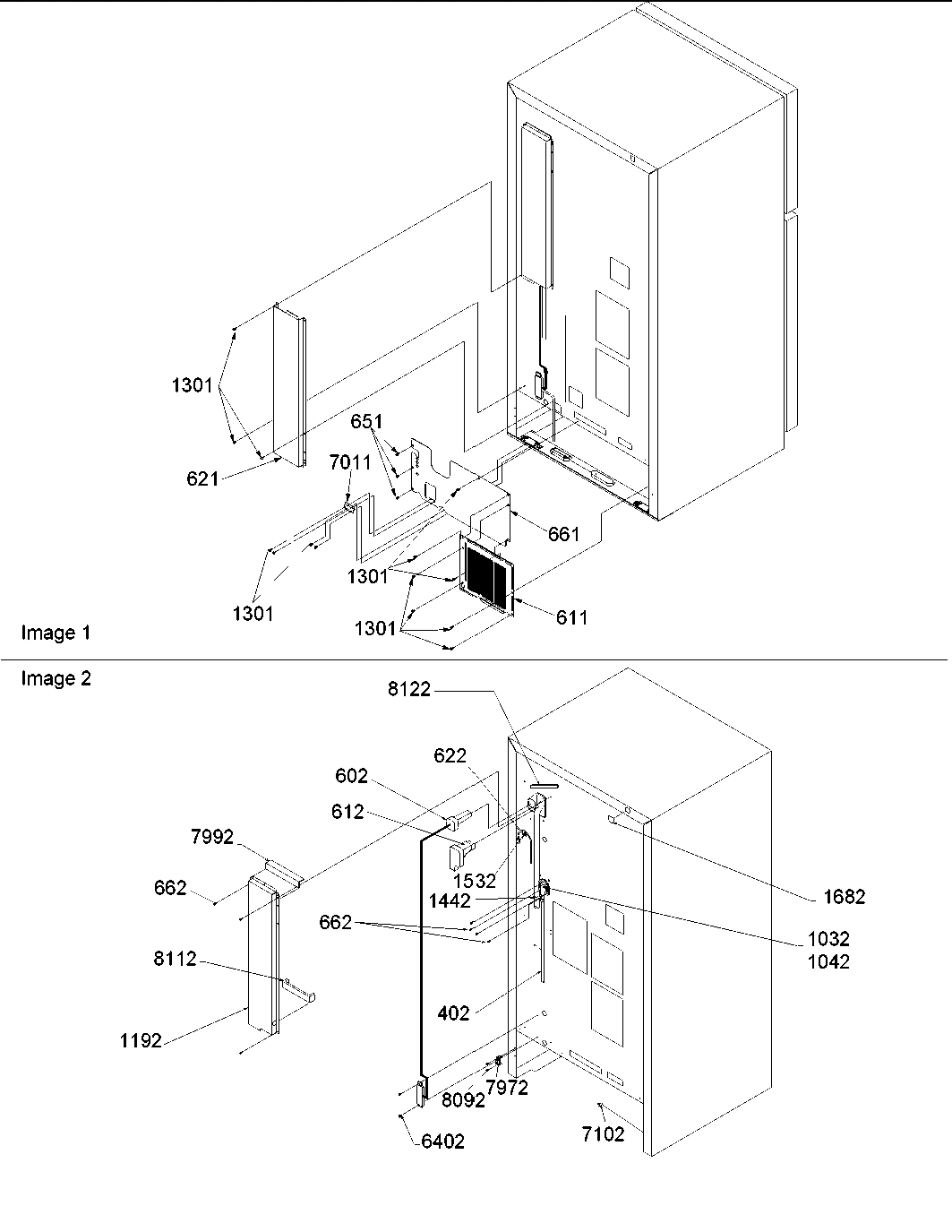

01 - Cabinet Back

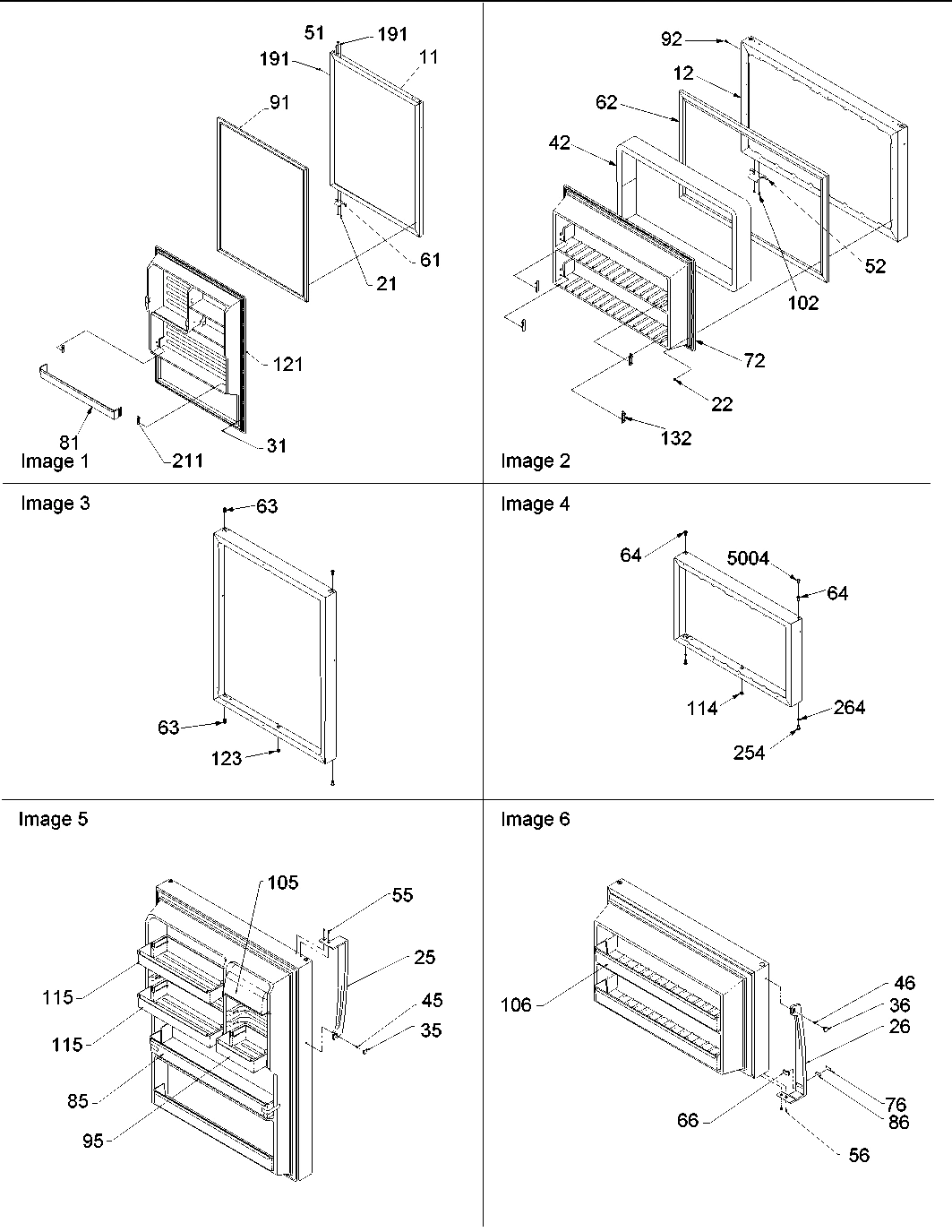

02 - Door Assy

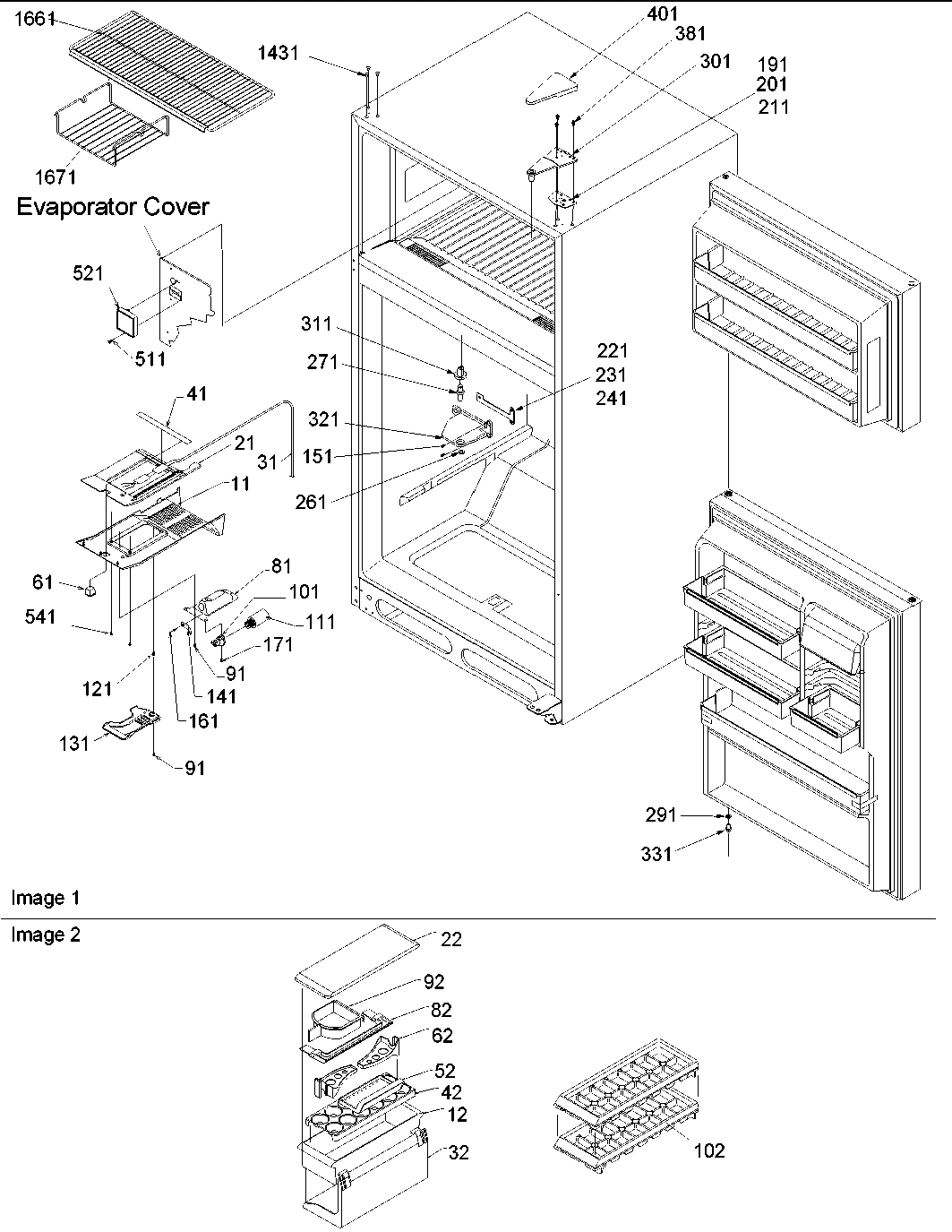

03 - Door Hinges, Freezer & Accessories

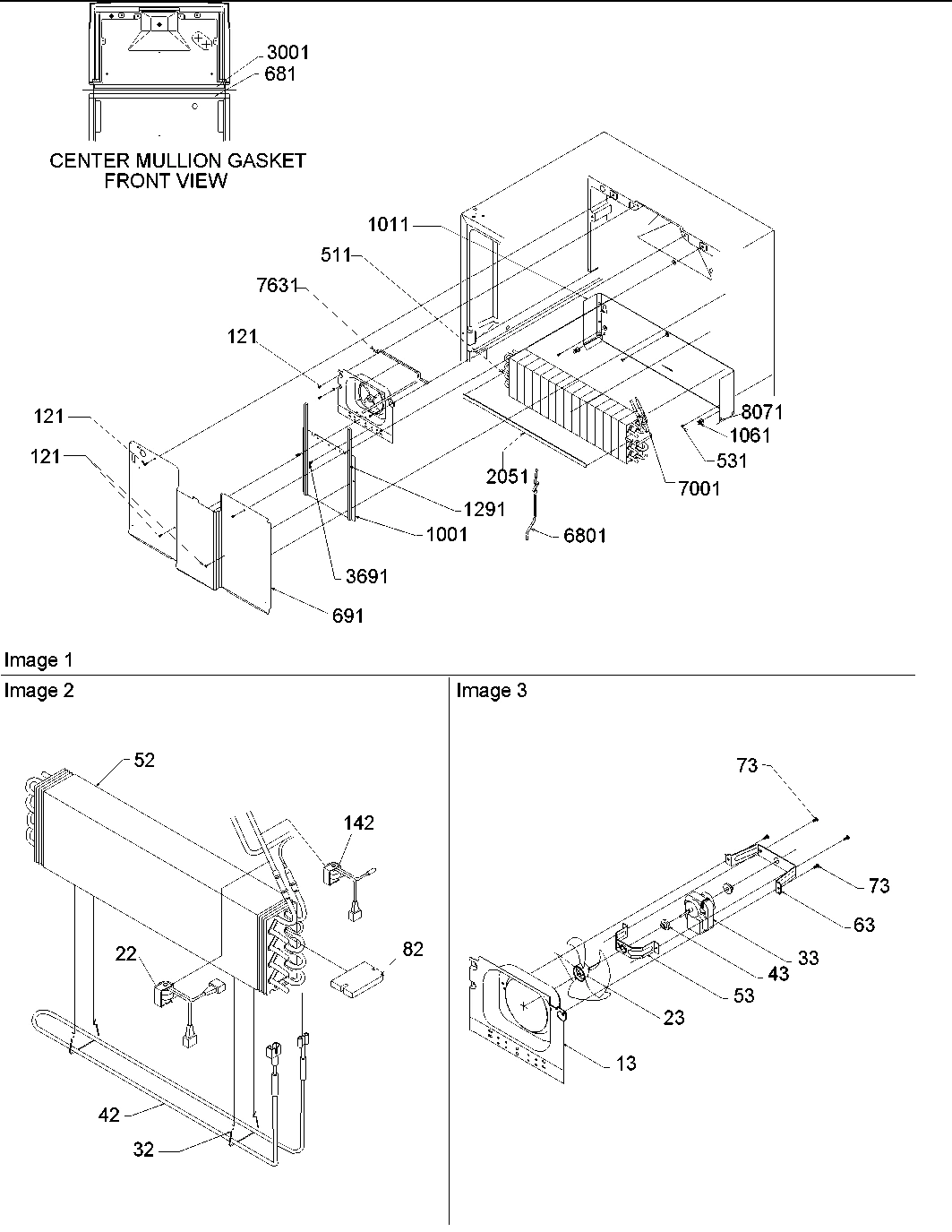

04 - Evaporator & Fan Motor Assy

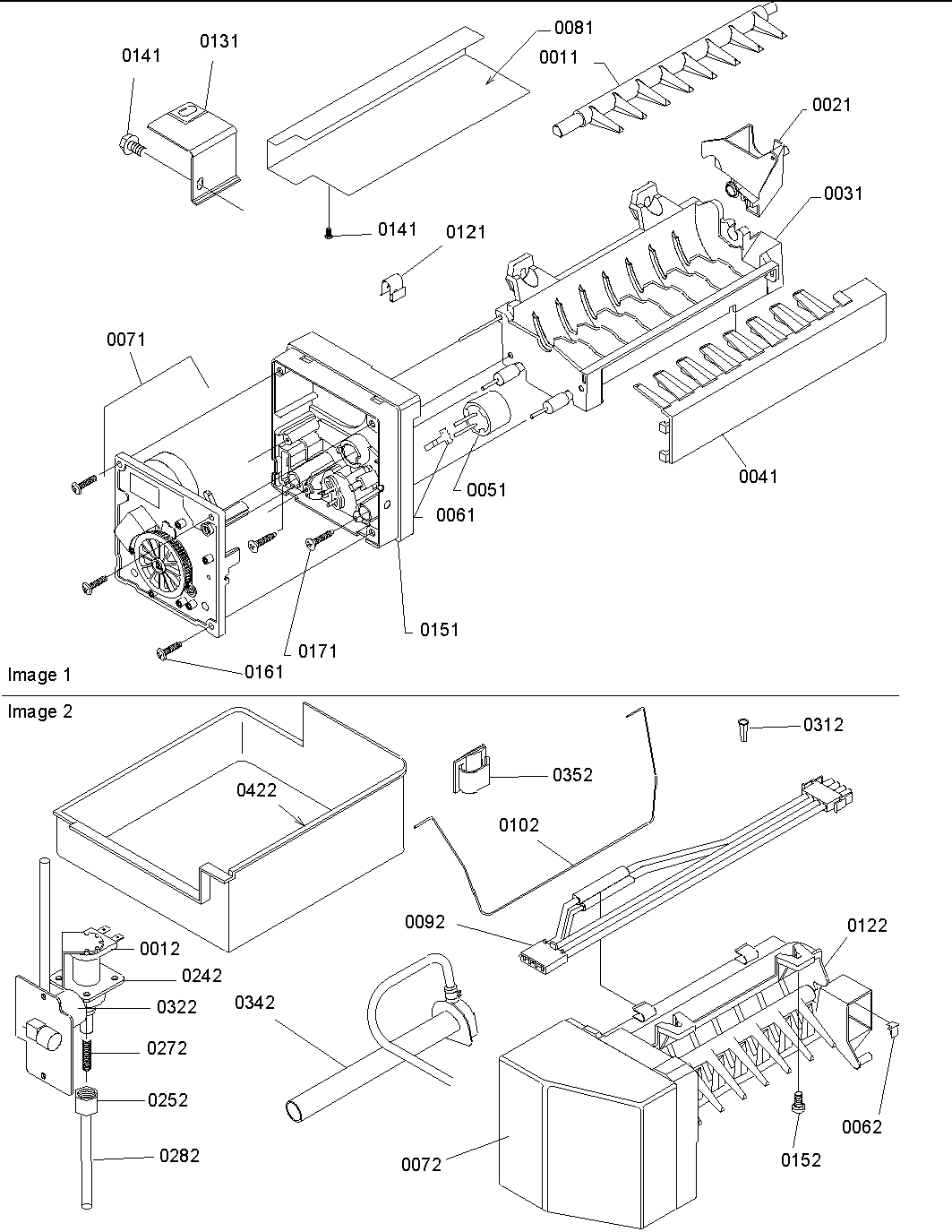

05 - Ice Maker Assy & Parts

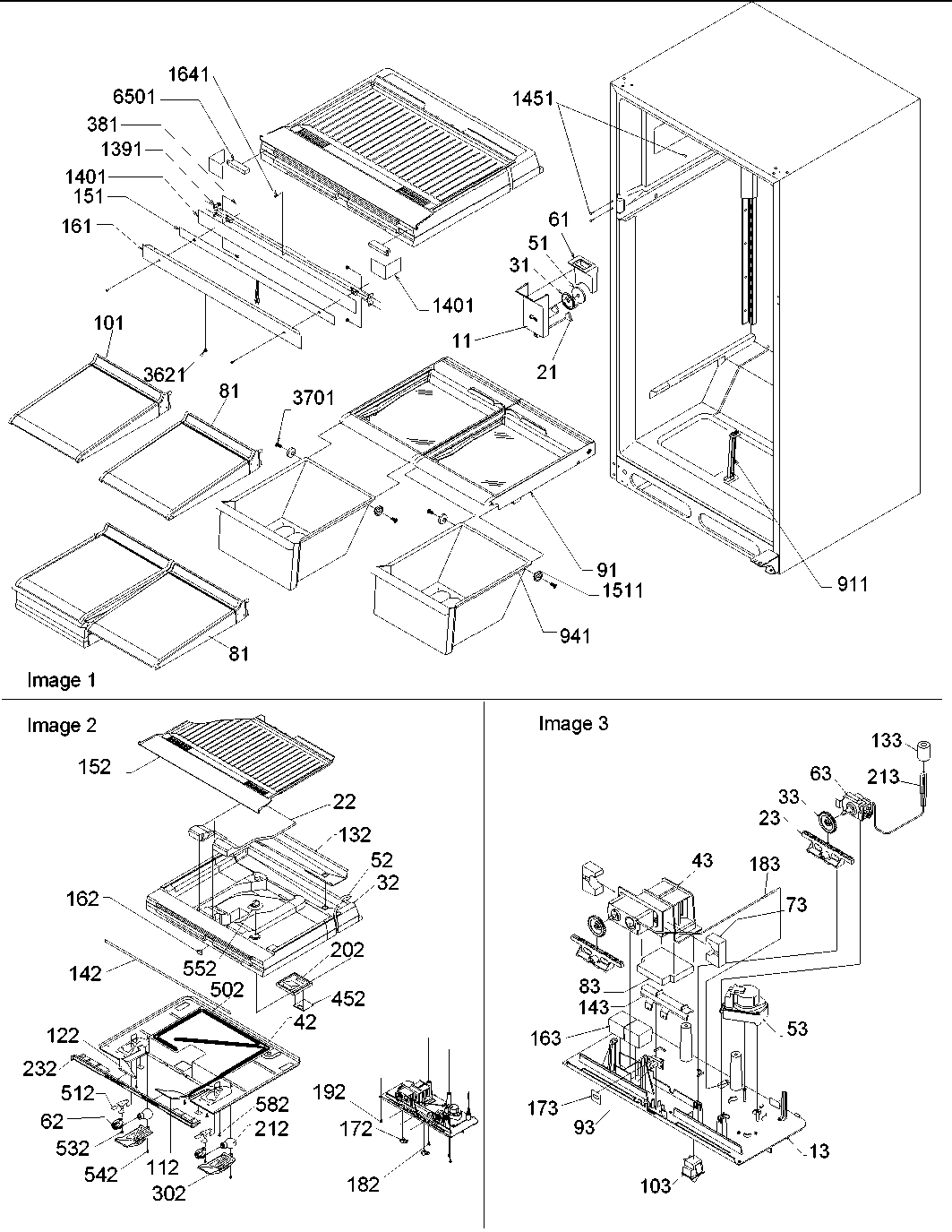

06 - Interior Cabinet & Drain Block Assy

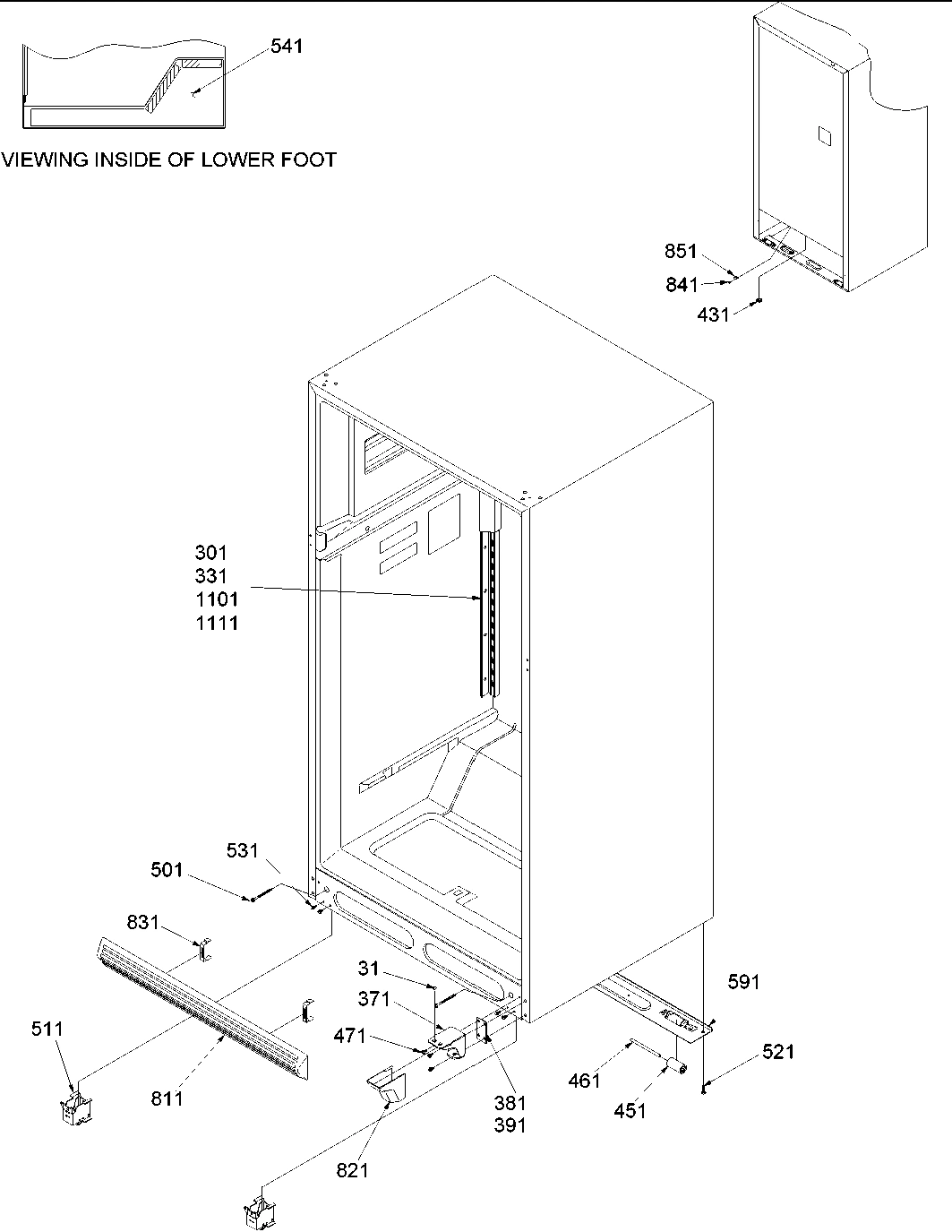

07 - Ladders, Lower Cabinet & Rollers

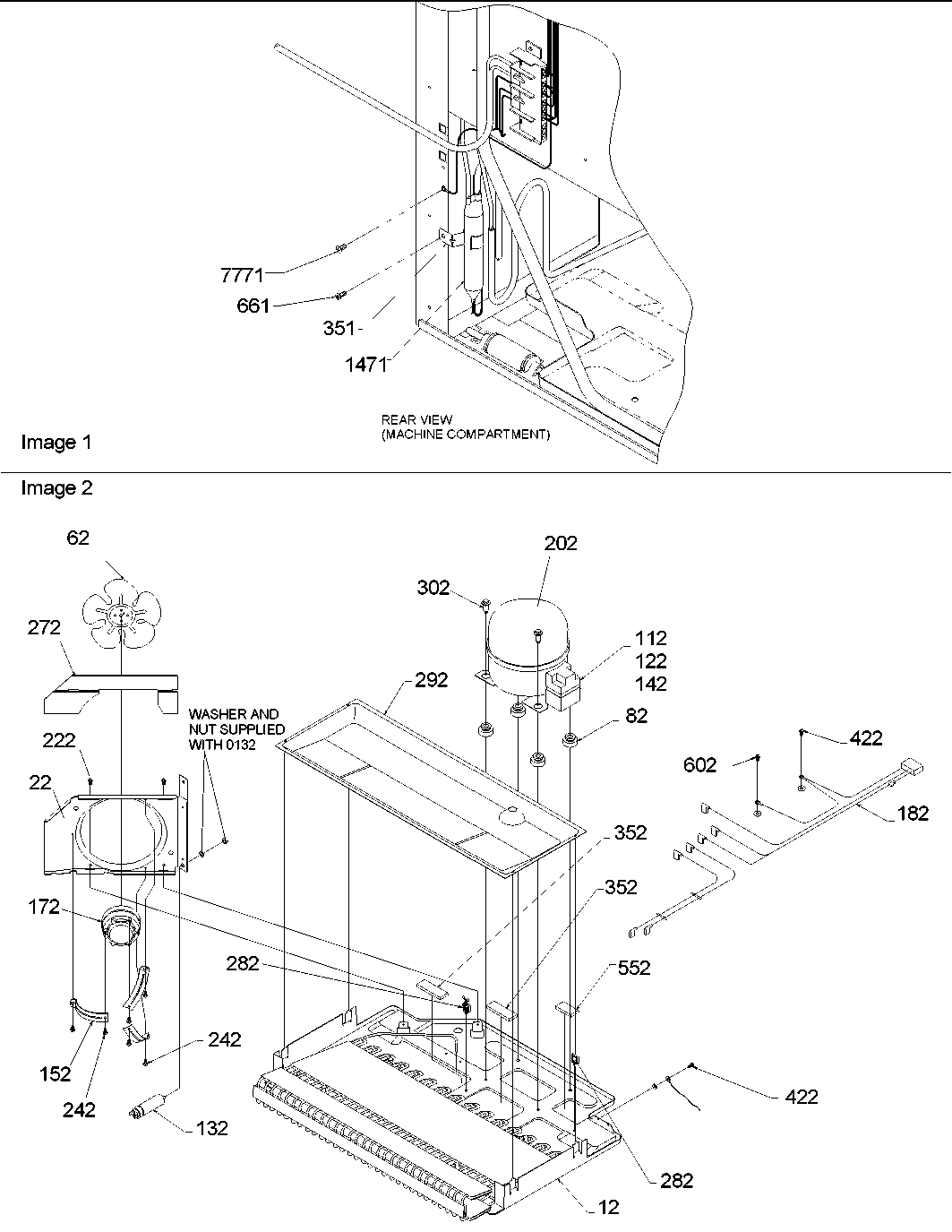

08 - Machine Compartment

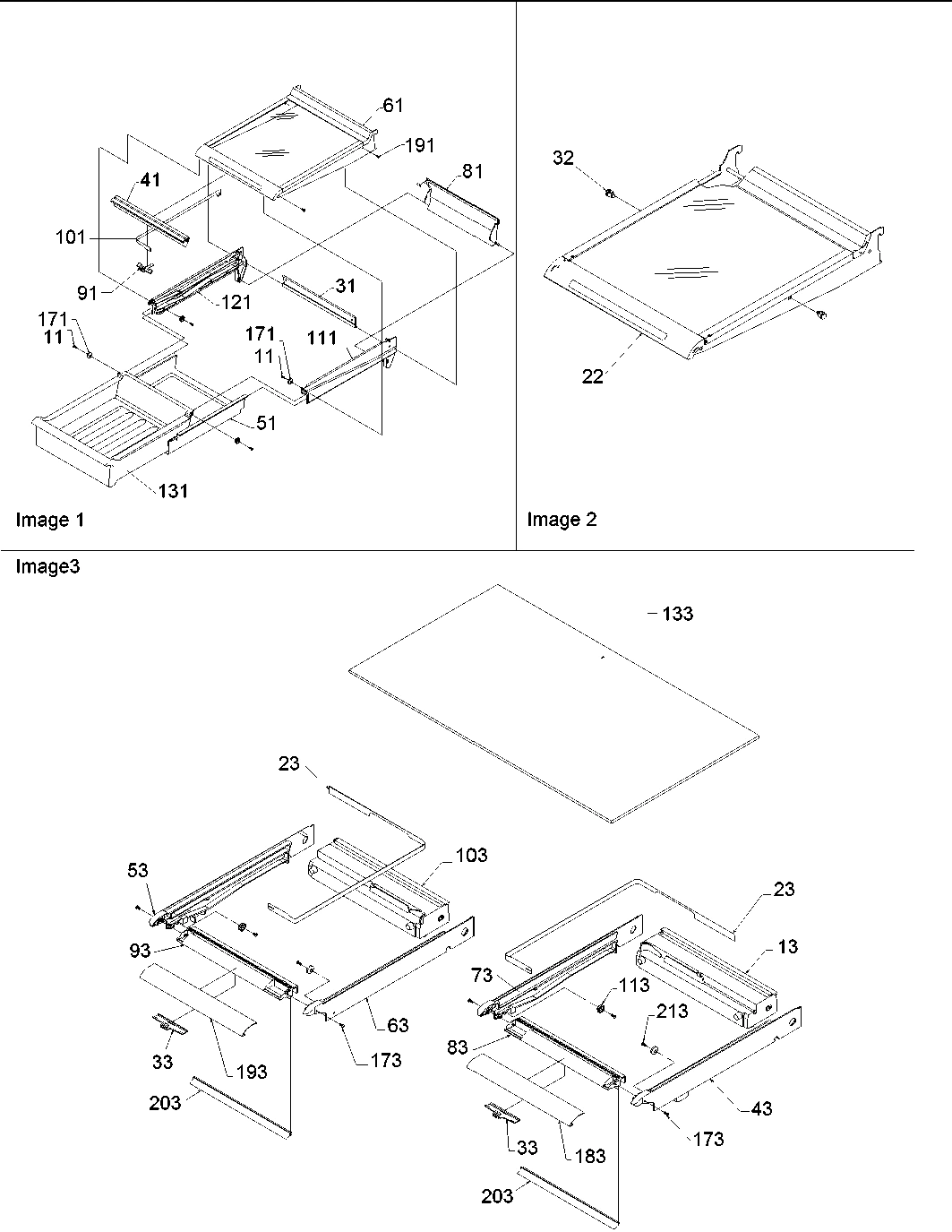

09 - Shelving & Crisper Assy
Common parts from model Maytag TR521VE REFRIGERATOR
11
MAY 10925415E MAY 10925415E Contact Us For Availability
11
MAY 10440405 MAY 10440405 Contact Us For Availability
11
MAY R0183119 MAY R0183119 Contact Us For Availability
11
MAY 10642103 MAY 10642103 Contact Us For Availability
12
MAY 10925620E MAY 10925620E Contact Us For Availability
12
MAY 10423129 MAY 10423129 Contact Us For Availability
12
MAY 10481220 MAY 10481220 Contact Us For Availability
13
MAY 10422304 MAY 10422304 Contact Us For Availability
13
MAY 12035107 MAY 12035107 Contact Us For Availability
13
MAY 10433804 MAY 10433804 Contact Us For Availability
21
MAY 10779601 MAY 10779601 Contact Us For Availability
21
MAY R0156839 MAY R0156839 Contact Us For Availability
21
MAY 10852401 MAY 10852401 Contact Us For Availability
22
MAY 10436404 MAY 10436404 Contact Us For Availability
22
MAY 12028301 MAY 12028301 Contact Us For Availability
22
MAY 10476402 MAY 10476402 Contact Us For Availability
22
MAY 10426911 MAY 10426911 Contact Us For Availability
22
MAY 10895811 MAY 10895811 Contact Us For Availability
23
MAY 10855401 MAY 10855401 Contact Us For Availability
23
MAY 10439601 MAY 10439601 Contact Us For Availability
23
MAY 10467804 MAY 10467804 Contact Us For Availability
25
MAY 10253526Q MAY 10253526Q Contact Us For Availability
26
MAY 10253525Q MAY 10253525Q Contact Us For Availability
31
MAY M0219730 MAY M0219730 Contact Us For Availability
31
MAY 12172410 MAY 12172410 Contact Us For Availability
31
MAY 10479401 MAY 10479401 Contact Us For Availability
31
MAY 10920203 MAY 10920203 Contact Us For Availability
32
MAY 10992303 MAY 10992303 Contact Us For Availability
32
MAY 10996101 MAY 10996101 Contact Us For Availability
32
MAY 10875101 MAY 10875101 Contact Us For Availability
33
MAY 10449503 MAY 10449503 Contact Us For Availability
33
MAY 10442601 MAY 10442601 Contact Us For Availability
33
MAY 10797501 MAY 10797501 Contact Us For Availability
35
MAY 10201810 MAY 10201810 Contact Us For Availability
36
MAY 10201809 MAY 10201809 Contact Us For Availability
41
MAY B8386613 MAY B8386613 Contact Us For Availability
41
MAY R0183120 MAY R0183120 Contact Us For Availability
41
MAY 10920303 MAY 10920303 Contact Us For Availability
42
MAY B0523593 MAY B0523593 Contact Us For Availability
42
MAY 10436506 MAY 10436506 Contact Us For Availability
42
MAY 10785902 MAY 10785902 Contact Us For Availability
42
MAY 12035216 MAY 12035216 Contact Us For Availability
43
MAY A1017202 MAY A1017202 Contact Us For Availability
43
MAY R0161072 MAY R0161072 Contact Us For Availability
43
MAY 10432703 MAY 10432703 Contact Us For Availability
51
MAY 12470503 MAY 12470503 Contact Us For Availability
51
MAY 12411301 MAY 12411301 Contact Us For Availability
51
MAY 10437305 MAY 10437305 Contact Us For Availability
52
MAY 10310901 MAY 10310901 Contact Us For Availability
52
MAY R9900178 MAY R9900178 Contact Us For Availability
52
MAY 10781106 MAY 10781106 Contact Us For Availability
53
MAY 10492801 MAY 10492801 Contact Us For Availability
53
MAY 10428602 MAY 10428602 Contact Us For Availability
53
MAY 10432704 MAY 10432704 Contact Us For Availability
56
MAY M0221718 MAY M0221718 Contact Us For Availability
61
MAY 10447109 MAY 10447109 Contact Us For Availability
61
MAY R0191094 MAY R0191094 Contact Us For Availability
61
MAY 10479103 MAY 10479103 Contact Us For Availability
61
MAY 10895708 MAY 10895708 Contact Us For Availability
62
MAY 12529020 MAY 12529020 Contact Us For Availability
62
MAY 12103905 MAY 12103905 Contact Us For Availability
62
MAY D7845103 MAY D7845103 Contact Us For Availability
62
MAY B5720302 MAY B5720302 Contact Us For Availability
62
MAY B5742604 MAY B5742604 Contact Us For Availability
63
MAY 10492701 MAY 10492701 Contact Us For Availability
63
MAY R0161084 MAY R0161084 Contact Us For Availability
63
MAY 10432805 MAY 10432805 Contact Us For Availability
64
MAY 10961002 MAY 10961002 Contact Us For Availability
66
MAY 10184305 MAY 10184305 Contact Us For Availability
72
MAY 10415501Q MAY 10415501Q Contact Us For Availability
73
MAY 10442801 MAY 10442801 Contact Us For Availability
73
MAY 10432806 MAY 10432806 Contact Us For Availability
76
MAY 10184401 MAY 10184401 Contact Us For Availability
81
MAY D7861803 MAY D7861803 Contact Us For Availability
81
MAY 10926204Q MAY 10926204Q Contact Us For Availability
81
MAY 10445701 MAY 10445701 Contact Us For Availability
82
MAY 10468004 MAY 10468004 Contact Us For Availability
82
MAY 10428202 MAY 10428202 Contact Us For Availability
82
GROMMET, COMPRESSOR MAY 10835901 Contact Us For Availability
83
MAY 10442901 MAY 10442901 Contact Us For Availability
83
MAY 10687801 MAY 10687801 Contact Us For Availability
85
MAY 10183121 MAY 10183121 Contact Us For Availability
86
MAY 10184501 MAY 10184501 Contact Us For Availability
91
MAY 12529019 MAY 12529019 Contact Us For Availability
91
MAY 10698520Q MAY 10698520Q Contact Us For Availability
91
MAY 10920401 MAY 10920401 Contact Us For Availability
92
MAY 10441102 MAY 10441102 Contact Us For Availability
92
MAY 10179201 MAY 10179201 Contact Us For Availability
93
MAY 10279202 MAY 10279202 Contact Us For Availability
93
MAY 10687802 MAY 10687802 Contact Us For Availability
95
MAY 10502912 MAY 10502912 Contact Us For Availability
101
MAY 10895709 MAY 10895709 Contact Us For Availability
101
MAY 10920101 MAY 10920101 Contact Us For Availability
102
ICE TRAY MAY D7725402 Contact Us For Availability
102
MAY 10884401 MAY 10884401 Contact Us For Availability
103
MAY C3680308 MAY C3680308 Contact Us For Availability
103
MAY 10435604 MAY 10435604 Contact Us For Availability
105
MAY 10423414 MAY 10423414 Contact Us For Availability
106
MAY 10419015 MAY 10419015 Contact Us For Availability
111
MAY 10880201 MAY 10880201 Contact Us For Availability
112
MAY 10467701 MAY 10467701 Contact Us For Availability
112
MAY 10377019 MAY 10377019 Contact Us For Availability
115
MAY 10416911 MAY 10416911 Contact Us For Availability
121
MAY 10440804 MAY 10440804 Contact Us For Availability
121
MAY M0580007 MAY M0580007 Contact Us For Availability
121
MAY 10319801 MAY 10319801 Contact Us For Availability
121
MAY 10897101 MAY 10897101 Contact Us For Availability
122
ICE MAKER ASSY. (220V-50HZ)x MAY D7846305 Contact Us For Availability
122
MAY 10467702 MAY 10467702 Contact Us For Availability
122
MAY 10097206 MAY 10097206 Contact Us For Availability
123
MAY M0310336 MAY M0310336 Contact Us For Availability
131
MAY 10678401 MAY 10678401 Contact Us For Availability
131
MAY B8391802 MAY B8391802 Contact Us For Availability
131
MAY 10417013 MAY 10417013 Contact Us For Availability
132
MAY 10435913 MAY 10435913 Contact Us For Availability
132
MAY 10958303 MAY 10958303 Contact Us For Availability
133
MAY 10673603 MAY 10673603 Contact Us For Availability
133
MAY 10370012 MAY 10370012 Contact Us For Availability
141
MAY M0320905 MAY M0320905 Contact Us For Availability
142
MAY 10789103 MAY 10789103 Contact Us For Availability
142
MAY 10450834 MAY 10450834 Contact Us For Availability
142
MAY 10757301 MAY 10757301 Contact Us For Availability
143
MAY 10565101 MAY 10565101 Contact Us For Availability
151
MAY M0226233 MAY M0226233 Contact Us For Availability
151
MAY R0183121 MAY R0183121 Contact Us For Availability
151
MAY 10543609 MAY 10543609 Contact Us For Availability
152
MAY M0211018 MAY M0211018 Contact Us For Availability
152
MAY 10995004 MAY 10995004 Contact Us For Availability
152
MAY 10582501 MAY 10582501 Contact Us For Availability
161
MAY A4539626 MAY A4539626 Contact Us For Availability
161
MAY R0186041 MAY R0186041 Contact Us For Availability
161
MAY 10433362B MAY 10433362B Contact Us For Availability
162
MAY 10752201 MAY 10752201 Contact Us For Availability
163
MAY 10900801 MAY 10900801 Contact Us For Availability
171
MAY R0186040 MAY R0186040 Contact Us For Availability
171
ROLLER, PAN MAY 10481001 Contact Us For Availability
172
MAY 10565401 MAY 10565401 Contact Us For Availability
172
MAY 10670403 MAY 10670403 Contact Us For Availability
173
MAY 10877103 MAY 10877103 Contact Us For Availability
173
MAY M0237932 MAY M0237932 Contact Us For Availability
182
MAY M0238616 MAY M0238616 Contact Us For Availability
182
MAY 10968601 MAY 10968601 Contact Us For Availability
183
MAY A3012542 MAY A3012542 Contact Us For Availability
183
MAY 10688055 MAY 10688055 Contact Us For Availability
191
MAY M0211533 MAY M0211533 Contact Us For Availability
191
MAY 10448501 MAY 10448501 Contact Us For Availability
192
MAY M0224128 MAY M0224128 Contact Us For Availability
193
MAY 10688054 MAY 10688054 Contact Us For Availability
201
MAY 10448502 MAY 10448502 Contact Us For Availability
202
MAY 10995201 MAY 10995201 Contact Us For Availability
203
MAY 10530204 MAY 10530204 Contact Us For Availability
211
MAY 10202001 MAY 10202001 Contact Us For Availability
211
MAY 10448503 MAY 10448503 Contact Us For Availability
212
MAY M0360402 MAY M0360402 Contact Us For Availability
213
MAY A3012543 MAY A3012543 Contact Us For Availability
213
MAY M0238105 MAY M0238105 Contact Us For Availability
221
MAY 10562201 MAY 10562201 Contact Us For Availability
222
MAY M0224416 MAY M0224416 Contact Us For Availability
231
MAY 10562202 MAY 10562202 Contact Us For Availability
232
MAY 10435514 MAY 10435514 Contact Us For Availability
241
MAY 10562203 MAY 10562203 Contact Us For Availability
242
MAY 12490802 MAY 12490802 Contact Us For Availability
242
MAY M0223816 MAY M0223816 Contact Us For Availability
252
NUT, SLEEVE MAY M0753001 Contact Us For Availability
254
MAY 12028602 MAY 12028602 Contact Us For Availability
261
SHIM, NON METAL (BLK) MAY M0274062 Contact Us For Availability
264
MAY 10252903 MAY 10252903 Contact Us For Availability
271
MAY 10351002 MAY 10351002 Contact Us For Availability
272
MAY A1055101 MAY A1055101 Contact Us For Availability
272
MAY 10442702 MAY 10442702 Contact Us For Availability
282
MAY B5705308 MAY B5705308 Contact Us For Availability
282
MAY B5667304 MAY B5667304 Contact Us For Availability
291
MAY M0274063 MAY M0274063 Contact Us For Availability
292
MAY 10427405 MAY 10427405 Contact Us For Availability
301
MAY 12077303 MAY 12077303 Contact Us For Availability
301
SCREW, SM MAY M0238642 Contact Us For Availability
302
MAY 10508701 MAY 10508701 Contact Us For Availability
302
MAY M0221523 MAY M0221523 Contact Us For Availability
311
MAY 12028502 MAY 12028502 Contact Us For Availability
312
INSERT, PLASTIC TUBE MAY A3223101 Contact Us For Availability
321
MAY 12446504 MAY 12446504 Contact Us For Availability
331
MAY 10200801 MAY 10200801 Contact Us For Availability
331
MAY 12435701 MAY 12435701 Contact Us For Availability
342
ELBOW, FILL TUBE MAY 10463201 Contact Us For Availability
351
MAY 10547001 MAY 10547001 Contact Us For Availability
352
MAY B5759644 MAY B5759644 Contact Us For Availability
371
MAY 10585509 MAY 10585509 Contact Us For Availability
381
MAY M0238731 MAY M0238731 Contact Us For Availability
381
MAY 10447904 MAY 10447904 Contact Us For Availability
391
MAY 10447903 MAY 10447903 Contact Us For Availability
401
MAY 10444704 MAY 10444704 Contact Us For Availability
422
MAY 10476207 MAY 10476207 Contact Us For Availability
451
MAY 10450701 MAY 10450701 Contact Us For Availability
452
MAY 10594901 MAY 10594901 Contact Us For Availability
461
MAY 10450901 MAY 10450901 Contact Us For Availability
471
MAY M0241508 MAY M0241508 Contact Us For Availability
501
MAY M0204336 MAY M0204336 Contact Us For Availability
502
MAY 10775302 MAY 10775302 Contact Us For Availability
511
MAY 10428301 MAY 10428301 Contact Us For Availability
511
MAY 12452601Q MAY 12452601Q Contact Us For Availability
512
MAY 10907501 MAY 10907501 Contact Us For Availability
521
MAY D7874403 MAY D7874403 Contact Us For Availability
521
MAY M0260242 MAY M0260242 Contact Us For Availability
531
MAY M0211031 MAY M0211031 Contact Us For Availability
532
SCREW MAY M0223328 Contact Us For Availability
541
MAY 12403606 MAY 12403606 Contact Us For Availability
542
MAY M0216716 MAY M0216716 Contact Us For Availability
552
MAY 10993701 MAY 10993701 Contact Us For Availability
552
MAY B5759648 MAY B5759648 Contact Us For Availability
582
MAY M0253516 MAY M0253516 Contact Us For Availability
591
MAY 10427112 MAY 10427112 Contact Us For Availability
602
MAY M0231604 MAY M0231604 Contact Us For Availability
661
MAY 12041848 MAY 12041848 Contact Us For Availability
661
MAY M0227217 MAY M0227217 Contact Us For Availability
681
MAY 10685508 MAY 10685508 Contact Us For Availability
691
MAY 10432406 MAY 10432406 Contact Us For Availability
811
MAY 10474801 MAY 10474801 Contact Us For Availability
821
MAY 10584801 MAY 10584801 Contact Us For Availability
831
MAY 10551502 MAY 10551502 Contact Us For Availability
851
MAY 10547101 MAY 10547101 Contact Us For Availability
911
MAY 10461901 MAY 10461901 Contact Us For Availability
941
MAY Y10430111 MAY Y10430111 Contact Us For Availability
1001
MAY 10440714 MAY 10440714 Contact Us For Availability
1011
MAY 10427712 MAY 10427712 Contact Us For Availability
1032
MAY 10163201 MAY 10163201 Contact Us For Availability
1042
MAY A3132301 MAY A3132301 Contact Us For Availability
1061
MAY 10442301 MAY 10442301 Contact Us For Availability
1101
MAY 12435801 MAY 12435801 Contact Us For Availability
1111
MAY M0238636 MAY M0238636 Contact Us For Availability
1192
MAY 10442205 MAY 10442205 Contact Us For Availability
1291
MAY A3030356 MAY A3030356 Contact Us For Availability
1391
MAY 10433611 MAY 10433611 Contact Us For Availability
1401
MAY B0523584 MAY B0523584 Contact Us For Availability
1431
PLUG, TOP HINGE BUTTON (BLK) MAY M0310731 Contact Us For Availability
1442
MAY B8372901 MAY B8372901 Contact Us For Availability
1451
MAY M0311605 MAY M0311605 Contact Us For Availability
1471
DRIER MAY B2150504 Contact Us For Availability
1641
MAY M0253916 MAY M0253916 Contact Us For Availability
1661
MAY Y10440002 MAY Y10440002 Contact Us For Availability
1671
MAY 10250502 MAY 10250502 Contact Us For Availability
1682
MAY 10544301 MAY 10544301 Contact Us For Availability
2051
MAY A3189348 MAY A3189348 Contact Us For Availability
3001
MAY B5759626 MAY B5759626 Contact Us For Availability
3621
MAY M0211520 MAY M0211520 Contact Us For Availability
5004
MAY 10686404 MAY 10686404 Contact Us For Availability
6501
MAY 10772301 MAY 10772301 Contact Us For Availability
6801
MAY 10586601 MAY 10586601 Contact Us For Availability
7001
MAY M0321210 MAY M0321210 Contact Us For Availability
7011
MAY 12047201 MAY 12047201 Contact Us For Availability
7102
MAY B5720303 MAY B5720303 Contact Us For Availability
7631
MAY A3030354 MAY A3030354 Contact Us For Availability
7771
MAY M0239216 MAY M0239216 Contact Us For Availability
7972
MAY Y10203701 MAY Y10203701 Contact Us For Availability
7992
MAY 10913801 MAY 10913801 Contact Us For Availability
8071
MAY M0110510 MAY M0110510 Contact Us For Availability
8092
SCREW 1`` MAY M0211021 Contact Us For Availability
8112
MAY B5759642 MAY B5759642 Contact Us For Availability
8122
MAY B5759643 MAY B5759643 Contact Us For Availability
NI
MAY 10244905 MAY 10244905 Contact Us For Availability
NI
MAY 10525901 MAY 10525901 Contact Us For Availability
NI
MAY 10527051 MAY 10527051 Contact Us For Availability
NI
MAY 10834701 MAY 10834701 Contact Us For Availability
NI
MAY A3036901 MAY A3036901 Contact Us For Availability
NI
SHIELD, ICE MAKER MAY D7846203 Contact Us For Availability
NI
MAY M0114003 MAY M0114003 Contact Us For Availability
NI
MAY M0211016 MAY M0211016 Contact Us For Availability
NI
MAY M0288213 MAY M0288213 Contact Us For Availability
NI
MAY M0311301 MAY M0311301 Contact Us For Availability
NI
MAY 10785802 MAY 10785802 Contact Us For Availability
× ![]()
