Model Maytag TR520H1 REFRIGERATOR – Common Parts & Diagrams

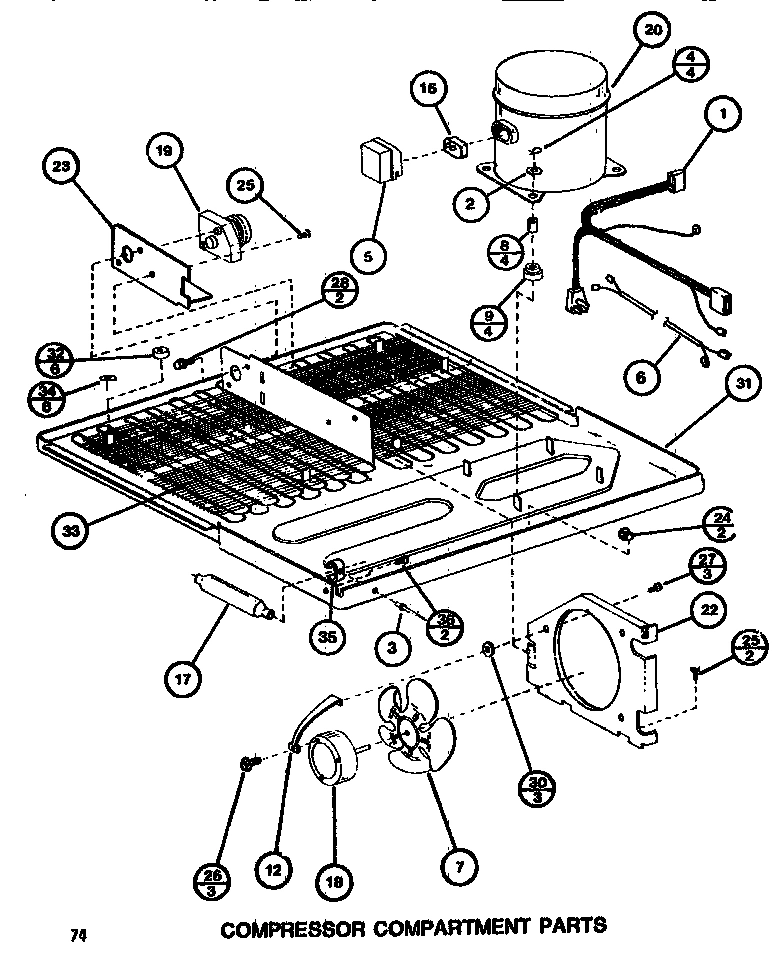

01 - COMPRESSOR COMPARTMENT

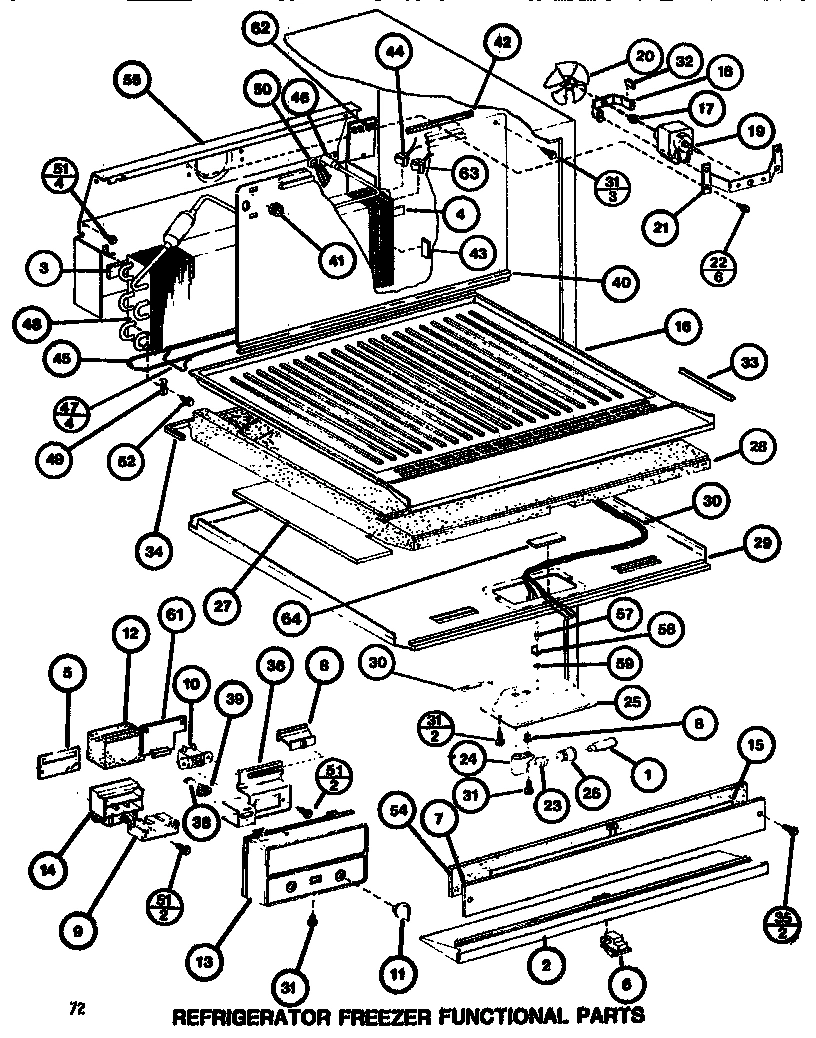

02 - FUNCTIONAL PARTS (REF/FRZ)

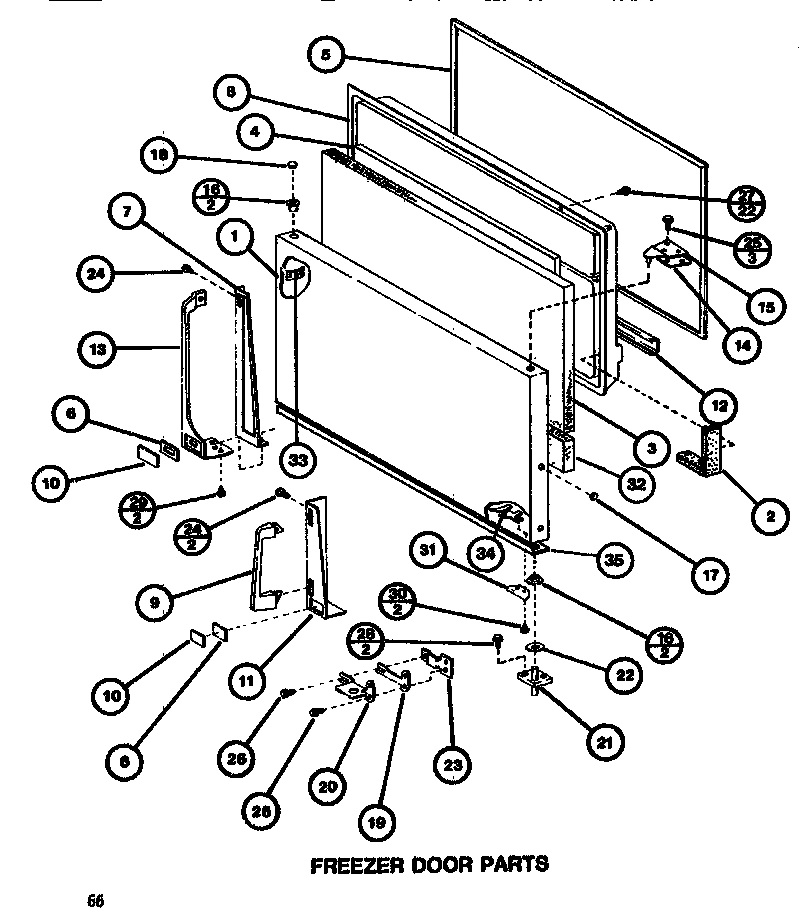

03 - FZ DOOR

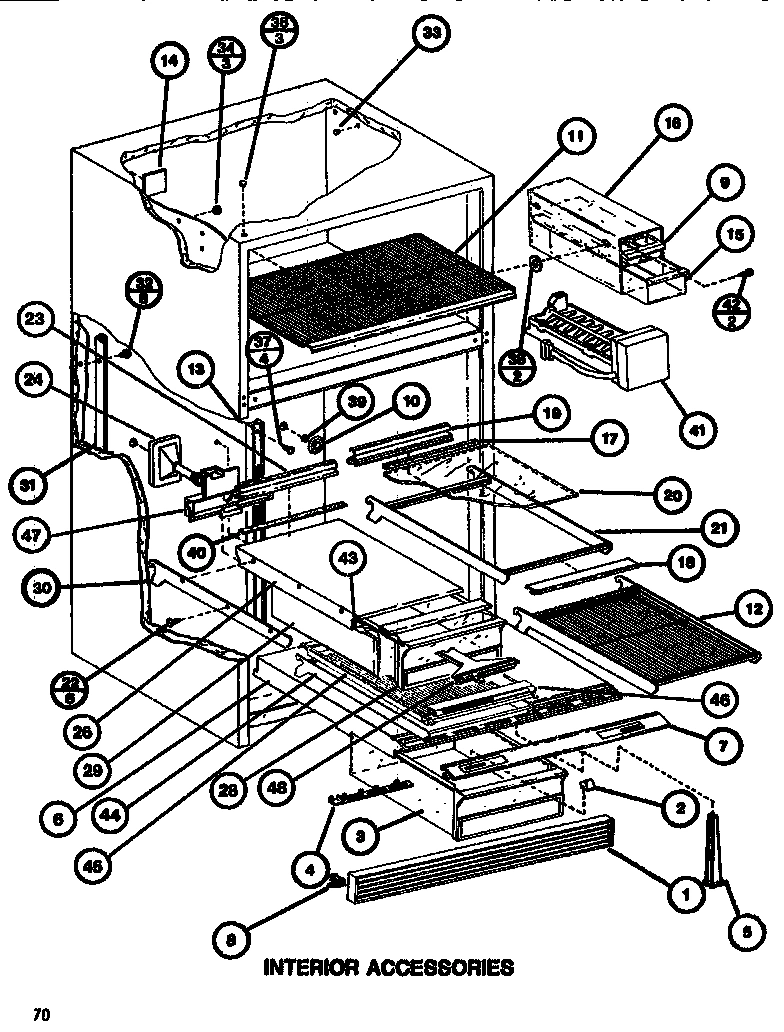

04 - INTERIOR ACCESSORIES

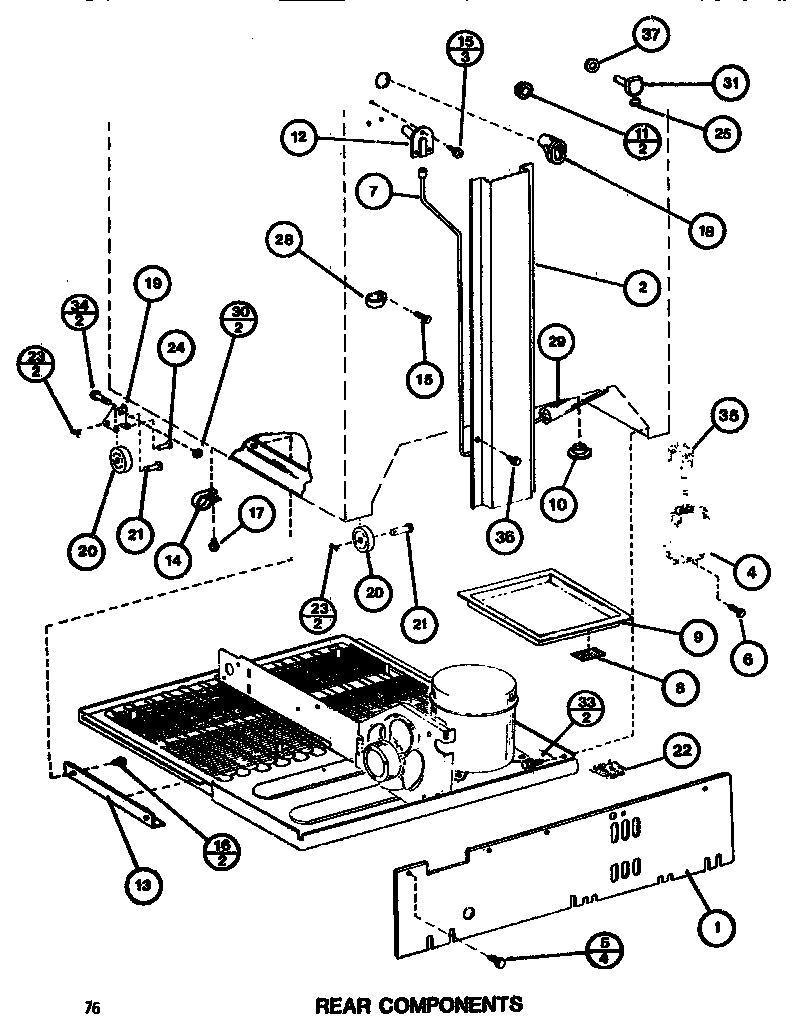

05 - REAR COMPONENTS

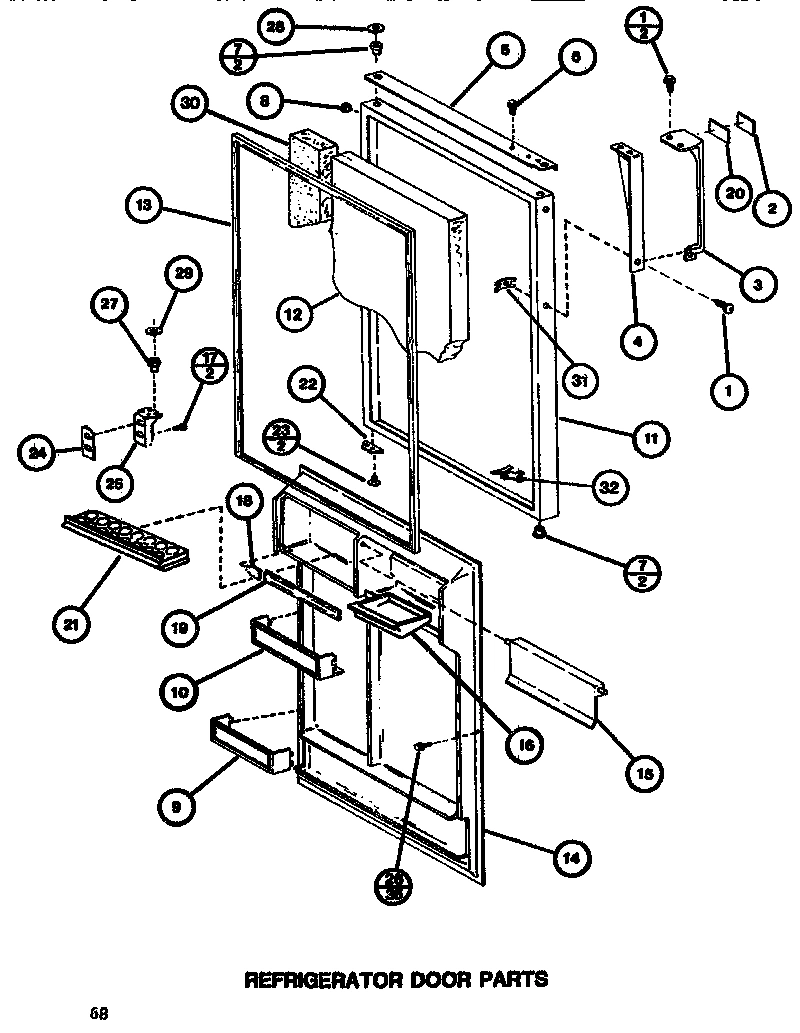

06 - REF DOOR
Common parts from model Maytag TR520H1 REFRIGERATOR
1
MAY B8363301 MAY B8363301 Contact Us For Availability
1
MAY D7728227 MAY D7728227 Contact Us For Availability
1
MAY D7728228 MAY D7728228 Contact Us For Availability
1
MAY D7728229 MAY D7728229 Contact Us For Availability
1
MAY D7728230 MAY D7728230 Contact Us For Availability
1
MAY D7728231 MAY D7728231 Contact Us For Availability
1
MAY M0222418 MAY M0222418 Contact Us For Availability
1
MAY D7520502 MAY D7520502 Contact Us For Availability
1
MAY D7695501 MAY D7695501 Contact Us For Availability
2
MAY D7653004 MAY D7653004 Contact Us For Availability
2
MAY B0523563 MAY B0523563 Contact Us For Availability
2
MAY C8908301 MAY C8908301 Contact Us For Availability
2
MAY D7539409 MAY D7539409 Contact Us For Availability
2
MAY C8915808 MAY C8915808 Contact Us For Availability
3
MAY A4539616 MAY A4539616 Contact Us For Availability
3
MAY B8322902 MAY B8322902 Contact Us For Availability
3
MAY B5683513 MAY B5683513 Contact Us For Availability
3
MAY D7581012 MAY D7581012 Contact Us For Availability
3
MAY D7254205 MAY D7254205 Contact Us For Availability
4
MAY A3140801 MAY A3140801 Contact Us For Availability
4
MAY B8361702 MAY B8361702 Contact Us For Availability
4
MAY B5683515 MAY B5683515 Contact Us For Availability
4
MAY D7587704 MAY D7587704 Contact Us For Availability
4
MAY C8946901 MAY C8946901 Contact Us For Availability
4
MAY D7623502 MAY D7623502 Contact Us For Availability
5
MAY C8867701 MAY C8867701 Contact Us For Availability
5
MAY B8345401 MAY B8345401 Contact Us For Availability
5
MAY D7605102 MAY D7605102 Contact Us For Availability
5
MAY D7602202 MAY D7602202 Contact Us For Availability
5
MAY M0241118 MAY M0241118 Contact Us For Availability
6
MAY C8933001 MAY C8933001 Contact Us For Availability
6
MAY C8929703 MAY C8929703 Contact Us For Availability
6
MAY M0211018 MAY M0211018 Contact Us For Availability
6
MAY D7616502 MAY D7616502 Contact Us For Availability
7
MAY C8946001 MAY C8946001 Contact Us For Availability
7
MAY C8842506 MAY C8842506 Contact Us For Availability
7
MAY C8842507 MAY C8842507 Contact Us For Availability
7
MAY C8842508 MAY C8842508 Contact Us For Availability
7
MAY C8842509 MAY C8842509 Contact Us For Availability
7
MAY C8842510 MAY C8842510 Contact Us For Availability
7
MAY C3652901 MAY C3652901 Contact Us For Availability
7
MAY D7616610 MAY D7616610 Contact Us For Availability
7
MAY D7653902 MAY D7653902 Contact Us For Availability
7
BEARING, HINGE MAY C8852202 Contact Us For Availability
8
MAY A3072001 MAY A3072001 Contact Us For Availability
8
MAY D7583902 MAY D7583902 Contact Us For Availability
8
MAY M0310705 MAY M0310705 Contact Us For Availability
8
MAY M0310715 MAY M0310715 Contact Us For Availability
8
MAY M0310717 MAY M0310717 Contact Us For Availability
8
MAY M0310719 MAY M0310719 Contact Us For Availability
8
MAY M0310725 MAY M0310725 Contact Us For Availability
8
MAY M0117301 MAY M0117301 Contact Us For Availability
8
MAY B8366901 MAY B8366901 Contact Us For Availability
9
MAY B8333401 MAY B8333401 Contact Us For Availability
9
MAY C8902601 MAY C8902601 Contact Us For Availability
9
MAY D7254204 MAY D7254204 Contact Us For Availability
9
MAY D7725401 MAY D7725401 Contact Us For Availability
9
MAY D7497301 MAY D7497301 Contact Us For Availability
9
MAY D7574504 MAY D7574504 Contact Us For Availability
10
MAY D7656101 MAY D7656101 Contact Us For Availability
10
MAY C8915807 MAY C8915807 Contact Us For Availability
10
MAY D7565404 MAY D7565404 Contact Us For Availability
11
MAY D7661901 MAY D7661901 Contact Us For Availability
11
MAY D7623501 MAY D7623501 Contact Us For Availability
11
MAY D7580702 MAY D7580702 Contact Us For Availability
11
MAY A3080001 MAY A3080001 Contact Us For Availability
11
MAY D7728343 MAY D7728343 Contact Us For Availability
11
MAY D7728344 MAY D7728344 Contact Us For Availability
11
MAY D7728345 MAY D7728345 Contact Us For Availability
11
MAY D7728346 MAY D7728346 Contact Us For Availability
11
MAY D7728347 MAY D7728347 Contact Us For Availability
12
MAY C8938501 MAY C8938501 Contact Us For Availability
12
MAY D7543201 MAY D7543201 Contact Us For Availability
12
MAY C8907211 MAY C8907211 Contact Us For Availability
12
MAY D7654903 MAY D7654903 Contact Us For Availability
12
MAY C3630901 MAY C3630901 Contact Us For Availability
12
MAY B5612027 MAY B5612027 Contact Us For Availability
12
MAY B5683508 MAY B5683508 Contact Us For Availability
13
MAY D7545008 MAY D7545008 Contact Us For Availability
13
MAY D7599001 MAY D7599001 Contact Us For Availability
13
MAY C8913701 MAY C8913701 Contact Us For Availability
13
MAY D7605105 MAY D7605105 Contact Us For Availability
14
MAY D7656201 MAY D7656201 Contact Us For Availability
14
MAY A3270301 MAY A3270301 Contact Us For Availability
14
MAY A3270302 MAY A3270302 Contact Us For Availability
14
MAY A3270303 MAY A3270303 Contact Us For Availability
14
MAY D7604902 MAY D7604902 Contact Us For Availability
14
MAY M0102305 MAY M0102305 Contact Us For Availability
14
MAY D7567002 MAY D7567002 Contact Us For Availability
15
MAY D7654502 MAY D7654502 Contact Us For Availability
15
MAY B5744301 MAY B5744301 Contact Us For Availability
15
MAY M0214931 MAY M0214931 Contact Us For Availability
15
MAY D7604411 MAY D7604411 Contact Us For Availability
16
MAY B8364301 MAY B8364301 Contact Us For Availability
16
MAY D7714702 MAY D7714702 Contact Us For Availability
16
MAY M0211530 MAY M0211530 Contact Us For Availability
16
MAY D3799802 MAY D3799802 Contact Us For Availability
17
MAY B5715001 MAY B5715001 Contact Us For Availability
17
MAY A1017201 MAY A1017201 Contact Us For Availability
17
MAY M0246159 MAY M0246159 Contact Us For Availability
18
MAY D7656601 MAY D7656601 Contact Us For Availability
18
MAY C8881301 MAY C8881301 Contact Us For Availability
18
MAY M0310601 MAY M0310601 Contact Us For Availability
18
MAY M0310606 MAY M0310606 Contact Us For Availability
18
MAY M0310607 MAY M0310607 Contact Us For Availability
18
MAY M0310608 MAY M0310608 Contact Us For Availability
18
MAY M0310609 MAY M0310609 Contact Us For Availability
18
MAY B5749501 MAY B5749501 Contact Us For Availability
18
MAY B0530006 MAY B0530006 Contact Us For Availability
19
MAY D7004113 MAY D7004113 Contact Us For Availability
19
MAY C8891602 MAY C8891602 Contact Us For Availability
19
MAY A3143501 MAY A3143501 Contact Us For Availability
19
MAY A3143502 MAY A3143502 Contact Us For Availability
19
MAY A3143503 MAY A3143503 Contact Us For Availability
19
MAY C8742401 MAY C8742401 Contact Us For Availability
19
MAY C8907201 MAY C8907201 Contact Us For Availability
20
MAY D7653602 MAY D7653602 Contact Us For Availability
20
MAY C8927801 MAY C8927801 Contact Us For Availability
20
MAY C8920501 MAY C8920501 Contact Us For Availability
20
MAY C8800201 MAY C8800201 Contact Us For Availability
20
MAY M0520102 MAY M0520102 Contact Us For Availability
21
MAY D7524501 MAY D7524501 Contact Us For Availability
21
MAY B5750901 MAY B5750901 Contact Us For Availability
21
MAY M1200201 MAY M1200201 Contact Us For Availability
21
MAY D7587808 MAY D7587808 Contact Us For Availability
22
MAY D7691002 MAY D7691002 Contact Us For Availability
22
MAY M0211016 MAY M0211016 Contact Us For Availability
22
MAY B5779601 MAY B5779601 Contact Us For Availability
22
MAY M0213129 MAY M0213129 Contact Us For Availability
22
MAY B8355201 MAY B8355201 Contact Us For Availability
23
MAY C8948801 MAY C8948801 Contact Us For Availability
23
CONTRACT, LIGHT SOCKET MAY B8369601 Contact Us For Availability
23
MAY C8925501 MAY C8925501 Contact Us For Availability
23
MAY M1200004 MAY M1200004 Contact Us For Availability
24
MAY M0104102 MAY M0104102 Contact Us For Availability
24
BASE LT SOCKET K MAY B8369501 Contact Us For Availability
24
MAY M1205302 MAY M1205302 Contact Us For Availability
24
MAY B5744801 MAY B5744801 Contact Us For Availability
24
MAY B5744802 MAY B5744802 Contact Us For Availability
24
MAY B5744803 MAY B5744803 Contact Us For Availability
25
MAY D7657501 MAY D7657501 Contact Us For Availability
25
MAY M0310319 MAY M0310319 Contact Us For Availability
25
MAY C8814803 MAY C8814803 Contact Us For Availability
26
MAY M0220101 MAY M0220101 Contact Us For Availability
26
HOUSING BULB A/K MAY B8369701 Contact Us For Availability
26
MAY M0226831 MAY M0226831 Contact Us For Availability
26
MAY M0219717 MAY M0219717 Contact Us For Availability
26
MAY D7698203 MAY D7698203 Contact Us For Availability
27
MAY M0221332 MAY M0221332 Contact Us For Availability
27
MAY C8887903 MAY C8887903 Contact Us For Availability
27
MAY C8814901 MAY C8814901 Contact Us For Availability
28
MAY M0253504 MAY M0253504 Contact Us For Availability
28
MAY D7521803 MAY D7521803 Contact Us For Availability
28
MAY M0205441 MAY M0205441 Contact Us For Availability
28
MAY D7710507 MAY D7710507 Contact Us For Availability
28
MAY M0102303 MAY M0102303 Contact Us For Availability
28
MAY M0274049 MAY M0274049 Contact Us For Availability
29
MAY D7539310 MAY D7539310 Contact Us For Availability
29
MAY A0329806 MAY A0329806 Contact Us For Availability
29
MAY M0274050 MAY M0274050 Contact Us For Availability
30
MAY M0500107 MAY M0500107 Contact Us For Availability
30
MAY D7699502 MAY D7699502 Contact Us For Availability
30
MAY D7600030 MAY D7600030 Contact Us For Availability
30
MAY M0286708 MAY M0286708 Contact Us For Availability
31
MAY D7595405 MAY D7595405 Contact Us For Availability
31
MAY M0230917 MAY M0230917 Contact Us For Availability
31
MAY B8361401 MAY B8361401 Contact Us For Availability
31
MAY D7599101 MAY D7599101 Contact Us For Availability
31
MAY D7599103 MAY D7599103 Contact Us For Availability
31
MAY B8318805 MAY B8318805 Contact Us For Availability
32
MAY B8346301 MAY B8346301 Contact Us For Availability
32
MAY A1047901 MAY A1047901 Contact Us For Availability
33
MAY D7654301 MAY D7654301 Contact Us For Availability
33
MAY M0233844 MAY M0233844 Contact Us For Availability
33
MAY B5757703 MAY B5757703 Contact Us For Availability
34
MAY M0293703 MAY M0293703 Contact Us For Availability
34
MAY B5757808 MAY B5757808 Contact Us For Availability
34
MAY M0310701 MAY M0310701 Contact Us For Availability
34
MAY M0204339 MAY M0204339 Contact Us For Availability
35
MAY M0104002 MAY M0104002 Contact Us For Availability
35
MAY B5669005 MAY B5669005 Contact Us For Availability
36
MAY D7713801 MAY D7713801 Contact Us For Availability
36
MAY M0310709 MAY M0310709 Contact Us For Availability
36
MAY M0310716 MAY M0310716 Contact Us For Availability
36
MAY M0310718 MAY M0310718 Contact Us For Availability
36
MAY M0310720 MAY M0310720 Contact Us For Availability
36
MAY M0310721 MAY M0310721 Contact Us For Availability
36
MAY M0211717 MAY M0211717 Contact Us For Availability
37
MAY M0580007 MAY M0580007 Contact Us For Availability
37
MAY A3138301 MAY A3138301 Contact Us For Availability
37
MAY M0230923 MAY M0230923 Contact Us For Availability
38
MAY M0305301 MAY M0305301 Contact Us For Availability
39
MAY M0381901 MAY M0381901 Contact Us For Availability
40
MAY D7539806 MAY D7539806 Contact Us For Availability
41
MAY M0310314 MAY M0310314 Contact Us For Availability
41
SEE NOTE MODEL IC-3, MFG. NO. P7621304W, ADD- MAY Y00000000 Contact Us For Availability
42
MAY A3189319 MAY A3189319 Contact Us For Availability
43
GROMMET PER IN. MAY A3261702 Contact Us For Availability
43
MAY D7718401 MAY D7718401 Contact Us For Availability
44
MAY C8898604 MAY C8898604 Contact Us For Availability
44
MAY D7710703 MAY D7710703 Contact Us For Availability
45
MAY D7549704 MAY D7549704 Contact Us For Availability
45
MAY D7710403 MAY D7710403 Contact Us For Availability
46
MAY D7554902 MAY D7554902 Contact Us For Availability
46
MAY C8913504 MAY C8913504 Contact Us For Availability
47
MAY C8952001 MAY C8952001 Contact Us For Availability
48
MAY R0170024 MAY R0170024 Contact Us For Availability
49
MAY A3253803 MAY A3253803 Contact Us For Availability
50
MAY D7699401 MAY D7699401 Contact Us For Availability
52
MAY M0212932 MAY M0212932 Contact Us For Availability
55
MAY D7593506 MAY D7593506 Contact Us For Availability
61
MAY C8948101 MAY C8948101 Contact Us For Availability
62
MAY C8947901 MAY C8947901 Contact Us For Availability
63
MAY C8898605 MAY C8898605 Contact Us For Availability
64
MAY A0092404 MAY A0092404 Contact Us For Availability
NI
MAY M0257244 MAY M0257244 Contact Us For Availability
NI
MAY C8913501 MAY C8913501 Contact Us For Availability
NI
MAY D7712703 MAY D7712703 Contact Us For Availability
NI
MAY R0179080 MAY R0179080 Contact Us For Availability
NI
MAY M0210916 MAY M0210916 Contact Us For Availability
× ![]()
