Model Electrolux TPK180EN0D REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

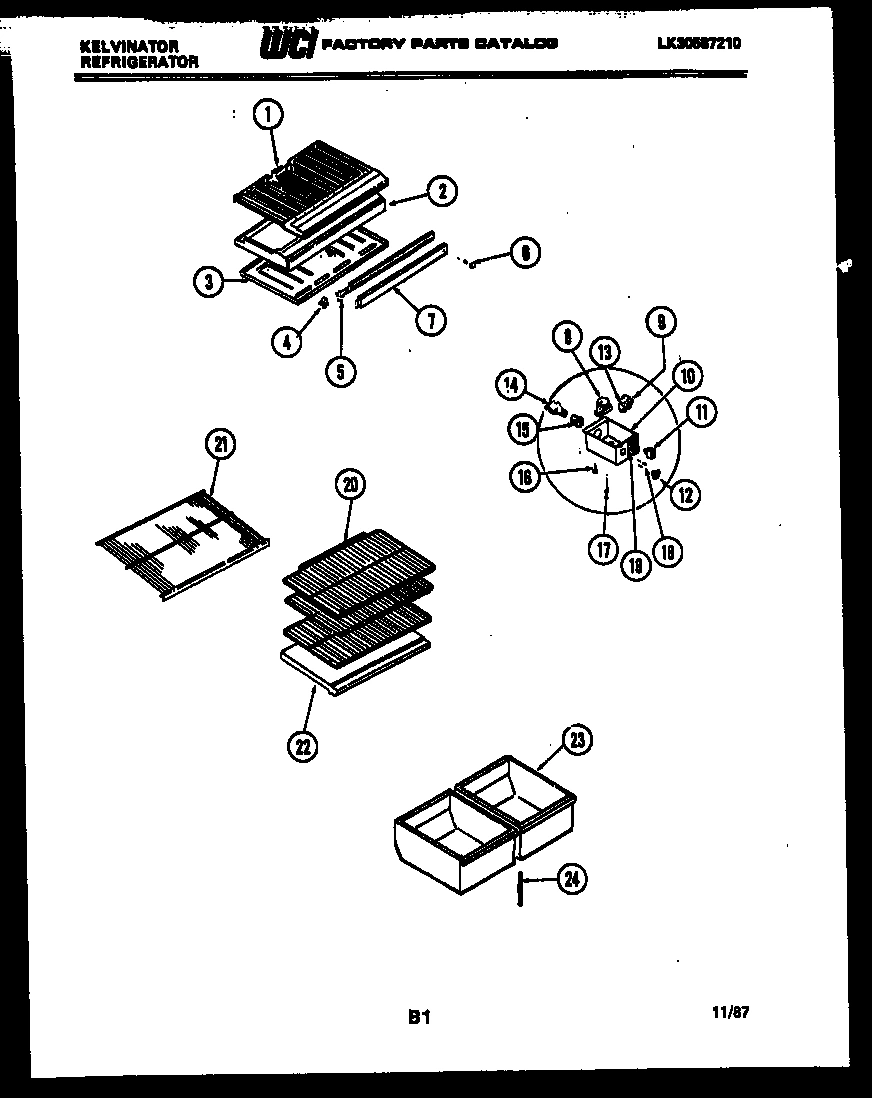

04 - RACKS AND TRAYS

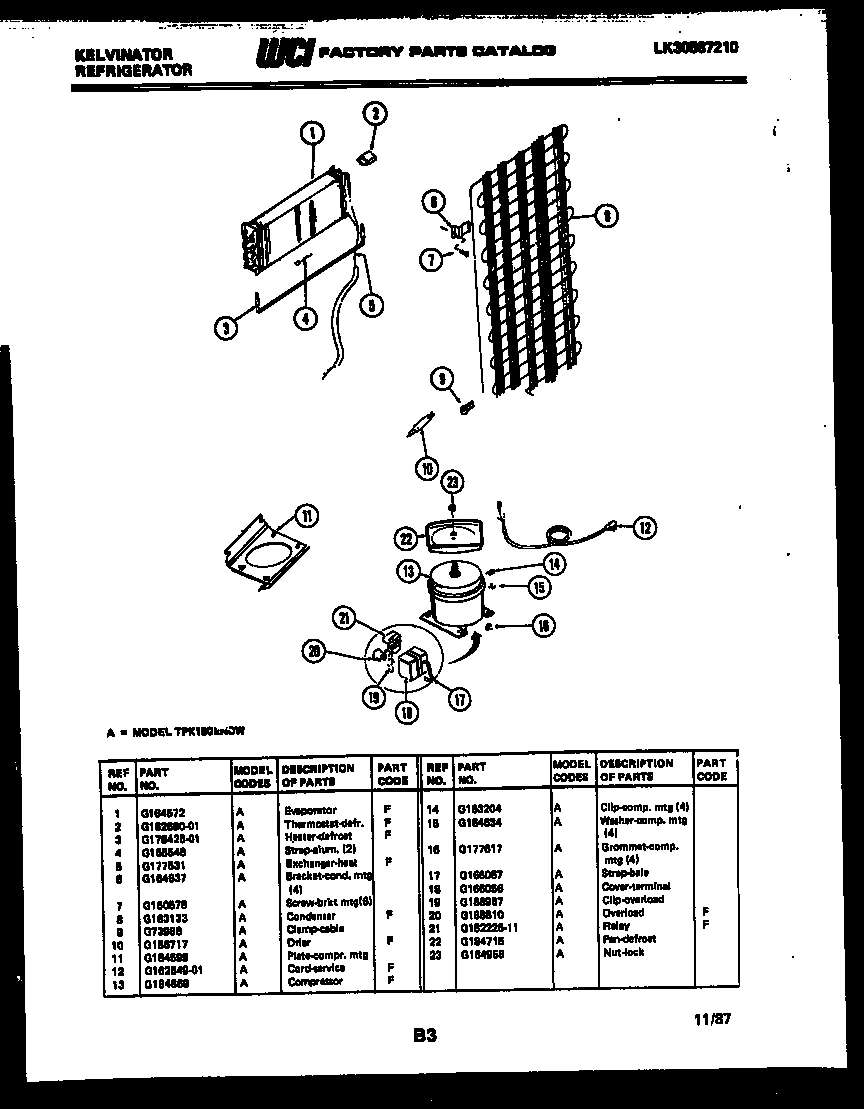

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux TPK180EN0D REFRIGERATOR
*15753
WCI G169332-11 WCI G169332-11 Contact Us For Availability
*15756
WCI G162977-11 WCI G162977-11 Contact Us For Availability
*15795
PLATE, TAPPING (2) WCI G157591 Contact Us For Availability
*15795
WCI G164571 WCI G164571 Contact Us For Availability
*15795
STRAP, MULLION MTG WCI G490087 Contact Us For Availability
*15796
HARNESS, WIRING WCI G174818 Contact Us For Availability
*15798
TRIM-CAB CORNER (4) WHITE WCI G179684-01 Contact Us For Availability
*15798
TRIM-CAB CORNER (4)-AVOC WCI G179684-08 Contact Us For Availability
*15799
TRIM-CAB CORNER (4)-WEAT WCI G179684-09 Contact Us For Availability
*15799
TRIM-CAB CORNER (4)-COFE WCI G179684-10 Contact Us For Availability
*15800
TRIM-CAB CORNER (4)-ALMD WCI G179684-11 Contact Us For Availability
1
PANEL-EXT FRZR-ALM WCI G189570-11 Contact Us For Availability
1
BRKT-MTR MTG REAR WCI G185303 Contact Us For Availability
1
WCI G185912 WCI G185912 Contact Us For Availability
1
EVAPORATOR WCI G164572 Contact Us For Availability
2
END-HANDLE-TOP WCI G189452-01 Contact Us For Availability
2
WCI G176777 WCI G176777 Contact Us For Availability
3
WCI G189454-02 WCI G189454-02 Contact Us For Availability
3
WCI G177534 WCI G177534 Contact Us For Availability
3
WCI G490021-02 WCI G490021-02 Contact Us For Availability
3A
INSERT GRIP (2) (NON-ILLUSTRATED) WCI G189456-01 Contact Us For Availability
4
END-HANDLE (2) WCI G189453-01 Contact Us For Availability
4
WCI G177529 WCI G177529 Contact Us For Availability
5
END-HANDLE-BTM WCI G189451-01 Contact Us For Availability
5
WCI G177254 WCI G177254 Contact Us For Availability
5
EXCHANGER-HEAT WCI G177531 Contact Us For Availability
5A
WCI G185566 WCI G185566 Contact Us For Availability
5A
SPACER-MULLION MT (NON-ILLUSTRATED) WCI G490082 Contact Us For Availability
5B
WASHER-NO. 10 STEEL (4) (NON-ILLUSTRATED) WCI G166847 Contact Us For Availability
6
WCI G186932-12 WCI G186932-12 Contact Us For Availability
6
BRKT MTR MTG FRNT WCI G185302 Contact Us For Availability
6
SCREW, MULLION MTG (2) WCI G183103 Contact Us For Availability
6
WCI G164637 WCI G164637 Contact Us For Availability
7
PANEL-INNER FRZR WCI G183506-01 Contact Us For Availability
7
RING, FAN ORIFICE WCI G167217 Contact Us For Availability
7
MULLION-ALMD WCI G180373-11 Contact Us For Availability
8
WCI G163133 WCI G163133 Contact Us For Availability
9
RACK-FREEZER WCI 3015419 Contact Us For Availability
9
CONTROL TEMP. WCI G162205-11 Contact Us For Availability
9
CLAMP-CABLE WCI G73986 Contact Us For Availability
10
SUPT-RACK RH (3) WCI G178287-01 Contact Us For Availability
10
WCI 3015421 WCI 3015421 Contact Us For Availability
10
BOX-CONTROL WCI G176722-05 Contact Us For Availability
11
SUPT-RACK LH (3) WCI G178284-01 Contact Us For Availability
11
NUT, PUSH WCI G162662 Contact Us For Availability
11
SWITCH SLIDE WCI G178402-01 Contact Us For Availability
11
WCI G184599 WCI G184599 Contact Us For Availability
12
RACK-REFRIG (2) WCI 3015420 Contact Us For Availability
12
KNOB-DAMPR CONT. WCI G162747-27 Contact Us For Availability
12
KNOB, CONTROL WCI G490107-02 Contact Us For Availability
12
CORD, SERVICE WCI G162549-01 Contact Us For Availability
13
PANEL-INNER REF. WCI G183507-01 Contact Us For Availability
13
DAMPER FAN COVER WCI G162661 Contact Us For Availability
13
WCI G184669 WCI G184669 Contact Us For Availability
14
WCI G85642 WCI G85642 Contact Us For Availability
14
CLIP-COMP MTG (4) WCI G163204 Contact Us For Availability
15
DOOR, DAIRY WCI G161776-51 Contact Us For Availability
15
SUPT-COIL CVR (2) WCI G163669 Contact Us For Availability
15
SOCKET LIGHT WCI G168302 Contact Us For Availability
15
WASHER-COMP MTG (4) WCI G164634 Contact Us For Availability
16
GASKET-REFRIG WCI G186932-13 Contact Us For Availability
16
WCI G183861 WCI G183861 Contact Us For Availability
17
HINGE BEARING (8) WCI G183138 Contact Us For Availability
17
BRACKET, TOP HINGE WCI G183714 Contact Us For Availability
18
WCI G103903 No Longer Available
18
PANEL-EXT REF-ALMD WCI G189576-11 Contact Us For Availability
18
WCI G107080 WCI G107080 Contact Us For Availability
19
INSULATION-REF. PNL WCI G178297 Contact Us For Availability
19
LABEL-CONT BOX WCI G189710 Contact Us For Availability
19
CLIP-OVERLOAD WCI G188957 Contact Us For Availability
20
INSULATION-FRZ. PNL WCI G178296 Contact Us For Availability
20
WASHER (NYLON) WCI G164355 Contact Us For Availability
20
SHELF, SLIDING (3) WCI G178511-02 Contact Us For Availability
20
WCI G185810 WCI G185810 Contact Us For Availability
21
WCI G178292 WCI G178292 Contact Us For Availability
21
WCI G142220 WCI G142220 Contact Us For Availability
21
WCI G182730-02 WCI G182730-02 Contact Us For Availability
21
WCI G182225-11 WCI G182225-11 Contact Us For Availability
22
LABEL-NAMEPLATE WCI G189500-01 Contact Us For Availability
22
BRKT-CENTER HNG WCI G163207 Contact Us For Availability
22
WCI G178216-03 WCI G178216-03 Contact Us For Availability
22
PAN, DEFROST WCI G184715 Contact Us For Availability
23
COVER, AIR DEFLCTR WCI G162178 Contact Us For Availability
23
WCI 3015422 WCI 3015422 Contact Us For Availability
23
NUT, LOCK WCI G164958 Contact Us For Availability
24
SUPT-CRISPER COVER WCI G166310-02 Contact Us For Availability
25
BRACKET-LWR HNG WCI G191474 Contact Us For Availability
26
SHIM, LOWER HINGE WCI G163203 Contact Us For Availability
27
SCREW, LEVELING (2) WCI G185713 Contact Us For Availability
28
NUT, ANCHOR (2) WCI G183073 Contact Us For Availability
29
SPOUT DRAIN TUBE WCI G162179 Contact Us For Availability
30
TUBE, DRAIN WCI G184920-01 Contact Us For Availability
31
DEFLECTOR AIR WCI G162675 Contact Us For Availability
32
PLUG-BUTTON DECOR. WCI G162827-14 Contact Us For Availability
33
WCI G174733 WCI G174733 Contact Us For Availability
34
WCI G174734 WCI G174734 Contact Us For Availability
35
WCI G174747-11 WCI G174747-11 Contact Us For Availability
× ![]()
