Model Electrolux TPK160PN1W REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

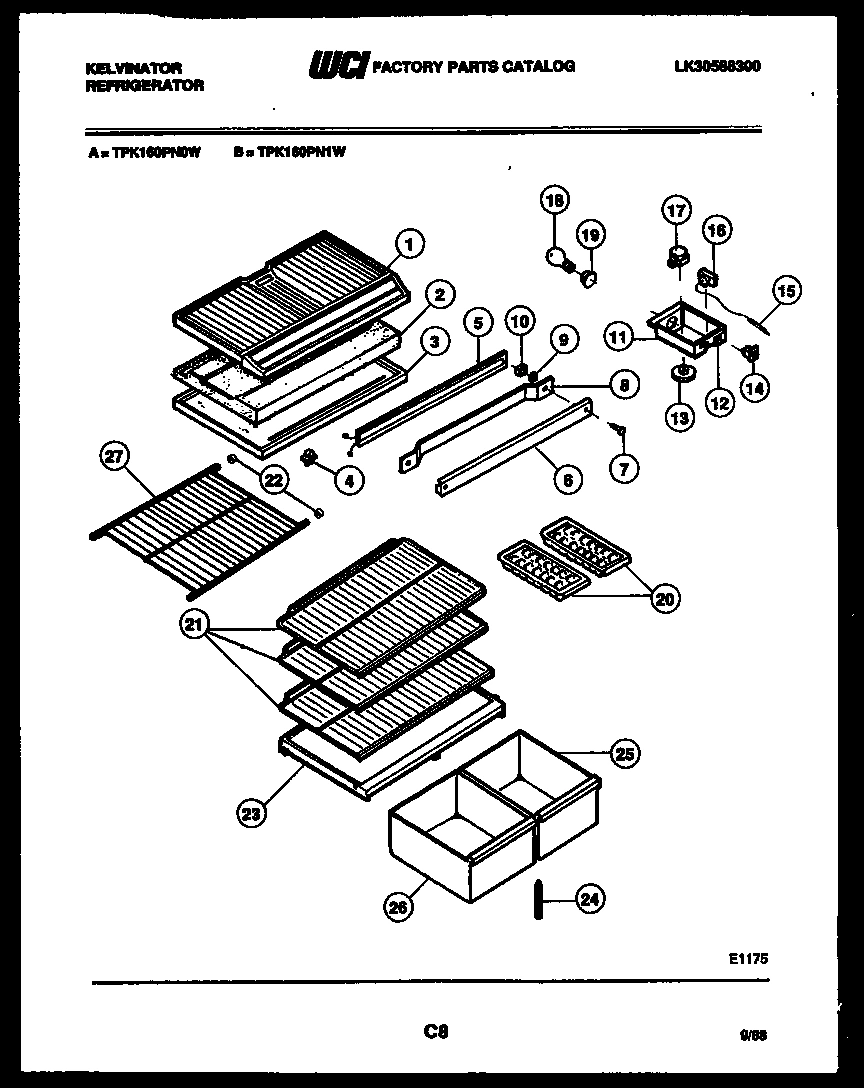

04 - SHELVES AND SUPPORTS

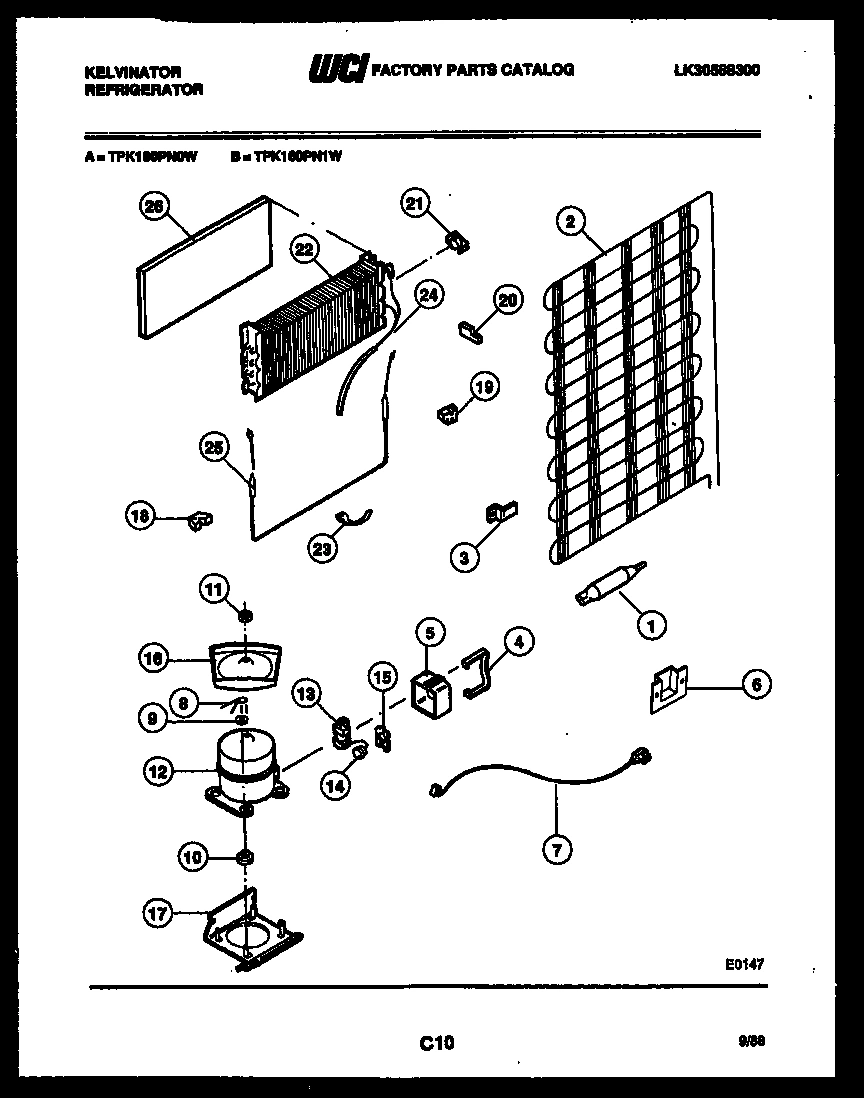

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux TPK160PN1W REFRIGERATOR
*47037
PLUG-FREEZER LINER (3) WCI G187599 Contact Us For Availability
*47102
HARNESS-COMPRESSOR WCI G166062-01 Contact Us For Availability
*47102
HOT TUBE REPAIR KIT WCI G189383 Contact Us For Availability
*47104
RETAINER-PAN KIT WCI G167234 Contact Us For Availability
1
WCI G185303 WCI G185303 Contact Us For Availability
1
WCI G490022-01 WCI G490022-01 Contact Us For Availability
2
WCI G176774 WCI G176774 Contact Us For Availability
2
WCI G178225 WCI G178225 Contact Us For Availability
2A
WIRING HARNESS-DIVIDER (NON-ILLUSTRATED) WCI G174818 Contact Us For Availability
3
SUPPORT RS (3) WCI G178287-01 Contact Us For Availability
3
CONNECTOR BRACKET WCI G164571 Contact Us For Availability
3
REFRIGERATOR TOP WCI 3016378 Contact Us For Availability
3
BRACKET-MOUNTING (4) WCI G164637 Contact Us For Availability
3A
SCREW-TOP MOUNTING (3) (NON-ILLUSTRATED) WCI G162673 Contact Us For Availability
4
WCI G183589-02 WCI G183589-02 Contact Us For Availability
4
WCI G185302 WCI G185302 Contact Us For Availability
5
INNER PANEL-REFRIGERATOR WCI G183591-02 Contact Us For Availability
5
WCI G167217 WCI G167217 Contact Us For Availability
5
WCI G187921 WCI G187921 Contact Us For Availability
6
DOOR RACK-REFRIGERATOR (2) WCI 3016153 Contact Us For Availability
6
WCI 3200465 WCI 3200465 Contact Us For Availability
6
WCI G183584 WCI G183584 Contact Us For Availability
7
WCI G89643 WCI G89643 Contact Us For Availability
7
SCREW (4) WCI G183103 Contact Us For Availability
7
CORD, SERVICE WCI G162549-01 Contact Us For Availability
8
DAMPER WCI G162661 Contact Us For Availability
8
STRAP, MULLION MOUNTING WCI G166709 Contact Us For Availability
8
CLIP-COMPRESSOR (4) WCI G163204 Contact Us For Availability
9
NAMEPLATE FRAME WCI G178292 Contact Us For Availability
9
PUSH NUT-DAMPER WCI G162662 Contact Us For Availability
9
WASHER-STEEL (4) WCI G166847 Contact Us For Availability
9
WASHER-COMPRESSOR (4) WCI G164634 Contact Us For Availability
10
LABEL-NAMEPLATE WCI G189500-01 Contact Us For Availability
10
KNOB-DAMPER CONTROL WCI G162747-27 Contact Us For Availability
10
SPACER (2) WCI G490082 Contact Us For Availability
11
TAPE-MOUNTING WCI G153407-60 Contact Us For Availability
11
WCI 3015421 WCI 3015421 Contact Us For Availability
11
WCI G176722-05 WCI G176722-05 Contact Us For Availability
11
NUT, LOCK WCI G164958 Contact Us For Availability
12
WCI 3916243 WCI 3916243 Contact Us For Availability
12
WCI G183558-01 WCI G183558-01 Contact Us For Availability
12
LABEL-CONTROL BOX WCI G189710 Contact Us For Availability
12
COMPRESSOR W/ ELECTRICALS WCI G175410 Contact Us For Availability
13
WCI G169332-01 WCI G169332-01 Contact Us For Availability
13
WCI G183714 WCI G183714 Contact Us For Availability
13
WCI G490107-02 WCI G490107-02 Contact Us For Availability
13A
RELAY-PRODUCTION WCI G182225-12 Contact Us For Availability
13B
WCI G179797 WCI G179797 Contact Us For Availability
13B
WCI G150618-33 WCI G150618-33 Contact Us For Availability
14
WCI G103903 WCI G103903 Contact Us For Availability
14
WCI 3916238 WCI 3916238 Contact Us For Availability
14
WCI G178402-01 WCI G178402-01 Contact Us For Availability
14A
OVERLOAD-PRODUCTION WCI G185797 Contact Us For Availability
14B
OVERLOAD-SERVICE WCI G176002 Contact Us For Availability
15
BEARING HINGE (8) WCI G183138 Contact Us For Availability
15
WCI G179684-01 WCI G179684-01 Contact Us For Availability
15
RETAINER, OVERLOAD WCI G166053 Contact Us For Availability
16
HANDLE GRIP (2) WCI 3201377 Contact Us For Availability
16
WASHER-CENTER HINGE WCI G164355 Contact Us For Availability
16
CONTROL, TEMPERATURE WCI G162205-11 Contact Us For Availability
16
PAN-DEFROST-PRODUCTION WCI G171778 Contact Us For Availability
16A
WCI 3200995 WCI 3200995 Contact Us For Availability
16A
WCI G107080 WCI G107080 Contact Us For Availability
16A
PAN-DEFROST SERVICE WCI G184715 Contact Us For Availability
17
WCI G189453-01 WCI G189453-01 Contact Us For Availability
17
WCI G142220 WCI G142220 Contact Us For Availability
17
PLATE-COMPRESSOR MOUNTING WCI G184599 Contact Us For Availability
18
HANDLE END WCI G189452-01 Contact Us For Availability
18
WCI G163207 WCI G163207 Contact Us For Availability
18
BLOCK-INSULATION LS WCI G188375 Contact Us For Availability
19
HANDLE END WCI G189451-01 Contact Us For Availability
19
SOCKET LIGHT WCI G168302 Contact Us For Availability
19
BLOCK-INSULATION RS WCI G185299 Contact Us For Availability
19A
WCI G185566 WCI G185566 Contact Us For Availability
20
WCI G186932-03 WCI G186932-03 Contact Us For Availability
20
WCI G162675 WCI G162675 Contact Us For Availability
20
PLUG, BLOCK WCI G185276 Contact Us For Availability
21
WCI G162178 WCI G162178 Contact Us For Availability
21
WCI G178511-01 WCI G178511-01 Contact Us For Availability
22
CAP PROTECTOR (2) WCI 3201150 No Longer Available
22
DIARY DOOR WCI G161776-51 Contact Us For Availability
22
EVAPORATOR WCI G176909 Contact Us For Availability
23
WCI G191474 WCI G191474 Contact Us For Availability
23
COVER-STORAGE PANS WCI G490016-03 Contact Us For Availability
24
WCI G166310-02 WCI G166310-02 Contact Us For Availability
24
HEAT EXCHANGER WCI G147918 Contact Us For Availability
25
WCI G163203 WCI G163203 Contact Us For Availability
25
HEATER, DEFROST WCI G176807-01 Contact Us For Availability
26
WCI G166912 WCI G166912 Contact Us For Availability
26
STORAGE PAN WCI 3016154 Contact Us For Availability
26
INSULATOR WCI G166511-02 Contact Us For Availability
27
LEVELING LEG (2) WCI G185713 Contact Us For Availability
27
WCI G177059-01 WCI G177059-01 Contact Us For Availability
27A
ANCHOR NUT (2) (NON-ILLUSTRATED) WCI G183073 Contact Us For Availability
28
WCI G184920-01 WCI G184920-01 Contact Us For Availability
29
CABINET BASE WCI G490004-01 Contact Us For Availability
30
WCI G174747-01 WCI G174747-01 Contact Us For Availability
31
WCI G174733 WCI G174733 Contact Us For Availability
32
WCI G174734 WCI G174734 Contact Us For Availability
33
WCI G85642 WCI G85642 Contact Us For Availability
34
COVER-EVAPORATOR COIL (2) WCI G176797 Contact Us For Availability
34A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
35
SUPPORT, COVER (2) WCI G163669 Contact Us For Availability
36
WCI G162827-14 WCI G162827-14 Contact Us For Availability
37
DRAIN TROUGH WCI G490043 Contact Us For Availability
38
WCI G183861 WCI G183861 Contact Us For Availability
× ![]()
