Model Electrolux TPK160BN6T REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

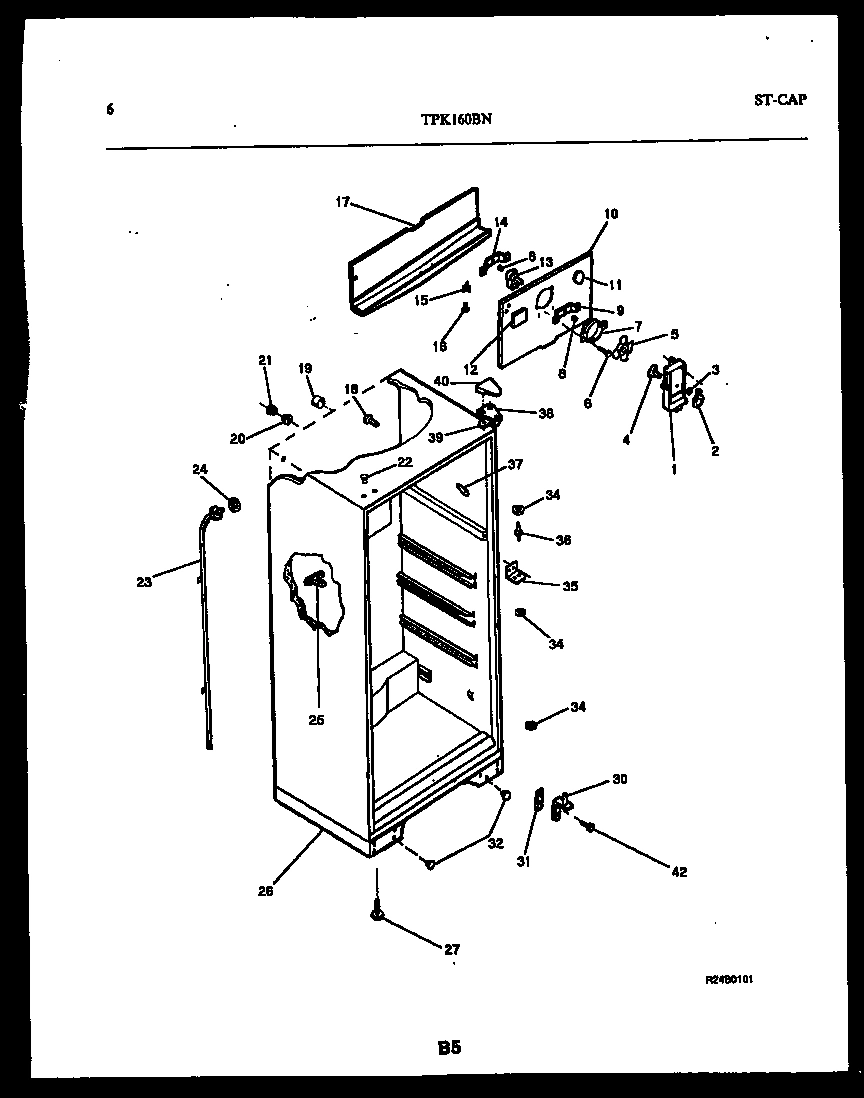

04 - CABINET PARTS

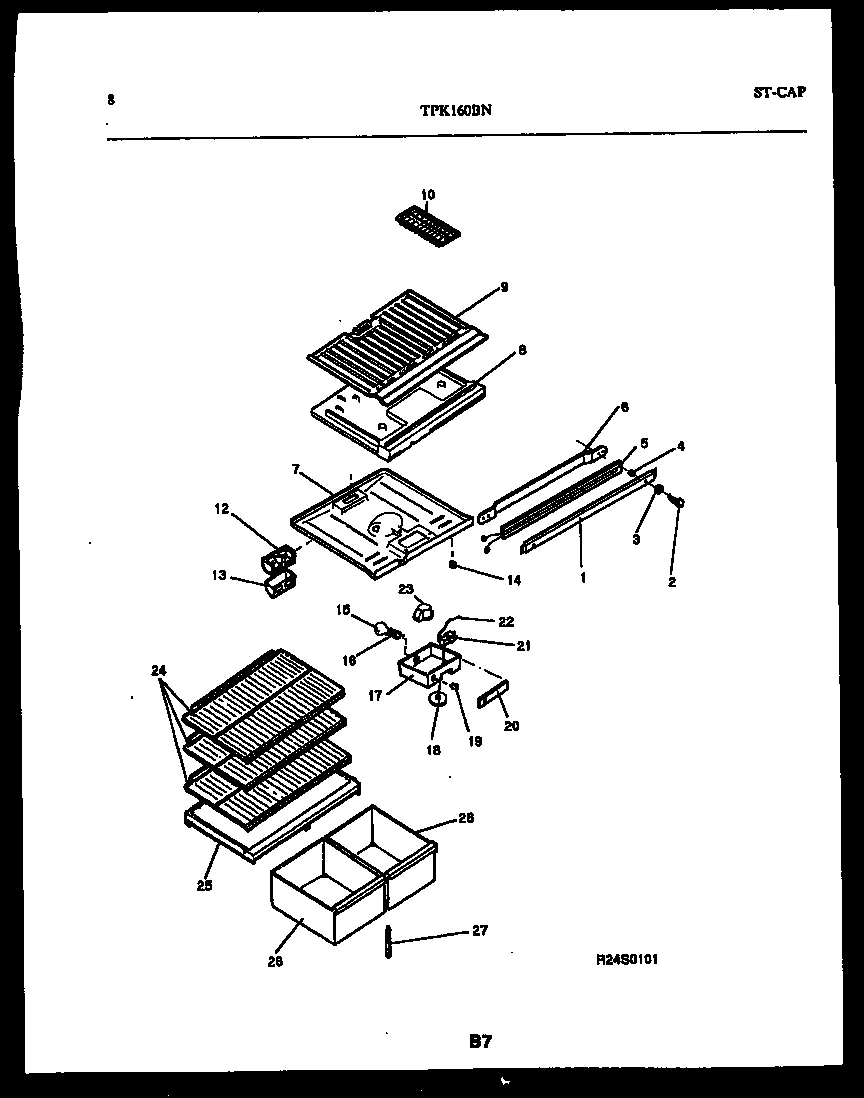

05 - SHELVES AND SUPPORTS

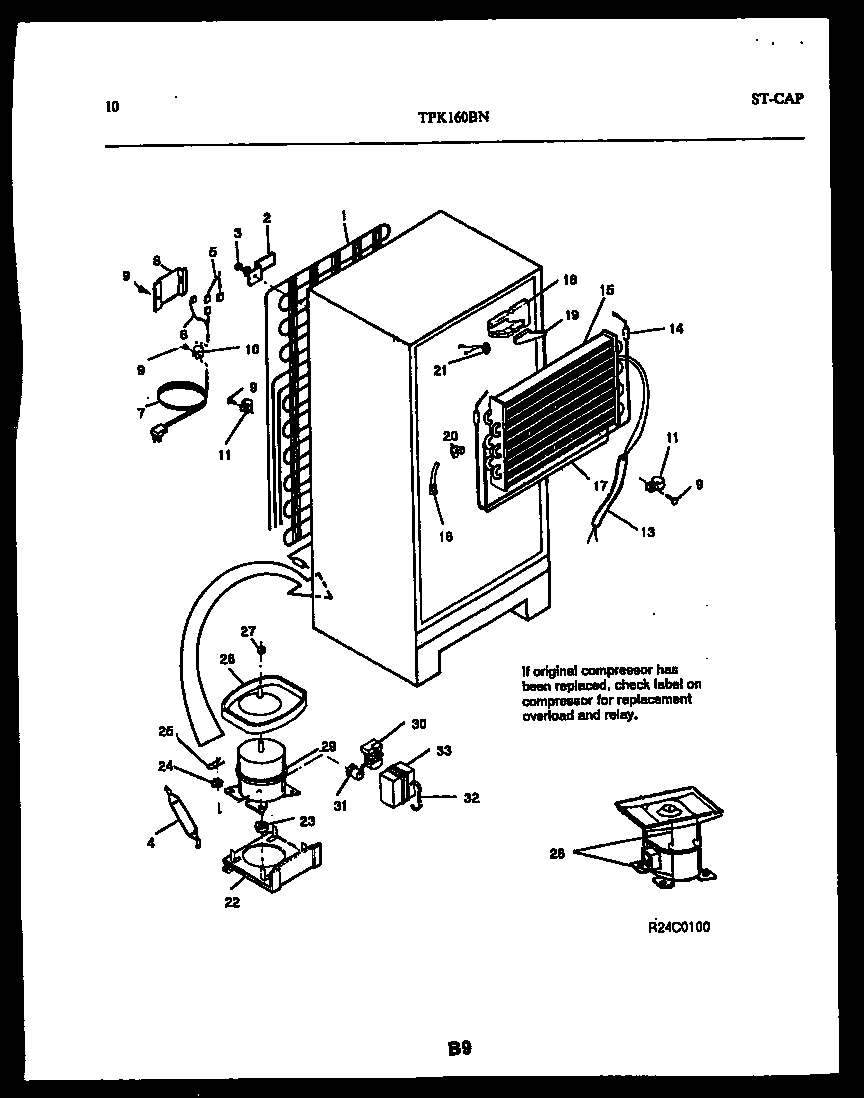

06 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux TPK160BN6T REFRIGERATOR
*18464
BUTTON PLUG-LINER WCI 5308016571 Contact Us For Availability
*18472
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
1
MULLION, HARVEST WHEAT WCI 3916132 Contact Us For Availability
1
WCI 5303001341 WCI 5303001341 Contact Us For Availability
2
WCI 5308012258 WCI 5308012258 Contact Us For Availability
2
BRACKET, COND MTG WCI 5303001342 Contact Us For Availability
2A
WASHER-EXT TOOTH LOCK-NO. 10 (2) (NON-ILLUSTR WCI 5308009617 Contact Us For Availability
3
WASHER, NO. 10 STEEL, 7/32 X 7/16 OD WCI 5303206754 Contact Us For Availability
4
SPACER-MULLION MTG WCI 5303200464 Contact Us For Availability
5
WCI 5317828701 WCI 5317828701 Contact Us For Availability
5
WCI 5308017408 WCI 5308017408 Contact Us For Availability
5
WIRING HARNESS, CONTROL/DIVIDER WCI 3001383 Contact Us For Availability
6
WCI 5317828401 WCI 5317828401 Contact Us For Availability
6
WCI 5308003604 WCI 5308003604 Contact Us For Availability
6
WIRING HARNESS, COMPRESSOR, WCI 5303001347 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
TOP PANEL-REFR, W/ SNAP BUSHING WCI 5303016378 Contact Us For Availability
7
CORD-SERVICE WCI 5316254901 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
7B
BUSHING-SNAP (NON-ILLUSTRATED) WCI 5303212518 Contact Us For Availability
8
WCI 5308009750 WCI 5308009750 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
BOTTOM PANEL-FREEZER WCI 5303001537 Contact Us For Availability
10
WCI 3001527 WCI 3001527 Contact Us For Availability
10A
NUT-EVAP COVER, ``U`` TYPE, NO. 8 (A), (2) (N WCI 5303209814 Contact Us For Availability
12
DEFLECTOR-AIR WCI 5308000071 Contact Us For Availability
12
PLUG-DECORATIVE IM HOLE WCI 5308013636 Contact Us For Availability
13
COVER - AIR DEFLECTOR WCI 5303001546 Contact Us For Availability
13
WCI 5308000728 WCI 5308000728 Contact Us For Availability
14
WCI 5308009754 No Longer Available
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
15
WCI 5308000107 WCI 5308000107 Contact Us For Availability
15
WCI 5308009756 WCI 5308009756 Contact Us For Availability
16
SOCKET-LIGHT WCI 5308000129 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 08010005 WCI 08010005 Contact Us For Availability
17
WCI 5303015152 WCI 5303015152 Contact Us For Availability
18
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
18
KNOB - COLD CONTROL WCI 5308010011 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
WCI 5303001670 WCI 5303001670 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
WCI 5303001286 WCI 5303001286 Contact Us For Availability
20
WCI 5303270603 WCI 5303270603 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
WCI 5303200810 WCI 5303200810 Contact Us For Availability
21
WCI 5303001287 WCI 5303001287 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
BUTTON PLUG, HARVEST WHEAT, UPR HINGE HOLES WCI 5303001678 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
DRAIN TUBE, W/ SEAL RING WCI 5303210377 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
SHELF-FULL, SLIDING, REFR, (3) WCI 5303271146 Contact Us For Availability
24
WASHER-COMPR MTG (4) WCI 5308003633 Contact Us For Availability
25
WCI 5308000056 WCI 5308000056 Contact Us For Availability
25
COVER, CRISPER WCI 5349001603 Contact Us For Availability
25
CLIP-COMPRESSOR MTG (4) WCI 5308003596 Contact Us For Availability
25A
PUSH PIN-DRAIN SPOUT, (2) (NON-ILLUSTRATED) WCI 5303001361 Contact Us For Availability
26
BASE-CABINET WCI 5303269889 Contact Us For Availability
26
WCI 3016154 WCI 3016154 Contact Us For Availability
26
PAN-DEFROST DRAIN, ORIG COMPRESSOR (IF THE CO WCI 5300171129 Contact Us For Availability
27
SUPPORT-CRISPER CVR, ADJUSTABLE WCI 5303205987 Contact Us For Availability
27
SCREW-LEVELING WCI 5303212922 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
29
COMPRESSOR, W/ELEC, SERVICE WCI 5303916012 Contact Us For Availability
29A
CAPACITOR-RUN (NON-ILLUSTRATED) WCI 5303916391 Contact Us For Availability
30
WCI 5303007173 WCI 5303007173 Contact Us For Availability
30
BRACKET-LOWER HINGE, W/ HINGE PIN WCI 5303212489 Contact Us For Availability
30A
WCI 5303212597 WCI 5303212597 Contact Us For Availability
30B
WCI 5303212596 WCI 5303212596 Contact Us For Availability
31
SHIM-LWR HINGE BRKT WCI 5303212488 Contact Us For Availability
31
WCI 5303270294 WCI 5303270294 Contact Us For Availability
32
BUTTON PLUG-CAB BASE, (2) WCI 5303212923 Contact Us For Availability
32
STRAP-COVER WCI 5303211232 Contact Us For Availability
33
WCI 5303209254 WCI 5303209254 Contact Us For Availability
34
WASHER-NYLON, 34 X 5/8 O.D., (3) WCI 5308000186 Contact Us For Availability
35
WCI 5303001369 WCI 5303001369 Contact Us For Availability
36
WCI 5308000184 WCI 5308000184 Contact Us For Availability
37
TRIM-CABINET CORNER, HARVEST WHEAT, (4) WCI 5303202338 Contact Us For Availability
38
BRACKET-UPPER HINGE WCI 5308012843 Contact Us For Availability
38B
TAPPING PLATE, UPPER HINGE, (2) (NON-ILLUSTRA WCI 5308012296 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
40
COVER-UPPER HINGE, HARVEST WHEAT WCI 5303001665 Contact Us For Availability
× ![]()
