Model Electrolux TPK160BN4T REFRIGERATOR – Common Parts & Diagrams

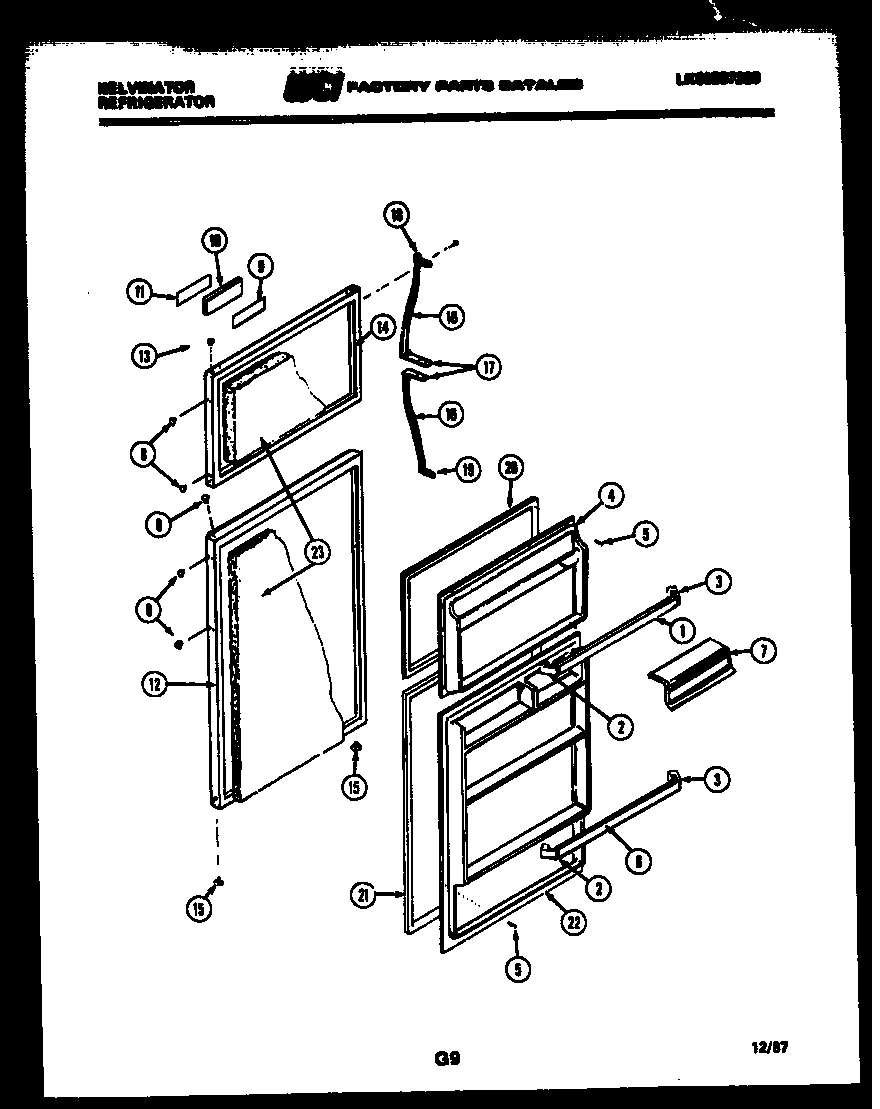

02 - DOOR PARTS

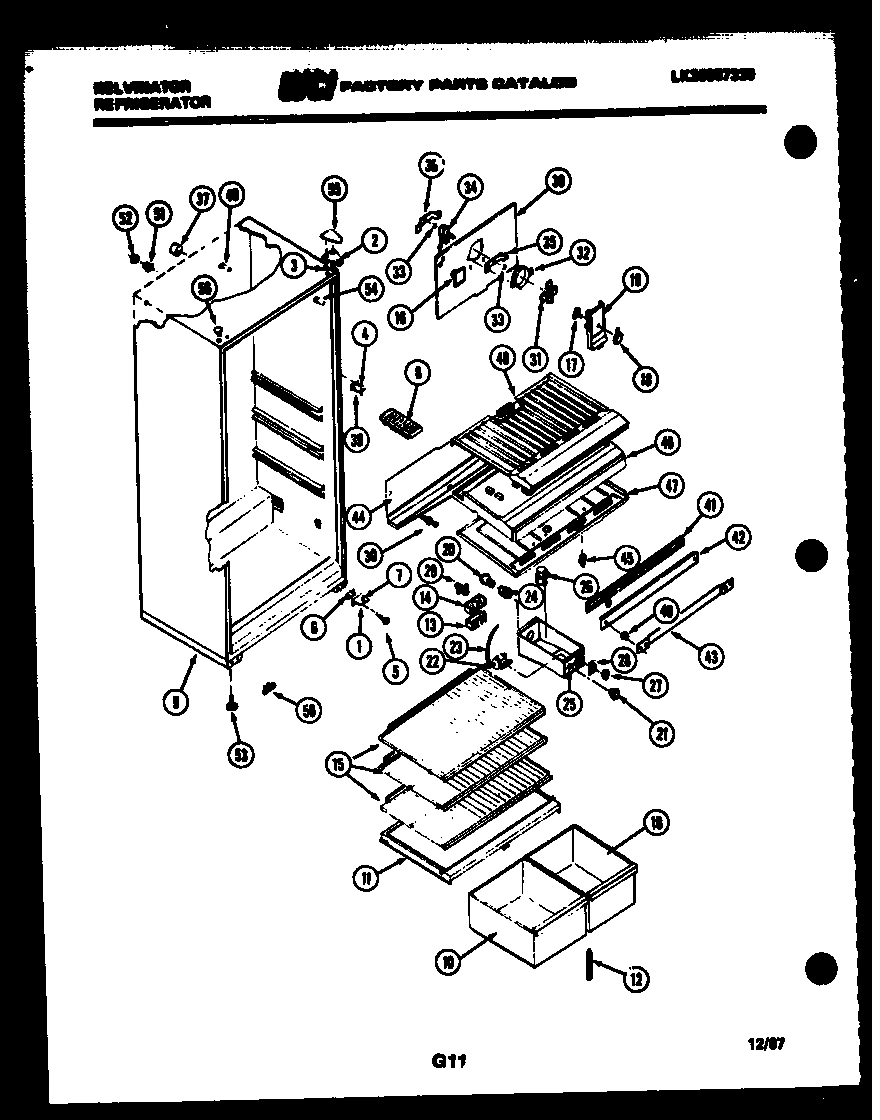

03 - CABINET PARTS
04 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux TPK160BN4T REFRIGERATOR
*21828
PLUG-LINER (2) WCI G162892-01 Contact Us For Availability
*21828
BTN I/M HOLE (6) WCI G187599 Contact Us For Availability
*21829
TAPPING PLATE HNG (2) WCI G179797 Contact Us For Availability
*21856
HOT TUBE REPAIR KIT WCI G189383 Contact Us For Availability
1
HINGE BRKT-BTM WCI G191474 Contact Us For Availability
2
HINGE BRKT-TOP WCI G183714 Contact Us For Availability
2
WCI G178225 WCI G178225 Contact Us For Availability
2B
WCI G103903 No Longer Available
3
SUPPORT RS (3) WCI G178287-01 Contact Us For Availability
3
SHIM-TOP HNG WCI G183861 Contact Us For Availability
3
BRACKET-COND (4) WCI G164637 Contact Us For Availability
4
INNER PANEL WCI G183589-02 Contact Us For Availability
4
WCI G142220 WCI G142220 Contact Us For Availability
4A
WASHER-CTR HNG (NON-ILLUSTRATED) WCI G164355 Contact Us For Availability
6
RACK-REFR DR (2) WCI 3016153 Contact Us For Availability
6
SHIM-BTM HNG WCI G163203 Contact Us For Availability
6
HARNESS, DIVIDER WCI G174818 Contact Us For Availability
7
WCI G161776-51 WCI G161776-51 Contact Us For Availability
7
HARNESS COMPRSSR WCI G166062-01 Contact Us For Availability
8
WCI G162977-09 WCI G162977-09 Contact Us For Availability
8
WCI G162549-01 WCI G162549-01 Contact Us For Availability
9
NAMEPLATE FRAME WCI G178292 Contact Us For Availability
9
CABINET BASE WCI G490004-01 Contact Us For Availability
9
CLIP (4) WCI G163204 Contact Us For Availability
10
WCI G189500-01 WCI G189500-01 Contact Us For Availability
10
WCI 3016154 WCI 3016154 Contact Us For Availability
10
WASHER (4) WCI G164634 Contact Us For Availability
11
TAPE-DBL FACED WCI G153407-60 Contact Us For Availability
11
COVER-PAN WCI G490016-03 Contact Us For Availability
12
WCI G189689-09 WCI G189689-09 Contact Us For Availability
12
SUPPORT, COVER WCI G166310-02 Contact Us For Availability
12
DEFROST PAN & NUT WCI G184715 Contact Us For Availability
12A
LOCK NUT (NON-ILLUSTRATED) WCI G164958 Contact Us For Availability
13
WCI G169332-09 WCI G169332-09 Contact Us For Availability
13
WCI G162178 WCI G162178 Contact Us For Availability
13
WCI G182225-18 WCI G182225-18 Contact Us For Availability
14
WCI G189685-09 WCI G189685-09 Contact Us For Availability
14
WCI G162675 WCI G162675 Contact Us For Availability
14
WCI G189281 WCI G189281 Contact Us For Availability
15
BEARING-HNG (8) WCI G183138 Contact Us For Availability
15
SHELF SLIDING (3) WCI G178511-01 Contact Us For Availability
15
WCI G188877 WCI G188877 Contact Us For Availability
16
WCI G189454-02 WCI G189454-02 Contact Us For Availability
16
WCI G162827-14 WCI G162827-14 Contact Us For Availability
16
CLIP-OVERLOAD WCI G188957 Contact Us For Availability
16A
INSERT GRIP (2) (NON-ILLUSTRATED) WCI G189456-01 Contact Us For Availability
17
END-HANDLE (2) WCI G189453-01 Contact Us For Availability
17
DAMPER WCI G162661 Contact Us For Availability
17A
PUSH NUT-DAMPER (NON-ILLUSTRATED) WCI G162662 Contact Us For Availability
18
END-HANDLE-TOP WCI G189452-01 Contact Us For Availability
18
KNOB-DAMPER WCI G162747-27 Contact Us For Availability
19
END-HANDLE-BTM WCI G189451-01 Contact Us For Availability
19
WCI 3015421 WCI 3015421 Contact Us For Availability
19
WCI G184599 WCI G184599 Contact Us For Availability
20
GASKET-FRZR WCI G186932-03 Contact Us For Availability
20
INSUL BLOCK LS WCI G188375 Contact Us For Availability
21
KNOB, CONTROL WCI G490107-02 Contact Us For Availability
21
INSUL BLOCK RS WCI G185299 Contact Us For Availability
22
INNER PANEL WCI G183591-02 Contact Us For Availability
22
CONTROL TEMP. WCI G162205-11 Contact Us For Availability
22
INSUL PLUG RS WCI G185276 Contact Us For Availability
22A
WCI G107080 WCI G107080 Contact Us For Availability
23
WCI G89643 WCI G89643 Contact Us For Availability
24
WCI G168302 WCI G168302 Contact Us For Availability
24
WCI G176909 WCI G176909 Contact Us For Availability
25
BOX-CONTROL WCI G176722-05 Contact Us For Availability
26
HEAT EXCHANGER WCI G147918 Contact Us For Availability
27
SWITCH SLIDE WCI G178402-01 Contact Us For Availability
27
HEATER, DEFROST WCI G176807-01 Contact Us For Availability
28
LABEL-CONTROL BOX WCI G189710 Contact Us For Availability
28
INSULATOR WCI G169024-03 Contact Us For Availability
29
SPOUT, DRAIN WCI G162179 Contact Us For Availability
29
WCI G183584 WCI G183584 Contact Us For Availability
29A
PUSH-PIN-MTG (2) (NON-ILLUSTRATED) WCI G185279 Contact Us For Availability
29B
RING, SEAL (NON-ILLUSTRATED) WCI G176853 Contact Us For Availability
30
TUBE, DRAIN WCI G184920-01 Contact Us For Availability
30
CLAMP-CABLE WCI G73986 Contact Us For Availability
32
RING-ORIFICE WCI G167217 Contact Us For Availability
33
BUSHING (2) WCI G187559 Contact Us For Availability
33
WCI G167234 WCI G167234 Contact Us For Availability
34
CAPACITOR WCI G188885-02 Contact Us For Availability
35
WCI G185302 WCI G185302 Contact Us For Availability
35
STRAP-CAPACITOR WCI G188897 Contact Us For Availability
36
WCI G185303 WCI G185303 Contact Us For Availability
36A
BRKT-CONNECTOR (NON-ILLUSTRATED) WCI G164571 Contact Us For Availability
37
WCI G85642 WCI G85642 Contact Us For Availability
38
COVER-COIL WCI G176797 Contact Us For Availability
38A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
39
HINGE BRKT-CTR WCI G163207 Contact Us For Availability
39A
SCREW-MTG (4) (NON-ILLUSTRATED) WCI G183103 Contact Us For Availability
39B
WASHER-STEEL (4) (NON-ILLUSTRATED) WCI G166847 Contact Us For Availability
40
SPACER-MULLION WCI G490082 Contact Us For Availability
41
WCI G177255 WCI G177255 Contact Us For Availability
42
WCI G490086-09 WCI G490086-09 Contact Us For Availability
43
STRAP, MULN MTG WCI G166709 Contact Us For Availability
44
TROUGH-DRAIN WCI G490043 Contact Us For Availability
46
DIVIDER WCI G176774 Contact Us For Availability
47
WCI G490021-01 WCI G490021-01 Contact Us For Availability
47A
SCREW-MTG (NON-ILLUSTRATED) WCI G162673 Contact Us For Availability
48
BOTTOM-FRZR WCI G490022-01 Contact Us For Availability
49
SPRT-COIL COV (2) WCI G163669 Contact Us For Availability
50
PLUG-HNG HOLE WCI G166912 Contact Us For Availability
51
WCI G174733 WCI G174733 Contact Us For Availability
52
WCI G174734 WCI G174734 Contact Us For Availability
53
LEVEL SCREW (2) WCI G185713 Contact Us For Availability
53A
ANCHOR NUT (2) (NON-ILLUSTRATED) WCI G183073 Contact Us For Availability
54
CORNER TRIM-WEAT WCI G179684-09 Contact Us For Availability
55
COVER-HNG WEAT WCI G183558-09 Contact Us For Availability
56
WCI G174747-09 WCI G174747-09 Contact Us For Availability
× ![]()
