Model Electrolux TPK140JN1D REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

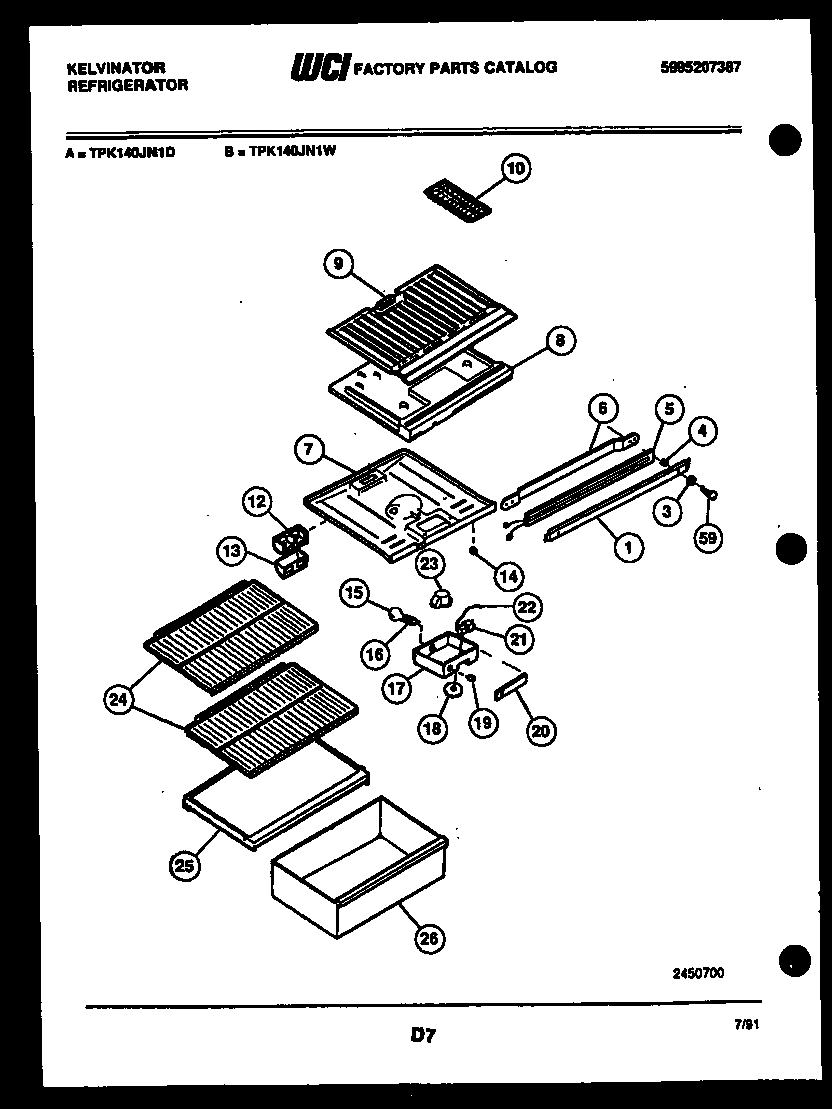

04 - SHELVES AND SUPPORT

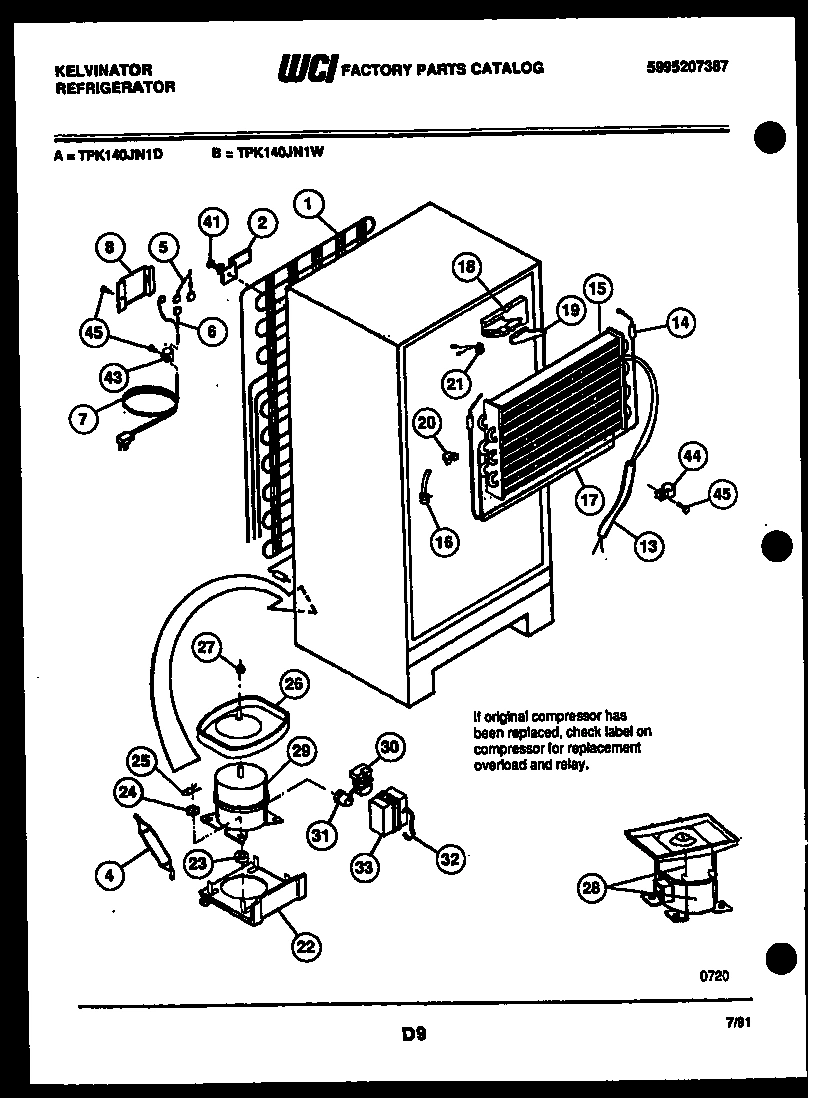

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux TPK140JN1D REFRIGERATOR
*20069
BUTTON PLUG-LINER WCI 5308016571 Contact Us For Availability
*20079
HOT TUBE REPAIR KIT-SERVICE WCI 5300189377 Contact Us For Availability
1
WCI 5303916134 WCI 5303916134 Contact Us For Availability
1
WCI 5303001341 WCI 5303001341 Contact Us For Availability
2
WCI 5308000081 WCI 5308000081 Contact Us For Availability
2
BRACKET, COND MTG WCI 5303001342 Contact Us For Availability
2A
WASHER-EXT TOOTH LOCK-NO. 10 (2) (NON-ILLUSTR WCI 5308009617 Contact Us For Availability
3
WASHER, NO. 10 STEEL, 7/23 X 7/16 OD WCI 5308003607 Contact Us For Availability
4
WCI 5303200464 WCI 5303200464 Contact Us For Availability
4A
WCI 3201679 WCI 3201679 Contact Us For Availability
5
WCI 5308017408 WCI 5308017408 Contact Us For Availability
5
WIRING HARNESS, CONTROL/DIVIDER WCI 3001383 Contact Us For Availability
6
WCI 5308003604 WCI 5308003604 Contact Us For Availability
6
WIRING HARNESS, COMPRESSOR, WCI 5303001347 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
TOP PANEL-REFR, W/ SNAP BUSHING WCI 5303015448 Contact Us For Availability
7
CORD, ELEC SERVICE WCI 5316254901 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
7B
BUSHING, SNAP-IN, PLASTIC (NON-ILLUSTRATED) WCI 5303212518 Contact Us For Availability
8
WCI 5308000759 WCI 5308000759 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
BOTTOM PANEL-FREEZER WCI 5308000748 Contact Us For Availability
10
BUTTON PLUG, ALMOND, HINGE BRG HOLE WCI 5303001308 Contact Us For Availability
10
WCI 3001358 WCI 3001358 Contact Us For Availability
10A
NUT, ``U`` TYPE, NO. 8(A), EVAP COVER, (2) (N WCI 5303209814 Contact Us For Availability
12
DEFLECTOR-AIR WCI 5308000071 Contact Us For Availability
12
WCI 5308013636 WCI 5308013636 Contact Us For Availability
13
COVER - AIR DEFLECTOR WCI 5303001546 Contact Us For Availability
13
HEAT EXCHANGER, SUCTION LINE WCI 5303201079 Contact Us For Availability
14
WCI 5303001362 WCI 5303001362 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
15
WCI 5308000107 WCI 5308000107 Contact Us For Availability
15
WCI 5303272044 WCI 5303272044 Contact Us For Availability
16
SOCKET-LIGHT/LAMP WCI 5308000129 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 08003638 WCI 08003638 Contact Us For Availability
17
WCI 5303015152 WCI 5303015152 Contact Us For Availability
17A
WCI 3202734 WCI 3202734 Contact Us For Availability
18
SUPPORT, EVAP COVER, (2) WCI 5308000097 Contact Us For Availability
18
WCI 5308010011 WCI 5308010011 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
WCI 5303001670 WCI 5303001670 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
WCI 5303001286 WCI 5303001286 Contact Us For Availability
20
WCI 5303273206 WCI 5303273206 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
WCI 5303001287 WCI 5303001287 Contact Us For Availability
21
WCI 5308015762 WCI 5308015762 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
BUTTON PLUG, ALMOND, UPR HINGE HOLES WCI 5303001389 Contact Us For Availability
22
WCI 5308009596 WCI 5308009596 Contact Us For Availability
23
WCI 5303001386 WCI 5303001386 Contact Us For Availability
24
WCI 5303274040 WCI 5303274040 Contact Us For Availability
24
WASHER-COMPR MTG (4) WCI 5308003633 Contact Us For Availability
25
WCI 5308000749 WCI 5308000749 Contact Us For Availability
25
CLIP-COMPRESSOR MTG (4) WCI 5308003596 Contact Us For Availability
26
WCI 5303006086 WCI 5303006086 Contact Us For Availability
26
PAN-CRISPER WCI 5303274014 Contact Us For Availability
26
PAN-DEFROST DRAIN-ORIG/SVCE COMPR WCI 5300171129 Contact Us For Availability
27
SCREW-LEVELING WCI 5303205540 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
29
WASHER, .28 X .62 X .19, NYLON WCI 5303001038 Contact Us For Availability
29
COMPRESSOR, W/ELEC, SERVICE WCI 5303916012 Contact Us For Availability
29A
WASHER, .34 X .62 X .05, NYLON WCI 5308000007 Contact Us For Availability
29A
CAPACITOR-RUN (NON-ILLUSTRATED) WCI 5303916391 Contact Us For Availability
29B
STRAP, CAPACITOR MTG (NON-ILLUSTRATED) WCI 3018428 Contact Us For Availability
30
WCI 5303007173 WCI 5303007173 Contact Us For Availability
30
BRACKET-LOWER HINGE WCI 5308010251 Contact Us For Availability
31
SHIM-LWR HINGE BRKT WCI 5303001323 Contact Us For Availability
31
WCI 5303270294 WCI 5303270294 Contact Us For Availability
35
WCI 5303001369 WCI 5303001369 Contact Us For Availability
36
WCI 5308000184 WCI 5308000184 Contact Us For Availability
37
WCI 5303202340 WCI 5303202340 Contact Us For Availability
38
BRACKET-UPPER HINGE WCI 5308012843 Contact Us For Availability
38B
TAPPING PLATE, UPPER HINGE, (2) (NON-ILLUSTRA WCI 5308012296 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
56
PIN-LOWER HINGE WCI 5303001321 Contact Us For Availability
59
WCI 5308012258 WCI 5308012258 Contact Us For Availability
× ![]()
