Model Electrolux TPK140EN0V REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

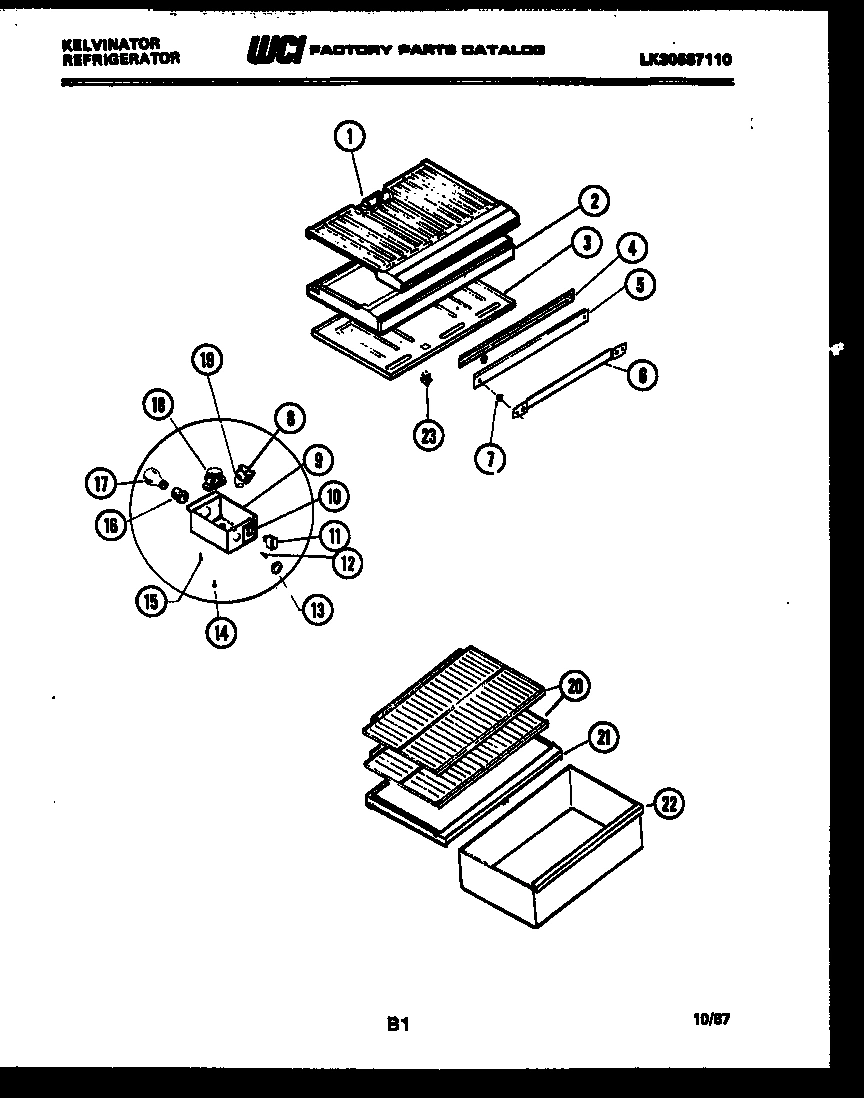

04 - SHELVES

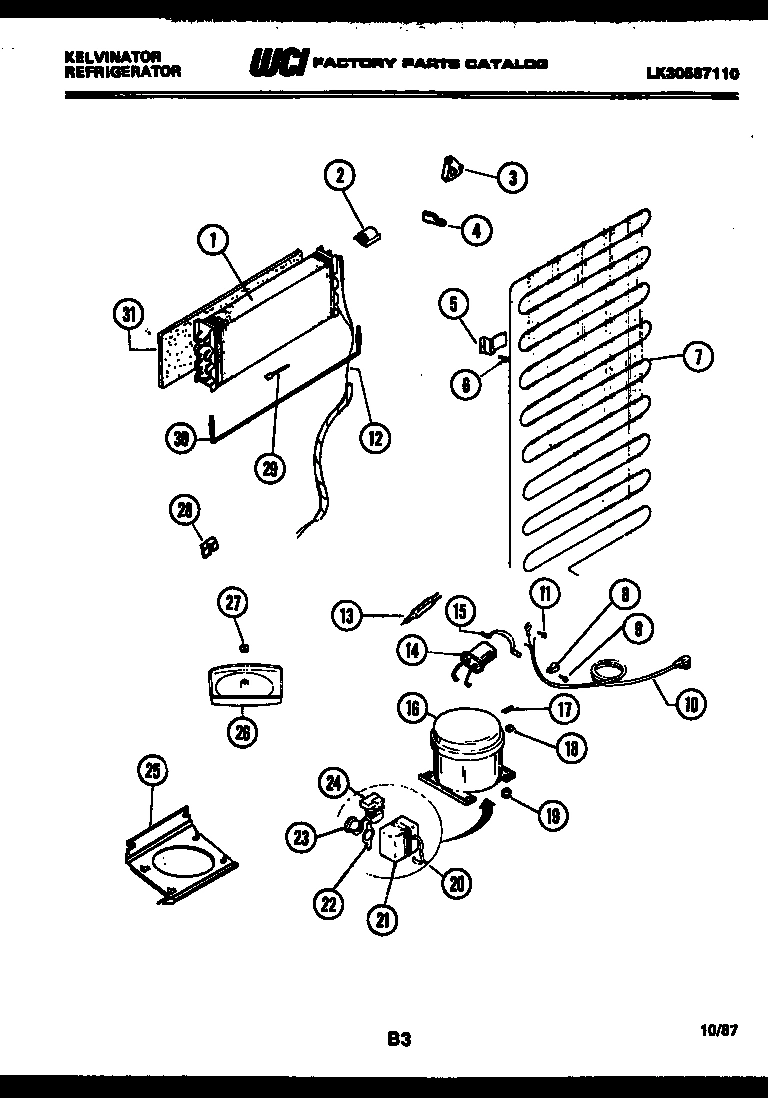

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux TPK140EN0V REFRIGERATOR
*83068
KIT-DOOR CONV AVOC WCI G168981-08 Contact Us For Availability
*83095
WCI G169332-08 WCI G169332-08 Contact Us For Availability
*83546
COVER-TOP HINGE-AVOC WCI G183558-08 Contact Us For Availability
*83817
HARNESS-WIRE WCI G174818 Contact Us For Availability
*83823
PLATE, TAPPING ( 2 ) WCI G179797 Contact Us For Availability
*84085
WCI G183584 WCI G183584 Contact Us For Availability
*84091
HARNESS-COMP WCI G166062-01 Contact Us For Availability
*84096
KIT-HOT TUBE REP WCI G189377 Contact Us For Availability
1
WCI G189618-08 WCI G189618-08 Contact Us For Availability
1
BRACKET-MOTOR MTG REAR WCI G185303 Contact Us For Availability
1
BOTTOM ( FREEZER ) WCI G162857 Contact Us For Availability
1
WCI G164563 WCI G164563 Contact Us For Availability
2
HANDLE-DOOR (2) WCI G189454-02 Contact Us For Availability
2
DIVIDER WCI G163219 Contact Us For Availability
3
WCI G185566 WCI G185566 Contact Us For Availability
3
WCI G164571 WCI G164571 Contact Us For Availability
3
TOP-REFRIGERATOR WCI G174713 Contact Us For Availability
3
BLOCK, EVAPORATOR, RH WCI G185299 Contact Us For Availability
4
GASKET-FREEZER WCI G186932-03 Contact Us For Availability
4
BRACKET-MOTOR MTG FMT WCI G185302 Contact Us For Availability
4
WCI G187921 WCI G187921 Contact Us For Availability
4
PLUG-EVAPORATOR WCI G185276 Contact Us For Availability
5
PANEL-INNER WCI G165788-01 Contact Us For Availability
5
RING-ORIFICE WCI G167217 Contact Us For Availability
5
MULLION-AVOC. WCI G174520-08 Contact Us For Availability
5
WCI G164637 WCI G164637 Contact Us For Availability
5A
NUT (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
6
BRACKET-MULLION WCI G166709 Contact Us For Availability
7
WCI G161019-84 WCI G161019-84 Contact Us For Availability
7
SPACER-MULLION (2) WCI G166848 Contact Us For Availability
7
WCI G178225 WCI G178225 Contact Us For Availability
7A
WASHER (NON-ILLUSTRATED) WCI G164820 Contact Us For Availability
8
WCI G161776-53 WCI G161776-53 Contact Us For Availability
8
CONTROL-COLD WCI G162205-12 Contact Us For Availability
9
WCI G161019-85 WCI G161019-85 Contact Us For Availability
9
NUT-DAMPER WCI G162662 Contact Us For Availability
9
BOX-CONTROL WCI G176722-05 Contact Us For Availability
10
PANEL-INNER WCI G165787-01 Contact Us For Availability
10
WCI G162747-27 WCI G162747-27 Contact Us For Availability
10
LABEL-CONT BOX WCI G189710 Contact Us For Availability
10
CORD, SERVICE WCI G162549-01 Contact Us For Availability
11
WCI G163061-89 WCI G163061-89 Contact Us For Availability
11
SWITCH SLIDE WCI G178402-01 Contact Us For Availability
12
GASKET-REF WCI G186932-02 Contact Us For Availability
12
WCI G107080 WCI G107080 Contact Us For Availability
12
EXCHANGER-HEAT WCI G149013 Contact Us For Availability
13
BEARING HINGE (8) WCI G183138 Contact Us For Availability
13
BRACKET, TOP HINGE WCI G183714 Contact Us For Availability
13
KNOB, CONTROL WCI G490107-02 Contact Us For Availability
14
WCI G103903 No Longer Available
14
WCI G189622-08 WCI G189622-08 Contact Us For Availability
14
CAPACITOR WCI G188885-01 Contact Us For Availability
15
WCI G165139 WCI G165139 Contact Us For Availability
15
TRIM-CAB CORNER-AVOC WCI G162364-08 Contact Us For Availability
15
STRAP-CAPACITOR WCI G188897 Contact Us For Availability
16
WCI G165144 WCI G165144 Contact Us For Availability
16
WASHER-NYLON (2) WCI G164355 Contact Us For Availability
16
SOCKET LIGHT WCI G168302 Contact Us For Availability
16
WCI G190374 WCI G190374 Contact Us For Availability
17
NAMEPLATE FRAME WCI G178292 Contact Us For Availability
17
WCI G142220 WCI G142220 Contact Us For Availability
17
CLIP-COMP MTG (3) WCI G163204 Contact Us For Availability
18
WCI G189500-01 WCI G189500-01 Contact Us For Availability
18
WCI G163207 WCI G163207 Contact Us For Availability
18
WASHER-COMP MTG (3) WCI G164634 Contact Us For Availability
19
SCREW (2) WCI G183103 Contact Us For Availability
20
DEFLECTOR AIR WCI G162675 Contact Us For Availability
20
SHELF, FULL (2) WCI G172172-01 Contact Us For Availability
21
COVER, AIR DEFLECTOR WCI G162178 Contact Us For Availability
21
WCI G162957-02 WCI G162957-02 Contact Us For Availability
22
WCI G162973-37 WCI G162973-37 Contact Us For Availability
22
CLIP-OVERLOAD WCI G188957 Contact Us For Availability
23
BRACKET, LOWER HINGE WCI G181019 Contact Us For Availability
23
WCI G188877 WCI G188877 Contact Us For Availability
24
WCI G182225-18 WCI G182225-18 Contact Us For Availability
25
SHIM, LOWER HINGE WCI G163203 Contact Us For Availability
25
PLATE-COMP MTG WCI G162822 Contact Us For Availability
26
PLUG-HINGE WCI G166912 Contact Us For Availability
26
PAN, DEFROST WCI G184715 Contact Us For Availability
27
SCREW, LEVELING (2) WCI G185713 Contact Us For Availability
27
NUT WCI G164958 Contact Us For Availability
27A
NUT ANCHOR (2) (NON-ILLUSTRATED) WCI G183073 Contact Us For Availability
28
TUBE-DRAIN WCI G163205 Contact Us For Availability
28
BLOCK-EVAP LH WCI G188375 Contact Us For Availability
29
BASE-CABINET WCI G161998-01 Contact Us For Availability
30
WCI G174747-08 WCI G174747-08 Contact Us For Availability
30
WCI G162432-02 WCI G162432-02 Contact Us For Availability
31
WCI G174733 WCI G174733 Contact Us For Availability
31
INSULATOR WCI G166511-02 Contact Us For Availability
32
WCI G174734 WCI G174734 Contact Us For Availability
33
TUBE WCI G85642 Contact Us For Availability
34
WCI G163669 WCI G163669 Contact Us For Availability
35
WCI G183861 WCI G183861 Contact Us For Availability
36
DAMPER FAN COVER WCI G162661 Contact Us For Availability
39
COVER-COIL WCI G163290 Contact Us For Availability
40
BUTTON-DECORATIVE WCI G162827-13 Contact Us For Availability
41
TROUGH-DRAIN WCI G163292 Contact Us For Availability
× ![]()
