Model Maytag TP19AL REFRIGERATOR – Common Parts & Diagrams
01 - CABINET BACK
02 - CABINET BOTTOM

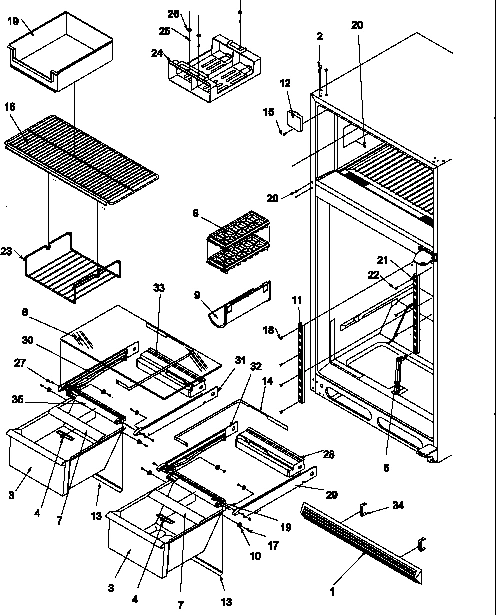

03 - CABINET SHELVING

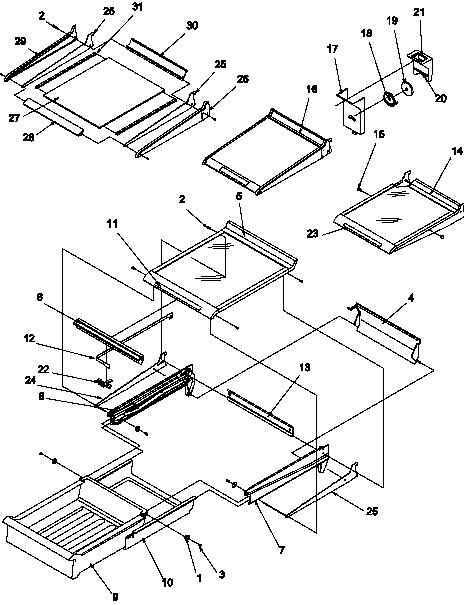

04 - CABINET SHELVING

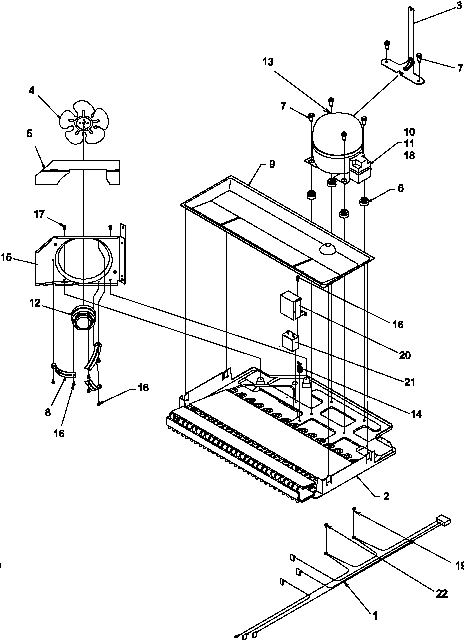

05 - COMPRESSOR COMPARTMENT
06 - CONTROL PANEL

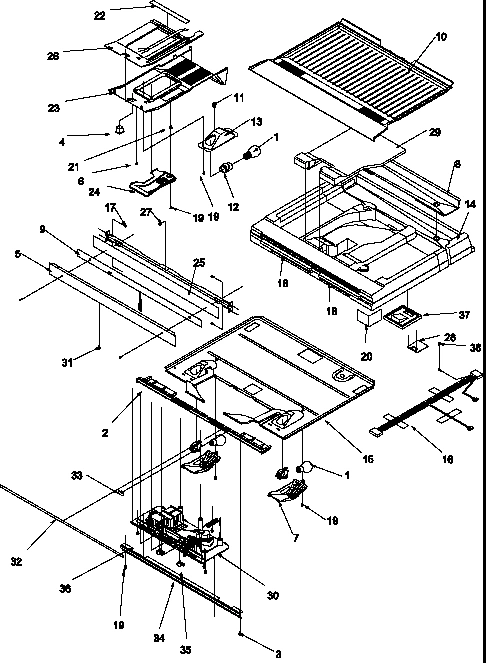

07 - DIVIDER BLOCK

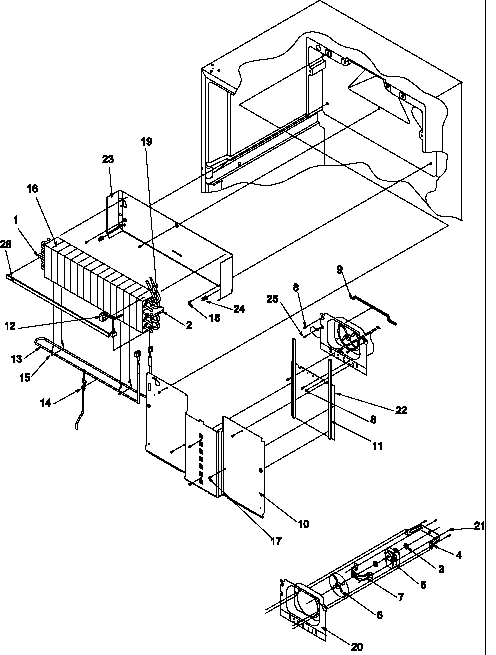

08 - EVAP AREA
09 - FZ DOOR

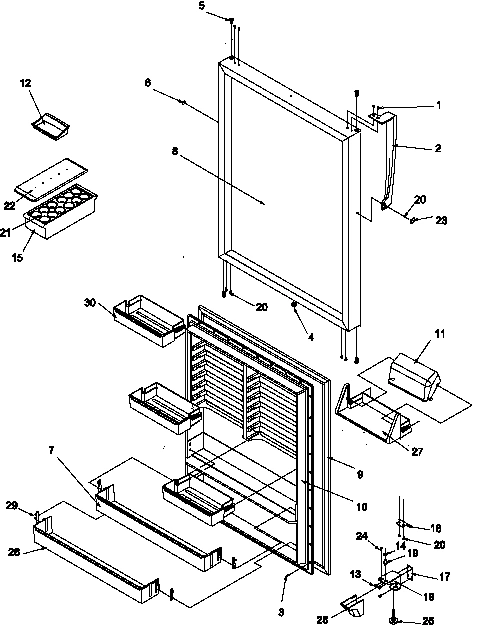

10 - REF DOOR
Common parts from model Maytag TP19AL REFRIGERATOR
1
MAY 10474905 MAY 10474905 Contact Us For Availability
1
ROLLER, PAN MAY 10481001 Contact Us For Availability
1
MAY 10705802 MAY 10705802 Contact Us For Availability
1
MAY 12035101 MAY 12035101 Contact Us For Availability
1
MAY A0282803 MAY A0282803 Contact Us For Availability
1
MAY 10428301 MAY 10428301 Contact Us For Availability
1
MAY 10925611L MAY 10925611L Contact Us For Availability
1
MAY M0221718 MAY M0221718 Contact Us For Availability
2
MAY 10567205 MAY 10567205 Contact Us For Availability
2
MAY M0310716 MAY M0310716 Contact Us For Availability
2
MAY 10481216 MAY 10481216 Contact Us For Availability
2
MAY 10439601 MAY 10439601 Contact Us For Availability
2
MAY 10435511 MAY 10435511 Contact Us For Availability
2
MAY 10991001 MAY 10991001 Contact Us For Availability
2
MAY B0523593 MAY B0523593 Contact Us For Availability
2
MAY 10253523 MAY 10253523 Contact Us For Availability
3
MAY 10699301 MAY 10699301 Contact Us For Availability
3
MAY 10450602 MAY 10450602 Contact Us For Availability
3
MAY 10430216 MAY 10430216 Contact Us For Availability
3
MAY M0238105 MAY M0238105 Contact Us For Availability
3
MAY YB8358601 MAY YB8358601 Contact Us For Availability
3
MAY 10442601 MAY 10442601 Contact Us For Availability
3
MAY A1017202 MAY A1017202 Contact Us For Availability
3
MAY 10184306 MAY 10184306 Contact Us For Availability
3
MAY M0219730 MAY M0219730 Contact Us For Availability
4
MAY 10908101 MAY 10908101 Contact Us For Availability
4
MAY 10450701 MAY 10450701 Contact Us For Availability
4
MAY 10797501 MAY 10797501 Contact Us For Availability
4
MAY 10445702 MAY 10445702 Contact Us For Availability
4
MAY B5742604 MAY B5742604 Contact Us For Availability
4
MAY R0161074 MAY R0161074 Contact Us For Availability
4
MAY 10492701 MAY 10492701 Contact Us For Availability
4
MAY 10253524 MAY 10253524 Contact Us For Availability
4
MAY M0310338 MAY M0310338 Contact Us For Availability
5
MAY 12075502 MAY 12075502 Contact Us For Availability
5
MAY 10450901 MAY 10450901 Contact Us For Availability
5
MAY 10461901 MAY 10461901 Contact Us For Availability
5
MAY 10442702 MAY 10442702 Contact Us For Availability
5
MAY 10428601 MAY 10428601 Contact Us For Availability
5
MAY 10433343 MAY 10433343 Contact Us For Availability
5
MAY 10449501 MAY 10449501 Contact Us For Availability
5
MAY 10456802 MAY 10456802 Contact Us For Availability
5
MAY 10961001 MAY 10961001 Contact Us For Availability
6
MAY M0260242 MAY M0260242 Contact Us For Availability
6
MAY 10370016 MAY 10370016 Contact Us For Availability
6
MAY M0310730 MAY M0310730 Contact Us For Availability
6
MAY 10450315 MAY 10450315 Contact Us For Availability
6
GROMMET, COMPRESSOR MAY 10835901 Contact Us For Availability
6
MAY R0161075 MAY R0161075 Contact Us For Availability
6
MAY M0211018 MAY M0211018 Contact Us For Availability
6
MAY 10855401 MAY 10855401 Contact Us For Availability
6
MAY 10184501 MAY 10184501 Contact Us For Availability
7
MAY 12100510 MAY 12100510 Contact Us For Availability
7
MAY M0211031 MAY M0211031 Contact Us For Availability
7
MAY 10688026 MAY 10688026 Contact Us For Availability
7
MAY 10688027 MAY 10688027 Contact Us For Availability
7
MAY 10417301 MAY 10417301 Contact Us For Availability
7
MAY M0221523 MAY M0221523 Contact Us For Availability
7
MAY 10442801 MAY 10442801 Contact Us For Availability
7
MAY 10508701 MAY 10508701 Contact Us For Availability
7
MAY 10492801 MAY 10492801 Contact Us For Availability
7
MAY 10461101 MAY 10461101 Contact Us For Availability
7
MAY 10419105 MAY 10419105 Contact Us For Availability
8
MAY M0103904 MAY M0103904 Contact Us For Availability
8
MAY 10514801 MAY 10514801 Contact Us For Availability
8
ICE TRAY MAY D7725402 Contact Us For Availability
8
MAY 10432101 MAY 10432101 Contact Us For Availability
8
MAY 10582501 MAY 10582501 Contact Us For Availability
8
MAY 10442901 MAY 10442901 Contact Us For Availability
8
MAY 10435911 MAY 10435911 Contact Us For Availability
8
MAY 10184401 MAY 10184401 Contact Us For Availability
8
MAY 10925408L MAY 10925408L Contact Us For Availability
9
MAY 10544301 MAY 10544301 Contact Us For Availability
9
MAY M0204338 MAY M0204338 Contact Us For Availability
9
MAY 10448901 MAY 10448901 Contact Us For Availability
9
MAY 10417117 MAY 10417117 Contact Us For Availability
9
MAY 10427401 MAY 10427401 Contact Us For Availability
9
MAY M0350201 MAY M0350201 Contact Us For Availability
9
MAY 10543601 MAY 10543601 Contact Us For Availability
9
MAY A3030354 MAY A3030354 Contact Us For Availability
9
MAY 10451301 MAY 10451301 Contact Us For Availability
9
MAY 10451302 MAY 10451302 Contact Us For Availability
9
MAY 10451303 MAY 10451303 Contact Us For Availability
9
MAY 10456801 MAY 10456801 Contact Us For Availability
10
MAY 10916501 MAY 10916501 Contact Us For Availability
10
MAY M0286708 MAY M0286708 Contact Us For Availability
10
MAY 10440904 MAY 10440904 Contact Us For Availability
10
MAY 10377016 MAY 10377016 Contact Us For Availability
10
MAY C3680304 MAY C3680304 Contact Us For Availability
10
MAY 10995001 MAY 10995001 Contact Us For Availability
10
MAY 10432402 MAY 10432402 Contact Us For Availability
10
MAY 10185105 MAY 10185105 Contact Us For Availability
10
MAY 10461801 MAY 10461801 Contact Us For Availability
11
MAY M0232317 MAY M0232317 Contact Us For Availability
11
MAY M1205302 MAY M1205302 Contact Us For Availability
11
MAY D7599002 MAY D7599002 Contact Us For Availability
11
MAY 10097205 MAY 10097205 Contact Us For Availability
11
MAY 10573401 MAY 10573401 Contact Us For Availability
11
MAY A3030356 MAY A3030356 Contact Us For Availability
11
MAY 10422608 MAY 10422608 Contact Us For Availability
12
MAY B8372901 MAY B8372901 Contact Us For Availability
12
MAY 10663001 MAY 10663001 Contact Us For Availability
12
MAY 10663002 MAY 10663002 Contact Us For Availability
12
MAY D7874403 MAY D7874403 Contact Us For Availability
12
MAY 10454003 MAY 10454003 Contact Us For Availability
12
MAY 10884501 MAY 10884501 Contact Us For Availability
12
MAY 10673602 MAY 10673602 Contact Us For Availability
12
MAY D7714406 MAY D7714406 Contact Us For Availability
12
MAY 10442404 MAY 10442404 Contact Us For Availability
12
MAY 10310901 MAY 10310901 Contact Us For Availability
13
MAY M0104101 MAY M0104101 Contact Us For Availability
13
MAY 10427204 MAY 10427204 Contact Us For Availability
13
MAY 10530202 MAY 10530202 Contact Us For Availability
13
MAY 10451402 MAY 10451402 Contact Us For Availability
13
MAY 10927201 MAY 10927201 Contact Us For Availability
13
MAY 10565101 MAY 10565101 Contact Us For Availability
13
MAY 10991101 MAY 10991101 Contact Us For Availability
13
MAY 10686402 MAY 10686402 Contact Us For Availability
13
MAY M0233847 MAY M0233847 Contact Us For Availability
14
MAY B5720303 MAY B5720303 Contact Us For Availability
14
MAY 10427110 MAY 10427110 Contact Us For Availability
14
MAY 10467802 MAY 10467802 Contact Us For Availability
14
MAY B5667304 MAY B5667304 Contact Us For Availability
14
MAY A3012543 MAY A3012543 Contact Us For Availability
14
MAY 10996001 MAY 10996001 Contact Us For Availability
14
MAY 10586601 MAY 10586601 Contact Us For Availability
14
MAY 10562201 MAY 10562201 Contact Us For Availability
14
MAY 10562202 MAY 10562202 Contact Us For Availability
14
MAY 10562203 MAY 10562203 Contact Us For Availability
14
MAY M0274058 MAY M0274058 Contact Us For Availability
15
MAY 12039805 MAY 12039805 Contact Us For Availability
15
MAY 10567206 MAY 10567206 Contact Us For Availability
15
MAY 10426904 MAY 10426904 Contact Us For Availability
15
MAY 12035206 MAY 12035206 Contact Us For Availability
15
MAY 10433512 MAY 10433512 Contact Us For Availability
15
MAY 10423128 MAY 10423128 Contact Us For Availability
16
MAY 10547101 MAY 10547101 Contact Us For Availability
16
MAY Y10440001 MAY Y10440001 Contact Us For Availability
16
MAY M0223803 MAY M0223803 Contact Us For Availability
16
MAY 10573504 MAY 10573504 Contact Us For Availability
16
MAY R0170053 MAY R0170053 Contact Us For Availability
16
MAY 10447102 MAY 10447102 Contact Us For Availability
17
MAY M0209616 MAY M0209616 Contact Us For Availability
17
MAY 10642103 MAY 10642103 Contact Us For Availability
17
MAY M0226331 MAY M0226331 Contact Us For Availability
17
MAY 10447903 MAY 10447903 Contact Us For Availability
18
MAY 12047201 MAY 12047201 Contact Us For Availability
18
MAY M0230923 MAY M0230923 Contact Us For Availability
18
MAY M0211017 MAY M0211017 Contact Us For Availability
18
MAY 10479401 MAY 10479401 Contact Us For Availability
18
MAY C8960801 MAY C8960801 Contact Us For Availability
18
MAY 10772301 MAY 10772301 Contact Us For Availability
18
MAY 10825302 MAY 10825302 Contact Us For Availability
19
MAY 10547001 MAY 10547001 Contact Us For Availability
19
MAY 10687701 MAY 10687701 Contact Us For Availability
19
MAY 10565701 MAY 10565701 Contact Us For Availability
19
MAY M0216716 MAY M0216716 Contact Us For Availability
19
MAY M0321204 MAY M0321204 Contact Us For Availability
19
MAY 10200801 MAY 10200801 Contact Us For Availability
20
MAY 10428001 MAY 10428001 Contact Us For Availability
20
MAY M0211533 MAY M0211533 Contact Us For Availability
20
MAY 10852401 MAY 10852401 Contact Us For Availability
20
MAY 10266402 MAY 10266402 Contact Us For Availability
20
MAY B0523584 MAY B0523584 Contact Us For Availability
20
MAY 10422304 MAY 10422304 Contact Us For Availability
20
SHIM, NON METAL (WHT) MAY M0274057 Contact Us For Availability
21
MAY M0224416 MAY M0224416 Contact Us For Availability
21
MAY 10163201 MAY 10163201 Contact Us For Availability
21
MAY D7599105 MAY D7599105 Contact Us For Availability
21
MAY 10479103 MAY 10479103 Contact Us For Availability
21
MAY C8931607 MAY C8931607 Contact Us For Availability
21
MAY 10351002 MAY 10351002 Contact Us For Availability
21
MAY 10436505 MAY 10436505 Contact Us For Availability
22
MAY A3132301 MAY A3132301 Contact Us For Availability
22
MAY 10588201 MAY 10588201 Contact Us For Availability
22
MAY B8386613 MAY B8386613 Contact Us For Availability
22
MAY 10440707 MAY 10440707 Contact Us For Availability
22
MAY 10436404 MAY 10436404 Contact Us For Availability
23
DRIER MAY B2150504 Contact Us For Availability
23
MAY 10440404 MAY 10440404 Contact Us For Availability
23
MAY 10427710 MAY 10427710 Contact Us For Availability
23
MAY 10444806 MAY 10444806 Contact Us For Availability
23
MAY 10201812 MAY 10201812 Contact Us For Availability
24
MAY 10681403 MAY 10681403 Contact Us For Availability
24
MAY 10442301 MAY 10442301 Contact Us For Availability
24
MAY 10183010 MAY 10183010 Contact Us For Availability
24
PLUG, TOP HINGE BUTTON (WHT) MAY M0310729 Contact Us For Availability
25
MAY 10681402 MAY 10681402 Contact Us For Availability
25
MAY M0232903 MAY M0232903 Contact Us For Availability
25
MAY 10433610 MAY 10433610 Contact Us For Availability
25
MAY 10201811 MAY 10201811 Contact Us For Availability
25
MAY 10354001 MAY 10354001 Contact Us For Availability
26
MAY 10436604 MAY 10436604 Contact Us For Availability
26
MAY 10779602 MAY 10779602 Contact Us For Availability
26
MAY A3189349 MAY A3189349 Contact Us For Availability
26
MAY 10419205 MAY 10419205 Contact Us For Availability
27
MAY M0237932 MAY M0237932 Contact Us For Availability
27
MAY 10370014 MAY 10370014 Contact Us For Availability
27
MAY M0253916 MAY M0253916 Contact Us For Availability
27
MAY 10182702 MAY 10182702 Contact Us For Availability
28
MAY 10433805 MAY 10433805 Contact Us For Availability
28
MAY 10436811 MAY 10436811 Contact Us For Availability
28
MAY 10594901 MAY 10594901 Contact Us For Availability
28
MAY 10252903 MAY 10252903 Contact Us For Availability
28
MAY 10462705 MAY 10462705 Contact Us For Availability
29
MAY 10432701 MAY 10432701 Contact Us For Availability
29
MAY 10436603 MAY 10436603 Contact Us For Availability
29
MAY 10476401 MAY 10476401 Contact Us For Availability
29
MAY 10202001 MAY 10202001 Contact Us For Availability
29
MAY 12028601 MAY 12028601 Contact Us For Availability
30
MAY 10432702 MAY 10432702 Contact Us For Availability
30
MAY 10436902 MAY 10436902 Contact Us For Availability
30
MAY 10475509 MAY 10475509 Contact Us For Availability
30
MAY 10419904 MAY 10419904 Contact Us For Availability
31
MAY 10432803 MAY 10432803 Contact Us For Availability
31
MAY 10562502 MAY 10562502 Contact Us For Availability
31
MAY M0211520 MAY M0211520 Contact Us For Availability
31
MAY 12028501 MAY 12028501 Contact Us For Availability
32
MAY 10432804 MAY 10432804 Contact Us For Availability
32
MAY 10450830 MAY 10450830 Contact Us For Availability
33
MAY 10435605 MAY 10435605 Contact Us For Availability
33
MAY 10453001 MAY 10453001 Contact Us For Availability
34
MAY 10551502 MAY 10551502 Contact Us For Availability
34
MAY 10565401 MAY 10565401 Contact Us For Availability
35
MAY 10687702 MAY 10687702 Contact Us For Availability
36
MAY M0224128 MAY M0224128 Contact Us For Availability
37
MAY 10995201 MAY 10995201 Contact Us For Availability
NI
MAY 10476101 MAY 10476101 Contact Us For Availability
NI
MAY 10698532 MAY 10698532 Contact Us For Availability
NI
MAY 10480712 MAY 10480712 Contact Us For Availability
× ![]()
