Model Electrolux TMT116E1B0 MICROWAVE – Common Parts & Diagrams

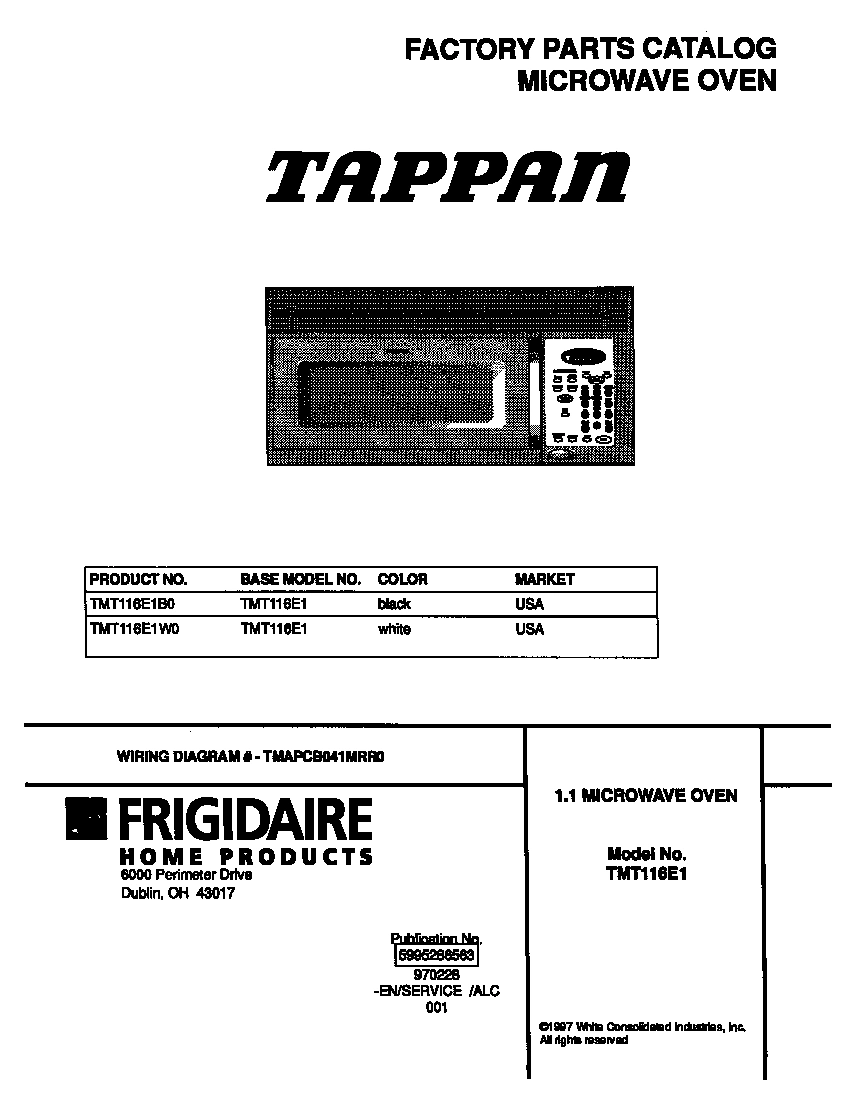

01 - COVER

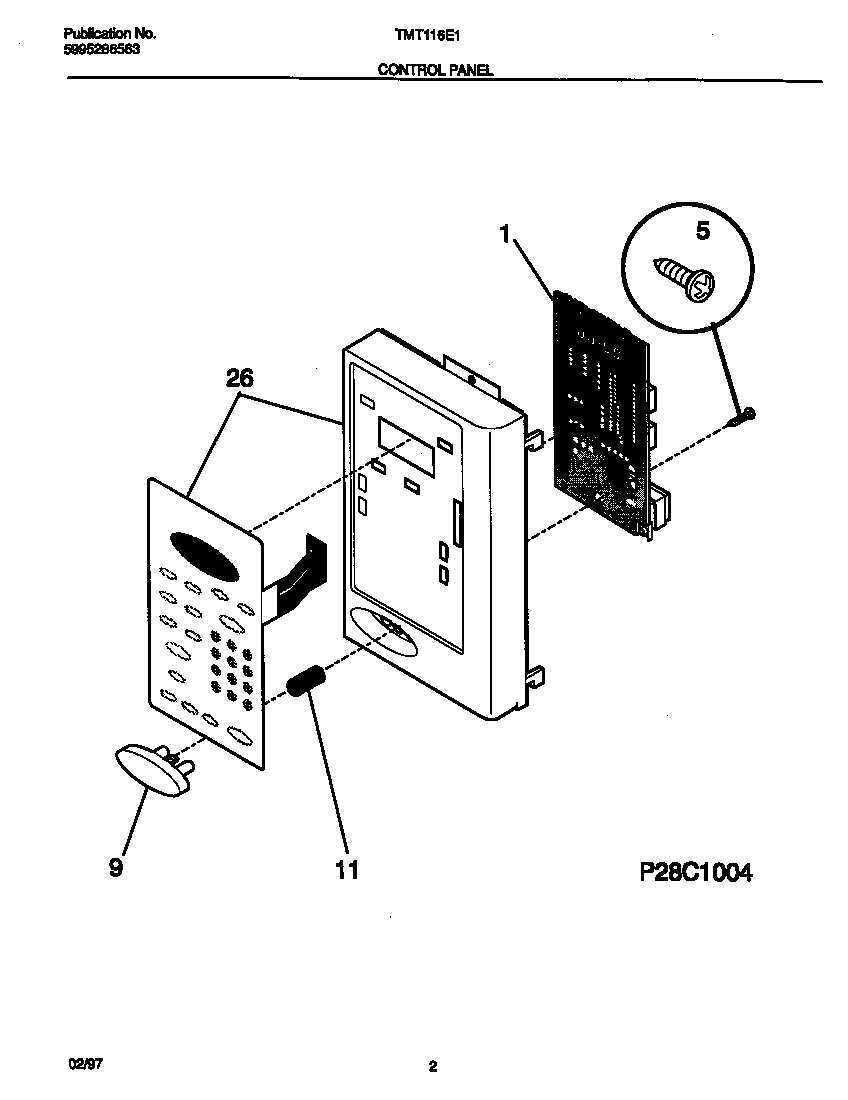

02 - CONTROL PANEL

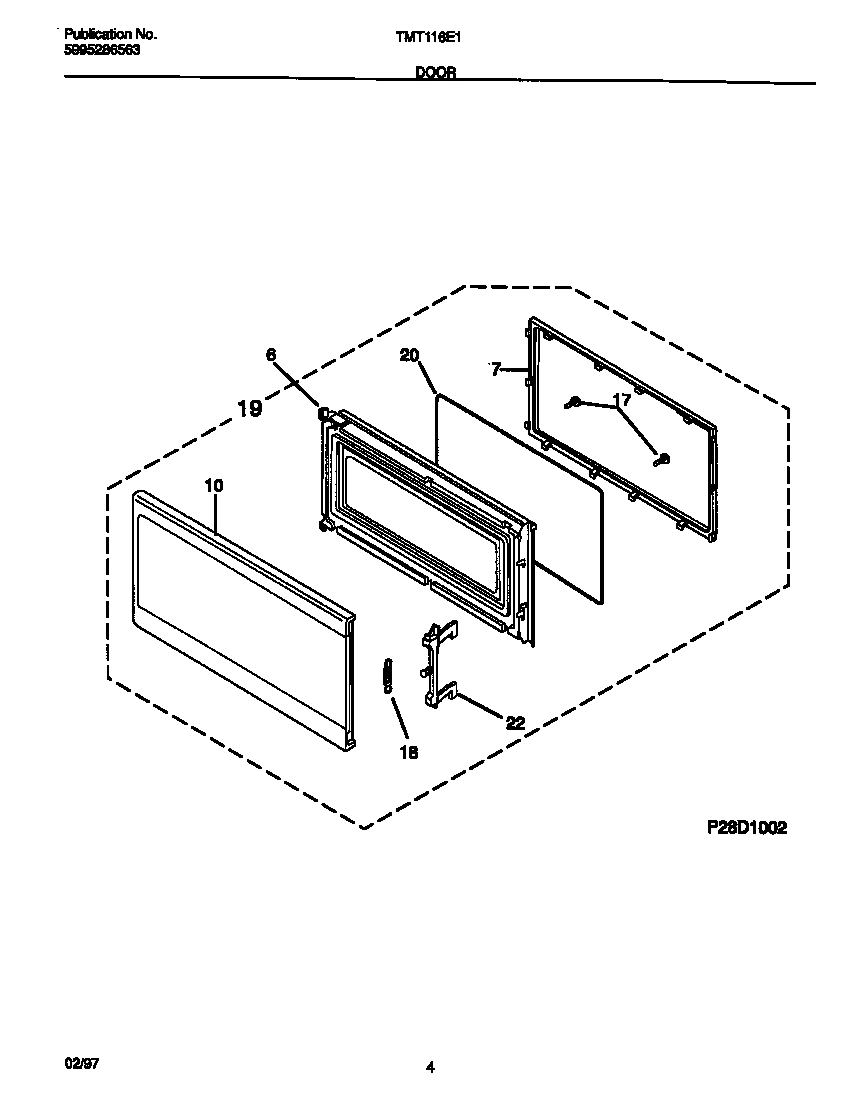

03 - DOOR

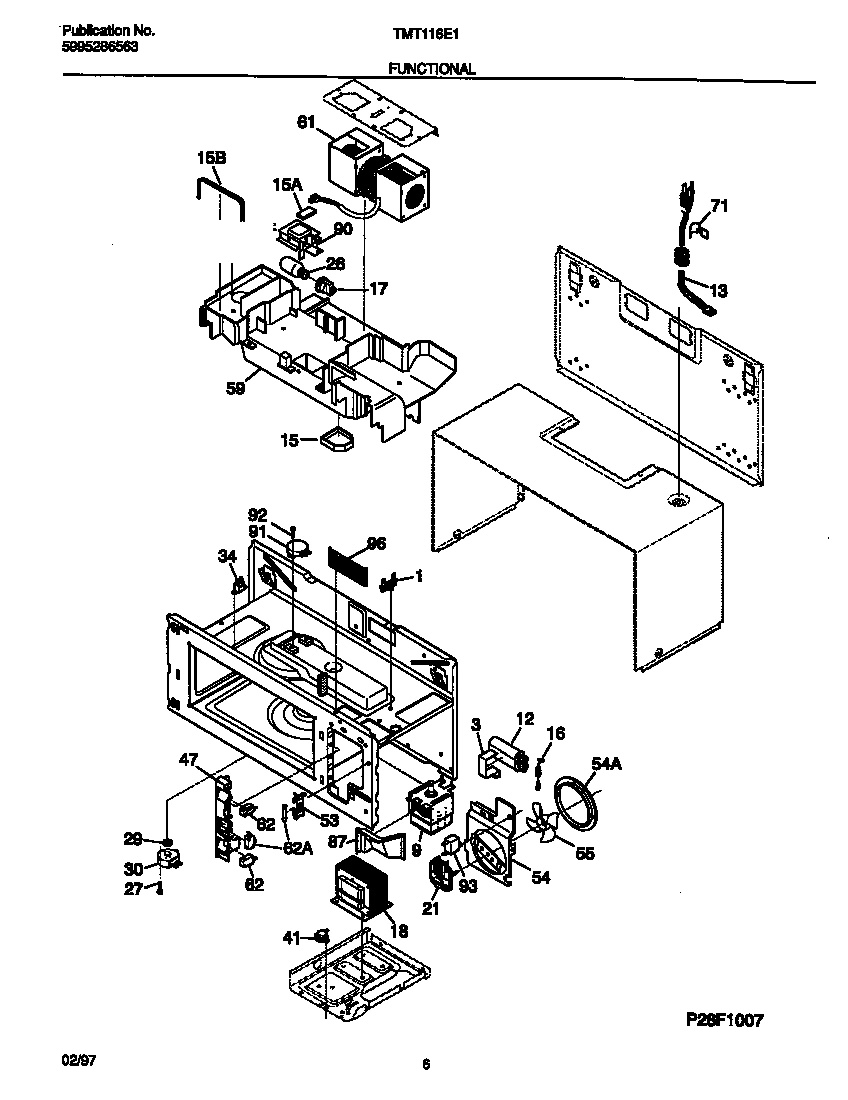

04 - FUNCTIONAL

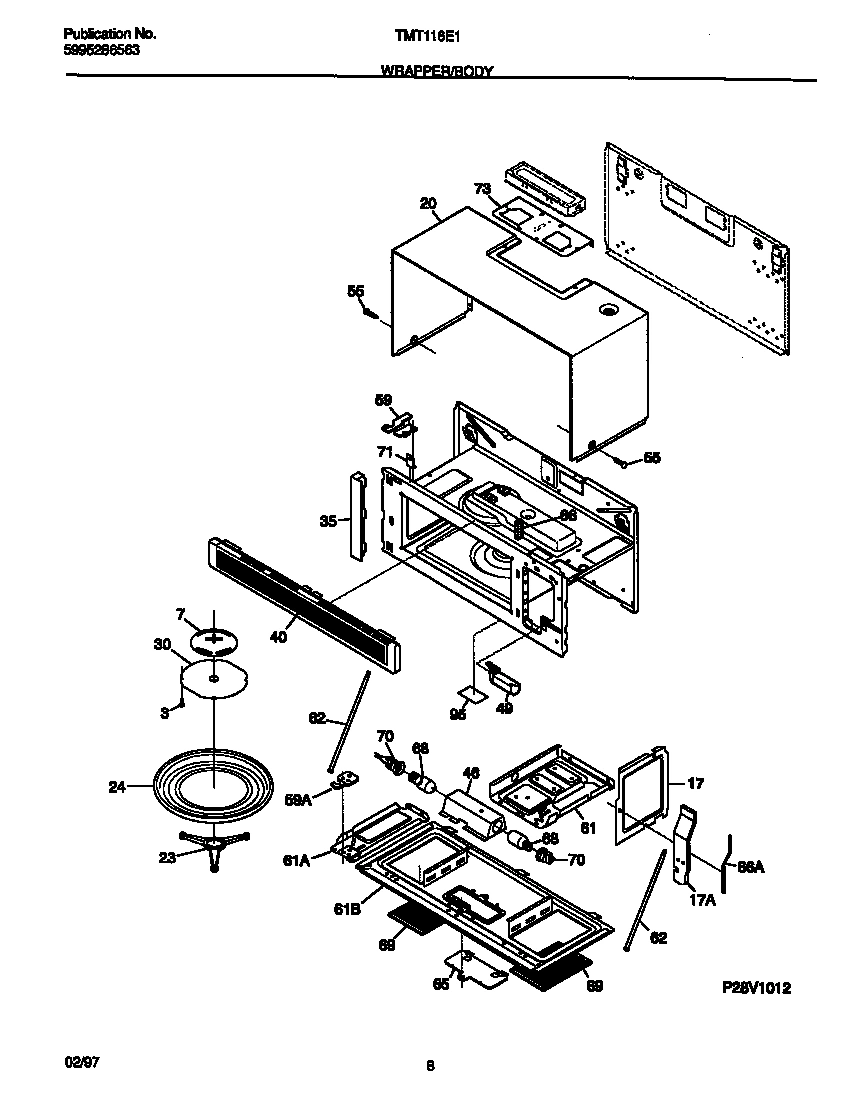

05 - WRAPPER/BODY

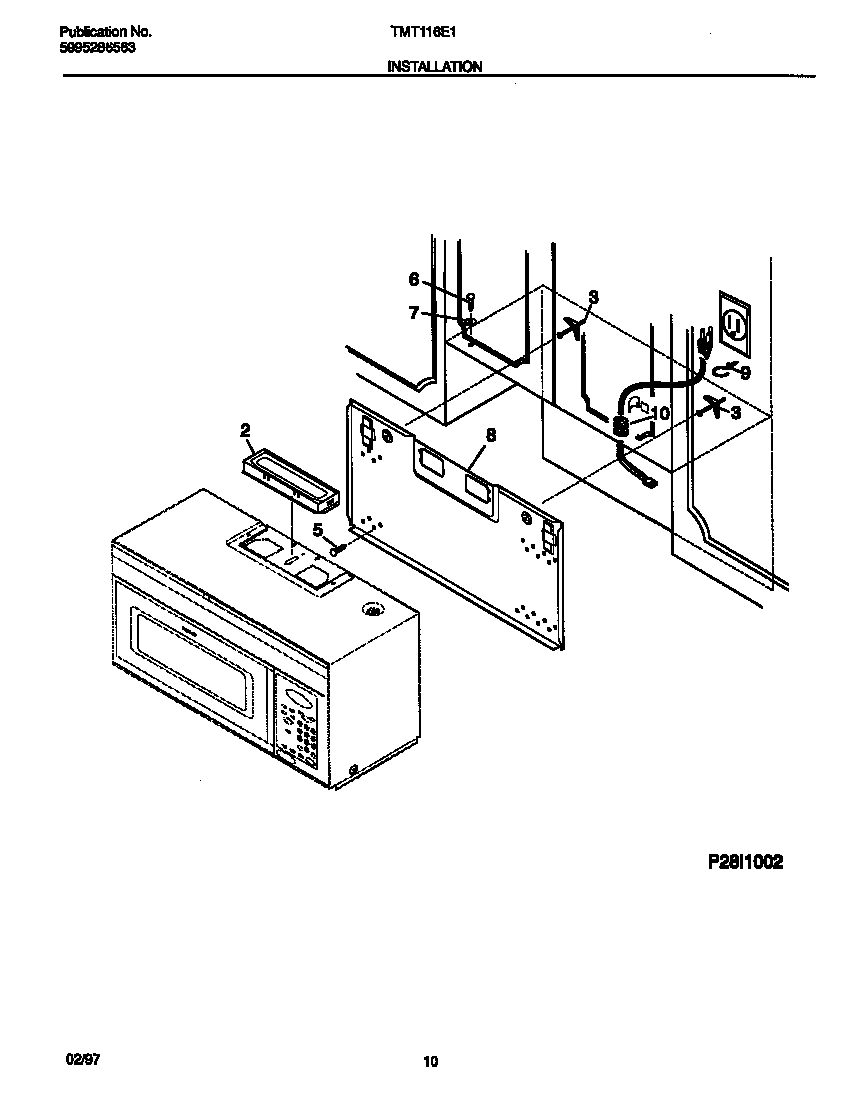

06 - INSTALLATION
Common parts from model Electrolux TMT116E1B0 MICROWAVE
*41360
WCI 5303319596 WCI 5303319596 Contact Us For Availability
*41363
WCI 5303319635 WCI 5303319635 Contact Us For Availability
*41365
WCI 5303319626 WCI 5303319626 Contact Us For Availability
*41366
WCI 5303319628 WCI 5303319628 Contact Us For Availability
*41367
WCI 5303319629 WCI 5303319629 Contact Us For Availability
*41368
WCI 5303319630 WCI 5303319630 Contact Us For Availability
*41369
WCI 5303319627 WCI 5303319627 Contact Us For Availability
*41371
SCREW, BASEPLATE, (2) WCI 5303319636 Contact Us For Availability
*41373
HARDWARE, INSTALLATION WCI 5303319625 Contact Us For Availability
*41374
WCI 5303322661 WCI 5303322661 Contact Us For Availability
*41375
WCI 5303322662 WCI 5303322662 Contact Us For Availability
1
WCI 5303319551 WCI 5303319551 Contact Us For Availability
2
WCI 5303318760 WCI 5303318760 Contact Us For Availability
3
RETAINER-CAPACITOR WCI 5303319587 Contact Us For Availability
3
WCI 5303319592 WCI 5303319592 Contact Us For Availability
3
BOLT-TOGGLE WCI 5303318762 Contact Us For Availability
5
SCREW-WOOD, 5 X 30MM, (6) WCI 5303318765 Contact Us For Availability
7
WCI 5303319589 WCI 5303319589 Contact Us For Availability
7
WCI 5303318766 WCI 5303318766 Contact Us For Availability
8
WCI 5303319598 WCI 5303319598 Contact Us For Availability
9
WCI 5303318763 WCI 5303318763 Contact Us For Availability
10
BUSHING-POWER CORD WCI 5303318761 Contact Us For Availability
13
WCI 5303319560 WCI 5303319560 Contact Us For Availability
15
WCI 5303319613 WCI 5303319613 Contact Us For Availability
15
WCI 5303319614 WCI 5303319614 Contact Us For Availability
15
WCI 5303319615 WCI 5303319615 Contact Us For Availability
16
WCI 5303319548 WCI 5303319548 Contact Us For Availability
17
WCI 5303319602 WCI 5303319602 Contact Us For Availability
17
WCI 5303319612 WCI 5303319612 Contact Us For Availability
18
WCI 5303319555 WCI 5303319555 Contact Us For Availability
20
WCI 5303319572 WCI 5303319572 Contact Us For Availability
21
WCI 5303319565 WCI 5303319565 Contact Us For Availability
22
WCI 5303319621 WCI 5303319621 Contact Us For Availability
23
WCI 5303319585 WCI 5303319585 Contact Us For Availability
24
WCI 5303319586 WCI 5303319586 Contact Us For Availability
27
WCI 5303319631 WCI 5303319631 Contact Us For Availability
30
WCI 5303319588 WCI 5303319588 Contact Us For Availability
35
WCI 5303319577 WCI 5303319577 Contact Us For Availability
40
WCI 5303319579 WCI 5303319579 Contact Us For Availability
41B
SCREW, CUTOUT SWITCH (NOT ILLUSTRATED) WCI 5303319633 Contact Us For Availability
46
WCI 5303319599 WCI 5303319599 Contact Us For Availability
47
WCI 5303319597 WCI 5303319597 Contact Us For Availability
49
WCI 5303319607 WCI 5303319607 Contact Us For Availability
53
WCI 5303319557 WCI 5303319557 Contact Us For Availability
54
WCI 5303319610 WCI 5303319610 Contact Us For Availability
54A
WCI 5303319604 WCI 5303319604 Contact Us For Availability
54B
SCREW, FAN DUCT, (2) (NOT ILLUSTRATED) WCI 5303319637 Contact Us For Availability
55
WCI 5303319603 WCI 5303319603 Contact Us For Availability
55
WCI 5303318768 WCI 5303318768 Contact Us For Availability
59
WCI 5303319601 WCI 5303319601 Contact Us For Availability
59
WCI 5303319569 WCI 5303319569 Contact Us For Availability
59
WCI 5303319606 WCI 5303319606 Contact Us For Availability
61
WCI 5303319563 WCI 5303319563 Contact Us For Availability
61
WCI 5303319570 WCI 5303319570 Contact Us For Availability
61
WCI 5303319571 WCI 5303319571 Contact Us For Availability
61
WCI 5303319576 WCI 5303319576 Contact Us For Availability
62
WCI 5303319638 WCI 5303319638 Contact Us For Availability
65
COVER-COOKTOP ASSY, BLACK WCI 5303319573 Contact Us For Availability
65
GLASS-HOOD LAMP (NOT ILLUSTRATED) WCI 5303319575 Contact Us For Availability
65
COVER-COOKTOP, BLACK, (NOT ILLUSTRATED) WCI 5303319574 Contact Us For Availability
66
WCI 5303319591 WCI 5303319591 Contact Us For Availability
66
WCI 5303319616 WCI 5303319616 Contact Us For Availability
68
WCI 5303319566 WCI 5303319566 Contact Us For Availability
71
Bushing,power cord WCI 5303319605 Contact Us For Availability
71
WCI 5303319590 WCI 5303319590 Contact Us For Availability
73
WCI 5303319578 WCI 5303319578 Contact Us For Availability
87
WCI 5303319608 WCI 5303319608 Contact Us For Availability
90
WCI 5303319600 WCI 5303319600 Contact Us For Availability
91
WCI 5303319553 WCI 5303319553 Contact Us For Availability
92
WCI 5303319632 WCI 5303319632 Contact Us For Availability
93
WCI 5303319564 WCI 5303319564 Contact Us For Availability
95
WCI 5303319593 WCI 5303319593 Contact Us For Availability
96
WCI 5303319595 WCI 5303319595 Contact Us For Availability
× ![]()
