Model Electrolux TMS137T1B2 MICROWAVE – Common Parts & Diagrams
02 - CONTROL PANEL
03 - DOOR

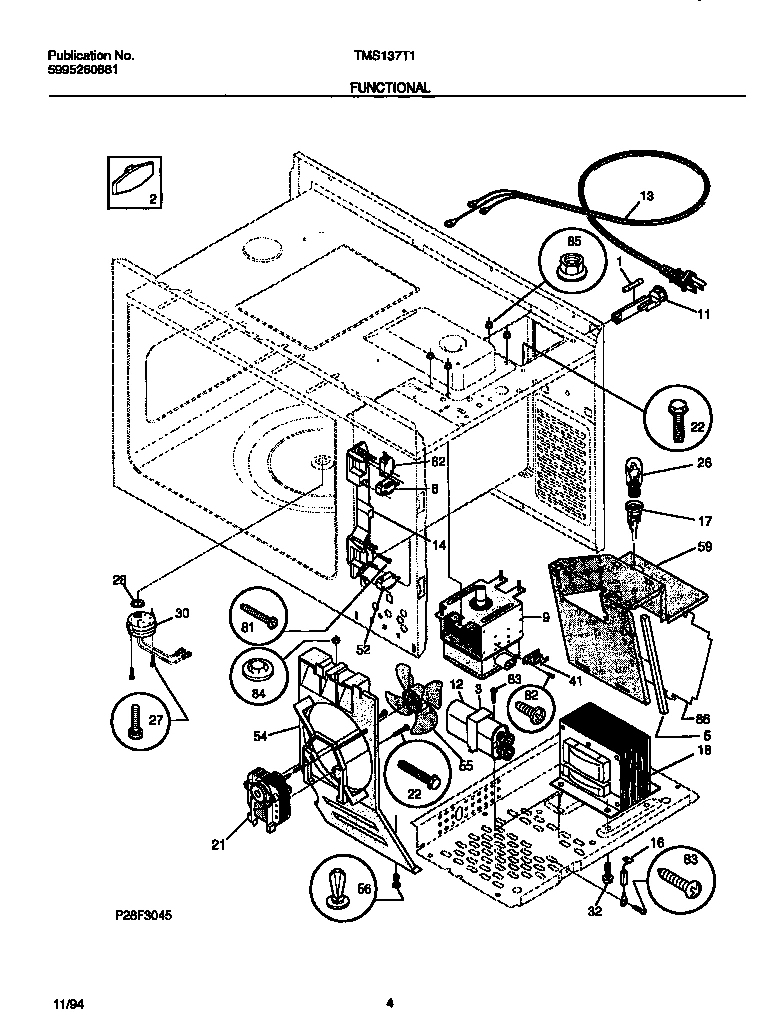

04 - FUNCTIONAL

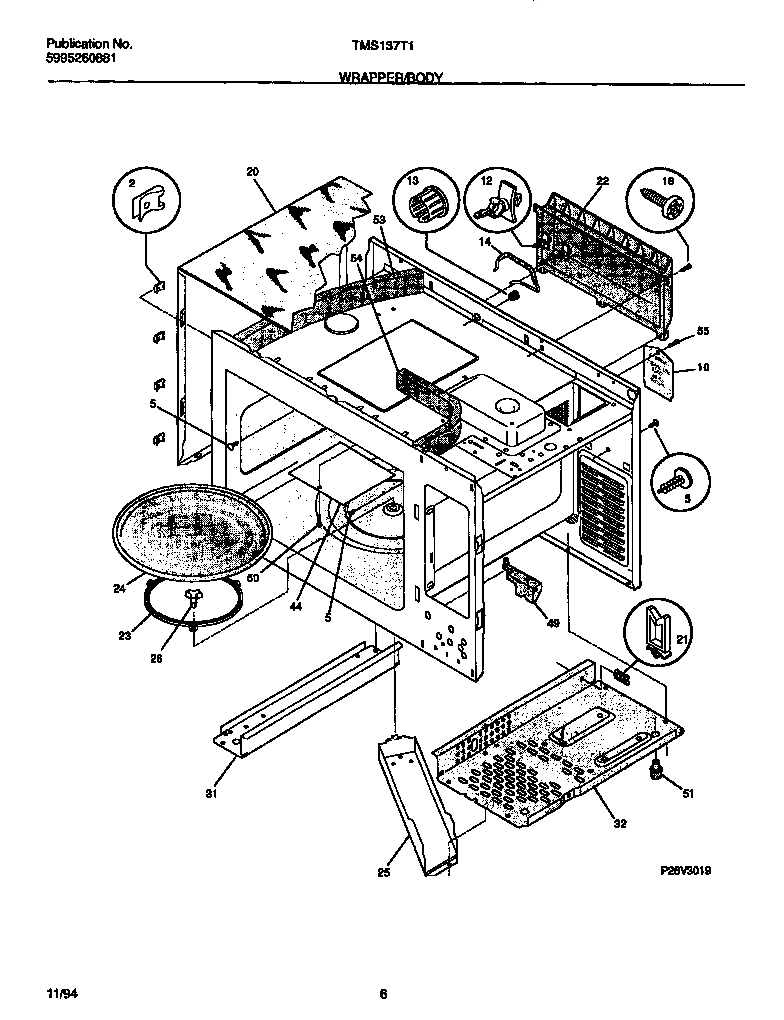

05 - WRAPPER/BODY

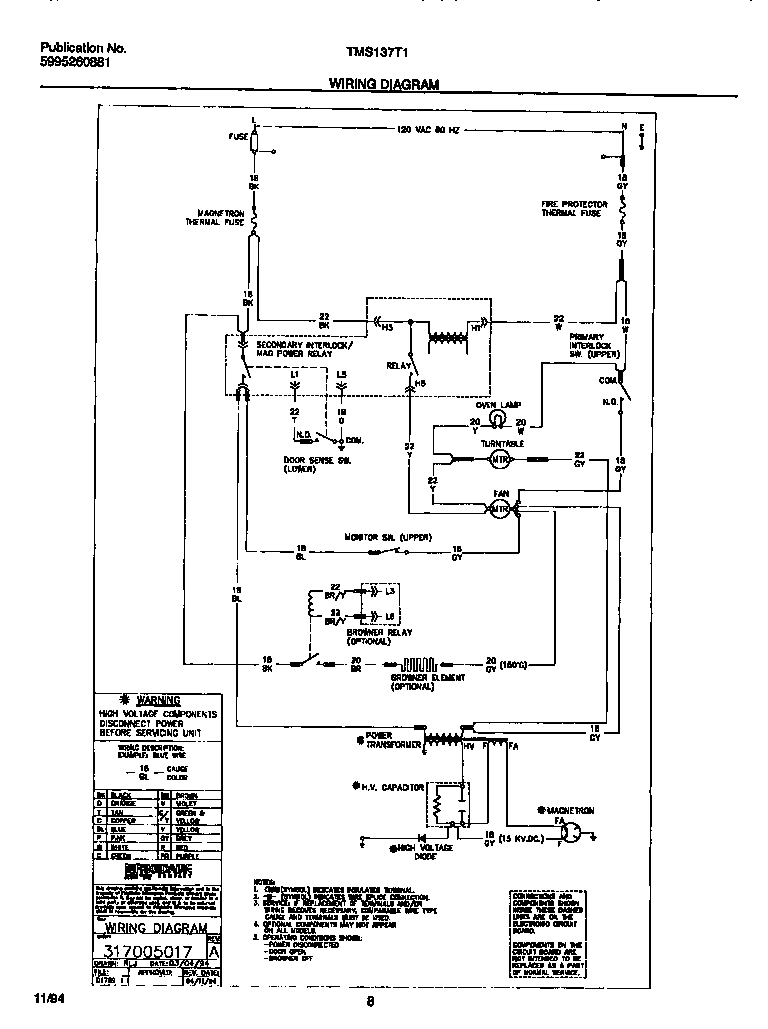

06 - WIRING DIAGRAM
Common parts from model Electrolux TMS137T1B2 MICROWAVE
*42520
WCI 31700506 WCI 31700506 Contact Us For Availability
*42521
SPACER-TURNTABLE MTR, PLACE BETWEEN, MTR & OV WCI 5303292336 Contact Us For Availability
*42522
WCI 317000409 WCI 317000409 Contact Us For Availability
*42523
WCI 317016302 WCI 317016302 Contact Us For Availability
1
WCI 5303011670 WCI 5303011670 Contact Us For Availability
2
WCI 317018431 WCI 317018431 Contact Us For Availability
2
SCREW, CR FLAT HEAD, 8-15(A) X 1/2, HINGE, (4 WCI 5303013882 Contact Us For Availability
2
WCI 5303013626 WCI 5303013626 Contact Us For Availability
3
WCI 5303013771 WCI 5303013771 Contact Us For Availability
4
WCI 317012701 WCI 317012701 Contact Us For Availability
5
WCI 394020800 WCI 394020800 Contact Us For Availability
5
WCI 5303017864 WCI 5303017864 Contact Us For Availability
5
PLUG-BUTTON, WHITE WCI 5303091555 Contact Us For Availability
7
FRAME-DOOR, GREY WCI 5303305441 Contact Us For Availability
8
HINGE-DOOR, BLACK WCI 5303277604 Contact Us For Availability
8
WCI 5303203636 WCI 5303203636 Contact Us For Availability
9
WCI 317017002 WCI 317017002 Contact Us For Availability
9
WCI 5303286175 WCI 5303286175 Contact Us For Availability
10
WCI 317018501 WCI 317018501 Contact Us For Availability
10
WCI 5303212775 WCI 5303212775 Contact Us For Availability
11
WCI 396114300 WCI 396114300 Contact Us For Availability
11
WCI 5303212769 WCI 5303212769 Contact Us For Availability
12
WCI 317018704 WCI 317018704 Contact Us For Availability
12
WCI 5303212788 WCI 5303212788 Contact Us For Availability
13
WCI 317005403 WCI 317005403 Contact Us For Availability
13
WCI 5303280263 WCI 5303280263 Contact Us For Availability
14
WCI 317000704 WCI 317000704 Contact Us For Availability
14
WCI 317000511 WCI 317000511 Contact Us For Availability
16
HARNESS AND DIODE, HV WCI 5303269837 Contact Us For Availability
16
SCREW, TAMPER PROOF, 8-15(A) X 1/2, (2) WCI 394027600 Contact Us For Availability
17
WCI 317018001 WCI 317018001 Contact Us For Availability
18
WCI 317013501 WCI 317013501 Contact Us For Availability
18
WCI 317016902 WCI 317016902 Contact Us For Availability
20
WCI 5303305793 WCI 5303305793 Contact Us For Availability
21
MOTOR-FAN, 120 V, INCLLUDES MOTOR, FAN DUCT, WCI 5303922053 Contact Us For Availability
21
CLIP, WAVES WCI 317019401 Contact Us For Availability
22
SCREW, THREAD FORMING, 8-32 X 1/2, FAN MTR/GR WCI 317004703 Contact Us For Availability
22
WCI 5303269958 WCI 5303269958 Contact Us For Availability
23
WCI 317012905 WCI 317012905 Contact Us For Availability
24
WCI 317012801 WCI 317012801 Contact Us For Availability
25
WCI 317011204 WCI 317011204 Contact Us For Availability
26
WCI 317019301 WCI 317019301 Contact Us For Availability
26
BUSHING, TURNABLE MOTOR WCI 317013101 Contact Us For Availability
27
WCI 3317009502 WCI 3317009502 Contact Us For Availability
28
WCI 317008102 WCI 317008102 Contact Us For Availability
30
WCI 317005503 WCI 317005503 Contact Us For Availability
31
WCI 5303011773 WCI 5303011773 Contact Us For Availability
32
WCI 5303013944 WCI 5303013944 Contact Us For Availability
32
WCI 5303305440 WCI 5303305440 Contact Us For Availability
41
WCI 317018902 WCI 317018902 Contact Us For Availability
44
WCI 317013303 WCI 317013303 Contact Us For Availability
49
WCI 317017801 WCI 317017801 Contact Us For Availability
51
WCI 317005302 WCI 317005302 Contact Us For Availability
52
SWITCH-DOOR SENSER WCI 317005121 Contact Us For Availability
53
WCI 317009902 WCI 317009902 Contact Us For Availability
54
WCI 5303269833 WCI 5303269833 Contact Us For Availability
54
WCI 317009909 WCI 317009909 Contact Us For Availability
55
FAN BLADE WCI 5303269834 Contact Us For Availability
55
SCREW, 8-18 X 1/2, CAPACITOR, WRAPPER & COVER WCI 5303273263 Contact Us For Availability
56
RIVET, PLASTIC, FAN AIR DUCT, (2) WCI 5303269846 Contact Us For Availability
59
WCI 5303286094 WCI 5303286094 Contact Us For Availability
62
WCI 317005120 WCI 317005120 Contact Us For Availability
81
SCREW-SWITCH BRKT MTG, SEMS, 8-18(BT) X 12MM, WCI 396122800 Contact Us For Availability
82
SCREW-THERMAL CUTOUT, PH PAN TAPE TAPTITE, 6- WCI 317009503 Contact Us For Availability
84
WCI 5303212803 WCI 5303212803 Contact Us For Availability
85
NUT, HEX, MAGNETRON, (4) WCI 5308008918 Contact Us For Availability
86
WCI 317000802 WCI 317000802 Contact Us For Availability
× ![]()
