Model Electrolux TMK210AN5T REFRIGERATOR – Common Parts & Diagrams
02 - DOOR
03 - CABINET W/ FAN ASSEMBLY

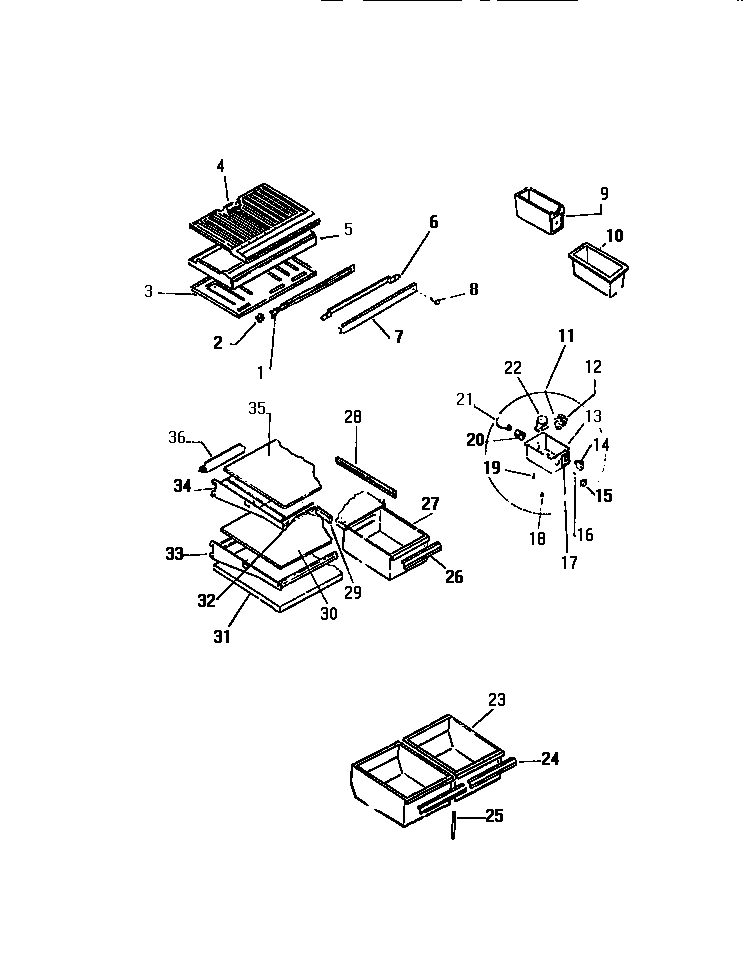

04 - SHELVES, CONTROLS, DIVIDER, MULLION

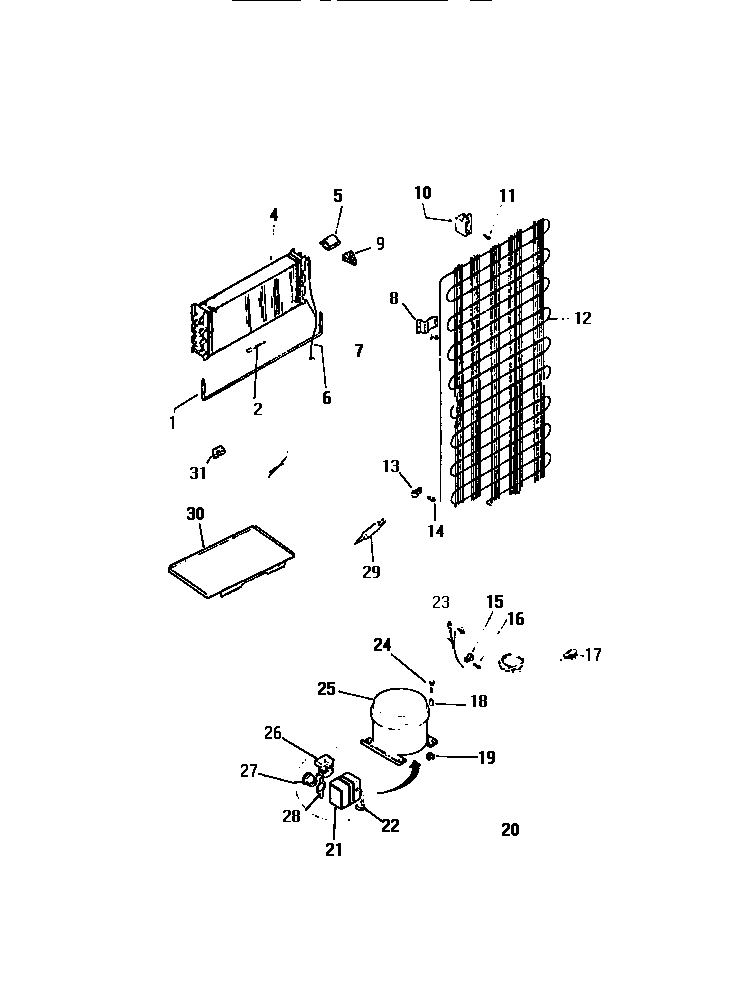

05 - SYSTEM
Common parts from model Electrolux TMK210AN5T REFRIGERATOR
*80402
COVER,WHEAT, (TOP HINGE) WCI G183558-09 Contact Us For Availability
*80405
WCI G179267 WCI G179267 Contact Us For Availability
*80406
WCI G179266 WCI G179266 Contact Us For Availability
*80407
SERVICE DATTA SHEET WCI G184337 Contact Us For Availability
*80408
WCI G184861 WCI G184861 Contact Us For Availability
*80409
WCI G176588 WCI G176588 Contact Us For Availability
*80410
BRKT, CONNECTOR WCI G164571 Contact Us For Availability
*80411
BTN, PLUG, LINER (2 REQ) WCI G162892-01 Contact Us For Availability
*80412
BTN, PLUG, I.M. 7 FR SH MTG HOLES (5 REQ) WCI G162659 Contact Us For Availability
*80413
BTN, PLUG, ICE MKR HARNESS WCI G161046 Contact Us For Availability
*80414
TAPPING PLATE, (2 REQ) WCI G157591 Contact Us For Availability
*80415
BTN, PLUG, WATER INLET WCI G142625 Contact Us For Availability
*80416
WCI G141673 WCI G141673 Contact Us For Availability
*80417
SPEED NUT (2 REQ) WCI G77210 Contact Us For Availability
*80418
SCREW (5 REQ) WCI G162673 Contact Us For Availability
*80419
TAPE, 2WAY TRIM, TOP PC & FC WCI G162991-29 Contact Us For Availability
*80422
DOOR CONVERSION PKG, WHEAT WCI G172723-09 Contact Us For Availability
*80427
WCI G162977-09 WCI G162977-09 Contact Us For Availability
*80430
BTN, PLUG, LH UPPER HINGE BNG (2 REQ) WCI G162892-07 Contact Us For Availability
*80431
BTN, PLUG, DOOR TRIM (4 REQ) WCI G161116 Contact Us For Availability
1
NAMEPLATE WCI G178282-01 Contact Us For Availability
1
WCI G174747-09 WCI G174747-09 Contact Us For Availability
1
HTR, CENTER RAIL WCI G177254 Contact Us For Availability
2
FRAME, NAMEPLATE (ORDER TAPE) WCI G178292 Contact Us For Availability
3
TAPE 2, WAY WCI G162991-04 Contact Us For Availability
3
TOP, PC WCI G174757 Contact Us For Availability
4
TRIM TOP PC & FC (2 REQ) WCI G178293-01 Contact Us For Availability
4
BRKT REAR MOTOR MTG WCI G162048 Contact Us For Availability
4
BOTTOM, FC WCI G174744 Contact Us For Availability
4
EVAPORATOR WCI G162506 Contact Us For Availability
5
SCREW, TRIM TO DOOR (4 REQ) WCI G167677 Contact Us For Availability
5
DIVIDER, CENTER WCI G174758 Contact Us For Availability
6
WCI G163138 WCI G163138 Contact Us For Availability
6
BRKT FRONT MOTOR MTG WCI G162049 Contact Us For Availability
6
STRAP, MULLION MTG WCI G165781 Contact Us For Availability
6
WCI G176594 WCI G176594 Contact Us For Availability
7
SCREW HANDLE MTG (8 REQ) WCI G155660 Contact Us For Availability
7
RING, FAN ORIFICE WCI G167217 Contact Us For Availability
7
WCI G162051-09 WCI G162051-09 Contact Us For Availability
8
HANDLE DOOR PC & FC (2 REQ) WCI G183023-02 Contact Us For Availability
8
SCREW MULLION MTG (2 REQ) WCI G167777 Contact Us For Availability
8
BRKT COND. MTG (4 REQ) WCI G169666-01 Contact Us For Availability
9
WCI G161015-10 WCI G161015-10 Contact Us For Availability
9
BLOCK, EVAP. RH WCI G163099 Contact Us For Availability
9A
PLUG, EVAP, INSUL. BLOCK LH (NON ILLUSTRATED) WCI G185277 Contact Us For Availability
10
WCI G179118-01 WCI G179118-01 Contact Us For Availability
10
WCI G162512-22 WCI G162512-22 Contact Us For Availability
10
CONTAINER, EGG WCI G173948-11 Contact Us For Availability
10
SUPPORT CONDENSER, TOP WCI G160569-03 Contact Us For Availability
12
WCI G170232-18 WCI G170232-18 Contact Us For Availability
12
COLD CONTROL WCI G162667-10 Contact Us For Availability
12
CONDENSER WCI G183612 Contact Us For Availability
13
WCI G141624-25 WCI G141624-25 Contact Us For Availability
13
WCI G170071 WCI G170071 Contact Us For Availability
13
WCI G174655-17 WCI G174655-17 Contact Us For Availability
14
SUPPORT RACK RH, FC & PC (3 REQ) WCI G178287-01 Contact Us For Availability
14
WCI G162050-02 WCI G162050-02 Contact Us For Availability
14
SWITCH, ROCKER WCI G177727-01 Contact Us For Availability
15
TUBE INSULATION (2 REQ) WCI G85642 Contact Us For Availability
15
KNOB CONTROL WCI G174781-06 Contact Us For Availability
16
SUPPORT COIL COVER (2 REQ) WCI G163669 Contact Us For Availability
16
WCI G107080 WCI G107080 Contact Us For Availability
17
DOOR, COMPT. (2) WCI G179225-01 Contact Us For Availability
17
LABEL CONT BOX WCI G178294-01 Contact Us For Availability
17
CORD, SERVICE WCI G162549-01 Contact Us For Availability
18
FRONT, RACK, PC (2 REQ) WCI G162939-32 Contact Us For Availability
18
DAMPER FAN COVER WCI G162661 Contact Us For Availability
18
SLEEVE, COMP. MTG (3 REQ) WCI G154588 Contact Us For Availability
19
WCI G178930-01 WCI G178930-01 Contact Us For Availability
19
WCI G162663-14 WCI G162663-14 Contact Us For Availability
20
SUPPORT RACK, LH, FC & PC (3 REQ) WCI G178284-01 Contact Us For Availability
20
SOCKET LIGHT WCI G168302 Contact Us For Availability
20
WCI G176210 WCI G176210 Contact Us For Availability
21
WCI G183861 WCI G183861 Contact Us For Availability
22
GASKET, PC DOOR WCI G180547-09 Contact Us For Availability
22
BRKT TOP HINGE WCI G183714 Contact Us For Availability
23
BEARING, HINGE (8 REQ) WCI G183138 Contact Us For Availability
23
WCI G161902-08 WCI G161902-08 Contact Us For Availability
24
SCREW, STOP MTG (2 REQ) WCI G182566 Contact Us For Availability
24
SUPPORT, SHELF (8 REQ) WCI G163105 Contact Us For Availability
24
WCI G161013-48 WCI G161013-48 Contact Us For Availability
24
SCREW, COMP. MTG (3 REQ) WCI G183344 Contact Us For Availability
25
STOP, DOOR, PC & FC (2 REQ) WCI G155072 Contact Us For Availability
25
SCREW, SUPPORT MTG (8 REQ) WCI G163104 Contact Us For Availability
25
ROD, CRISPER COVER SUPT WCI G166310-01 Contact Us For Availability
25
COMPRESSOR WCI G183613 Contact Us For Availability
26
WCI G163136 WCI G163136 Contact Us For Availability
26
WCI G163002-02 WCI G163002-02 Contact Us For Availability
26
TRIM, MEAT KPR WCI G161013-46 Contact Us For Availability
26
WCI G182225-02 WCI G182225-02 Contact Us For Availability
27
WCI G181941-09 WCI G181941-09 Contact Us For Availability
27
WCI 164355 WCI 164355 Contact Us For Availability
27
WCI G177623-01 WCI G177623-01 Contact Us For Availability
27
OVERLOAD WCI G179794 Contact Us For Availability
28
WCI G181940-09 WCI G181940-09 Contact Us For Availability
28
WCI G142220 WCI G142220 Contact Us For Availability
28
WCI G174366-02 WCI G174366-02 Contact Us For Availability
28
CLIP, OVERLOAD WCI G166053 Contact Us For Availability
29
SHIM, HINGE WCI G162683 Contact Us For Availability
29
WCI G174365-02 WCI G174365-02 Contact Us For Availability
30
WCI G172513 WCI G172513 Contact Us For Availability
31
CLIP TRIM (3 REQ) WCI G162928 Contact Us For Availability
31
WCI G162840-06 WCI G162840-06 Contact Us For Availability
31
BLOCK, EVAP. L.H. WCI G185298 Contact Us For Availability
32
TRIM SHELF, FRZR WCI G161074-35 Contact Us For Availability
32
TRIM, SHELF, FRONT 13 7/ 16`` (4 REQ) WCI G172434-09 Contact Us For Availability
33
WCI G175878-05 WCI G175878-05 Contact Us For Availability
34
CHANNEL SHELF (2 REQ) WCI G170695 Contact Us For Availability
34
FRAME, CANT SHELF GLASS 13 7/ 32`` WCI G171608-07 Contact Us For Availability
35
CHANNEL CENTER SHELF MTG WCI G175612 Contact Us For Availability
35
WCI G171654-14 WCI G171654-14 Contact Us For Availability
36
SCREW CHANNEL MTG (3 REQ) WCI G163989 Contact Us For Availability
36
TRIM, SHELF, REAR (GLASS, 1/2 CANTILEVER SHEL WCI G172436-10 Contact Us For Availability
36
TRIM, SHELF, REAR ( MEAT KEEPER) WCI G172436-15 Contact Us For Availability
37
KICKPLATE, GRILLE WCI G161905-06 Contact Us For Availability
38
WCI G154397 WCI G154397 Contact Us For Availability
39
ROLLER, FRONT, ADJUSTABLE (2 REQ) WCI G166138 Contact Us For Availability
40
BRKT, HINGE, LOWER WCI G162383 Contact Us For Availability
41
SHIM, HINGE WCI G162903 Contact Us For Availability
42
SCREW (2 REQ) WCI G99167 Contact Us For Availability
43
WCI G142361 WCI G142361 Contact Us For Availability
44
WASHER (NYLON) WCI G164355 Contact Us For Availability
45
COVER, AIR DEF WCI G162178 Contact Us For Availability
46
BRKT, HINGE, CENTER WCI G162384 Contact Us For Availability
47
CLIP, GRILLE (2 REQ) WCI G162994 Contact Us For Availability
48
BOLT, HOUSING TO FRONT RAIL (2 REQ) WCI G145103 Contact Us For Availability
49
PIN, ROLLER, REAR (2 REQ) WCI G162809 Contact Us For Availability
50
ROLLER, REAR (2 REQ) WCI G162808 Contact Us For Availability
51
NUT, PUSH WCI G162662 Contact Us For Availability
52
PAN, DEFROST WCI G162890 Contact Us For Availability
53
BRKT, DRAIN TUBE WCI G166301 Contact Us For Availability
55
SPOUT DRAIN TUBE WCI G162179 Contact Us For Availability
58
DEFLECTOR AIR WCI G162675 Contact Us For Availability
59
BUTTON DECORATIVE PLUG WCI G162827-14 Contact Us For Availability
60
WCI G155529-01 WCI G155529-01 Contact Us For Availability
61
ELBOW, DRAIN WCI G162180 Contact Us For Availability
62
WCI G174733 WCI G174733 Contact Us For Availability
63
WCI G174734 WCI G174734 Contact Us For Availability
× ![]()
