Model Electrolux TMK180EN3W REFRIGERATOR – Common Parts & Diagrams

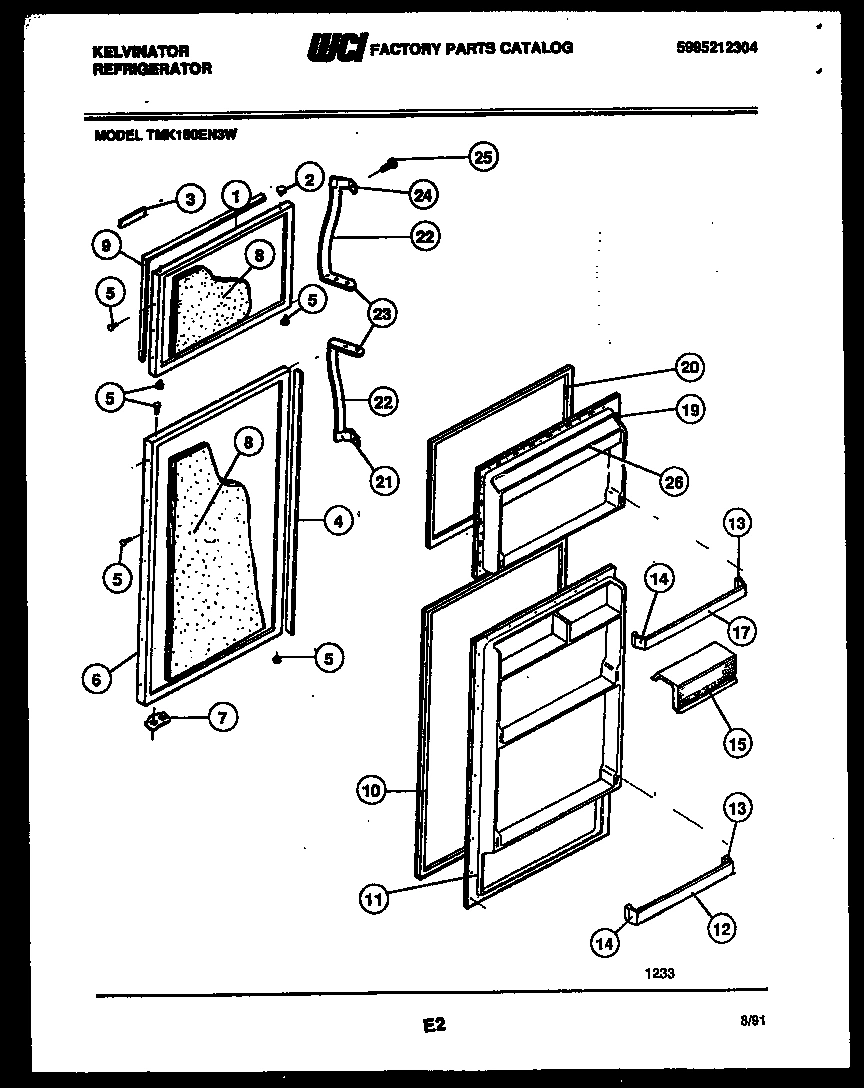

02 - DOOR PARTS

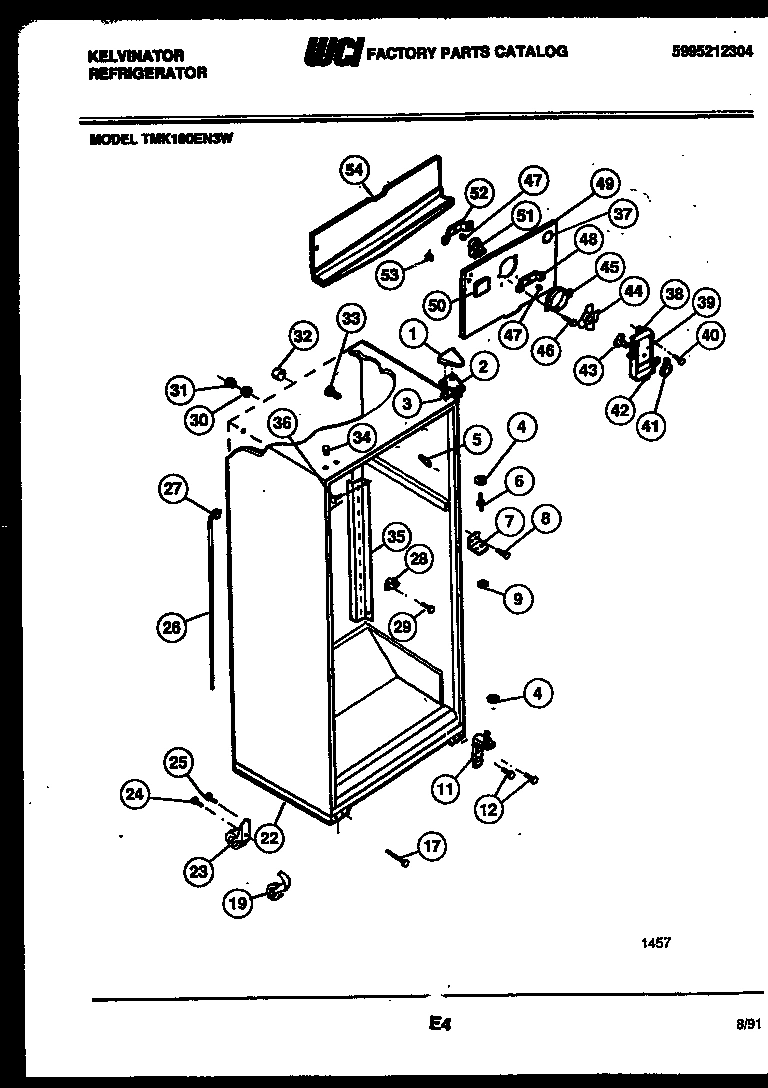

03 - CABINET PARTS

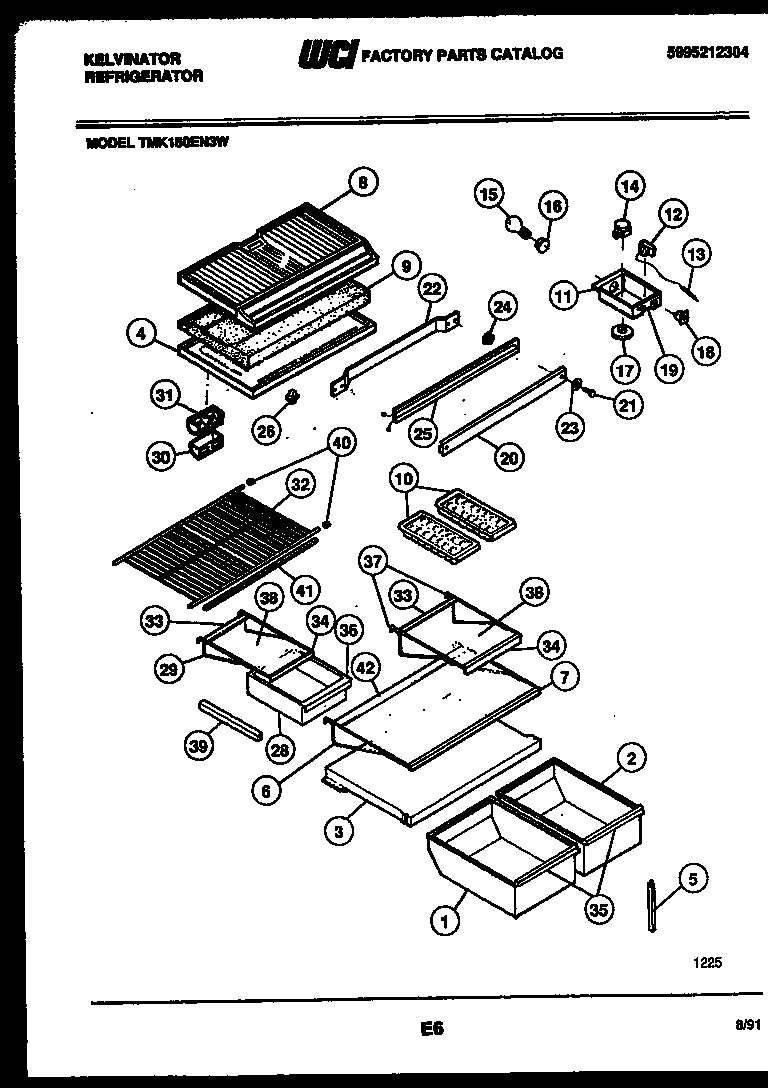

04 - SHELVES AND SUPPORTS

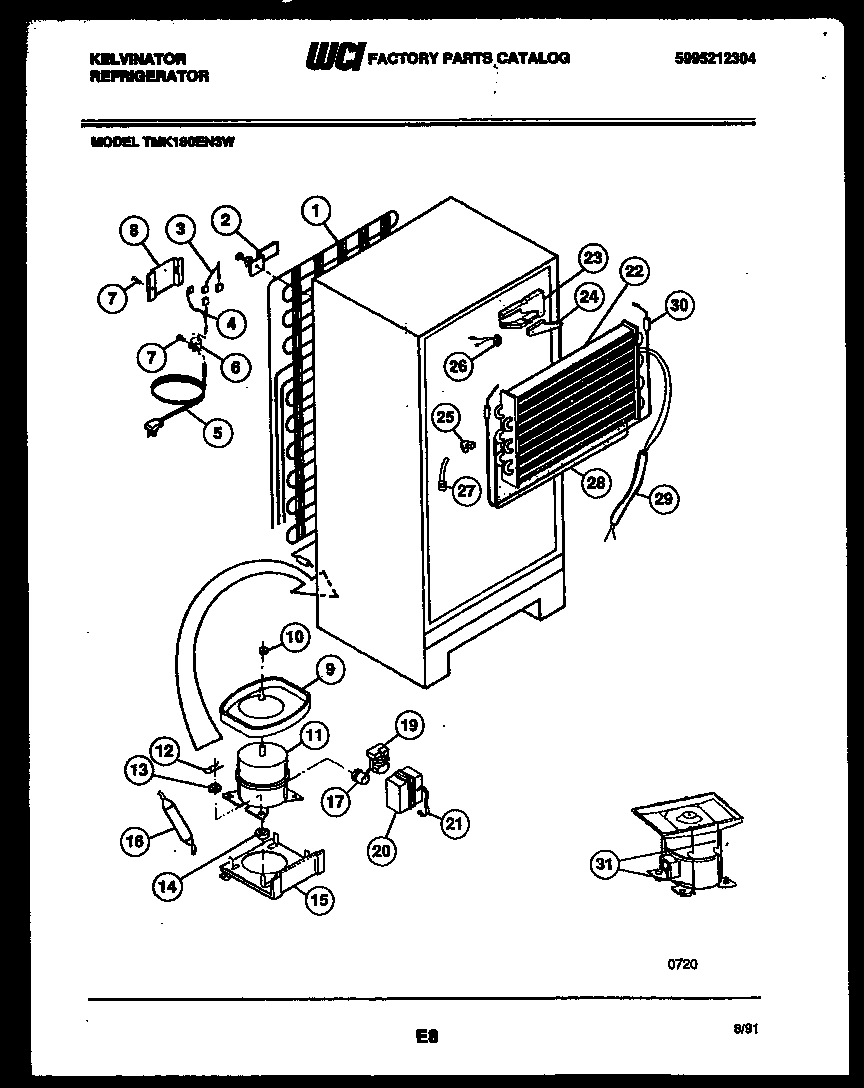

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux TMK180EN3W REFRIGERATOR
*22332
PLUG-LINER (5) WCI 5308016571 Contact Us For Availability
*22341
CONTAINER-EGG WCI 3015068 Contact Us For Availability
*22342
WCI 5303271190 WCI 5303271190 Contact Us For Availability
*22351
HOT TUBE REPAIR KIT WCI 5300189383 Contact Us For Availability
1
PAN-CRISPER-LH WCI 3015047 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
WCI 5308012843 WCI 5308012843 Contact Us For Availability
2
WCI 5308000134 WCI 5308000134 Contact Us For Availability
2
PAN-CRISPER-RH WCI 3015046 Contact Us For Availability
2
BRACKET, COND MTG (4) WCI 5303001342 Contact Us For Availability
2B
WASHER, NO. 10 EXT TOOTH LOCK (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
COVER-CRISPER WCI 3015045 Contact Us For Availability
3
WIRING HARNESS-DIVIDER WCI 3001383 Contact Us For Availability
3A
GASKET COVER (NON-ILLUSTRATED) WCI 3015051 Contact Us For Availability
4
WCI 5303016367 WCI 5303016367 Contact Us For Availability
4
WIRING HARNESS, COMPRESSOR, WCI 5303001347 Contact Us For Availability
4A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
5
SUPPORT-CRISPER CVR WCI 5303205987 Contact Us For Availability
5
WCI 5316254901 WCI 5316254901 Contact Us For Availability
6
WCI 5308000184 WCI 5308000184 Contact Us For Availability
6
FRAME-FULL SHELF WCI 5303210022 Contact Us For Availability
7
WCI 5303001369 WCI 5303001369 Contact Us For Availability
7
TRIM-FULL SHELF WCI 5303272366 Contact Us For Availability
7A
RETAINER-GLASS-FULL SHELF (NON-ILLUSTRATED) WCI 5303209274 Contact Us For Availability
8
BOTTOM-FRZR WCI 5303211427 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
WASHER, NYLON WCI 5308000186 Contact Us For Availability
9
DIVIDER, STYROFOAM WCI 5303001504 Contact Us For Availability
9
DEFROST PAN WCI 5300184715 Contact Us For Availability
10
WCI 5303001348 WCI 5303001348 Contact Us For Availability
11
BRACKET, BOTTOM HINGE WCI 5303212489 Contact Us For Availability
11
WCI 5317672203 WCI 5317672203 Contact Us For Availability
11
COMPRESSOR WITH ELECTRICALS WCI 5303916411 Contact Us For Availability
11A
GUSSET-TAPPING PLATE LH (NON-ILLUSTRATED) WCI 5303212597 Contact Us For Availability
11B
GUSSET-TAPPING PLATE (LH) (NON-ILLUSTRATED) WCI 5303212596 Contact Us For Availability
12
WCI 5303200810 WCI 5303200810 Contact Us For Availability
12
CLIP (4) WCI 5308003596 Contact Us For Availability
12A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
13
SUPPORT-RH (3) WCI 5317828701 Contact Us For Availability
13
WASHER (4) WCI 5308003633 Contact Us For Availability
14
SUPPORT-LH (3) WCI 5317828401 Contact Us For Availability
15
MOUNTING PLATE WCI 5308013663 Contact Us For Availability
16
LIGHT SOCKET WCI 5308000129 Contact Us For Availability
17
WCI 5303270406 WCI 5303270406 Contact Us For Availability
17
SCREW-ROLLER ADJ (2) WCI 5303271412 Contact Us For Availability
17
KNOB - COLD CONTROL WCI 5308010011 Contact Us For Availability
18
SWITCH-SLIDE WCI 5303001670 Contact Us For Availability
19
ROLLER, FRONT (2) WCI 5303212490 Contact Us For Availability
19
WCI 5303270597 WCI 5303270597 Contact Us For Availability
20
WCI 5303200366 WCI 5303200366 Contact Us For Availability
21
WCI 5308012258 WCI 5308012258 Contact Us For Availability
22
CABINET BASE WCI 5303212487 Contact Us For Availability
22
STRAP-MULLION WCI 5308010008 Contact Us For Availability
22
WCI 5303271578 WCI 5303271578 Contact Us For Availability
23
ROLLER-REAR (2) WCI 5308009773 Contact Us For Availability
23
WASHER, STEEL (2) WCI 5303206754 Contact Us For Availability
23
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
24
BOLT-1/4-28 X 1/2 (2) WCI 5308009762 Contact Us For Availability
24
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
24
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
25
WCI 5303210351 WCI 5303210351 Contact Us For Availability
25
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
26
DRAIN TUBE-DEFROST-W/SEAL RING WCI 5303210377 Contact Us For Availability
27
SEAL RING WCI 5303207353 Contact Us For Availability
28
INSULATOR, PLASTIC WCI 5316651102 Contact Us For Availability
28
DRAIN SPOUT WCI 5308000056 Contact Us For Availability
28
PAN-MEAT WCI 5317762306 Contact Us For Availability
29
PUSHPIN (2) WCI 5303001361 Contact Us For Availability
29
FRAME-MK SHELF WCI 5303210754 Contact Us For Availability
29
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
30
COVER - AIR DEFLECTOR WCI 5303001546 Contact Us For Availability
30
WCI 5303001286 WCI 5303001286 Contact Us For Availability
31
PAN RETAINER KIT WCI 5303916001 Contact Us For Availability
31
WCI 5308000071 WCI 5308000071 Contact Us For Availability
31
WCI 5303001287 WCI 5303001287 Contact Us For Availability
32
WCI 5303001198 WCI 5303001198 Contact Us For Availability
32
SHELF-FRZR WCI 5303210761 Contact Us For Availability
33
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
33
WCI 5303209269 WCI 5303209269 Contact Us For Availability
34
PLUG, WHITE WCI 5303001388 Contact Us For Availability
34
WCI 5303210751 WCI 5303210751 Contact Us For Availability
34A
RETAINER-GLASS, (3) (NON-ILLUSTRATED) WCI 5303209263 Contact Us For Availability
35
CHANNEL, RH & LH WCI 5308000302 Contact Us For Availability
35
TRIM-STORAGE PANS (2) WCI 3015059 Contact Us For Availability
35A
CHANNEL - CENTER (NON-ILLUSTRATED) WCI 5303015409 Contact Us For Availability
36
WCI 5303270438 WCI 5303270438 Contact Us For Availability
36A
SCREW-CTR CHAN (3) (NON-ILLUSTRATED) WCI 5308016568 Contact Us For Availability
37
FRAME-SPLIT SHELF (2) WCI 5303209869 Contact Us For Availability
38
FAN COVER WCI 5316306176 Contact Us For Availability
38
WCI 5303210753 WCI 5303210753 Contact Us For Availability
39
LABEL-FAN COVER WCI 3015118 Contact Us For Availability
39
HANGER, MEAT PAN, LH WCI 5303210016 Contact Us For Availability
39A
HANGER, MEAT PAN, RH (NON ILLUSTRATED) WCI 5303210017 Contact Us For Availability
39B
SCREW-MEAT PAN HANGER (NON-ILLUSTRATED) WCI 08014528 Contact Us For Availability
40
CAP PROTECTOR (2) WCI 3201150 No Longer Available
41
WCI 5308011762 WCI 5308011762 Contact Us For Availability
41
WCI 5303210762 WCI 5303210762 Contact Us For Availability
42
WCI 5303001028 WCI 5303001028 Contact Us For Availability
42
TRIM-FULL SHELF-REAR WCI 5303210774 Contact Us For Availability
43
DAMPER WCI 5303001331 Contact Us For Availability
43
GLASS-FULL SHELF WCI 5303210775 Contact Us For Availability
45
WCI 5308000124 WCI 5308000124 Contact Us For Availability
48
WCI 5303001226 WCI 5303001226 Contact Us For Availability
49
WCI 5308009771 WCI 5308009771 Contact Us For Availability
49A
NUT U, TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
50
PLUG, DECORATIVE WCI 5308013636 Contact Us For Availability
52
WCI 5303205119 WCI 5303205119 Contact Us For Availability
53
CONNECTOR BRACKET WCI 5308000107 Contact Us For Availability
54
DRAIN TROUGH WCI 5303001470 Contact Us For Availability
× ![]()
