Model Electrolux TMK180EN0D REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

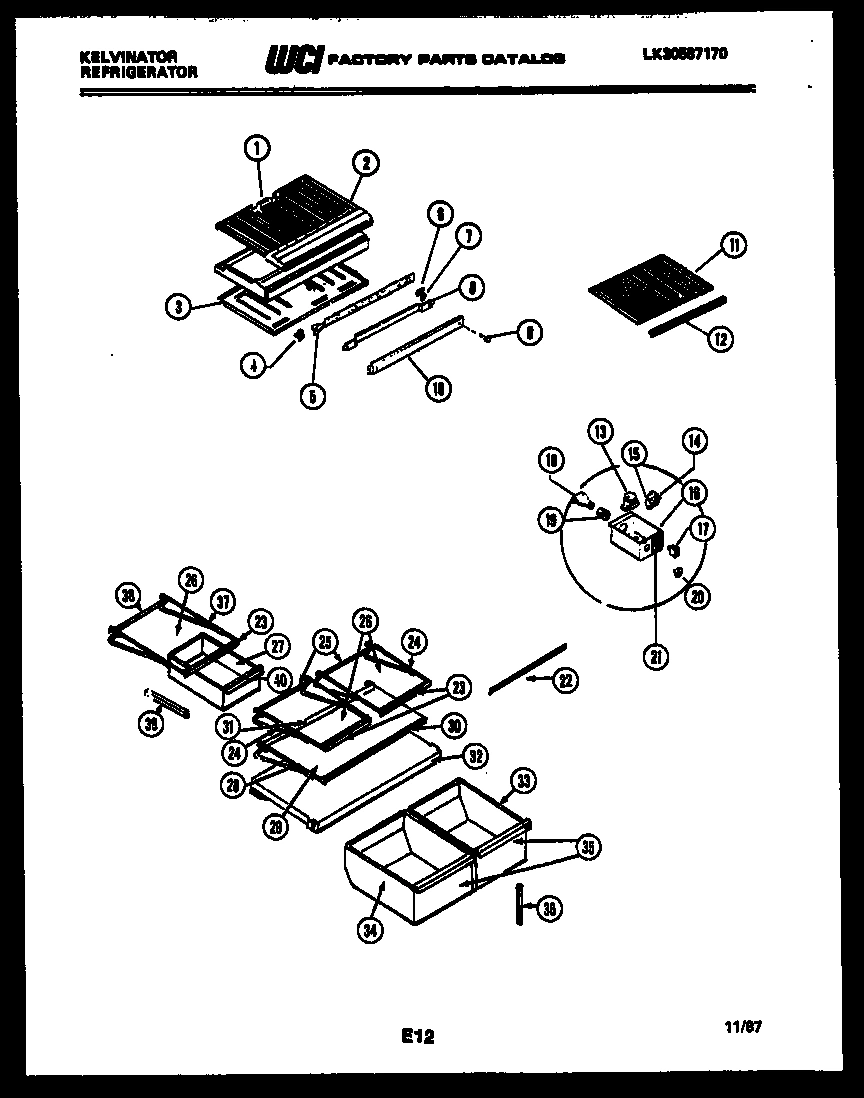

04 - SHELVES AND SUPPORTS

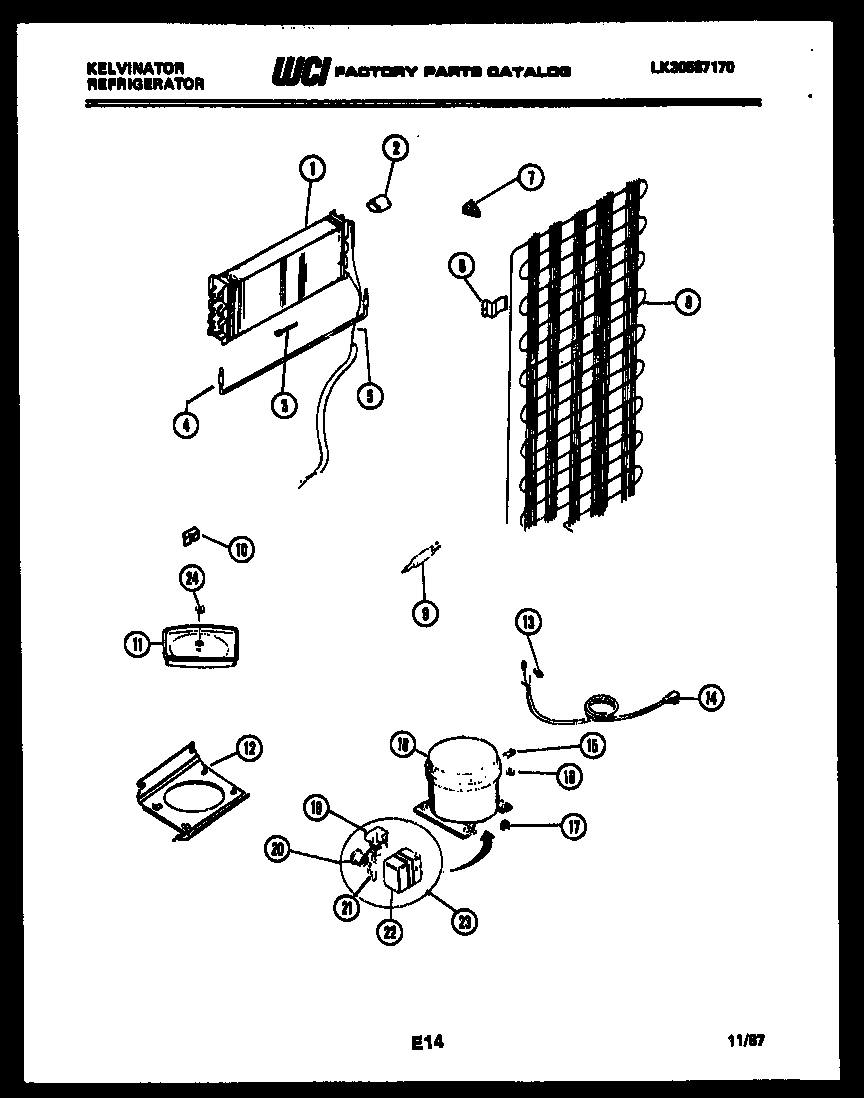

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux TMK180EN0D REFRIGERATOR
*12027
INSERT-HNDL GRIP (2) WCI 3015112 Contact Us For Availability
*12029
DR CONVR PKG-ALMD WCI G172723-11 Contact Us For Availability
*12041
WCI G169332-11 WCI G169332-11 Contact Us For Availability
*12045
WCI G162977-11 WCI G162977-11 Contact Us For Availability
*12087
WCI G161015-17 WCI G161015-17 Contact Us For Availability
*12089
PLATE, TAPPING (2) WCI G157591 Contact Us For Availability
*12092
CVR-TOP HNG-ALMD WCI G183558-11 Contact Us For Availability
*12121
WCI G164571 WCI G164571 Contact Us For Availability
*12122
CONTAINER-EGG WCI 3015068 Contact Us For Availability
1
WCI G189845-11 WCI G189845-11 Contact Us For Availability
1
BRKT-MTR MTG REAR WCI G185303 Contact Us For Availability
1
WCI G185912 WCI G185912 Contact Us For Availability
1
EVAPORATOR WCI G164572 Contact Us For Availability
2
HNDL-DR FC & PC (2) WCI 3015111 Contact Us For Availability
2
WCI G176777 WCI G176777 Contact Us For Availability
2A
WCI G185566 WCI G185566 Contact Us For Availability
3
END-HANDLE-TOP WCI G189452-01 Contact Us For Availability
3
WCI G490021-02 WCI G490021-02 Contact Us For Availability
4
END-HANDLE (2) WCI G189453-01 Contact Us For Availability
4
WCI G177529 WCI G177529 Contact Us For Availability
5
END-HANDLE-BTM WCI G189451-01 Contact Us For Availability
5
BRKT MTR MTG FRNT WCI G185302 Contact Us For Availability
5
WCI G177254 WCI G177254 Contact Us For Availability
5
EXCHANGER-HEAT WCI G177531 Contact Us For Availability
6
WCI G186932-12 WCI G186932-12 Contact Us For Availability
6
RING, FAN ORIFICE WCI G167217 Contact Us For Availability
6
SPACER, MULLION (2) WCI G490082 Contact Us For Availability
6
BRKT-COND. MTG (4) WCI G164637 Contact Us For Availability
7
PANEL-INNER FRZ WCI G183506-01 Contact Us For Availability
7
WASHER NO. 10 STL (4) WCI G166847 Contact Us For Availability
7
BLOCK-EVAPOR. RH WCI G185299 Contact Us For Availability
8
WCI G163061-76 WCI G163061-76 Contact Us For Availability
8
STRAP, MULLION MTG WCI G490087 Contact Us For Availability
8
WCI G162739 WCI G162739 Contact Us For Availability
9
TRIM-RACK WCI 3015063 Contact Us For Availability
9
KNOB-DAMPR CNTRL WCI G162747-22 Contact Us For Availability
9
SCRW-MULLION MTG (4) WCI G183103 Contact Us For Availability
9A
NUT-PUSH (NON-ILLUSTRATED) WCI G162662 Contact Us For Availability
10
SUPT-RACK RH (3) WCI G178287-01 Contact Us For Availability
10
DAMPR-FAN COVER WCI G162661 Contact Us For Availability
10
MULLION-ALMD WCI G180373-11 Contact Us For Availability
10
BLOCK-EVAPOR. LH WCI G188375 Contact Us For Availability
11
RACK-FREEZER WCI 3015060 Contact Us For Availability
11
BUTTN-DEC. PLUG WCI G162827-14 Contact Us For Availability
11
WCI G177059-02 WCI G177059-02 Contact Us For Availability
11
PAN, DEFROST WCI G184715 Contact Us For Availability
12
SUPT-RACK LH (3) WCI G178284-01 Contact Us For Availability
12
WCI G177534 WCI G177534 Contact Us For Availability
12
WCI G184599 WCI G184599 Contact Us For Availability
13
WCI 3015049 WCI 3015049 Contact Us For Availability
13
WCI G176853 WCI G176853 Contact Us For Availability
14
RACK-REFRIG. (2) WCI 3015061 Contact Us For Availability
14
TUBE, DRAIN WCI G184920-01 Contact Us For Availability
14
CONTROL-COLD WCI G162205-11 Contact Us For Availability
14
CORD, SERVICE WCI G162549-01 Contact Us For Availability
15
WCI 3015052 WCI 3015052 Contact Us For Availability
15
SPOUT DRAIN TUBE WCI G162179 Contact Us For Availability
15
CLIP-CMPR MTG (4) WCI G163204 Contact Us For Availability
16
WCI G85642 WCI G85642 Contact Us For Availability
16
WCI G176722-03 WCI G176722-03 Contact Us For Availability
16
WASHER-COMP MTG (4) WCI G164634 Contact Us For Availability
17
GASKET-REFRIG WCI G186932-13 Contact Us For Availability
17
SUPT. COIL COVER (2) WCI G163669 Contact Us For Availability
17
SWITCH SLIDE WCI G178402-01 Contact Us For Availability
18
STOP, DOOR (2) WCI G155072 Contact Us For Availability
18
WCI G183861 WCI G183861 Contact Us For Availability
18
WCI G184669 WCI G184669 Contact Us For Availability
19
BEARING HINGE (8) WCI G183138 Contact Us For Availability
19
BRKT TOP HINGE WCI G183714 Contact Us For Availability
19
SOCKET LIGHT WCI G168302 Contact Us For Availability
19
WCI G182225-11 WCI G182225-11 Contact Us For Availability
19A
WCI G103903 No Longer Available
19A
WASHER-NYLON (NON-ILLUSTRATED) WCI G164355 Contact Us For Availability
19B
WCI G107080 WCI G107080 Contact Us For Availability
20
WCI G189644-11 WCI G189644-11 Contact Us For Availability
20
TRIM-CORNR (4) - ALMD WCI G179684-11 Contact Us For Availability
20
KNOB, CONTROL WCI G490107-02 Contact Us For Availability
20
WCI G176981 WCI G176981 Contact Us For Availability
21
INSUL.-REF. PNL WCI G178297 Contact Us For Availability
21
WCI G142220 WCI G142220 Contact Us For Availability
21
LABEL-CONTROL BOX WCI G189592 Contact Us For Availability
21
RETAINER, OVERLOAD WCI G188957 Contact Us For Availability
22
INSUL.-FRZR PNL WCI G178296 Contact Us For Availability
22
BRKT-CENTER HINGE WCI G163207 Contact Us For Availability
22
GASKET WCI 3015051 Contact Us For Availability
23
TRIM-DOOR-REF. (2) WCI G189468-19 Contact Us For Availability
23
COVER-AIR DEFLECTR WCI G162178 Contact Us For Availability
23
TRIM-FRONT (3) WCI G172434-17 Contact Us For Availability
23A
WCI 3015114 WCI 3015114 Contact Us For Availability
24
LABEL-NAMEPLATE WCI 3015116 Contact Us For Availability
24
CHANL-SHELF MTG (2) WCI G170695 Contact Us For Availability
24
FRAME-CANT. SHELF (2) WCI G171608-10 Contact Us For Availability
24
NUT, LOCK WCI G164958 Contact Us For Availability
24A
CHANL-CENTER SHELF (NON-ILLUSTRATED) WCI G189341 Contact Us For Availability
25
WCI G178292 WCI G178292 Contact Us For Availability
25
TRIM-REAR (2) WCI G172436-15 Contact Us For Availability
26
BRKT-LOWER HINGE WCI G191474 Contact Us For Availability
26
WCI 3015065 WCI 3015065 Contact Us For Availability
27
PAN-MEAT WCI G177623-06 Contact Us For Availability
28
SHIM, LOWER HINGE WCI G163203 Contact Us For Availability
28
FRAMES-SHELF FULL WCI G171608-12 Contact Us For Availability
29
WCI G166912 WCI G166912 Contact Us For Availability
29
SHELF-GLASS FULL WCI 3015066 Contact Us For Availability
30
ROLLER-FRONT (2) WCI G177021 Contact Us For Availability
30
TRIM-FRONT WCI G172434-08 Contact Us For Availability
30A
SPRING-ADJ. ROLLER (2) (NON-ILLUSTRATED) WCI G178494 Contact Us For Availability
30B
BOLT-ROLLER (2) (NON-ILLUSTRATED) WCI G177024 Contact Us For Availability
30C
SUPT-BASE CABINET (NON-ILLUSTRATED) WCI G177302 Contact Us For Availability
31
ROLLER, REAR (2) WCI G183407 Contact Us For Availability
31A
BOLT-ROLLER (2) (NON-ILLUSTRATED) WCI G177025 Contact Us For Availability
32
DEFLECTOR AIR WCI G162675 Contact Us For Availability
32
COVER-CRISPER WCI 3015045 Contact Us For Availability
33
WCI G174733 WCI G174733 Contact Us For Availability
33
CRISPER-PAN RH WCI 3015046 Contact Us For Availability
34
WCI G174734 WCI G174734 Contact Us For Availability
34
CRISPER-PAN LH WCI 3015047 Contact Us For Availability
35
WCI G174747-11 WCI G174747-11 Contact Us For Availability
35
WCI 3015059 WCI 3015059 Contact Us For Availability
36
SUPPORT-CRISPR CVR WCI G166310-02 Contact Us For Availability
37
FRAME-MEAT KEEPR WCI G187218-02 Contact Us For Availability
38
TRIM-REAR WCI G172436-05 Contact Us For Availability
39
HANGER-MEAT PAN LH WCI G187215-03 Contact Us For Availability
39A
HANGER-MEAT PAN RH (NON-ILLUSTRATED) WCI G187216-03 Contact Us For Availability
40
WCI G161013-67 WCI G161013-67 Contact Us For Availability
× ![]()
