  • Whirlpool TMH16XSD0

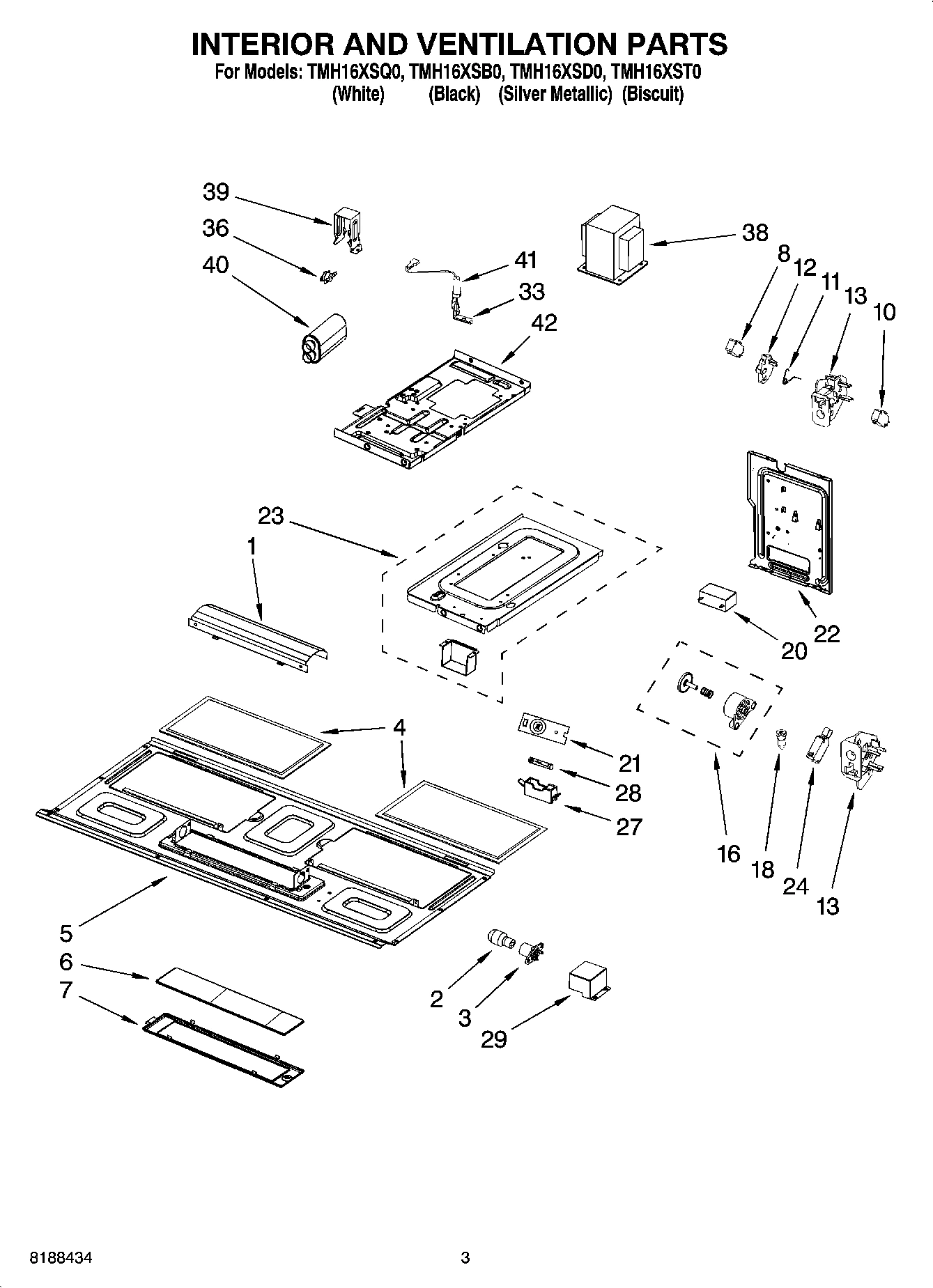

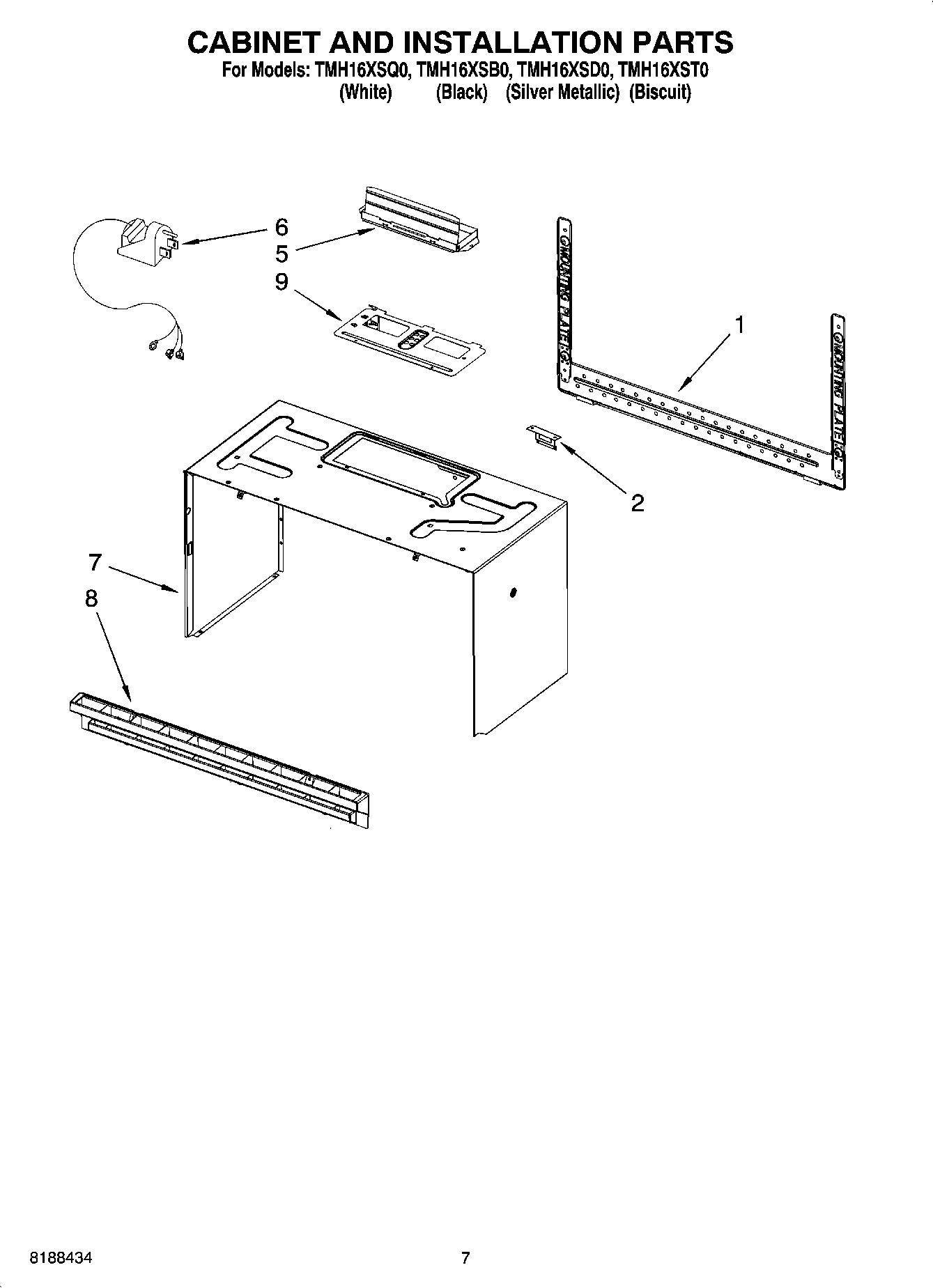

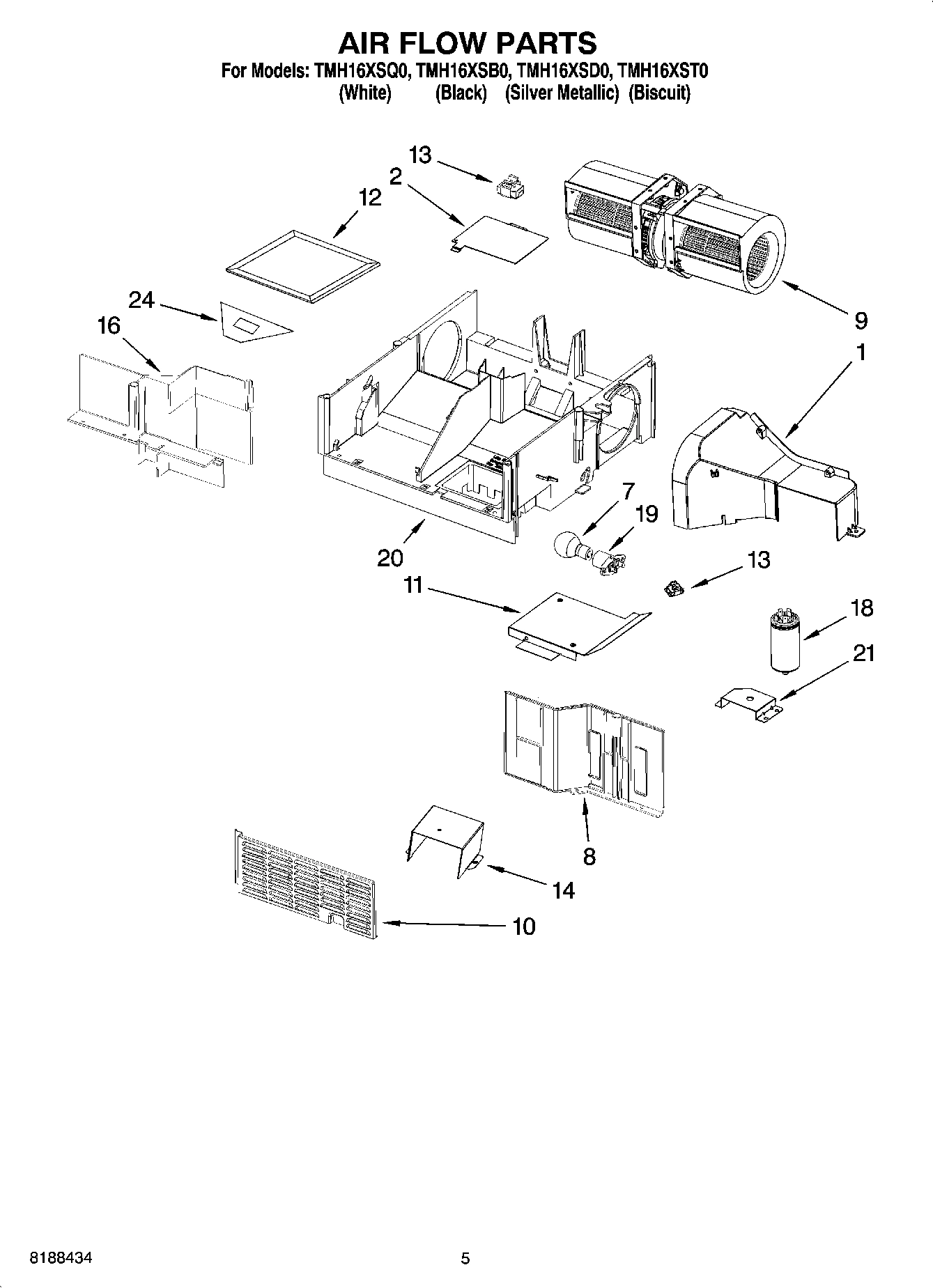

Model Whirlpool TMH16XSD0 Microwave Oven 1.6 Cu. Ft. – Common Parts & Diagrams

1

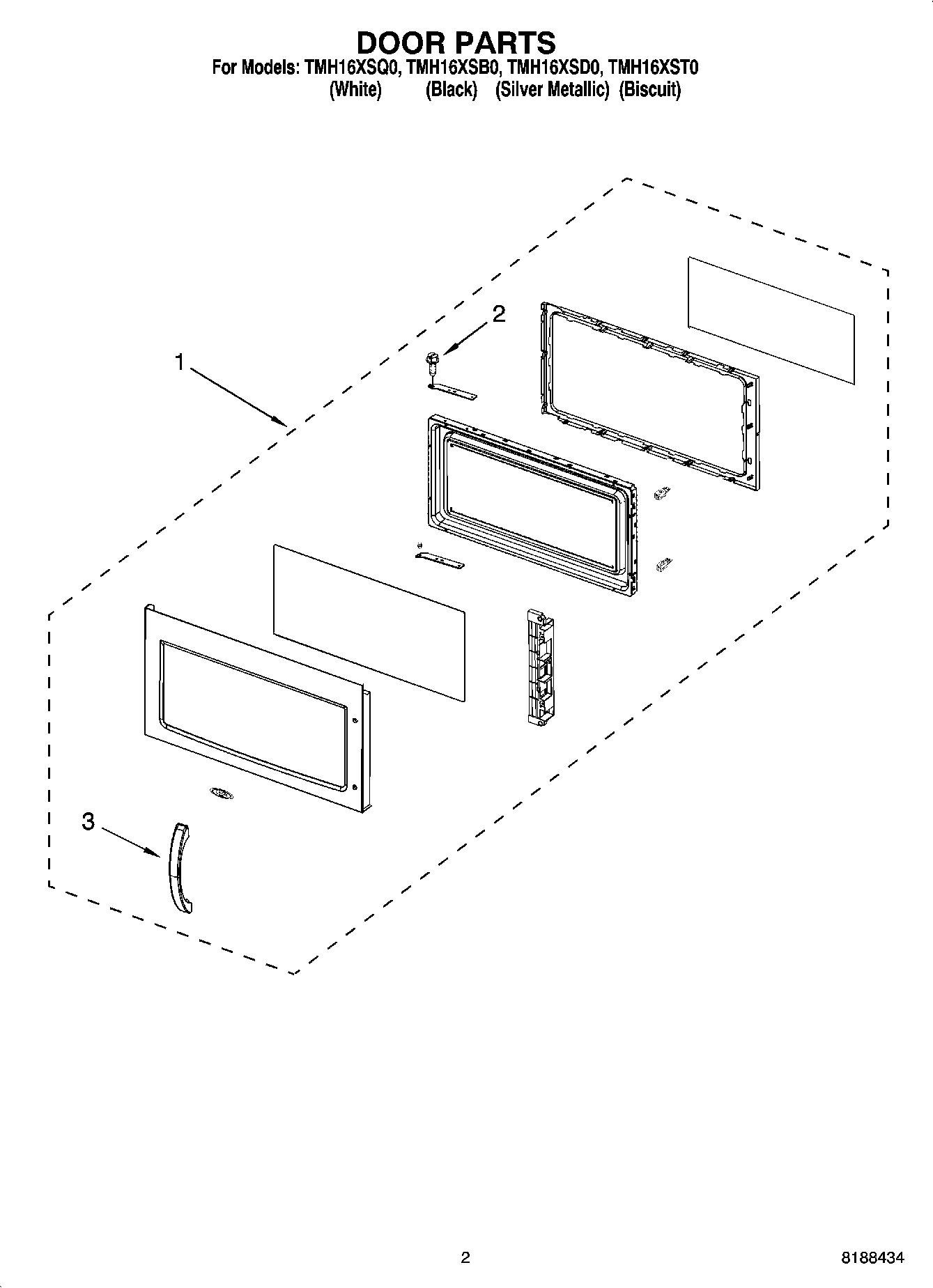

COMPLETE DOOR (Silver Metallic)
COMPLETE DOOR (Silver Metallic) WPL W10111668 Contact Us For Availability
View on Model
1
Deflector, Air
Deflector, Air WPL 8206340 Contact Us For Availability
View on Model
1
Cover, Inlet Includes Nails and Bushings
Cover, Inlet Includes Nails and Bushings WPL 8206389 Contact Us For Availability
View on Model
1
COMPLETE DOOR (Biscuit)
COMPLETE DOOR (Biscuit) WPL W10111669 Contact Us For Availability
View on Model
1
U & C Guide
U & C Guide WPL 8205872 Contact Us For Availability
View on Model
1
Cook Guide Label
Cook Guide Label WPL 8205873 Contact Us For Availability
View on Model
1
Tech Sheet
Tech Sheet WPL 8205874 Contact Us For Availability
View on Model
1
Reflector, Lamp
Reflector, Lamp WPL 8206387 Contact Us For Availability
View on Model
2
Screw
Screw WPL 8206181 Contact Us For Availability
View on Model
3

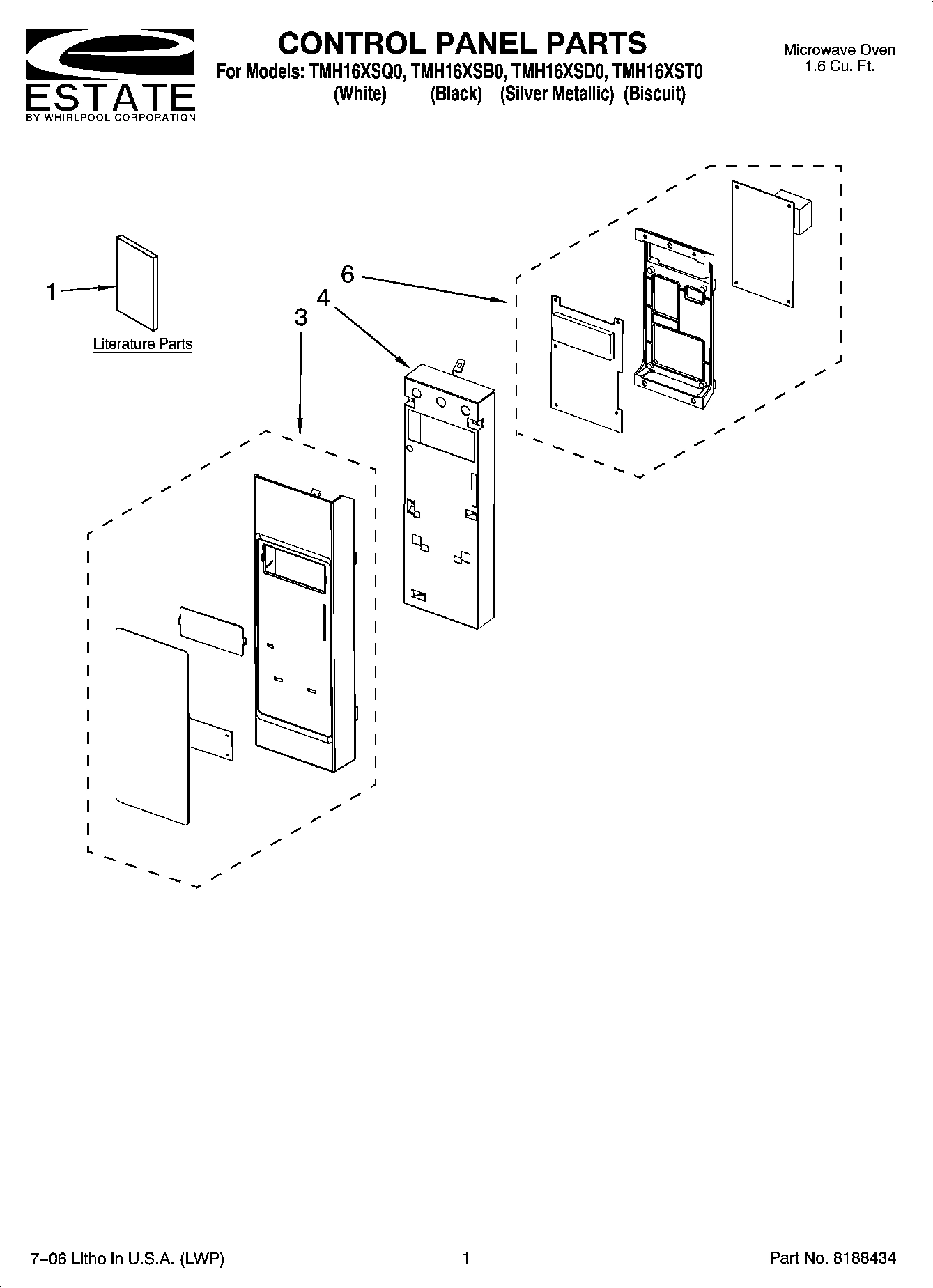

Panel Asy, Control Includes Lens and Membrane
Panel Asy, Control Includes Lens and Membrane WPL W10111661 Contact Us For Availability
View on Model
3
Panel Asy, Control Includes Lens and Membrane
Panel Asy, Control Includes Lens and Membrane WPL W10111662 Contact Us For Availability
View on Model
3
Panel Asy, Control Includes Lens and Membrane
Panel Asy, Control Includes Lens and Membrane WPL W10111663 Contact Us For Availability
View on Model
3
Panel Asy, Control Includes Lens and Membrane
Panel Asy, Control Includes Lens and Membrane WPL W10111664 Contact Us For Availability
View on Model
3
Holder, Lamp
Holder, Lamp WPL 8206374 Contact Us For Availability
View on Model

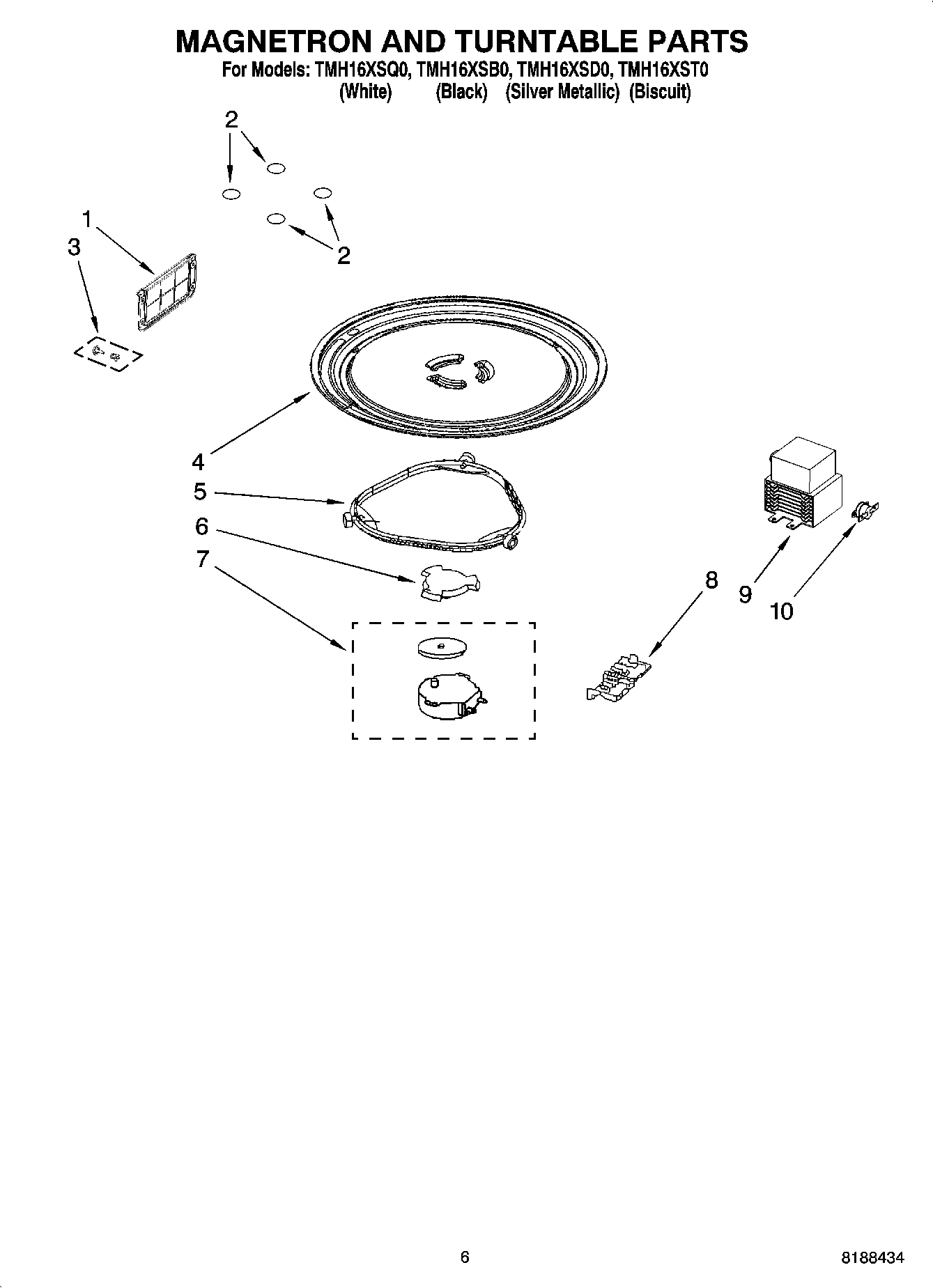

4
Turntable
Turntable WPL 4393799 Contact Us For Availability
View on Model
4
Bracket, Control
Bracket, Control WPL 8206361 Contact Us For Availability
View on Model
5
Plate, Bottom
Plate, Bottom WPL 8206386 Contact Us For Availability
View on Model
6
Microcomputer
Microcomputer WPL W10111660 Contact Us For Availability
View on Model
6
Glass, Lamp
Glass, Lamp WPL 8206376 Contact Us For Availability
View on Model
7
Holder, Glass
Holder, Glass WPL 8206375 Contact Us For Availability
View on Model
8
Cover, Side Inlet
Cover, Side Inlet WPL 8206371 Contact Us For Availability
View on Model
9
H.V. Wire Assy
H.V. Wire Assy WPL 8206415 Contact Us For Availability
View on Model
9
Miscellaneous
Miscellaneous WPL ARI131670A Contact Us For Availability
View on Model
9
Main Harness
Main Harness WPL W10107710 Contact Us For Availability
View on Model
9
Hdlmp/TT Wire Assy
Hdlmp/TT Wire Assy WPL W10107730 Contact Us For Availability
View on Model
9
HV Trnsfmr Wr Assy
HV Trnsfmr Wr Assy WPL W10107740 Contact Us For Availability
View on Model
9
Grnd Wire, Filter
Grnd Wire, Filter WPL W10107760 Contact Us For Availability
View on Model
9
Harness Wire, NTC
Harness Wire, NTC WPL W10107770 Contact Us For Availability
View on Model
9
Motor, Fan Assy
Motor, Fan Assy WPL 8206381 Contact Us For Availability
View on Model
10
Shield
Shield WPL W10107800 Contact Us For Availability
View on Model
11
Spring, Interlock
Spring, Interlock WPL 8169438 Contact Us For Availability
View on Model
12
Plate, Cam
Plate, Cam WPL 8183824 Contact Us For Availability
View on Model
14
Channel, Air
Channel, Air WPL 8206625 Contact Us For Availability
View on Model
16
Air Guide
Air Guide WPL 8206384 Contact Us For Availability
View on Model
18
Filter
Filter WPL 8206624 Contact Us For Availability
View on Model
19
Holder, Lamp
Holder, Lamp WPL 8169539 Contact Us For Availability
View on Model
20
Base Plate, Air Guide
Base Plate, Air Guide WPL 8206383 Contact Us For Availability
View on Model
21
Thermistor (PCBA)
Thermistor (PCBA) WPL 8206421 Contact Us For Availability
View on Model
21
Brkt-Mntg, Filter
Brkt-Mntg, Filter WPL 8206368 Contact Us For Availability
View on Model
22
Plate, Side
Plate, Side WPL 8206348 Contact Us For Availability
View on Model
23
Chassis Assembly
Chassis Assembly WPL 8206358 Contact Us For Availability
View on Model
24
Socket, Motor Wire
Socket, Motor Wire WPL 8185097 Contact Us For Availability
View on Model
27
Holder, Fuse
Holder, Fuse WPL 8184312 Contact Us For Availability
View on Model
29
Terminal Cvr, Lamp
Terminal Cvr, Lamp WPL 8206359 Contact Us For Availability
View on Model
33
Support, Diode
Support, Diode WPL 8206370 Contact Us For Availability
View on Model
38
Transformer, H.V.
Transformer, H.V. WPL 8206343 Contact Us For Availability
View on Model
41
Diode, H.V.
Diode, H.V. WPL 8206369 Contact Us For Availability
View on Model
42
Chassis
Chassis WPL 8206344 Contact Us For Availability
View on Model
