Model Whirlpool TMH14XLQ1 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

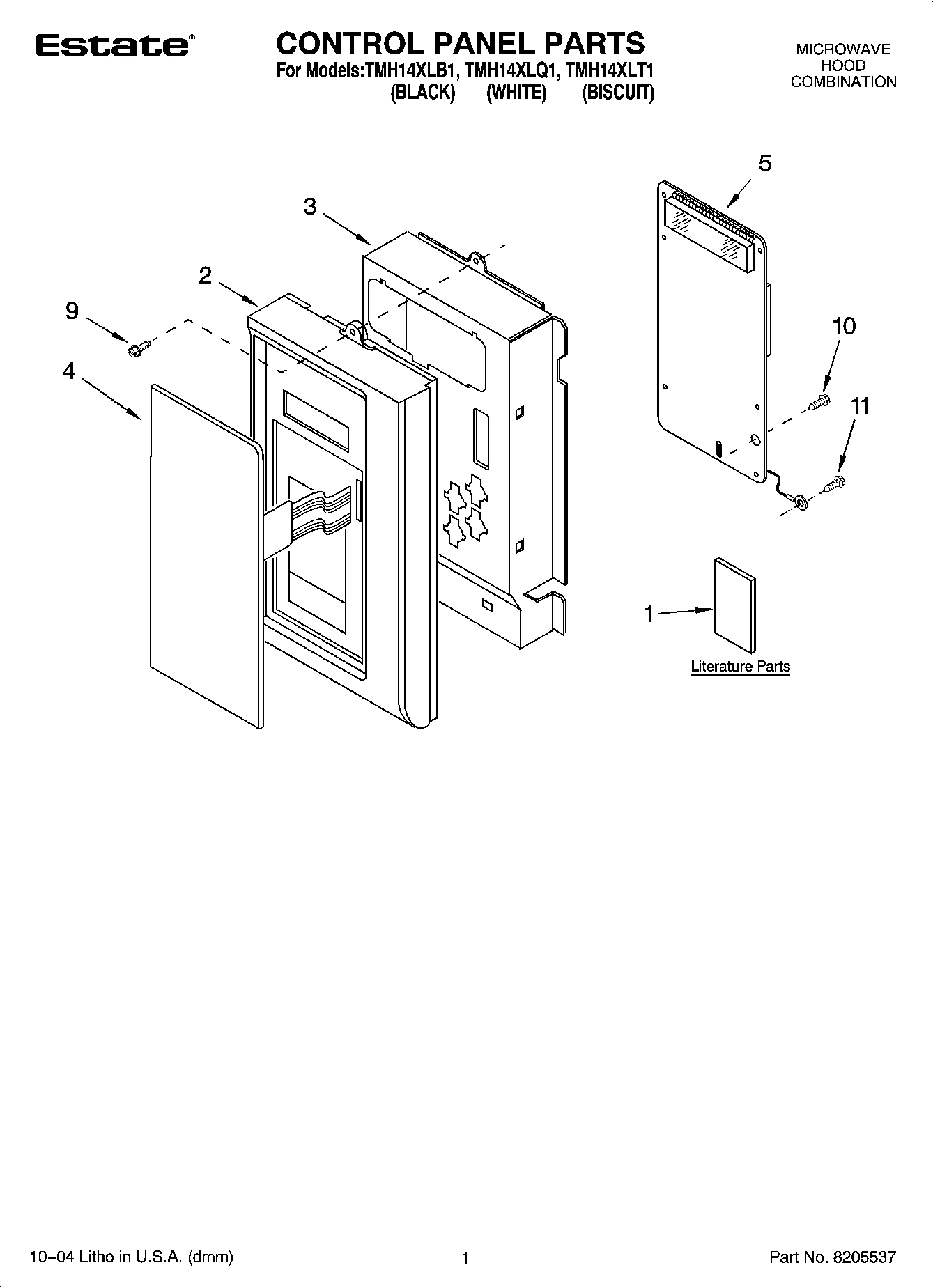

01 - CONTROL PANEL PARTS

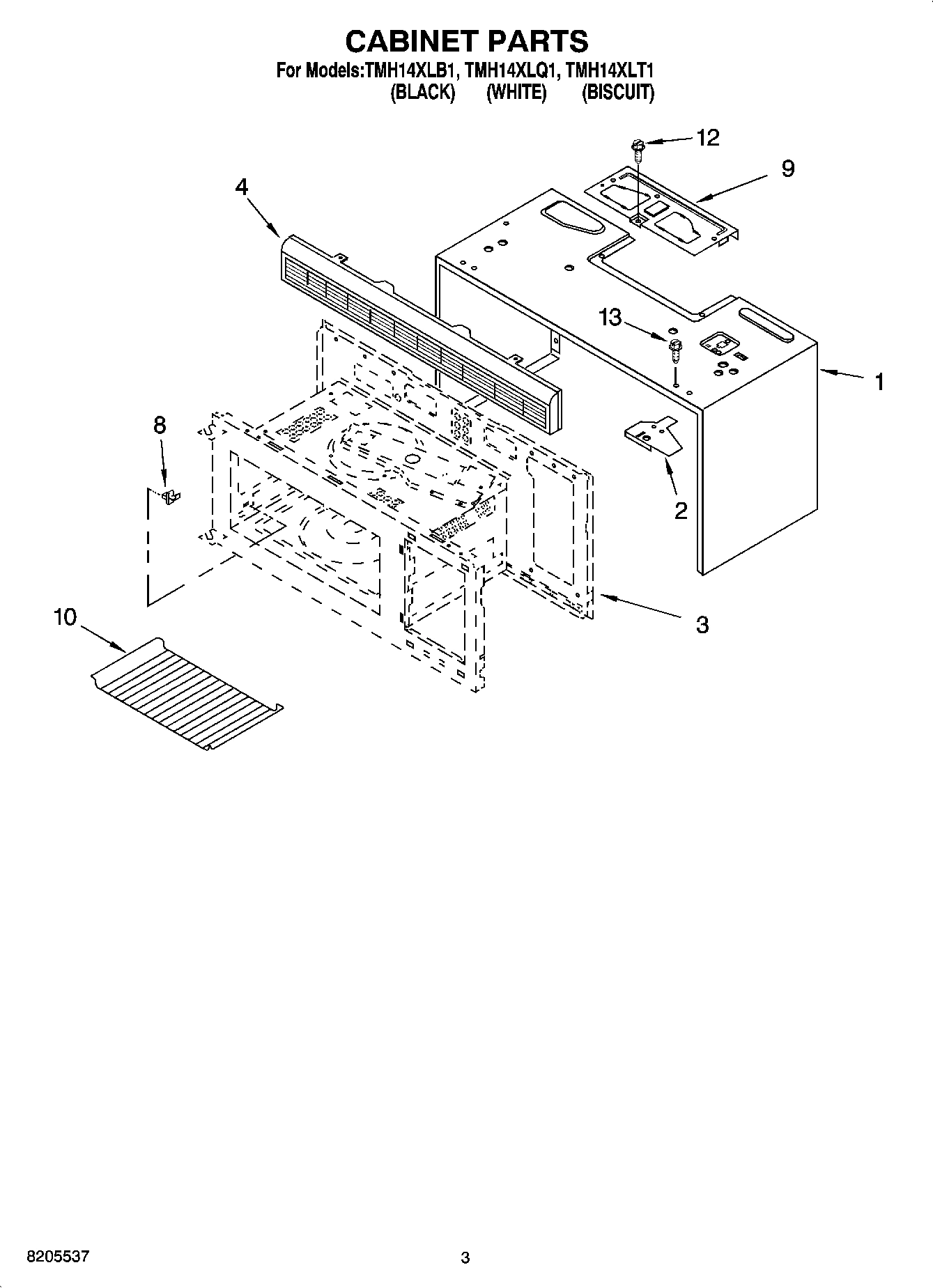

03 - CABINET PARTS
06 - LATCH BOARD PARTS
02 - DOOR PARTS
08 - INSTALLATION PARTS, MISCELLANEOUS PARTS
04 - MAGNETRON AND AIR FLOW PARTS
05 - INTERIOR PARTS
07 - VENTILATION PARTS
Common parts from model Whirlpool TMH14XLQ1 MICROWAVE HOOD COMBINATION
Installation Hardware WPL 4358404 Contact Us For Availability
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI131639A Contact Us For Availability
SEALER WPL ARI131640A Contact Us For Availability
1
Outer Case (Black) WPL 8184034 Contact Us For Availability
1
Outer Case (White) WPL 8184035 Contact Us For Availability
1
Outer Case (Biscuit) WPL 8184760 Contact Us For Availability
1
Board, Latch WPL 8183558 Contact Us For Availability
1
Door Assembly (Black) WPL 8184328 Contact Us For Availability
1
Door Assembly (White) WPL 8184332 Contact Us For Availability
1
Door Assembly (Biscuit) WPL 8184946 Contact Us For Availability
1
Exhaust Adapter WPL 4158541 Contact Us For Availability
1
Base Plate Assy WPL 8184051 Contact Us For Availability
2
Mounting Bracket WPL 4358928 Contact Us For Availability
2
Frame, Door WPL 8172111 Contact Us For Availability
2
Exhaust Damper WPL 4158319 Contact Us For Availability
2
H.V. Transformer WPL 8184046 Contact Us For Availability
2
Air Duct WPL 8184045 Contact Us For Availability
2
Bracket WPL 4359527 Contact Us For Availability
3
Bracket, Control WPL 8184643 Contact Us For Availability
3
Cavity Assy Not Serviceable WPL ARI131638A Contact Us For Availability
3
Bracket, H.V. WPL 4359497 Contact Us For Availability
3
Glass, Cooktop Lamp WPL 4359528 Contact Us For Availability
4
Key Membrane (Black) WPL 8184939 Contact Us For Availability
4
Key Membrane (White) WPL 8184940 Contact Us For Availability
4
Key Membrane (Biscuit) WPL 8184941 Contact Us For Availability
4
Grille Vent (White) WPL 8184335 Contact Us For Availability
4
Grille Vent (Black) WPL 8184943 Contact Us For Availability
4
Grille Vent (Biscuit) WPL 8184944 Contact Us For Availability
4
Lever Monitor WPL 4358795 Contact Us For Availability
4
Latch WPL 8171850 Contact Us For Availability
4
Toggle Wing WPL 4158326 Contact Us For Availability
4
Capacitor, H.V. WPL 8183536 Contact Us For Availability
4
Lead Wire Assy WPL 8184042 Contact Us For Availability
5
Microcomputer WPL 8184654 Contact Us For Availability
5
Screw WPL 4358051 Contact Us For Availability
5
Spring, Latch WPL 8184016 Contact Us For Availability
5
Screw WPL 4158323 Contact Us For Availability
6
Panel, Door (Black) WPL 8184329 Contact Us For Availability
6
Panel, Door (White) WPL 8184333 Contact Us For Availability
6
Panel, Door (Biscuit) WPL 8184948 Contact Us For Availability
6
Screw WPL 4158315 Contact Us For Availability
6
Motor, Turntable WPL 4359155 Contact Us For Availability
7
Glass, Door WPL 8184746 Contact Us For Availability
7
Washer WPL 4158314 Contact Us For Availability
7
Plate WPL 8184043 Contact Us For Availability
7
Thermostat WPL 8184049 Contact Us For Availability
7
Lamp Holder WPL 4359518 Contact Us For Availability
8
Plate, Mounting Wing WPL 8184050 Contact Us For Availability
8
Shelf Holder WPL 8205041 Contact Us For Availability
8
Handle, Door (Black) WPL 8184389 Contact Us For Availability
8
Handle, Door (White) WPL 8184390 Contact Us For Availability
8
Handle, Door (Biscuit) WPL 8184947 Contact Us For Availability
9
Plate, Mount WPL 8184655 Contact Us For Availability
9
Choke, Cover WPL 8171846 Contact Us For Availability
9
Cover WPL 4359964 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
10
Rack, Grill WPL 8205535 Contact Us For Availability
10
Bushing WPL 4358012 Contact Us For Availability
11
Screw (White) WPL 4359009 Contact Us For Availability
11
Sheet-Top Cabinet Template WPL 8183896 Contact Us For Availability
11
Plate WPL 8184044 Contact Us For Availability
12
Sheet-Wall Template WPL 4359011 Contact Us For Availability
12
Shield, Protector WPL 8184748 Contact Us For Availability
12
Motor, Ventilation WPL 8184041 Contact Us For Availability
13
Screw (Black) WPL 4358762 Contact Us For Availability
13
Lead, Wire WPL 8184048 Contact Us For Availability
14
Canopy WPL 8184033 Contact Us For Availability
15
Fuse Cap WPL 4358659 Contact Us For Availability
16
Pin, Locking WPL 4358933 Contact Us For Availability
16
Power Cord WPL 8184047 Contact Us For Availability
17
Rotating Ring WPL 8204783 Contact Us For Availability
18
Turntable Shaft WPL 8171863 Contact Us For Availability
19
Glass Tray WPL 2172138 Contact Us For Availability
21
Screw WPL 4358381 Contact Us For Availability
23
Screw WPL 4358188 Contact Us For Availability
× ![]()
