Model Maytag TM14QBL REFRIGERATOR – Common Parts & Diagrams
01 - Page 1
02 - Page 2
03 - Page 3

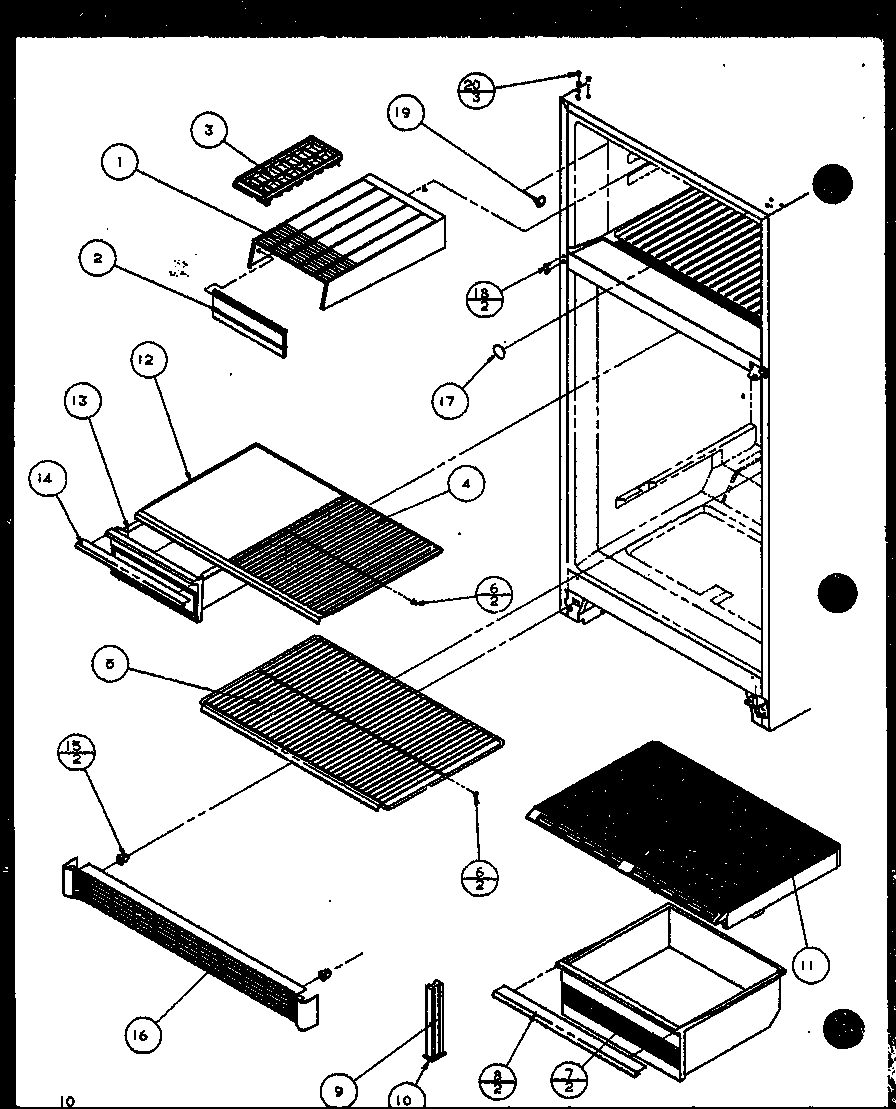

04 - Page 4

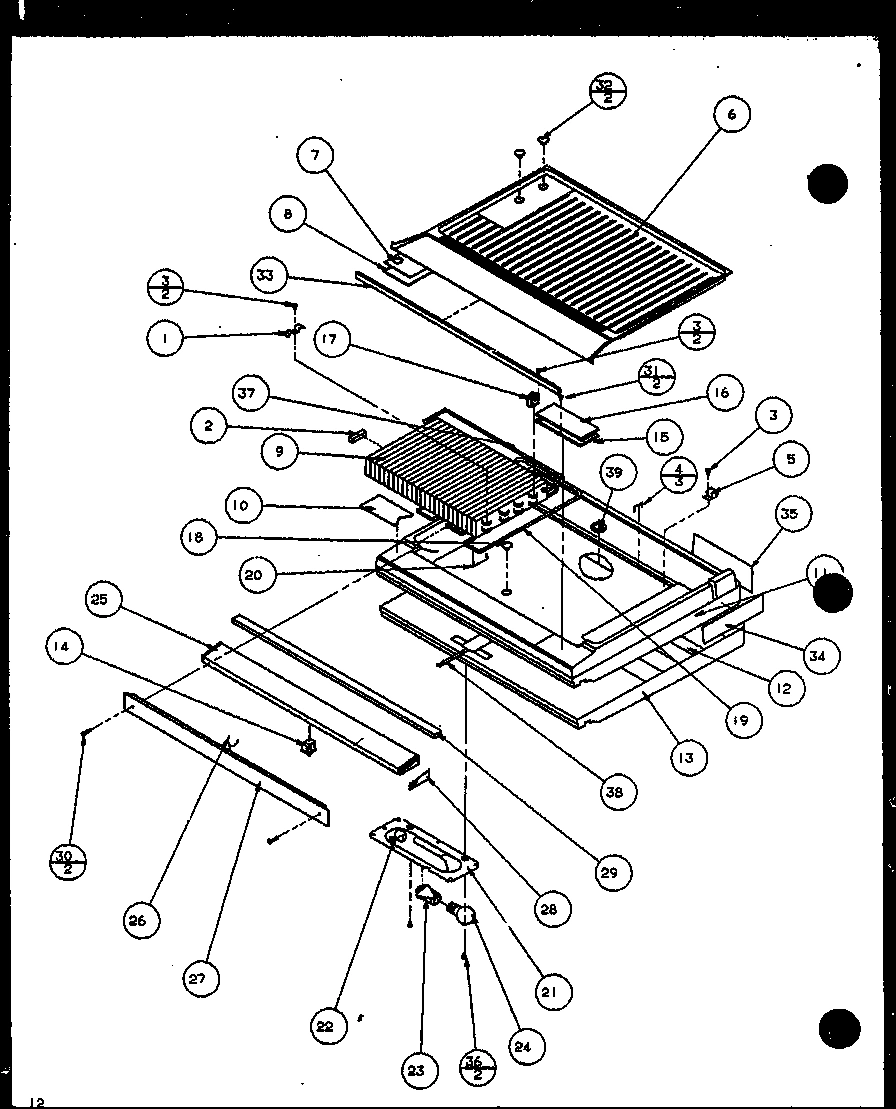

05 - Page 5
06 - Page 6

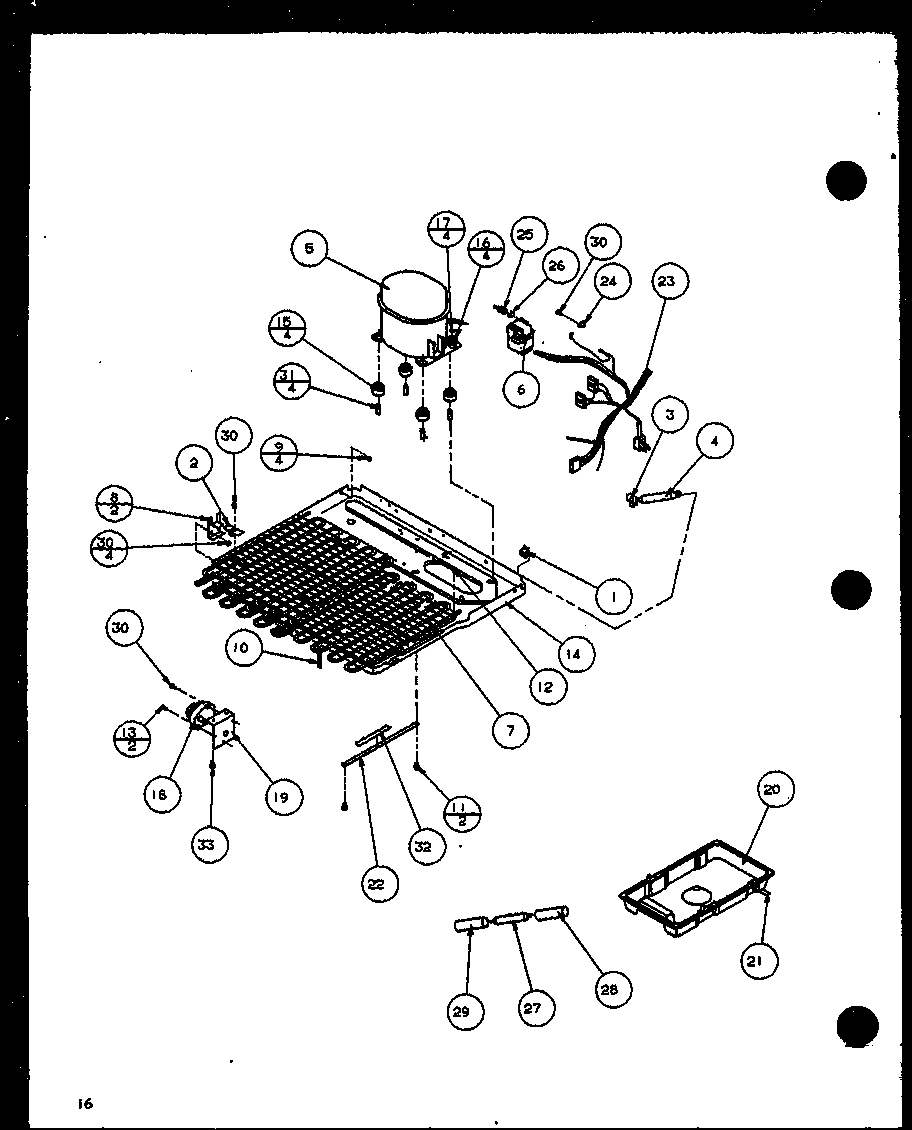

07 - Page 7

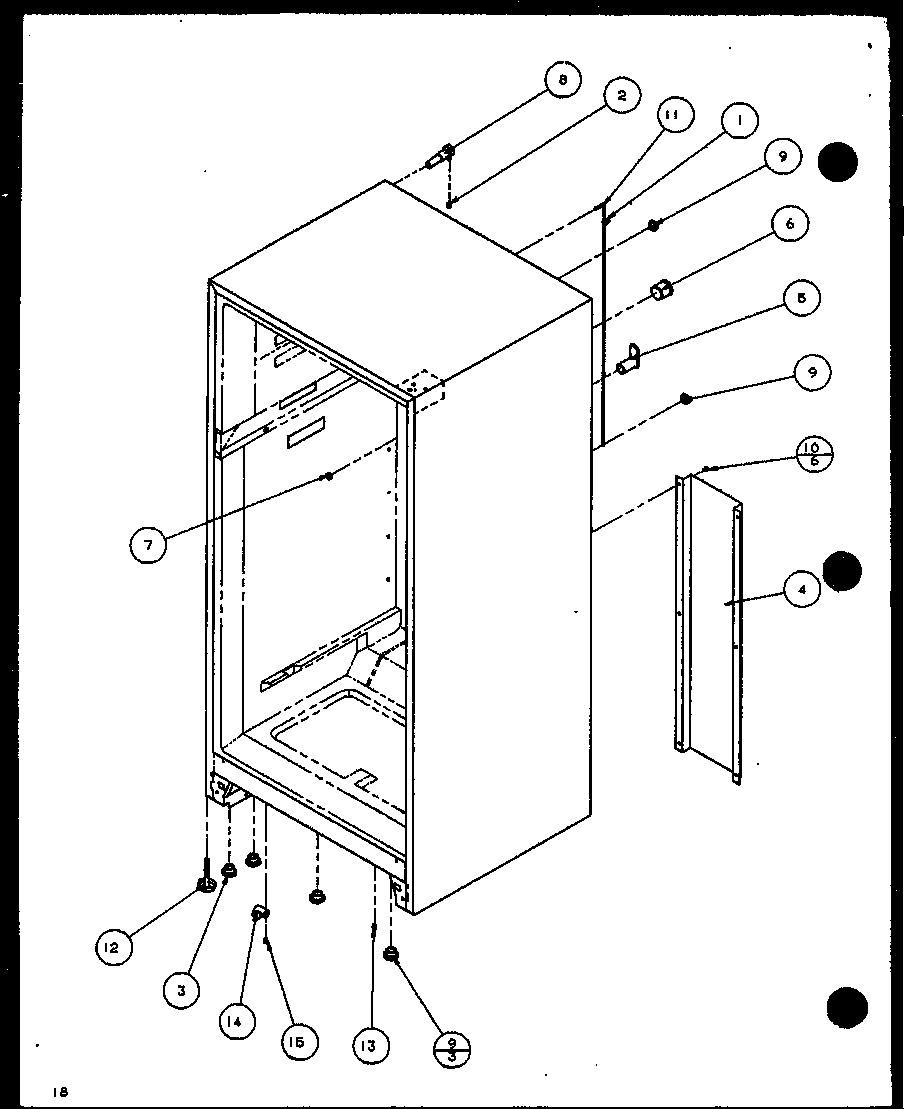

Common parts from model Maytag TM14QBL REFRIGERATOR
