Model Maytag THI18TL REFRIGERATOR – Common Parts & Diagrams

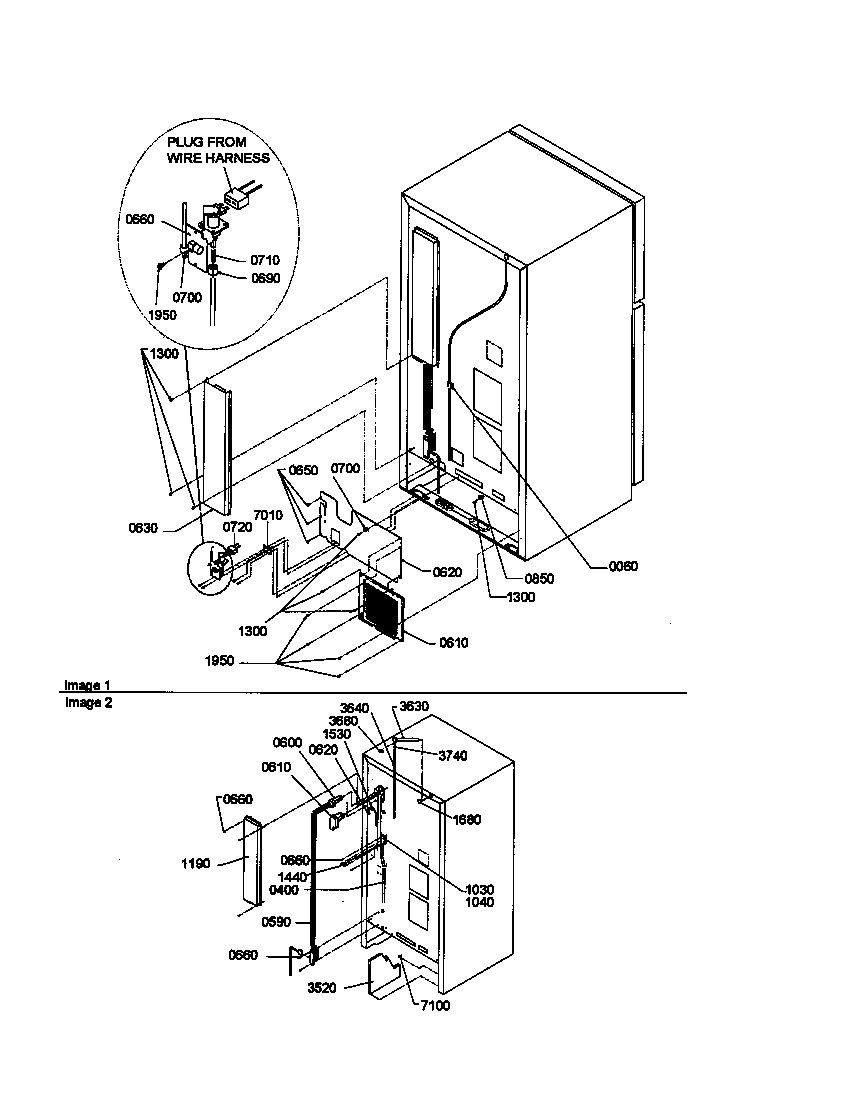

01 - CABINET BACK

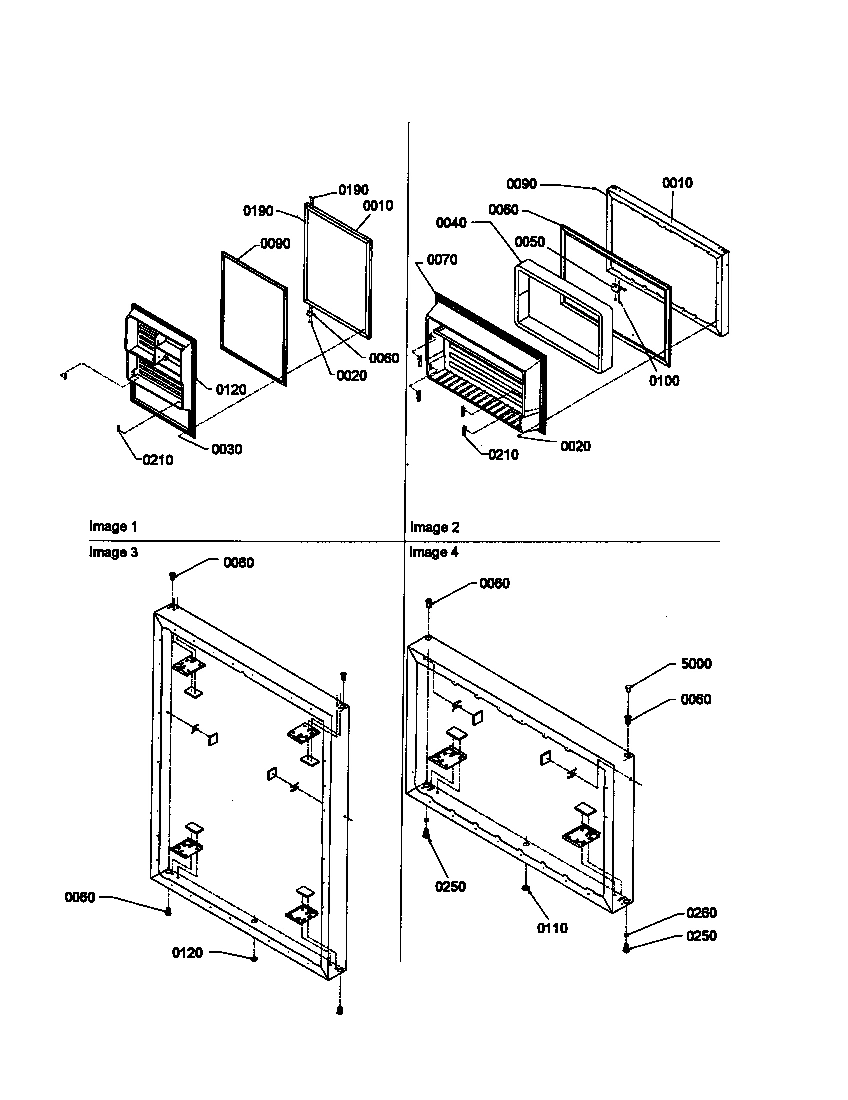

02 - DOOR ASSEMBLIES

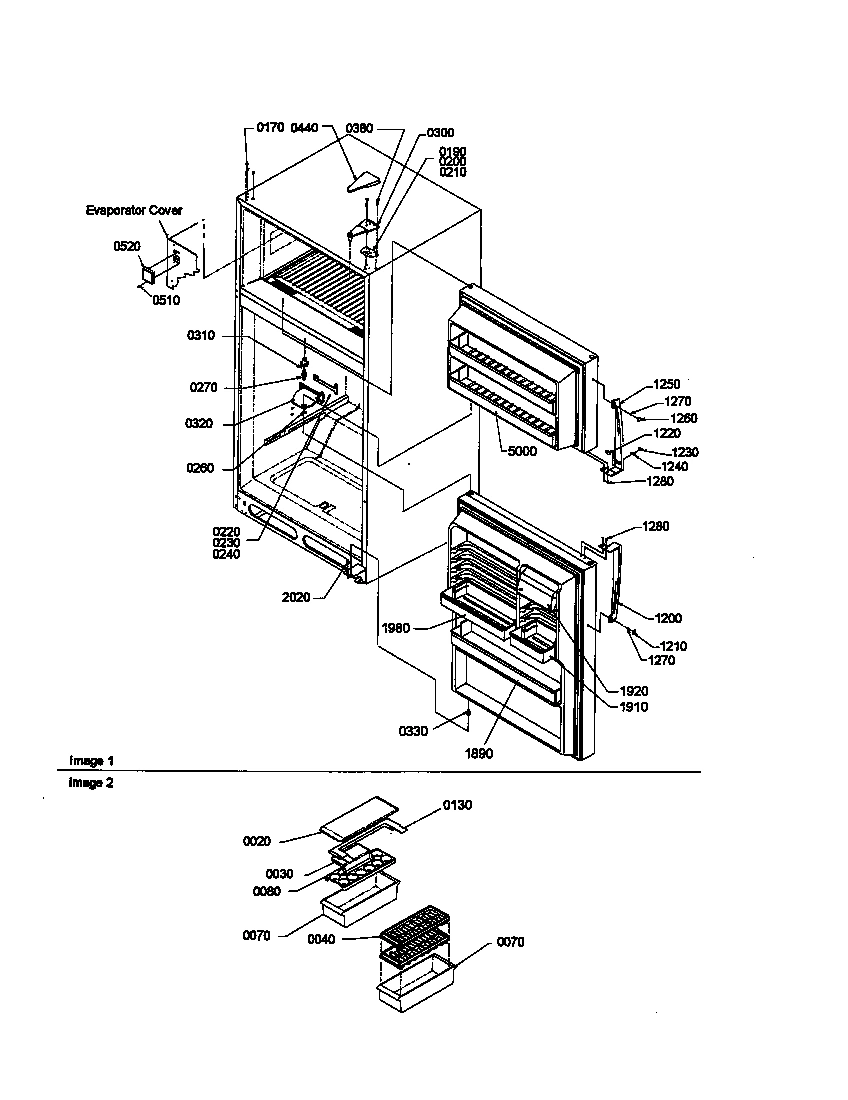

03 - DOOR, HINGES AND ACCESSORIES

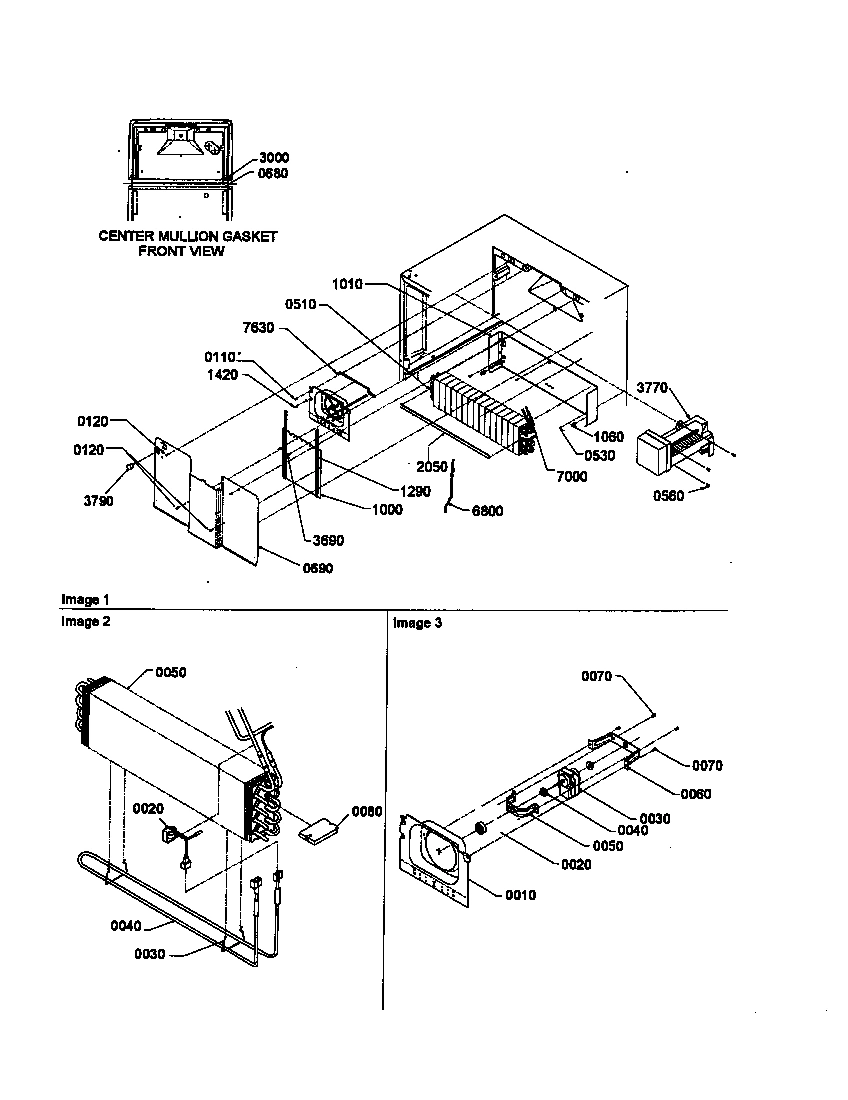

04 - EVAP AND FAN MOTOR ASSEMBLIES

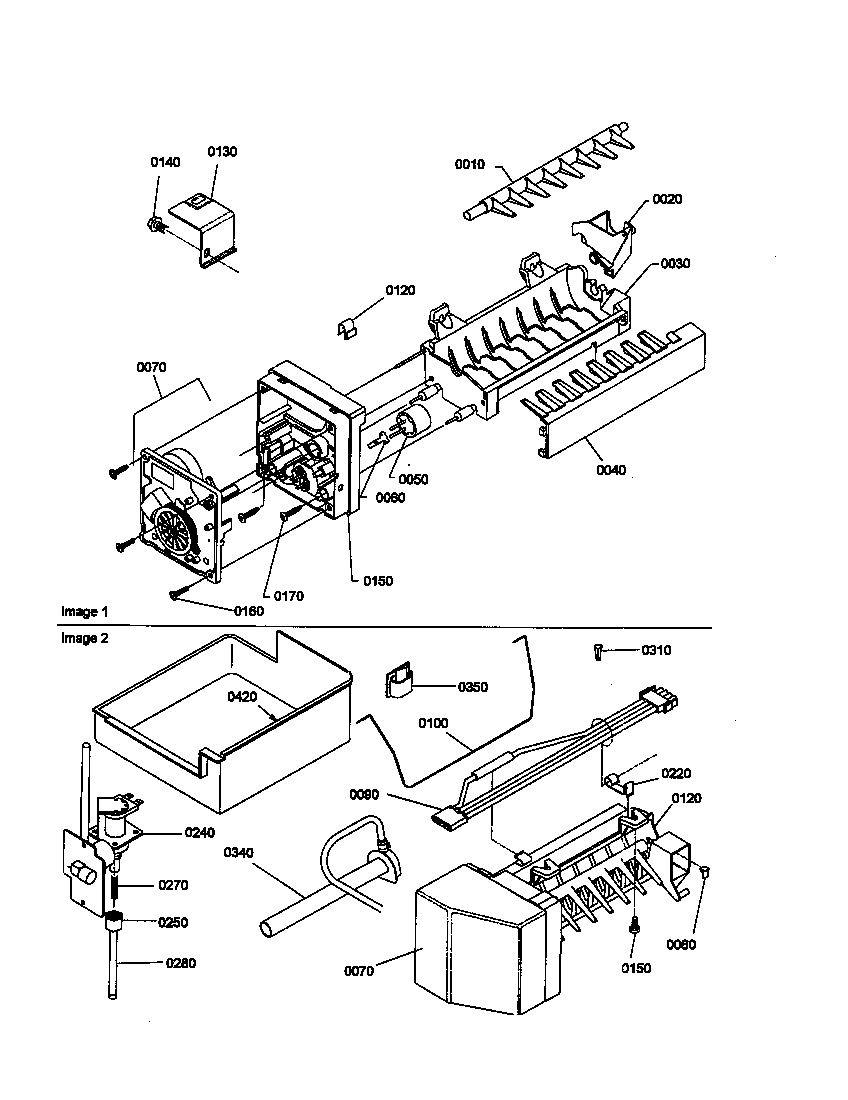

05 - ICE MAKER ASSY AND PARTS

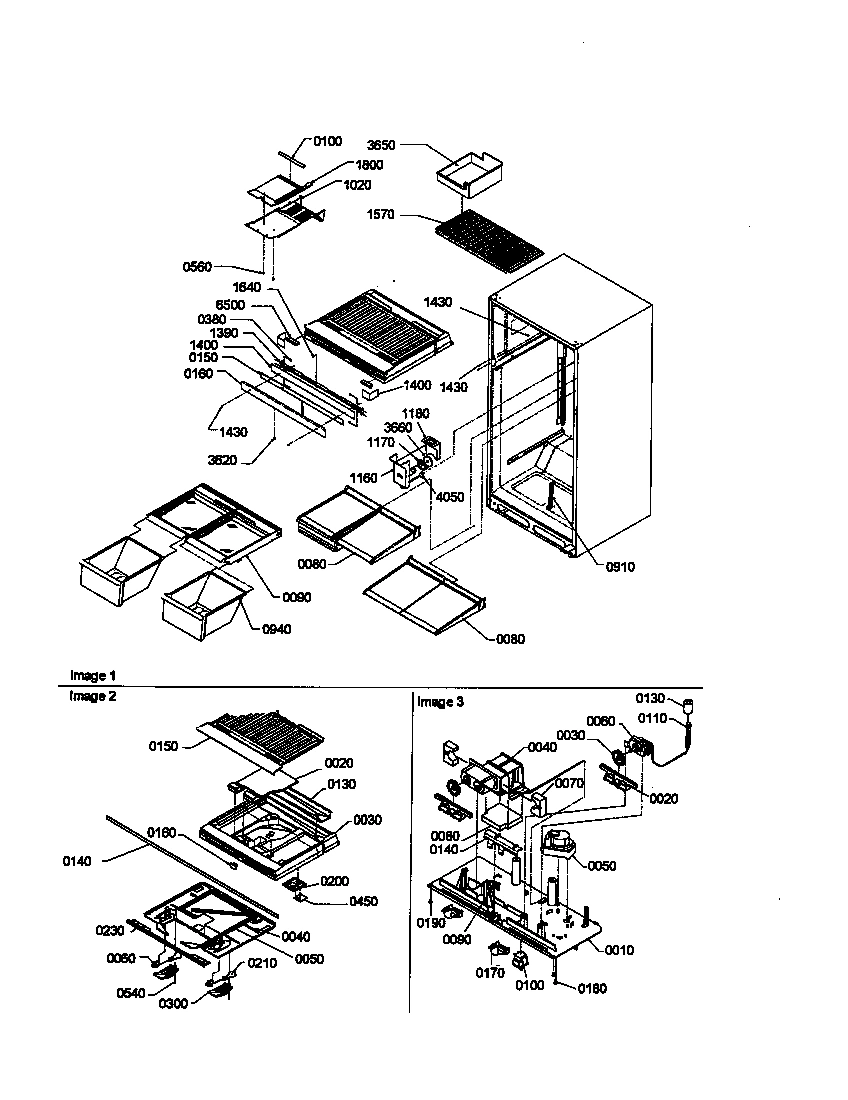

06 - INTERIOR CABINET AND DRAIN BLOCK ASSY

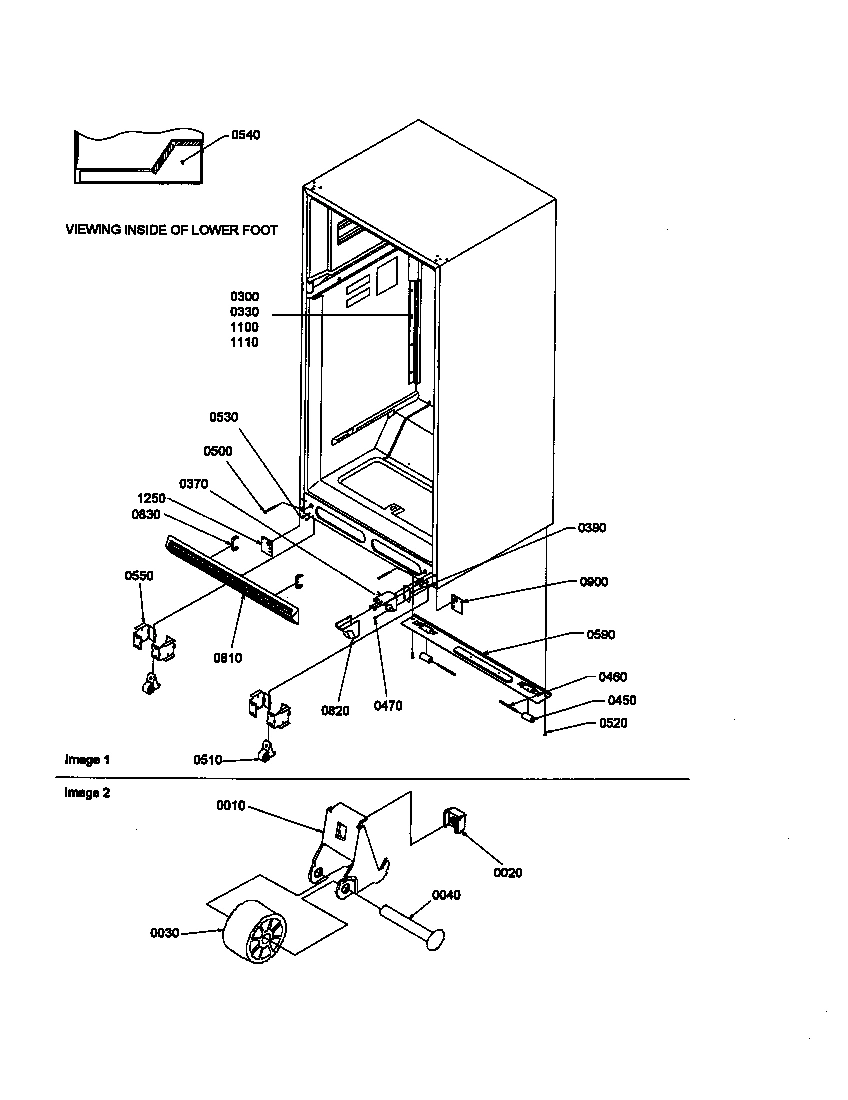

07 - LADDERS, LOWER CABINET AND ROLLERS

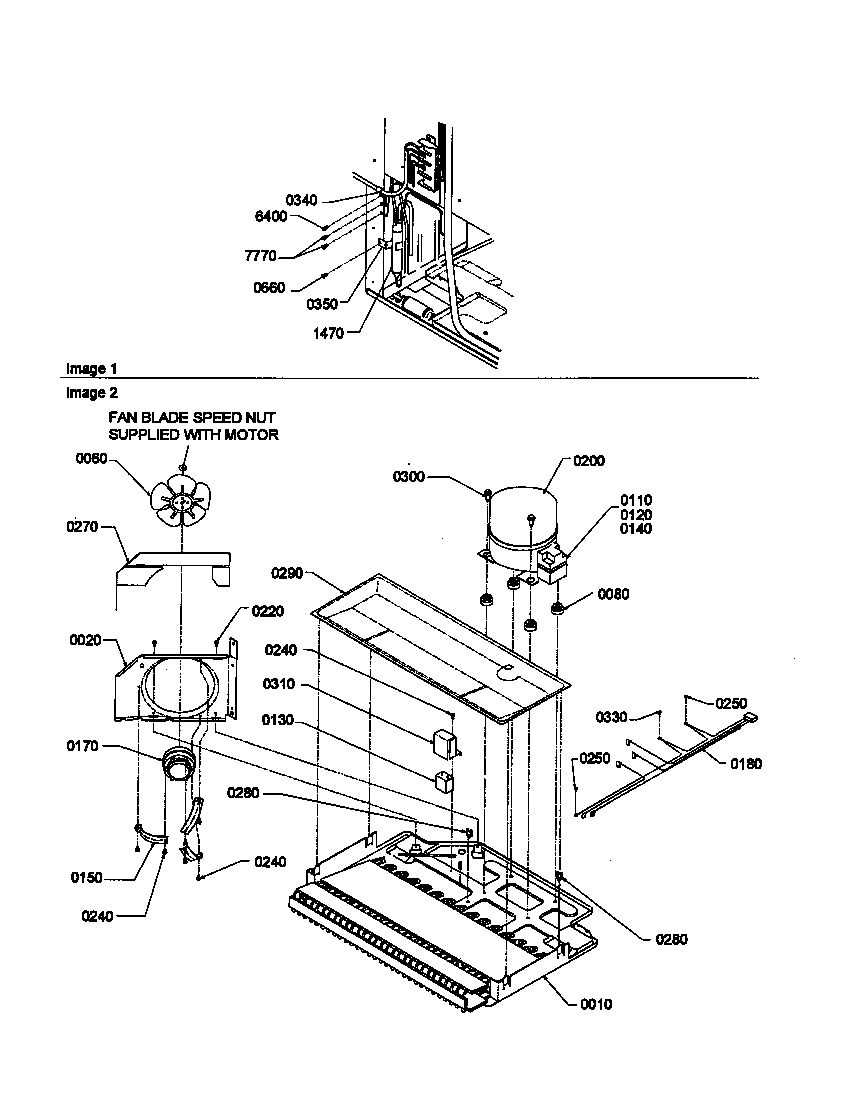

08 - MACHINE COMPARTMENT

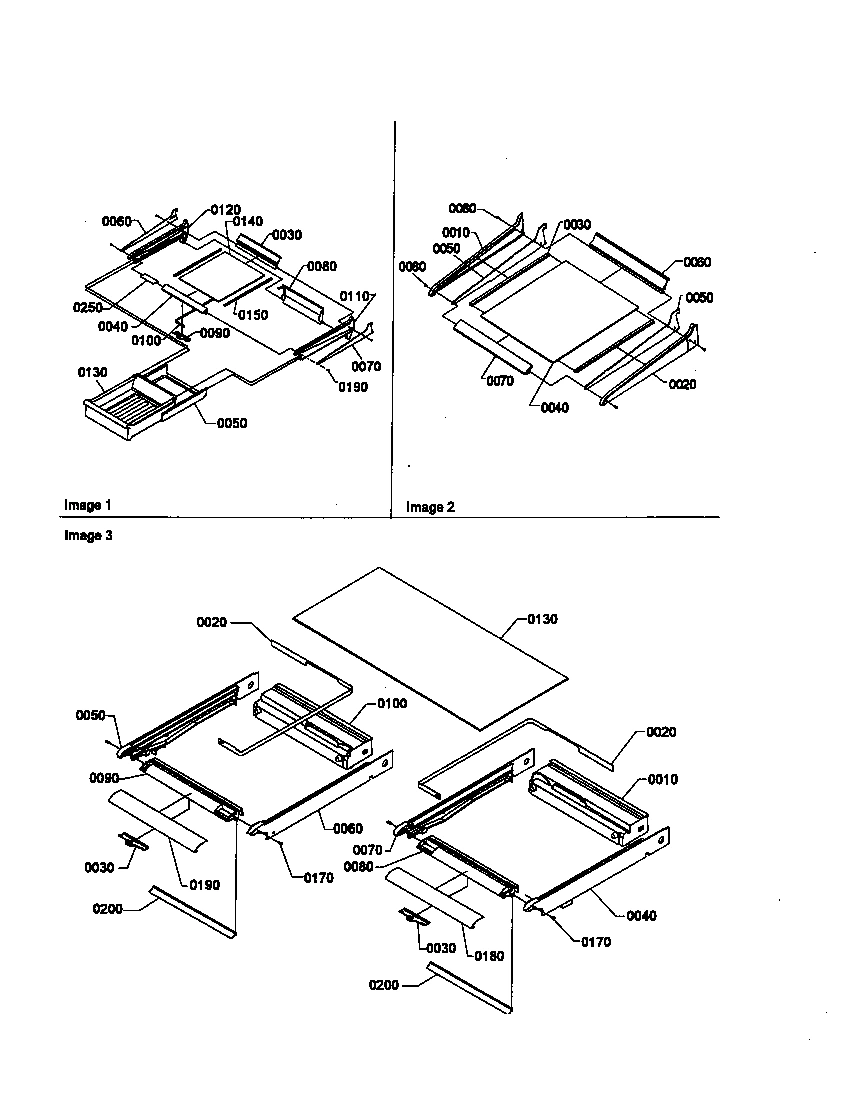

09 - SHELVING ASSEMBLIES
Common parts from model Maytag THI18TL REFRIGERATOR
10
MAY 10925404L MAY 10925404L Contact Us For Availability
10
MAY 10925612L MAY 10925612L Contact Us For Availability
10
MAY 10422304 MAY 10422304 Contact Us For Availability
10
MAY R0183119 MAY R0183119 Contact Us For Availability
10
MAY 12035101 MAY 12035101 Contact Us For Availability
10
MAY 10514801 MAY 10514801 Contact Us For Availability
10
MAY 10481216 MAY 10481216 Contact Us For Availability
10
MAY 10433805 MAY 10433805 Contact Us For Availability
10
MAY 10436603 MAY 10436603 Contact Us For Availability
20
MAY 10436404 MAY 10436404 Contact Us For Availability
20
MAY 10442404 MAY 10442404 Contact Us For Availability
20
MAY 10855401 MAY 10855401 Contact Us For Availability
20
MAY R0156839 MAY R0156839 Contact Us For Availability
20
MAY 10439601 MAY 10439601 Contact Us For Availability
20
MAY 10476401 MAY 10476401 Contact Us For Availability
20
MAY M0286708 MAY M0286708 Contact Us For Availability
20
MAY 10426904 MAY 10426904 Contact Us For Availability
20
MAY 10436604 MAY 10436604 Contact Us For Availability
20
MAY 10467802 MAY 10467802 Contact Us For Availability
30
MAY M0219730 MAY M0219730 Contact Us For Availability
30
MAY 10310901 MAY 10310901 Contact Us For Availability
30
MAY 10449501 MAY 10449501 Contact Us For Availability
30
MAY R0156669 MAY R0156669 Contact Us For Availability
30
MAY 10442601 MAY 10442601 Contact Us For Availability
30
MAY 10996001 MAY 10996001 Contact Us For Availability
30
MAY 10450602 MAY 10450602 Contact Us For Availability
30
MAY 10451402 MAY 10451402 Contact Us For Availability
30
MAY 10797501 MAY 10797501 Contact Us For Availability
40
MAY B0523593 MAY B0523593 Contact Us For Availability
40
MAY 10991101 MAY 10991101 Contact Us For Availability
40
MAY A1017202 MAY A1017202 Contact Us For Availability
40
MAY R0183120 MAY R0183120 Contact Us For Availability
40
MAY 12035206 MAY 12035206 Contact Us For Availability
40
MAY R0161074 MAY R0161074 Contact Us For Availability
40
MAY M1205302 MAY M1205302 Contact Us For Availability
40
MAY 10432701 MAY 10432701 Contact Us For Availability
40
MAY 10450317 MAY 10450317 Contact Us For Availability
50
MAY 10492801 MAY 10492801 Contact Us For Availability
50
MAY R0170058 MAY R0170058 Contact Us For Availability
50
MAY R0161060 MAY R0161060 Contact Us For Availability
50
MAY 10428601 MAY 10428601 Contact Us For Availability
50
MAY 10573504 MAY 10573504 Contact Us For Availability
50
MAY 10432702 MAY 10432702 Contact Us For Availability
50
MAY 10440904 MAY 10440904 Contact Us For Availability
60
MAY 10447102 MAY 10447102 Contact Us For Availability
60
MAY 10456802 MAY 10456802 Contact Us For Availability
60
MAY 10961001 MAY 10961001 Contact Us For Availability
60
MAY 10492701 MAY 10492701 Contact Us For Availability
60
MAY B5720301 MAY B5720301 Contact Us For Availability
60
MAY R0191094 MAY R0191094 Contact Us For Availability
60
MAY D7714406 MAY D7714406 Contact Us For Availability
60
MAY R0161075 MAY R0161075 Contact Us For Availability
60
MAY B5742604 MAY B5742604 Contact Us For Availability
60
MAY 10432803 MAY 10432803 Contact Us For Availability
60
MAY 10436902 MAY 10436902 Contact Us For Availability
60
MAY 10681403 MAY 10681403 Contact Us For Availability
70
MAY 10461001 MAY 10461001 Contact Us For Availability
70
MAY 10423128 MAY 10423128 Contact Us For Availability
70
MAY 10519801 MAY 10519801 Contact Us For Availability
70
MAY R0167203 MAY R0167203 Contact Us For Availability
70
MAY 10442801 MAY 10442801 Contact Us For Availability
70
MAY 10681402 MAY 10681402 Contact Us For Availability
70
MAY 10432804 MAY 10432804 Contact Us For Availability
70
MAY 10436813 MAY 10436813 Contact Us For Availability
80
MAY 10436505 MAY 10436505 Contact Us For Availability
80
MAY 10991001 MAY 10991001 Contact Us For Availability
80
MAY 10442901 MAY 10442901 Contact Us For Availability
80
MAY 10480714 MAY 10480714 Contact Us For Availability
80
GROMMET, COMPRESSOR MAY 10835901 Contact Us For Availability
80
MAY 10445702 MAY 10445702 Contact Us For Availability
80
MAY 10687701 MAY 10687701 Contact Us For Availability
90
MAY 10456801 MAY 10456801 Contact Us For Availability
90
MAY D7813004 MAY D7813004 Contact Us For Availability
90
MAY 10698538 MAY 10698538 Contact Us For Availability
90
MAY M0350201 MAY M0350201 Contact Us For Availability
90
MAY 10588201 MAY 10588201 Contact Us For Availability
90
MAY 10687702 MAY 10687702 Contact Us For Availability
100
MAY 10440713 MAY 10440713 Contact Us For Availability
100
MAY 10884401 MAY 10884401 Contact Us For Availability
100
MAY B8386613 MAY B8386613 Contact Us For Availability
100
MAY C3680304 MAY C3680304 Contact Us For Availability
100
MAY 10435605 MAY 10435605 Contact Us For Availability
100
MAY 10454003 MAY 10454003 Contact Us For Availability
101
MAY 10427710 MAY 10427710 Contact Us For Availability
102
MAY 10440404 MAY 10440404 Contact Us For Availability
106
MAY 10442301 MAY 10442301 Contact Us For Availability
110
MAY A3012543 MAY A3012543 Contact Us For Availability
110
MAY D7599002 MAY D7599002 Contact Us For Availability
110
MAY 10377015 MAY 10377015 Contact Us For Availability
110
MAY 10417301 MAY 10417301 Contact Us For Availability
111
MAY M0230923 MAY M0230923 Contact Us For Availability
116
MAY 10642103 MAY 10642103 Contact Us For Availability
117
MAY 10479401 MAY 10479401 Contact Us For Availability
118
MAY 10479103 MAY 10479103 Contact Us For Availability
120
MAY M0310338 MAY M0310338 Contact Us For Availability
120
MAY 10461706 MAY 10461706 Contact Us For Availability
120
MAY 10253523 MAY 10253523 Contact Us For Availability
120
MAY M0209616 MAY M0209616 Contact Us For Availability
120
MAY 10319801 MAY 10319801 Contact Us For Availability
120
MAY D7824703 MAY D7824703 Contact Us For Availability
120
MAY 10097202 MAY 10097202 Contact Us For Availability
120
MAY 10432101 MAY 10432101 Contact Us For Availability
121
MAY 10201812 MAY 10201812 Contact Us For Availability
122
MAY 10184306 MAY 10184306 Contact Us For Availability
123
MAY 10184401 MAY 10184401 Contact Us For Availability
124
MAY 10184501 MAY 10184501 Contact Us For Availability
125
MAY 10253524 MAY 10253524 Contact Us For Availability
125
MAY 10567206 MAY 10567206 Contact Us For Availability
126
MAY 10201811 MAY 10201811 Contact Us For Availability
128
MAY M0221718 MAY M0221718 Contact Us For Availability
129
MAY A3030356 MAY A3030356 Contact Us For Availability
130
MAY 12106901 MAY 12106901 Contact Us For Availability
130
MAY B8391802 MAY B8391802 Contact Us For Availability
130
MAY 10435911 MAY 10435911 Contact Us For Availability
130
MAY 10673602 MAY 10673602 Contact Us For Availability
130
MAY C8931604 MAY C8931604 Contact Us For Availability
130
MAY 10370016 MAY 10370016 Contact Us For Availability
130
MAY 10417117 MAY 10417117 Contact Us For Availability
139
MAY 10433610 MAY 10433610 Contact Us For Availability
140
MAY 10450836 MAY 10450836 Contact Us For Availability
140
MAY 10565101 MAY 10565101 Contact Us For Availability
140
MAY B0523584 MAY B0523584 Contact Us For Availability
140
MAY 10757301 MAY 10757301 Contact Us For Availability
140
MAY 10370014 MAY 10370014 Contact Us For Availability
143
MAY M0310730 MAY M0310730 Contact Us For Availability
143
PLUG, TOP HINGE BUTTON (WHT) MAY M0310729 Contact Us For Availability
144
MAY B8372901 MAY B8372901 Contact Us For Availability
147
DRIER MAY B2150504 Contact Us For Availability
150
MAY R0183121 MAY R0183121 Contact Us For Availability
150
MAY 10543601 MAY 10543601 Contact Us For Availability
150
MAY 10995001 MAY 10995001 Contact Us For Availability
150
MAY 10582501 MAY 10582501 Contact Us For Availability
150
MAY 10562502 MAY 10562502 Contact Us For Availability
157
MAY Y10440001 MAY Y10440001 Contact Us For Availability
160
MAY R0186041 MAY R0186041 Contact Us For Availability
160
MAY 10433343 MAY 10433343 Contact Us For Availability
160
MAY 10453001 MAY 10453001 Contact Us For Availability
164
MAY M0253916 MAY M0253916 Contact Us For Availability
170
MAY M0310716 MAY M0310716 Contact Us For Availability
170
MAY R0186040 MAY R0186040 Contact Us For Availability
170
MAY 10565401 MAY 10565401 Contact Us For Availability
170
MAY 10884501 MAY 10884501 Contact Us For Availability
170
MAY M0237932 MAY M0237932 Contact Us For Availability
180
MAY 10779602 MAY 10779602 Contact Us For Availability
180
MAY 10705802 MAY 10705802 Contact Us For Availability
180
MAY 10688043 MAY 10688043 Contact Us For Availability
189
MAY 10419106 MAY 10419106 Contact Us For Availability
190
MAY M0211533 MAY M0211533 Contact Us For Availability
190
MAY 10448501 MAY 10448501 Contact Us For Availability
190
MAY M0224128 MAY M0224128 Contact Us For Availability
190
MAY 10688042 MAY 10688042 Contact Us For Availability
191
MAY 10502906 MAY 10502906 Contact Us For Availability
192
MAY 10423416 MAY 10423416 Contact Us For Availability
198
MAY 10419706 MAY 10419706 Contact Us For Availability
200
MAY 10448502 MAY 10448502 Contact Us For Availability
200
MAY 10995201 MAY 10995201 Contact Us For Availability
200
MAY 12049723 MAY 12049723 Contact Us For Availability
200
MAY 10530202 MAY 10530202 Contact Us For Availability
205
MAY A3189349 MAY A3189349 Contact Us For Availability
210
MAY 10202001 MAY 10202001 Contact Us For Availability
210
MAY 10448503 MAY 10448503 Contact Us For Availability
210
MAY A0282803 MAY A0282803 Contact Us For Availability
220
MAY M0224416 MAY M0224416 Contact Us For Availability
220
MAY 10562201 MAY 10562201 Contact Us For Availability
220
MAY 10526701 MAY 10526701 Contact Us For Availability
230
MAY 10562202 MAY 10562202 Contact Us For Availability
230
MAY 10435511 MAY 10435511 Contact Us For Availability
240
MAY 10524606 MAY 10524606 Contact Us For Availability
240
MAY 10562203 MAY 10562203 Contact Us For Availability
240
MAY M0223803 MAY M0223803 Contact Us For Availability
250
NUT, SLEEVE MAY M0753001 Contact Us For Availability
250
MAY 12028601 MAY 12028601 Contact Us For Availability
250
MAY M0231604 MAY M0231604 Contact Us For Availability
250
MAY 12019302 MAY 12019302 Contact Us For Availability
260
MAY 10252903 MAY 10252903 Contact Us For Availability
260
SHIM, NON METAL (WHT) MAY M0274057 Contact Us For Availability
270
MAY A1055101 MAY A1055101 Contact Us For Availability
270
MAY 10351002 MAY 10351002 Contact Us For Availability
270
MAY 10442702 MAY 10442702 Contact Us For Availability
280
MAY B5705325 MAY B5705325 Contact Us For Availability
280
MAY B5667304 MAY B5667304 Contact Us For Availability
290
MAY 10427401 MAY 10427401 Contact Us For Availability
300
MAY 10185104 MAY 10185104 Contact Us For Availability
300
MAY B5759626 MAY B5759626 Contact Us For Availability
300
MAY M0211017 MAY M0211017 Contact Us For Availability
300
MAY 10508701 MAY 10508701 Contact Us For Availability
300
MAY M0221523 MAY M0221523 Contact Us For Availability
310
INSERT, PLASTIC TUBE MAY A3223101 Contact Us For Availability
310
MAY 12028501 MAY 12028501 Contact Us For Availability
310
MAY 10266402 MAY 10266402 Contact Us For Availability
320
MAY 10433412 MAY 10433412 Contact Us For Availability
330
MAY 10200801 MAY 10200801 Contact Us For Availability
330
MAY M0232903 MAY M0232903 Contact Us For Availability
330
MAY D7599105 MAY D7599105 Contact Us For Availability
340
ELBOW, FILL TUBE MAY 10463201 Contact Us For Availability
340
MAY M0103904 MAY M0103904 Contact Us For Availability
350
MAY M0104101 MAY M0104101 Contact Us For Availability
350
MAY 10547001 MAY 10547001 Contact Us For Availability
352
MAY 10663002 MAY 10663002 Contact Us For Availability
362
MAY M0211520 MAY M0211520 Contact Us For Availability
364
MAY B5705308 MAY B5705308 Contact Us For Availability
365
MAY 10476201 MAY 10476201 Contact Us For Availability
366
MAY 10565701 MAY 10565701 Contact Us For Availability
370
MAY 10433209 MAY 10433209 Contact Us For Availability
377
MAY 10563705 MAY 10563705 Contact Us For Availability
380
MAY M0226331 MAY M0226331 Contact Us For Availability
390
MAY 10447903 MAY 10447903 Contact Us For Availability
400
MAY 10908101 MAY 10908101 Contact Us For Availability
405
MAY 10852401 MAY 10852401 Contact Us For Availability
440
MAY 10444706 MAY 10444706 Contact Us For Availability
450
MAY 10594901 MAY 10594901 Contact Us For Availability
450
MAY 10450701 MAY 10450701 Contact Us For Availability
460
MAY 10450901 MAY 10450901 Contact Us For Availability
470
MAY M0233847 MAY M0233847 Contact Us For Availability
500
MAY 10686402 MAY 10686402 Contact Us For Availability
500
MAY 10419206 MAY 10419206 Contact Us For Availability
500
MAY M0204338 MAY M0204338 Contact Us For Availability
510
MAY 10428301 MAY 10428301 Contact Us For Availability
510
MAY 10476101 MAY 10476101 Contact Us For Availability
520
MAY M0260242 MAY M0260242 Contact Us For Availability
530
MAY M0211031 MAY M0211031 Contact Us For Availability
540
MAY M0216716 MAY M0216716 Contact Us For Availability
540
MAY 10663001 MAY 10663001 Contact Us For Availability
550
MAY 10427204 MAY 10427204 Contact Us For Availability
560
MAY M0211018 MAY M0211018 Contact Us For Availability
590
MAY 12075502 MAY 12075502 Contact Us For Availability
590
MAY 10427110 MAY 10427110 Contact Us For Availability
600
MAY 10699301 MAY 10699301 Contact Us For Availability
610
MAY 10428001 MAY 10428001 Contact Us For Availability
610
MAY 12039805 MAY 12039805 Contact Us For Availability
620
MAY 10916501 MAY 10916501 Contact Us For Availability
620
MAY 12041820 MAY 12041820 Contact Us For Availability
630
MAY 10442205 MAY 10442205 Contact Us For Availability
650
MAY 10772301 MAY 10772301 Contact Us For Availability
660
MAY M0227217 MAY M0227217 Contact Us For Availability
680
MAY 10586601 MAY 10586601 Contact Us For Availability
680
MAY 10685507 MAY 10685507 Contact Us For Availability
690
MAY 10432402 MAY 10432402 Contact Us For Availability
700
MAY M0321204 MAY M0321204 Contact Us For Availability
701
MAY 12047201 MAY 12047201 Contact Us For Availability
710
MAY B5720303 MAY B5720303 Contact Us For Availability
720
MAY 10525901 MAY 10525901 Contact Us For Availability
763
MAY A3030354 MAY A3030354 Contact Us For Availability
777
MAY M0232317 MAY M0232317 Contact Us For Availability
810
MAY 10474905 MAY 10474905 Contact Us For Availability
820
MAY 10462805 MAY 10462805 Contact Us For Availability
830
MAY 10551502 MAY 10551502 Contact Us For Availability
850
MAY 10547101 MAY 10547101 Contact Us For Availability
900
MAY 10567205 MAY 10567205 Contact Us For Availability
910
MAY 10461901 MAY 10461901 Contact Us For Availability
940
MAY 10430216 MAY 10430216 Contact Us For Availability
NI
MAY M0114003 MAY M0114003 Contact Us For Availability
NI
MAY M0108001 MAY M0108001 Contact Us For Availability
NI
MAY A3124301 MAY A3124301 Contact Us For Availability
NI
MAY 10527010 MAY 10527010 Contact Us For Availability
NI
MAY 10549601 MAY 10549601 Contact Us For Availability
NI
MAY 10834701 MAY 10834701 Contact Us For Availability
NI
MAY A3036901 MAY A3036901 Contact Us For Availability
NI
MAY M0311301 MAY M0311301 Contact Us For Availability
NI
MAY 10573401 MAY 10573401 Contact Us For Availability
× ![]()
