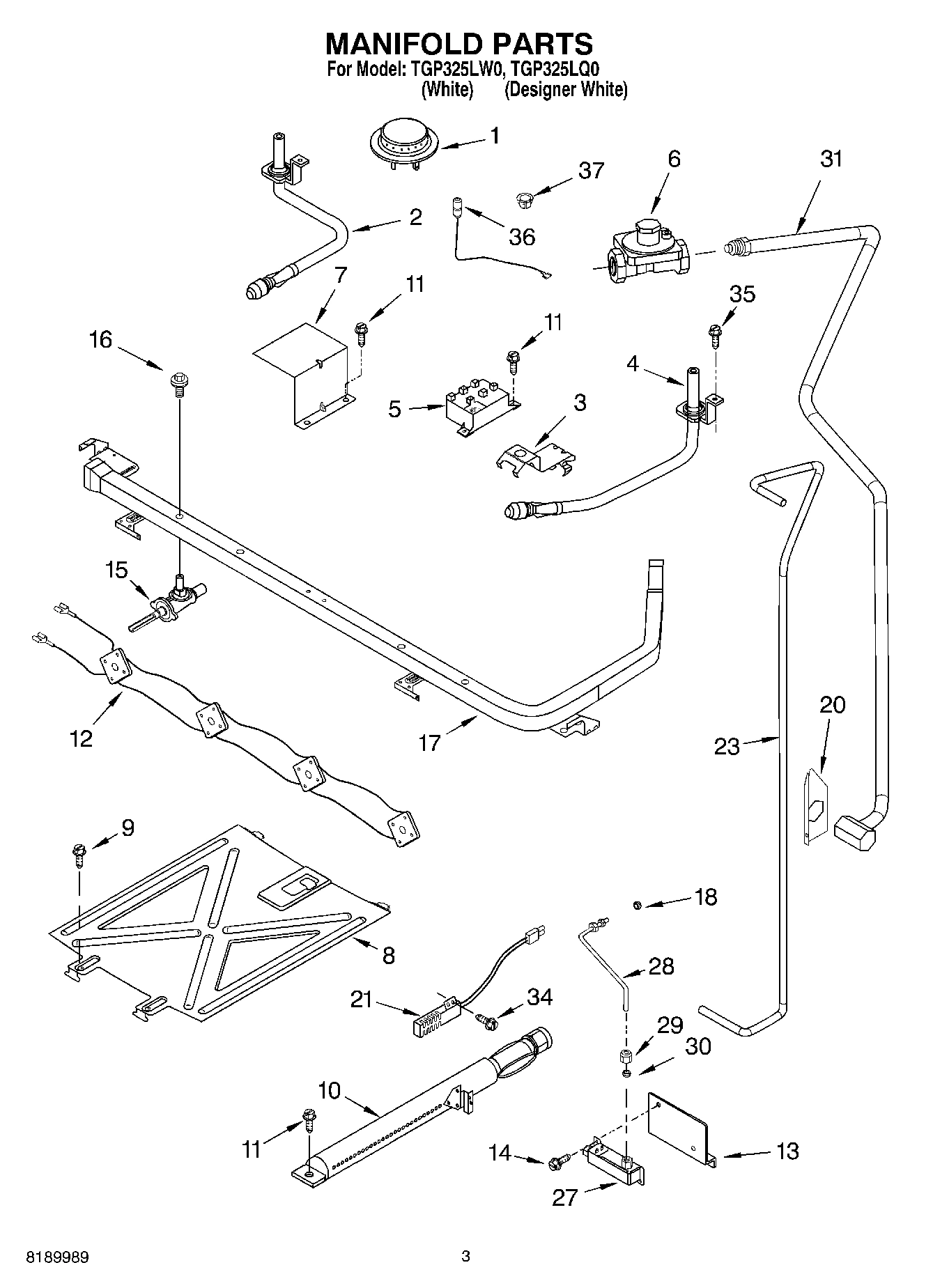

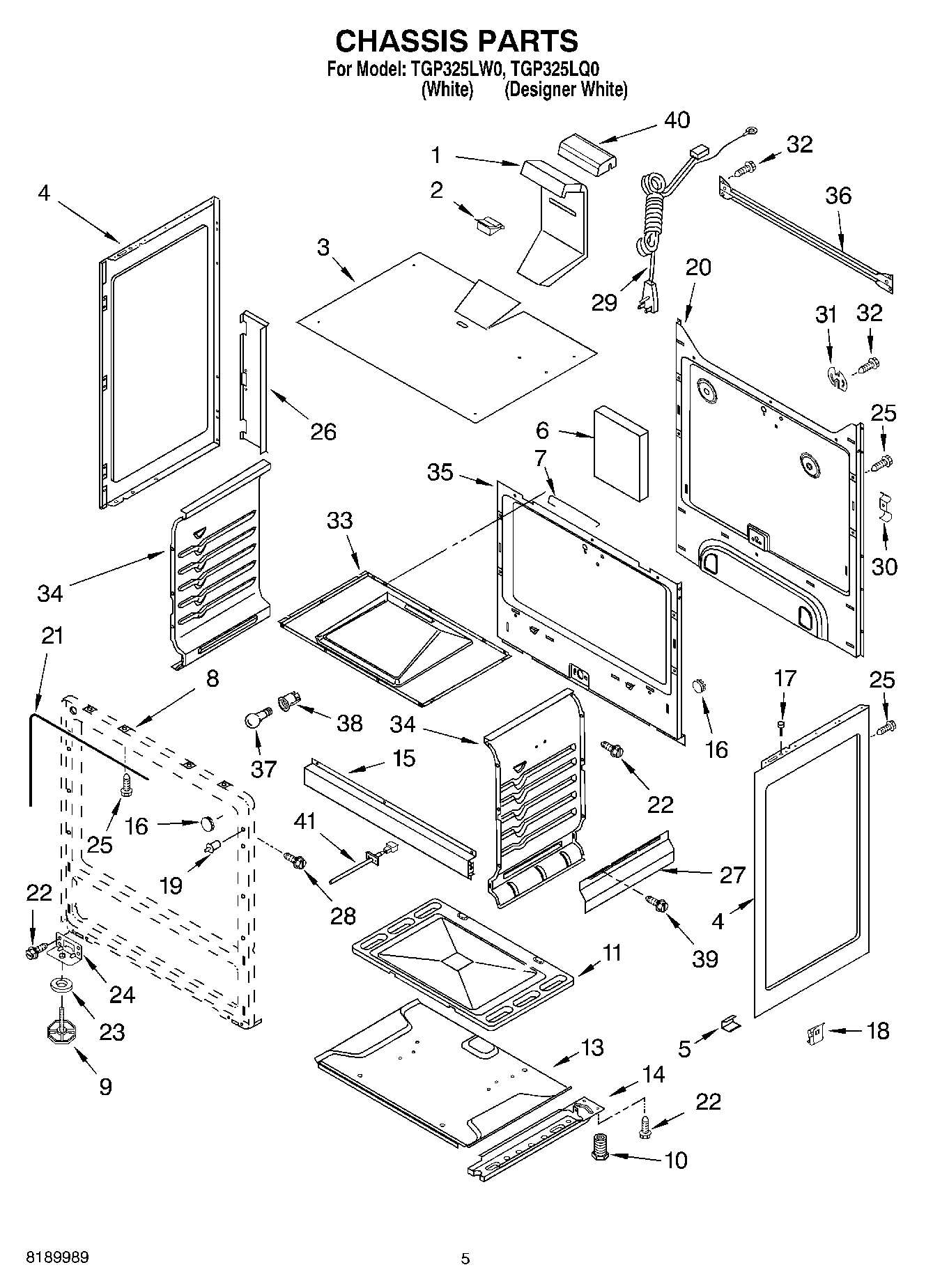

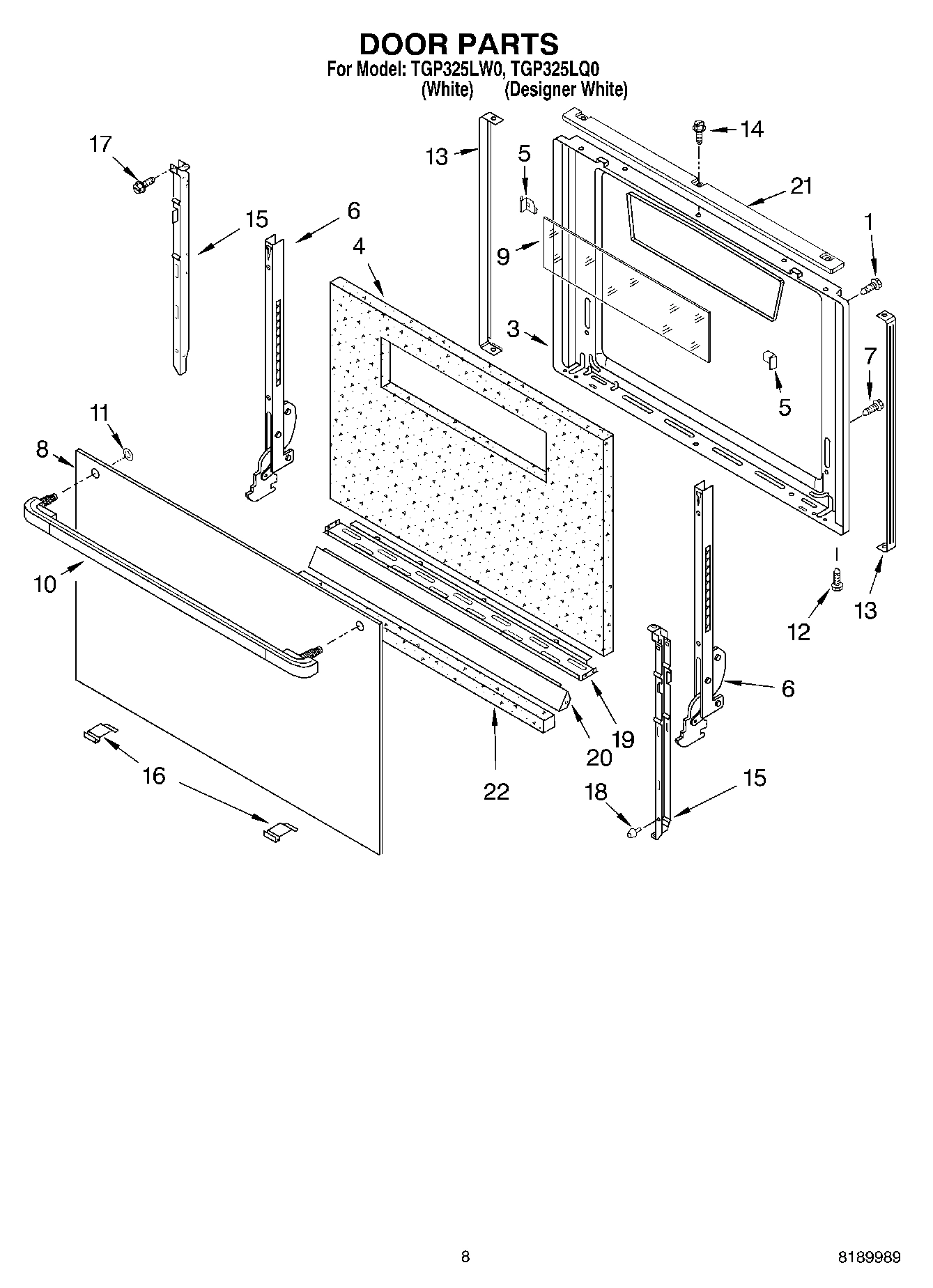

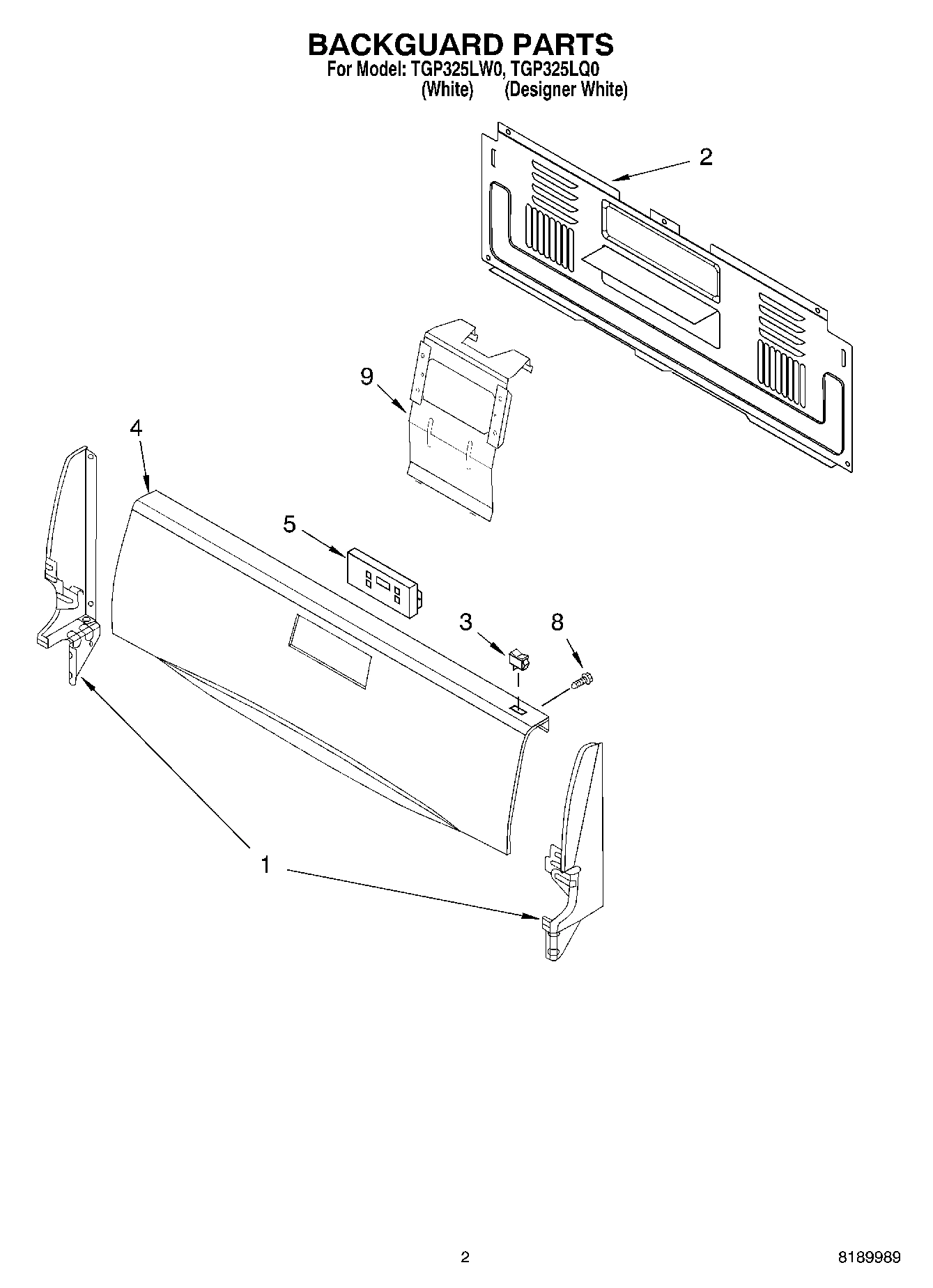

Model Whirlpool TGP325LW0 GAS RANGE – Common Parts &amp; Diagrams

1

98004633 Whirlpool Oven Endcap Panel Backorder WPL 98004633 $32.92

1

98005336 Whirlpool Oven Endcap Panel Backorder WPL 98005336 $32.68

1

98005337 Whirlpool Oven Endcap Panel Backorder WPL 98005337 $32.50

1

WP98004218 Whirlpool Screw In Stock WPL WP98004218 $2.51

1

WP98004410 Whirlpool Top Burner In Stock WPL WP98004410 $37.31

1

WPW10116396 Whirlpool Flue Box Backorder WPL WPW10116396 $34.09

2

98006083 Whirlpool Oven Rear Cover Backorder WPL 98006083 $50.25

2

WP6610243 Whirlpool Venturi In Stock WPL WP6610243 $99.26

2

WP98003480 Whirlpool Grill Pan Backorder WPL WP98003480 $34.73

2

Clip, Flue WPL 98006653 Contact Us For Availability

3

3149360 Whirlpool Light Switch Backorder WPL 3149360 $36.12

3

98006392 Whirlpool Oven Light Switch Backorder WPL 98006392 $5.07

3

98010182 Whirlpool Door Liner Backorder WPL 98010182 $140.83

3

Brkt., Venturi (4) WPL 98005500 Contact Us For Availability

3

Shield, Insulation WPL 98007195 Contact Us For Availability

4

WP6610244 Whirlpool Venturi Assembly Backorder WPL WP6610244 $124.10

4

WP98006100 Whirlpool Knob In Stock WPL WP98006100 $13.62

4

WP98006102 Whirlpool Knob In Stock WPL WP98006102 $10.25

4

WP98010042 Whirlpool Side Panel Backorder WPL WP98010042 $76.40

4

Panel, Backguard (White) WPL 98012951 Contact Us For Availability

4

Panel, Backguard (Black) WPL 98012952 Contact Us For Availability

5

98004952 Whirlpool Oven Clip Backorder WPL 98004952 $28.80

5

98004953 Whirlpool Clip Backorder WPL 98004953 $4.72

5

W11590249 Whirlpool Spark Module In Stock WPL W11590249 $7.74

5

Timer (Black) WPL 8522810 Contact Us For Availability

5

Timer (White) WPL 8522811 Contact Us For Availability

5

Clip, Oven Bottom WPL 98005502 Contact Us For Availability

6

Hinge, Door (2) WPL 98004734 Contact Us For Availability

6

Regulator WPL 98005520 Contact Us For Availability

6

Counterweight WPL 98006710 Contact Us For Availability

7

98006739 Whirlpool Oven Wire Tie Backorder WPL 98006739 $26.21

7

98007192 Whirlpool Cover Model Backorder WPL 98007192 $26.21

7

W11206744 Whirlpool Screw In Stock WPL W11206744 $9.59

7

Clip, Cooktop (2) WPL 98004722 Contact Us For Availability

8

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

8

Spreader, Flame WPL 98011923 Contact Us For Availability

8

Frame, Front WPL 98005044 Contact Us For Availability

9

WP3196037 Whirlpool Leveling Foot Backorder WPL WP3196037 $26.50

9

Bracket, Timer (Right) WPL 98008498 Contact Us For Availability

9

Bracket, Timer (Left) WPL 98008499 Contact Us For Availability

WP98005317 Whirlpool Door Handle In Stock WPL WP98005317 $85.63

WP98005318 Whirlpool Door Handle Backorder WPL WP98005318 $84.06

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

Burner, Oven WPL 98004314 Contact Us For Availability

11

WP98004449 Whirlpool Oven Bottom Backorder WPL WP98004449 $120.42

11

WP98004650 Whirlpool Nut In Stock WPL WP98004650 $3.70

11

WP98005518 Whirlpool Burner Cap Backorder WPL WP98005518 $33.86

12

Harness, Switch WPL 98005561 Contact Us For Availability

13

98003847 Whirlpool Oven Bottom Baffle Backorder WPL 98003847 $78.46

13

98006794 Whirlpool Oven Door Trim Backorder WPL 98006794 $39.33

13

Bracket, Valve WPL 98005708 Contact Us For Availability

14

98003830 Whirlpool Rail Base Backorder WPL 98003830 $37.08

98004564 Whirlpool Oven Retainer Backorder WPL 98004564 $67.77

98004629 Whirlpool Oven Retainer Backorder WPL 98004629 $67.77

Valve, Burner (4) (9,500 BTU) WPL 98005574 Contact Us For Availability

Support, Burner WPL 98004453 Contact Us For Availability

WP98010185 Whirlpool Door Trim In Stock WPL WP98010185 $35.69

WP98010187 Whirlpool Range Door Trim In Stock WPL WP98010187 $35.69

WPW10277003 Whirlpool Screw In Stock WPL WPW10277003 $2.51

Button, Plug (25/32``) WPL 98007388 Contact Us For Availability

Button, Plug (5/16``) WPL 98007389 Contact Us For Availability

Button, Plug (15/32``) WPL 98007390 Contact Us For Availability

17

98004723 Whirlpool Oven Bumper Backorder WPL 98004723 $6.33

17

Pipe, Manifold WPL 98010088 Contact Us For Availability

18

98004227 Whirlpool Oven Bumper Backorder WPL 98004227 $10.76

18

98009179 Whirlpool Oven Nut Backorder WPL 98009179 $9.59

18

Sleeve, 3/8`` WPL 98007127 Contact Us For Availability

19

98004938 Whirlpool Oven Retainer Backorder WPL 98004938 $49.59

19

Switch, Door WPL 98005765 Contact Us For Availability

20

Insulation, Retainer-Bottom WPL 98012904 Contact Us For Availability

20

Bracket, Connector WPL 98007183 Contact Us For Availability

20

Back, Main WPL 98003809 Contact Us For Availability

21

W10918546 Whirlpool Oven Range Igniter In Stock WPL W10918546 $22.02

21

Top Trim, Door (White) WPL 98006885 Contact Us For Availability

21

Seal, Oven WPL 98009174 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

WPL 6610241 WPL 6610241 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL 98005896 WPL 98005896 Contact Us For Availability

WPL 98005915 WPL 98005915 Contact Us For Availability

WPL 98007185 WPL 98007185 Contact Us For Availability

23

98007193 Whirlpool Oven Washer Backorder WPL 98007193 $7.54

23

Tubing (Regltr to Oven Valve) WPL 98011202 Contact Us For Availability

24

98007126 Whirlpool Oven Stand Bracket Backorder WPL 98007126 $27.21

26

98006715 Whirlpool Channel Assembly Backorder WPL 98006715 $42.36

27

98007191 Whirlpool Oven Heat Shield Backorder WPL 98007191 $62.61

27

Valve, Oven WPL 98005638 Contact Us For Availability

28

WP98006631 Whirlpool Screw Backorder WPL WP98006631 $2.51

28

Tubing, Valve (Includes orifice & pin) WPL 98008931 Contact Us For Availability

29

WP9757891 Whirlpool Power Cord Backorder WPL WP9757891 $48.39

29

Fitting, Tube WPL 98005516 Contact Us For Availability

30

98005026 Whirlpool Oven Clip Backorder WPL 98005026 $7.54

30

Fitting, Female WPL 98005506 Contact Us For Availability

31

Tubing, Inlet WPL 98011226 Contact Us For Availability

31

Retainer, Burner WPL 98005713 Contact Us For Availability

32

W10837731 Whirlpool Screw Assembly In Stock WPL W10837731 $2.51

33

98004447 Whirlpool Top Backorder WPL 98004447 $61.32

34

98004451 Whirlpool Oven Side Panel Backorder WPL 98004451 $66.92

34

98004452 Whirlpool Oven Side Backorder WPL 98004452 $64.60

34

W11676351 Whirlpool Screw Backorder WPL W11676351 $8.11

35

98005768 Whirlpool Back Liner Backorder WPL 98005768 $153.76

35

W10837674 Whirlpool Screw In Stock WPL W10837674 $2.51

36

98015363 Whirlpool Oven Support Backorder WPL 98015363 $28.80

36

WPW10209656 Whirlpool Surface Ignitor In Stock WPL WPW10209656 $34.26

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WPW10278150 Whirlpool Clip Assembly In Stock WPL WPW10278150 $18.14

LP Spud Kit (For Use With LP) WPL 98005978 Contact Us For Availability

Natural Spud Kit (For use with Natural Gas) WPL 98005982 Contact Us For Availability

38

W10856866 Whirlpool Light Socket In Stock WPL W10856866 $3.70

39

Screw WPL 98006634 Contact Us For Availability

40

98007205 Whirlpool Oven Vent Cap Backorder WPL 98007205 $39.02

41

98004294 Whirlpool Insulation Wire Backorder WPL 98004294 $7.54

41

W11311894 Whirlpool Insulation Backorder WPL W11311894 $37.17

41

Sensor, Oven WPL 98005641 Contact Us For Availability
