Model Whirlpool TGP302LW0 GAS RANGE – Common Parts & Diagrams

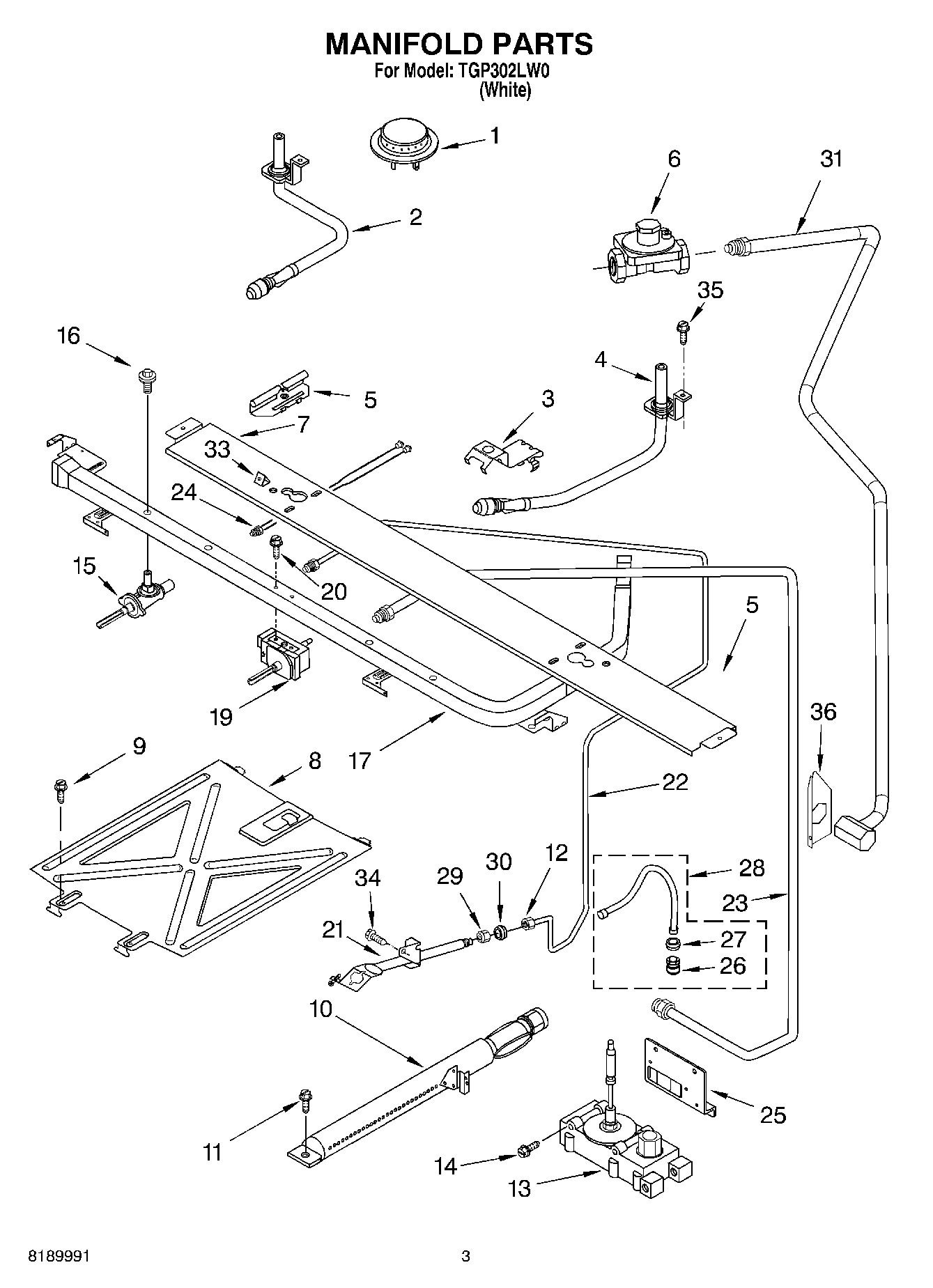

03 - MANIFOLD

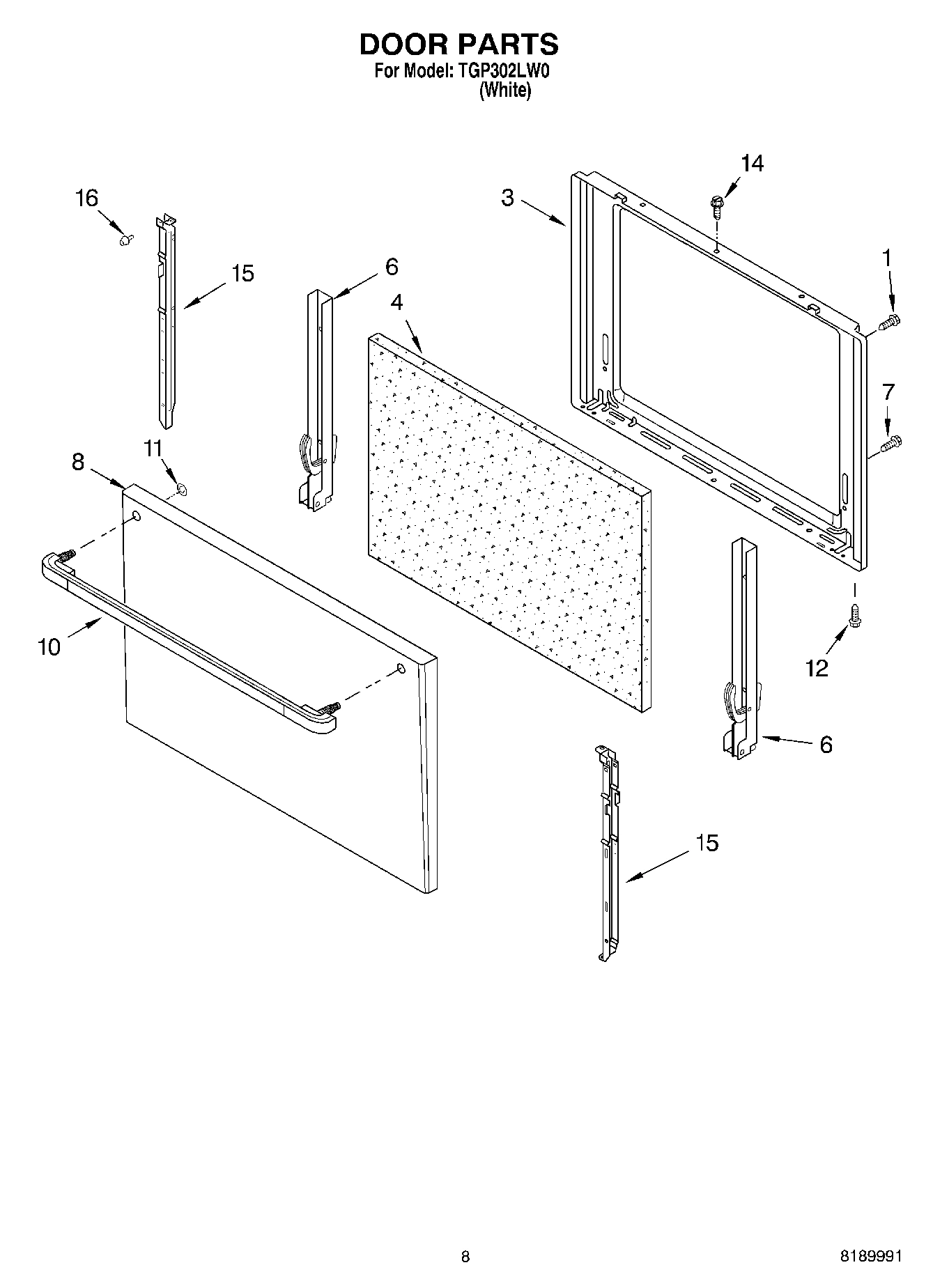

06 - DOOR, OPTIONAL
02 - BACKGUARD
04 - CHASSIS
05 - OVEN AND BROILER
01 - COOKTOP, LITERATURE
Common parts from model Whirlpool TGP302LW0 GAS RANGE
1
Endcap (Left Hand) WPL 98004632 Contact Us For Availability
1
Endcap (Right Hand) WPL 98004633 Contact Us For Availability
1
Rack, Oven (2) WPL 98006762 Contact Us For Availability
1
Literature Parts (Installation Instr (Templat WPL LIT98007121 Contact Us For Availability
1
Literature Parts (Safer Cooking Tips) WPL LIT98007130 Contact Us For Availability
1
Literature Parts (Instructions Installation) WPL LIT98007134 Contact Us For Availability
1
Literature Parts (Guide, Use & Care) WPL LIT98012561 Contact Us For Availability
2
Clip, Flue WPL 98006653 Contact Us For Availability
2
Cooktop (White) WPL 98009707 Contact Us For Availability
3
Brkt., Venturi (4) WPL 98005500 Contact Us For Availability
3
Liner, Door WPL 98010183 Contact Us For Availability
3
Panel, Backguard WPL 98012599 Contact Us For Availability
3
Shield, Insulation WPL 98008025 Contact Us For Availability
3
Panel, Manifold WPL 98012600 Contact Us For Availability
4
Insulation, Door WPL 98006853 Contact Us For Availability
4
Rack, Broiler WPL 98006867 Contact Us For Availability
5
Clip, Oven Bottom WPL 98005502 Contact Us For Availability
5
Bracket, Rack WPL 98004761 Contact Us For Availability
5
Knob, Thermostat WPL 98006101 Contact Us For Availability
6
Hinge, Door (2) WPL 98006897 Contact Us For Availability
6
Counterweight WPL 98006710 Contact Us For Availability
6
Guide, Rack (4) WPL 98004715 Contact Us For Availability
7
Clip, Cooktop (2) WPL 98004722 Contact Us For Availability
7
Wire, Brick WPL 98006739 Contact Us For Availability
8
Panel, Oven Door WPL 98009488 Contact Us For Availability
8
Frame, Front WPL 98006750 Contact Us For Availability
9
Bumper, Cooktop WPL 98004723 Contact Us For Availability
9
Liner, Door WPL 98004698 Contact Us For Availability
10
Screw, Handle WPL 98006644 Contact Us For Availability
11
Insulation, Door WPL 98012545 Contact Us For Availability
12
Clip, Bulb (2) WPL 98005642 Contact Us For Availability
12
Fitting, Tube WPL 98005514 Contact Us For Availability
12
Panel, Door (White) WPL 98009337 Contact Us For Availability
13
Baffle, Base WPL 98003847 Contact Us For Availability
13
Valve, Oven WPL 98005639 Contact Us For Availability
13
Handle, Brlr Door WPL 98006623 Contact Us For Availability
14
Rail, Base (2) WPL 98003830 Contact Us For Availability
14
Spacer, Handle WPL 98004773 Contact Us For Availability
15
Retainer (Left) WPL 98004629 Contact Us For Availability
15
Retainer (Right) WPL 98004564 Contact Us For Availability
15
Support, Burner WPL 98004453 Contact Us For Availability
16
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
16
paint, spray 13 oz. (black) WPL 285006 Contact Us For Availability
16
Paint, Spray 13 Oz. (Almond) WPL 350956 Contact Us For Availability
16
Paint, Touch-Up 1/2 Oz. (White Porcelain) WPL 511873 Contact Us For Availability
16
Pin Kit-Dr Removal WPL 814381 Contact Us For Availability
16
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
16
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
16
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
16
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
16
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
16
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
16
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
16
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
16
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
16
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
16
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
16
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
16
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
16
Wire (14 Ga. 200 c Red) WPL 242831 Contact Us For Availability
16
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
16
Grease WPL 261582 Contact Us For Availability
16
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
16
Almond (Uncut) WPL 978883 Contact Us For Availability
16
Button, Plug (25/32``) WPL 98007388 Contact Us For Availability
16
Button, Plug (15/32``) WPL 98007390 Contact Us For Availability
16
Cover, Guide WPL 98008341 Contact Us For Availability
18
U - NUT WPL 98009179 Contact Us For Availability
18
Support, Hinge WPL 98003791 Contact Us For Availability
19
Bracket, Inlet WPL 98007183 Contact Us For Availability
19
Spring, Broiler (Left Hand) WPL 98008379 Contact Us For Availability
19
Spring, Broiler (Right Hand) WPL 98008380 Contact Us For Availability
20
Back, Main WPL 98003809 Contact Us For Availability
21
Seal, Oven WPL 98009174 Contact Us For Availability
21
Spacer, Hinge (2) WPL 98007396 Contact Us For Availability
22
Pin, Hinge (2) WPL 98004053 Contact Us For Availability
23
Washer WPL 98007193 Contact Us For Availability
24
Base, Foot WPL 98007126 Contact Us For Availability
26
Shield, Channel WPL 98006715 Contact Us For Availability
27
Shield, Lower WPL 98007191 Contact Us For Availability
30
Sleeve, 3/16`` WPL 98007116 Contact Us For Availability
30
Clip, Tubing WPL 98005026 Contact Us For Availability
31
Retainer, Burner WPL 98005713 Contact Us For Availability
33
Top, Oven WPL 98004447 Contact Us For Availability
34
Screw WPL 98006645 Contact Us For Availability
34
Side, Oven (Left Hand) WPL 98004451 Contact Us For Availability
34
Side, Oven (Right Hand) WPL 98004452 Contact Us For Availability
35
Back, Oven WPL 98005768 Contact Us For Availability
36
LP Spud Kit (For Use With LP) WPL 98005978 Contact Us For Availability
36
Tie, Insulation WPL 98004294 Contact Us For Availability
36
Insulation WPL ARI131323A Contact Us For Availability
× ![]()
