Model Whirlpool TGP302KW0 GAS RANGE – Common Parts & Diagrams
03 - MANIFOLD
05 - OVEN AND BROILER

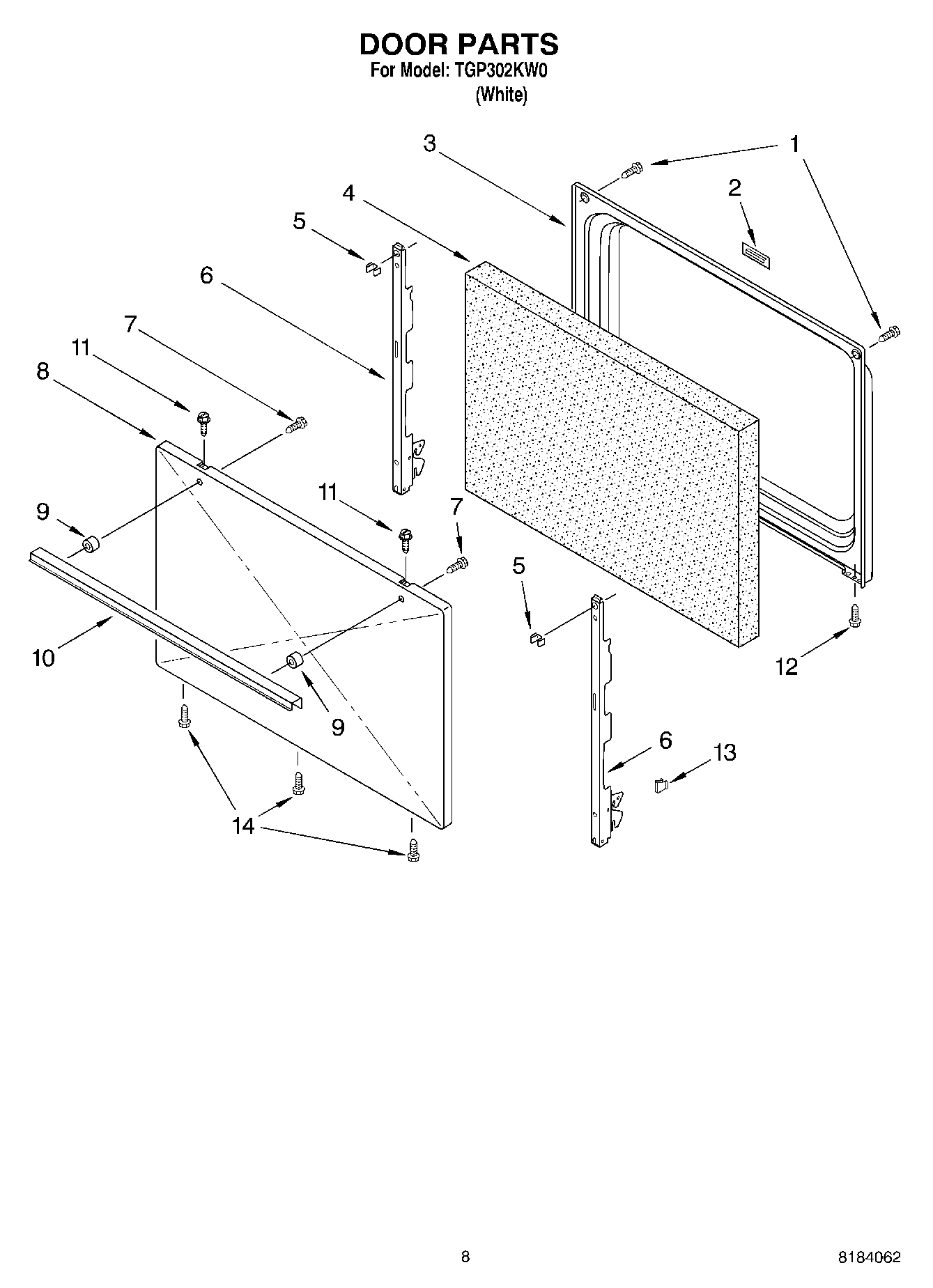

06 - DOOR

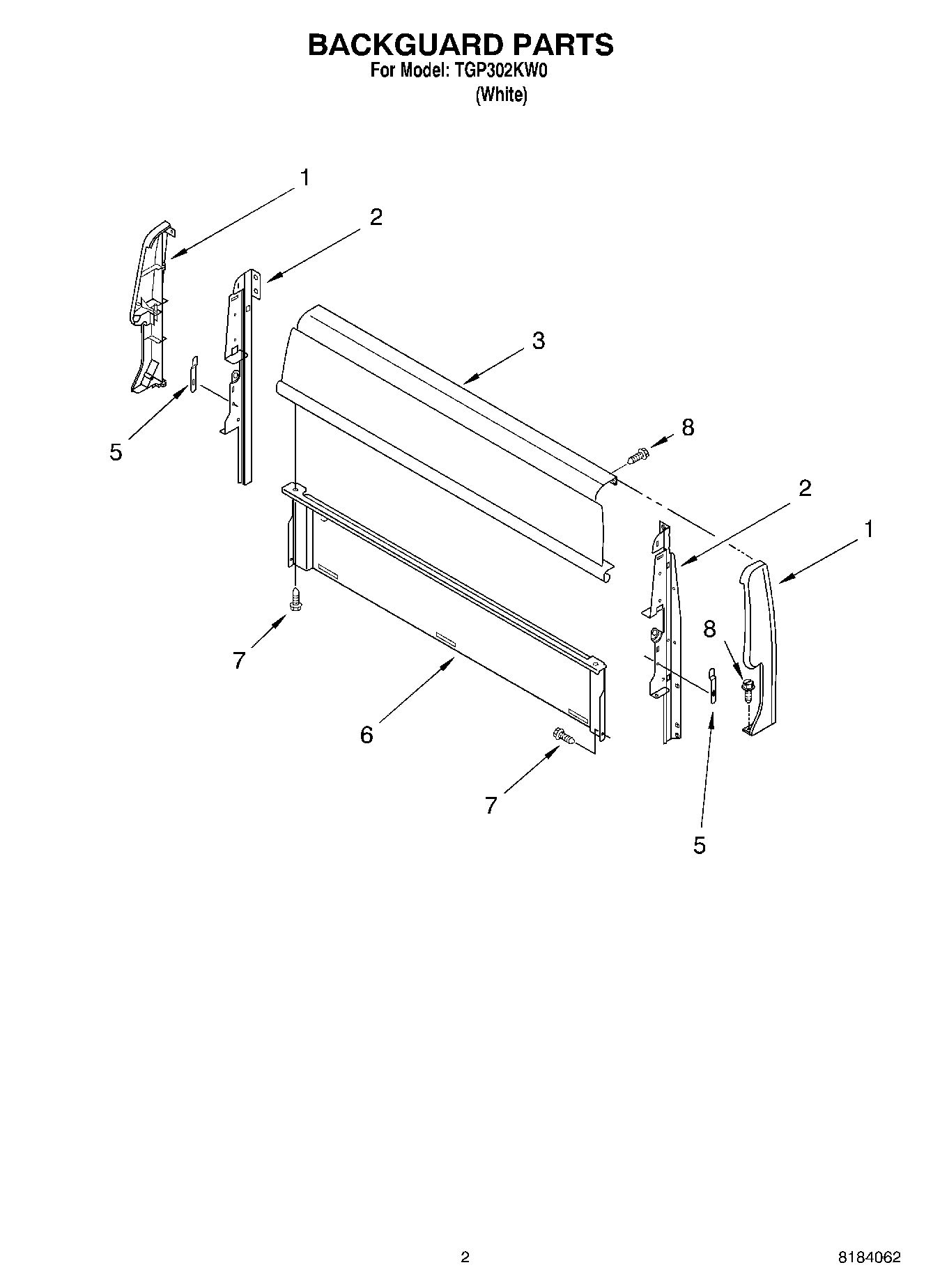

02 - BACKGUARD

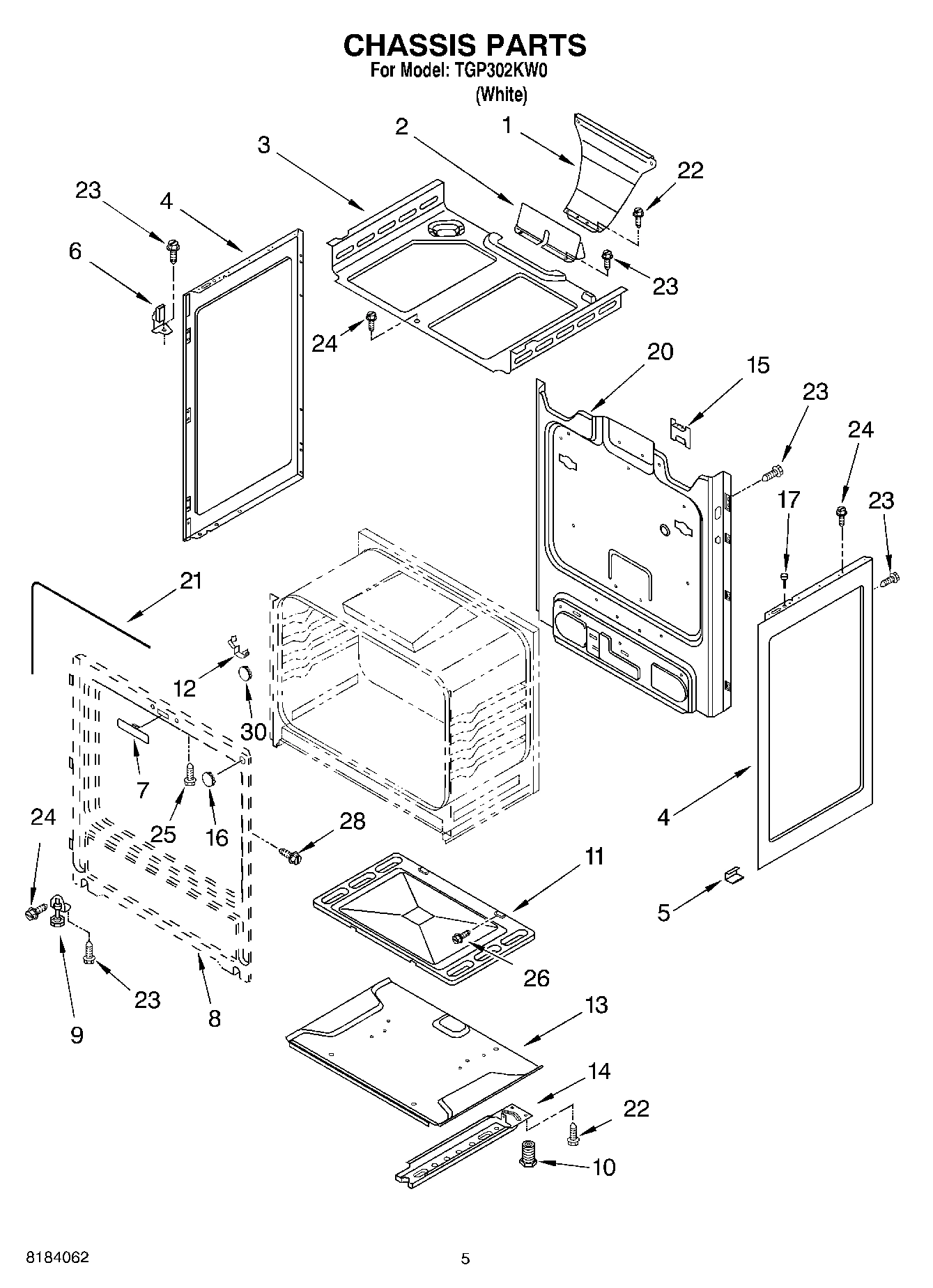

04 - CHASSIS

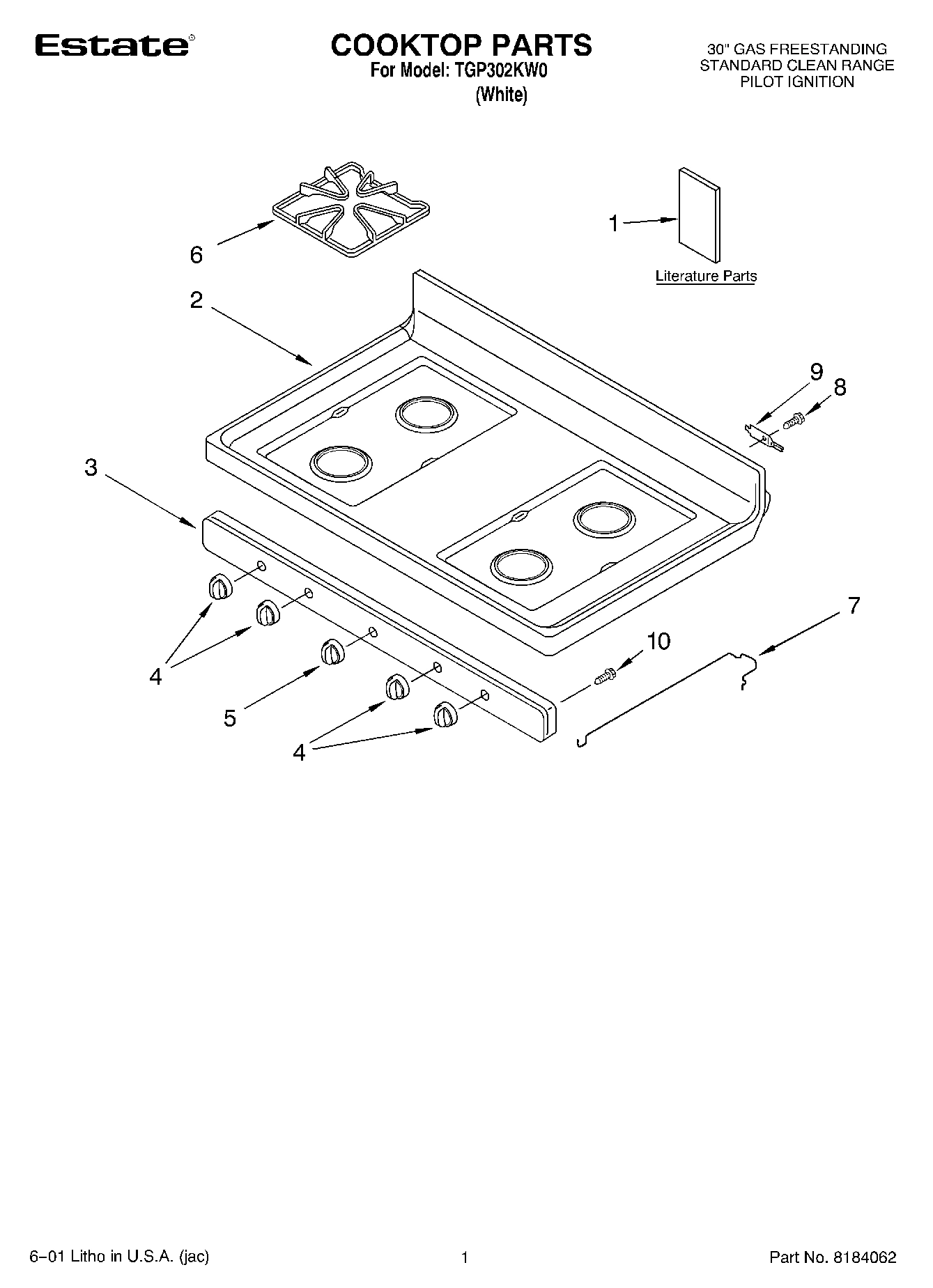

01 - COOKTOP, LITERATURE
Common parts from model Whirlpool TGP302KW0 GAS RANGE
1
Burner (Left Rear) WPL 3186213 Contact Us For Availability
1
Endcap (Left Hand) WPL 3186188 Contact Us For Availability
1
Endcap (Right Hand) WPL 3186189 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Installation Instr (Templat WPL LIT3195945 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT8053705 Contact Us For Availability
1
Literature Parts (Guide, Use & Care) WPL LIT8522717 Contact Us For Availability
2
Burner, Left Front WPL 3186209 Contact Us For Availability
2
Support, Endcap (Left Hand) WPL 3186198 Contact Us For Availability
2
Support, Endcap (Right Hand) WPL 3186199 Contact Us For Availability
2
Cooktop WPL 3186030 Contact Us For Availability
3
Burner (Right Front) WPL 3186214 Contact Us For Availability
3
Panel, Backguard WPL 8522704 Contact Us For Availability
3
Burner Box WPL 8053503 Contact Us For Availability
3
Panel, Manifold WPL 8273024 Contact Us For Availability
4
Knob, Burner (4) WPL 3186134 Contact Us For Availability
5
Bracket, Saddle (2) WPL 3195729 Contact Us For Availability
5
Clip, Panel (6) WPL 3196576 Contact Us For Availability
5
Knob, Thermostat WPL 8273965 Contact Us For Availability
6
Hinge, Door (2) WPL 8053809 Contact Us For Availability
6
Shield, Heat WPL 8053910 Contact Us For Availability
6
Brkt, Manifold Mtg (Left Hand) WPL 3186405 Contact Us For Availability
6
Brkt, Manifold Mtg (Right Hand) WPL 3186406 Contact Us For Availability
7
Screw WPL 4449746 Contact Us For Availability
7
Plug, Frame WPL 3196072 Contact Us For Availability
8
Spreader, Flame WPL 8053970 Contact Us For Availability
8
Frame, Front (Not Serviceable) WPL ARI131322A Contact Us For Availability
13
Baffle, Base WPL 3186056 Contact Us For Availability
14
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
14
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
14
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
14
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
14
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
14
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
14
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
14
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
14
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
14
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
14
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
14
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
14
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
14
Grease WPL 261582 Contact Us For Availability
14
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
14
Almond (Uncut) WPL 978883 Contact Us For Availability
15
Button, Plug WPL 8054083 Contact Us For Availability
16
Plug Button WPL 308535 Contact Us For Availability
20
Back, Main WPL 8272921 Contact Us For Availability
21
Pilot, Oven WPL 3196270 Contact Us For Availability
24
Screw WPL 3196179 Contact Us For Availability
25
Spud Kit-Set of 4 (LP to Nat) WPL 814391 Contact Us For Availability
26
Screw WPL 3196152 Contact Us For Availability
30
Tie, Insulation WPL 3195927 Contact Us For Availability
30
Button, Plug (2) WPL 3196440 Contact Us For Availability
× ![]()
