Model Electrolux TGO356BHW2 RANGE – Common Parts & Diagrams

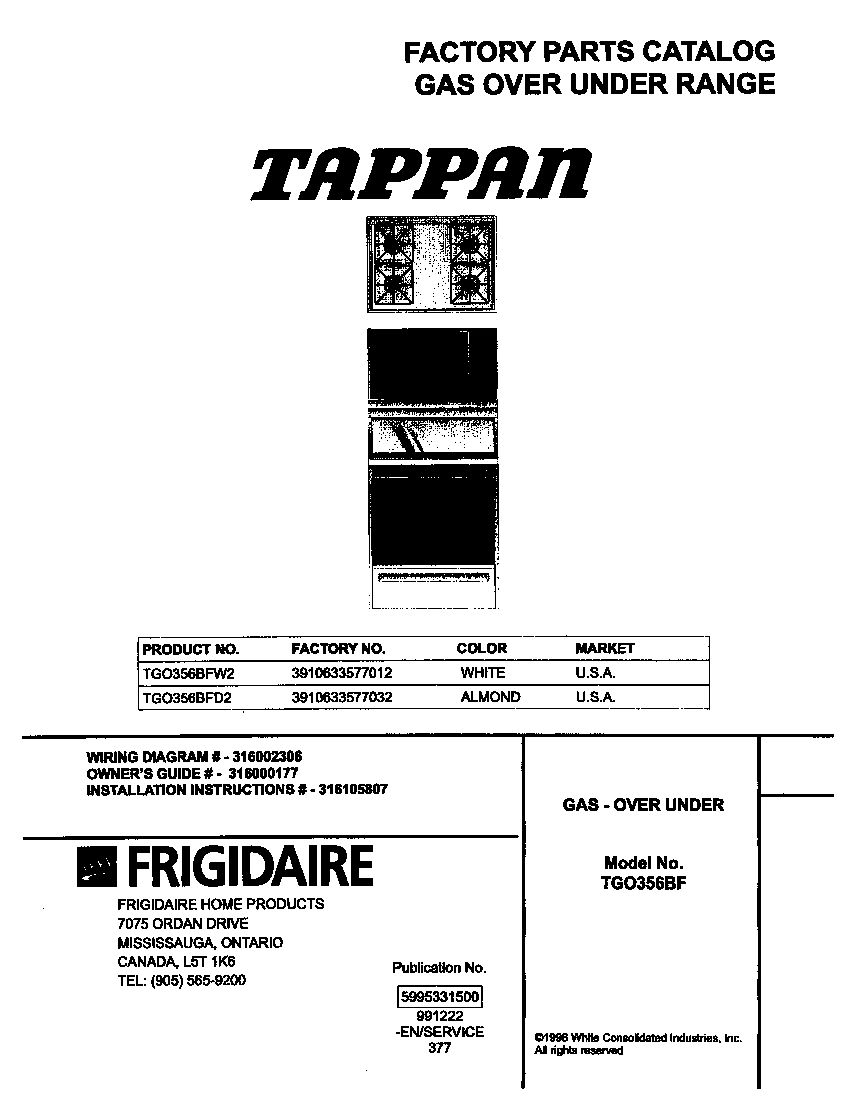

01 - COVER

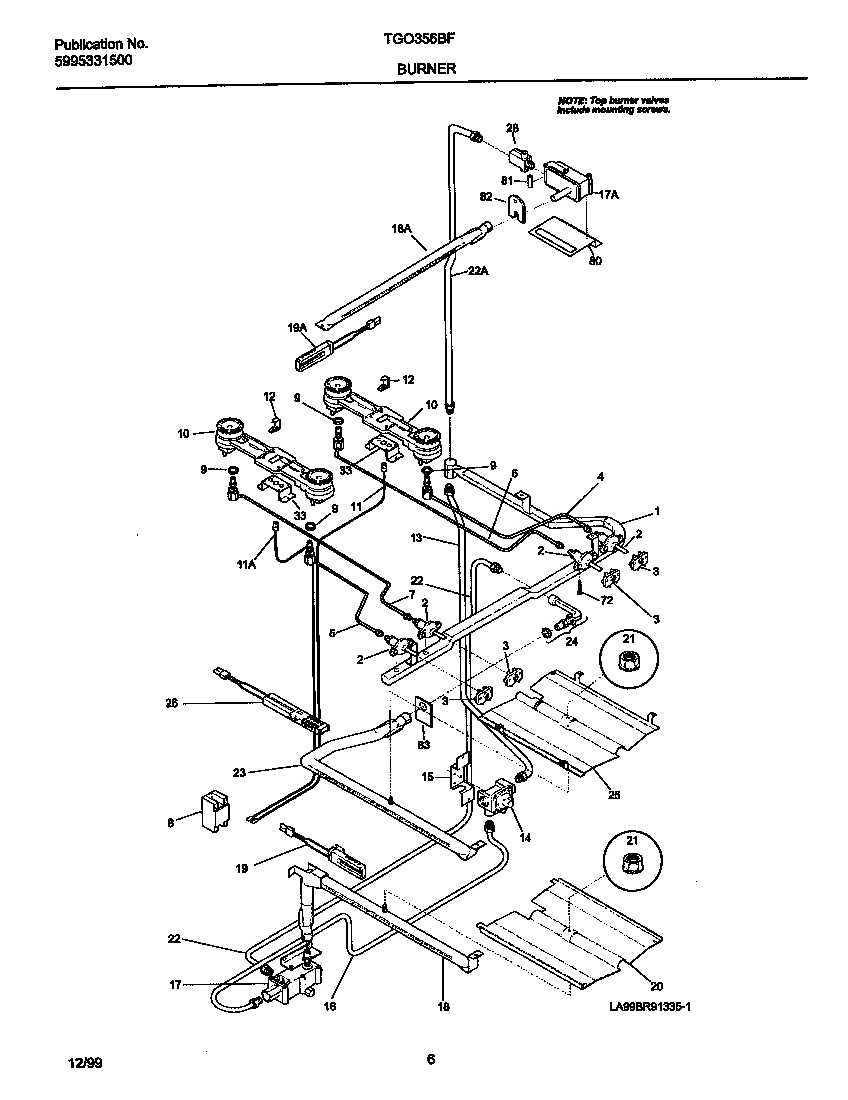

02 - BURNER

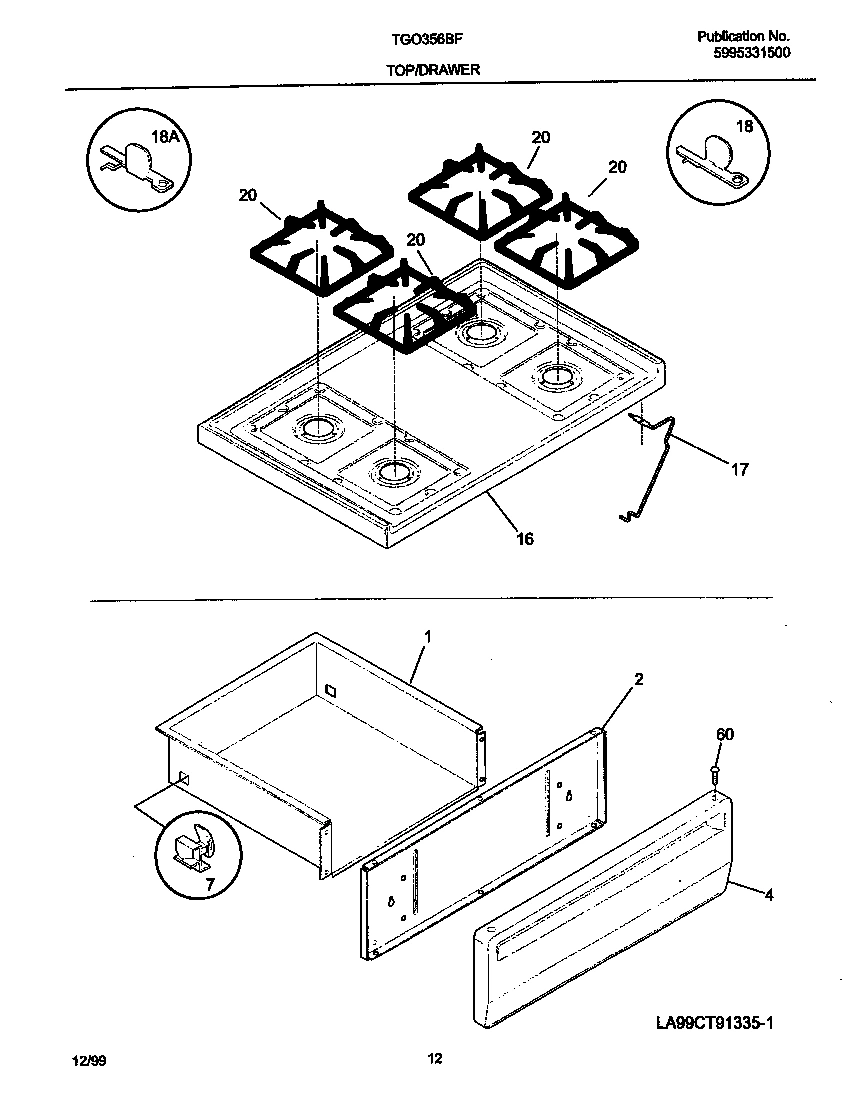

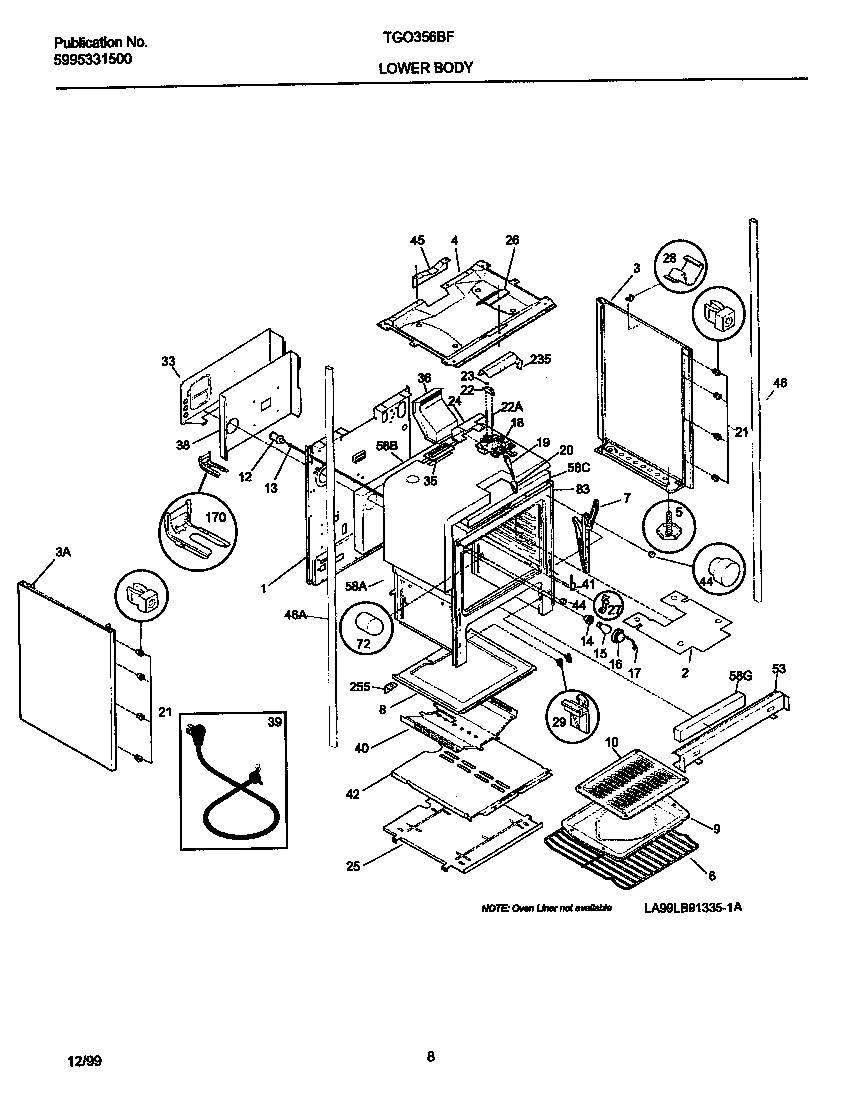

03 - LOWER BODY

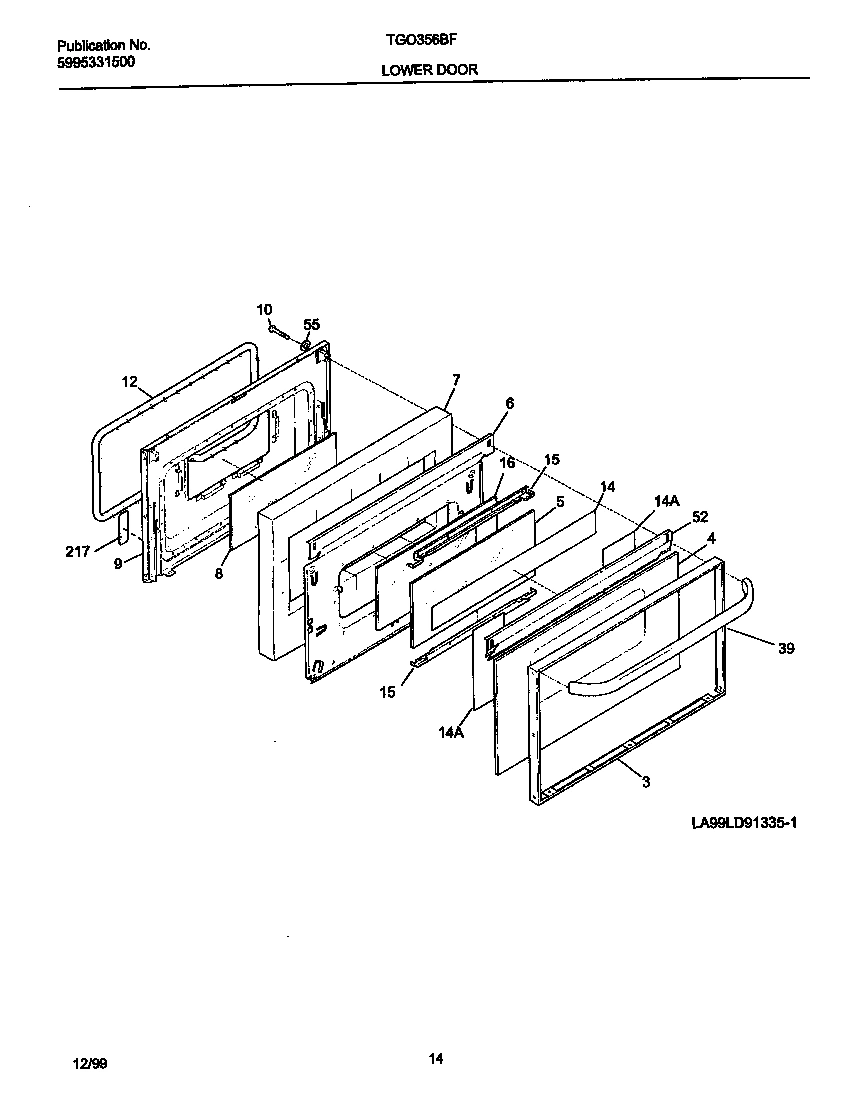

04 - TOP/DRAWER

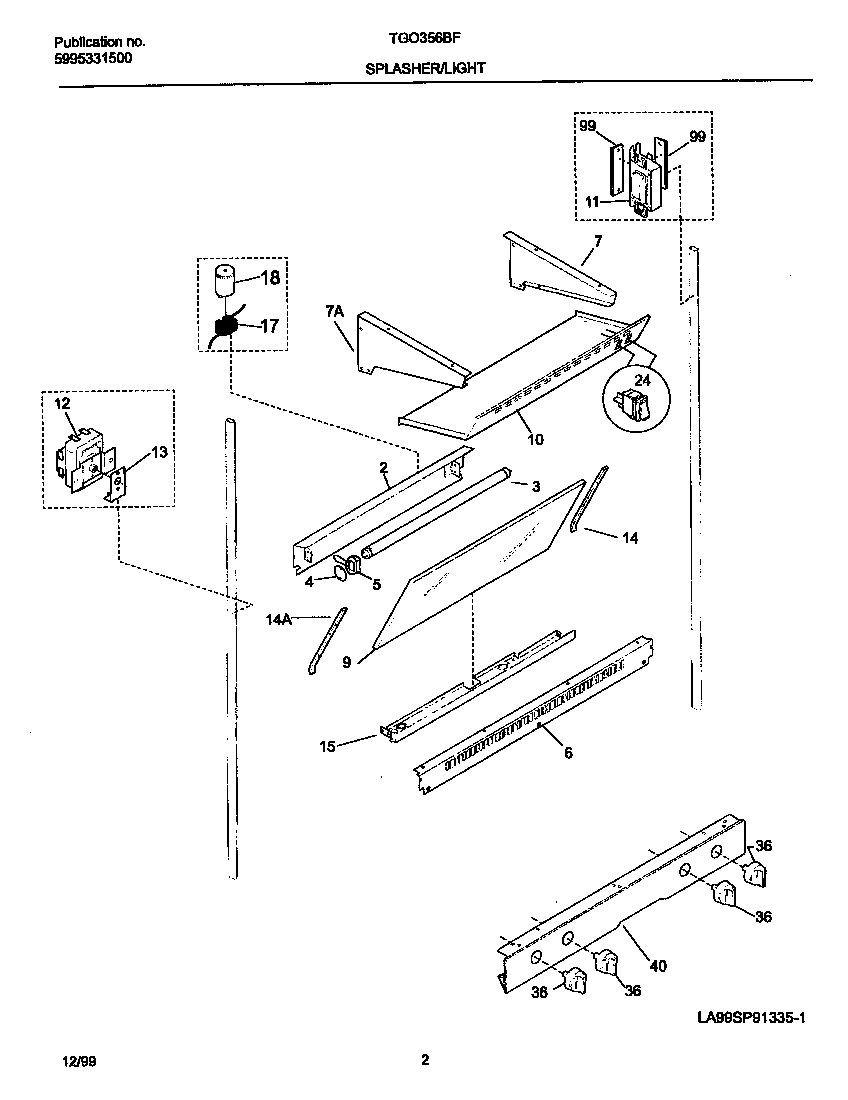

05 - LOWER DOOR
06 - SPLASHER

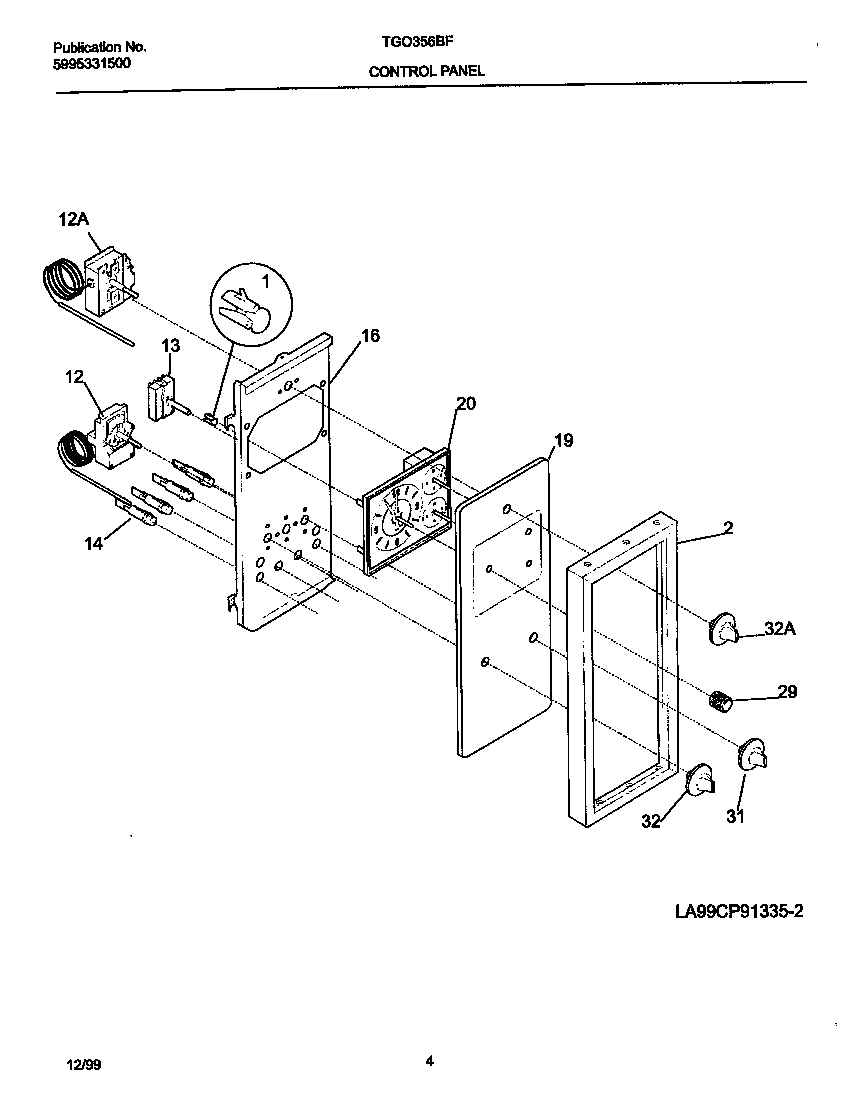

07 - CONTROL PANEL

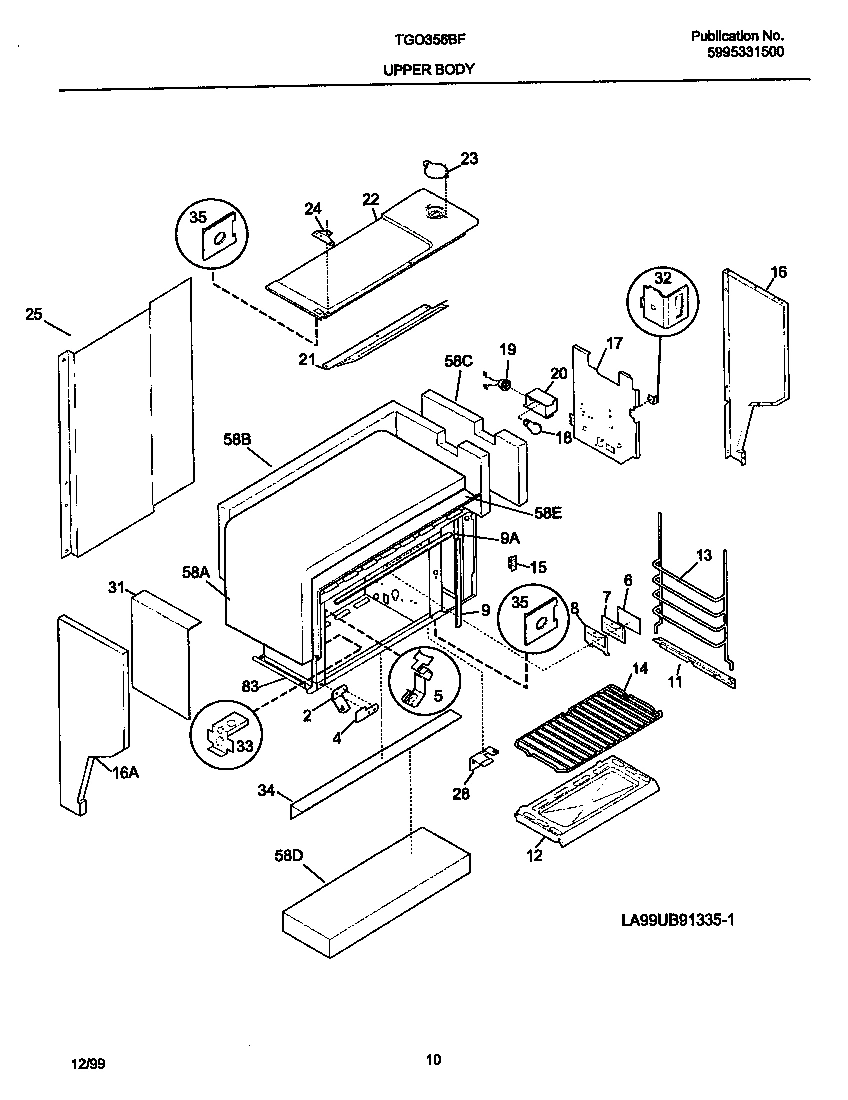

08 - UPPER BODY

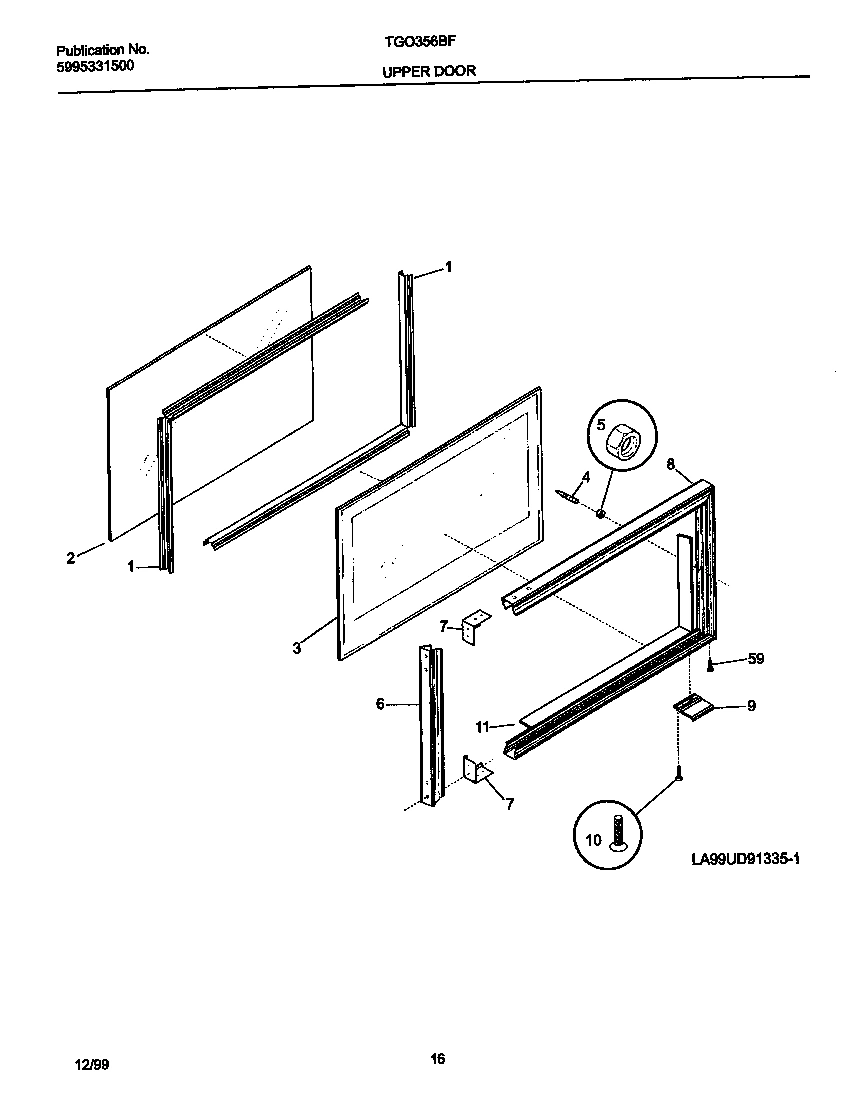

09 - UPPER DOOR

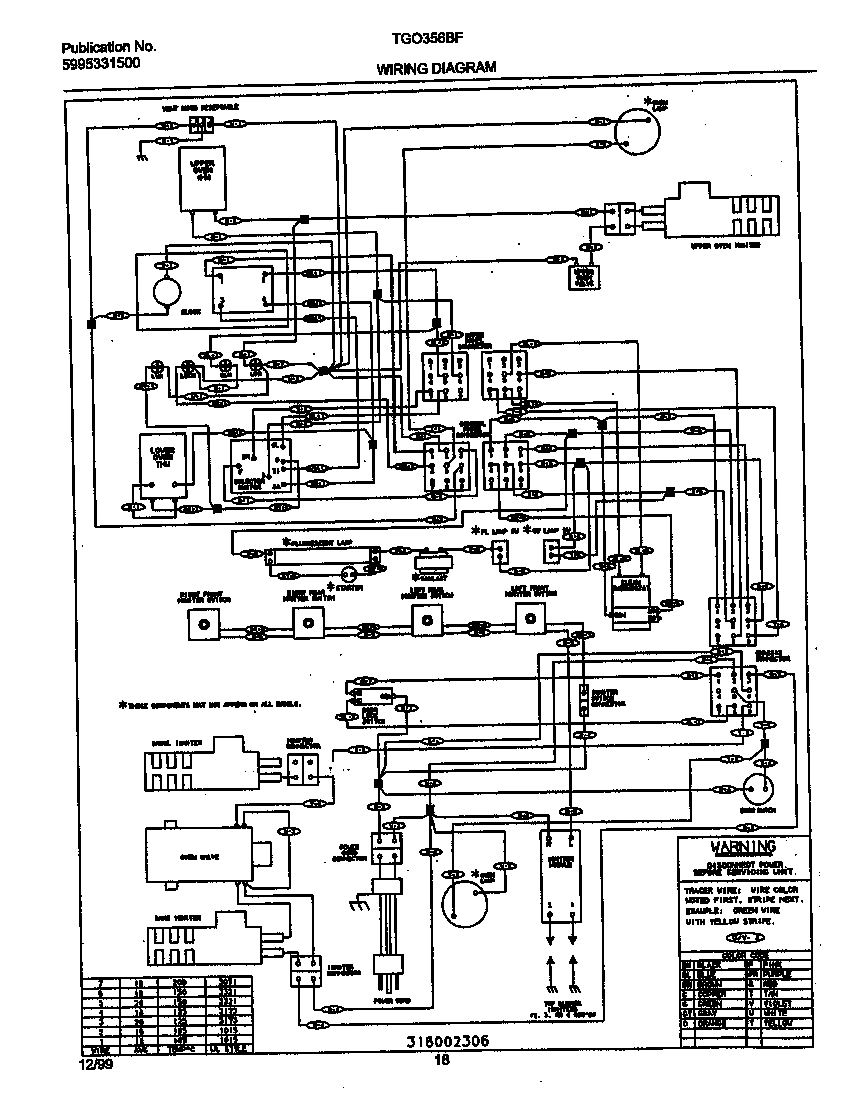

10 - WIRING DIAGRAM
Common parts from model Electrolux TGO356BHW2 RANGE
*71720
SCREW,CUP PT ,8-18 X 0.375 ,HINGE ,IND LGHT B WCI 316021108 Contact Us For Availability
*71732
WASHER WCI 5303320845 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
1
WCI 08011721 WCI 08011721 Contact Us For Availability
2
GLASS-OVEN DOOR, REAR WCI 08011722 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
2
REFLECTOR, WORK LIGHT WCI 5303208612 Contact Us For Availability
2
TRIM-FRAME WCI 316013200 Contact Us For Availability
2
HINGE-OVEN DOOR WCI 5303051166 Contact Us For Availability
3
LAMP-FLUORESCENT, BACKGUARD WCI 3131275 Contact Us For Availability
3
Trim,oven door ,black WCI 316067802 Contact Us For Availability
3
WCI 316090100 WCI 316090100 Contact Us For Availability
4
WCI 316084405 WCI 316084405 Contact Us For Availability
4
GLASS-OVEN DOOR,BLACK ,OUTER WCI 316089000 Contact Us For Availability
4
INSULATOR, LIGHT WCI 3012947 Contact Us For Availability
4
PLATE-BOTTOM HINGE WCI 08011665 Contact Us For Availability
4
WCI 318090230 WCI 318090230 Contact Us For Availability
5
Glass,oven door ,airwash WCI 316088700 Contact Us For Availability
5
WCI 5303290187 WCI 5303290187 Contact Us For Availability
6
WCI 316088401 WCI 316088401 Contact Us For Availability
6
WCI 316084301 WCI 316084301 Contact Us For Availability
6
GLASS-OVEN LIGHT LENS WCI 08011668 Contact Us For Availability
6
WCI 5303290112 WCI 5303290112 Contact Us For Availability
7
WCI 316007002 No Longer Available
7
WCI 316076403 WCI 316076403 Contact Us For Availability
7
SUPPORT-UPPER OVEN, RH WCI 3200526 Contact Us For Availability
7
SUPPORT-UPPER OVEN,LH WCI 3200527 Contact Us For Availability
7
GASKET-OVEN LIGHT WCI 3200506 Contact Us For Availability
7
GUSSET-OVEN DOOR WCI 08011727 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
8
COVER-LIGHT, UPPER WCI 08011669 Contact Us For Availability
8
CHANNEL, FRAME WCI 316013100 Contact Us For Availability
9
WCI 08011729 WCI 08011729 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
9
GLASS-SPLASHER WCI 3200496 Contact Us For Availability
9
SEAL-OVEN DOOR WCI 316024200 Contact Us For Availability
9
SEAL-OVEN DOOR WCI 316024201 Contact Us For Availability
10
WCI 316057100 WCI 316057100 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
10
PANEL-SPLASHER-UPPER WCI 316012900 Contact Us For Availability
10
WCI 5303284147 WCI 5303284147 Contact Us For Availability
11
WCI 316081701 WCI 316081701 Contact Us For Availability
11
WCI 316099800 WCI 316099800 Contact Us For Availability
11
WCI 318073101 WCI 318073101 Contact Us For Availability
11
SPACER-DOOR WCI 3051302 Contact Us For Availability
12
THERMOSTAT-OVEN, LOWER WCI 5303270076 Contact Us For Availability
12
THERMOSTAT-OVEN, SC WCI 08067928 Contact Us For Availability
12
WCI 318059204 WCI 318059204 Contact Us For Availability
12
WCI 318109801 WCI 318109801 Contact Us For Availability
13
WCI 316065005 WCI 316065005 Contact Us For Availability
13
ANGLE-S/C BRACKET WCI 3051348 Contact Us For Availability
13
WCI 5303212678 WCI 5303212678 Contact Us For Availability
13
WCI 5303290121 WCI 5303290121 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 5303208656 Contact Us For Availability
14
TRIM-SPLASHER, RH WCI 08010549 Contact Us For Availability
14
TRIM-SPLASHER,LH WCI 5303269815 Contact Us For Availability
14
WCI 5308037896 WCI 5308037896 Contact Us For Availability
14
RACK-OVEN, FLAT WCI 08011675 Contact Us For Availability
15
WCI 316081403 WCI 316081403 Contact Us For Availability
15
WCI 318002800 WCI 318002800 Contact Us For Availability
16
WCI 316085701 WCI 316085701 Contact Us For Availability
16
WCI 3131351 WCI 3131351 Contact Us For Availability
16
WCI 318116703 WCI 318116703 Contact Us For Availability
16
WCI 318025901 WCI 318025901 Contact Us For Availability
16
PANEL-BODYSIDE,WHITE ,LH WCI 318025911 Contact Us For Availability
17
WCI 316066900 WCI 316066900 Contact Us For Availability
17
VALVE-SAFETY WCI 3131623 Contact Us For Availability
17
RECEPTACLE-STARTER WCI 5303282715 Contact Us For Availability
17
SHIELD-WOOL WCI 5303208706 Contact Us For Availability
18
WCI 5303015453 WCI 5303015453 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
18
STARTER-LAMP WCI 3206218 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
19
IGNITOR-OVEN, UPPER WCI 5303200508 Contact Us For Availability
19
WCI 318001701 WCI 318001701 Contact Us For Availability
20
WCI 318004600 WCI 318004600 Contact Us For Availability
20
GRATE,BLACK ,(4) WCI 316085201 Contact Us For Availability
20
WCI 5303290105 WCI 5303290105 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
21
WCI 3200505 WCI 3200505 Contact Us For Availability
22
WCI 316065002 WCI 316065002 Contact Us For Availability
22
SWITCH-LATCH WCI 5303269499 Contact Us For Availability
22
WCI 5303290177 WCI 5303290177 Contact Us For Availability
23
WCI 318171801 WCI 318171801 Contact Us For Availability
23
WCI 318036701 WCI 318036701 Contact Us For Availability
24
WCI 5303290130 WCI 5303290130 Contact Us For Availability
25
WCI 5303290095 WCI 5303290095 Contact Us For Availability
28
WCI 318147300 WCI 318147300 Contact Us For Availability
28
STRIKE-DOOR WCI 316012800 Contact Us For Availability
29
WCI 318036210 WCI 318036210 Contact Us For Availability
31
WCI 316019167 WCI 316019167 Contact Us For Availability
31
SHIELD-HEAT WCI 3131620 Contact Us For Availability
32
KNOB-THERMOSTAT LOWER,LOWER OVEN WCI 316019164 Contact Us For Availability
32
WCI 318165301 WCI 318165301 Contact Us For Availability
32
BRACKET-CONNECTOR WCI 3200500 Contact Us For Availability
33
RETAINER, UPPER OVN BRNR WCI 3200519 Contact Us For Availability
34
WCI 5304403075 WCI 5304403075 Contact Us For Availability
35
WCI 5303290119 WCI 5303290119 Contact Us For Availability
36
WCI 316023020 WCI 316023020 Contact Us For Availability
38
WCI 316014300 WCI 316014300 Contact Us For Availability
40
WCI 3200836 WCI 3200836 Contact Us For Availability
40
WCI 316086816 WCI 316086816 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
42
WCI 5303288578 WCI 5303288578 Contact Us For Availability
45
SHIELD-WIRE WCI 08068018 Contact Us For Availability
46
WCI 5303208642 WCI 5303208642 Contact Us For Availability
46
TUBE-POST RH WCI 5303208643 Contact Us For Availability
52
WCI 316081303 WCI 316081303 Contact Us For Availability
58
WCI 316047708 WCI 316047708 Contact Us For Availability
58
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
58
Insulation, 2`` ,oven back WCI 316054200 Contact Us For Availability
58
WCI 318132601 WCI 318132601 Contact Us For Availability
58
WCI 318132602 WCI 318132602 Contact Us For Availability
58
WCI 318132606 WCI 318132606 Contact Us For Availability
58
WCI 318132607 WCI 318132607 Contact Us For Availability
58
REFLECTOR, ALUMINUM FOIL WCI 3204440 Contact Us For Availability
59
PLUG BUTTON WCI 316013300 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
83
WCI 316054311 WCI 316054311 Contact Us For Availability
83
WCI 318109600 WCI 318109600 Contact Us For Availability
99
SPACER WCI 5303304544 Contact Us For Availability
217
WCI 316065306 WCI 316065306 Contact Us For Availability
235
SHIELD-LATCH WCI 3051413 Contact Us For Availability
× ![]()
