Model Electrolux TGO356BFD3 RANGE – Common Parts & Diagrams
01 - COVER
02 - SPLASHER

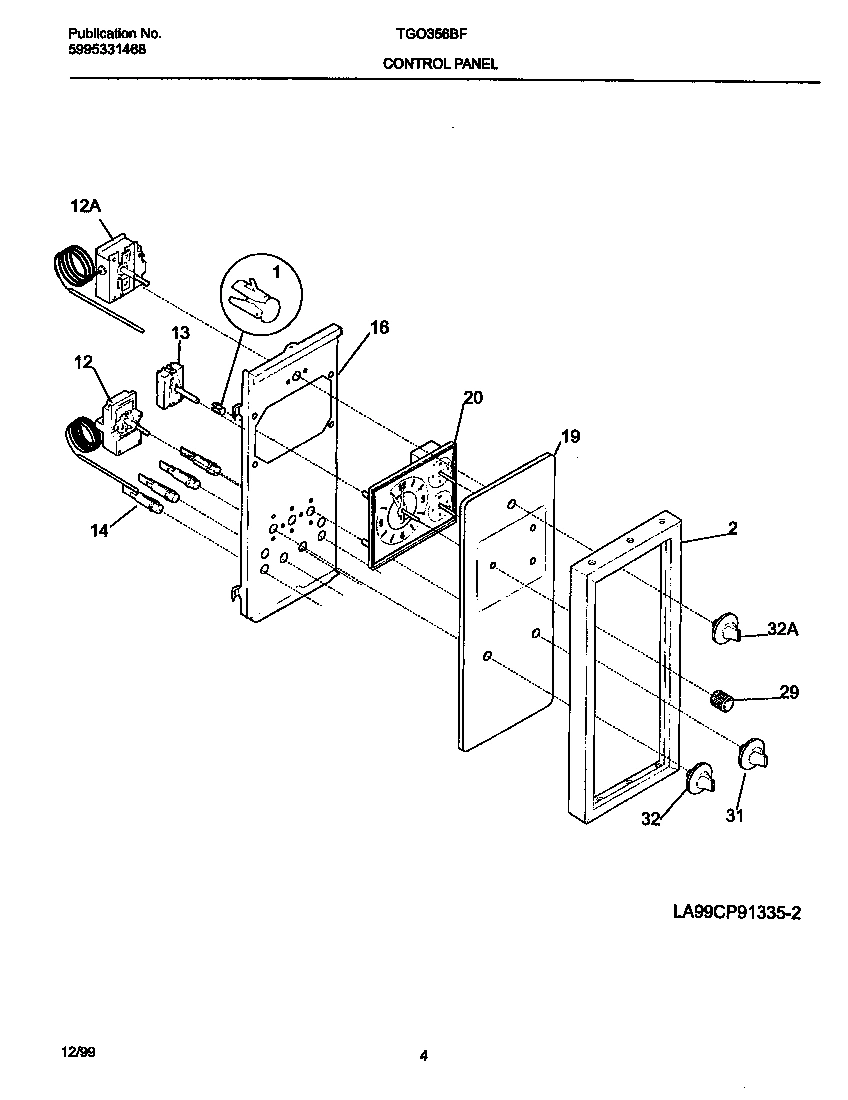

03 - CONTROL PANEL

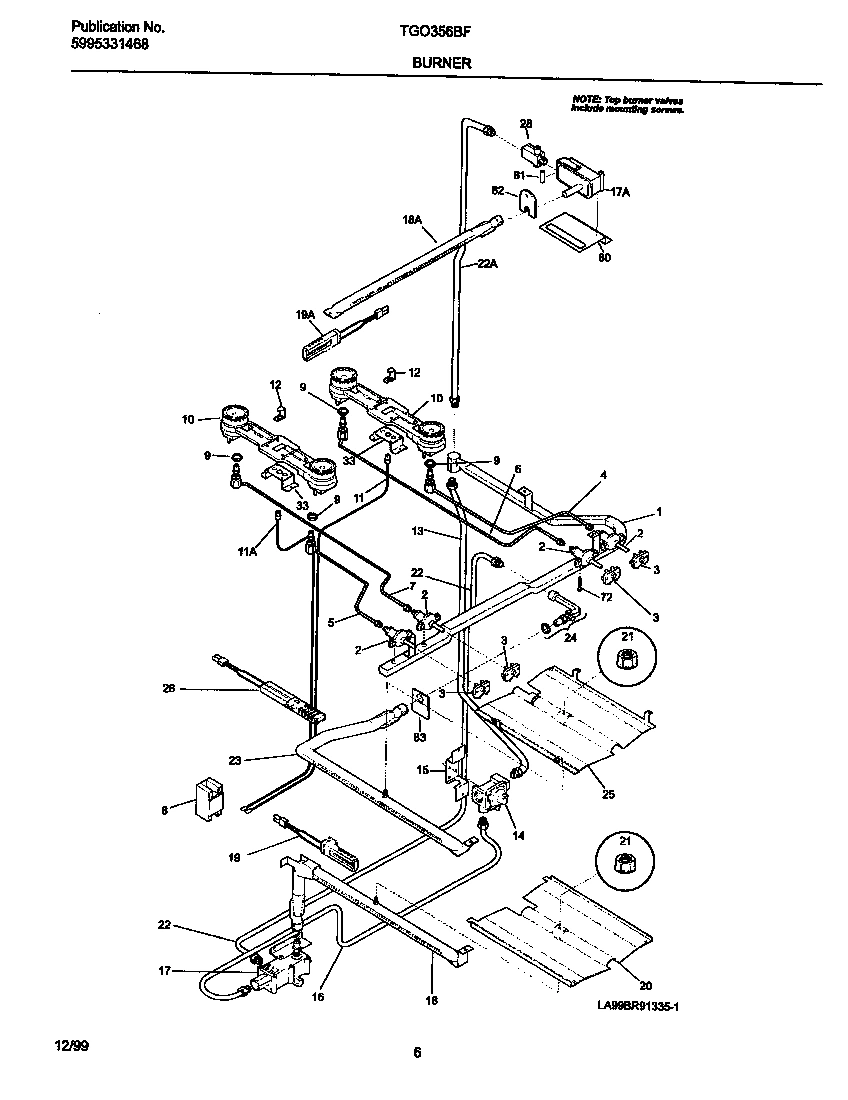

04 - BURNER

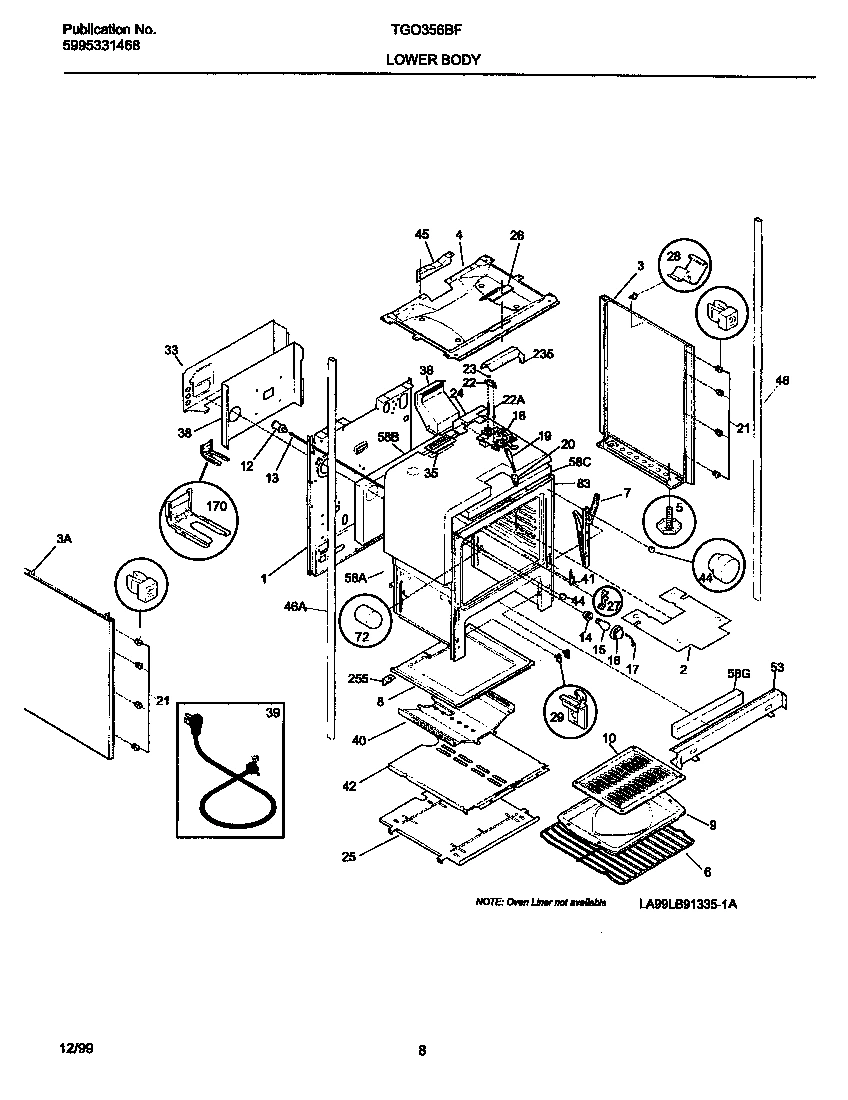

05 - LOWER BODY

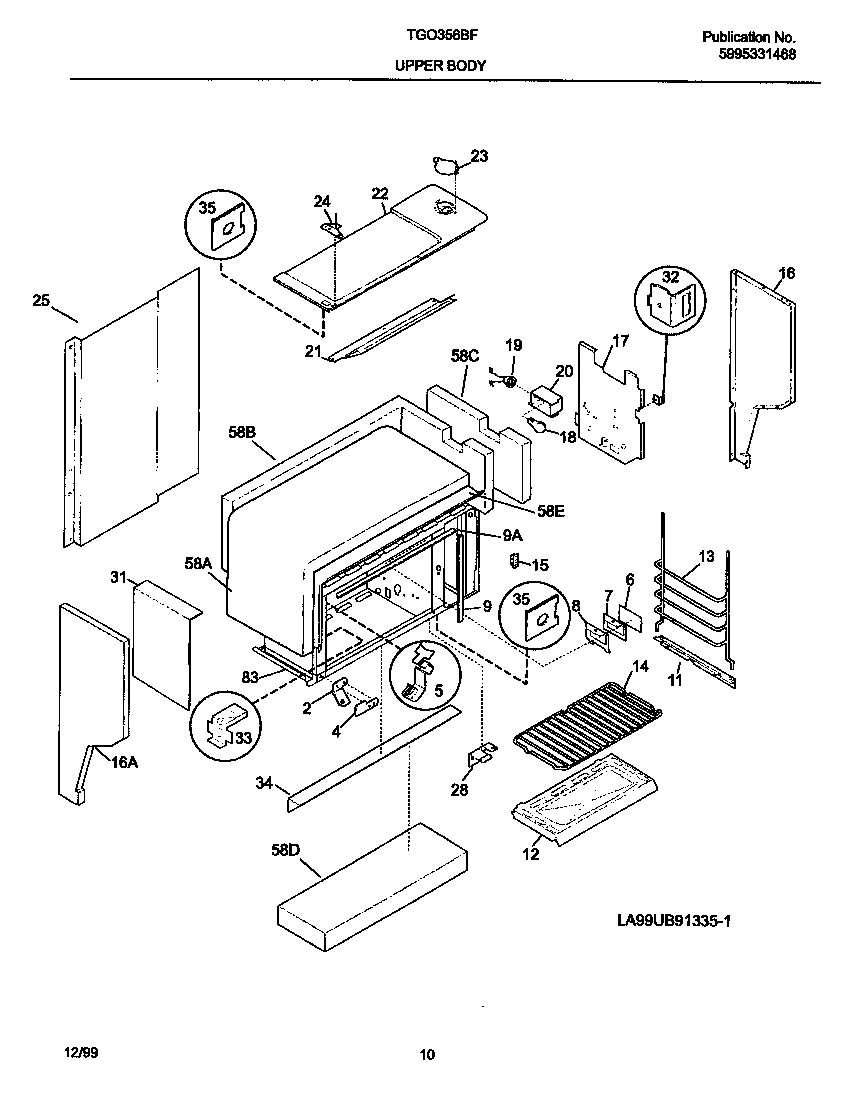

06 - UPPER BODY

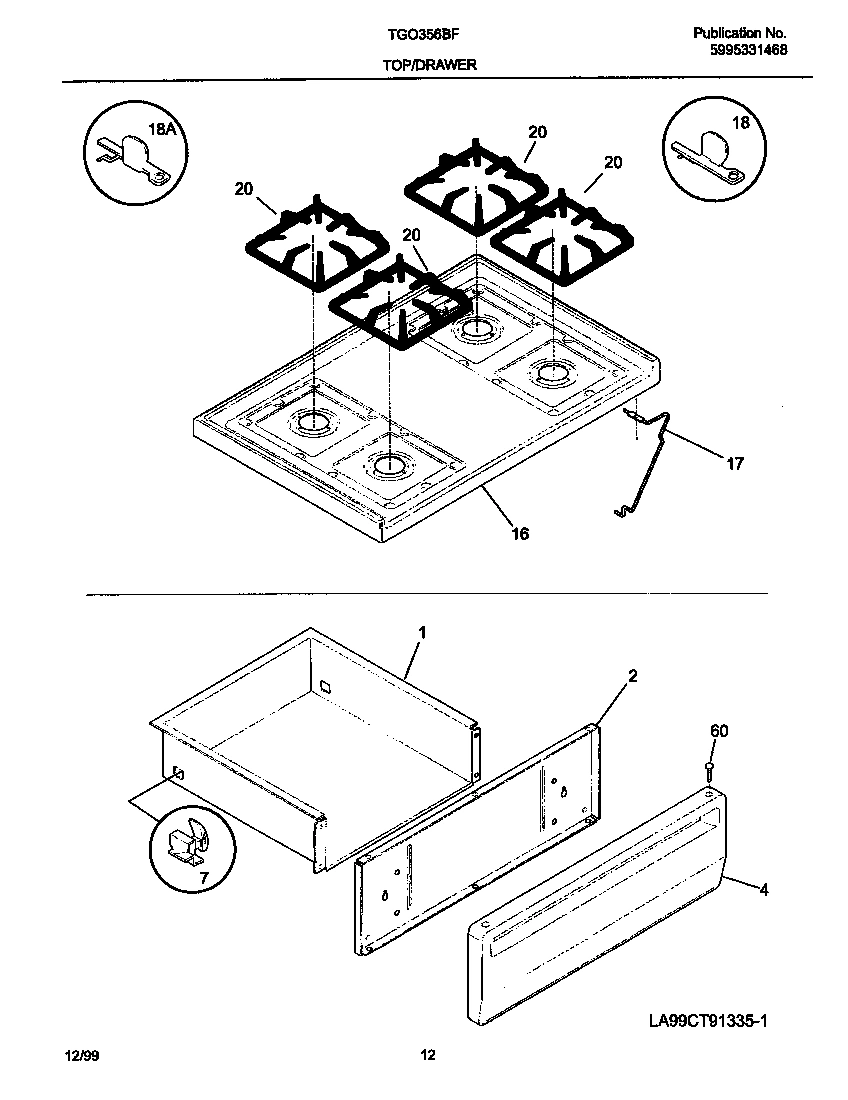

07 - TOP/DRAWER

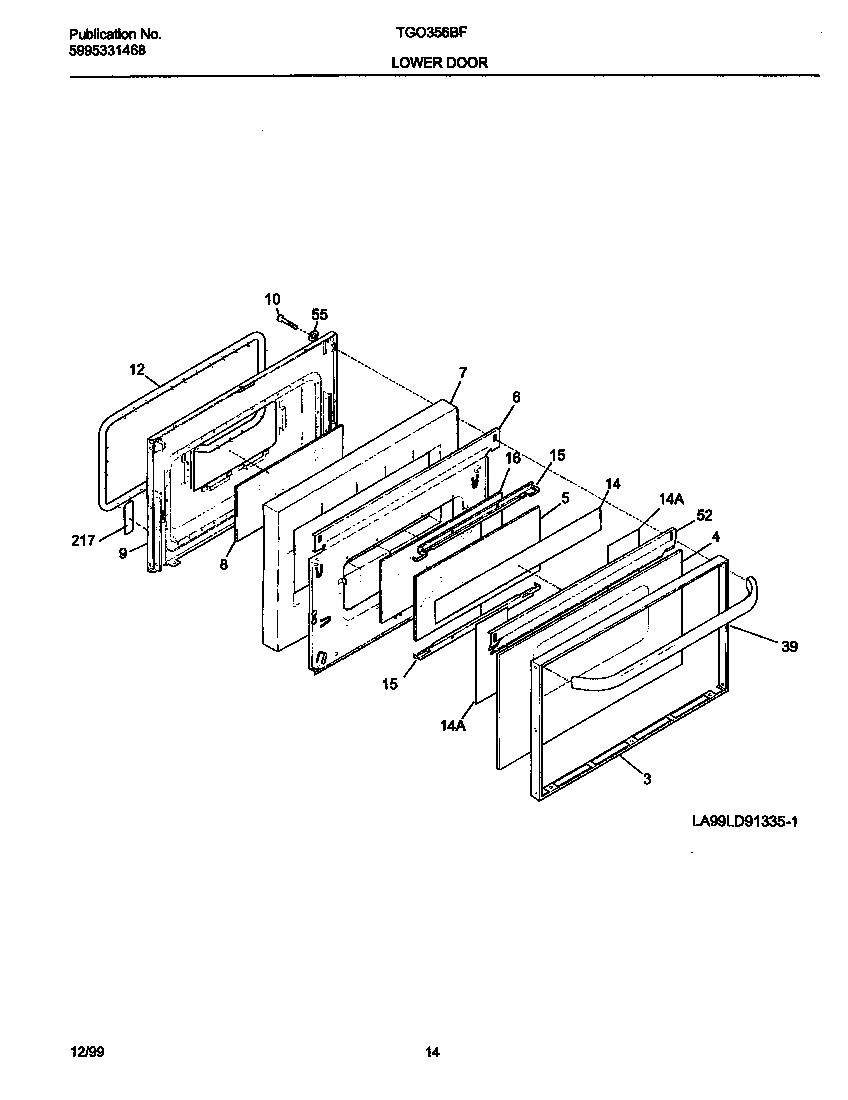

08 - LOWER DOOR

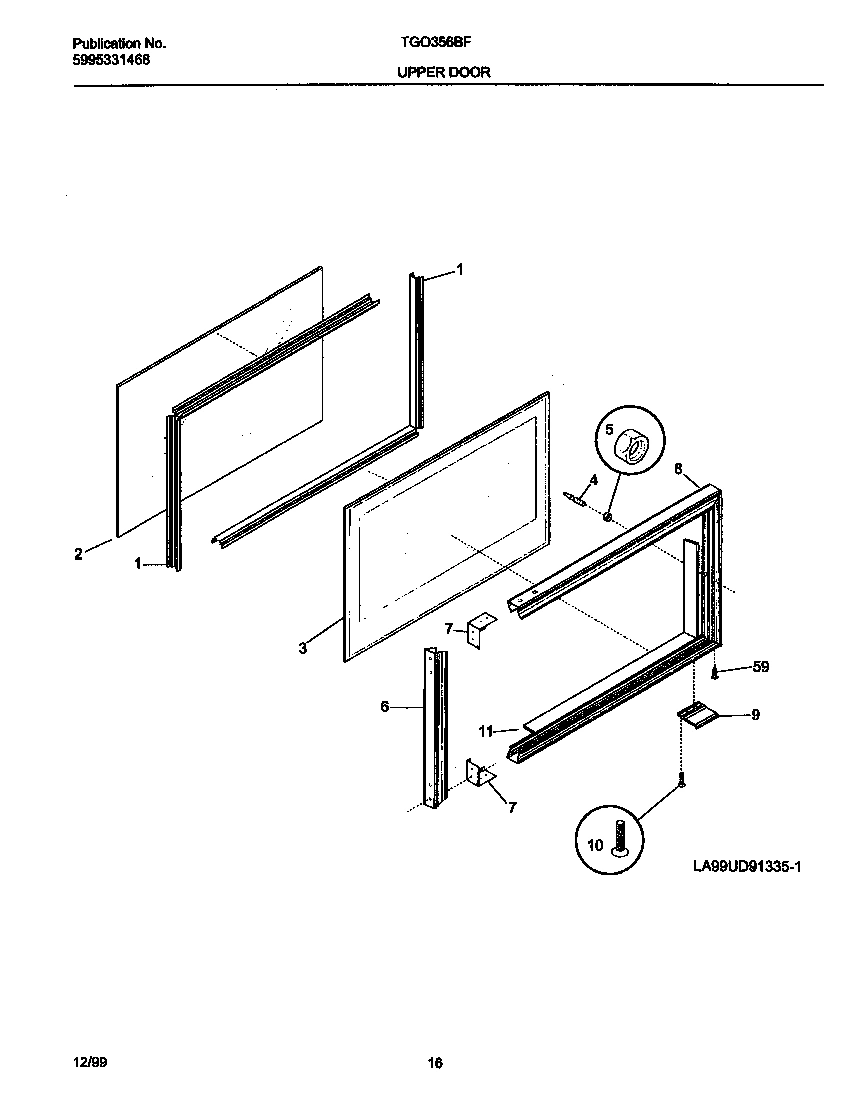

09 - UPPER DOOR

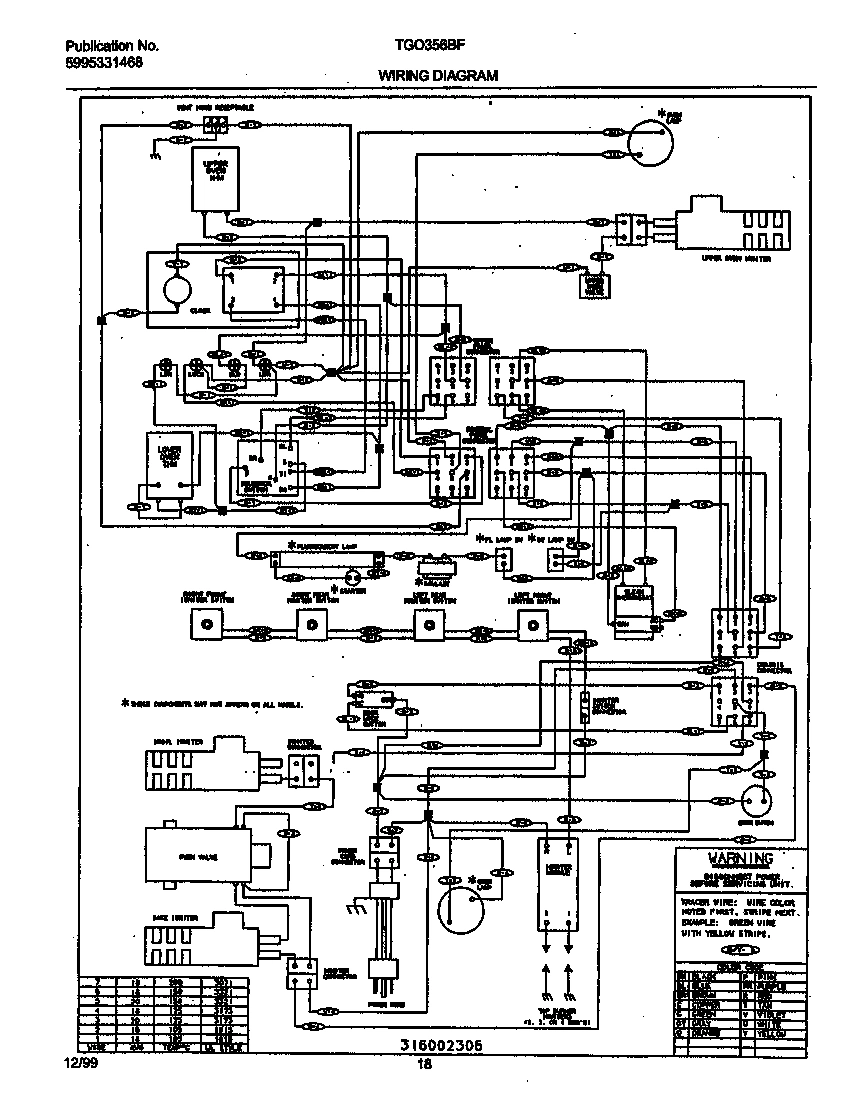

10 - WIRING DIAGRAM
Common parts from model Electrolux TGO356BFD3 RANGE
*11001
SCREW,CUP PT ,8-18 X 0.375 ,HINGE ,IND LGHT B WCI 316021108 Contact Us For Availability
*11009
WASHER-HINGE,BLACK WCI 3131737 Contact Us For Availability
*11011
WCI 08013188 WCI 08013188 Contact Us For Availability
*11013
WCI 08067961 WCI 08067961 Contact Us For Availability
*11014
WCI 5304400432 WCI 5304400432 Contact Us For Availability
1
WCI 316029412 WCI 316029412 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
1
WCI 08011721 WCI 08011721 Contact Us For Availability
2
GLASS-OVEN DOOR, REAR WCI 08011722 Contact Us For Availability
2
WCI 3131314 WCI 3131314 Contact Us For Availability
2
HINGE-OVEN DOOR WCI 5303051166 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
LAMP-FLUORESCENT, BACKGUARD WCI 3131275 Contact Us For Availability
3
PANEL CONTROL,ALMOND ,RH WCI 316081036 Contact Us For Availability
3
BODY SIDE PANEL,ALMOND ,LH WCI 316081037 Contact Us For Availability
3
Trim,oven door ,black WCI 316067802 Contact Us For Availability
3
WCI 316090100 WCI 316090100 Contact Us For Availability
4
WCI 3011597 WCI 3011597 Contact Us For Availability
4
PLATE-BOTTOM HINGE WCI 08011665 Contact Us For Availability
4
WCI 316084406 WCI 316084406 Contact Us For Availability
4
GLASS-OVEN DOOR,BLACK ,OUTER WCI 316089000 Contact Us For Availability
4
WCI 318090230 WCI 318090230 Contact Us For Availability
5
Glass,oven door ,airwash WCI 316088700 Contact Us For Availability
5
SCREW-LEVELLING WCI 316107300 Contact Us For Availability
6
GLASS-OVEN LIGHT LENS WCI 08011668 Contact Us For Availability
6
WCI 316088401 WCI 316088401 Contact Us For Availability
6
WCI 5303290112 WCI 5303290112 Contact Us For Availability
7
WCI 316007002 WCI 316007002 Contact Us For Availability
7
GASKET-OVEN LIGHT WCI 3200506 Contact Us For Availability
7
WCI 316076403 WCI 316076403 Contact Us For Availability
7
GUSSET-OVEN DOOR WCI 08011727 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
8
WCI 5303912606 WCI 5303912606 Contact Us For Availability
8
WCI 5303300406 WCI 5303300406 Contact Us For Availability
8
COVER-LIGHT, UPPER WCI 08011669 Contact Us For Availability
8
CHANNEL, FRAME WCI 316013100 Contact Us For Availability
9
WCI 08011729 WCI 08011729 Contact Us For Availability
9
WCI 318138800 WCI 318138800 Contact Us For Availability
9
SEAL-OVEN DOOR WCI 316024200 Contact Us For Availability
9
SEAL-OVEN DOOR WCI 316024201 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
10
WCI 318126400 WCI 318126400 Contact Us For Availability
10
WCI 5303284147 WCI 5303284147 Contact Us For Availability
11
WCI 316081701 WCI 316081701 Contact Us For Availability
11
WCI 316099800 WCI 316099800 Contact Us For Availability
11
WCI 318073101 WCI 318073101 Contact Us For Availability
11
SPACER-DOOR WCI 3051302 Contact Us For Availability
12
THERMOSTAT-OVEN, LOWER WCI 5303270076 Contact Us For Availability
12
WCI 316027702 WCI 316027702 Contact Us For Availability
12
WCI 318109801 WCI 318109801 Contact Us For Availability
13
WCI 316065005 WCI 316065005 Contact Us For Availability
13
WCI 316026800 WCI 316026800 Contact Us For Availability
13A
WCI 5303290121 WCI 5303290121 Contact Us For Availability
13B
GLIDE-OVEN RACK WCI 5303934091 Contact Us For Availability
14
RACK-OVEN, FLAT WCI 08011675 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 5303208656 Contact Us For Availability
15
WCI 316081403 WCI 316081403 Contact Us For Availability
16
WCI 316085701 WCI 316085701 Contact Us For Availability
16
WCI 318025902 WCI 318025902 Contact Us For Availability
16
PANEL-BODYSIDE,ALMOND ,LH WCI 318025912 Contact Us For Availability
16
MAIN TOP, ALMOND WCI 3131455 Contact Us For Availability
17
WCI 316066900 WCI 316066900 Contact Us For Availability
17
VALVE-SAFETY WCI 3131623 Contact Us For Availability
17
SHIELD-WOOL WCI 5303208706 Contact Us For Availability
18
STARTER-LAMP WCI 3206218 Contact Us For Availability
18
WCI 5303015453 WCI 5303015453 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
19
IGNITOR-OVEN, UPPER WCI 5303200508 Contact Us For Availability
19
WCI 5303131357 WCI 5303131357 Contact Us For Availability
20
WCI 3203218 WCI 3203218 Contact Us For Availability
20
WCI 5303290105 WCI 5303290105 Contact Us For Availability
20
GRATE,BLACK ,(4) WCI 316085201 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
21
WCI 3200505 WCI 3200505 Contact Us For Availability
22
SWITCH-LATCH WCI 5303269499 Contact Us For Availability
22
STUD SPACER WCI 08067978 Contact Us For Availability
22
WCI 5303290177 WCI 5303290177 Contact Us For Availability
22B
WCI 316065002 WCI 316065002 Contact Us For Availability
23
WCI 08067776 WCI 08067776 Contact Us For Availability
23
WCI 318036701 WCI 318036701 Contact Us For Availability
24
SHIELD-LATCH, TOP WCI 3131593 Contact Us For Availability
24
WCI 5303290130 WCI 5303290130 Contact Us For Availability
25
SHIELD-BAKE LOWER,LOWER WCI 5303288580 Contact Us For Availability
25
WCI 5303290095 WCI 5303290095 Contact Us For Availability
26
WCI 08067757 WCI 08067757 Contact Us For Availability
27
CLIP-THERMO BULB WCI 08067754 Contact Us For Availability
28
Clip,wire ,bodyside WCI 3011813 Contact Us For Availability
28
STRIKE-DOOR WCI 316012800 Contact Us For Availability
29
WCI 316029008 WCI 316029008 Contact Us For Availability
31
WCI 316019167 WCI 316019167 Contact Us For Availability
31
SHIELD-HEAT WCI 3131620 Contact Us For Availability
32
KNOB-THERMOSTAT LOWER,LOWER OVEN WCI 316019164 Contact Us For Availability
32
BRACKET-CONNECTOR WCI 3200500 Contact Us For Availability
33
WCI 316014400 WCI 316014400 Contact Us For Availability
33
RETAINER, UPPER OVN BRNR WCI 3200519 Contact Us For Availability
34
WCI 5304403075 WCI 5304403075 Contact Us For Availability
35
WCI 5303290119 WCI 5303290119 Contact Us For Availability
36
WCI 316023020 WCI 316023020 Contact Us For Availability
36
WCI 3131931 WCI 3131931 Contact Us For Availability
38
WCI 316014300 WCI 316014300 Contact Us For Availability
40
WCI 3200836 WCI 3200836 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
42
WCI 5303288578 No Longer Available
45
SHIELD-WIRE WCI 08068018 Contact Us For Availability
46
WCI 5303208642 WCI 5303208642 Contact Us For Availability
46
TUBE-POST RH WCI 5303208643 Contact Us For Availability
52
WCI 316081303 WCI 316081303 Contact Us For Availability
53
WCI 5303288579 WCI 5303288579 Contact Us For Availability
58
WCI 316047708 WCI 316047708 Contact Us For Availability
58
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
58
Insulation, 2`` ,oven back WCI 316054200 Contact Us For Availability
58
WCI 318132601 WCI 318132601 Contact Us For Availability
58
WCI 318132602 WCI 318132602 Contact Us For Availability
58
WCI 318132606 WCI 318132606 Contact Us For Availability
58
WCI 318132607 WCI 318132607 Contact Us For Availability
58
REFLECTOR, ALUMINUM FOIL WCI 3204440 Contact Us For Availability
59
BUTTON WCI 316013300 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
83
WCI 316054311 WCI 316054311 Contact Us For Availability
83
WCI 318109600 WCI 318109600 Contact Us For Availability
217
WCI 316065306 WCI 316065306 Contact Us For Availability
235
SHIELD-LATCH WCI 3051413 Contact Us For Availability
× ![]()
