Model Electrolux TGO356BCDB RANGE – Common Parts & Diagrams

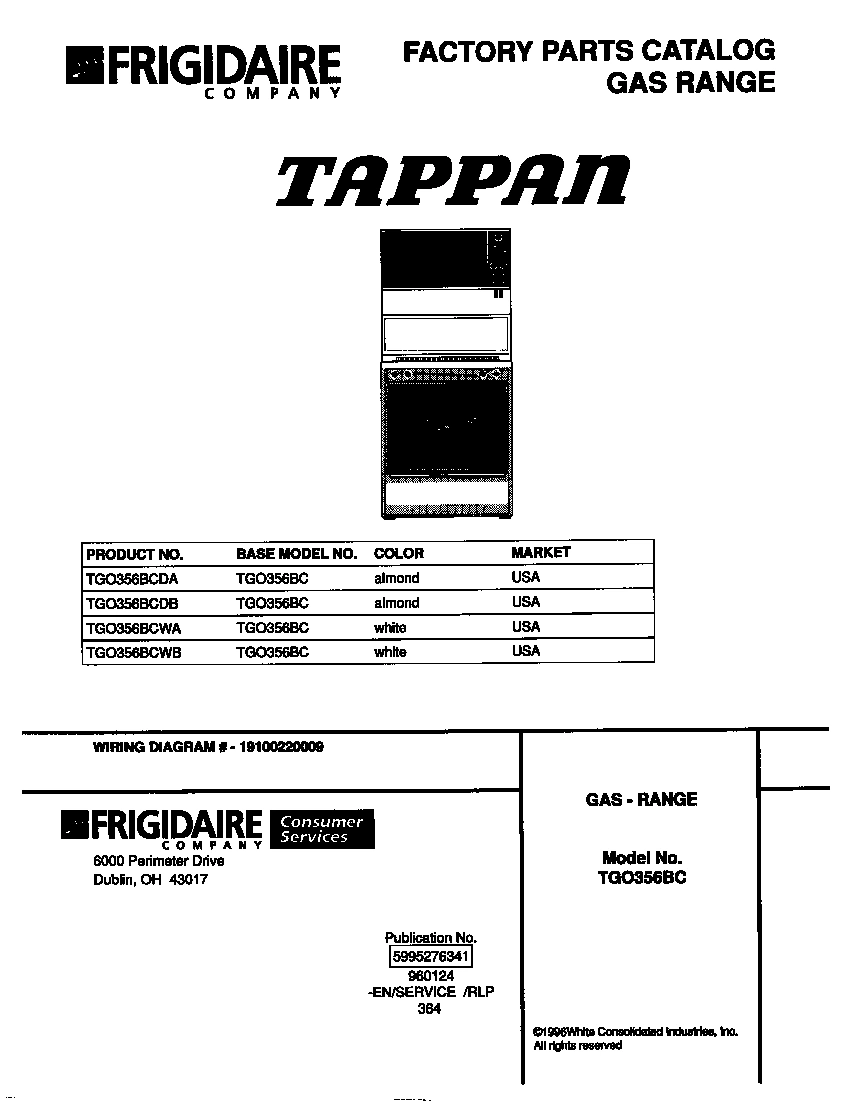

01 - COVER

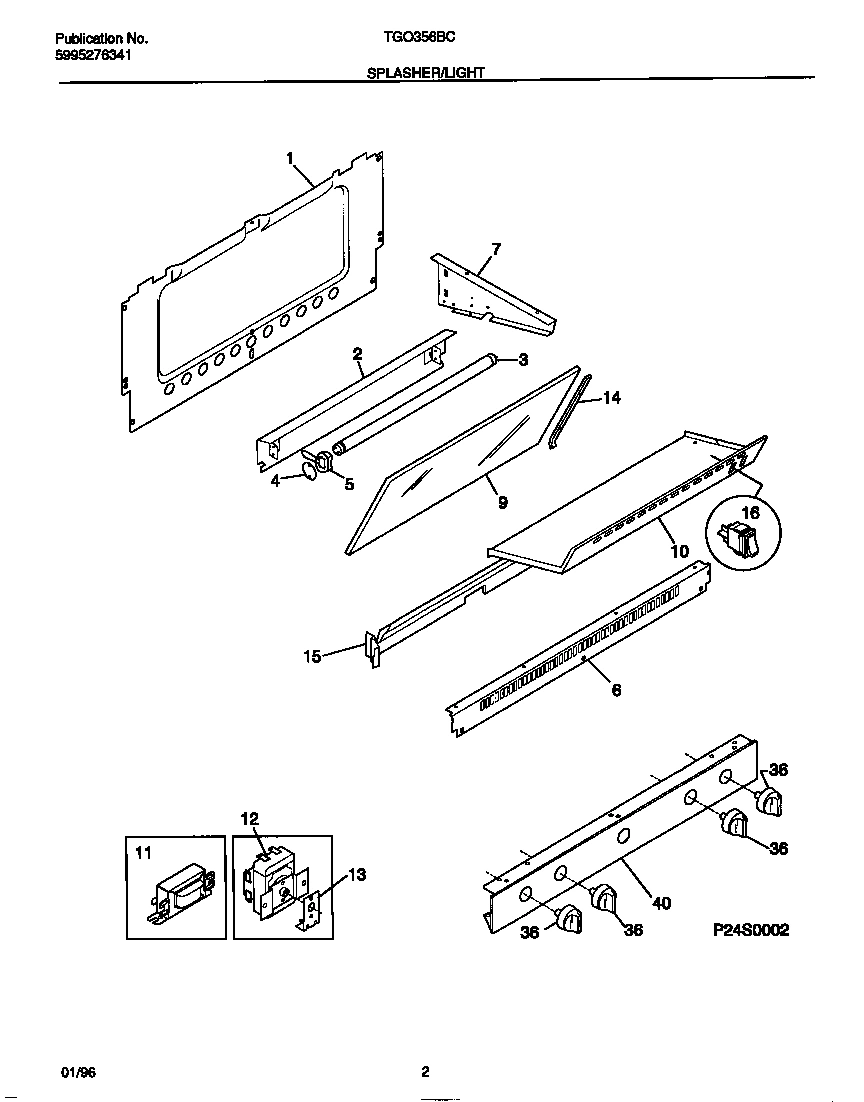

02 - SPLASHER/LIGHT

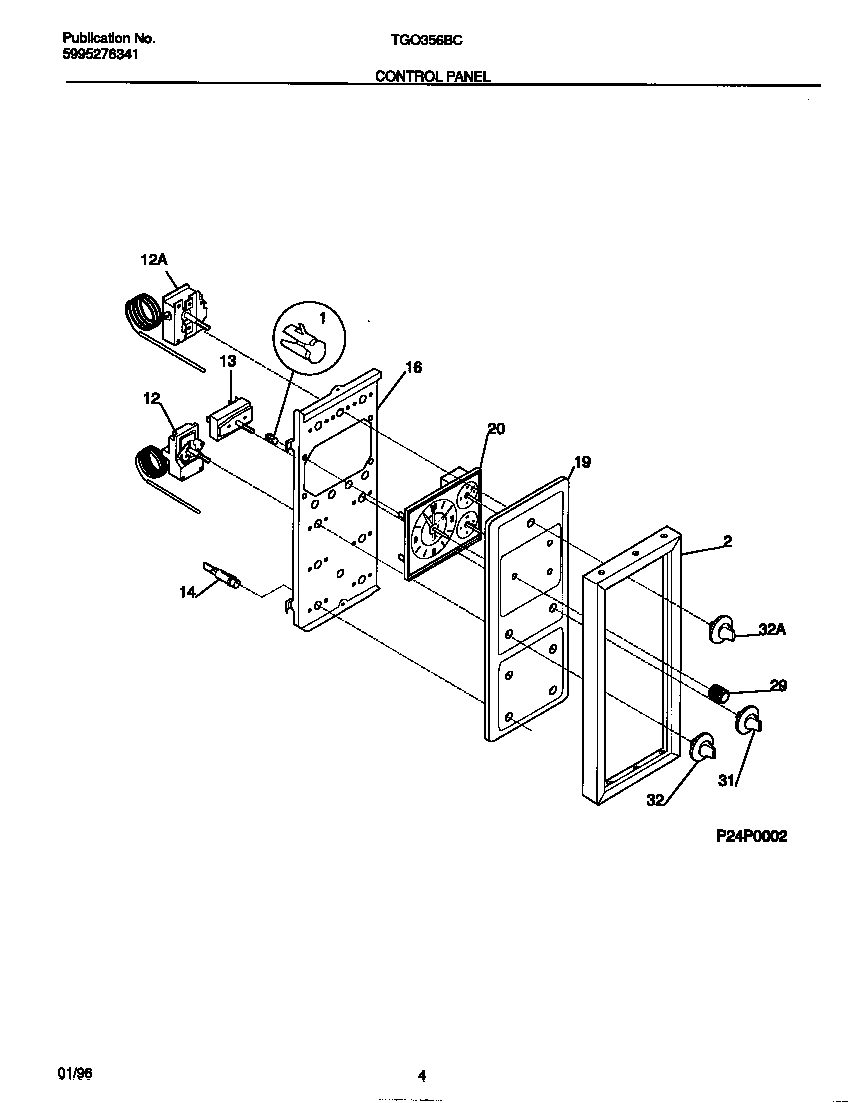

03 - CONTROL PANEL

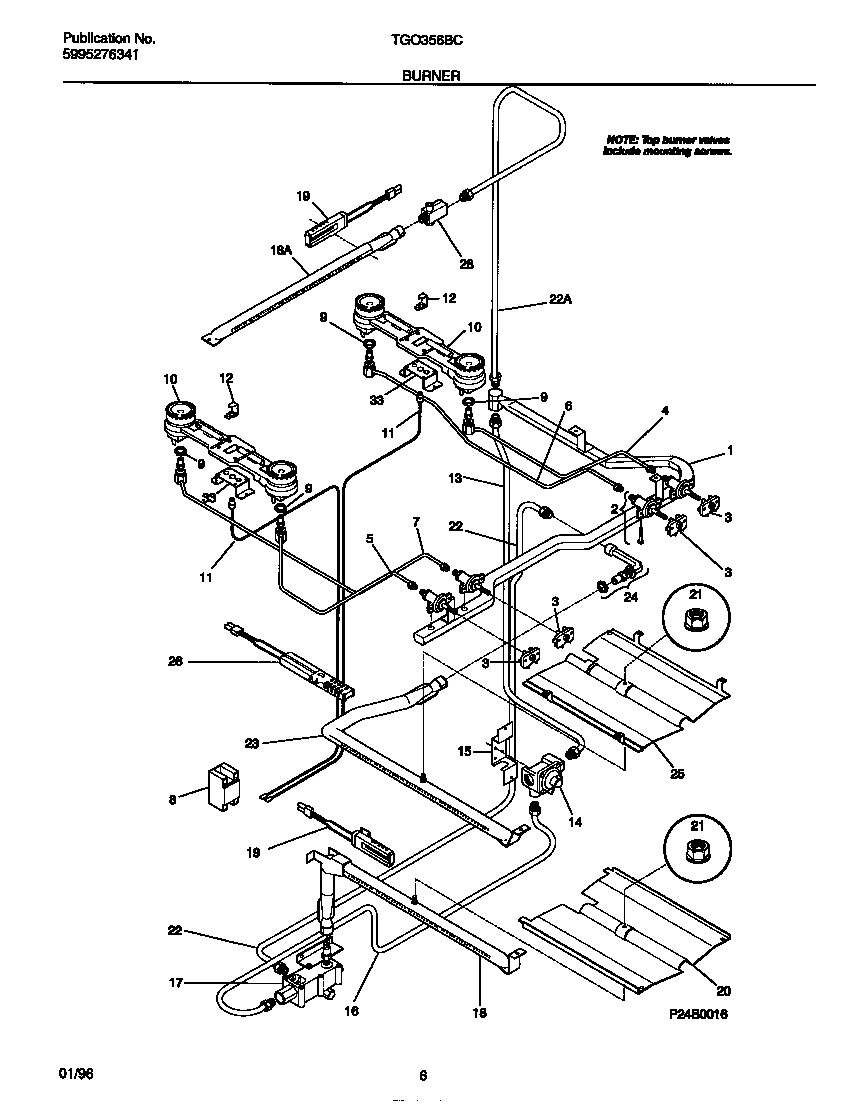

04 - BURNER

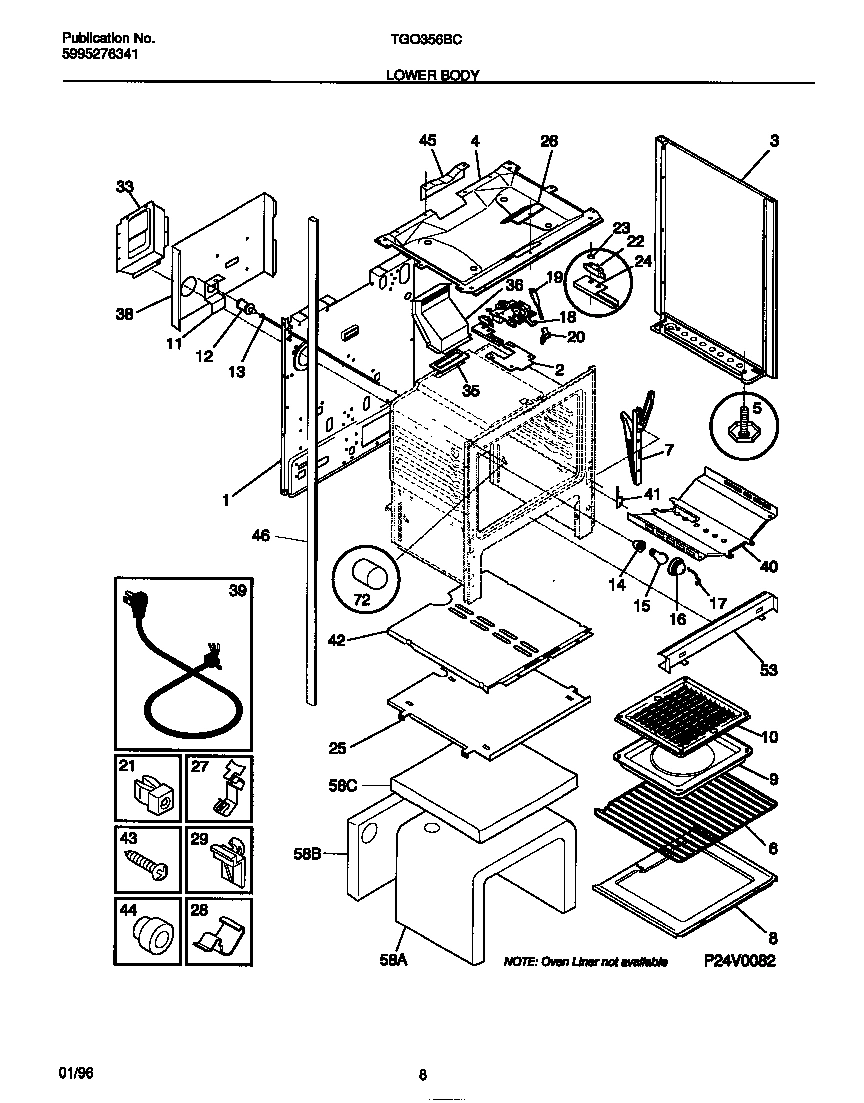

05 - LOWER BODY

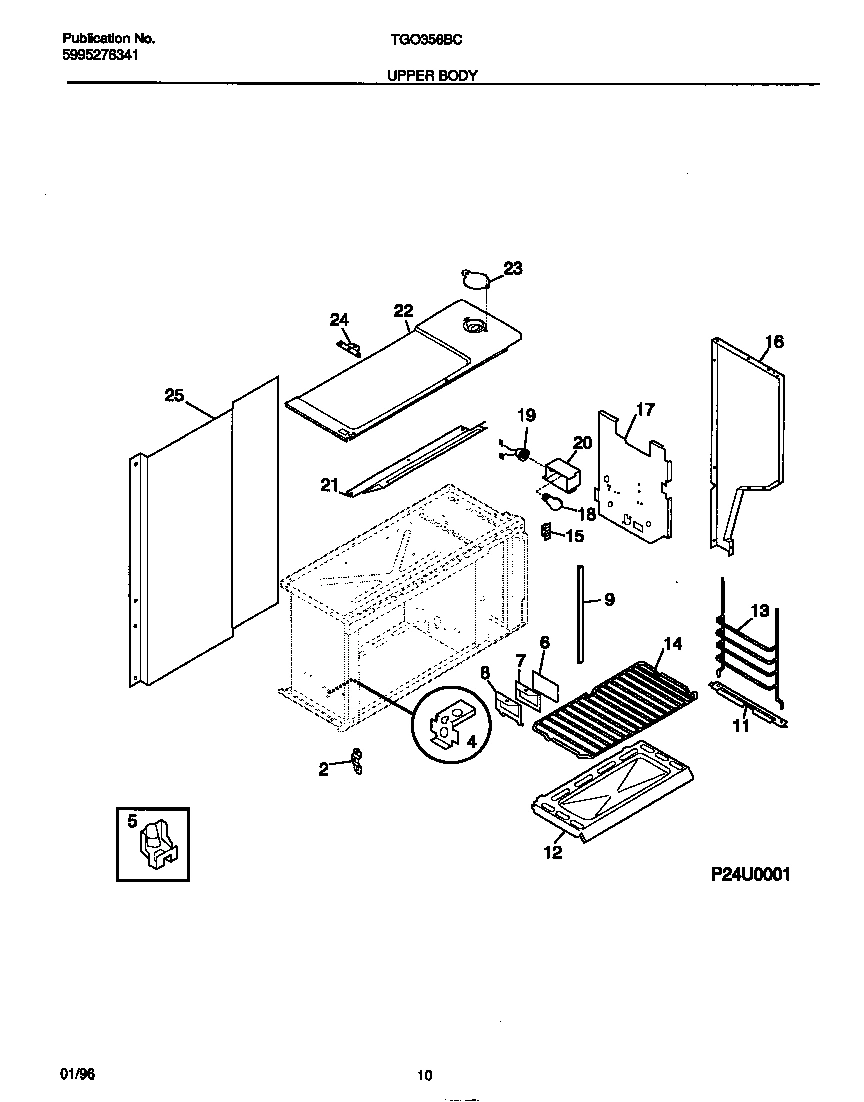

06 - UPPER BODY

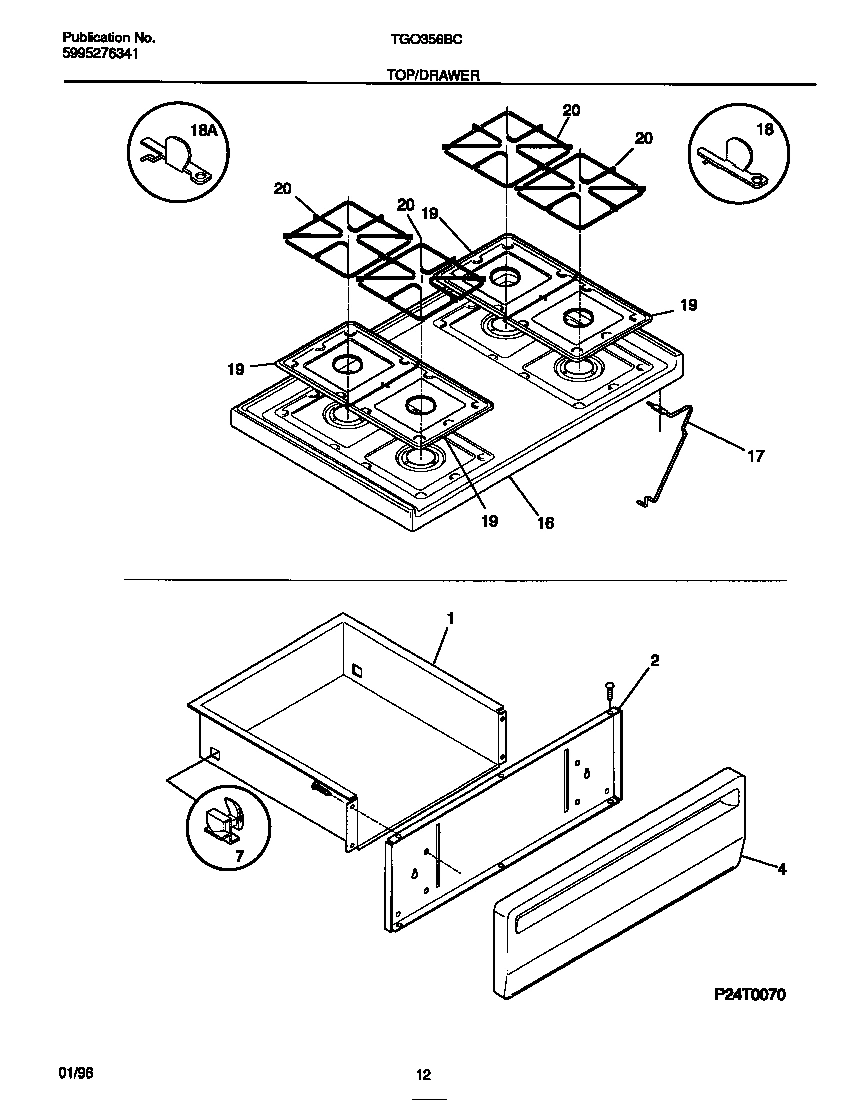

07 - TOP/DRAWER

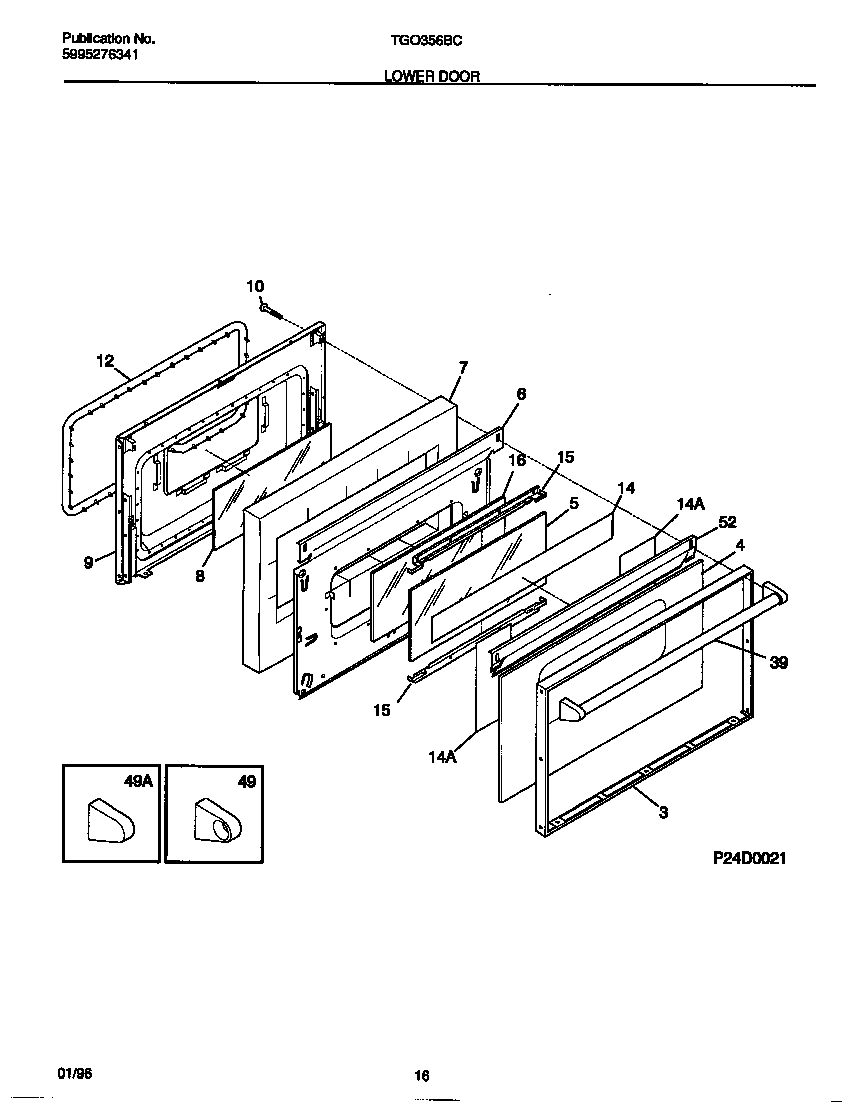

09 - LOWER DOOR

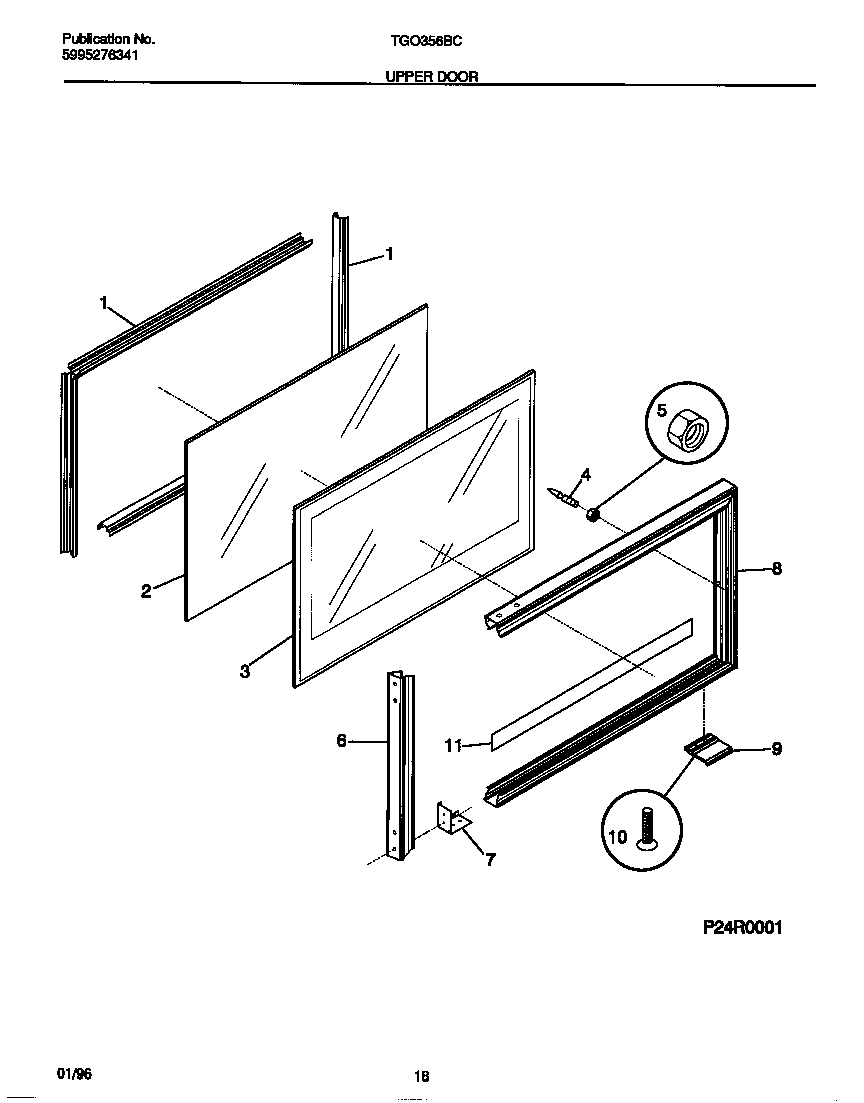

10 - UPPER DOOR
Common parts from model Electrolux TGO356BCDB RANGE
*95561
STARTER-LAMP WCI 3206218 Contact Us For Availability
*95568
HARNESS-WIRING, MAIN WCI 3131691 Contact Us For Availability
*95570
INSULATION-WOOL WCI 3200498 Contact Us For Availability
*95571
BRACKET-CONNECTOR WCI 3200500 Contact Us For Availability
*95572
INSULATION, UPPER OVN WCI 3200509 Contact Us For Availability
*95573
INSULATION, WOOL WCI 3200511 Contact Us For Availability
*95574
RETAINER, UPPER OVN BRNR WCI 3200519 Contact Us For Availability
*95575
REFLECTOR, ALUMINUM FOIL WCI 3204440 Contact Us For Availability
*95576
INSULATION, SPLASHER WCI 5303283669 Contact Us For Availability
*95582
SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375 WCI 316001001 Contact Us For Availability
*95583
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
*95584
WCI 316065300 WCI 316065300 Contact Us For Availability
*95585
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
1
WCI 316029410 WCI 316029410 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
1
WCI 08011721 WCI 08011721 Contact Us For Availability
2
GLASS-OVEN DOOR, REAR WCI 08011722 Contact Us For Availability
2
WCI 3131314 WCI 3131314 Contact Us For Availability
2
HINGE-DOOR WCI 3051166 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
LAMP-FLUORESCENT, BACKGUARD WCI 3131275 Contact Us For Availability
3
WCI 316081006 WCI 316081006 Contact Us For Availability
3
WCI 316081007 WCI 316081007 Contact Us For Availability
3
WCI 316067802 WCI 316067802 Contact Us For Availability
3
WCI 316090100 WCI 316090100 Contact Us For Availability
3A
SWITCH-IGNITER, (4) WCI 316032000 Contact Us For Availability
3A
SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED) WCI 3200834 Contact Us For Availability
3B
SHIELD, INSULATION, GALV STEEL (NOT ILLUSTRAT WCI 08067992 Contact Us For Availability
4
SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT I WCI 08067785 Contact Us For Availability
4
WCI 3011597 WCI 3011597 Contact Us For Availability
4
PLATE-BOTTOM HINGE WCI 08011665 Contact Us For Availability
4
WCI 316084406 WCI 316084406 Contact Us For Availability
4
WCI 316089000 WCI 316089000 Contact Us For Availability
4
STRIKE-DOOR WCI 5303935001 Contact Us For Availability
5
WCI 316088600 WCI 316088600 Contact Us For Availability
5A
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5C
NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) WCI 5303288460 Contact Us For Availability
6
GLASS-OVEN LIGHT LENS WCI 08011668 Contact Us For Availability
6
WCI 316088401 WCI 316088401 Contact Us For Availability
6
CHANNEL, DOOR WCI 5303290772 Contact Us For Availability
7
HINGE-OVEN DOOR WCI 5303051166 Contact Us For Availability
7
GASKET-OVEN LIGHT WCI 3200506 Contact Us For Availability
7
WCI 316076400 WCI 316076400 Contact Us For Availability
7
GUSSET-OVEN DOOR WCI 08011727 Contact Us For Availability
8
WCI 316088700 WCI 316088700 Contact Us For Availability
8
COVER-LIGHT, UPPER WCI 08011669 Contact Us For Availability
8
CHANNEL, FRAME WCI 316013100 Contact Us For Availability
8A
SHIELD, OVEN BOTTOM WCI 3200825 Contact Us For Availability
9
WCI 08011729 WCI 08011729 Contact Us For Availability
9
PAN-BROILER WCI 5303013568 Contact Us For Availability
9
WCI 5303934092 WCI 5303934092 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
WCI 316057100 WCI 316057100 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
10
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
BRACKET-LIGHT SWITCH WCI 5303131289 Contact Us For Availability
11
GLIDE-OVEN RACK WCI 3131616 Contact Us For Availability
11
SPACER-DOOR WCI 3051302 Contact Us For Availability
12
THERMOSTAT-OVEN WCI 5303269995 Contact Us For Availability
12
THERMOSTAT-OVEN, LOWER WCI 5303270076 Contact Us For Availability
12
WCI 316027702 WCI 316027702 Contact Us For Availability
12
WCI 3200488 WCI 3200488 Contact Us For Availability
13
WCI 316065005 WCI 316065005 Contact Us For Availability
13
WCI 316026800 WCI 316026800 Contact Us For Availability
13
GLIDE-OVEN RACK WCI 08011674 Contact Us For Availability
14
RACK-OVEN, FLAT WCI 08011675 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 5303208656 Contact Us For Availability
15
WCI 08011680 WCI 08011680 Contact Us For Availability
15
WCI 316081401 WCI 316081401 Contact Us For Availability
16
PANEL-BODYSIDE, ALMOND, RH WCI 3051264 Contact Us For Availability
16
PANEL-BODYSIDE, ALMOND, LH (NOT ILLUSTRATED) WCI 5303269989 Contact Us For Availability
16
MAIN TOP, ALMOND WCI 3131455 Contact Us For Availability
16
WCI 316085700 WCI 316085700 Contact Us For Availability
17
WCI 316066900 WCI 316066900 Contact Us For Availability
17
RETAINER-GLASS WCI 3204585 Contact Us For Availability
17
SHIELD-WOOL WCI 5303208706 Contact Us For Availability
17A
VALVE-SAFETY WCI 3131623 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
18A
WCI 5303015453 WCI 5303015453 Contact Us For Availability
18B
SHIELD, LATCH TOP (NOT ILLUSTRATED) WCI 3131593 Contact Us For Availability
19
WCI 5303131357 WCI 5303131357 Contact Us For Availability
19
WCI 316021203 WCI 316021203 Contact Us For Availability
19B
IGNITOR-OVEN, UPPER WCI 5303200508 Contact Us For Availability
20
BOX-LIGHT WCI 5303290773 Contact Us For Availability
20
WCI 316085201 WCI 316085201 Contact Us For Availability
20A
WCI 3203218 WCI 3203218 Contact Us For Availability
20B
WCI 08013188 WCI 08013188 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
21
WCI 3200505 WCI 3200505 Contact Us For Availability
22
WCI 316065002 WCI 316065002 Contact Us For Availability
22
TUBING-VALVE WCI 316065000 Contact Us For Availability
22
PANEL-TOP, UPPER WCI 3131625 Contact Us For Availability
22A
SWITCH-LATCH WCI 5303269499 Contact Us For Availability
22B
STUD, SPACER (NOT ILLUSTRATED) WCI 08067978 Contact Us For Availability
23
WCI 08067935 WCI 08067935 Contact Us For Availability
23
WCI 08067776 WCI 08067776 Contact Us For Availability
23
COVER-OUTLET WCI 08067732 Contact Us For Availability
24
WCI 316007002 WCI 316007002 Contact Us For Availability
24
WCI 316070400 WCI 316070400 Contact Us For Availability
24
SHIELD-LATCH WCI 3051413 Contact Us For Availability
25
BAFFLE-BROILER WCI 5303210379 Contact Us For Availability
25
WCI 3131313 WCI 3131313 Contact Us For Availability
25
WCI 3203082 WCI 3203082 Contact Us For Availability
26
WCI 08067757 WCI 08067757 Contact Us For Availability
27
CLIP-THERMO BULB WCI 08067754 Contact Us For Availability
28
WCI 316070500 WCI 316070500 Contact Us For Availability
28
CLIP-WIRE WCI 3011813 Contact Us For Availability
31
WCI 316019167 WCI 316019167 Contact Us For Availability
32
WCI 316019164 WCI 316019164 Contact Us For Availability
32
WCI 316019161 WCI 316019161 Contact Us For Availability
33
BRACKET BURNER MTG WCI 3200277 Contact Us For Availability
33
SHIELD, REAR WALL WCI 316014401 Contact Us For Availability
36
WCI 316023020 WCI 316023020 Contact Us For Availability
36
WCI 3131931 WCI 3131931 Contact Us For Availability
38
WCI 316014301 WCI 316014301 Contact Us For Availability
39
WCI 316008300 WCI 316008300 Contact Us For Availability
39B
WCI 08067961 WCI 08067961 Contact Us For Availability
40A
WCI 3200836 WCI 3200836 Contact Us For Availability
40B
SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2 WCI 5303288570 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
42
WCI 5303270104 WCI 5303270104 Contact Us For Availability
45
SHIELD-WIRE WCI 08068018 Contact Us For Availability
46A
WCI 5303208642 WCI 5303208642 Contact Us For Availability
46B
TUBE-POST, RH (NOT ILLUSTRATED) WCI 5303208643 Contact Us For Availability
49
WCI 5303307192 WCI 5303307192 Contact Us For Availability
49
WCI 5303307193 WCI 5303307193 Contact Us For Availability
52
WCI 316081303 WCI 316081303 Contact Us For Availability
53A
WCI 5303271047 WCI 5303271047 Contact Us For Availability
58
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
58
WCI 316054200 WCI 316054200 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 3200833 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
× ![]()
