Model Electrolux TGO336BGD1 RANGE – Common Parts & Diagrams

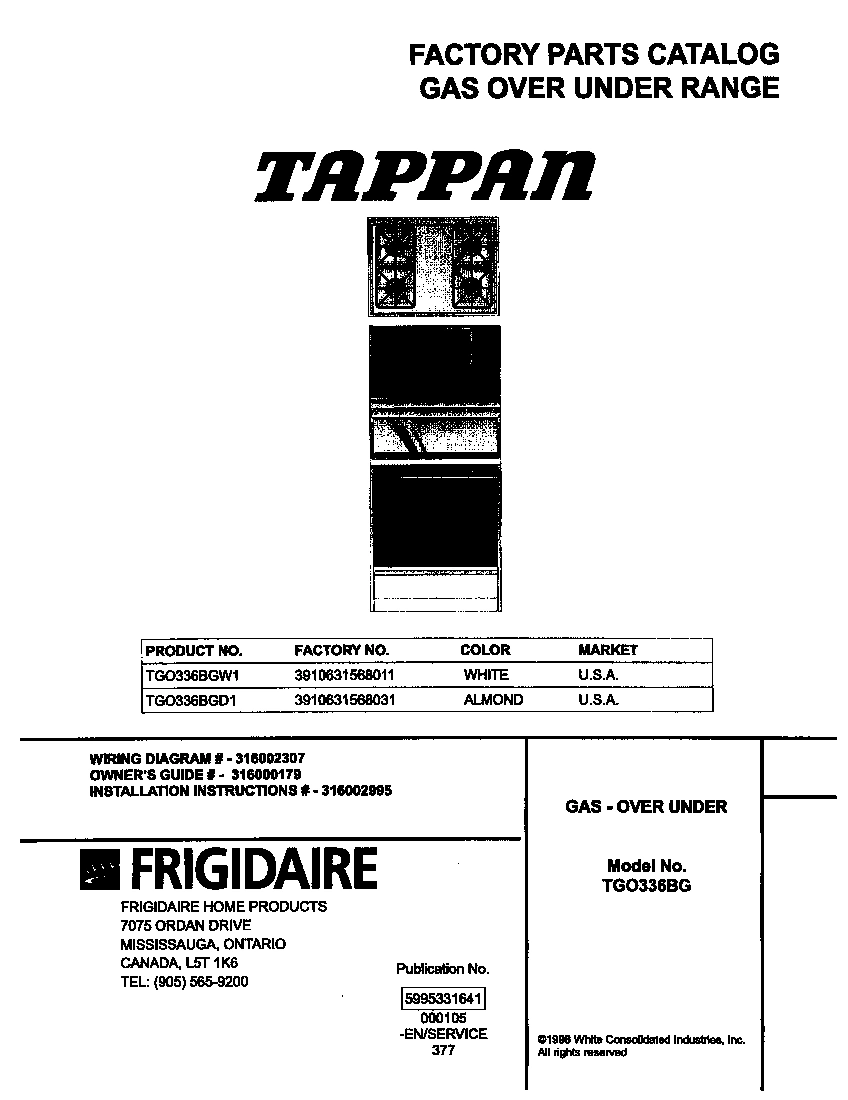

01 - COVER

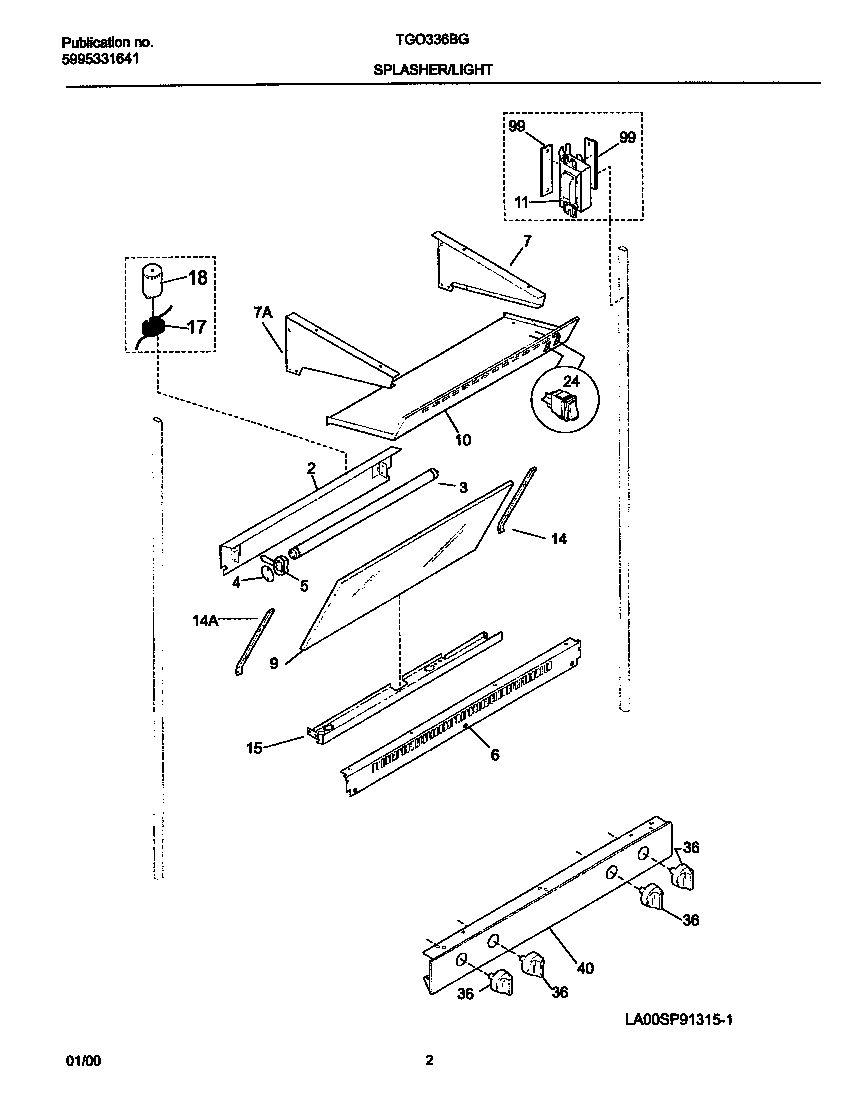

02 - SPLASHER

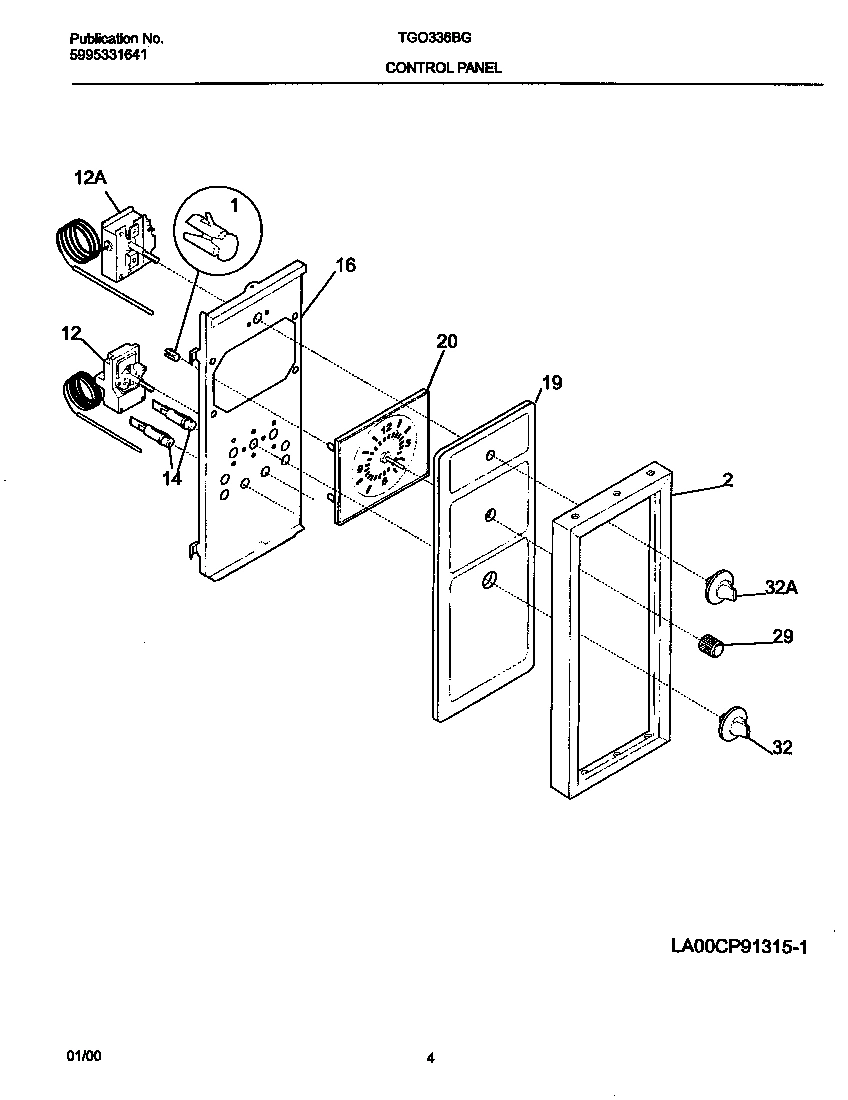

03 - CONTROL PANEL

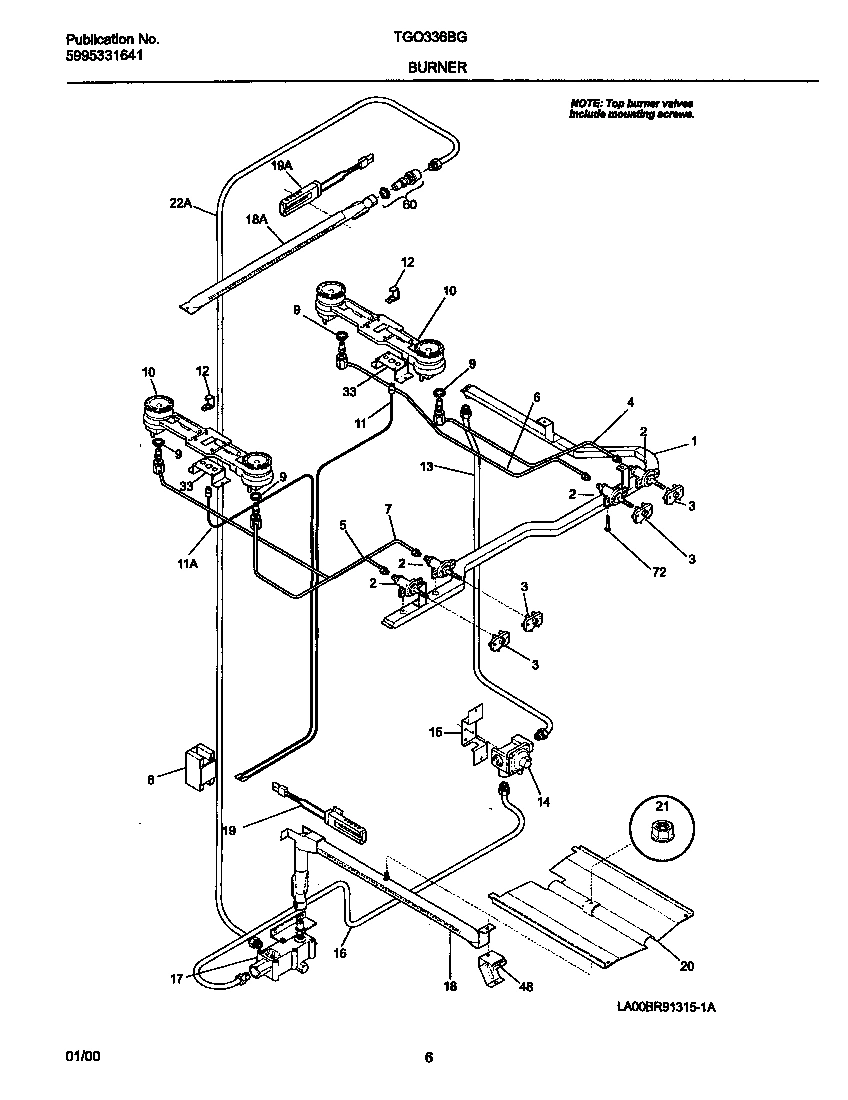

04 - BURNER

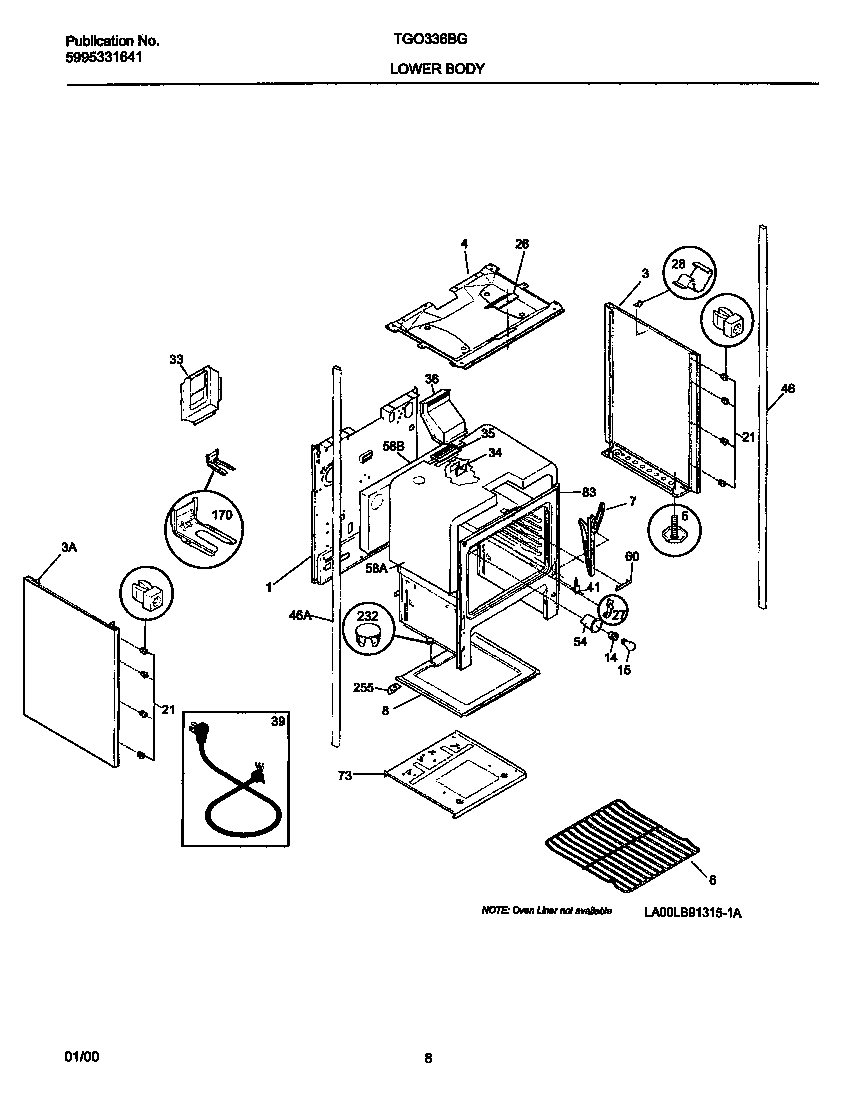

05 - LOWER BODY

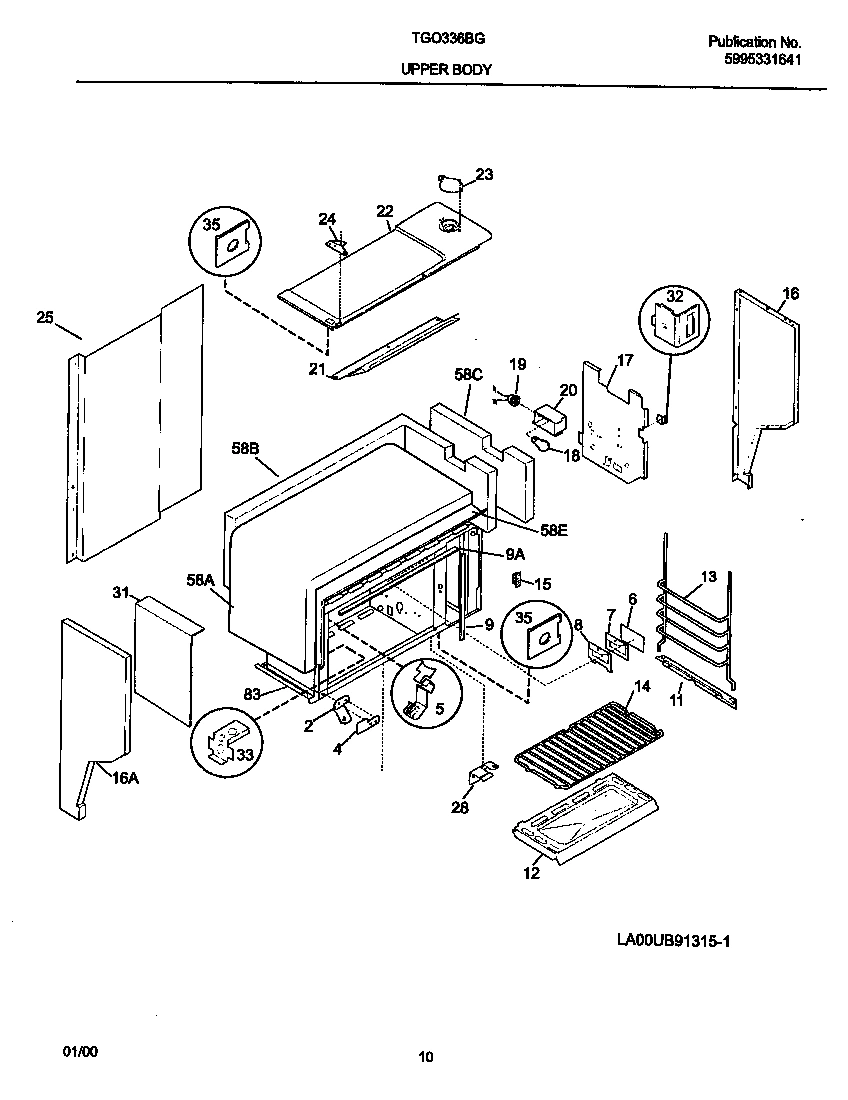

06 - UPPER BODY

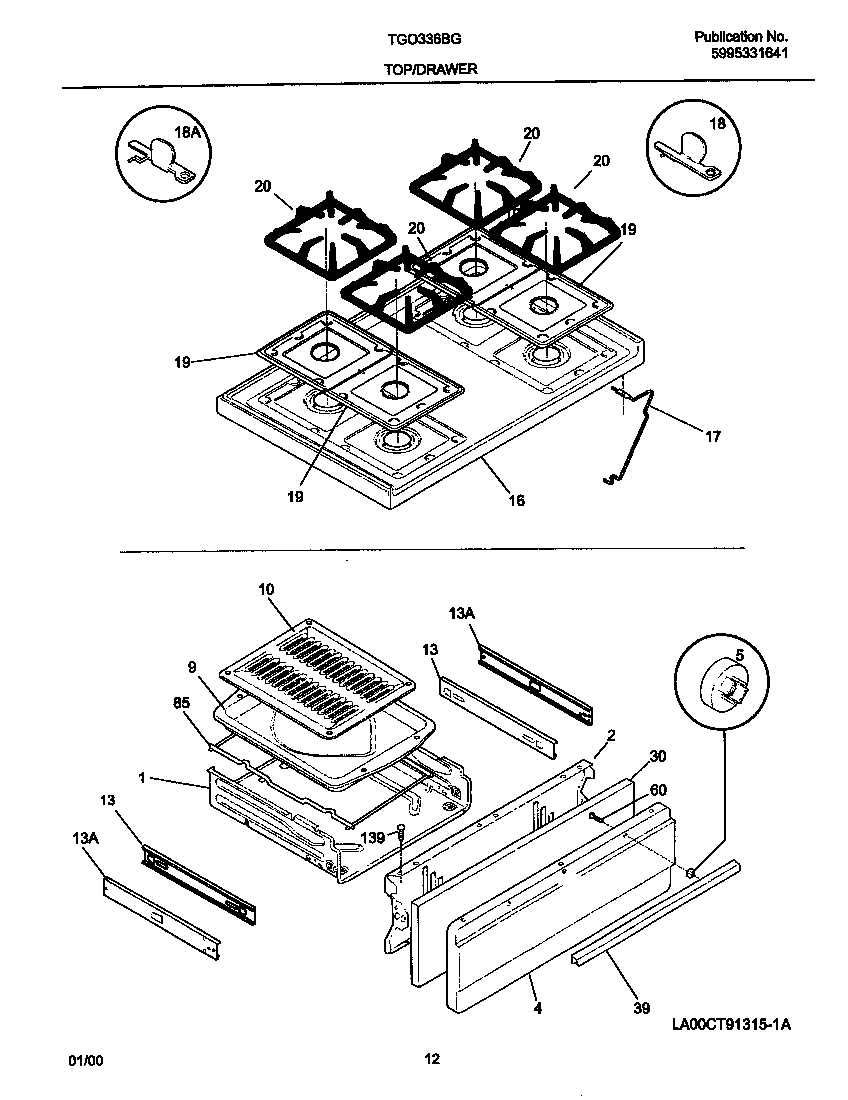

07 - TOP/DRAWER

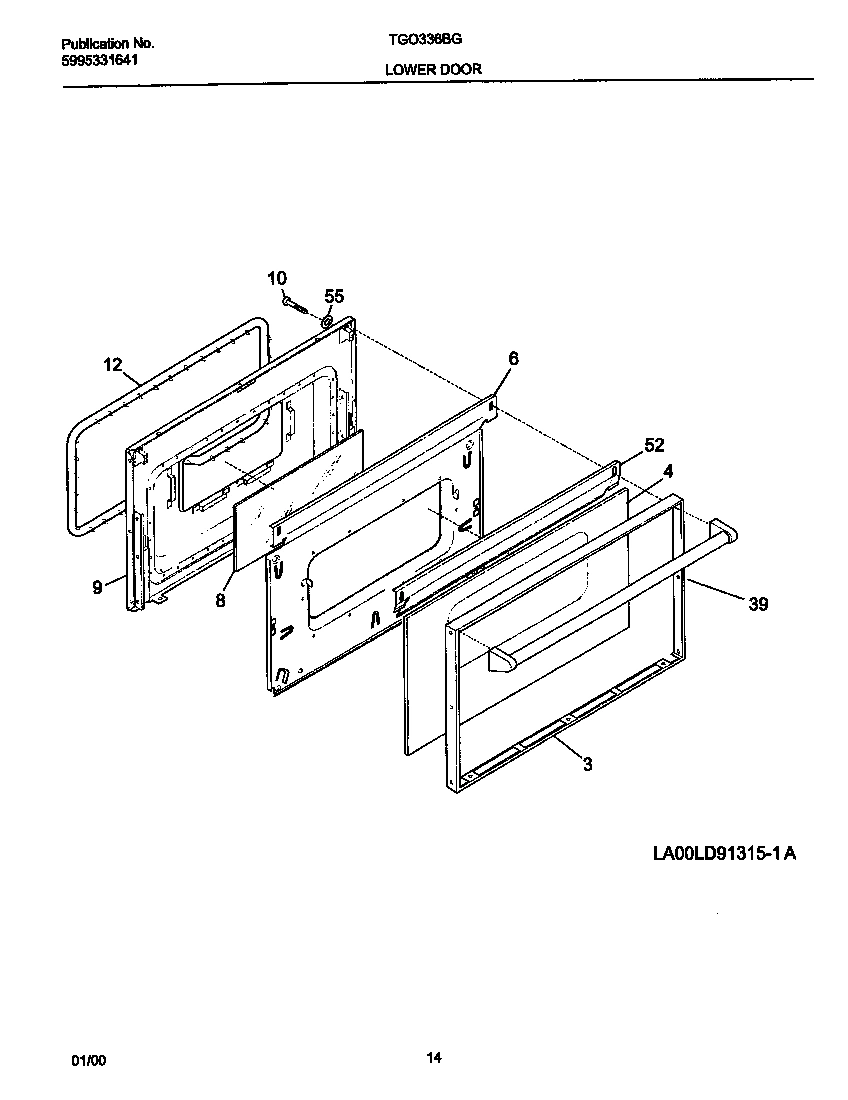

08 - LOWER DOOR

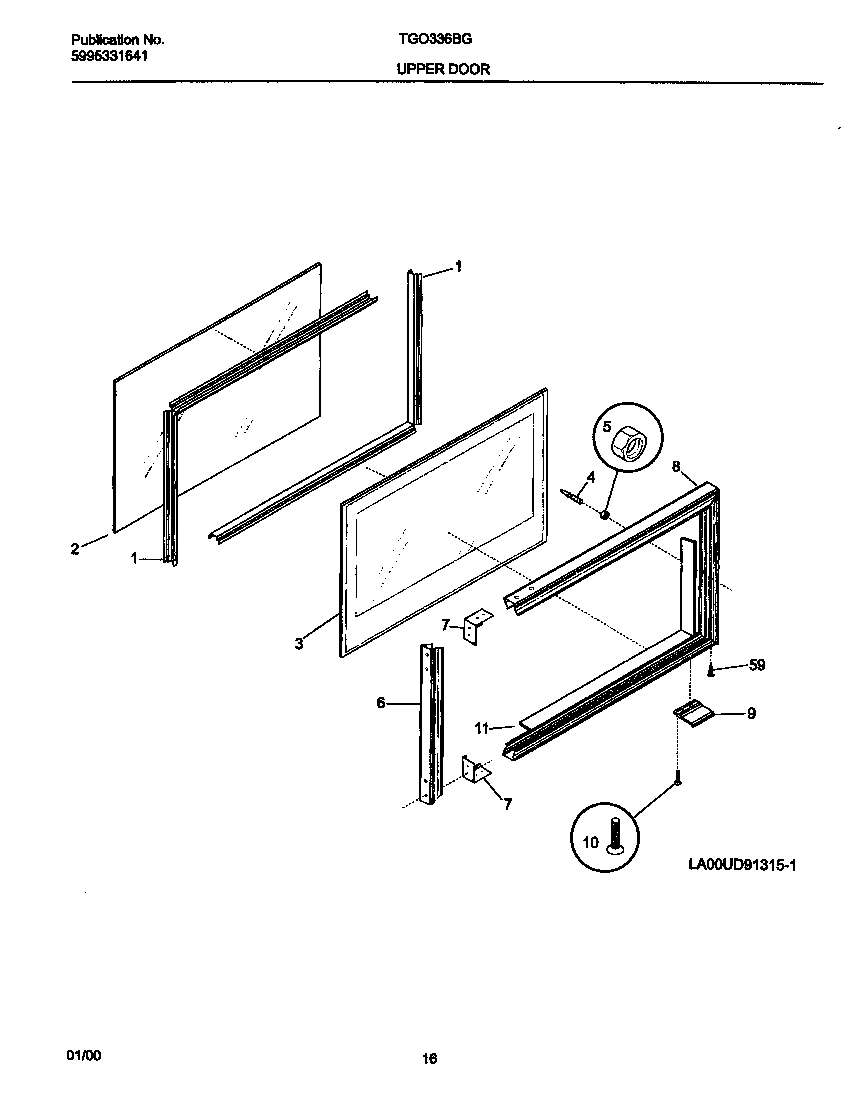

09 - UPPER DOOR

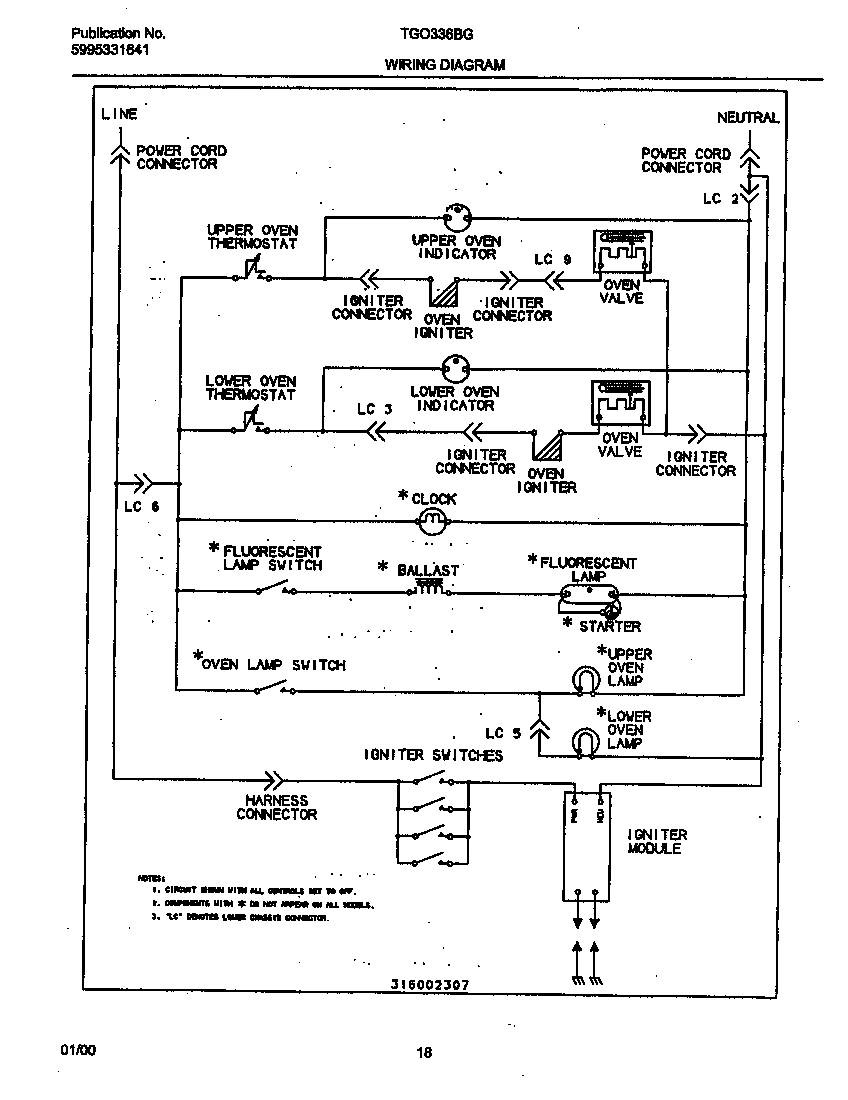

10 - WIRING DIAGRAM
Common parts from model Electrolux TGO336BGD1 RANGE
*92800
WCI 08067961 WCI 08067961 Contact Us For Availability
*92801
WCI 5304400432 WCI 5304400432 Contact Us For Availability
*92804
WASHER WCI 5303320845 Contact Us For Availability
*92805
WCI 5303320492 WCI 5303320492 Contact Us For Availability
1
WCI 08011721 WCI 08011721 Contact Us For Availability
2
GLASS-OVEN DOOR, REAR WCI 08011722 Contact Us For Availability
2
WCI 316098701 WCI 316098701 Contact Us For Availability
2
HINGE-OVEN DOOR WCI 5303051166 Contact Us For Availability
3
LAMP-FLUORESCENT, BACKGUARD WCI 3131275 Contact Us For Availability
3
WCI 316090100 WCI 316090100 Contact Us For Availability
4
PLATE-BOTTOM HINGE WCI 08011665 Contact Us For Availability
4
WCI 318090230 WCI 318090230 Contact Us For Availability
6
GLASS-OVEN LIGHT LENS WCI 08011668 Contact Us For Availability
6
WCI 5303290112 WCI 5303290112 Contact Us For Availability
7
GASKET-OVEN LIGHT WCI 3200506 Contact Us For Availability
7
GUSSET-OVEN DOOR WCI 08011727 Contact Us For Availability
8
COVER-LIGHT, UPPER WCI 08011669 Contact Us For Availability
9
WCI 08011729 WCI 08011729 Contact Us For Availability
10
WCI 5303284147 WCI 5303284147 Contact Us For Availability
11
WCI 316099800 WCI 316099800 Contact Us For Availability
11
WCI 318073101 WCI 318073101 Contact Us For Availability
11
SPACER-DOOR WCI 3051302 Contact Us For Availability
12
WCI 318109801 WCI 318109801 Contact Us For Availability
12A
THERMOSTAT-OVEN WCI 5303269995 Contact Us For Availability
12B
THERMOSTAT-OVEN, UPPER WCI 5303269996 Contact Us For Availability
13A
WCI 5303290121 WCI 5303290121 Contact Us For Availability
13B
GLIDE-OVEN RACK WCI 5303934091 Contact Us For Availability
14
WCI 5308037896 WCI 5308037896 Contact Us For Availability
14
RACK-OVEN, FLAT WCI 08011675 Contact Us For Availability
16
WCI 318116701 WCI 318116701 Contact Us For Availability
16
WCI 318025902 WCI 318025902 Contact Us For Availability
16
PANEL-BODYSIDE,ALMOND ,LH WCI 318025912 Contact Us For Availability
17
SHIELD-WOOL WCI 5303208706 Contact Us For Availability
18
STARTER-LAMP WCI 3206218 Contact Us For Availability
18
BURNER-OVEN, UPPER WCI 3200502 Contact Us For Availability
19
IGNITOR-OVEN, UPPER WCI 5303200508 Contact Us For Availability
19
WCI 316007503 WCI 316007503 Contact Us For Availability
20
WCI 316090000 WCI 316090000 Contact Us For Availability
20
WCI 5303290105 WCI 5303290105 Contact Us For Availability
21
WCI 3200505 WCI 3200505 Contact Us For Availability
22
TUBING-MIXER, UPPER WCI 316065001 Contact Us For Availability
22
WCI 5303290177 WCI 5303290177 Contact Us For Availability
23
WCI 318036701 WCI 318036701 Contact Us For Availability
24
WCI 5303290130 WCI 5303290130 Contact Us For Availability
25
WCI 5303290095 WCI 5303290095 Contact Us For Availability
29
WCI 316029008 WCI 316029008 Contact Us For Availability
31
SHIELD-HEAT WCI 3131620 Contact Us For Availability
32
WCI 316019161 WCI 316019161 Contact Us For Availability
32
WCI 316019165 WCI 316019165 Contact Us For Availability
32
BRACKET-CONNECTOR WCI 3200500 Contact Us For Availability
33
RETAINER, UPPER OVN BRNR WCI 3200519 Contact Us For Availability
35
WCI 5303290119 WCI 5303290119 Contact Us For Availability
36
WCI 316023020 WCI 316023020 Contact Us For Availability
46
WCI 5303208642 WCI 5303208642 Contact Us For Availability
46
TUBE-POST RH WCI 5303208643 Contact Us For Availability
58
WCI 318132601 WCI 318132601 Contact Us For Availability
58
WCI 318132602 WCI 318132602 Contact Us For Availability
58
REFLECTOR, ALUMINUM FOIL WCI 3204440 Contact Us For Availability
60
WCI 316070300 WCI 316070300 Contact Us For Availability
83
WCI 318109600 WCI 318109600 Contact Us For Availability
99
SPACER WCI 5303304544 Contact Us For Availability
× ![]()
