Model Electrolux TGK180EN0D REFRIGERATOR – Common Parts & Diagrams

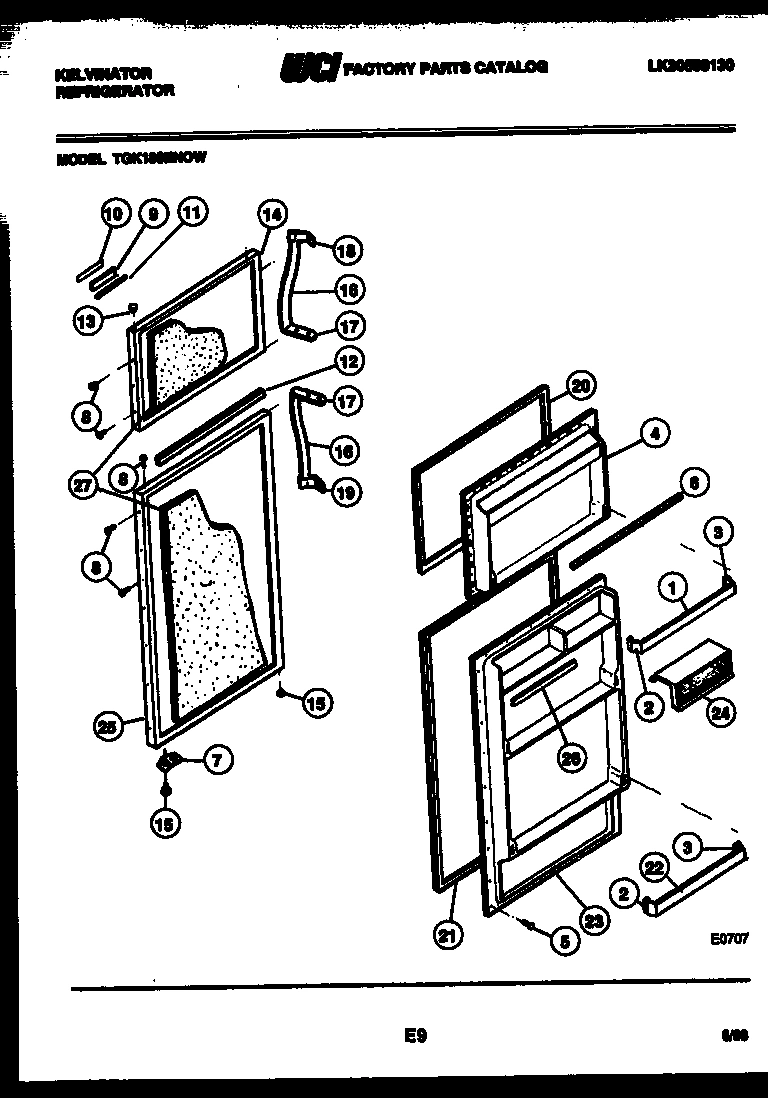

02 - DOOR PARTS

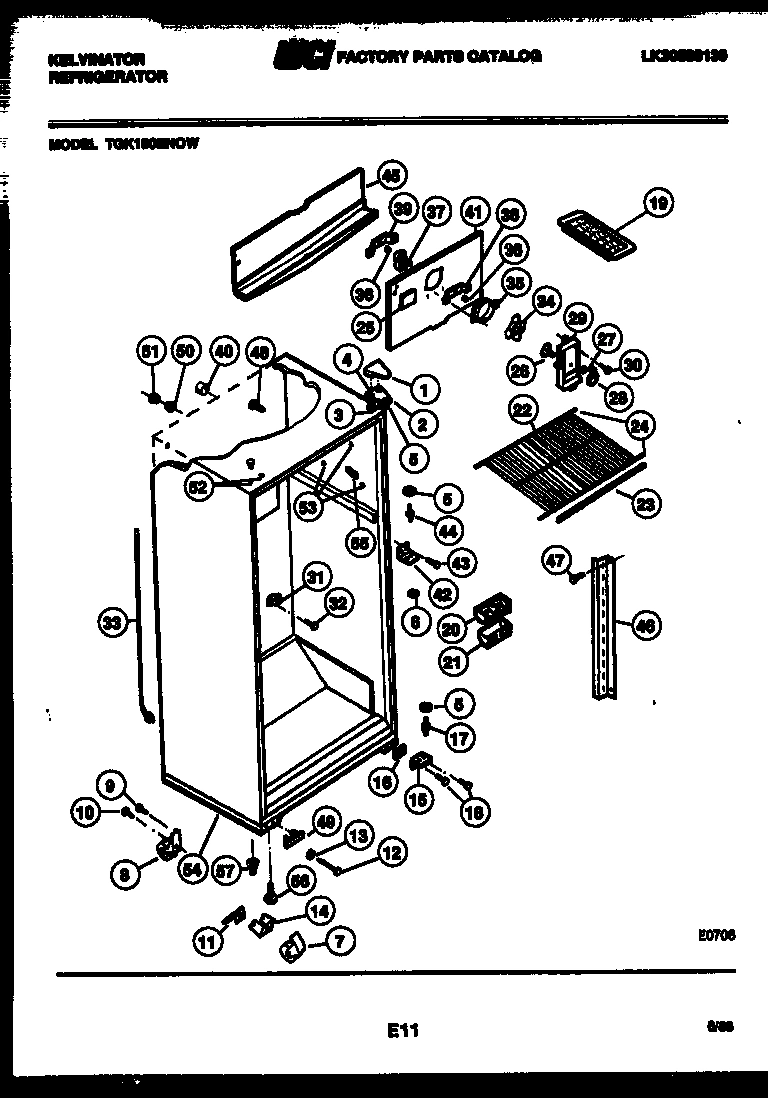

03 - CABINET PARTS

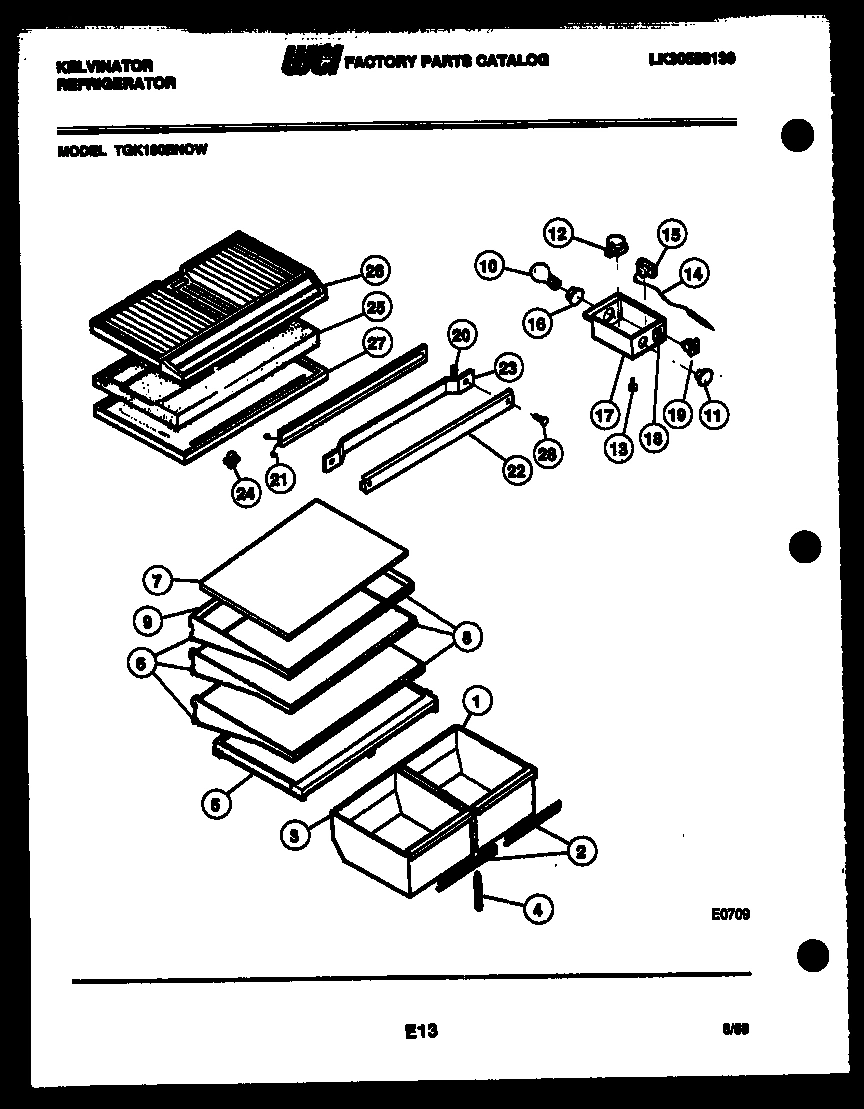

04 - SHELVES AND SUPPORTS

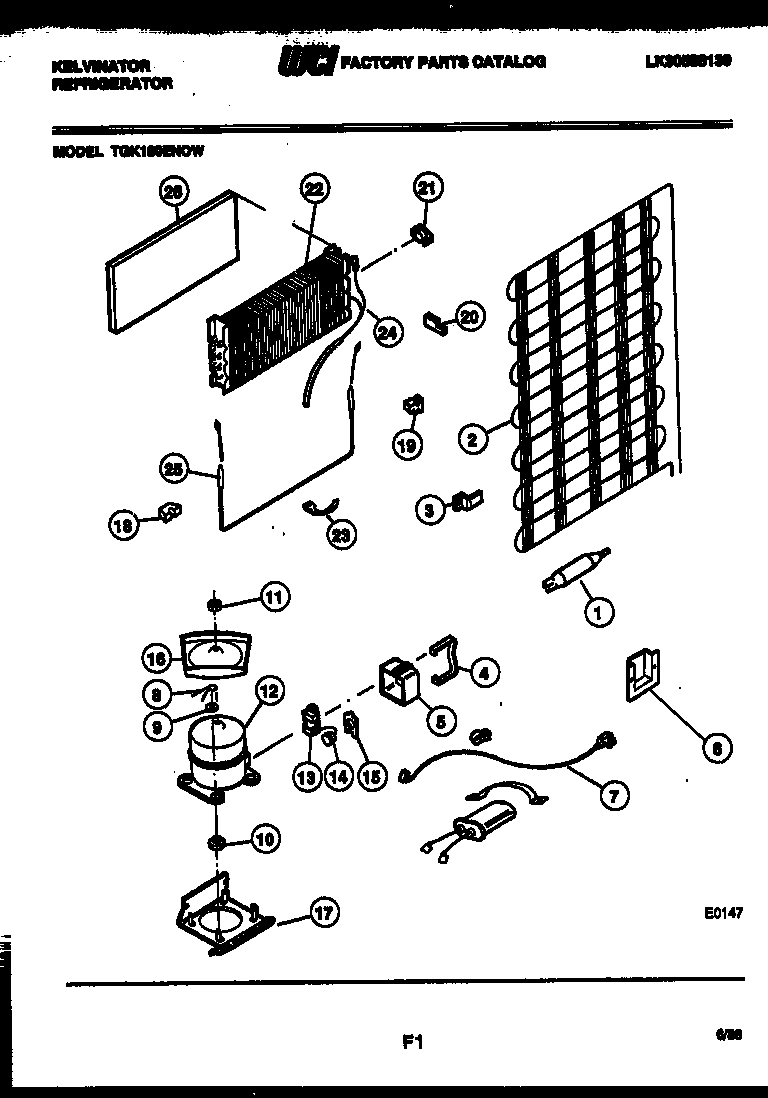

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux TGK180EN0D REFRIGERATOR
*42345
BUTTON, LINER (2) WCI G162892-01 Contact Us For Availability
*42348
TAPPING, PLATE (2) WCI G179797 Contact Us For Availability
*42348
BUTTON-I/M HOLE (5) WCI G187599 Contact Us For Availability
*42378
SCREW 8 X 1 3/4 (3) WCI G162673 Contact Us For Availability
*42379
HARNESS, DIVIDER WCI G174818 Contact Us For Availability
*42404
HARNESS-COMPRESSOR WCI G166062-01 Contact Us For Availability
*42405
HOT TUBE REPAIR KIT WCI G189383 Contact Us For Availability
*42407
WCI G167234 WCI G167234 Contact Us For Availability
1
COVER-HINGE-ALMOND WCI G183558-10 Contact Us For Availability
1
PAN-CRISPER WCI 3015046 Contact Us For Availability
2
WCI G183714 WCI G183714 Contact Us For Availability
2
TRIM (2) WCI 3015059 Contact Us For Availability
2
WCI G162739 WCI G162739 Contact Us For Availability
3
SUPPORT RS (3) WCI G178287-01 Contact Us For Availability
3
WCI G183861 WCI G183861 Contact Us For Availability
3
PAN-CRISPER WCI 3015047 Contact Us For Availability
3
BRACKET-MOUNTING (4) WCI G164637 Contact Us For Availability
4
INNER PANEL WCI G183506-01 Contact Us For Availability
4
SUPPORT WCI G166310-02 Contact Us For Availability
5
WCI G103903 WCI G103903 Contact Us For Availability
5
COVER-CRISPER WCI 3015045 Contact Us For Availability
5A
GASKET COVER (NON-ILLUSTRATED) WCI 3015051 Contact Us For Availability
6
WCI 3015063 WCI 3015063 Contact Us For Availability
6
WASHER, HINGE WCI G164355 Contact Us For Availability
6
FRAME, SHELF (3) WCI G171608-12 Contact Us For Availability
6
WCI G183584 WCI G183584 Contact Us For Availability
7
WCI G177021 WCI G177021 Contact Us For Availability
7
WCI 3015066 WCI 3015066 Contact Us For Availability
7
CORD, SERVICE WCI G162549-01 Contact Us For Availability
7A
DOOR STOP-FREEZER (NON-ILLUSTRATED) WCI G155072 Contact Us For Availability
8
WCI G162977-11 WCI G162977-11 Contact Us For Availability
8
WCI G183407 WCI G183407 Contact Us For Availability
8
TRIM (3) WCI G172434-08 Contact Us For Availability
8
CLIP (4) WCI G163204 Contact Us For Availability
9
WCI G178292 WCI G178292 Contact Us For Availability
9
WCI G172436-05 WCI G172436-05 Contact Us For Availability
9
WASHER (4) WCI G164634 Contact Us For Availability
10
LABEL-NAMEPLATE WCI G189500-01 Contact Us For Availability
10
WCI G177025 WCI G177025 Contact Us For Availability
11
SPRING-ADJUSTMENT (2) WCI G178494 Contact Us For Availability
11
KNOB, CONTROL WCI G490107-02 Contact Us For Availability
11
NUT, LOCK WCI G164958 Contact Us For Availability
12
TRIM-REFRIGERATOR DOOR WCI 3015602 Contact Us For Availability
12
BOLT-ROLLER ADJUSTMENT (2) WCI G177024 Contact Us For Availability
12
COMPRESSER W/ ELECTRICALS WCI G184669 Contact Us For Availability
13
WCI G169332-11 WCI G169332-11 Contact Us For Availability
13
WCI G182799 WCI G182799 Contact Us For Availability
13
WCI G182225-11 WCI G182225-11 Contact Us For Availability
14
WCI G189570-11 WCI G189570-11 Contact Us For Availability
14
WCI G177302 WCI G177302 Contact Us For Availability
14
WCI G187874 WCI G187874 Contact Us For Availability
15
BEARING HINGE (8) WCI G183138 Contact Us For Availability
15
HINGE BRACKET-BOTTOM WCI G191474 Contact Us For Availability
15
CONTROL, TEMPERATURE WCI G162205-11 Contact Us For Availability
15
RETAINER, OVERLOAD WCI G188957 Contact Us For Availability
15A
WCI G107080 WCI G107080 Contact Us For Availability
16
WCI G189454-02 WCI G189454-02 Contact Us For Availability
16
WCI G163203 WCI G163203 Contact Us For Availability
16
SOCKET LIGHT WCI G168302 Contact Us For Availability
16
PAN, DEFROST WCI G184715 Contact Us For Availability
16A
WCI G189456-01 WCI G189456-01 Contact Us For Availability
17
END-HANDLE (2) WCI G189453-01 Contact Us For Availability
17
WCI G176722-03 WCI G176722-03 Contact Us For Availability
17
PLATE-COMPRESSOR MOUNTING WCI G184599 Contact Us For Availability
18
END-HANDLE WCI G189452-01 Contact Us For Availability
18
LABEL WCI G189592 Contact Us For Availability
18
BLOCK-INSULATION LS WCI G188375 Contact Us For Availability
19
END-HANDLE WCI G189451-01 Contact Us For Availability
19
SWITCH SLIDE WCI G178402-01 Contact Us For Availability
19
BLOCK-INSULATION RS WCI G185299 Contact Us For Availability
19A
WCI G185566 WCI G185566 Contact Us For Availability
20
WCI G186932-12 WCI G186932-12 Contact Us For Availability
20
DEFLECTOR AIR WCI G162675 Contact Us For Availability
20
SPACER (2) WCI G490082 Contact Us For Availability
20
PLUG, BLOCK WCI G185276 Contact Us For Availability
21
GASKET-REFRIGERATOR WCI G186932-13 Contact Us For Availability
21
COVER, AIR DEFLECTOR WCI G162178 Contact Us For Availability
21
WCI G168722 WCI G168722 Contact Us For Availability
22
WCI 3015061 WCI 3015061 Contact Us For Availability
22
WCI G177059-02 WCI G177059-02 Contact Us For Availability
22
WCI G180373-11 WCI G180373-11 Contact Us For Availability
22
EVAPORATOR WCI G162506 Contact Us For Availability
23
INNER PANEL WCI G183507-01 Contact Us For Availability
23
TRIM SHELF WCI G172434-16 Contact Us For Availability
23
WCI G490087 WCI G490087 Contact Us For Availability
24
DOOR, DAIRY WCI G161776-51 Contact Us For Availability
24
END CAP-SHELF (2) WCI G166495-01 Contact Us For Availability
24
HEAT EXCHANGER WCI G147918 Contact Us For Availability
25
WCI G189576-11 WCI G189576-11 Contact Us For Availability
25
BUTTON DECORATIVE PLUG WCI G162827-14 Contact Us For Availability
25
DIVIDER, STYROFOAM WCI G176777 Contact Us For Availability
26
WCI 3015603 WCI 3015603 Contact Us For Availability
26
DAMPER WCI G162661 Contact Us For Availability
26
WCI G185912 WCI G185912 Contact Us For Availability
26
INSULATOR WCI G166511-01 Contact Us For Availability
26A
WCI G153407-60 WCI G153407-60 Contact Us For Availability
27
WCI G89643 WCI G89643 Contact Us For Availability
27
NUT, PUSH WCI G162662 Contact Us For Availability
27
TOP-REFRIGERATOR WCI 3016367 Contact Us For Availability
28
KNOB-DAMPER CONNECTOR WCI G162747-05 Contact Us For Availability
28
SCREW (4) WCI G183103 Contact Us For Availability
29
WCI G163061-86 WCI G163061-86 Contact Us For Availability
31
SPOUT, DRAIN WCI G162179 Contact Us For Availability
32
WCI G185279 WCI G185279 Contact Us For Availability
33
TUBE, DRAIN WCI G184920-01 Contact Us For Availability
33A
RING, SEAL (NON-ILLUSTRATED) WCI G176853 Contact Us For Availability
35
RING-ORIFICE WCI G167217 Contact Us For Availability
38
WCI G185302 WCI G185302 Contact Us For Availability
39
WCI G185303 WCI G185303 Contact Us For Availability
39A
BRACKET-CONNECTOR (NON-ILLUSTRATED) WCI G164571 Contact Us For Availability
40
WCI G85642 WCI G85642 Contact Us For Availability
41
WCI G177529 WCI G177529 Contact Us For Availability
41A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
42
HINGE-BRACKET CENTER WCI G163207 Contact Us For Availability
42A
WASHER-STEEL (4) (NON-ILLUSTRATED) WCI G166847 Contact Us For Availability
44
WCI G142220 WCI G142220 Contact Us For Availability
45
WCI G177534 WCI G177534 Contact Us For Availability
46
WCI G170695 WCI G170695 Contact Us For Availability
48
WCI G163669 WCI G163669 Contact Us For Availability
49
BUTTON-PLUG WCI G166912 Contact Us For Availability
50
WCI G174733 WCI G174733 Contact Us For Availability
51
WCI G174734 WCI G174734 Contact Us For Availability
52
WCI G174747-11 WCI G174747-11 Contact Us For Availability
54
WCI G490004-02 WCI G490004-02 Contact Us For Availability
55
WCI G179684-11 WCI G179684-11 Contact Us For Availability
56
WCI G185713 WCI G185713 Contact Us For Availability
57
WCI G183073 WCI G183073 Contact Us For Availability
× ![]()
