Model Electrolux TGK180AN7V REFRIGERATOR – Common Parts & Diagrams

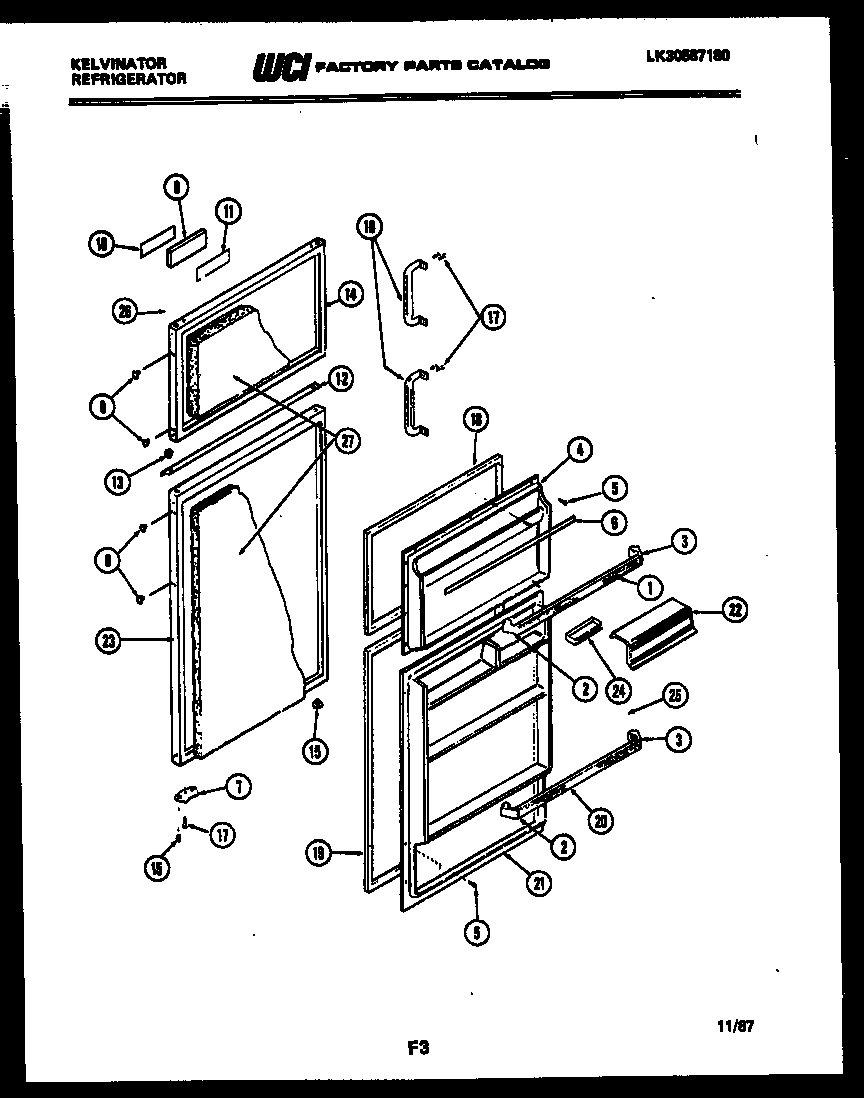

02 - DOOR PARTS

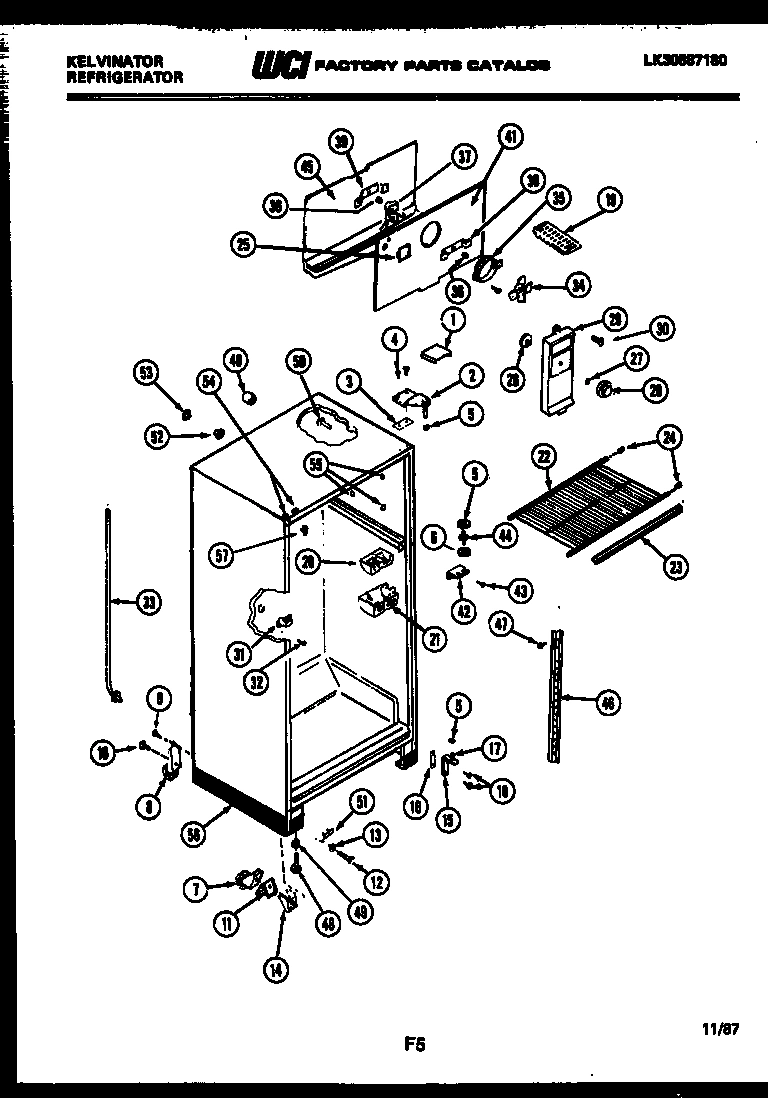

03 - CABINET PARTS

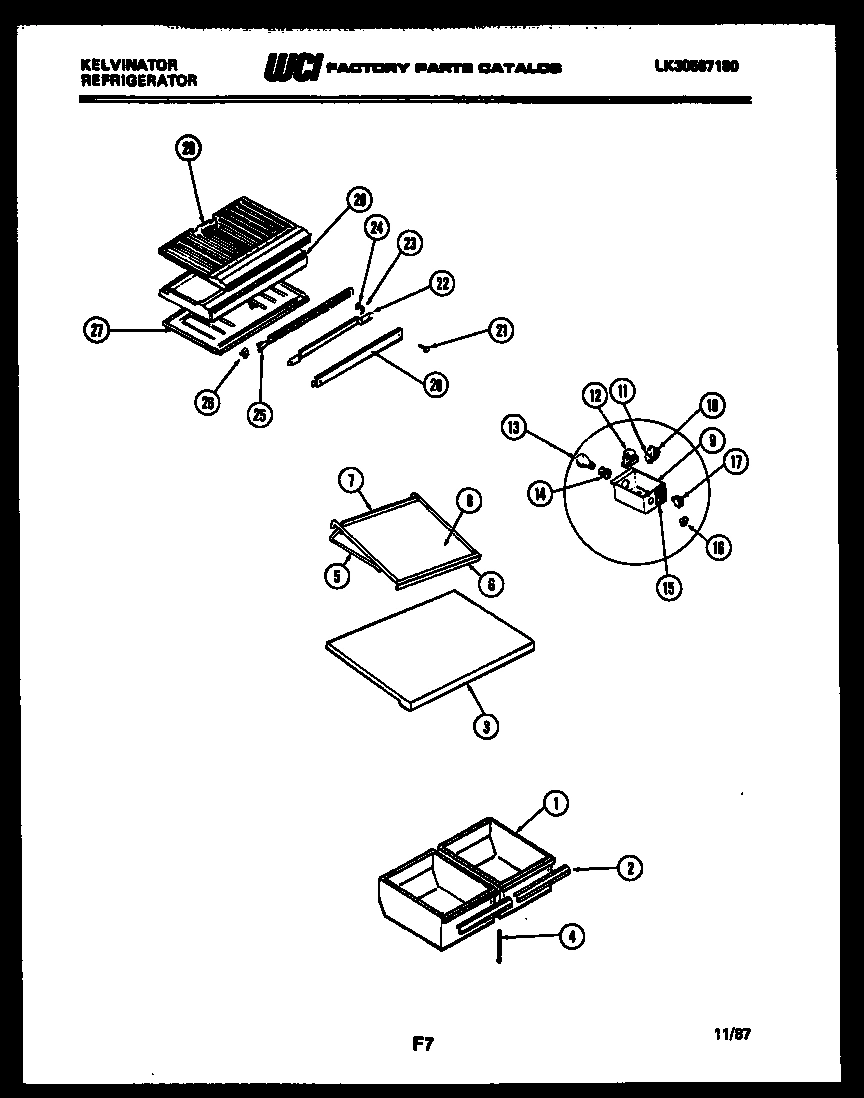

04 - SHELVES AND SUPPORTS

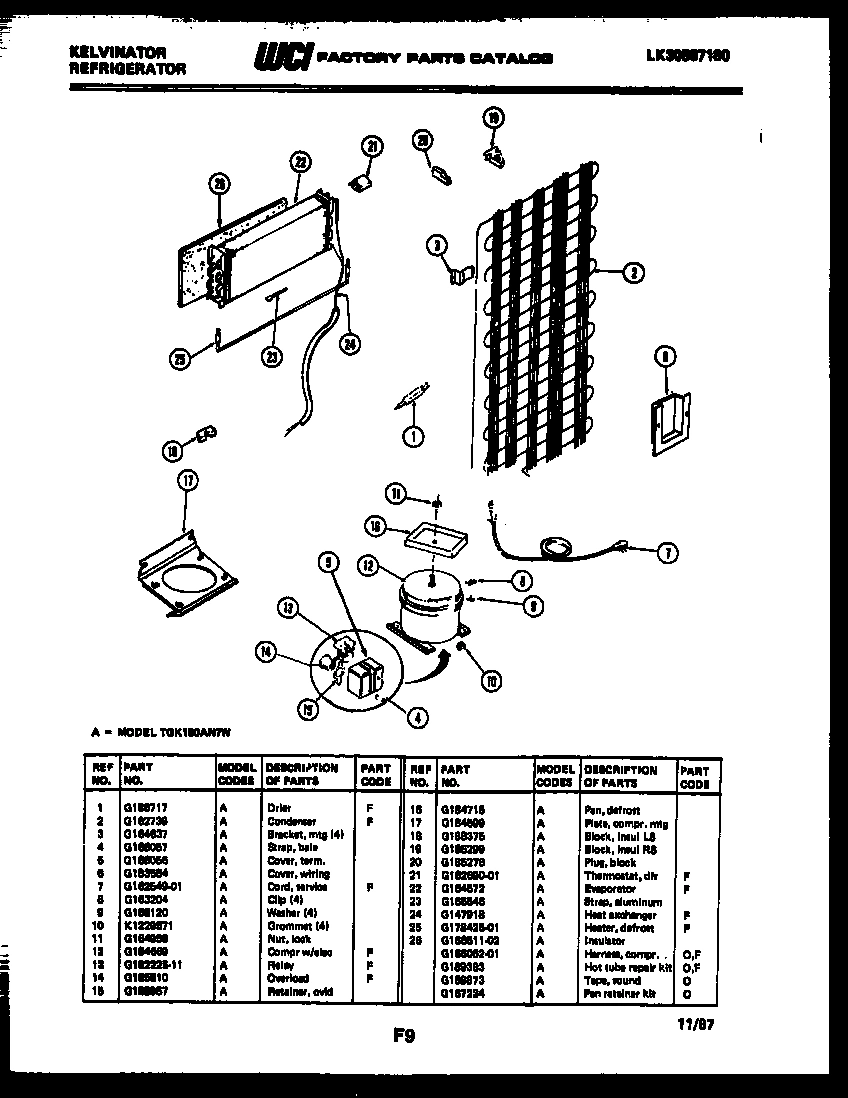

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux TGK180AN7V REFRIGERATOR
*12757
BTTN, LINER (2) WCI G162892-01 Contact Us For Availability
*12758
BTTN, I/M HOLE (5) WCI G187599 Contact Us For Availability
*12759
TAPPING PLATE (4) WCI G179797 Contact Us For Availability
*12783
WIRING HARNS, DIVID WCI G174818 Contact Us For Availability
*12800
HARNESS-COMPR WCI G166062-01 Contact Us For Availability
*12801
HOT TUBE REPAIR KIT WCI G189383 Contact Us For Availability
*12802
WCI G167234 WCI G167234 Contact Us For Availability
1
COVER-HNG AVOC. WCI G183558-08 Contact Us For Availability
1
PAN, CRISPER (2) WCI G178270-06 Contact Us For Availability
2
SUPPORT LS (3) WCI G178284-01 Contact Us For Availability
2
WCI G183714 WCI G183714 Contact Us For Availability
2
WCI G161013-61 WCI G161013-61 Contact Us For Availability
2
WCI G162739 WCI G162739 Contact Us For Availability
3
SUPPORT RS (3) WCI G178287-01 Contact Us For Availability
3
SHIM-TOP HNG WCI G183861 Contact Us For Availability
3
WCI G178216-01 WCI G178216-01 Contact Us For Availability
3
BRACKET-MTG (4) WCI G164637 Contact Us For Availability
4
PANEL-INNER FRZR WCI G178289-01 Contact Us For Availability
4
SUPPORT, COVER WCI G166310-02 Contact Us For Availability
5
WCI G103903 No Longer Available
5
FRAME, SHELF (3) WCI G171608-12 Contact Us For Availability
6
TRIM-SHELF WCI G170232-17 Contact Us For Availability
6
WASHER, HNG WCI G164355 Contact Us For Availability
6
WCI G172434-25 WCI G172434-25 Contact Us For Availability
6
WCI G183584 WCI G183584 Contact Us For Availability
7
ROLLER ASSY FRNT WCI G177021 Contact Us For Availability
7
TRIM, REAR (3) WCI G172436-18 Contact Us For Availability
7
CORD, SERVICE WCI G162549-01 Contact Us For Availability
7A
DOOR STOP-FRZR (NON-ILLUSTRATED) WCI G155072 Contact Us For Availability
8
WCI G162977-08 WCI G162977-08 Contact Us For Availability
8
ROLLER ASSY REAR WCI G183407 Contact Us For Availability
8
GLASS, SHELF (3) WCI G171654-37 Contact Us For Availability
8
CLIP (4) WCI G163204 Contact Us For Availability
8A
CLIP, SHELF (NON-ILLUSTRATED) WCI G170910 Contact Us For Availability
9
WCI G178292 WCI G178292 Contact Us For Availability
9
WCI G174655-15 WCI G174655-15 Contact Us For Availability
9
WCI G168120 WCI G168120 Contact Us For Availability
10
WCI G178282-01 WCI G178282-01 Contact Us For Availability
10
BOLT-REAR RLR (2) WCI G177025 Contact Us For Availability
10
CONTROL-TEMP. WCI G162667-11 Contact Us For Availability
10A
WCI G107080 WCI G107080 Contact Us For Availability
11
WCI G178494 WCI G178494 Contact Us For Availability
11
NUT, LOCK WCI G164958 Contact Us For Availability
12
TRIM-REFR. DR TOP WCI G178293-01 Contact Us For Availability
12
BOLT-RLR ADJ (2) WCI G177024 Contact Us For Availability
12
COMPR W/ELEC WCI G184669 Contact Us For Availability
13
BUTTON-HNG WCI G162892-14 Contact Us For Availability
13
WCI G182799 WCI G182799 Contact Us For Availability
13
WCI G182225-11 WCI G182225-11 Contact Us For Availability
14
PANEL-OUTER-AVOC WCI G178283-08 Contact Us For Availability
14
WCI G177302 WCI G177302 Contact Us For Availability
14
SOCKET LIGHT WCI G168302 Contact Us For Availability
14
WCI G185810 WCI G185810 Contact Us For Availability
15
BEARING-HNG (8) WCI G183138 Contact Us For Availability
15
HINGE BRKT-BTM WCI G191474 Contact Us For Availability
15
LABLE, CONT. BOX WCI G178294-01 Contact Us For Availability
15
RETAINER-OVLD WCI G188957 Contact Us For Availability
16
WCI G172612-03 WCI G172612-03 Contact Us For Availability
16
SHIM-BTM HNG WCI G163203 Contact Us For Availability
16
KNOB CONTROL WCI G174781-06 Contact Us For Availability
16
PAN, DEFROST WCI G184715 Contact Us For Availability
17
WCI G185566 WCI G185566 Contact Us For Availability
17
SWITCH SLIDE WCI G178402-01 Contact Us For Availability
17
WCI G184599 WCI G184599 Contact Us For Availability
18
GASKET-FRZR WCI G186932-12 Contact Us For Availability
18
MULLION-AVOC WCI G180373-08 Contact Us For Availability
18
BLOCK-INSUL LS WCI G188375 Contact Us For Availability
19
GASKET-REFR WCI G186932-13 Contact Us For Availability
19
SCREW-MTG (4) WCI G183103 Contact Us For Availability
19
BLOCK-INSUL RS WCI G185299 Contact Us For Availability
20
RACK-DOOR (2) WCI G162939-29 Contact Us For Availability
20
DEFLECTOR AIR WCI G162675 Contact Us For Availability
20
STRAP-MULN-MTG WCI G490087 Contact Us For Availability
20
PLUG, BLOCK WCI G185276 Contact Us For Availability
21
PANEL-INNER REFR. WCI G178276-01 Contact Us For Availability
21
COVER, AIR DEFLCTR WCI G162178 Contact Us For Availability
21
WASHER-STEEL (4) WCI G166847 Contact Us For Availability
22
WCI G162713-08 WCI G162713-08 Contact Us For Availability
22
SHELF-FRZR WCI G177059-02 Contact Us For Availability
22
SPACER (2) WCI G490082 Contact Us For Availability
22
EVAPORATOR WCI G164572 Contact Us For Availability
23
PANEL-OUTER-AVOC. WCI G178279-08 Contact Us For Availability
23
WCI G172434-20 WCI G172434-20 Contact Us For Availability
23
WCI G177254 WCI G177254 Contact Us For Availability
24
END CAP-SHELF (2) WCI G166495-01 Contact Us For Availability
24
HEAT EXCHANGER WCI G147918 Contact Us For Availability
25
TRIM-SHELF WCI G170232-20 Contact Us For Availability
25
BUTTON, DEC PLUG WCI G162827-14 Contact Us For Availability
25
TOP-REFR. WCI G490021-02 Contact Us For Availability
25A
WCI G153407-60 WCI G153407-60 Contact Us For Availability
25A
SCREW-MTG (3) (NON-ILLUSTRATED) WCI G162673 Contact Us For Availability
26
WCI G169332-08 WCI G169332-08 Contact Us For Availability
26
DAMPER WCI G162661 Contact Us For Availability
26
WCI G176777 WCI G176777 Contact Us For Availability
26
INSULATOR WCI G166511-02 Contact Us For Availability
27
WCI G89643 WCI G89643 Contact Us For Availability
27
NUT, PUSH WCI G162662 Contact Us For Availability
27
BOTTOM-FRZR WCI G185912 Contact Us For Availability
28
KNOB, DMPR CONT. WCI G162663-15 Contact Us For Availability
29
WCI G163061-63 WCI G163061-63 Contact Us For Availability
31
SPOUT, DRAIN WCI G162179 Contact Us For Availability
32
WCI G185279 WCI G185279 Contact Us For Availability
33
TUBE, DRAIN WCI G184920-01 Contact Us For Availability
33A
RING, SEAL (NON-ILLUSTRATED) WCI G176853 Contact Us For Availability
35
RING-ORIFICE WCI G167217 Contact Us For Availability
38
WCI G185302 WCI G185302 Contact Us For Availability
39
WCI G185303 WCI G185303 Contact Us For Availability
40
TUBE, RUBBER WCI G85642 Contact Us For Availability
41
WCI G177529 WCI G177529 Contact Us For Availability
41A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
42
HINGE BRKT-CTR WCI G163207 Contact Us For Availability
44
WCI G142220 WCI G142220 Contact Us For Availability
45
WCI G177534 WCI G177534 Contact Us For Availability
46
CHANL, RS & LS WCI G170695 Contact Us For Availability
48
SCREW-LEVEL (2) WCI G185713 Contact Us For Availability
49
WCI G183073 WCI G183073 Contact Us For Availability
50
SPRT-COIL COV (2) WCI G163669 Contact Us For Availability
51
BTN-PLUG WCI G166912 Contact Us For Availability
52
WCI G174733 WCI G174733 Contact Us For Availability
53
WCI G174734 WCI G174734 Contact Us For Availability
54
WCI G174747-08 WCI G174747-08 Contact Us For Availability
56
WCI G490004-02 WCI G490004-02 Contact Us For Availability
57
CORNER TRIM-AVOC WCI G179684-08 Contact Us For Availability
× ![]()
