Model Electrolux TGK180AN6D REFRIGERATOR – Common Parts & Diagrams

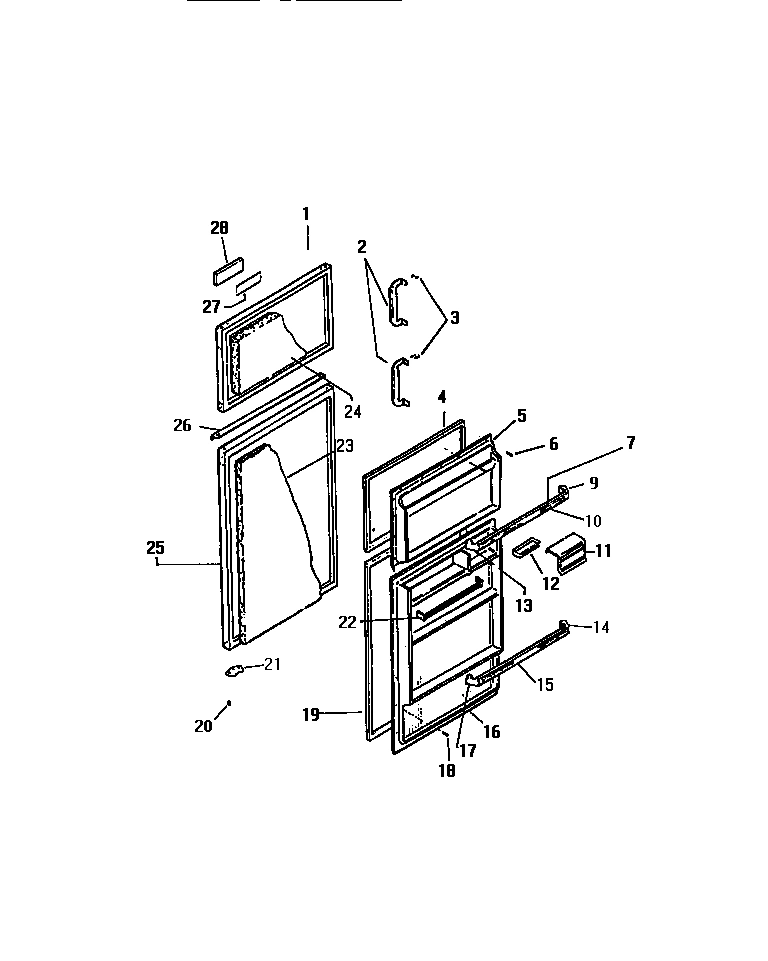

02 - DOOR

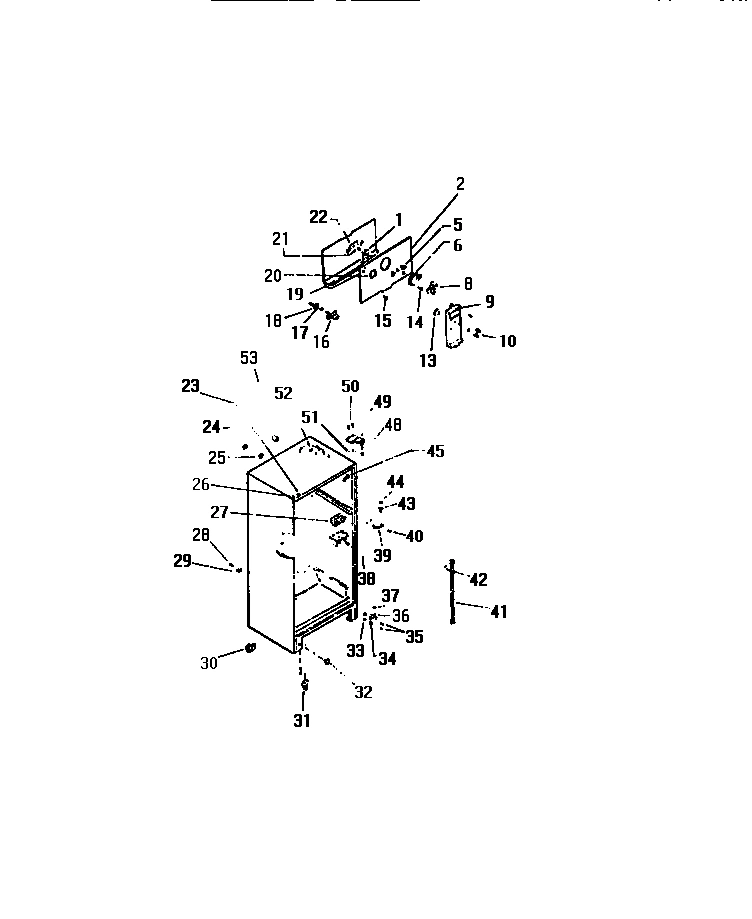

03 - CABINET W/ FAN ASSEMBLY

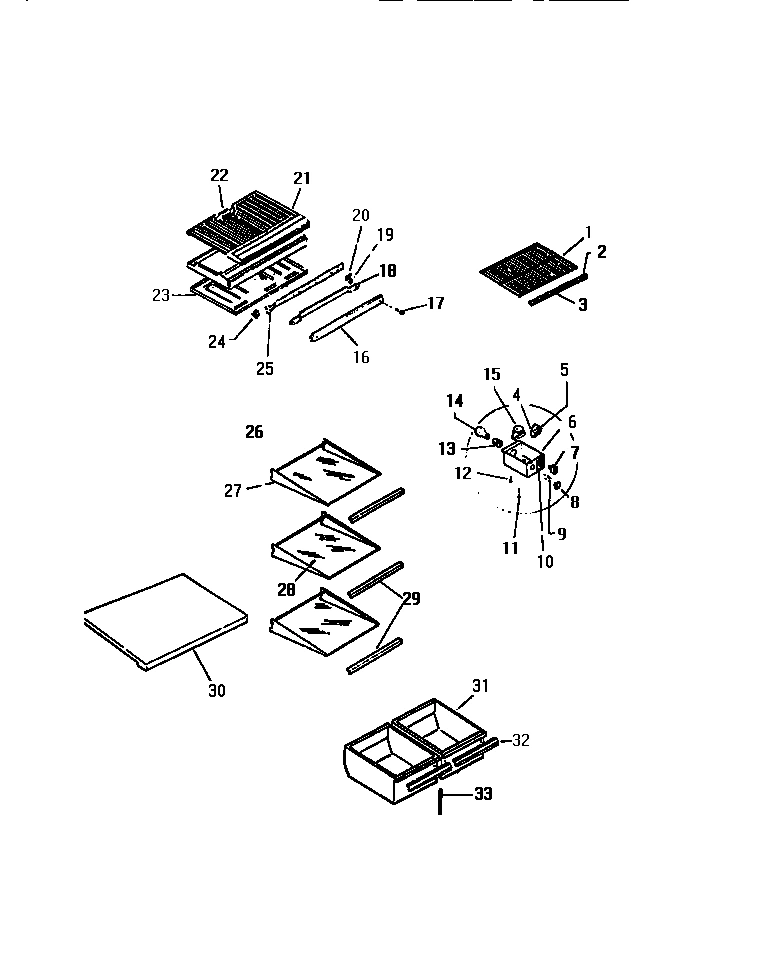

04 - SHELVES, CONTROLS, DIVIDER, MULLION

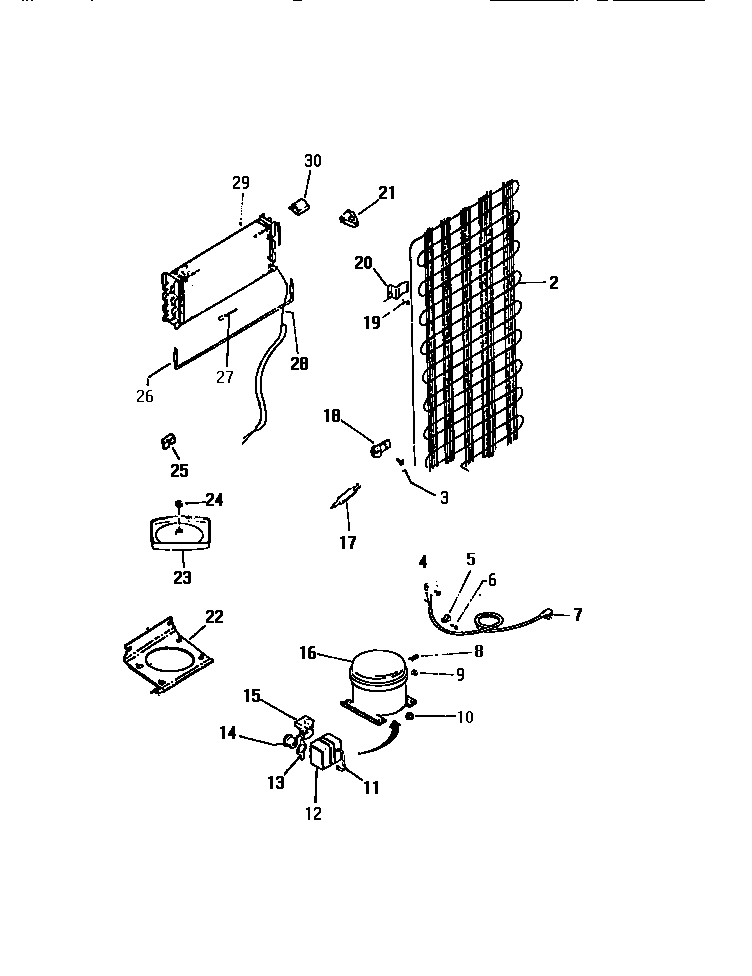

05 - SYSTEM
Common parts from model Electrolux TGK180AN6D REFRIGERATOR
*90120
WCI G179024 WCI G179024 Contact Us For Availability
*90122
WCI G186589 WCI G186589 Contact Us For Availability
*90123
PLUG BUTTON WCI G142625 Contact Us For Availability
*90124
PLUG BUTTON WCI G161046 Contact Us For Availability
*90125
SCREW (3) WCI G162673 Contact Us For Availability
*90126
WCI G183100-19 WCI G183100-19 Contact Us For Availability
*90136
WCI G169332-11 WCI G169332-11 Contact Us For Availability
*90141
WCI G162977-11 WCI G162977-11 Contact Us For Availability
*90146
COVER, TOP HINGE, ALMOND WCI G183558-11 Contact Us For Availability
*90147
PLATE, TAPPING (2) WCI G157591 Contact Us For Availability
*90150
WCI G164571 WCI G164571 Contact Us For Availability
*90151
SERVICE DATA SHEET WCI G186765 Contact Us For Availability
*90152
HARNESS, WIRING WCI G174818 Contact Us For Availability
*90153
BUTTON, PLUG, LINER (2) WCI G162892-01 Contact Us For Availability
*90154
BUTTON, PLUG, ICE MAKER AND FR SH. MOUNTING H WCI G162659 Contact Us For Availability
*90155
PLUG, EVAPORATOR INSULATION BLOCK, R H WCI G185276 Contact Us For Availability
1
WCI G178283-11 WCI G178283-11 Contact Us For Availability
1
WCI G177059-02 WCI G177059-02 Contact Us For Availability
2
HANDLE, DOOR FC AND PC (2) WCI G172612-03 Contact Us For Availability
2
WCI G177529 WCI G177529 Contact Us For Availability
2
CAP PROTECTOR (2) WCI G166495-01 Contact Us For Availability
2
WCI G162739 WCI G162739 Contact Us For Availability
3
WCI G185566 WCI G185566 Contact Us For Availability
3
TRIM, SHELF, FREEZER WCI G172434-20 Contact Us For Availability
3A
WASHER WCI G164820 Contact Us For Availability
4
GASKET, FC DOOR WCI G180547-12 Contact Us For Availability
5
WCI G178289-01 WCI G178289-01 Contact Us For Availability
5
BRACKET, FRONT MOTOR MOUNTING WCI G162049 Contact Us For Availability
5
COLD CONTROL WCI G162667-10 Contact Us For Availability
6
RING, FAN ORIFICE WCI G167217 Contact Us For Availability
6
WCI G174655-15 WCI G174655-15 Contact Us For Availability
6A
NUT, ORIFICE (2) WCI G167542 Contact Us For Availability
7
WCI G170232-17 WCI G170232-17 Contact Us For Availability
7
WCI G177727-01 WCI G177727-01 Contact Us For Availability
7
CORD, SERVICE WCI G162549-01 Contact Us For Availability
7A
WCI G141624-24 WCI G141624-24 Contact Us For Availability
8
KNOB CONTROL WCI G174781-06 Contact Us For Availability
8
CLIP, COMPRESSOR MOUNTING (4) WCI G163204 Contact Us For Availability
9
WCI G163061-36 WCI G163061-36 Contact Us For Availability
9
WCI G107080 WCI G107080 Contact Us For Availability
9
WASHER, COMPRESSOR MOUNTING (4) WCI G164634 Contact Us For Availability
10
WCI G162939-28 WCI G162939-28 Contact Us For Availability
10
WCI G162663-11 WCI G162663-11 Contact Us For Availability
10
WCI G178294-01 WCI G178294-01 Contact Us For Availability
10A
NUT, DAMPER MOUNTING WCI G162662 Contact Us For Availability
11
WCI G162713-08 WCI G162713-08 Contact Us For Availability
11
STRAP BALE WCI G185790 Contact Us For Availability
12
WCI G185792 WCI G185792 Contact Us For Availability
13
DAMPER FAN COVER WCI G162661 Contact Us For Availability
13
SOCKET LIGHT WCI G168302 Contact Us For Availability
13
RETAINER, OVERLOAD WCI G166053 Contact Us For Availability
14
SUPPORT, RACK, PC, RH (2) WCI G178287-01 Contact Us For Availability
14
WCI G185797 WCI G185797 Contact Us For Availability
15
WCI G162939-29 WCI G162939-29 Contact Us For Availability
15
WCI G18225-12 WCI G18225-12 Contact Us For Availability
16
WCI G178276-01 WCI G178276-01 Contact Us For Availability
16
SPOUT DRAIN TUBE WCI G162179 Contact Us For Availability
16
WCI G180373-11 WCI G180373-11 Contact Us For Availability
16
COMPRESSOR WCI G185831 Contact Us For Availability
17
SUPPORT, RACK, PC, LH (2) WCI G178284-01 Contact Us For Availability
17
TUBE, DRAIN WCI G184920-01 Contact Us For Availability
17
SCREW, MULLION MOUNTING (2) WCI G183103 Contact Us For Availability
18
RING, SEAL WCI G176853 Contact Us For Availability
18
CLAMP, MULLION MOUNTING WCI G490087 Contact Us For Availability
19
GASKET, DOOR PC WCI G180547-13 Contact Us For Availability
19
WCI G177534 WCI G177534 Contact Us For Availability
19
WASHER (2) WCI G166847 Contact Us For Availability
20
BEARING HINGE (8) WCI G183138 Contact Us For Availability
20
SPACER, MULLION (2) WCI G490082 Contact Us For Availability
20
BRACKET-CONDENSER MOUNTING (4) WCI G164637 Contact Us For Availability
21
STOP, DOOR, FC AND PC (2) WCI G155072 Contact Us For Availability
21
DIVIDER, CENTER WCI G176777 Contact Us For Availability
21
BLOCK, EVAPORATOR, RH WCI G185299 Contact Us For Availability
22
WCI G170232-20 WCI G170232-20 Contact Us For Availability
22
BRACKET, REAR MOTOR MOUNTING WCI G162048 Contact Us For Availability
22
BOTTOM, FC WCI G185912 Contact Us For Availability
22
PLATE, COMPRESSOR MOUNTING WCI G182757 Contact Us For Availability
22A
WCI G141624-16 WCI G141624-16 Contact Us For Availability
23
WCI G178297 WCI G178297 Contact Us For Availability
23
WCI G174747-11 WCI G174747-11 Contact Us For Availability
23
TOP, PC WCI G490021-02 Contact Us For Availability
23
DEFROST PAN AND NUT WCI G171778 Contact Us For Availability
24
WCI G178296 WCI G178296 Contact Us For Availability
24
WCI G174734 WCI G174734 Contact Us For Availability
24
NUT, LOCK WCI G164958 Contact Us For Availability
25
WCI G178279-11 WCI G178279-11 Contact Us For Availability
25
WCI G174733 WCI G174733 Contact Us For Availability
25
WCI G177254 WCI G177254 Contact Us For Availability
25
BLOCK, EVAPORATOR, LH WCI G162807 Contact Us For Availability
26
WCI G178293-01 WCI G178293-01 Contact Us For Availability
26
BUTTON DECORATIVE PLUG WCI G162827-14 Contact Us For Availability
26
TRIM, REAR SHELF WCI G172436-18 Contact Us For Availability
26A
WCI G162991-29 WCI G162991-29 Contact Us For Availability
27
WCI G178282-01 WCI G178282-01 Contact Us For Availability
27
DEFLECTOR AIR WCI G162675 Contact Us For Availability
27
WCI G171608-12 WCI G171608-12 Contact Us For Availability
28
WCI G178292 WCI G178292 Contact Us For Availability
28
WCI G171654-37 WCI G171654-37 Contact Us For Availability
28
WCI G177531 WCI G177531 Contact Us For Availability
28A
WCI G162991-04 WCI G162991-04 Contact Us For Availability
29
WCI G101747 WCI G101747 Contact Us For Availability
29
TRIM, SHELF WCI G172434-25 Contact Us For Availability
29
EVAPORATOR WCI G162506 Contact Us For Availability
30
ROLLER, REAR (2) WCI G183407 Contact Us For Availability
30
WCI G178216-01 WCI G178216-01 Contact Us For Availability
30A
BOLT ROLLER (2) WCI G177025 Contact Us For Availability
31
ROLLER FRONT, ADJUSTABLE (2) WCI G177021 Contact Us For Availability
31
WCI G178270-06 WCI G178270-06 Contact Us For Availability
31A
SPRING-ROLLER (2) WCI G178494 Contact Us For Availability
31B
BOLT-ROLLER (2) WCI G177024 Contact Us For Availability
31C
SUPPORT, ROLLER (2) WCI G177302 Contact Us For Availability
31D
WASHER WCI G182799 Contact Us For Availability
32
WCI G166912 WCI G166912 Contact Us For Availability
32
WCI G161013-61 WCI G161013-61 Contact Us For Availability
33
SHIM, HINGE WCI G163203 Contact Us For Availability
33
WCI G136310-02 WCI G136310-02 Contact Us For Availability
34
BRACKET, HINGE, LOWER WCI G181019 Contact Us For Availability
38
WCI G162178 WCI G162178 Contact Us For Availability
39
BRACKET, HINGE CENTER WCI G163207 Contact Us For Availability
41
CHANNEL, SHELF (2) WCI G170695 Contact Us For Availability
43
WCI G142220 WCI G142220 Contact Us For Availability
45
TRIM-CORNER, ALMOND (4) WCI G179684-11 Contact Us For Availability
48
WCI G103903 No Longer Available
49
BRACKET, TOP HINGE WCI G183714 Contact Us For Availability
51
WCI G183861 WCI G183861 Contact Us For Availability
52
WCI G163669 WCI G163669 Contact Us For Availability
53
TUBE, INSULATION (2) WCI G85642 Contact Us For Availability
× ![]()
