Model Electrolux TGF657BFU2 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

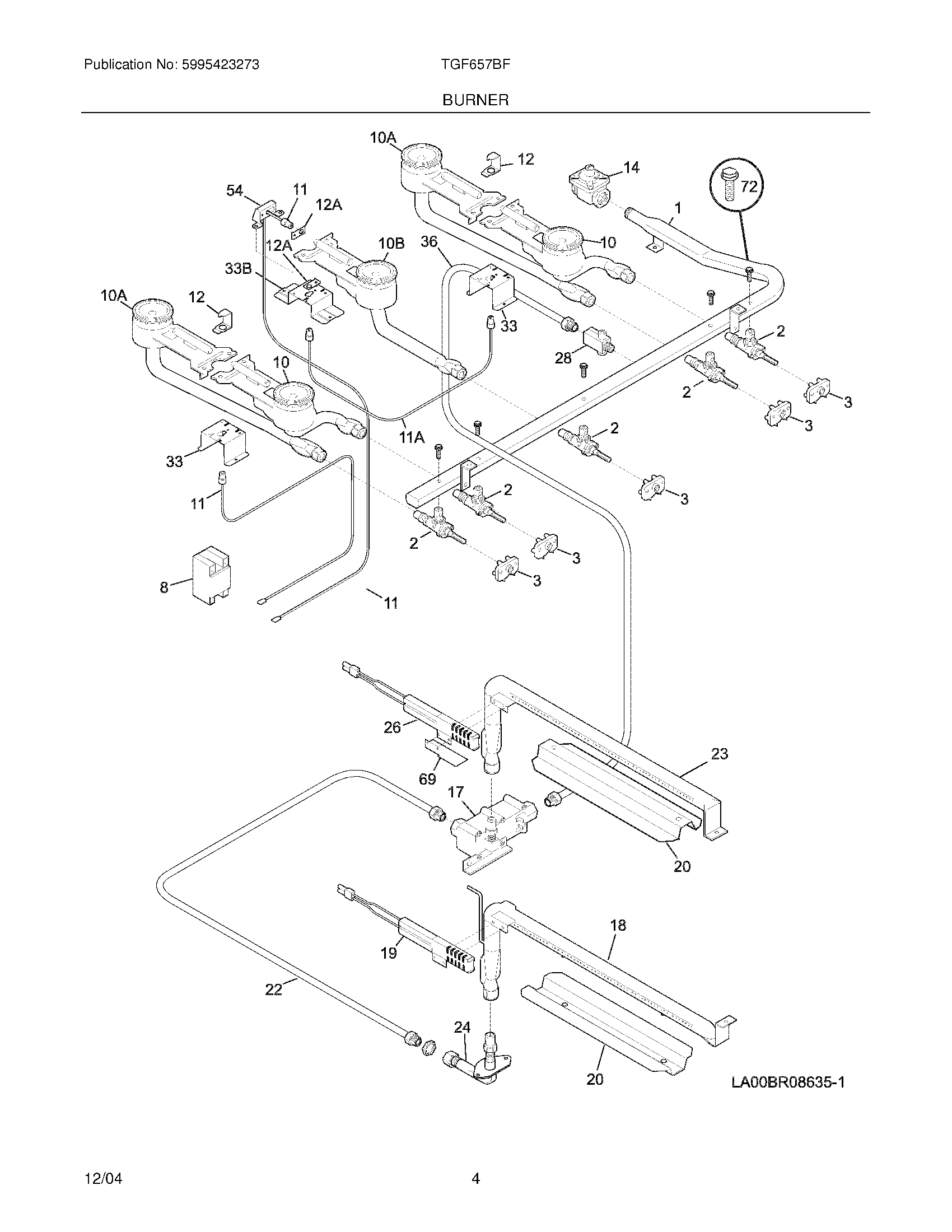

05 - BURNER

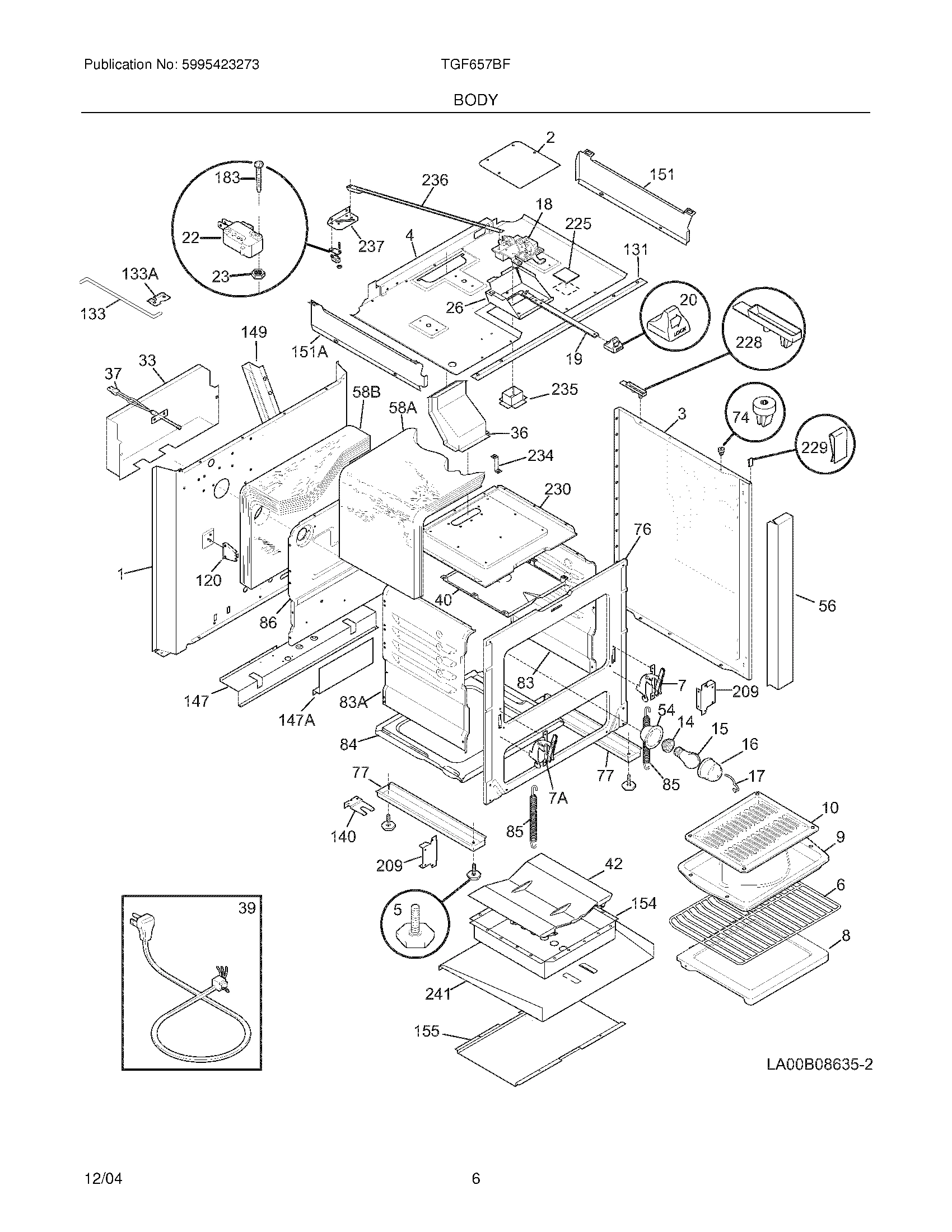

07 - BODY

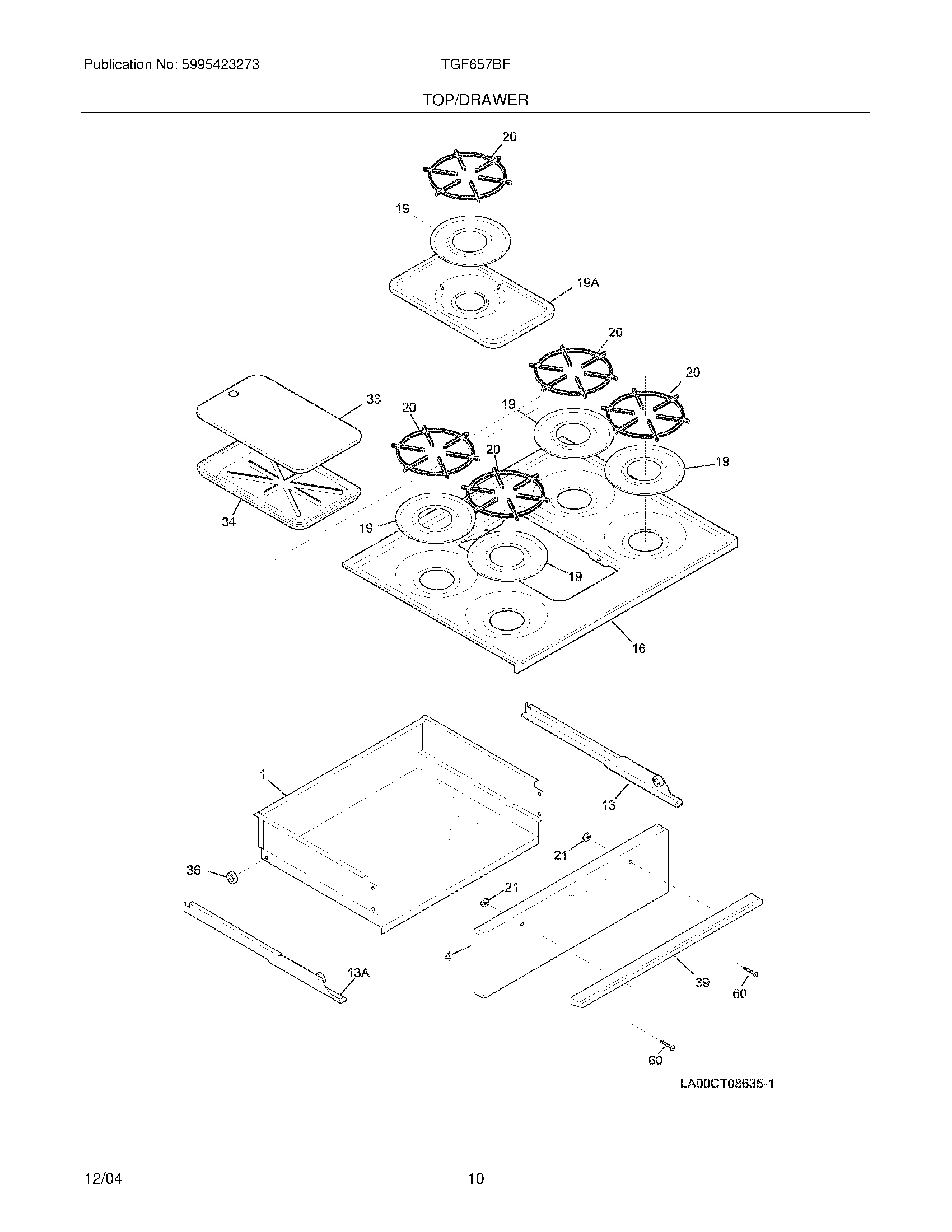

09 - TOP/DRAWER

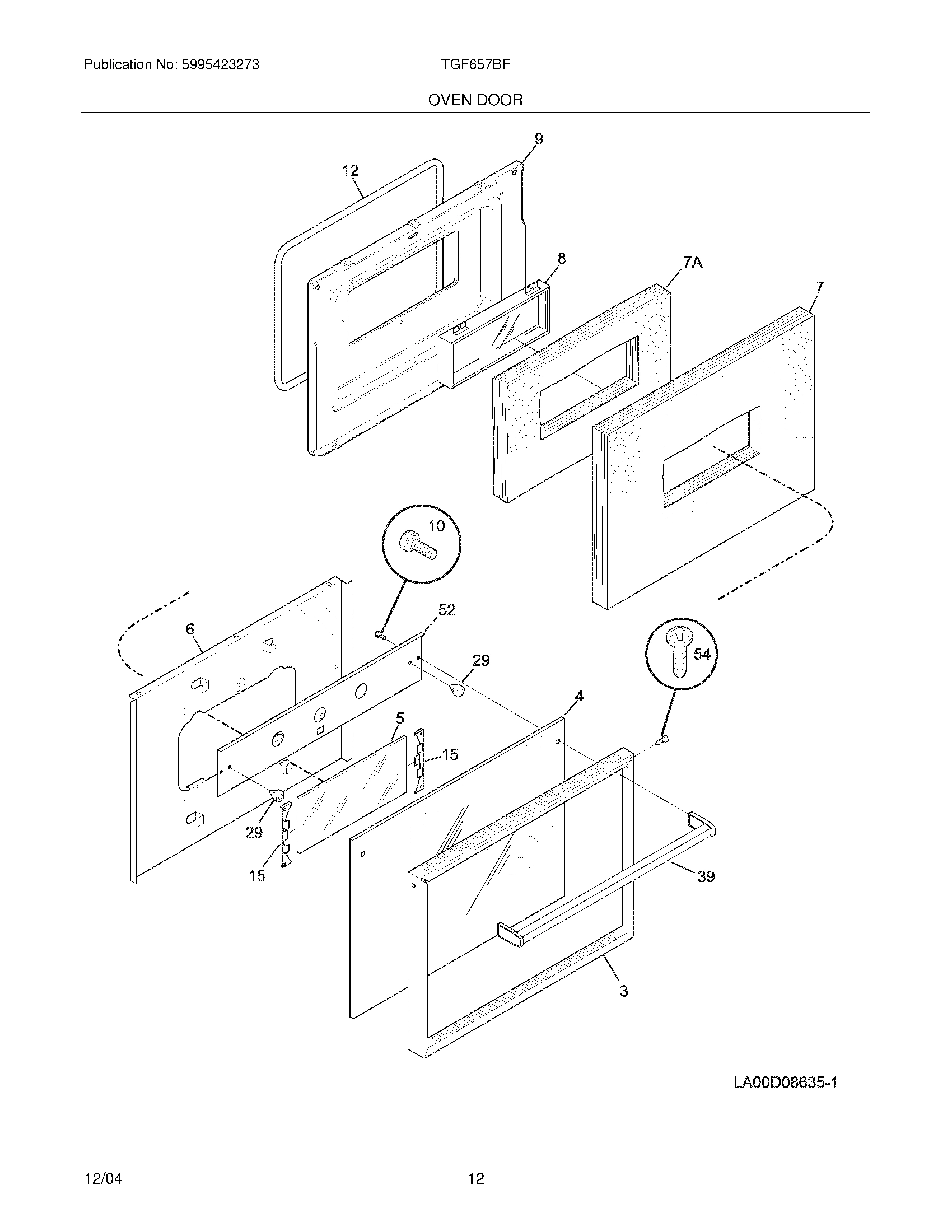

11 - DOOR

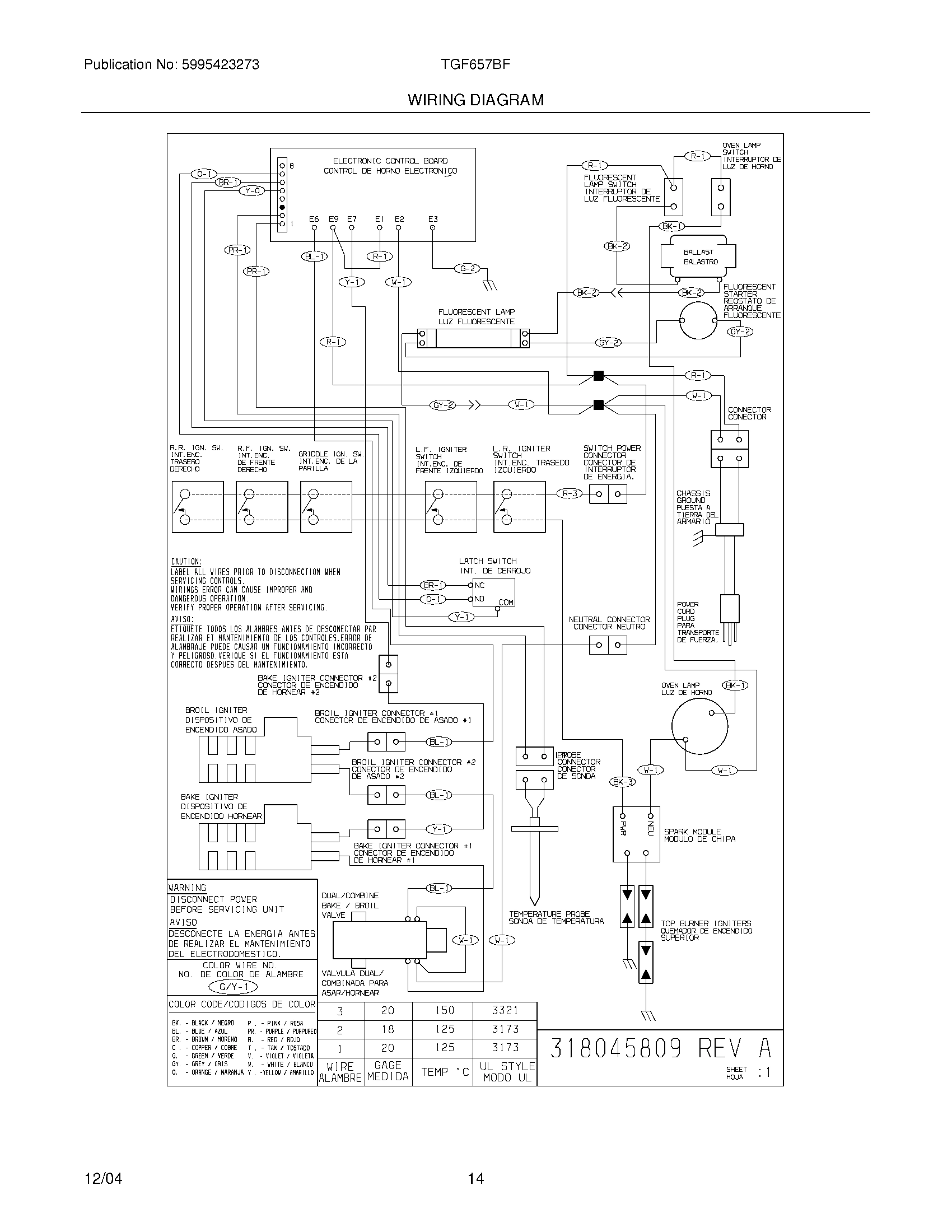

12 - WIRING DIAGRAM

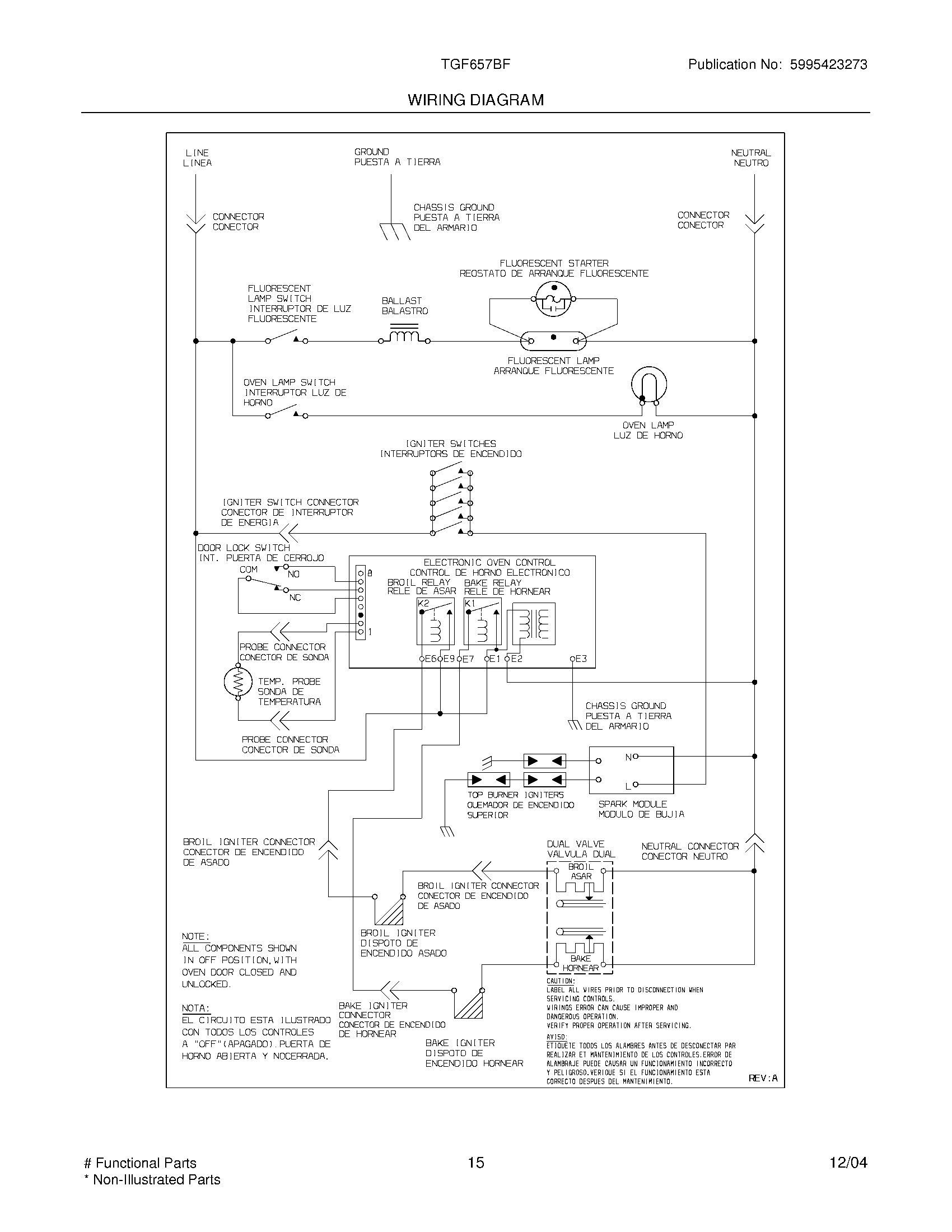

13 - WIRING DIAGRAM
Common parts from model Electrolux TGF657BFU2 RANGE
1
WCI 318076301 WCI 318076301 Contact Us For Availability
1
Drawer WCI 5303311535 Contact Us For Availability
2
Cover,door lock WCI 318135700 Contact Us For Availability
3
WCI 318232611 WCI 318232611 Contact Us For Availability
3
WCI 318194900 WCI 318194900 Contact Us For Availability
3
WCI 318083622 WCI 318083622 Contact Us For Availability
4
WCI 318133501 WCI 318133501 Contact Us For Availability
4
WCI 5303311536 WCI 5303311536 Contact Us For Availability
4
GLASS-OVEN DOOR, BLACK, OUTER WCI 3131765 Contact Us For Availability
5
GLASS-OVEN DOOR, INNER WCI 5308013865 Contact Us For Availability
6
Starter,lamp WCI 5308068062 Contact Us For Availability
6
WCI 5303311539 WCI 5303311539 Contact Us For Availability
6
WCI 5303311534 WCI 5303311534 Contact Us For Availability
7
HINGE-OVEN DOOR, RH WCI 3205894 Contact Us For Availability
7
WCI 318133714 WCI 318133714 Contact Us For Availability
7A
WCI 318133715 WCI 318133715 Contact Us For Availability
8
Glass,oven door ,inner WCI 5303271567 Contact Us For Availability
8
WCI 318135500 WCI 318135500 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
WCI 318112800 WCI 318112800 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
10A
Burner,top ,rear WCI 5303131079 Contact Us For Availability
11A
Ignitor,top burner ,front WCI 5303210548 Contact Us For Availability
11No.
WCI 318148504 WCI 318148504 Contact Us For Availability
13
CHANNEL-DRAWER, RH WCI 5303051055 Contact Us For Availability
13A
Channel,drawer ,LH WCI 5303051056 Contact Us For Availability
15
WCI 318122100 WCI 318122100 Contact Us For Availability
16
WCI 318192700 WCI 318192700 Contact Us For Availability
17
VALVE-SAFETY WCI 316031400 Contact Us For Availability
17
Clip,lamp cover ,retainer WCI 5303205904 Contact Us For Availability
18
WCI 5303311544 WCI 5303311544 Contact Us For Availability
18
Latch,door WCI 5308068025 Contact Us For Availability
19
WCI 5308011431 WCI 5308011431 Contact Us For Availability
19
WCI 318198000 WCI 318198000 Contact Us For Availability
19A
WCI 318067402 WCI 318067402 Contact Us For Availability
20
WCI 5303272274 WCI 5303272274 Contact Us For Availability
20
WCI 5303212486 WCI 5303212486 Contact Us For Availability
22
Switch,latch WCI 316031200 Contact Us For Availability
23
FASTENER, SWITCH WCI 3131095 Contact Us For Availability
26
WCI 318168200 WCI 318168200 Contact Us For Availability
28
WCI 316080600 WCI 316080600 Contact Us For Availability
29
WCI 318017800 WCI 318017800 Contact Us For Availability
29
WCI 318147410 WCI 318147410 Contact Us For Availability
33
COVER WIRE BACK WCI 318114301 Contact Us For Availability
33
WCI 318169001 WCI 318169001 Contact Us For Availability
34
WCI 318102600 WCI 318102600 Contact Us For Availability
36
Knob,control WCI 318016209 Contact Us For Availability
36
WCI 5303935079 WCI 5303935079 Contact Us For Availability
36
WCI 318089700 WCI 318089700 Contact Us For Availability
37
WCI 318087700 WCI 318087700 Contact Us For Availability
39
WCI 10819 WCI 10819 Contact Us For Availability
39
WCI 318144003 WCI 318144003 Contact Us For Availability
39
Handle,oven door WCI 5303286852 Contact Us For Availability
40
WCI 318133300 WCI 318133300 Contact Us For Availability
42
WCI 318168700 WCI 318168700 Contact Us For Availability
52
WCI 318132900 WCI 318132900 Contact Us For Availability
54
WCI 5303271606 WCI 5303271606 Contact Us For Availability
56
Trim,bodyside ,black WCI 10835 Contact Us For Availability
58A
WCI 318133716 WCI 318133716 Contact Us For Availability
58B
WCI 318133717 WCI 318133717 Contact Us For Availability
74
GROMMET,BODYSIDE WCI 3051063 Contact Us For Availability
76
WCI 318133903 WCI 318133903 Contact Us For Availability
77
WCI 318166701 WCI 318166701 Contact Us For Availability
83
WCI 318134400 WCI 318134400 Contact Us For Availability
83A
WCI 318134401 WCI 318134401 Contact Us For Availability
84
WCI 318134700 WCI 318134700 Contact Us For Availability
86
WCI 318135300 WCI 318135300 Contact Us For Availability
120
Support,oven rear WCI 3051096 Contact Us For Availability
131
Support,control panel WCI 318163000 Contact Us For Availability
133
Rod,support ,main top panel WCI 3051554 Contact Us For Availability
133
BRACKET-ROD, MAIN TOP WCI 6743 Contact Us For Availability
140
WCI 5304405240 WCI 5304405240 Contact Us For Availability
147
SUPPORT, CONTROL VALVE WCI 08068039 Contact Us For Availability
147
WCI 318168400 WCI 318168400 Contact Us For Availability
149
Channel,wiring WCI 3131046 Contact Us For Availability
151
SHIELD-BODYSIDE,RH WCI 5303131053 Contact Us For Availability
151
Shield,bodyside ,LH WCI 5303131054 Contact Us For Availability
154
WCI 318076600 WCI 318076600 Contact Us For Availability
155
WCI 318160600 WCI 318160600 Contact Us For Availability
183
SCREW, SWITCH-OVN LGHT WCI 5303308447 Contact Us For Availability
209
Support,rail WCI 5303286692 Contact Us For Availability
225
Plate,observation WCI 3018339 Contact Us For Availability
228
WCI 5303311537 WCI 5303311537 Contact Us For Availability
229
CLIP,BODYSIDE WCI 3131791 Contact Us For Availability
230
WCI 5303324119 WCI 5303324119 Contact Us For Availability
234
WCI 3131800 WCI 3131800 Contact Us For Availability
235
WCI 318133201 WCI 318133201 Contact Us For Availability
236
WCI 318170700 WCI 318170700 Contact Us For Availability
237
BRACKET-LOCK SWITCHES WCI 5303131843 Contact Us For Availability
241
WCI 318121200 WCI 318121200 Contact Us For Availability
NI
SCREW-SHOULDER WCI 3051050 Contact Us For Availability
NI
SCREW, 10 X 3/8 WCI 5303131801 Contact Us For Availability
NI
WCI 5303324186 WCI 5303324186 Contact Us For Availability
× ![]()
