Model Electrolux TGF645WFW1 RANGE – Common Parts & Diagrams

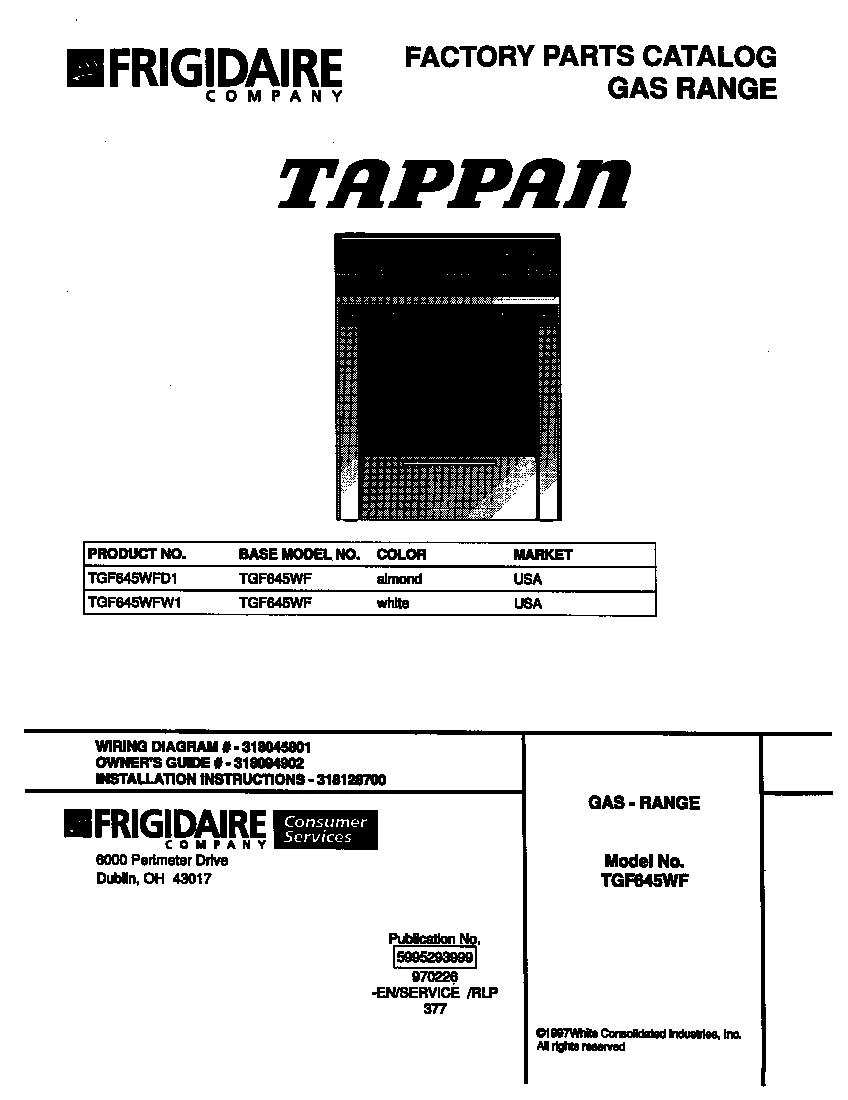

01 - COVER

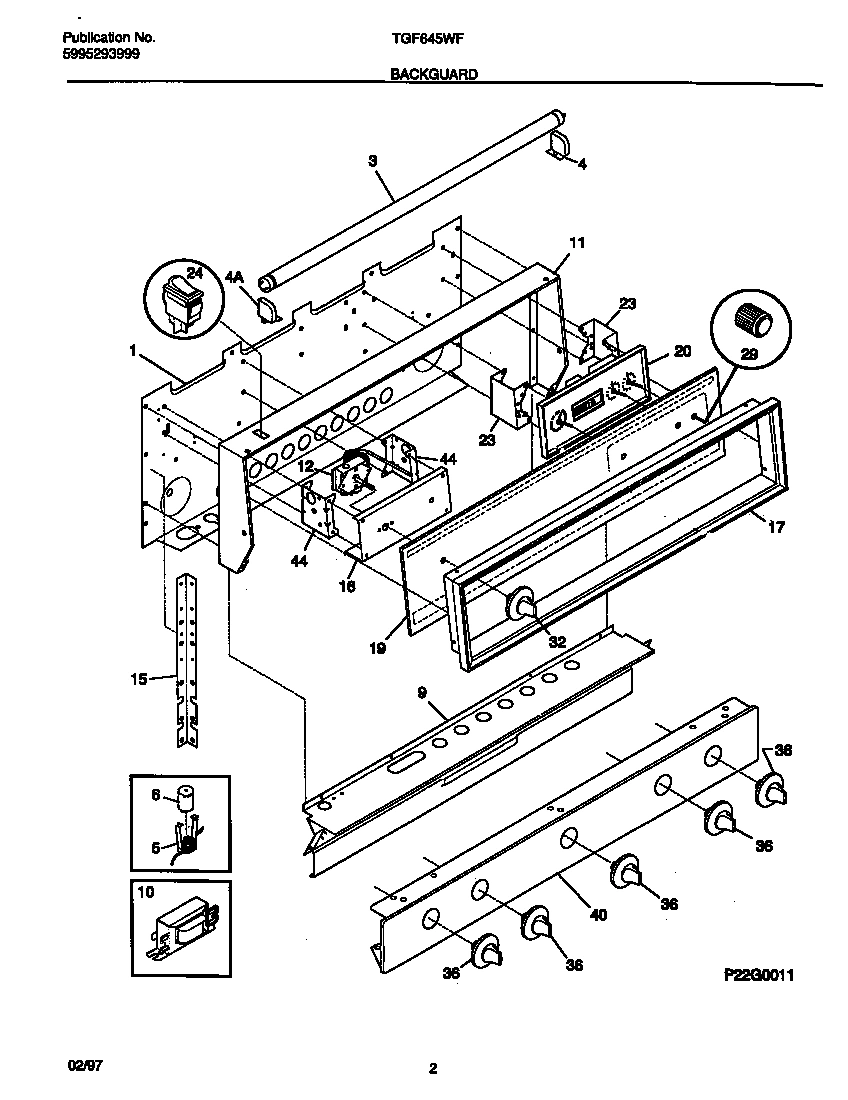

02 - BACKGUARD

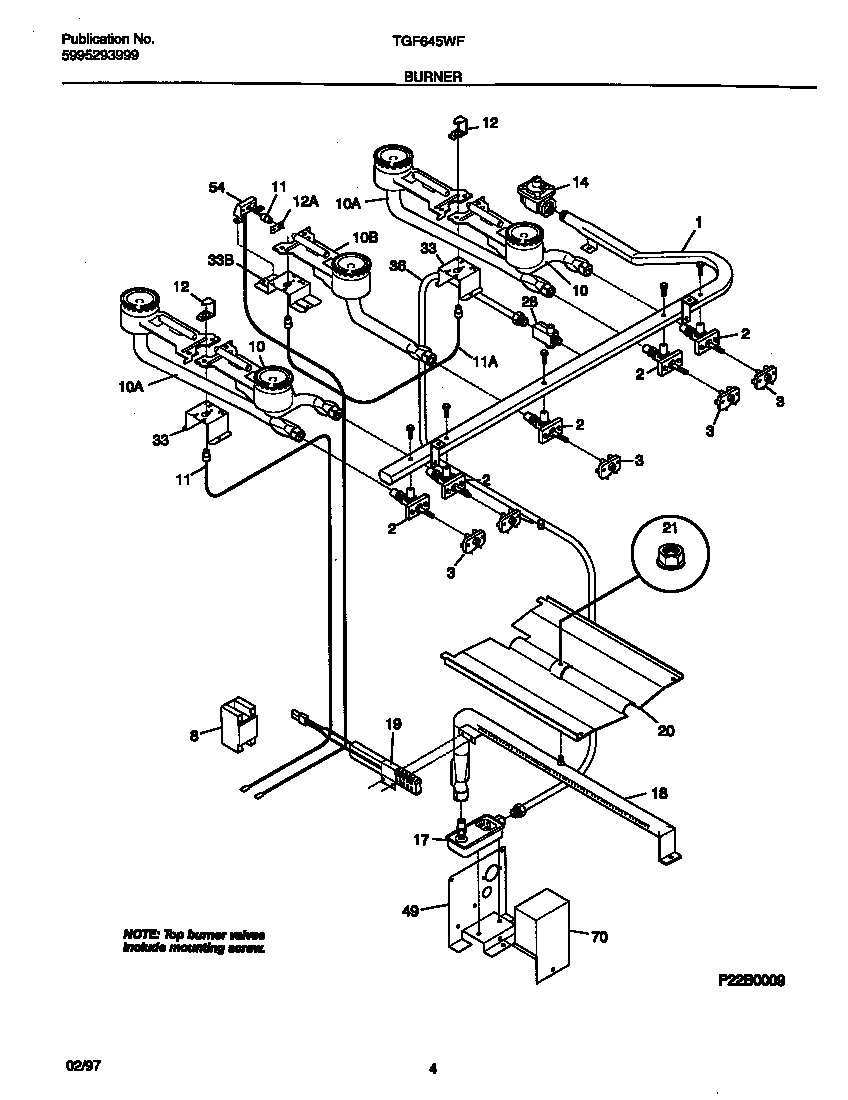

03 - BURNER

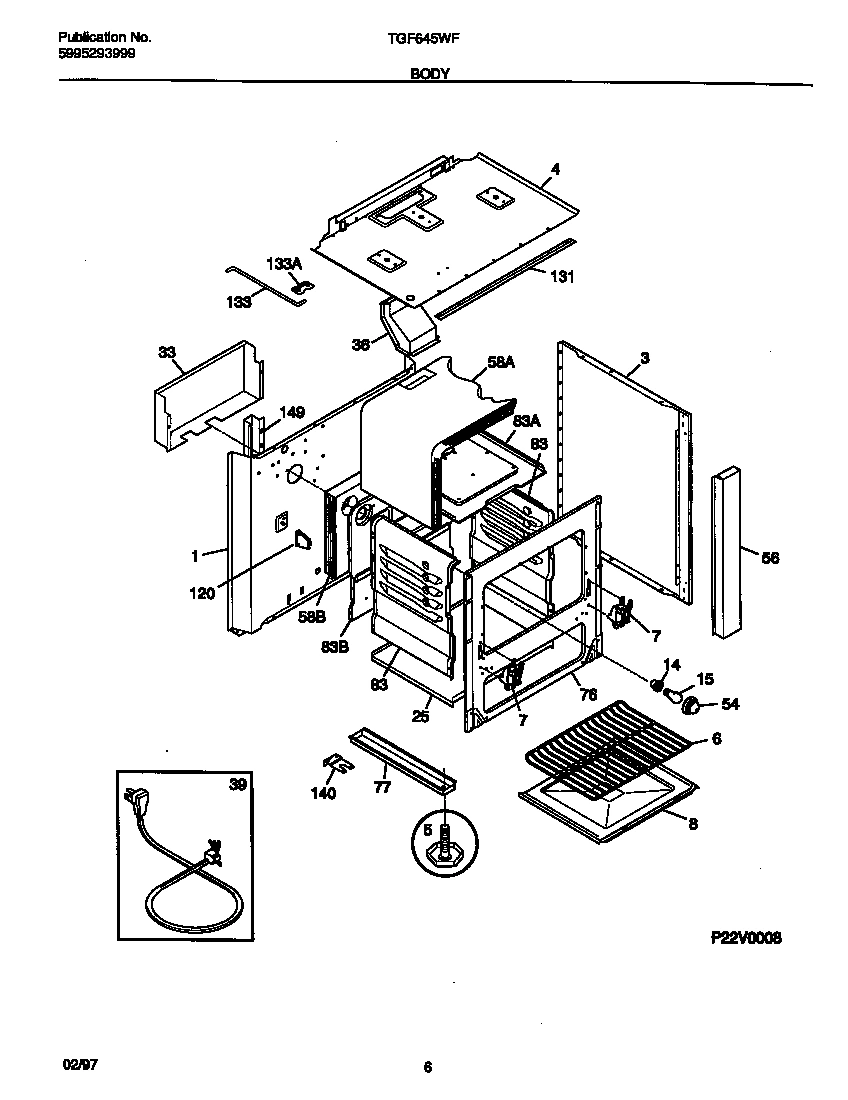

04 - BODY

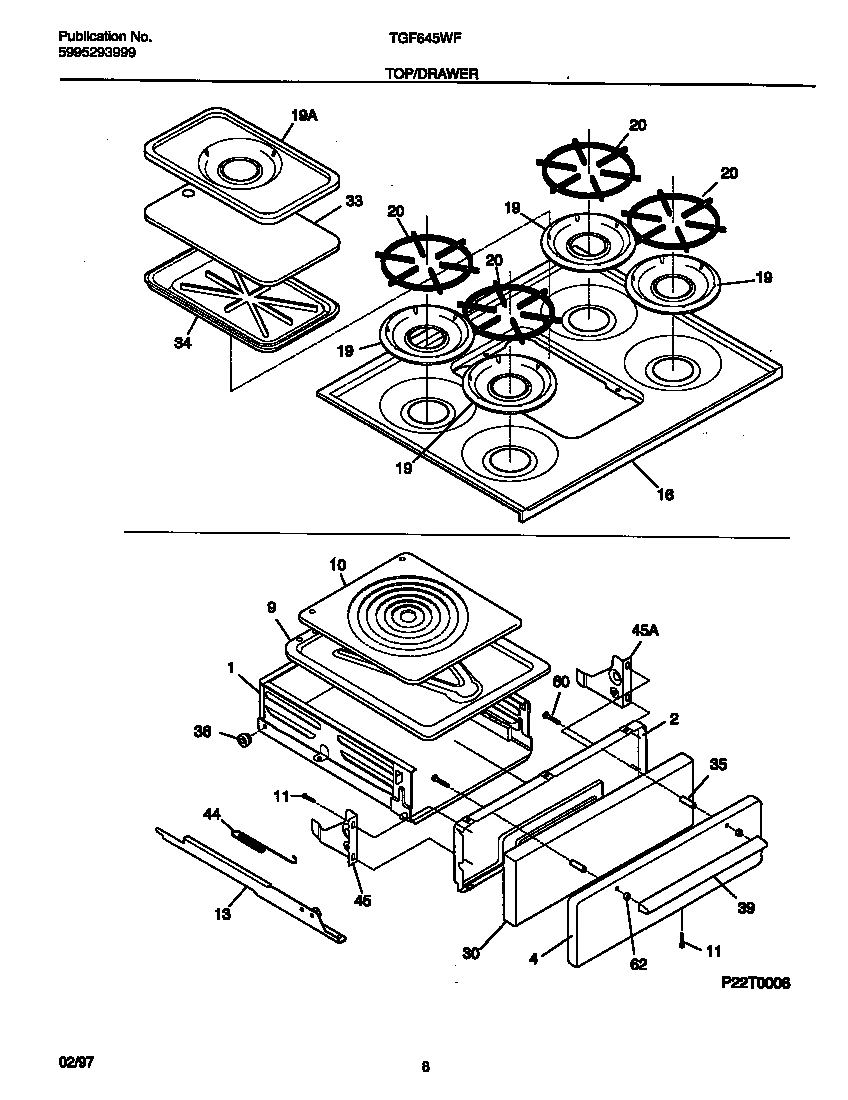

05 - TOP/DRAWER

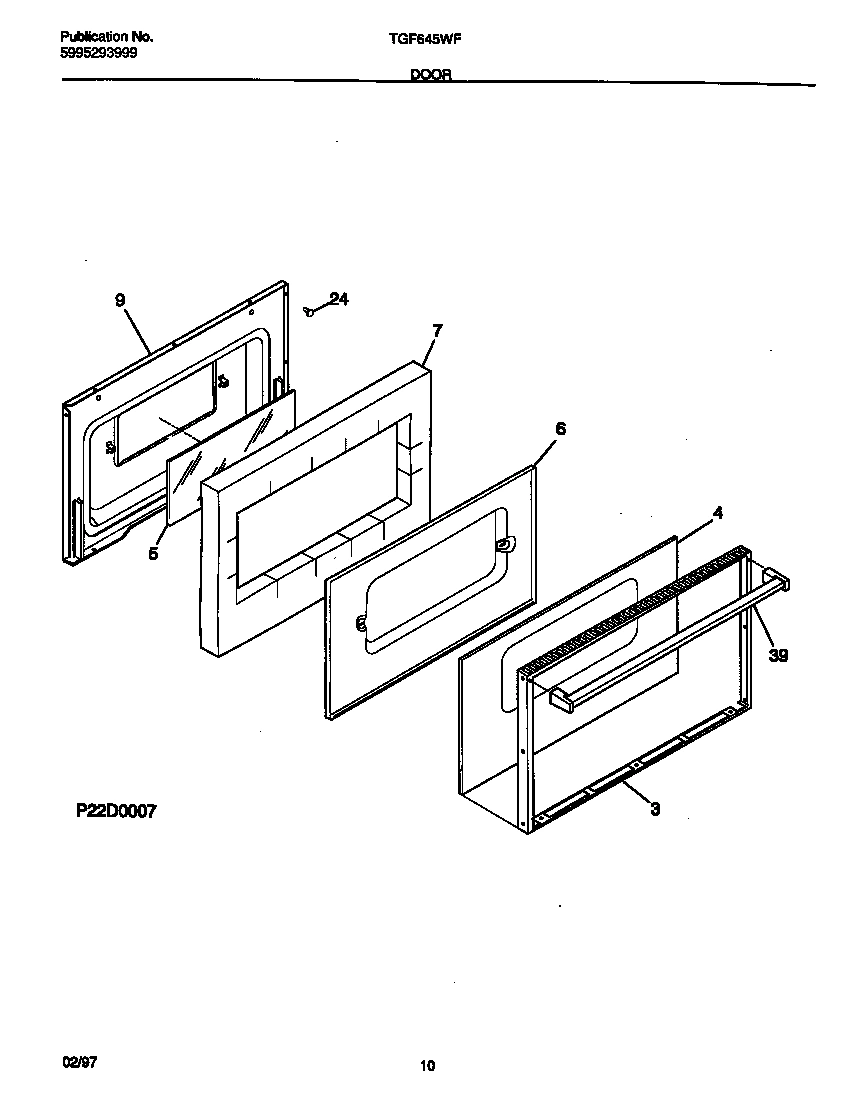

06 - DOOR
Common parts from model Electrolux TGF645WFW1 RANGE
*16848
SCREW, 8 X 5/8, SPARK MODULE WCI 3131048 Contact Us For Availability
*16849
WCI 08002868 WCI 08002868 Contact Us For Availability
*16850
WCI 08008009 WCI 08008009 Contact Us For Availability
*16851
WCI 08008051 WCI 08008051 Contact Us For Availability
*16853
WCI 5308007985 WCI 5308007985 Contact Us For Availability
*16855
WCI 3016303 WCI 3016303 Contact Us For Availability
*16856
Plate,observation WCI 3018339 Contact Us For Availability
*16858
BOLT, SHOULDER WCI 08008037 Contact Us For Availability
*16862
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
*16864
Seal,oven door WCI 5308008022 Contact Us For Availability
*16865
SCREW-SHOULDER WCI 3051050 Contact Us For Availability
*16867
WCI 5303300414 WCI 5303300414 Contact Us For Availability
*16869
PLUG, DOOR LINER WCI 5308007939 Contact Us For Availability
1
WCI 318078002 WCI 318078002 Contact Us For Availability
1
WCI 5303311540 WCI 5303311540 Contact Us For Availability
2
Liner,broiler door WCI 318135100 Contact Us For Availability
2A
VALVE-TOP BURNER, (5) WCI 318087100 Contact Us For Availability
2B
SCREW-TOP VALVE MTG, HEX WASHER HEAD, 1/4-20 WCI 316048200 Contact Us For Availability
3
SWITCH-IGNITER, (4) WCI 316032000 Contact Us For Availability
3
PANEL-BODY SIDE (WHITE) WCI 5303051061 Contact Us For Availability
3
WCI 318083600 WCI 318083600 Contact Us For Availability
3A
GROMMET, BODYSIDE (NOT ILLUSTRATED) WCI 3051063 Contact Us For Availability
3B
CLIP, BODYSIDE (NOT ILLUSTRATED) WCI 3131791 Contact Us For Availability
3C
ANTI-TIP KIT (NOT ILLUSTRATED) WCI 3934063 Contact Us For Availability
3D
SHIELD-BODYSIDE, RH (NOT ILLUSTRATED) WCI 5303131053 Contact Us For Availability
3E
SHIELD-BODYSIDE, LH (NOT ILLUSTRATED) WCI 5303131054 Contact Us For Availability
3F
GROMMET-MAIN TOP (NOT ILLUSTRATED) WCI 5303311537 Contact Us For Availability
4
WCI 318133500 WCI 318133500 Contact Us For Availability
4
PANEL-DRAWER, WHITE WCI 5303281361 Contact Us For Availability
4A
GLASS-OVEN DOOR, OUTER WCI 5308013866 Contact Us For Availability
4B
WCI 5303286309 WCI 5303286309 Contact Us For Availability
5
SCREW-LEVELING WCI 318175510 No Longer Available
5
WCI 5303316988 WCI 5303316988 Contact Us For Availability
6
Starter,lamp WCI 5308068062 Contact Us For Availability
6
WCI 5303311539 WCI 5303311539 Contact Us For Availability
6
SHIELD-INSULATION WCI 5308012609 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 5303018345 Contact Us For Availability
7A
HINGE-OVEN DOOR, RH WCI 3205894 Contact Us For Availability
7D
SPRING-OVEN DOOR (NOT ILLUSTRATED) WCI 5308008028 Contact Us For Availability
8
WCI 5303912606 WCI 5303912606 Contact Us For Availability
8A
SHIELD, BOTTOM WCI 5303286741 Contact Us For Availability
8B
SUPPORT-OVEN BOTTOM (NOT ILLUSTRATED) WCI 3131038 Contact Us For Availability
9
PAN-BROILER WCI 318126200 Contact Us For Availability
9
WCI 318113000 WCI 318113000 Contact Us For Availability
10
INSERT-BROILER PAN WCI 318126300 Contact Us For Availability
10
WCI 5303311550 WCI 5303311550 Contact Us For Availability
10
BURNER-TOP, FRONT WCI 5303311551 Contact Us For Availability
10
WCI 5303311552 WCI 5303311552 Contact Us For Availability
11
Ignitor,top burner ,front WCI 5303210548 Contact Us For Availability
11
IGNITOR-TOP BURNER, BASE WCI 3203968 Contact Us For Availability
11
SCREW, 10 X 3/8 WCI 5303131801 Contact Us For Availability
12
RETAINER-IGNITER WCI 5303311554 Contact Us For Availability
12
RETAINER-IGNITER, GRIDDLE WCI 5303311555 Contact Us For Availability
13A
CHANNEL-DRAWER, LHA WCI 5303051056 Contact Us For Availability
13B
CHANNEL-DRAWER, RH (NOT ILLUSTRATED) WCI 5303051055 Contact Us For Availability
16
WCI 5308014034 WCI 5308014034 Contact Us For Availability
17
VALVE-SAFETY WCI 5308009419 Contact Us For Availability
18A
WCI 5303202752 WCI 5303202752 Contact Us For Availability
18B
SCREW-BURNER MTG (NOT ILLUSTRATED) WCI 5303311549 Contact Us For Availability
19
WCI 5308011431 WCI 5308011431 Contact Us For Availability
19
WCI 318067400 WCI 318067400 Contact Us For Availability
20
WCI 5303272274 WCI 5303272274 Contact Us For Availability
20
WCI 3203676 WCI 3203676 Contact Us For Availability
24
BUMPER-DOOR, TOP WCI 5303131771 Contact Us For Availability
25
PANEL-OVEN BOTTOM WCI 3011645 Contact Us For Availability
28
WCI 5303131099 WCI 5303131099 Contact Us For Availability
30
INSULATION, BROILER DRAWER WCI 3017184 Contact Us For Availability
33
BRACKET-BURNER MTG WCI 5303210471 Contact Us For Availability
33
Bracket,burner mtg ,griddle WCI 5303210472 Contact Us For Availability
33
WCI 5303311541 WCI 5303311541 Contact Us For Availability
33
COVER-GRIDDLE, WHITE WCI 5308013949 Contact Us For Availability
34
WCI 318102600 WCI 318102600 Contact Us For Availability
36
WCI 5303935079 WCI 5303935079 Contact Us For Availability
36
WCI 5303323849 WCI 5303323849 Contact Us For Availability
36
WCI 318089700 WCI 318089700 Contact Us For Availability
39
Handle,drawer WCI 5308008085 Contact Us For Availability
39A
WCI 5303308453 WCI 5303308453 Contact Us For Availability
39A
WCI 318040800 WCI 318040800 Contact Us For Availability
39B
WCI 08067961 WCI 08067961 Contact Us For Availability
39B
SPACER-HANDLE, (2) (NOT ILLUSTRATED) WCI 5303310504 Contact Us For Availability
40
WCI 318005300 WCI 318005300 Contact Us For Availability
44
BRACKET, PLATE INST. MTG, (2) WCI 5303286745 Contact Us For Availability
44
SPRING-BROILER WCI 5303131030 Contact Us For Availability
45
WCI 5303308471 WCI 5303308471 Contact Us For Availability
45
WCI 5303308472 WCI 5303308472 Contact Us For Availability
49A
BRACKET,SAFETY VALVE WCI 3131069 Contact Us For Availability
49B
NUT, SUPPORT OVN VLV (NOT ILLUSTRATED) WCI 5303286686 Contact Us For Availability
54
WCI 5303311553 WCI 5303311553 Contact Us For Availability
54
WCI 5303271606 WCI 5303271606 Contact Us For Availability
56
TRIM-BODYSIDE, WHITE WCI 08013993 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 3017172 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3017171 Contact Us For Availability
58B
WIRE-TIE (NOT ILLUSTRATED) WCI 5303299689 Contact Us For Availability
70
Cover,safety valve WCI 3131088 Contact Us For Availability
76
WCI 318133900 WCI 318133900 Contact Us For Availability
77A
RAIL-BASE, LH WCI 5303210256 Contact Us For Availability
77B
RAIL-BASE, RH (NOT ILLUSTRATED) WCI 5303210255 Contact Us For Availability
77C
SUPPORT-RAIL (NOT ILLUSTRATED) WCI 5303286692 Contact Us For Availability
83
LINER-OVEN, BOTTOM (NOT ILLUSTRATED) WCI 318134600 Contact Us For Availability
83
LINER-OVEN, BACK WCI 5303286740 Contact Us For Availability
83
WCI 5303316985 WCI 5303316985 Contact Us For Availability
83A
LINER-OVEN, LH WCI 5303286737 Contact Us For Availability
83B
LINER-OVEN, RH WCI 5303286738 Contact Us For Availability
120
Support,oven rear WCI 3051096 Contact Us For Availability
131
WCI 3205765 WCI 3205765 Contact Us For Availability
133
ROD-MAINTOP SUPPORT WCI 3051554 Contact Us For Availability
133
BRACKET-ROD, MAIN TOP WCI 6743 Contact Us For Availability
140
RETAINER-INSULATION WCI 3131041 Contact Us For Availability
149
Channel,wiring WCI 3131046 Contact Us For Availability
× ![]()
