Model Electrolux TGF645WCW2 RANGE – Common Parts & Diagrams

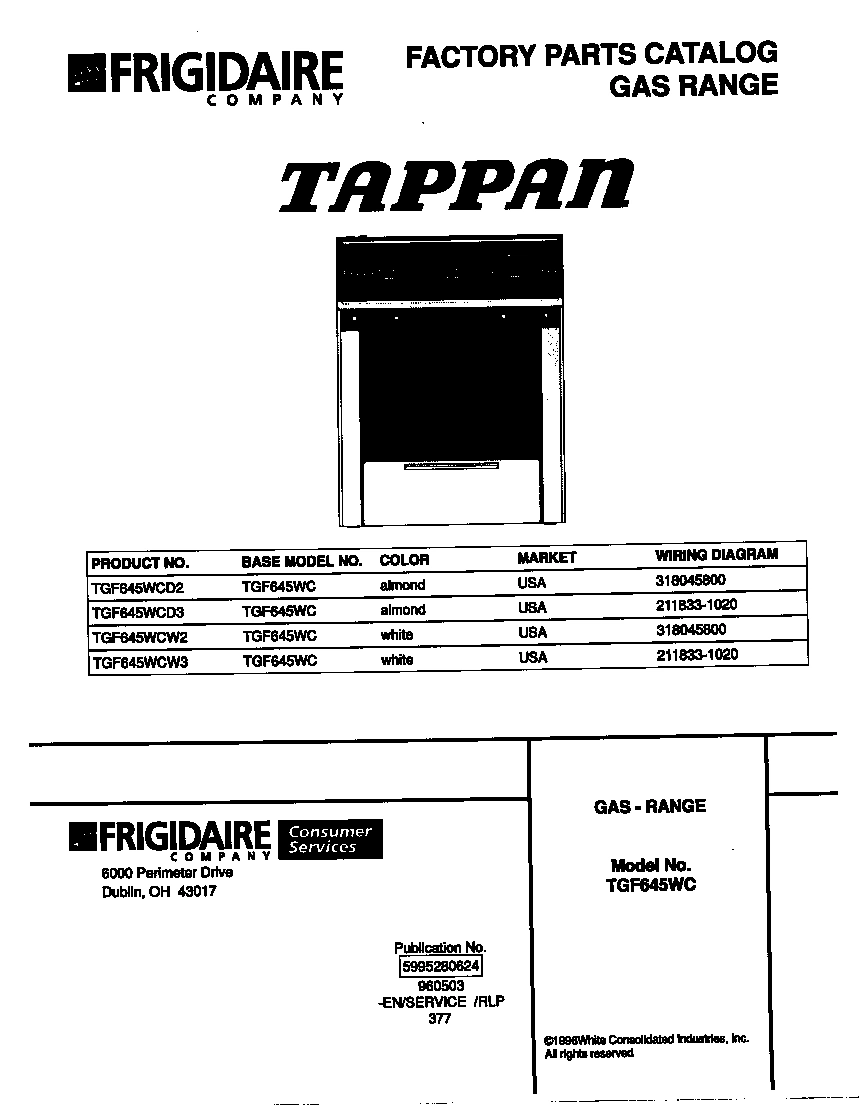

01 - COVER

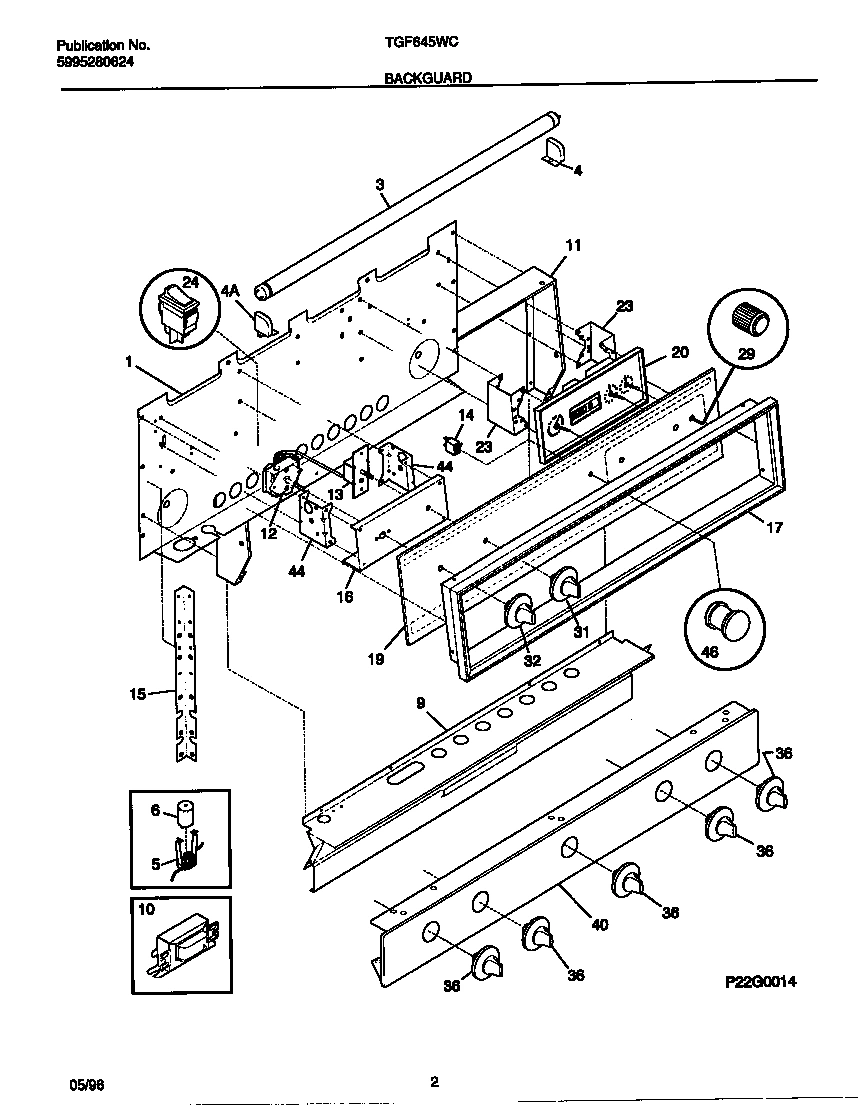

02 - BACKGUARD

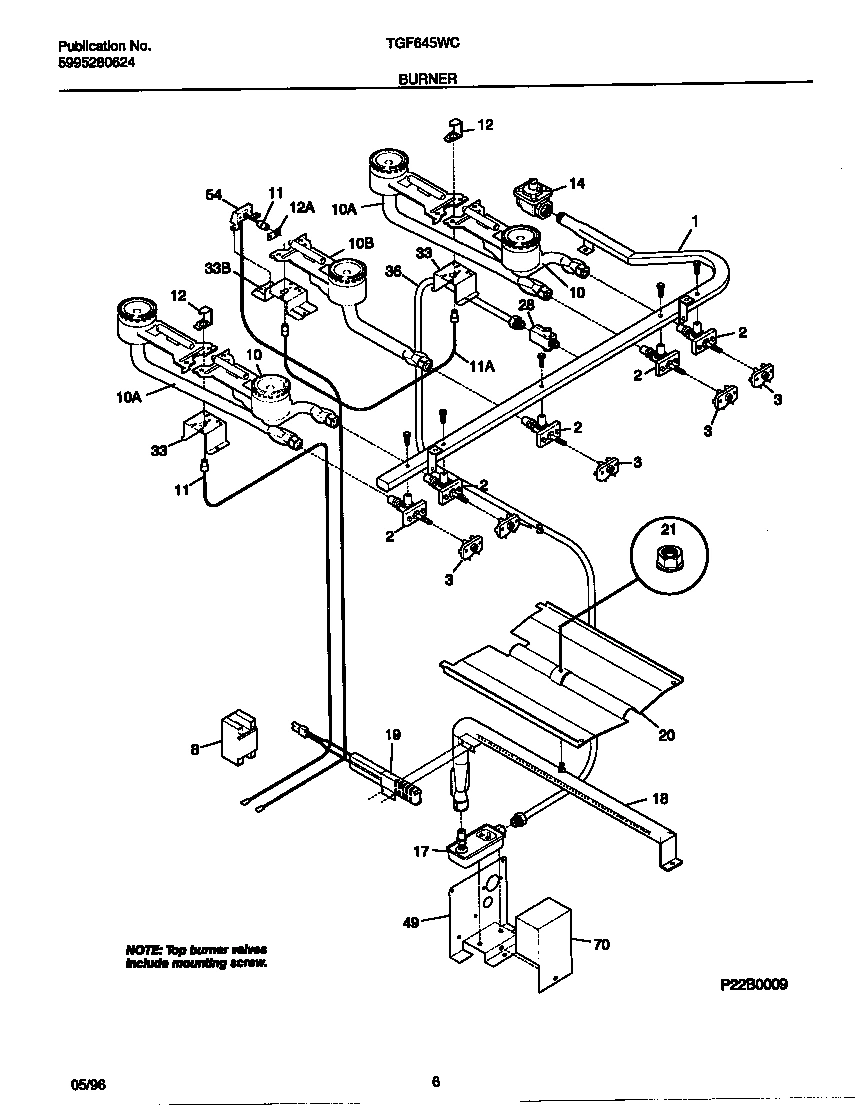

04 - BURNER

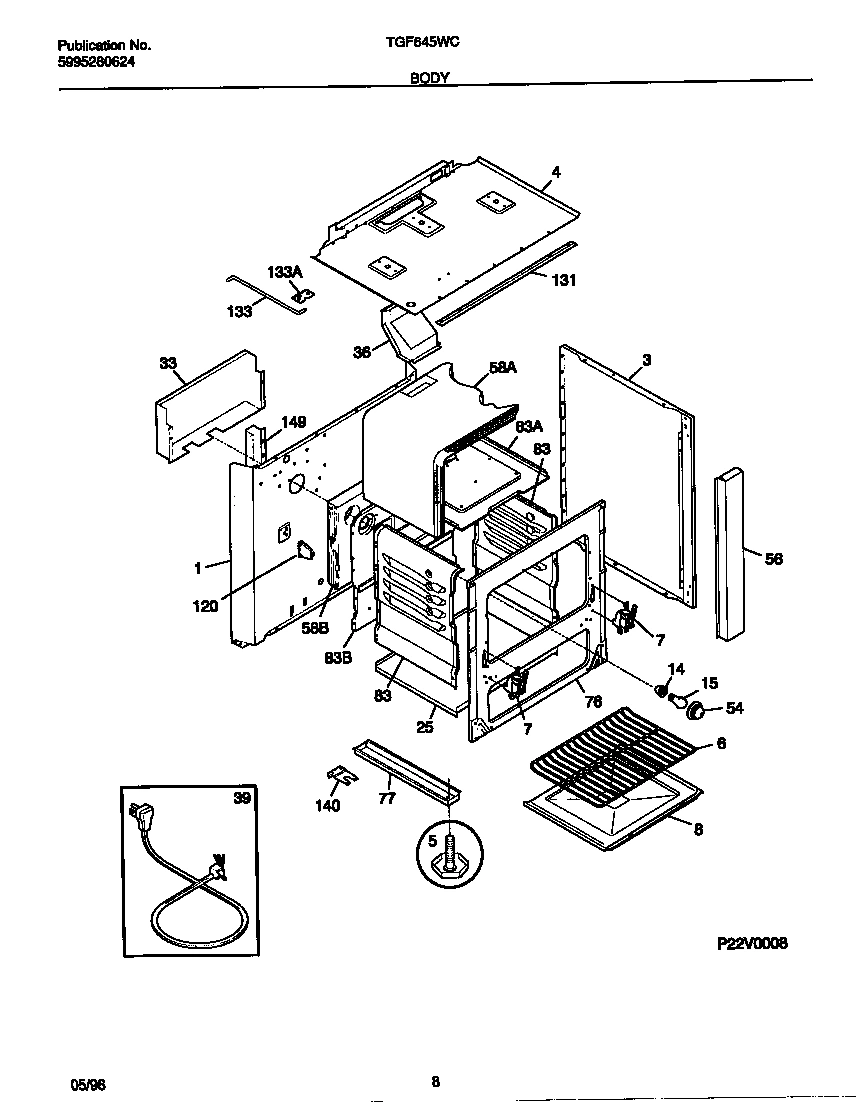

05 - BODY

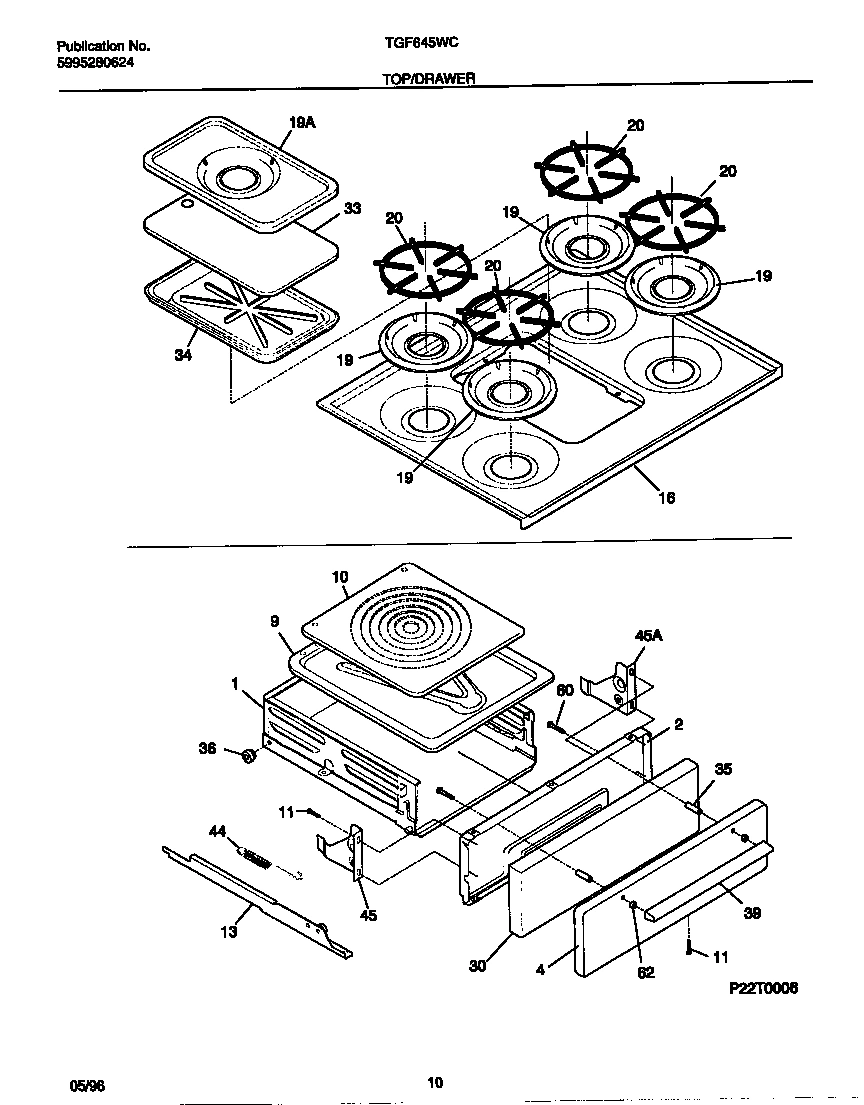

06 - TOP/DRAWER

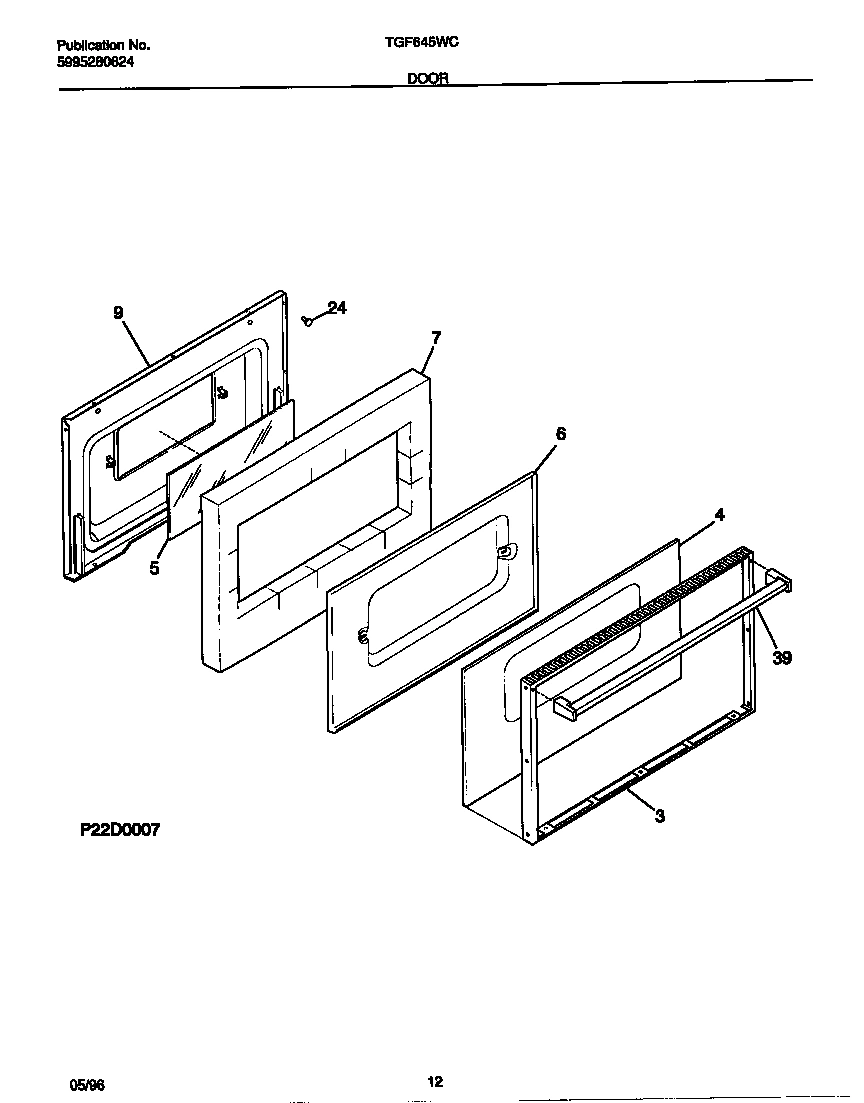

07 - DOOR

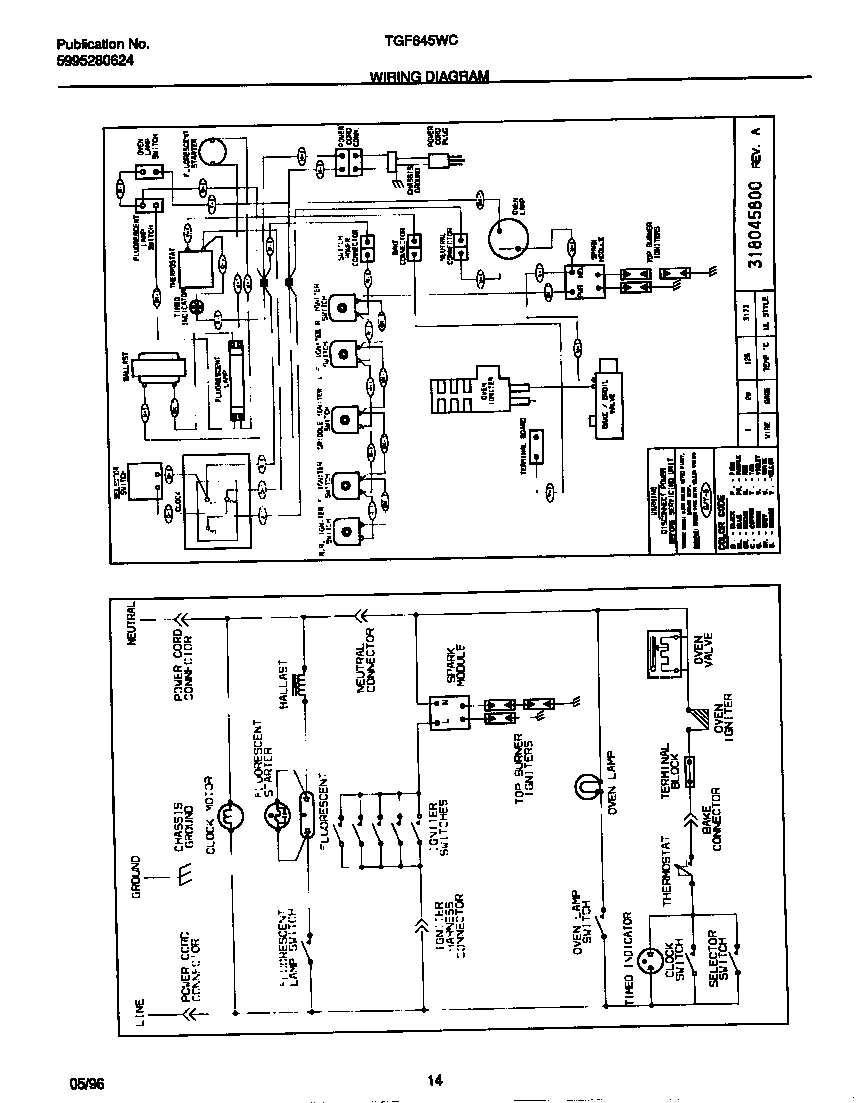

08 - WIRING DIAGRAM

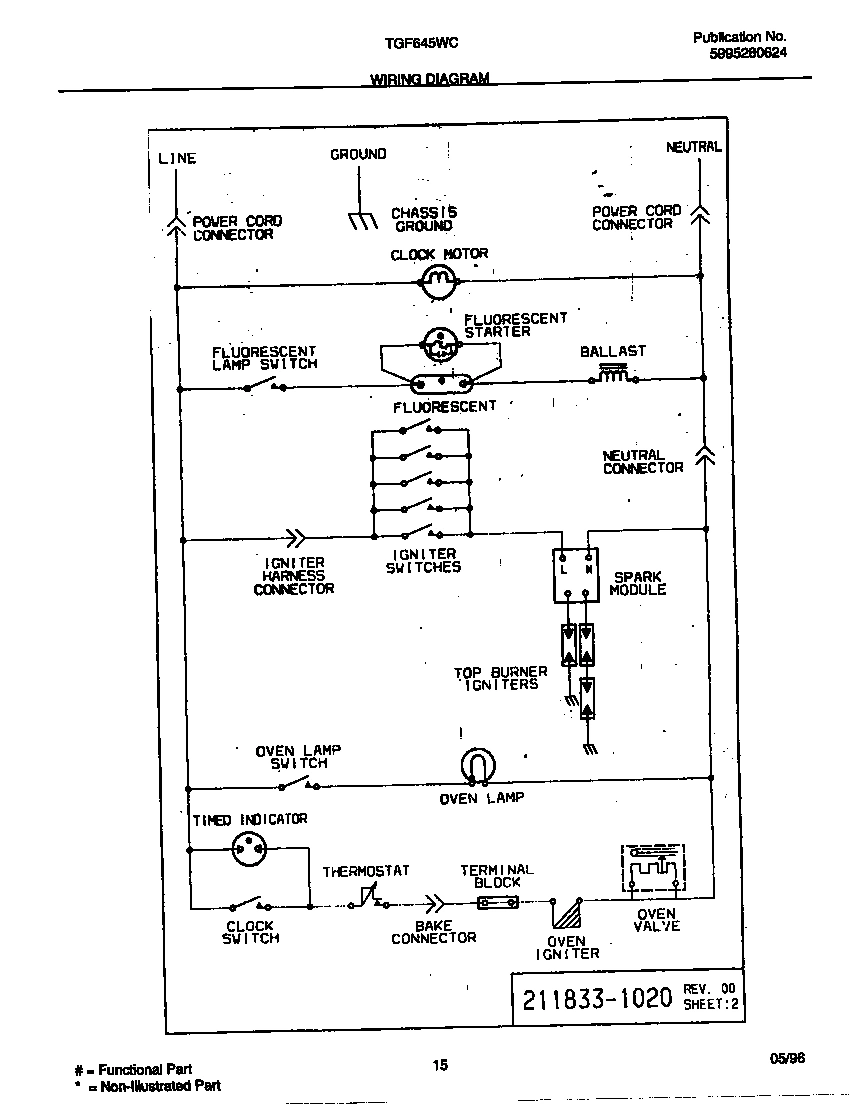

09 - WIRING DIAGRAM
Common parts from model Electrolux TGF645WCW2 RANGE
*48612
SCREW, 8 X 5/8, SPARK MODULE WCI 3131048 Contact Us For Availability
*48613
WCI 08002868 WCI 08002868 Contact Us For Availability
*48614
WCI 08008009 WCI 08008009 Contact Us For Availability
*48616
WCI 5308007985 WCI 5308007985 Contact Us For Availability
*48619
BOLT, SHOULDER WCI 08008037 Contact Us For Availability
*48620
WCI 5303316986 WCI 5303316986 Contact Us For Availability
*48621
SCREW, 10 X 3/8 WCI 5303131801 Contact Us For Availability
*48624
SPACER-HANDLE, (2) WCI 5303310504 Contact Us For Availability
*48626
SCREW-SHOULDER WCI 3051050 Contact Us For Availability
*48627
SCREW, 6-32 X 3/8``, WHITE WCI 5303131766 Contact Us For Availability
1
WCI 318078002 WCI 318078002 Contact Us For Availability
1
WCI 5303311540 WCI 5303311540 Contact Us For Availability
2
LINER, BROILER DOOR WCI 5303286743 Contact Us For Availability
2A
WCI 316031800 WCI 316031800 Contact Us For Availability
2B
SCREW-TOP VALVE MTG, HEX WASHER HEAD, 1/4-20 WCI 316048200 Contact Us For Availability
3
SWITCH-IGNITER, (4) WCI 316032000 Contact Us For Availability
3
PANEL-BODY SIDE (WHITE) WCI 5303051061 Contact Us For Availability
3
WCI 318083600 WCI 318083600 Contact Us For Availability
3A
GROMMET, BODYSIDE (NOT ILLUSTRATED) WCI 3051063 Contact Us For Availability
3B
CLIP, BODYSIDE (NOT ILLUSTRATED) WCI 3131791 Contact Us For Availability
3C
SHIELD-BODYSIDE, RH (NOT ILLUSTRATED) WCI 5303131053 Contact Us For Availability
3D
SHIELD-BODYSIDE, LH (NOT ILLUSTRATED) WCI 5303131054 Contact Us For Availability
3E
GROMMET-MAIN TOP (NOT ILLUSTRATED) WCI 5303311537 Contact Us For Availability
4
BURNER BOX WCI 316030503 Contact Us For Availability
4
PANEL-DRAWER, WHITE WCI 5303281361 Contact Us For Availability
4A
GLASS-OVEN DOOR, OUTER WCI 5308013866 Contact Us For Availability
4B
WCI 5303286309 WCI 5303286309 Contact Us For Availability
5
SCREW-LEVELING WCI 318175510 No Longer Available
5
WCI 5303316988 WCI 5303316988 Contact Us For Availability
6
Starter,lamp WCI 5308068062 Contact Us For Availability
6
WCI 5303311539 WCI 5303311539 Contact Us For Availability
6
SHIELD-INSULATION WCI 5308012609 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 5303018345 Contact Us For Availability
7A
HINGE-OVEN DOOR, RH WCI 3205894 Contact Us For Availability
7C
SPRING-OVEN DOOR (NOT ILLUSTRATED) WCI 5308008028 Contact Us For Availability
8A
SHIELD, BOTTOM WCI 5303286741 Contact Us For Availability
8B
SUPPORT-OVEN BOTTOM (NOT ILLUSTRATED) WCI 3131038 Contact Us For Availability
9
WCI 5303286736 WCI 5303286736 Contact Us For Availability
9A
LINER-OVEN DOOR WCI 5303286744 Contact Us For Availability
9B
PLUG, DOOR LINER (NOT ILLUSTRATED) WCI 5308007939 Contact Us For Availability
10
WCI 5303311550 WCI 5303311550 Contact Us For Availability
10
BURNER-TOP, FRONT WCI 5303311551 Contact Us For Availability
10
WCI 5303311552 WCI 5303311552 Contact Us For Availability
10
WCI 5303017712 WCI 5303017712 Contact Us For Availability
11
Ignitor,top burner ,front WCI 5303210548 Contact Us For Availability
11
IGNITOR-TOP BURNER, BASE WCI 3203968 Contact Us For Availability
12
RETAINER-IGNITER WCI 5303311554 Contact Us For Availability
12
RETAINER-IGNITER, GRIDDLE WCI 5303311555 Contact Us For Availability
13A
CHANNEL-DRAWER, RH WCI 5303051055 Contact Us For Availability
13B
CHANNEL-DRAWER, LHA WCI 5303051056 Contact Us For Availability
14
LIGHT-LAMP/INDICATOR WCI 5303051533 Contact Us For Availability
16
WCI 5308014034 WCI 5308014034 Contact Us For Availability
17
VALVE-SAFETY WCI 5308009419 Contact Us For Availability
18
WCI 5303202752 WCI 5303202752 Contact Us For Availability
19
WCI 5308011431 WCI 5308011431 Contact Us For Availability
19
WCI 318001003 WCI 318001003 Contact Us For Availability
19
WCI 318067400 WCI 318067400 Contact Us For Availability
20
WCI 5303272274 WCI 5303272274 Contact Us For Availability
20
WCI 3203676 WCI 3203676 Contact Us For Availability
20
WCI 318012201 WCI 318012201 Contact Us For Availability
23
BRACKET-CLOCK MTG WCI 5308008076 Contact Us For Availability
24
BUMPER-DOOR, TOP WCI 5303131771 Contact Us For Availability
25
PANEL-OVEN BOTTOM WCI 3011645 Contact Us For Availability
28A
WCI 5303131099 WCI 5303131099 Contact Us For Availability
28B
NUT-SHUT-OFF VALVE (NOT ILLUSTRATED) WCI 5303131064 Contact Us For Availability
29
WCI 316029000 WCI 316029000 Contact Us For Availability
30
INSULATION, BROILER DRAWER WCI 3017184 Contact Us For Availability
31
WCI 318016708 WCI 318016708 Contact Us For Availability
32
WCI 318016817 WCI 318016817 Contact Us For Availability
33
BRACKET-BURNER MTG WCI 5303210471 Contact Us For Availability
33
Bracket,burner mtg ,griddle WCI 5303210472 Contact Us For Availability
33
WCI 5303311541 WCI 5303311541 Contact Us For Availability
33
COVER-GRIDDLE, WHITE WCI 5308013949 Contact Us For Availability
34
WCI 318102600 WCI 318102600 Contact Us For Availability
36
WCI 318016208 WCI 318016208 Contact Us For Availability
36
WCI 5303316989 WCI 5303316989 Contact Us For Availability
36
FLUE WCI 5303286747 Contact Us For Availability
36
WCI 5303308457 WCI 5303308457 Contact Us For Availability
39
WCI 5303308453 WCI 5303308453 Contact Us For Availability
39A
Handle,drawer WCI 5308008085 Contact Us For Availability
39A
WCI 318040800 WCI 318040800 Contact Us For Availability
40
WCI 318005300 WCI 318005300 Contact Us For Availability
44
BRACKET, PLATE INST. MTG, (2) WCI 5303286745 Contact Us For Availability
44
SPRING-BROILER WCI 5303131030 Contact Us For Availability
45
WCI 5303308471 WCI 5303308471 Contact Us For Availability
45
WCI 5303308472 WCI 5303308472 Contact Us For Availability
46
WCI 5303271239 WCI 5303271239 Contact Us For Availability
49A
BRACKET,SAFETY VALVE WCI 3131069 Contact Us For Availability
49B
NUT, SUPPORT OVN VLV (NOT ILLUSTRATED) WCI 5303286686 Contact Us For Availability
54
WCI 5303311553 WCI 5303311553 Contact Us For Availability
54
WCI 3009290 WCI 3009290 Contact Us For Availability
56
TRIM-BODYSIDE, WHITE WCI 08013993 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 3017171 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 3017172 Contact Us For Availability
70
Cover,safety valve WCI 3131088 Contact Us For Availability
76
FRONT FRAME-OVEN WCI 5303286729 Contact Us For Availability
77A
RAIL-BASE, LH WCI 5303210256 Contact Us For Availability
77B
RAIL-BASE, RH (NOT ILLUSTRATED) WCI 5303210255 Contact Us For Availability
77C
SUPPORT-RAIL (NOT ILLUSTRATED) WCI 5303286692 Contact Us For Availability
83
LINER-OVEN, BACK WCI 5303286740 Contact Us For Availability
83
WCI 5303316985 WCI 5303316985 Contact Us For Availability
83A
LINER-OVEN, RH WCI 5303286738 Contact Us For Availability
83B
LINER-OVEN, LH WCI 5303286737 Contact Us For Availability
120
Support,oven rear WCI 3051096 Contact Us For Availability
131
WCI 3205765 WCI 3205765 Contact Us For Availability
133
ROD-MAINTOP SUPPORT WCI 3051554 Contact Us For Availability
133
BRACKET-ROD, MAIN TOP WCI 6743 Contact Us For Availability
140
RETAINER-INSULATION WCI 3131041 Contact Us For Availability
149
Channel,wiring WCI 3131046 Contact Us For Availability
× ![]()
