Model Electrolux TGF605EW2 RANGE – Common Parts & Diagrams

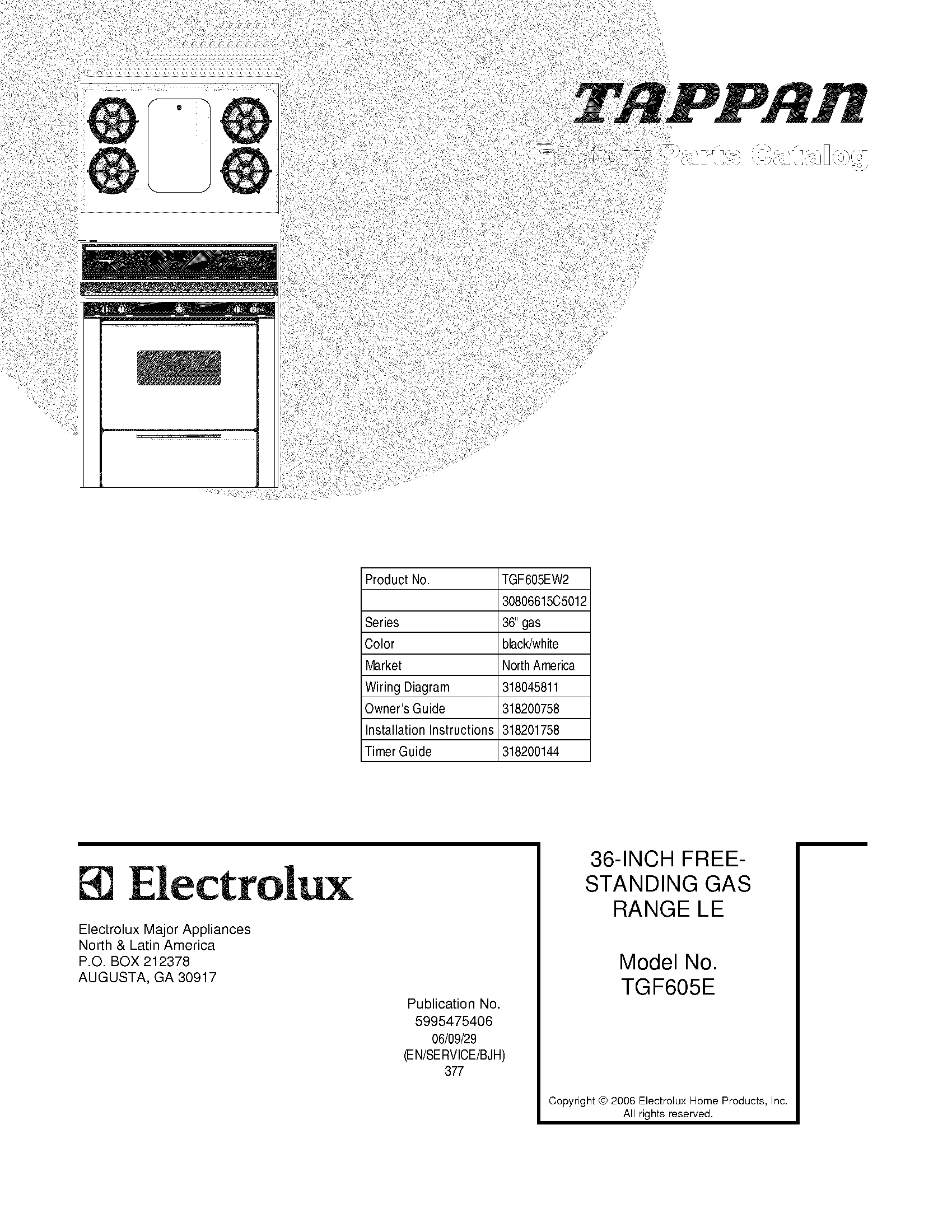

01 - COVER

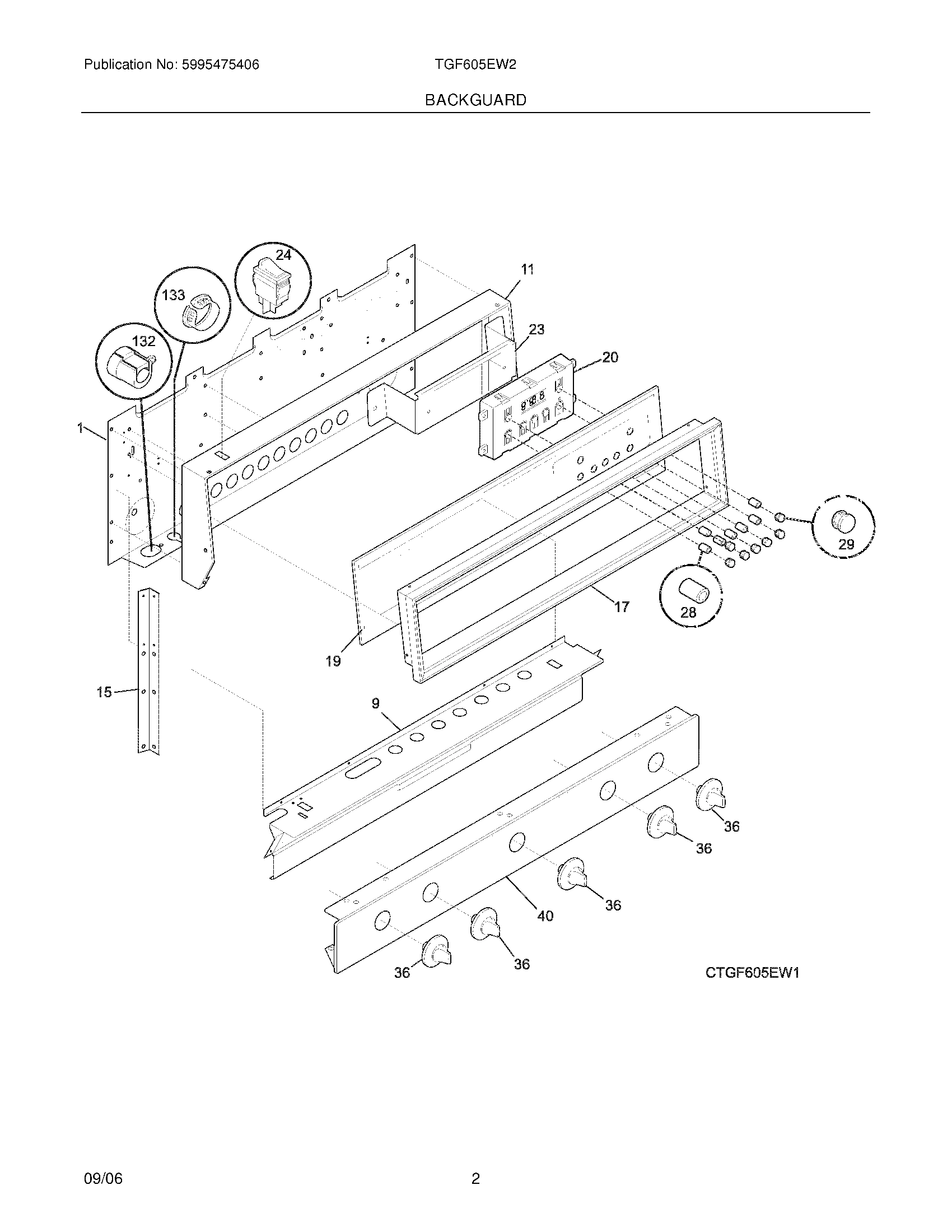

03 - BACKGUARD

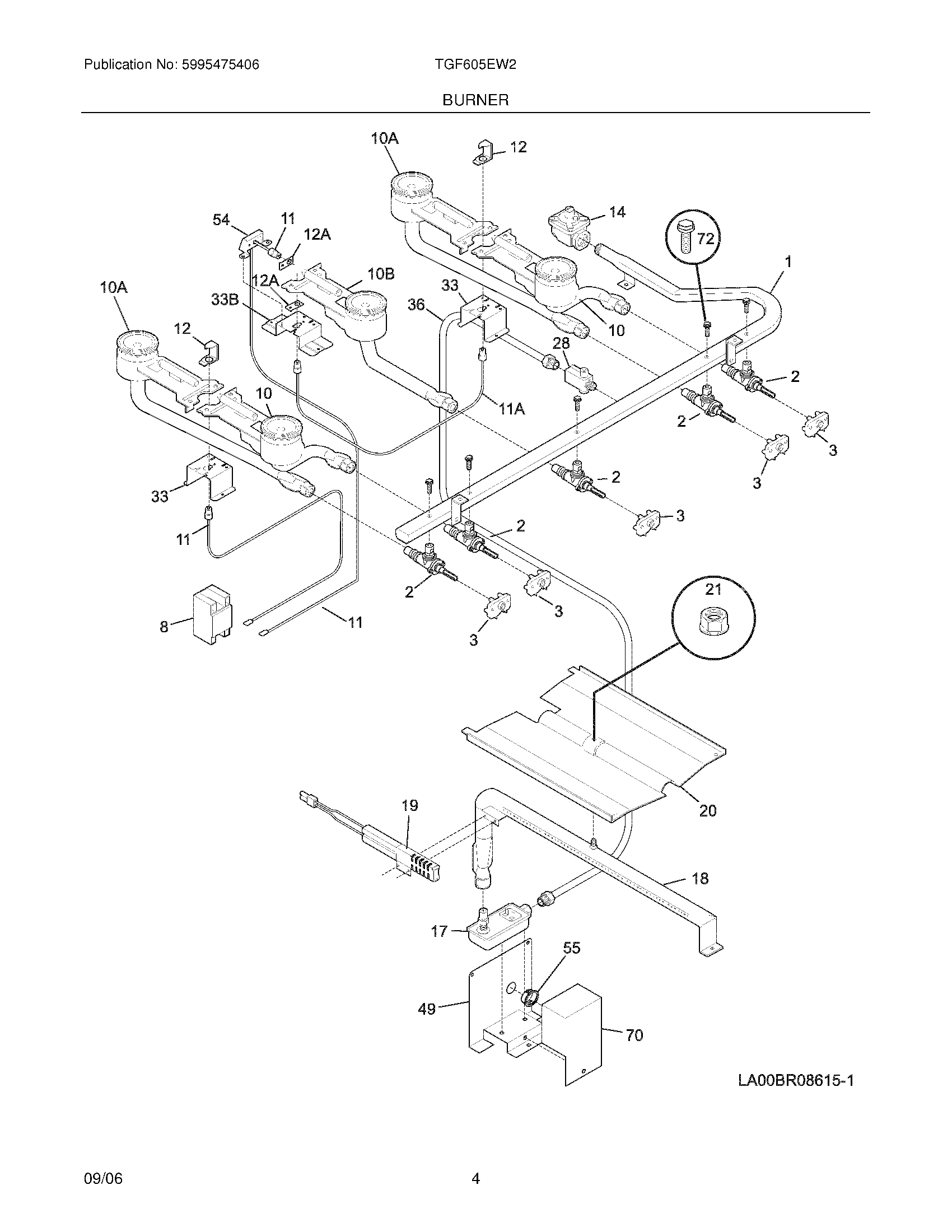

05 - BURNER

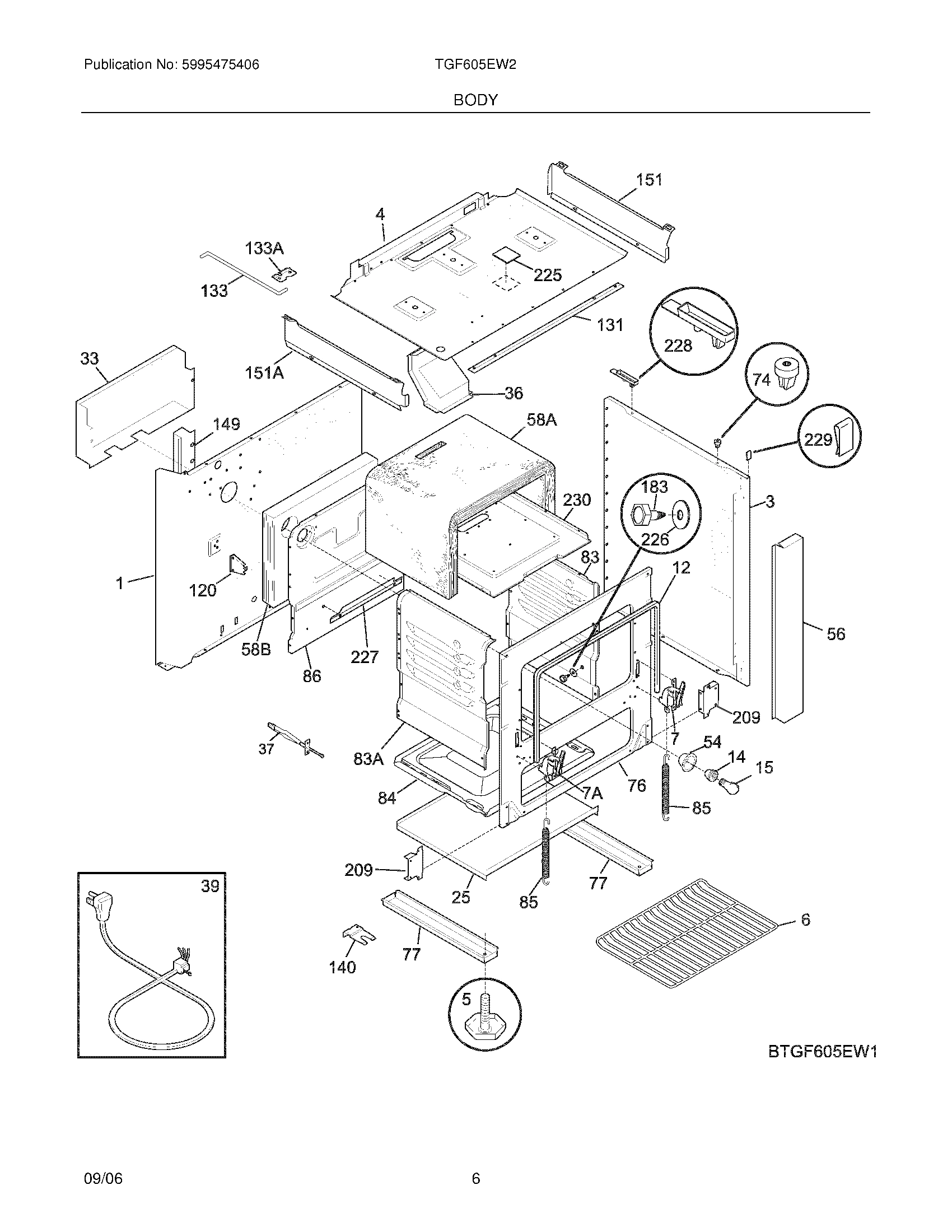

07 - BODY

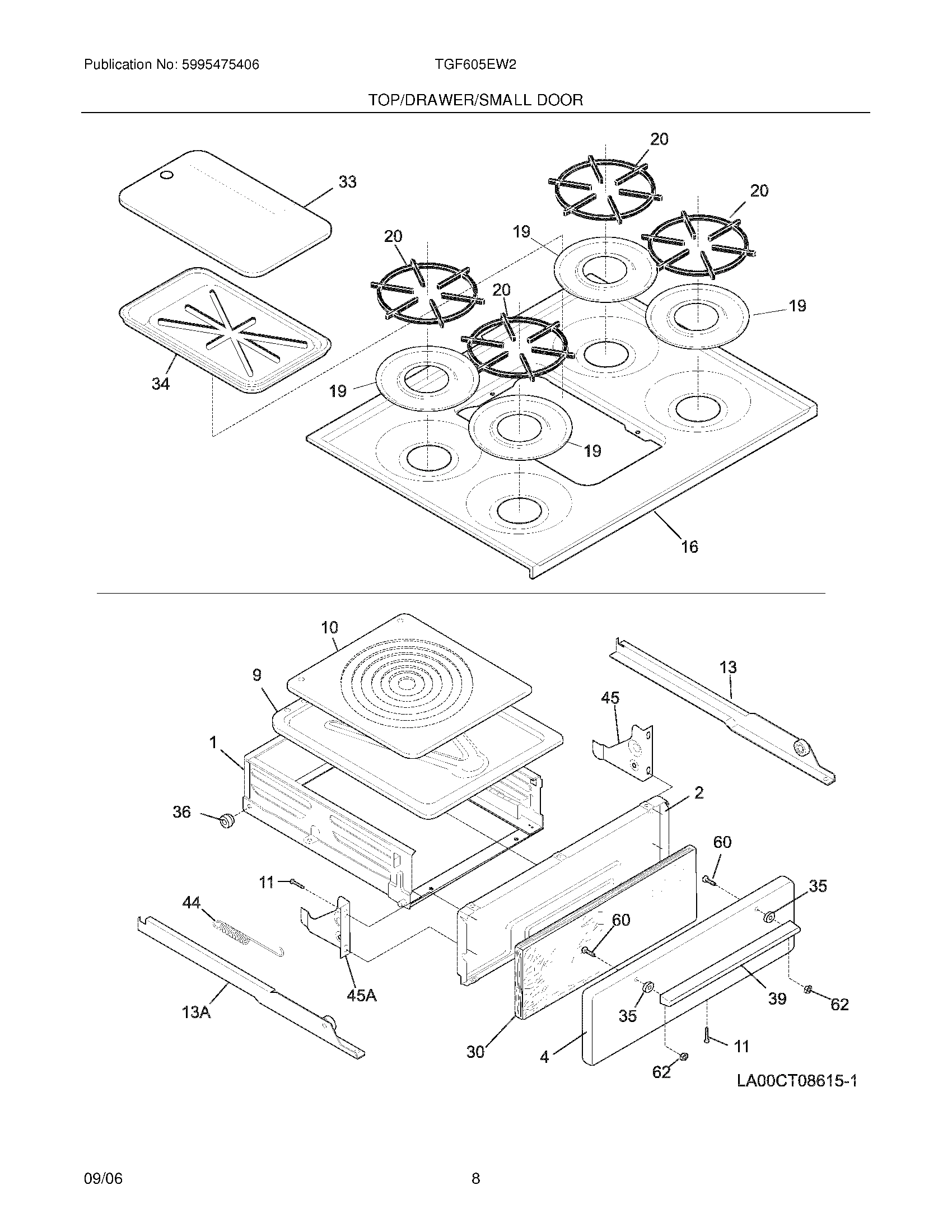

09 - TOP/DRAWER/SMALL DOOR

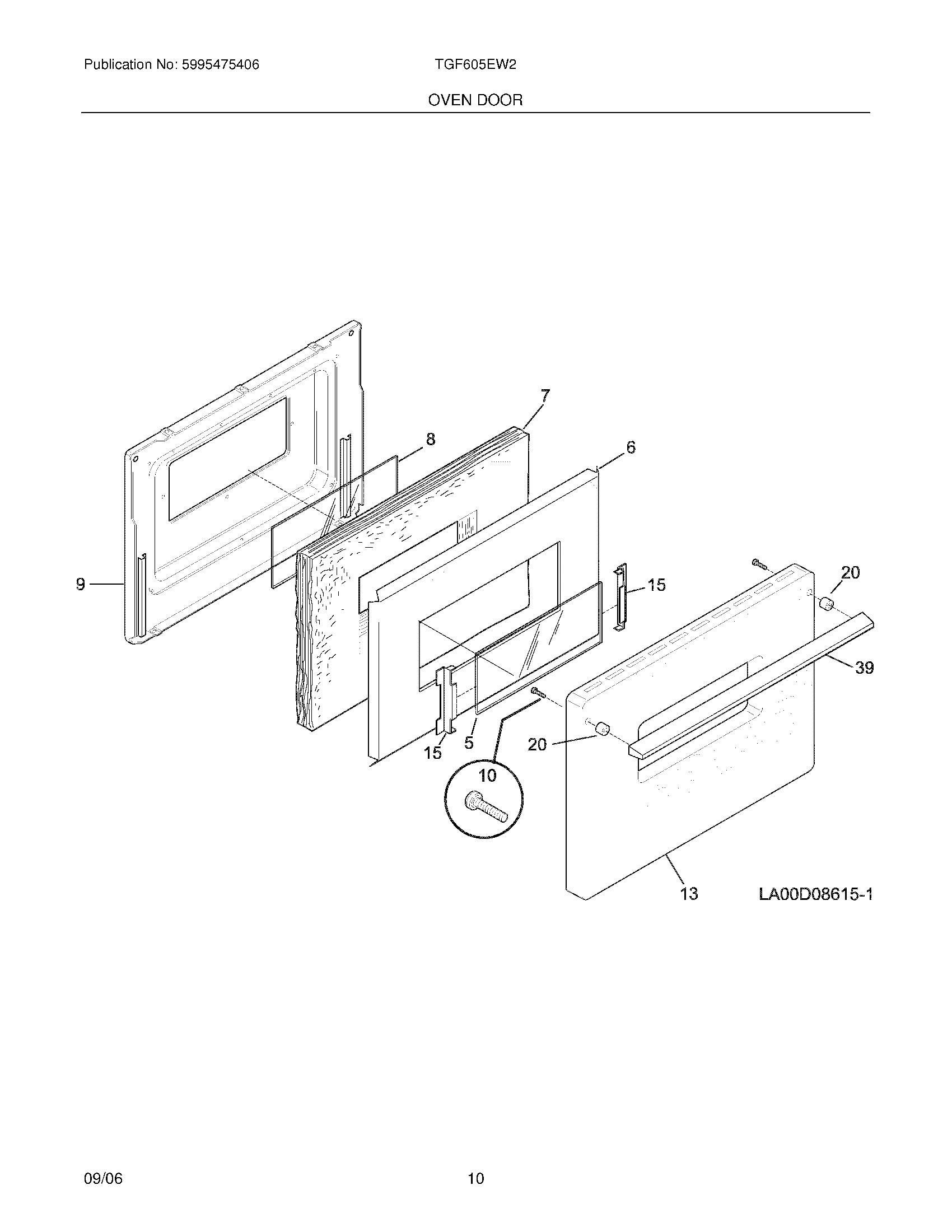

11 - OVEN DOOR

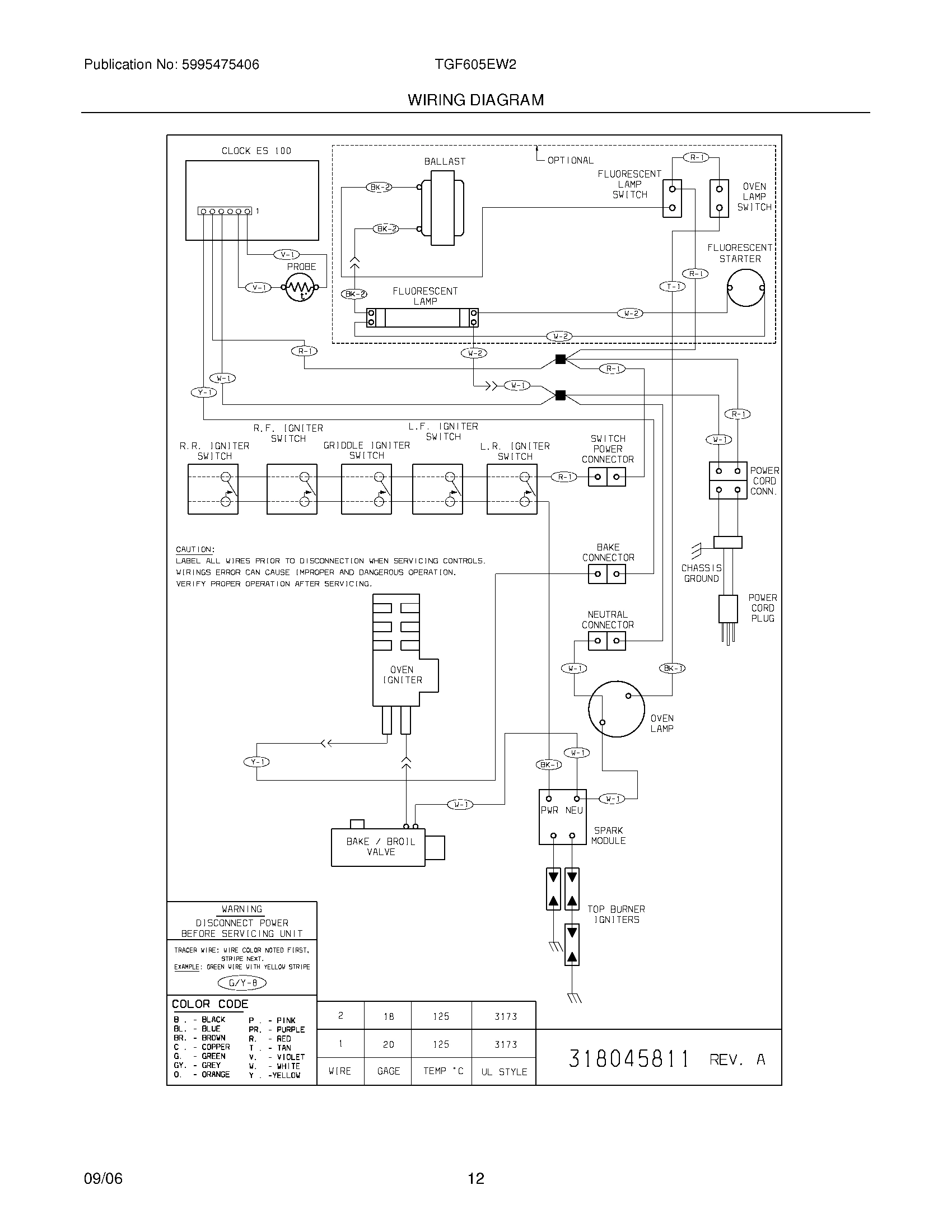

12 - WIRING DIAGRAM
Common parts from model Electrolux TGF605EW2 RANGE
2
Liner,broiler door WCI 318135100 Contact Us For Availability
3
WCI 318232611 WCI 318232611 Contact Us For Availability
4
WCI 318133500 WCI 318133500 Contact Us For Availability
4
PANEL-DRAWER, WHITE WCI 5303281361 Contact Us For Availability
5
WCI 318175503 WCI 318175503 Contact Us For Availability
5
WCI 5303317084 WCI 5303317084 Contact Us For Availability
6
WCI 318345202 WCI 318345202 Contact Us For Availability
6
WCI 318160300 WCI 318160300 Contact Us For Availability
7
WCI 318348800 WCI 318348800 Contact Us For Availability
7
WCI 318285046 WCI 318285046 Contact Us For Availability
8
WCI 5303316988 WCI 5303316988 Contact Us For Availability
9
PAN-BROILER WCI 318126200 Contact Us For Availability
9
WCI 318113000 WCI 318113000 Contact Us For Availability
10
INSERT-BROILER PAN WCI 318126300 Contact Us For Availability
10A
Burner,top ,rear WCI 5303131079 No Longer Available
11
WCI 318148504 WCI 318148504 Contact Us For Availability
11
SCREW, 10 X 3/8 WCI 5303131801 Contact Us For Availability
11A
Ignitor,top burner ,front WCI 5303210548 Contact Us For Availability
12
Seal,oven door WCI 5308008022 Contact Us For Availability
13
CHANNEL-DRAWER WCI 318136700 Contact Us For Availability
13
WCI 10648 WCI 10648 Contact Us For Availability
13A
CHANNEL-DRAWER WCI 318136701 Contact Us For Availability
15
WCI 08007938 WCI 08007938 Contact Us For Availability
16
WCI 5308014034 WCI 5308014034 Contact Us For Availability
17
WCI 318087200 WCI 318087200 Contact Us For Availability
18
WCI 5303202752 WCI 5303202752 Contact Us For Availability
19
WCI 5308011431 WCI 5308011431 Contact Us For Availability
20
WCI 5303272274 WCI 5303272274 Contact Us For Availability
20
WCI 3203676 WCI 3203676 Contact Us For Availability
20
WCI 5303310504 WCI 5303310504 Contact Us For Availability
25
WCI 318121701 WCI 318121701 Contact Us For Availability
28
WCI 5304410865 WCI 5304410865 Contact Us For Availability
29
WCI 318017711 WCI 318017711 Contact Us For Availability
30
WCI 318285047 WCI 318285047 Contact Us For Availability
33
WCI 318114302 WCI 318114302 Contact Us For Availability
33
COVER-GRIDDLE, WHITE WCI 5308013949 Contact Us For Availability
34
WCI 318102601 WCI 318102601 Contact Us For Availability
36
Knob,control WCI 318016209 Contact Us For Availability
36
WCI 318089700 WCI 318089700 Contact Us For Availability
39
WCI 318360001 WCI 318360001 Contact Us For Availability
39
WCI 318144007 WCI 318144007 Contact Us For Availability
44
WCI 318088300 WCI 318088300 Contact Us For Availability
45
WCI 318024400 WCI 318024400 Contact Us For Availability
45A
WCI 318024401 WCI 318024401 Contact Us For Availability
54
WCI 5303271606 WCI 5303271606 Contact Us For Availability
56
WCI 318133802 WCI 318133802 Contact Us For Availability
58A
WCI 318285025 WCI 318285025 Contact Us For Availability
58B
WCI 318285087 WCI 318285087 Contact Us For Availability
74
GROMMET,BODYSIDE WCI 3051063 Contact Us For Availability
76
WCI 318133902 WCI 318133902 Contact Us For Availability
77
WCI 318166702 WCI 318166702 Contact Us For Availability
83
WCI 318134300 WCI 318134300 Contact Us For Availability
83A
WCI 318134200 WCI 318134200 Contact Us For Availability
84
WCI 318134600 WCI 318134600 Contact Us For Availability
85
SPRING-OVEN DOOR WCI 5308008028 Contact Us For Availability
86
WCI 318134802 WCI 318134802 Contact Us For Availability
120
Support,oven rear WCI 3051096 Contact Us For Availability
131
Support,control panel WCI 318163000 Contact Us For Availability
133
Rod,support ,main top panel WCI 3051554 Contact Us For Availability
133
BRACKET-ROD, MAIN TOP WCI 6743 Contact Us For Availability
140
WCI 5304405240 WCI 5304405240 Contact Us For Availability
149
Channel,wiring WCI 3131046 Contact Us For Availability
151
SHIELD-BODYSIDE,RH WCI 5303131053 Contact Us For Availability
151
Shield,bodyside ,LH WCI 5303131054 Contact Us For Availability
183
BOLT, SHOULDER WCI 08008037 Contact Us For Availability
209
Support,rail WCI 5303286692 Contact Us For Availability
225
Plate,observation WCI 3018339 Contact Us For Availability
227
SUPPORT-OVEN BOTTOM WCI 3131038 Contact Us For Availability
228
WCI 5303311537 WCI 5303311537 Contact Us For Availability
229
CLIP,BODYSIDE WCI 3131791 Contact Us For Availability
230
WCI 5303324119 WCI 5303324119 Contact Us For Availability
NI
Screw,10-24 x 0.500 ,probe,thrm brkt ,shield, WCI 08002868 Contact Us For Availability
NI
WCI 5303311528 WCI 5303311528 Contact Us For Availability
NI
SCREW-SHOULDER WCI 3051050 Contact Us For Availability
NI
WCI 5303300414 WCI 5303300414 Contact Us For Availability
NI
WCI 316221001 WCI 316221001 Contact Us For Availability
× ![]()
