Model Electrolux TGF602PGW3 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

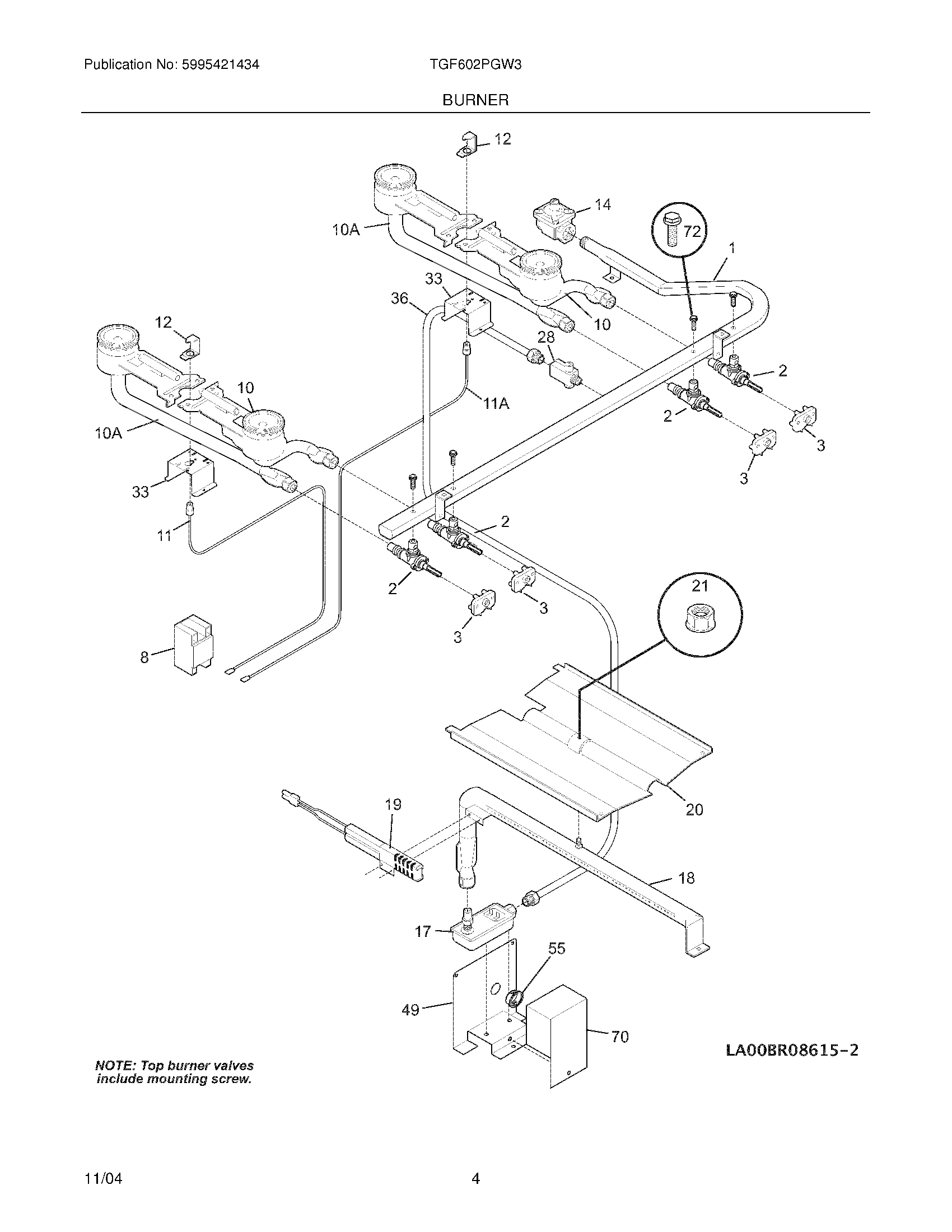

05 - BURNER
07 - BODY

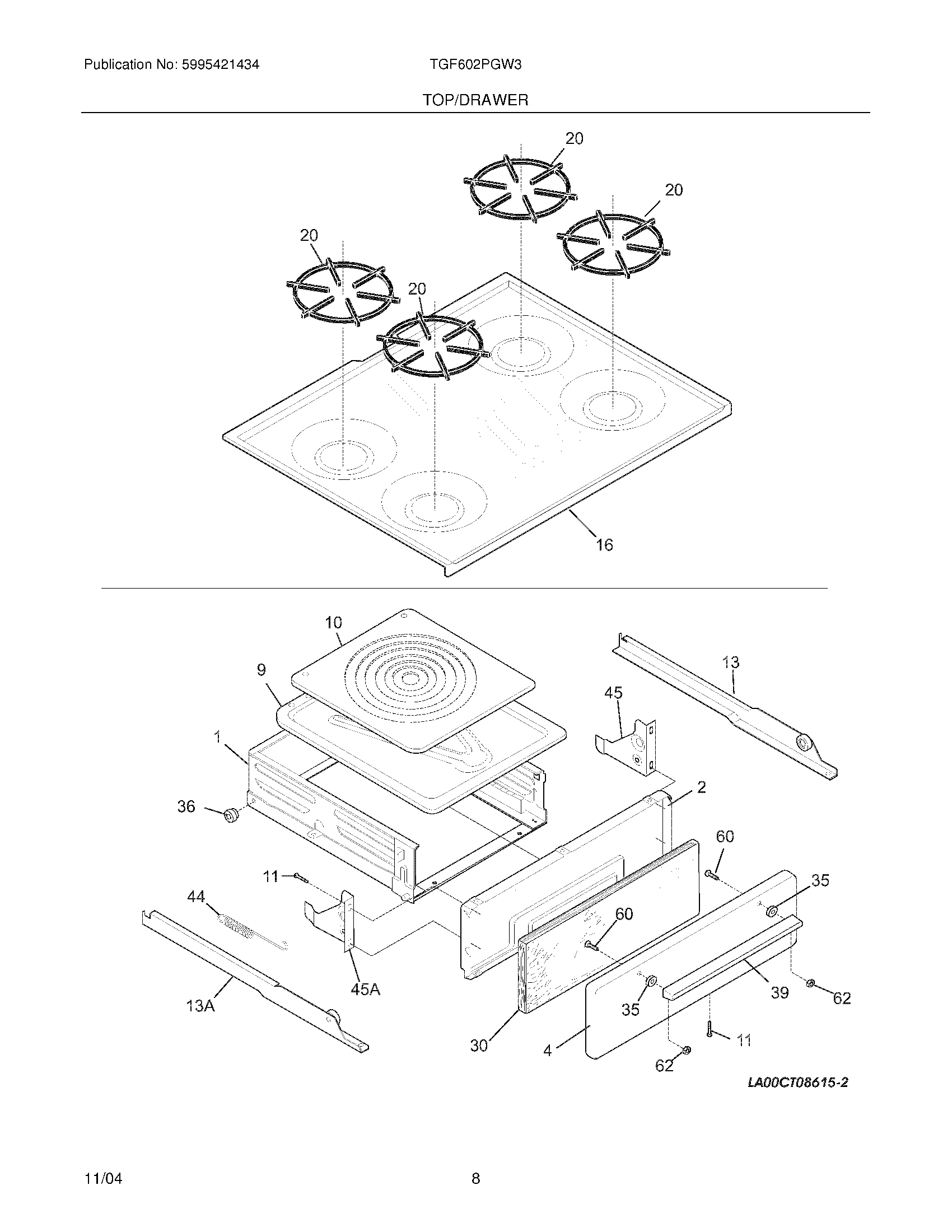

09 - TOP/DRAWER
11 - DOOR

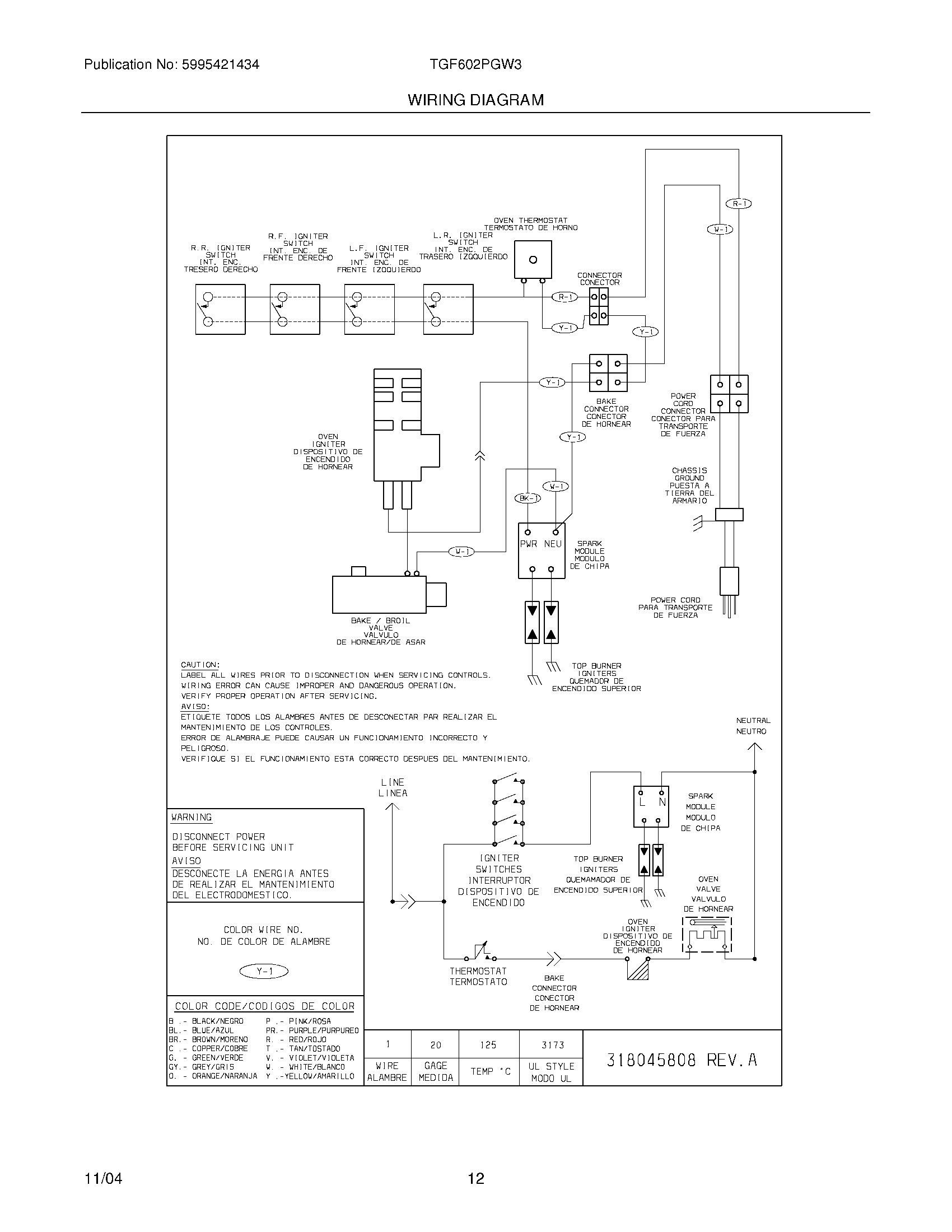

12 - WIRING DIAGRAM
Common parts from model Electrolux TGF602PGW3 RANGE
1
WCI 318076301 WCI 318076301 Contact Us For Availability
2
Liner,broiler door WCI 318135100 Contact Us For Availability
3
PANEL-BODY SIDE (WHITE) WCI 5303051061 Contact Us For Availability
4
Burner Box,top WCI 318133505 Contact Us For Availability
4
PANEL-DRAWER, WHITE WCI 5303281361 Contact Us For Availability
6
WCI 5303311539 WCI 5303311539 Contact Us For Availability
6
Shield-insulation WCI 318160301 Contact Us For Availability
7
HINGE-OVEN DOOR, RH WCI 3205894 Contact Us For Availability
7
WCI 318133770 WCI 318133770 Contact Us For Availability
9
PAN-BROILER WCI 318126200 Contact Us For Availability
9
WCI 318113002 WCI 318113002 Contact Us For Availability
10
INSERT-BROILER PAN WCI 318126300 Contact Us For Availability
10A
Burner,top ,rear WCI 5303131079 Contact Us For Availability
11
SCREW, 10 X 3/8 WCI 5303131801 Contact Us For Availability
11No.
WCI 318148504 WCI 318148504 Contact Us For Availability
12
Seal,oven door WCI 5308008022 Contact Us For Availability
13
CHANNEL-DRAWER WCI 318136700 Contact Us For Availability
13
Panel-oven door,white WCI 318158502 Contact Us For Availability
13A
CHANNEL-DRAWER WCI 318136701 Contact Us For Availability
16
Panel-main top,white WCI 318159401 Contact Us For Availability
17
WCI 318087200 WCI 318087200 Contact Us For Availability
18
WCI 5303202752 WCI 5303202752 Contact Us For Availability
20
WCI 5303272274 WCI 5303272274 Contact Us For Availability
20
WCI 3203676 WCI 3203676 Contact Us For Availability
20
WCI 5303310504 WCI 5303310504 Contact Us For Availability
25
WCI 318121701 WCI 318121701 Contact Us For Availability
30
WCI 318133771 WCI 318133771 Contact Us For Availability
33
COVER WIRE BACK WCI 318114301 Contact Us For Availability
36
Knob,control WCI 318016209 Contact Us For Availability
36
WCI 5303935079 WCI 5303935079 Contact Us For Availability
36
WCI 318089700 WCI 318089700 Contact Us For Availability
39
WCI 318144003 WCI 318144003 Contact Us For Availability
39
Handle,drawer WCI 5308008085 Contact Us For Availability
44
WCI 318088300 WCI 318088300 Contact Us For Availability
45
WCI 318024400 WCI 318024400 Contact Us For Availability
45A
WCI 318024401 WCI 318024401 Contact Us For Availability
56
TRIM-BODYSIDE, WHITE WCI 08013993 Contact Us For Availability
58A
WCI 318133712 WCI 318133712 Contact Us For Availability
58B
WCI 318133713 WCI 318133713 Contact Us For Availability
69
WCI 318036400 WCI 318036400 Contact Us For Availability
74
GROMMET,BODYSIDE WCI 3051063 Contact Us For Availability
76
WCI 318133902 WCI 318133902 Contact Us For Availability
77
WCI 318166701 WCI 318166701 Contact Us For Availability
83
WCI 318134300 WCI 318134300 Contact Us For Availability
83A
WCI 318134200 WCI 318134200 Contact Us For Availability
83B
WCI 5303324119 WCI 5303324119 Contact Us For Availability
83C
WCI 318134800 WCI 318134800 Contact Us For Availability
84
WCI 318134600 WCI 318134600 Contact Us For Availability
85
SPRING-OVEN DOOR WCI 5308008028 Contact Us For Availability
120
Support,oven rear WCI 3051096 Contact Us For Availability
131
Support,control panel WCI 318163000 Contact Us For Availability
140
SUPPORT ANTI-TIP WCI 3131041 Contact Us For Availability
149
Channel,wiring WCI 3131046 Contact Us For Availability
151
SHIELD-BODYSIDE,RH WCI 5303131053 Contact Us For Availability
151
Shield,bodyside ,LH WCI 5303131054 Contact Us For Availability
152
WCI 318135703 WCI 318135703 Contact Us For Availability
183
BOLT, SHOULDER WCI 08008037 Contact Us For Availability
209
Support,rail WCI 5303286692 Contact Us For Availability
227
SUPPORT-OVEN BOTTOM WCI 3131038 Contact Us For Availability
228
WCI 5303311537 WCI 5303311537 Contact Us For Availability
229
CLIP,BODYSIDE WCI 3131791 Contact Us For Availability
NI
SCREW,TRUSS HEAD,8-18 X 0.375 WCI 08016432 Contact Us For Availability
NI
WCI 5303300414 WCI 5303300414 Contact Us For Availability
NI
SCREW-SHOULDER WCI 3051050 Contact Us For Availability
× ![]()
