Model Electrolux TGF602PGD1 RANGE – Common Parts & Diagrams

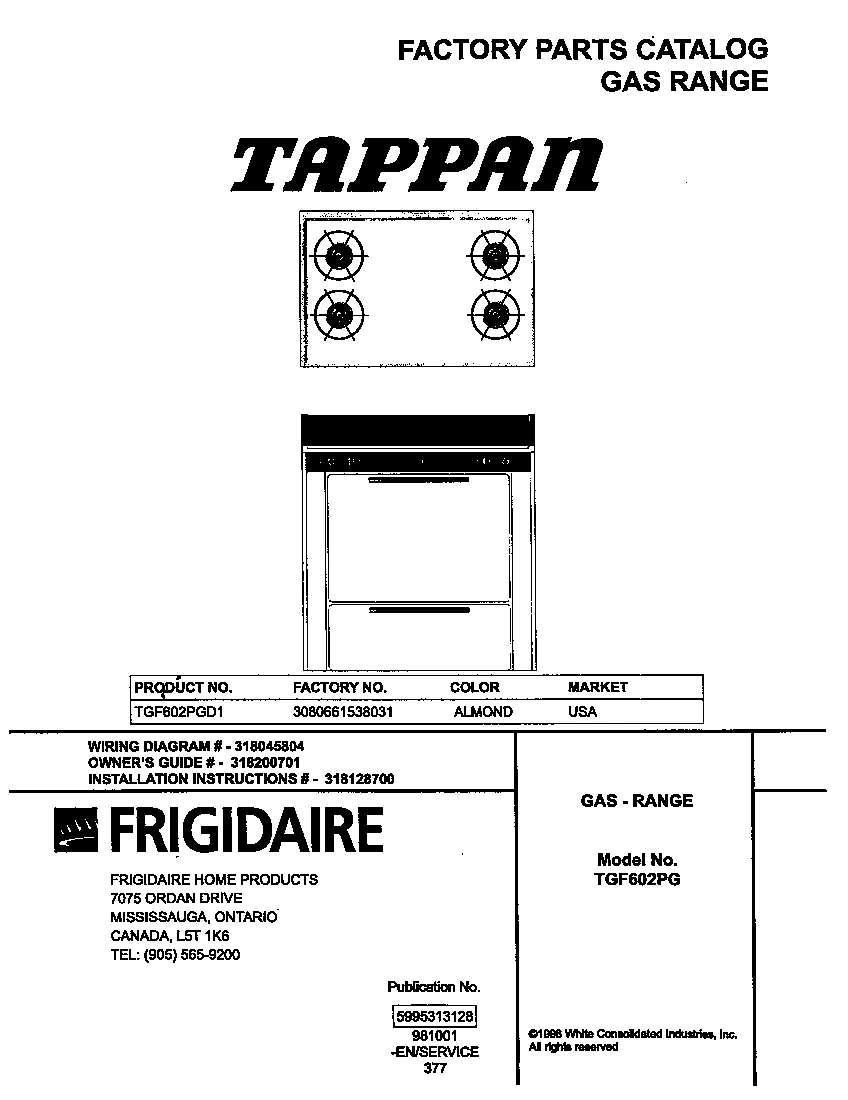

01 - COVER

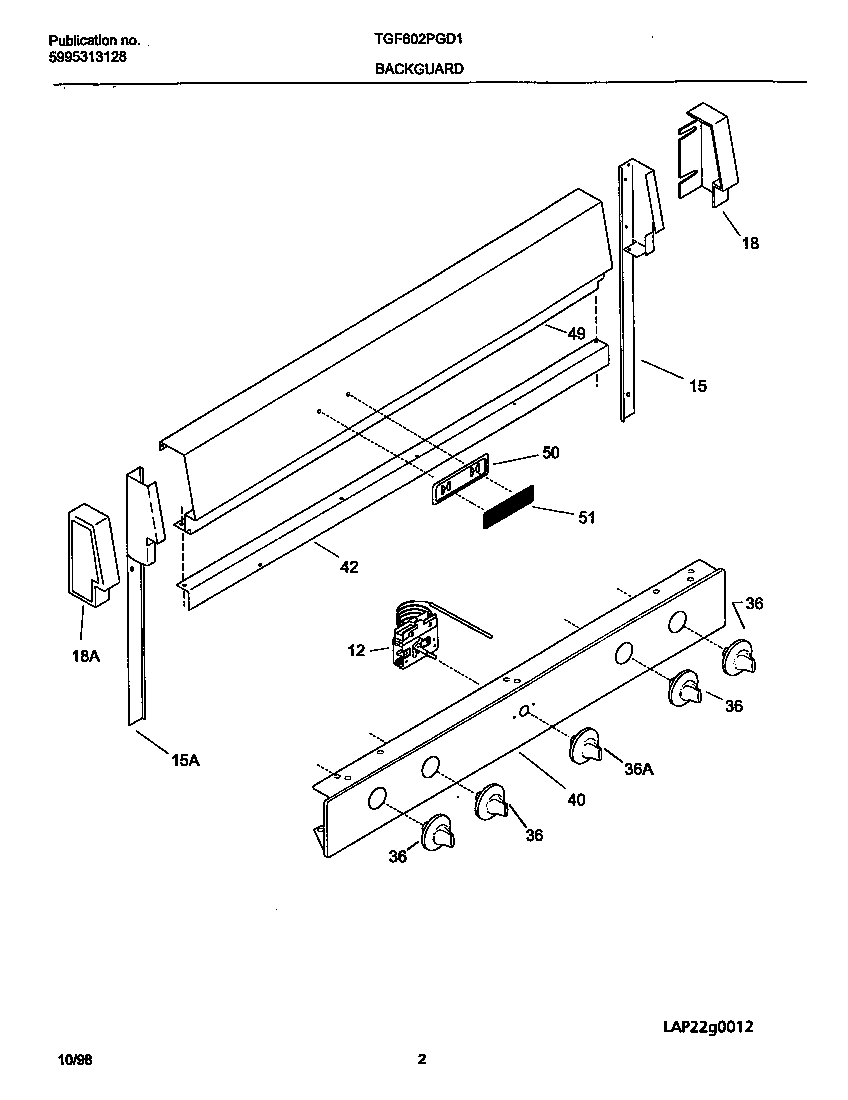

02 - BACKGUARD

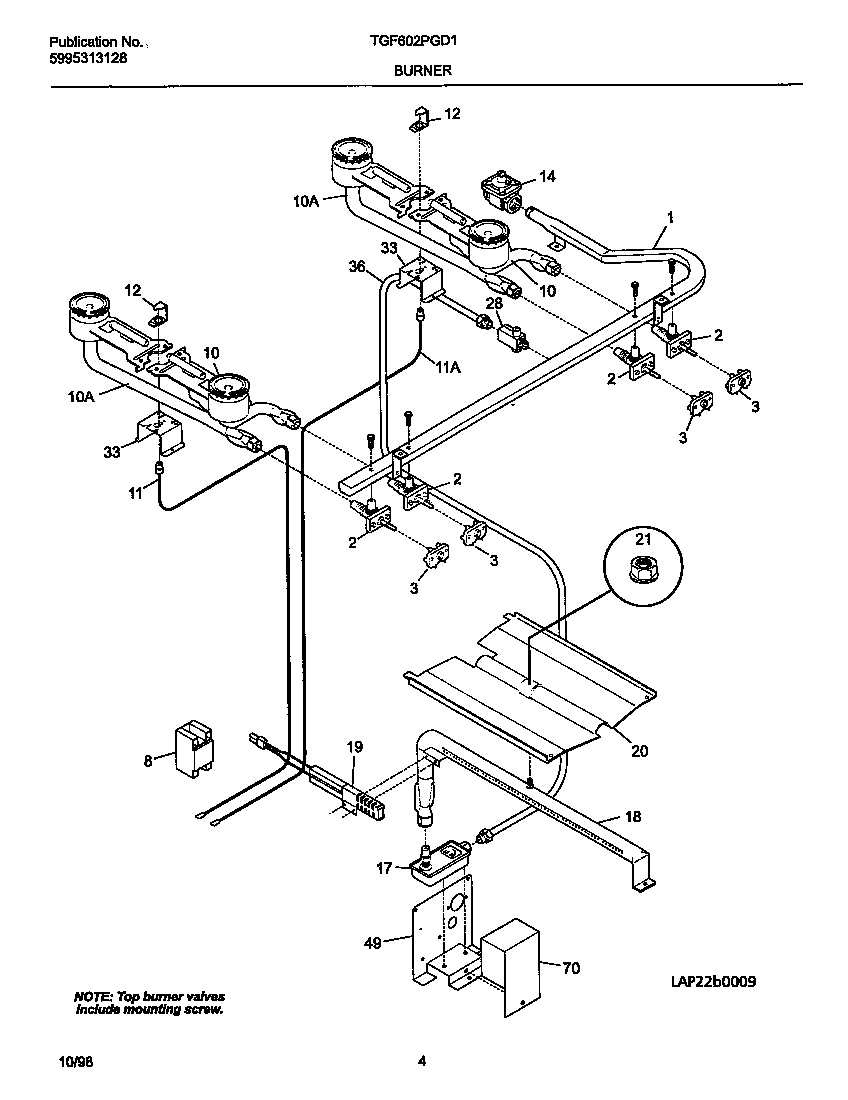

03 - BURNER

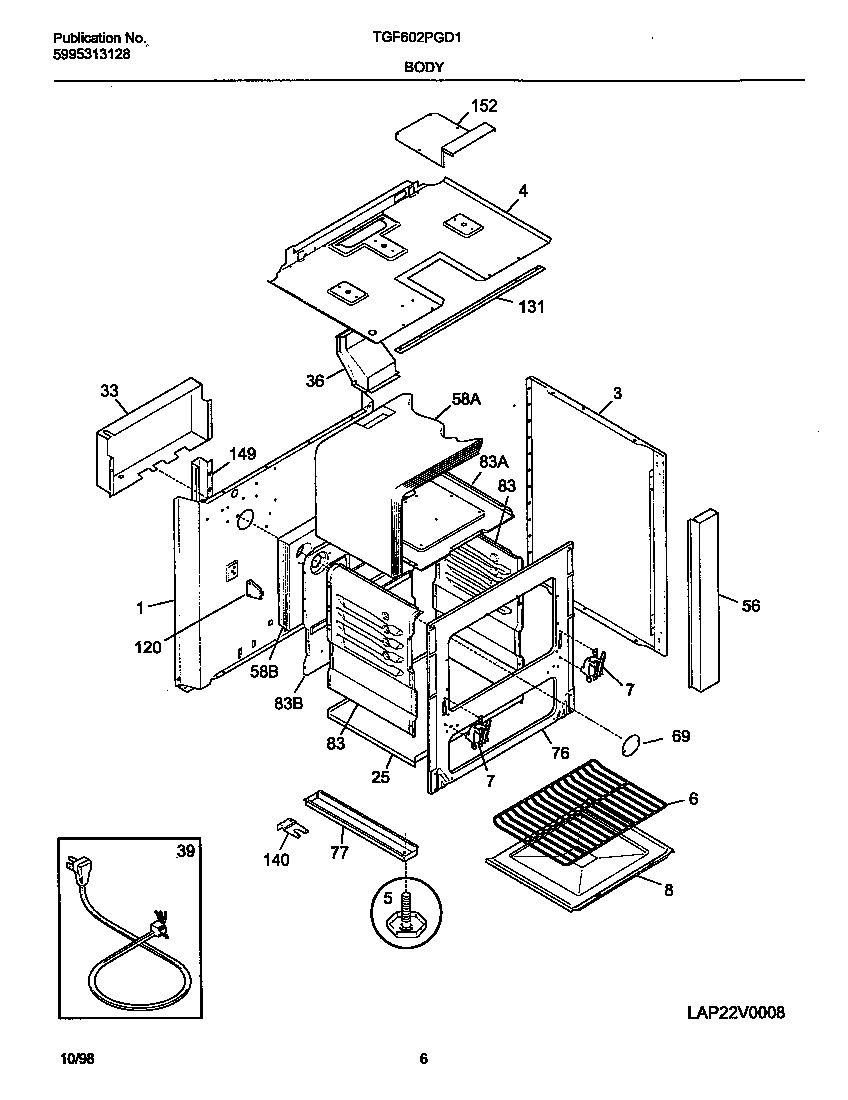

04 - BODY

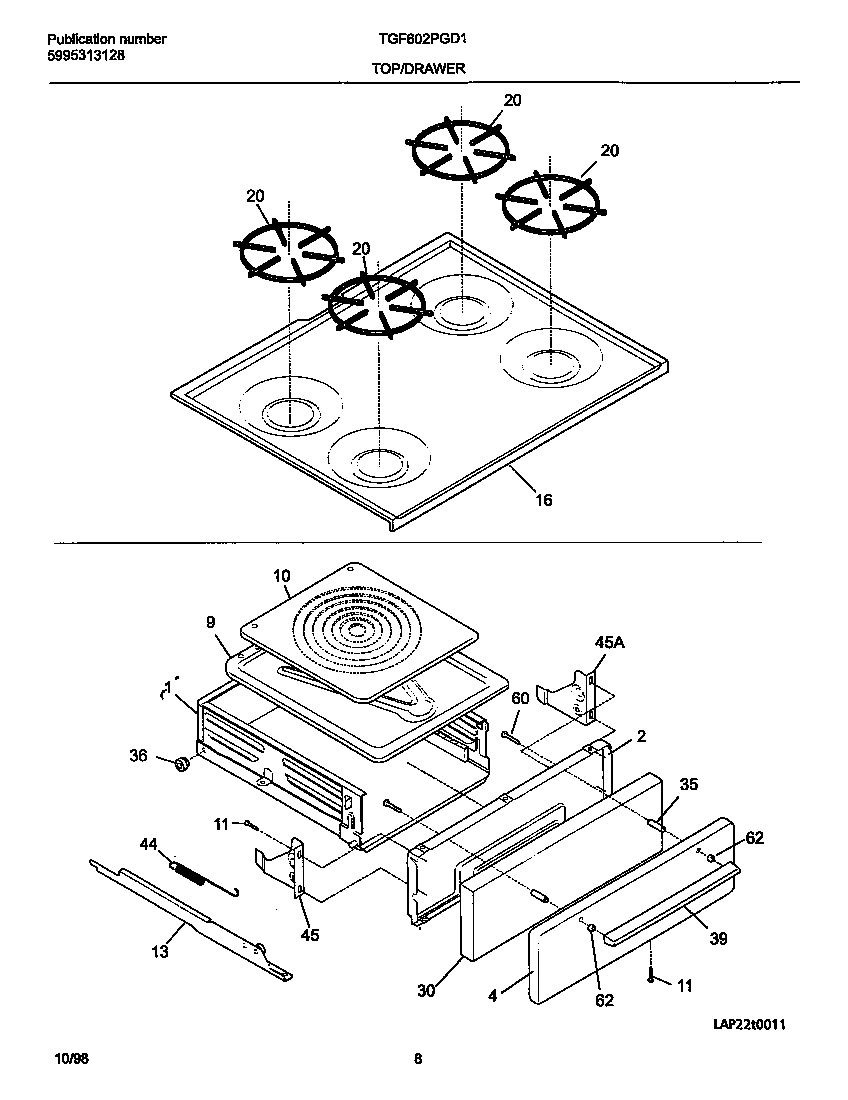

05 - TOP/DRAWER

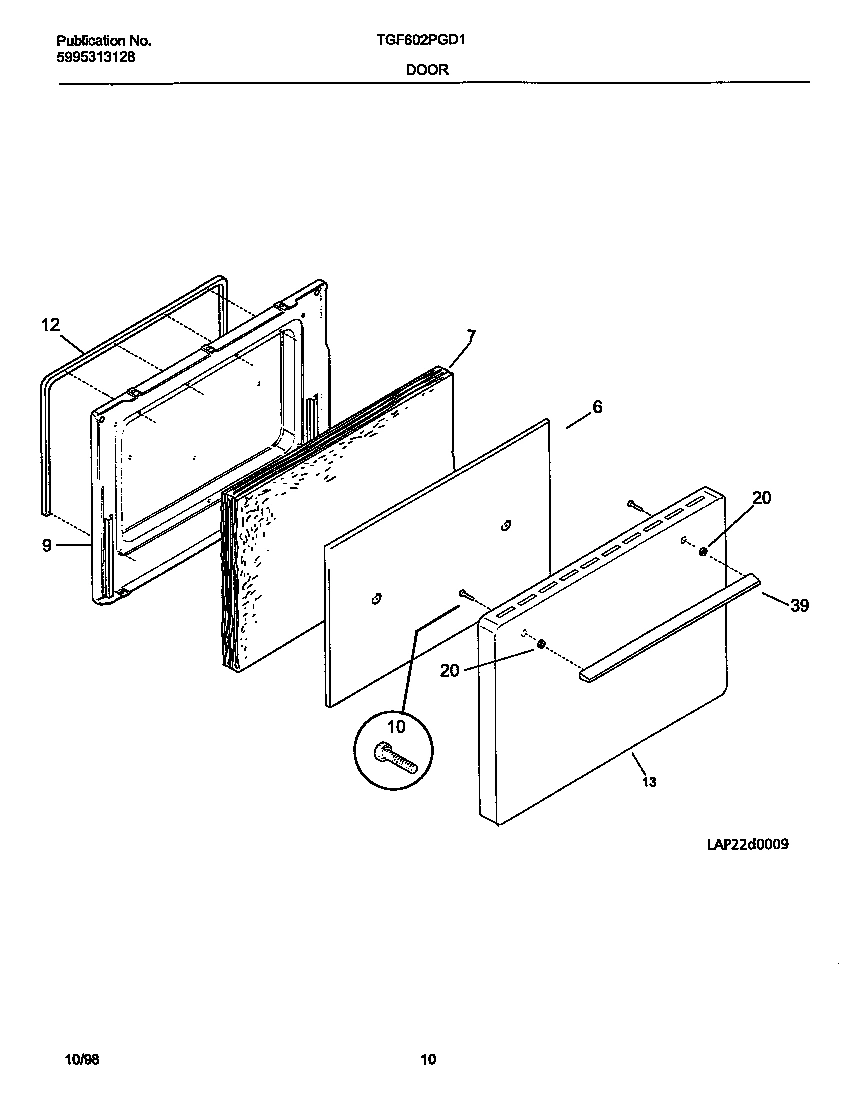

06 - DOOR

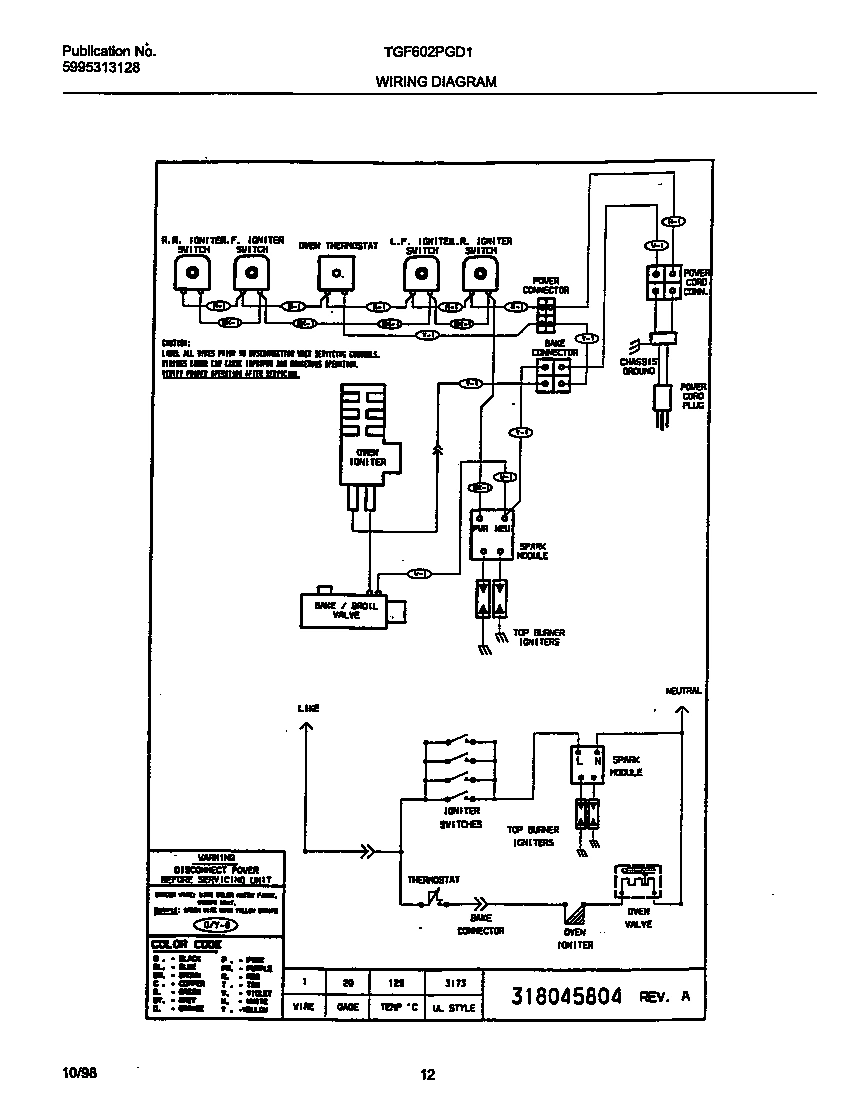

07 - WIRING DIAGRAM
Common parts from model Electrolux TGF602PGD1 RANGE
*97888
GROMMET,BODYSIDE WCI 3051063 Contact Us For Availability
*97889
CLIP,BODYSIDE WCI 3131791 Contact Us For Availability
*97890
WCI 3934063 WCI 3934063 Contact Us For Availability
*97891
SHIELD-BODYSIDE,RH WCI 5303131053 Contact Us For Availability
*97892
Shield,bodyside ,LH WCI 5303131054 Contact Us For Availability
*97893
WCI 5303311537 WCI 5303311537 Contact Us For Availability
*97894
SPRING-OVEN DOOR WCI 5308008028 Contact Us For Availability
*97896
SUPPORT-OVEN BOTTOM WCI 3131038 Contact Us For Availability
*97897
WCI 5303299689 WCI 5303299689 Contact Us For Availability
*97898
Rail,base ,RH WCI 5303210255 Contact Us For Availability
*97899
RAIL-BASE, LH WCI 5303210256 Contact Us For Availability
*97900
WCI 5303324119 WCI 5303324119 Contact Us For Availability
*97902
PLATE-OBSERVATION WCI 316042301 Contact Us For Availability
*97903
BOLT, SHOULDER WCI 08008037 Contact Us For Availability
*97906
WCI 5303323146 WCI 5303323146 Contact Us For Availability
*97907
WCI 318136700 WCI 318136700 Contact Us For Availability
1
WCI 318078003 WCI 318078003 Contact Us For Availability
1
WCI 318076300 WCI 318076300 Contact Us For Availability
2
WCI 318087100 WCI 318087100 Contact Us For Availability
2
WCI 318135100 WCI 318135100 Contact Us For Availability
3
Switch,ignitor ,(4) WCI 316032000 Contact Us For Availability
3
PANEL-BODYSIDE WCI 5308014019 Contact Us For Availability
4
WCI 318133505 WCI 318133505 Contact Us For Availability
4
PANEL-DRAWER WCI 5303281362 Contact Us For Availability
5
WCI 318175500 WCI 318175500 Contact Us For Availability
6
WCI 5303311539 WCI 5303311539 Contact Us For Availability
6
WCI 318160301 WCI 318160301 Contact Us For Availability
7
HINGE-OVEN DOOR, RH WCI 3205894 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 5303018345 Contact Us For Availability
8
WCI 5303912606 WCI 5303912606 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 5303286741 Contact Us For Availability
9
PAN-BROILER WCI 318126200 Contact Us For Availability
9
WCI 318113002 WCI 318113002 Contact Us For Availability
10
BURNER ASSY-TOP,REAR WCI 5303131079 No Longer Available
10
INSERT-BROILER PAN WCI 318126300 Contact Us For Availability
10
WCI 5303311551 WCI 5303311551 Contact Us For Availability
11
WCI 318083200 WCI 318083200 Contact Us For Availability
11
IGNITOR-TOP BURNER, BASE WCI 3203968 Contact Us For Availability
11
SCREW WCI 5303131801 Contact Us For Availability
12
Seal,oven door WCI 5308008022 Contact Us For Availability
12
WCI 5303311554 WCI 5303311554 Contact Us For Availability
13
WCI 318136701 WCI 318136701 Contact Us For Availability
13
WCI 318158503 WCI 318158503 Contact Us For Availability
16
WCI 318159402 WCI 318159402 Contact Us For Availability
17
WCI 318087200 WCI 318087200 Contact Us For Availability
18
WCI 5303202752 WCI 5303202752 Contact Us For Availability
20
WCI 5303272274 WCI 5303272274 Contact Us For Availability
20
WCI 3203676 WCI 3203676 Contact Us For Availability
20
SPACER-HANDLE WCI 5303310504 Contact Us For Availability
25
WCI 318121700 WCI 318121700 Contact Us For Availability
28
WCI 5303131099 WCI 5303131099 Contact Us For Availability
30
INSULATION, BROILER DRAWER WCI 3017184 Contact Us For Availability
33
BRACKET-BURNER MTG WCI 5303210471 Contact Us For Availability
33
WCI 318114301 WCI 318114301 Contact Us For Availability
36
WCI 318016209 WCI 318016209 Contact Us For Availability
36
WCI 5303935079 WCI 5303935079 Contact Us For Availability
36
WCI 5303323849 WCI 5303323849 Contact Us For Availability
36
WCI 318089700 WCI 318089700 Contact Us For Availability
39
WCI 5303308453 WCI 5303308453 Contact Us For Availability
39
Handle,drawer WCI 5308008085 Contact Us For Availability
44
WCI 318088300 WCI 318088300 Contact Us For Availability
45
WCI 318024400 WCI 318024400 Contact Us For Availability
45
WCI 318024401 WCI 318024401 Contact Us For Availability
49
BRACKET,SAFETY VALVE WCI 3131069 Contact Us For Availability
56
TRIM-BODYSIDE WCI 08013994 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 3017171 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 3017172 Contact Us For Availability
69
COVER HOLE-OVEN LIGHT WCI 318036400 Contact Us For Availability
70
Cover,safety valve WCI 3131088 Contact Us For Availability
76
WCI 318133900 WCI 318133900 Contact Us For Availability
77
Support,rail WCI 5303286692 Contact Us For Availability
83
WCI 318134200 WCI 318134200 Contact Us For Availability
83
WCI 318134300 WCI 318134300 Contact Us For Availability
83
WCI 318134600 WCI 318134600 Contact Us For Availability
83
WCI 318134800 WCI 318134800 Contact Us For Availability
120
Support,oven rear WCI 3051096 Contact Us For Availability
131
WCI 318163000 WCI 318163000 Contact Us For Availability
140
SUPPORT ANTI-TIP WCI 3131041 Contact Us For Availability
149
Channel,wiring WCI 3131046 Contact Us For Availability
152
WCI 318135703 WCI 318135703 Contact Us For Availability
× ![]()
